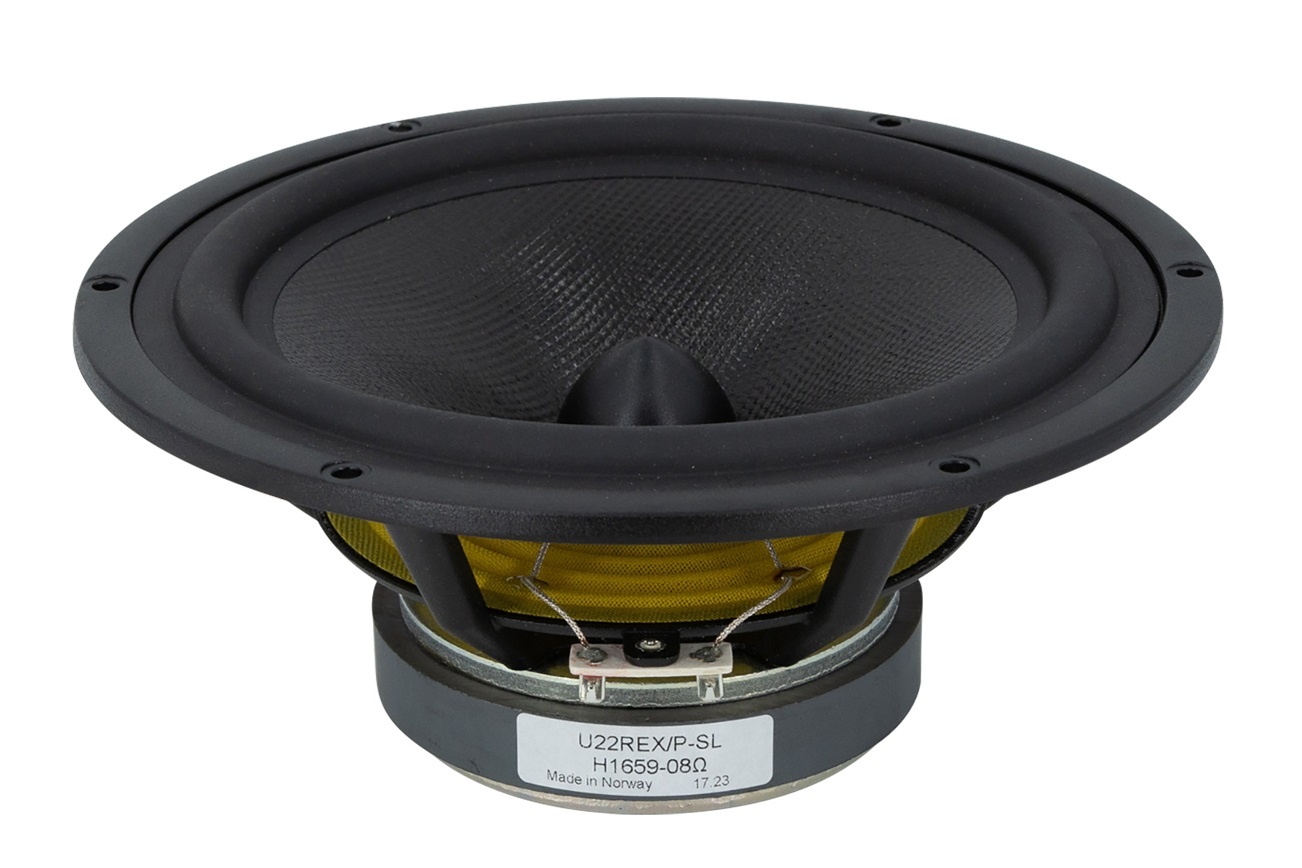

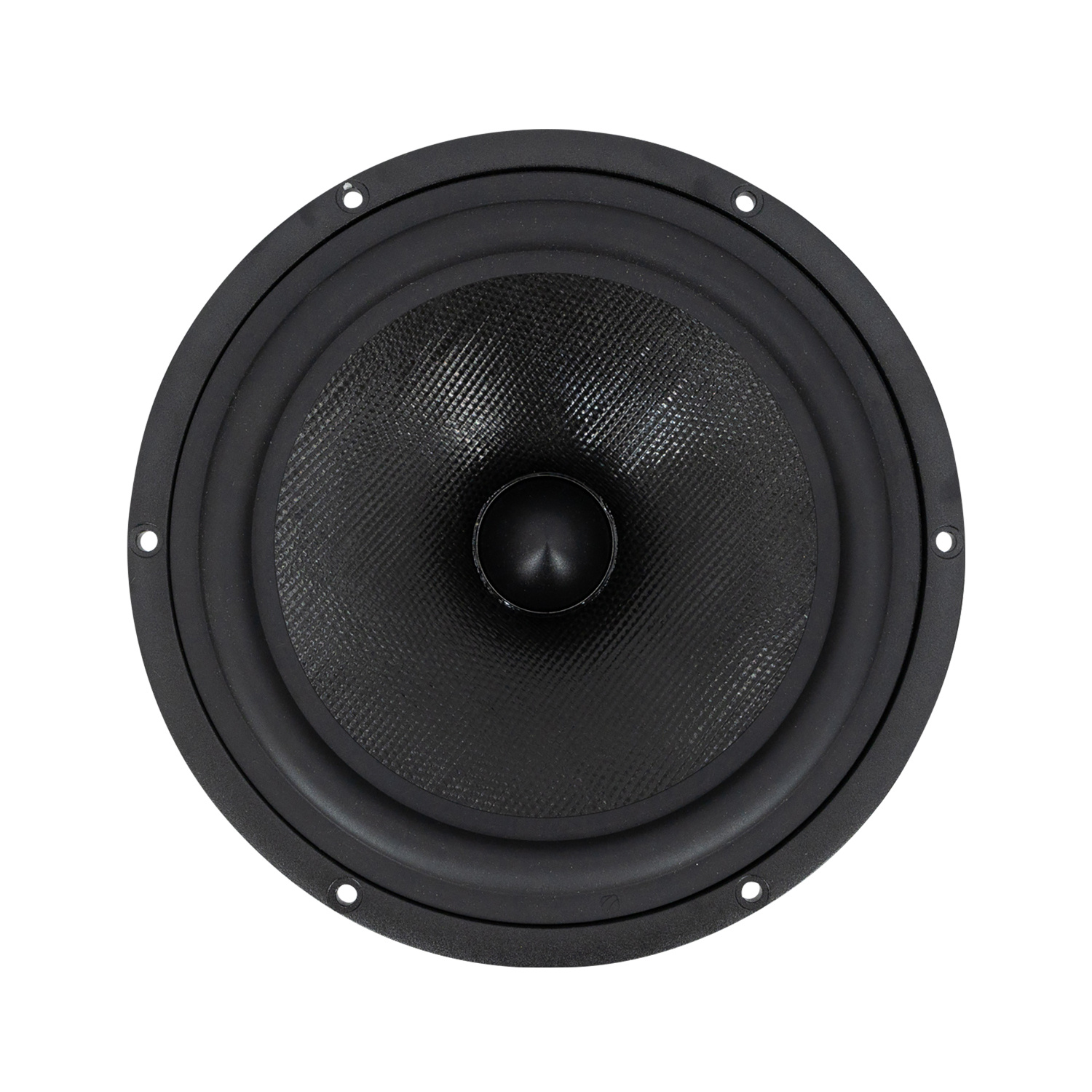

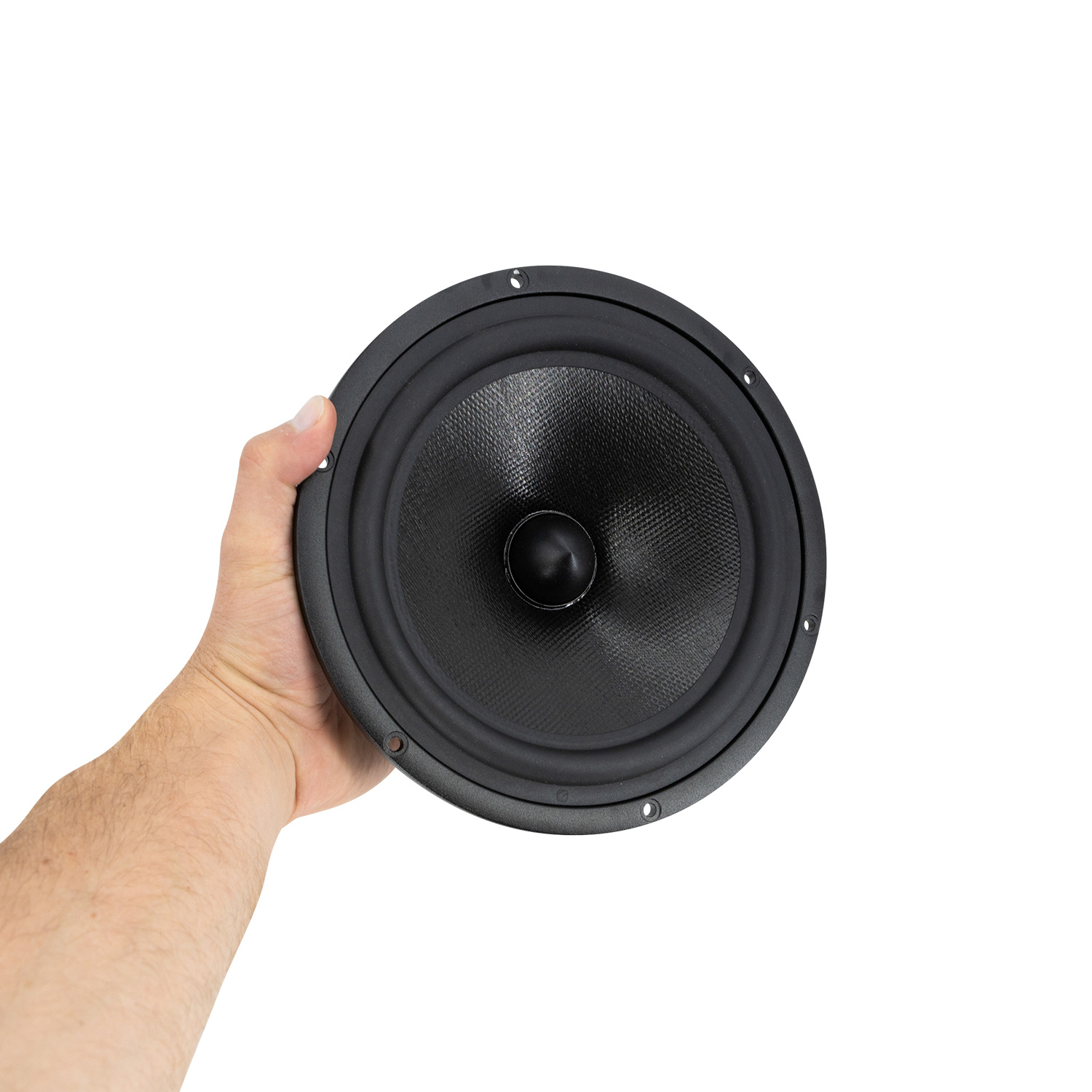

    SEAS Prestige U22REX/P-SL - H1659-08 8" Woven Poly Cone Woofer

    € 134,95 2 Op voorraad: levertijd 1 werkdag
    The U22REX/P-SL is a 8” High Fidelity woofer with an injection molded metal chassis, intended for bass reflex and transmission line designs. New Curv cone, a woven polypropylene with excellent internal damping together with perfectly matched moving parts... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €128,20 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Highlights

    • Long term power handling (RMS) is 100 Watts
    • New Curv cone, a woven polypropylene with excellent internal damping
    • Bullet shaped phase plug reduces compression, avoids resonance problems and increases the long term power handling capacity



    Product details

    Seas Prestige U22REX/P-SL - H1659-08 8" Woven Poly Cone Woofer



    The U22REX/P-SL is a 8” High Fidelity woofer with an injection molded metal chassis, intended for bass reflex and transmission line designs. New Curv cone, a woven polypropylene with excellent internal damping together with perfectly matched moving parts gives a smooth, extended frequency response.

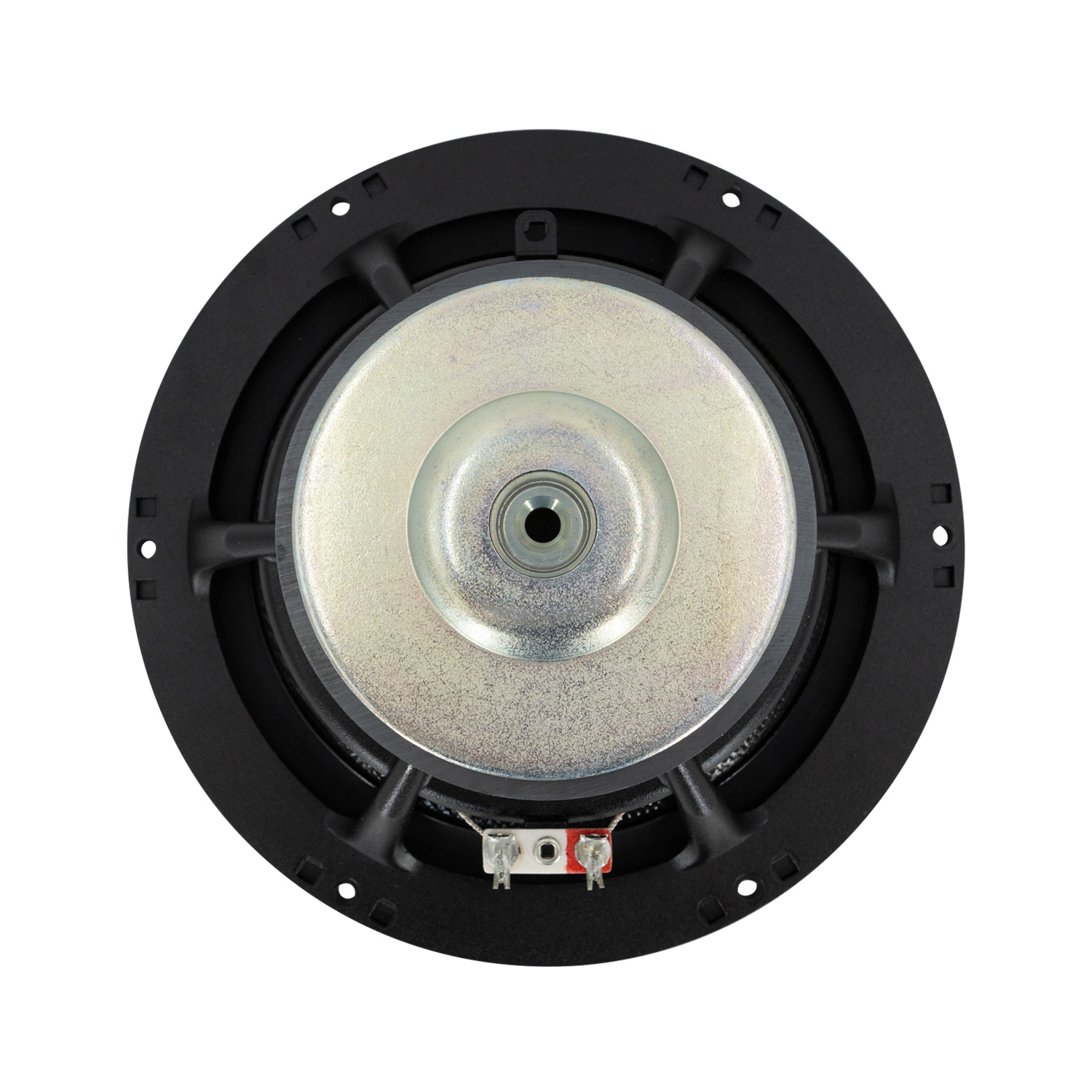

    Bumped back plate in the magnet system together with a high temperature voice coil wound on an aluminum voice coil former gives low distortion and high power handling capacity. Heavy copper ring below the T-shaped pole piece will reduce non linear and modulation distortion. Bullet shaped phase plug reduces compression due to temperature variations in the voice coil, avoids resonance problems which would occur in the volume between the dust cap and the pole piece and increases the long term power handling capacity.

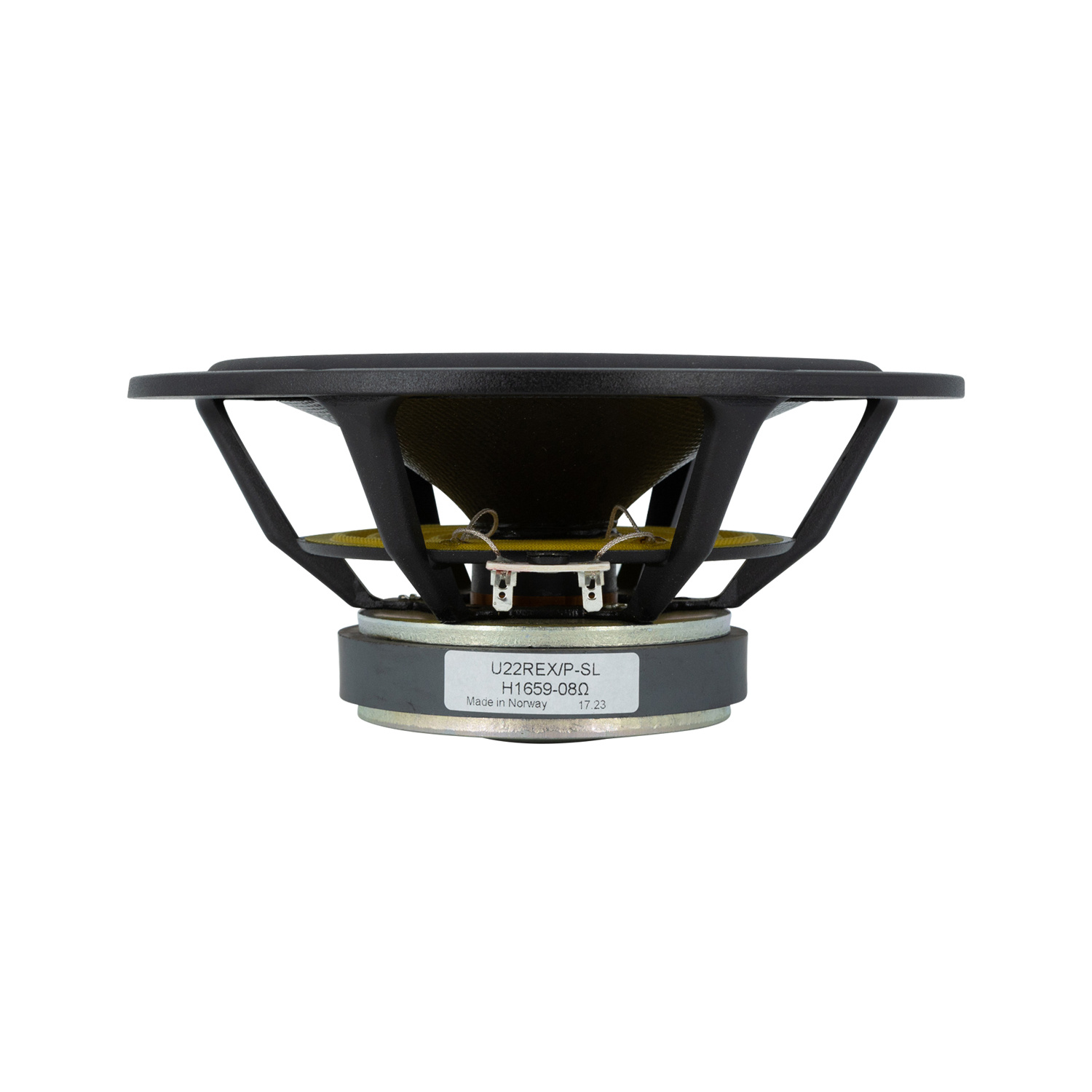

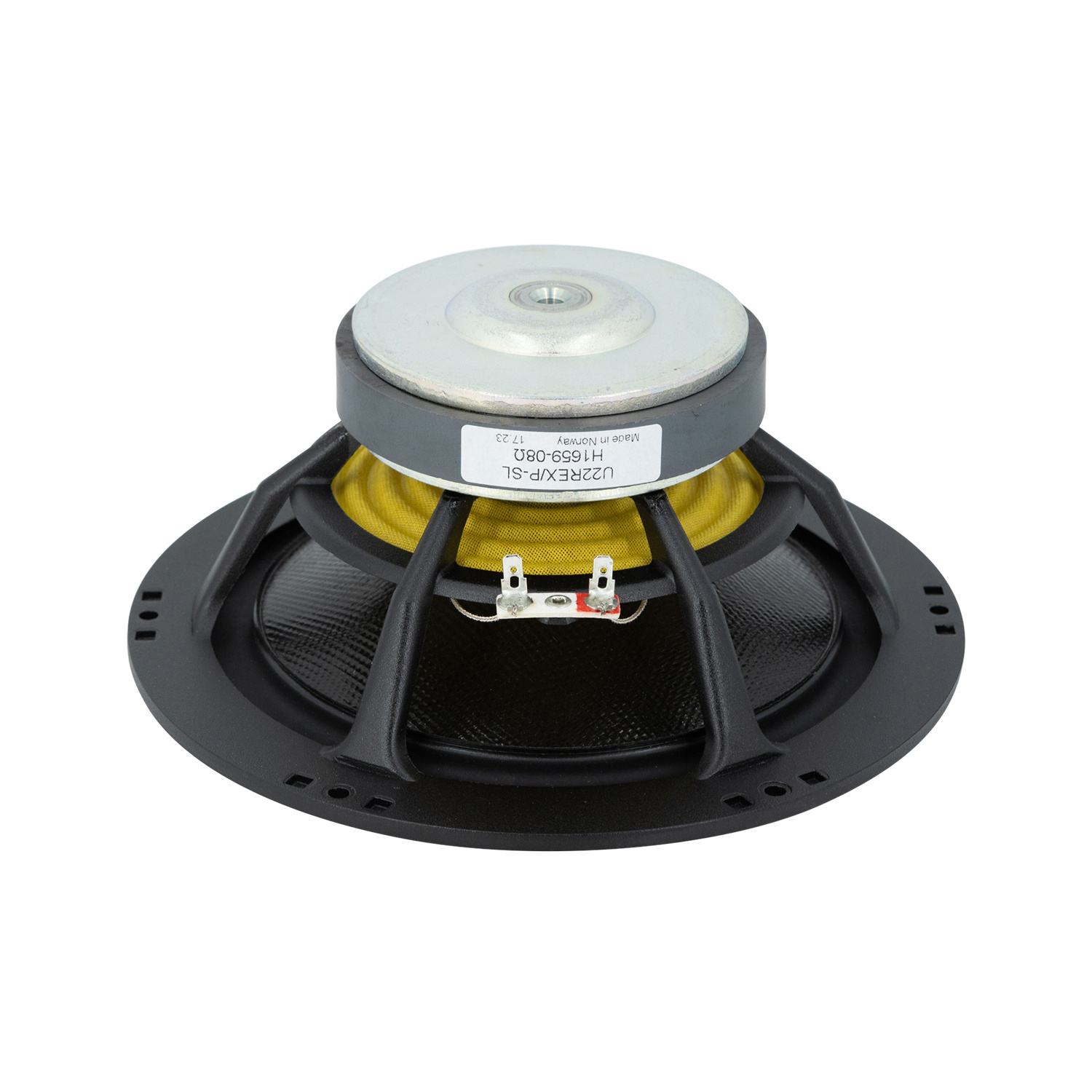

    Extremely stiff and stable injection molded metal basket, keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

    Specificaties

    Artikelnummer
    U22REX/P-SL
    Woofer Series
    Prestige Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    8"
    Power Handling (RMS)
    100 Watts
    Power Handling (max)
    250 Watts
    Impedance
    8 ohms
    Sensitivity
    90.5 dB 2.83V/1m
    Frequency Response
    29 to 4,000 Hz
    Voice Coil Diameter
    1.53"
    Magnet Weight
    45.8 oz.
    DC Resistance (Re)
    6 ohms
    Voice Coil Inductance (Le)
    0.7 mH
    Resonant Frequency (Fs)
    29 Hz
    Mechanical Q (Qms)
    1.77
    Electromagnetic Q (Qes)
    0.34
    Total Q (Qts)
    0.29
    Diaphragm Mass Inc. Airload (Mms)
    19.8g
    Mechanical Compliance of Suspension (Cms)
    1.7 mm/N
    Compliance Equivalent Volume (Vas)
    3.63 ft.³
    Maximum Linear Excursion (Xmax)
    4 mm
    Overall Outside Diameter
    8.69"
    Overall Depth
    3.76"
    Baffle Cutout Diameter
    7.34"
    Bolt Circle Diameter
    8.25"
    # Mounting Holes
    6
    Mounting Hole Diameter
    0.2"
