    SEAS Prestige U16RCY/P - H1520 6" Curv Cone Woofer

    € 92,45 Niet op voorraad: binnen 1 week leverbaar
    U16RCY/P is a 5” High Fidelity woofer with an injection moulded metal chassis, intended for bass reflex and transmission line designs. New Curv cone, a woven polypropylene with excellent internal damping together with perfectly matched moving parts gives... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €87,83 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Highlights

    • Long term power handling (RMS) is 60 Watts
    • Injection moulded metal chassis, intended for bass reflex and transmission line designs
    • Seas SpiderRing® technology



    Product details

    Seas Prestige U16RCY/P - H1520 6" Curv Cone Woofer

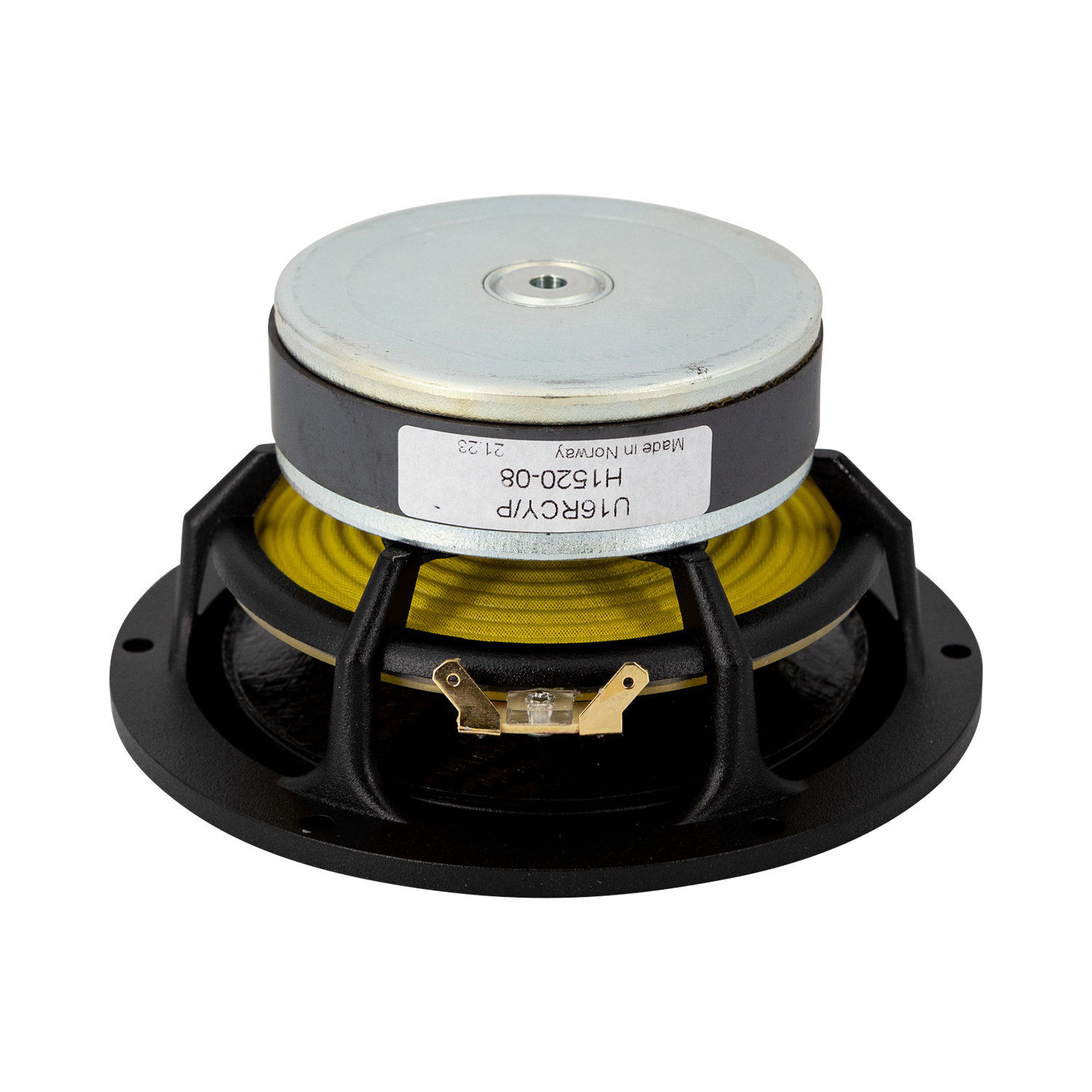

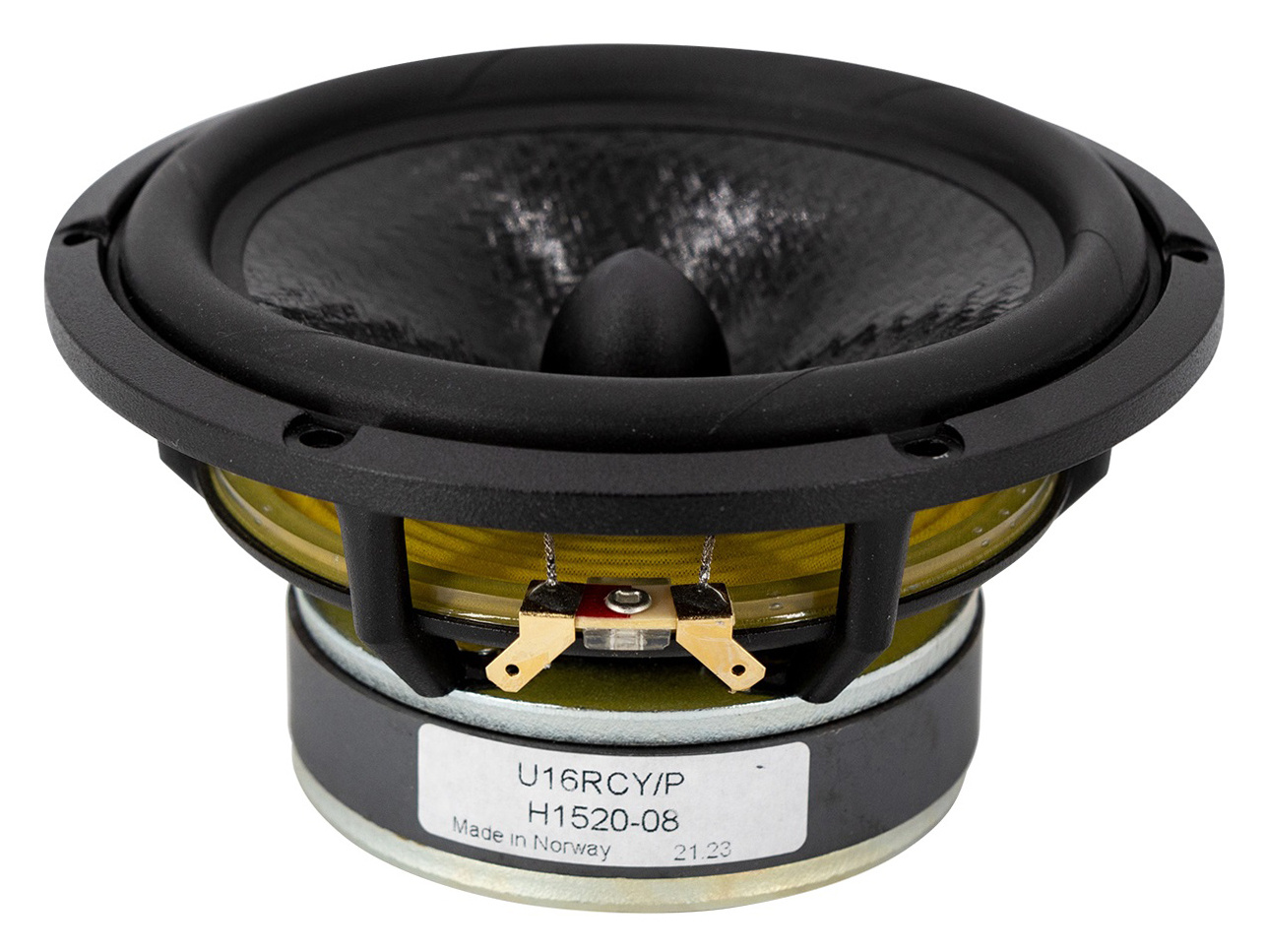

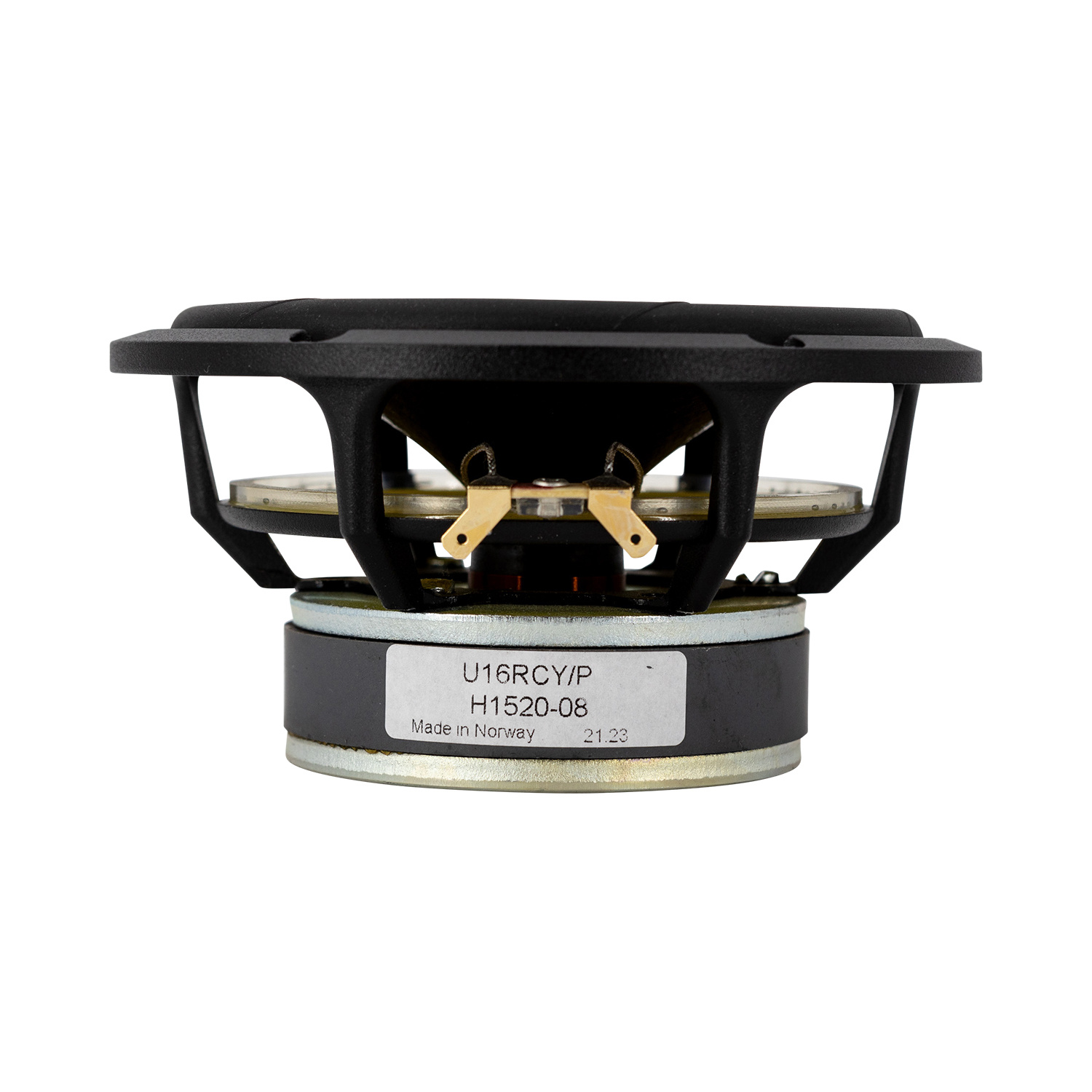

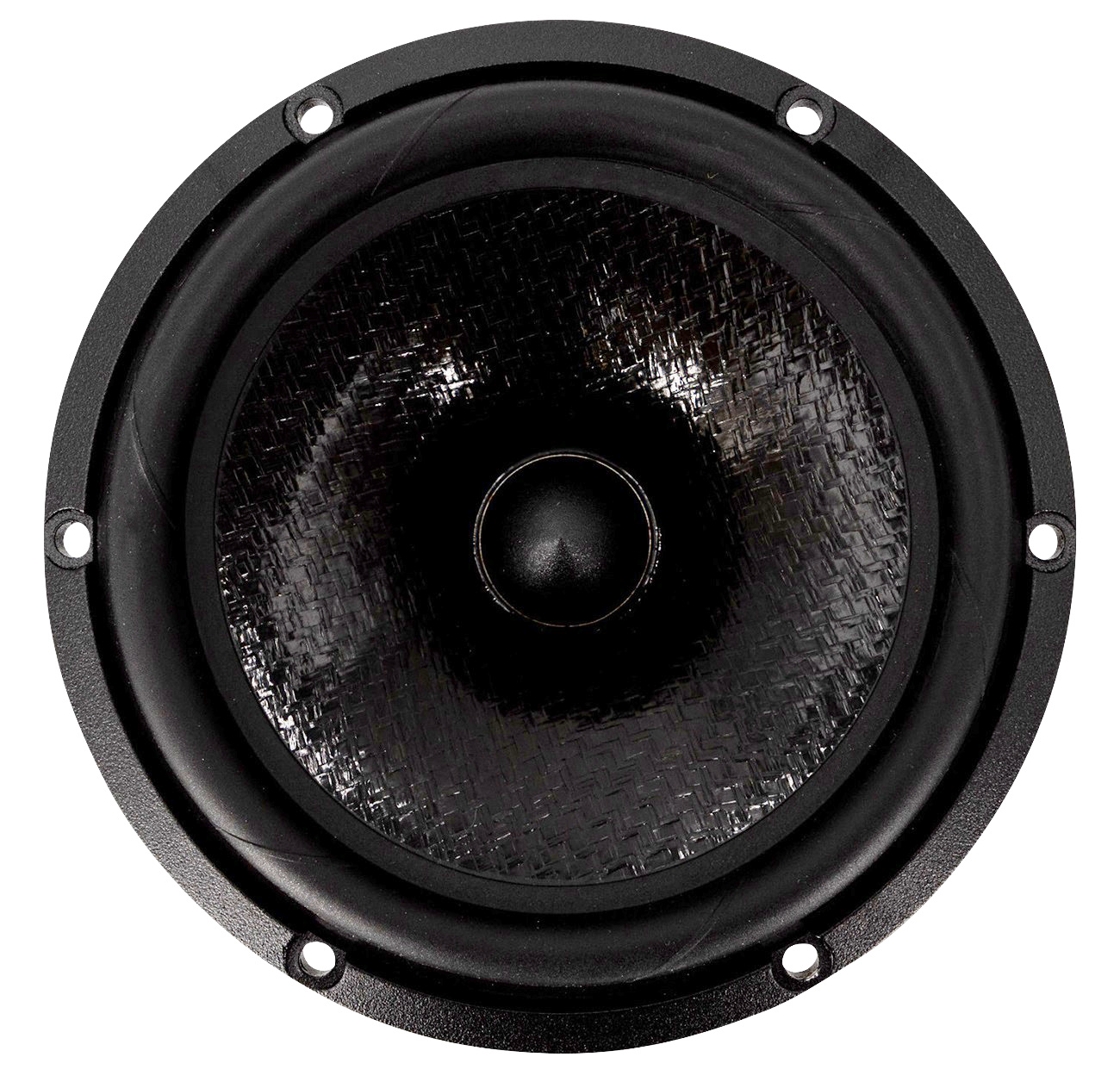

    U16RCY/P is a 5” High Fidelity woofer with an injection moulded metal chassis, intended for bass reflex and transmission line designs. New Curv cone, a woven polypropylene with excellent internal damping together with perfectly matched moving parts gives a smooth, extended frequency response. A unique radial reinforced low loss rubber surround reduces radial resonances and prevents surround break up at large excursions.



    Bullet shaped phase plug reduces compression due to temperature variations in the voice coil, avoids resonance problems which would occur in the volume between the dust cap and the pole piece and increases the long term power handling capacity.



    Extremely stiff and stable injection moulded metal basket, keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum. This driver uses Seas SpiderRing® technology.

    Specificaties

    Artikelnummer
    U16RCY/P
    Woofer Series
    Prestige Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    6"
    Power Handling (RMS)
    60 Watts
    Power Handling (max)
    250 Watts
    Impedance
    8 ohms
    Sensitivity
    87 dB 2.83V/1m
    Frequency Response
    45 to 3,000 Hz
    Voice Coil Diameter
    0.87"
    Magnet Weight
    14.8 oz.
    DC Resistance (Re)
    6.2 ohms
    Voice Coil Inductance (Le)
    0.81 mH
    Resonant Frequency (Fs)
    36 Hz
    Mechanical Q (Qms)
    2.19
    Electromagnetic Q (Qes)
    0.38
    Total Q (Qts)
    0.32
    Diaphragm Mass Inc. Airload (Mms)
    10.26g
    Mechanical Compliance of Suspension (Cms)
    1.9 mm/N
    Compliance Equivalent Volume (Vas)
    0.88 ft.³
    Maximum Linear Excursion (Xmax)
    4 mm
    Overall Outside Diameter
    5.75"
    Overall Depth
    2.78"
    Baffle Cutout Diameter
    4.96"
    Bolt Circle Diameter
    5.39"
    # Mounting Holes
    6
    Mounting Hole Diameter
    0.2"
