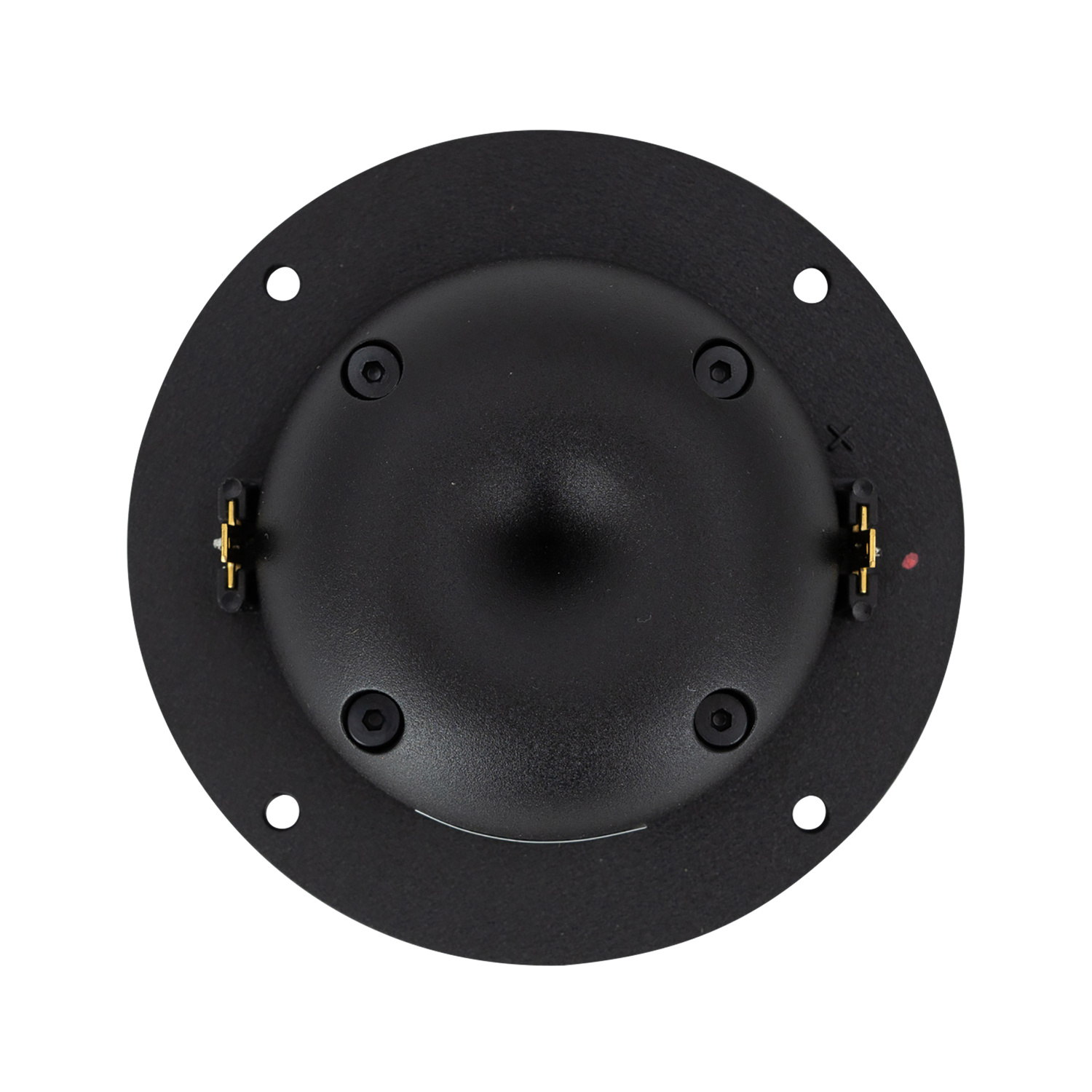

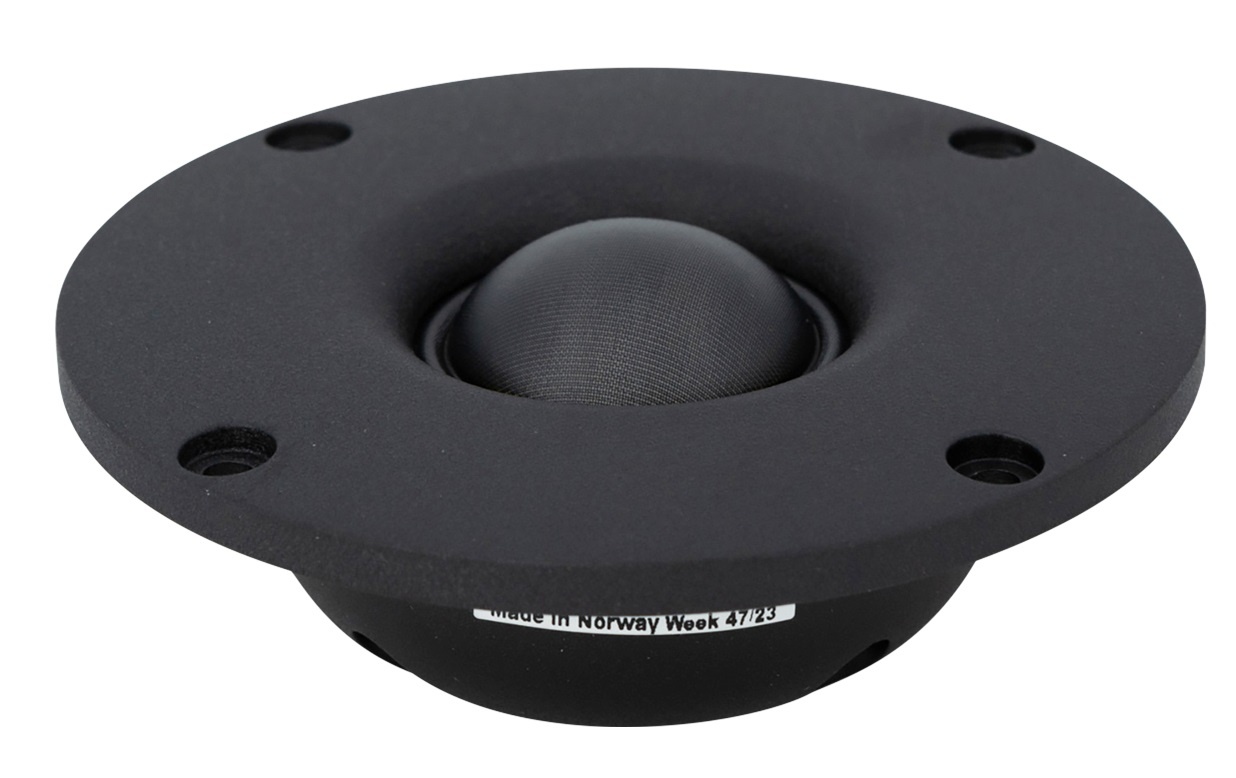

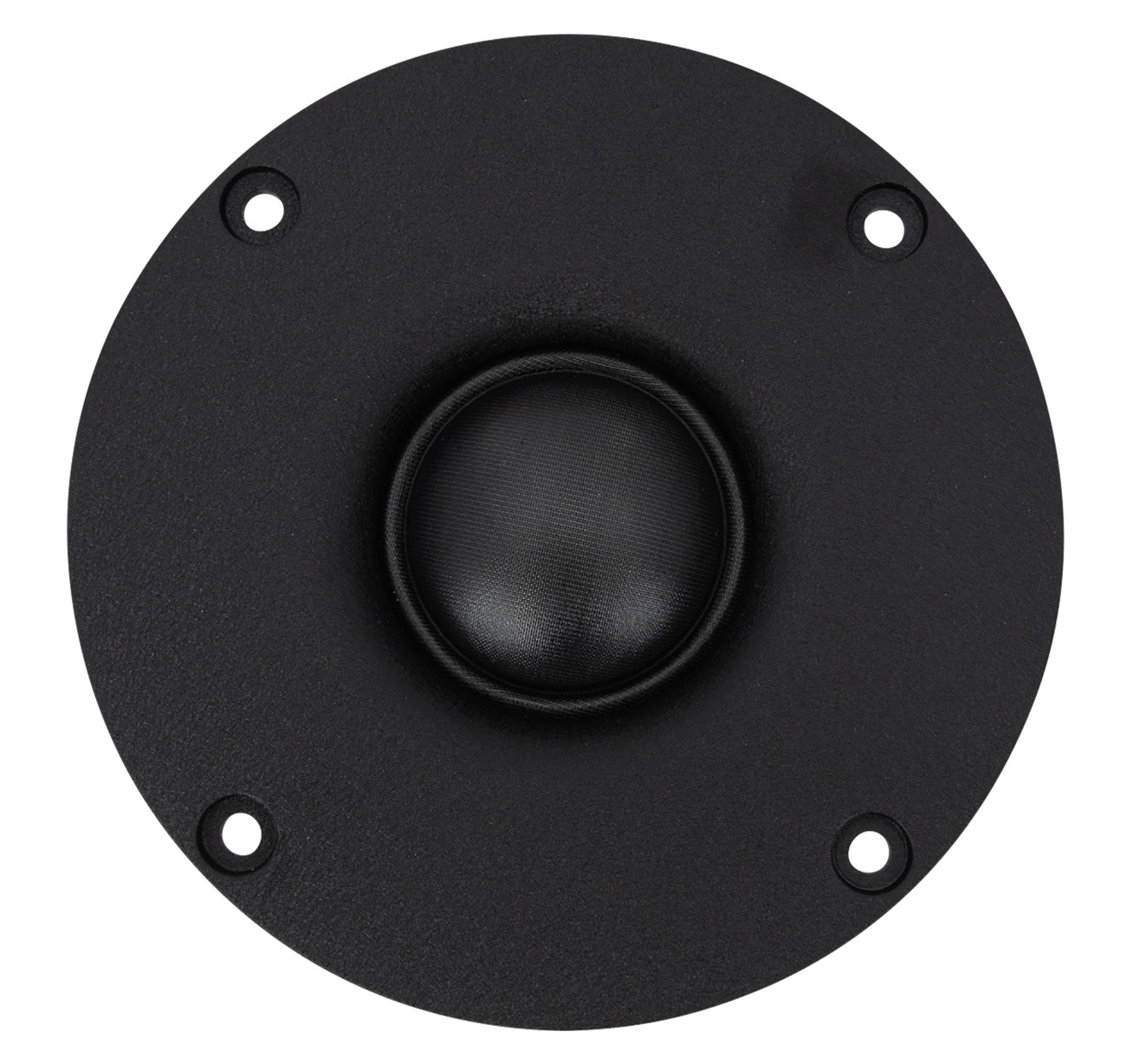

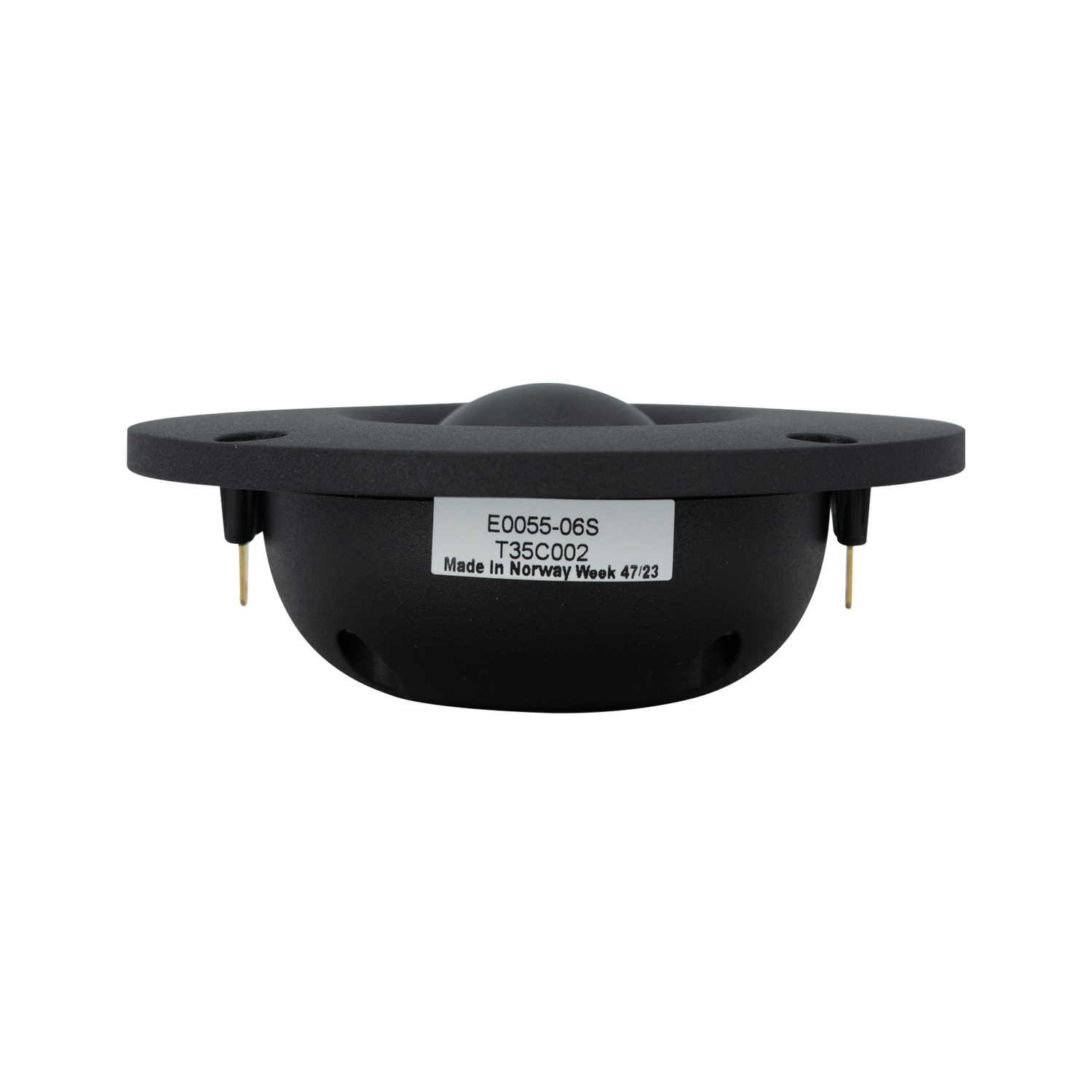

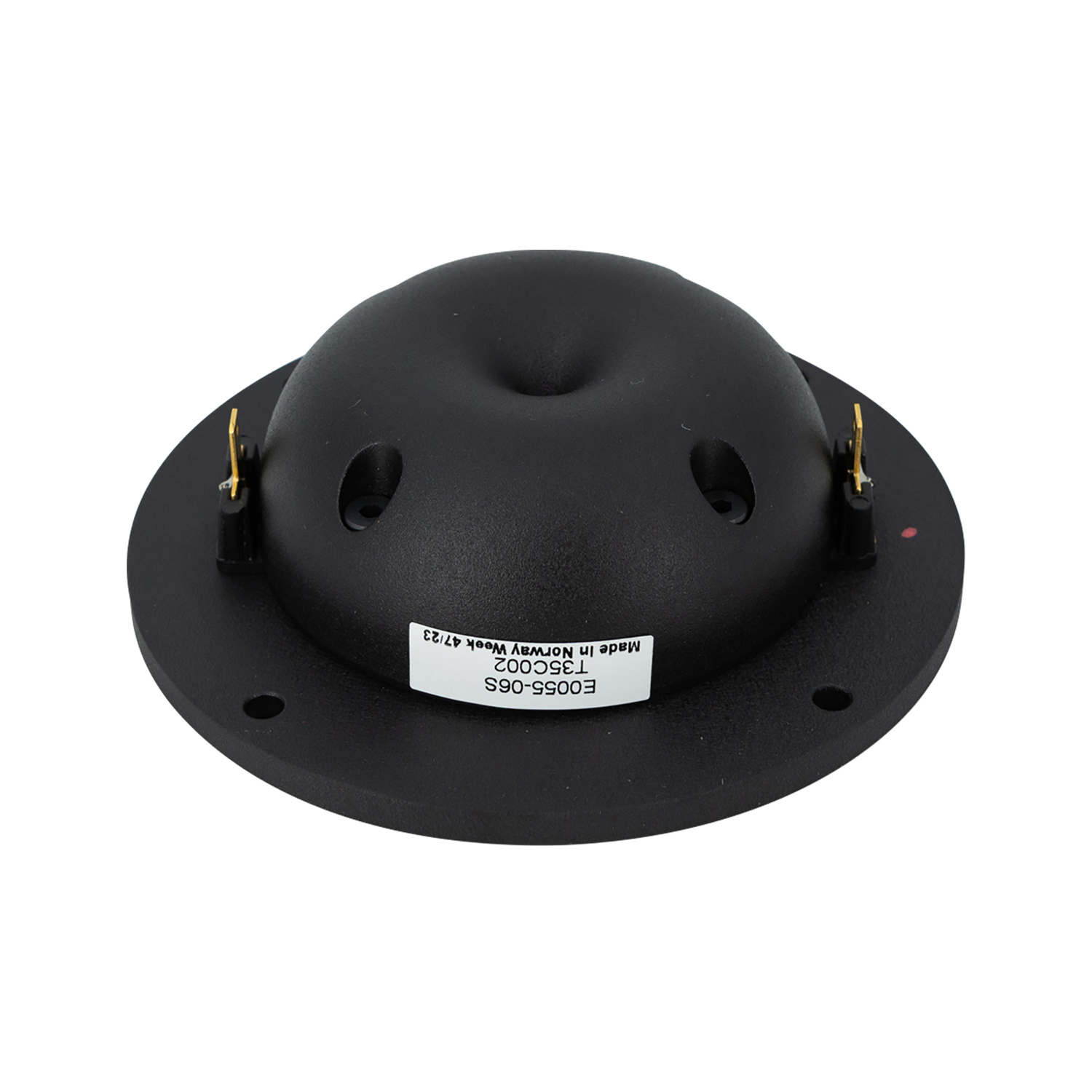

    SEAS Excel T35C002 - E0055 1-1/2" Coated Fabric Dome Tweeter

    € 234,95 Niet op voorraad: binnen 1 week leverbaar
    The T35C002 is a classic dome midrange tweeter with high sensitivity and a smooth, extended frequency response. A coated fabric dome with integral surround manufactured by Dr. K. Müller in Germany ensures excellent performance and consistency. This suppli... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €223,20 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    Highlights

    • The top plate and T-yoke are CNC machined for excellent precision
    • 100 Watts RMS Power Handling
    • 95 dB 2.83V/1m Sensitivity



    Product details

    Seas Excel T35C002 - E0055 1-1/2" Coated Fabric Dome Tweeter



    The T35C002 is a classic dome midrange tweeter with high sensitivity and a smooth, extended frequency response. A coated fabric dome with integral surround manufactured by Dr. K. Müller in Germany ensures excellent performance and consistency. This supplier was among the first in the world to offer fabric dome diaphragms, and did produce the diaphragm for the famous 1.5” Dome Tweeter H087, developed by Seas in 1968.



    A small, high efficiency Neodymium ring magnet in a carefully designed system contributes to high sensitivity and low distortion. The top plate and T-yoke are CNC machined for excellent precision. A well damped vented pole and a rigid rear chamber ensure a low resonance frequency and smooth response. A generously underhung 35mm voice coil wound from copper-clad aluminum wire further enhances the sensitivity.



    Flexible lead-out wires and venting holes in the aluminum coil former help reduce noise to a minimum. A 7 mm thick precision die-cast aluminum front plate with moderate horn loading ensures linear frequency response and represents an extremely stable platform for the magnet system and the moving parts.

    Specificaties

    Artikelnummer
    T35C002
    Tweeter Type
    Dome
    Tweeter Series
    Excel Series
    Cone / Dome Diameter
    1-1/2"
    Power Handling (RMS)
    100 Watts
    Impedance
    6 ohms
    Sensitivity
    95 dB 2.83V/1m
    Frequency Response
    1,500 to 25,000 Hz
    Resonant Frequency (Fs)
    620 Hz
    DC Resistance (Re)
    4.6 ohms
    Voice Coil Inductance (Le)
    0.06 mH
    Overall Outside Diameter
    4.33"
    Cutout Diameter
    2.93"
    Depth
    1.4"
