        Excel T29CF002  - E0040-06S 1-1/8" Soft Dome Tweeter

        Excel T29CF002 - E0040-06S 1-1/8" Soft Dome Tweeter

        €419,95

        SEAS Excel T29CF002 - E0040-06S 1-1/8" Soft Dome Tweeter

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: SEAS
        € 347,07€ 419,95 6 Op voorraad
        • -5% Bestel 4 voor slechts € 398,95 per stuk

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, morgen bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving

        Highlights

        • Underhung voice coil with flexible lead-out wires, ensures low distortion even with low crossover frequencies
        • 90 Watts RMS Power Handling
        • 92.5 dB 2.83V/1m Sensitivity



        Product details

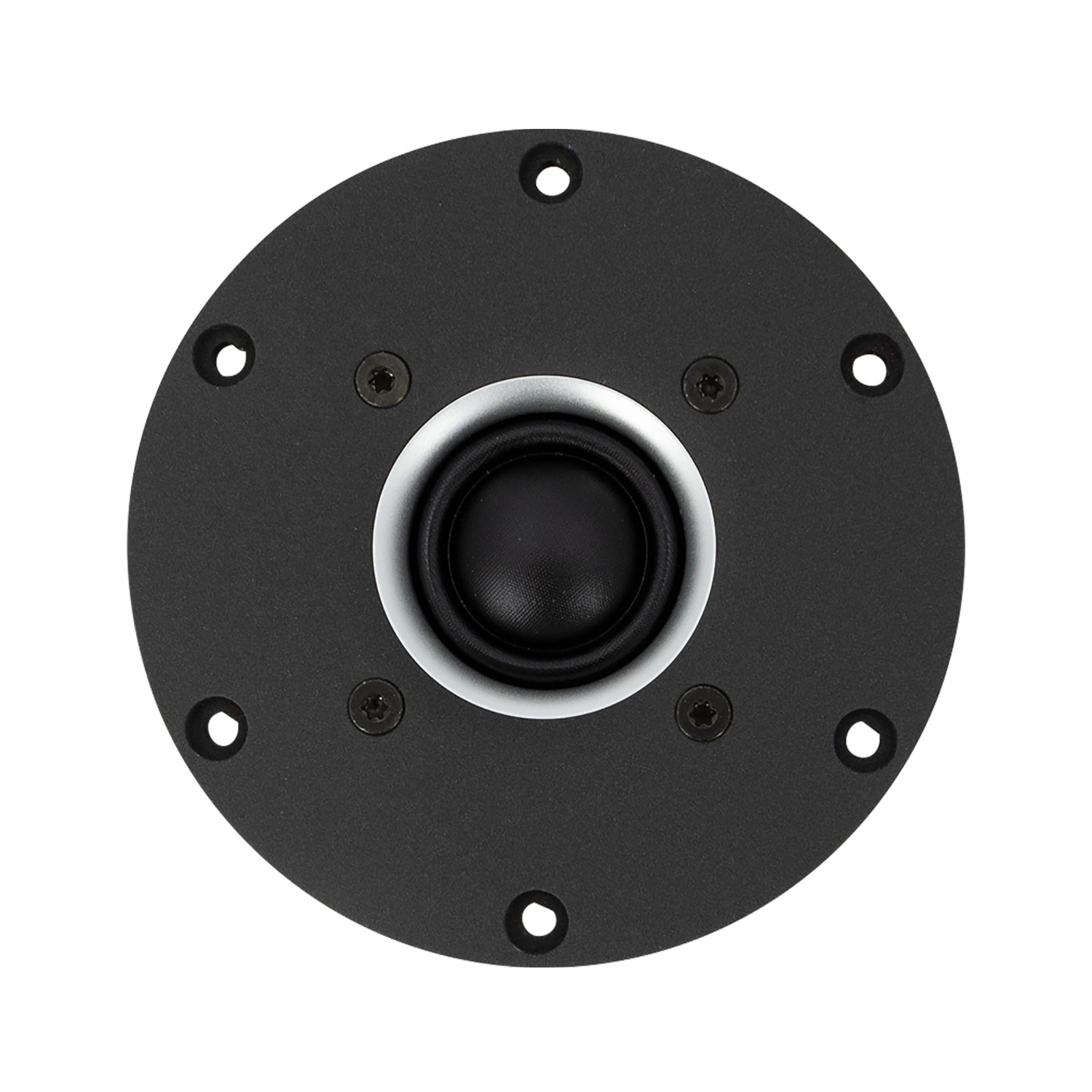

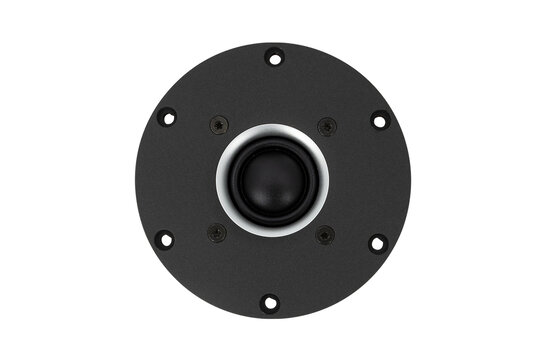

        Seas Excel T29CF002  - E0040-06S 1-1/8" Soft Dome Tweeter



        The T29CF002 ”CRESCENDO” is an Ultra High End 29mm soft dome tweeter with a HEXADYM magnet system. An optimally shaped dome and integrated wide surround manufactured by SEAS from SONOMEX ensure excellent performance and consistency.



        A high efficiency HEXADYM magnet system (US Patent 6020805) based on 6 radially magnetized NdFeB magnet blocks provide efficient ventilation and damping of cavities behind the dome, surround and voice coil. Moderate magnetic stray fields represent no problems in AV installations. A generously underhung voice coil with flexible lead-out wires, ensures low distortion even with low crossover frequencies.

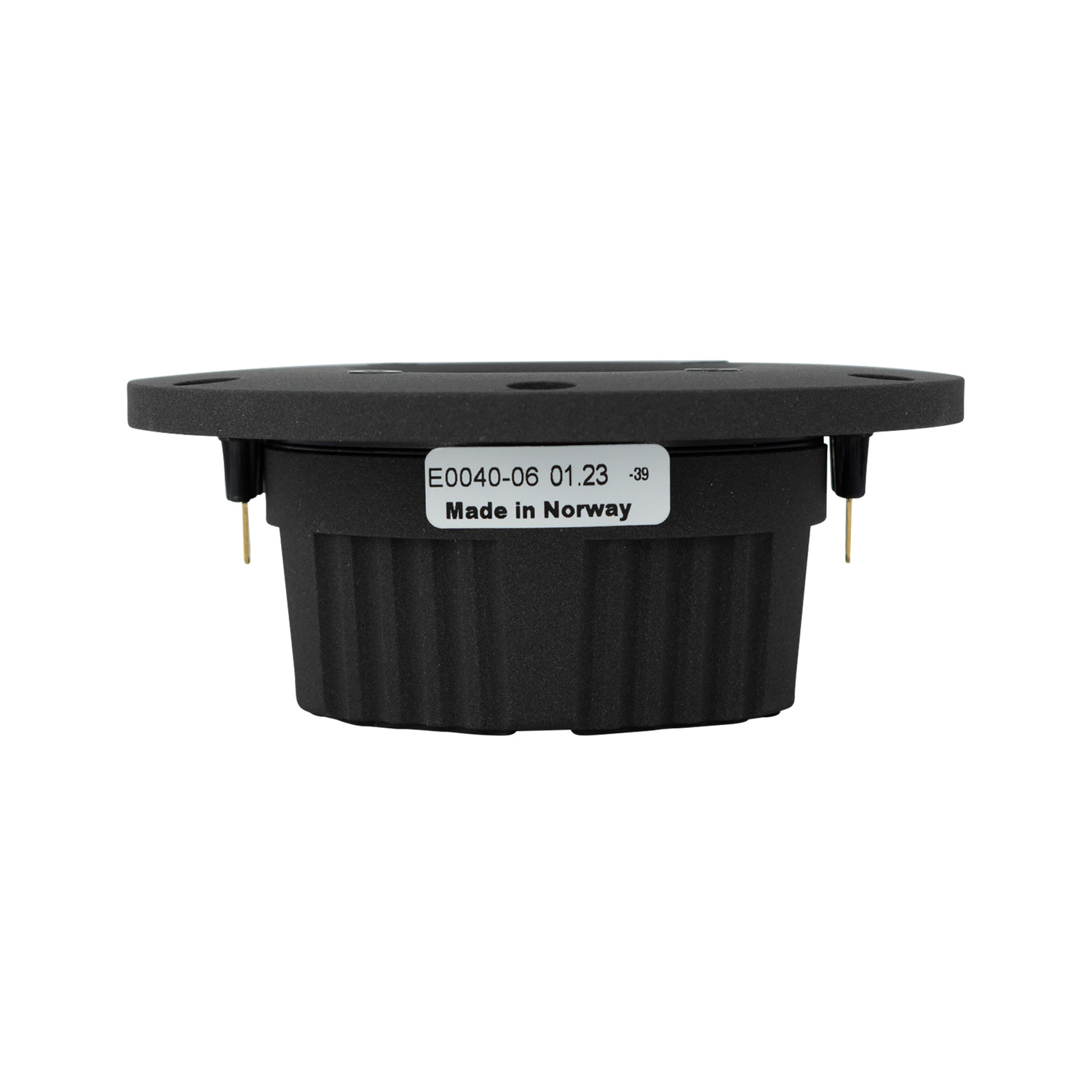

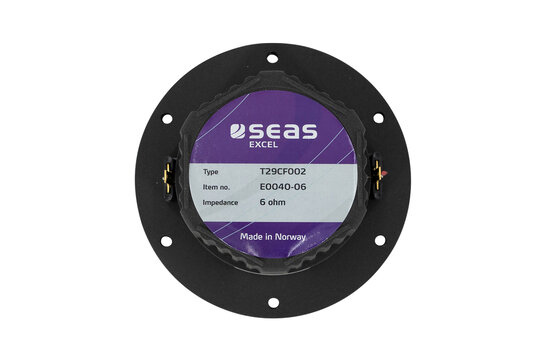

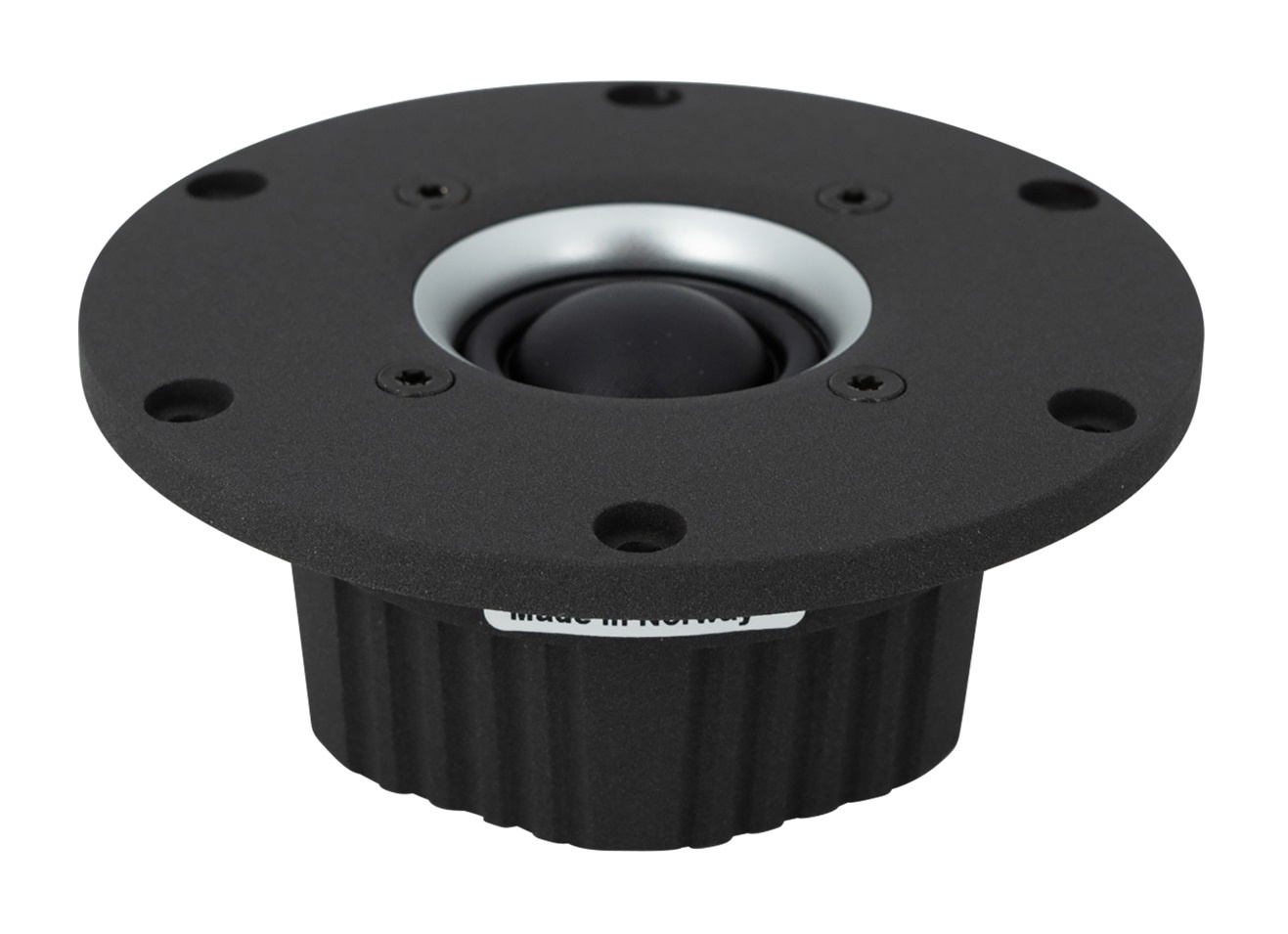

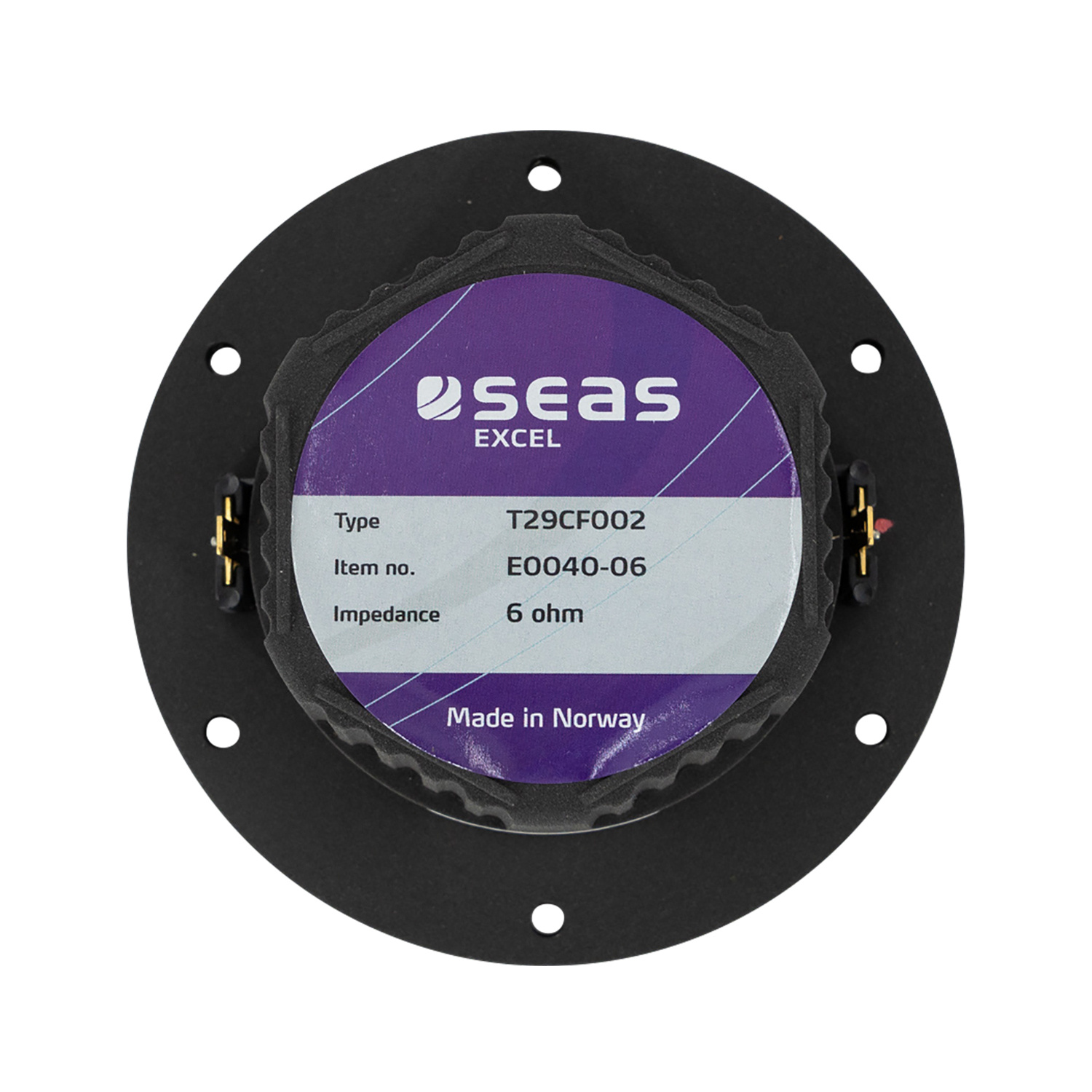

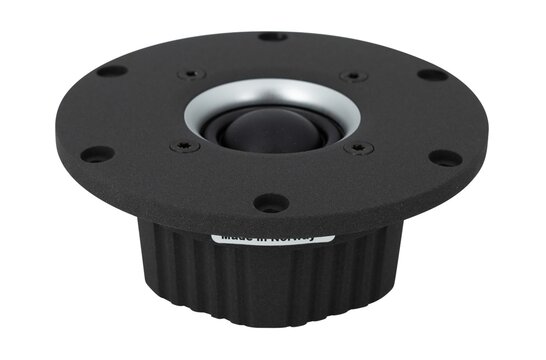

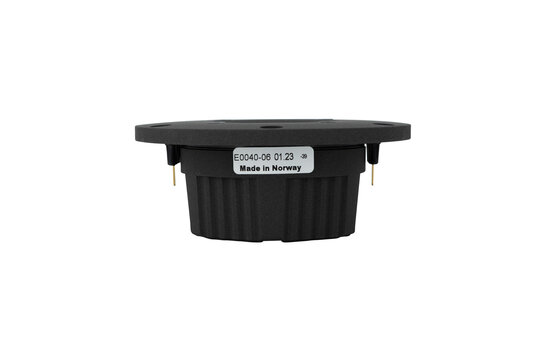

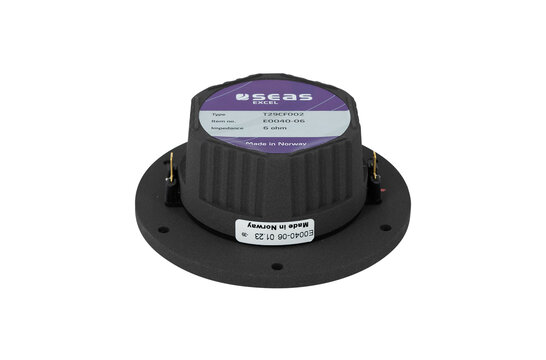

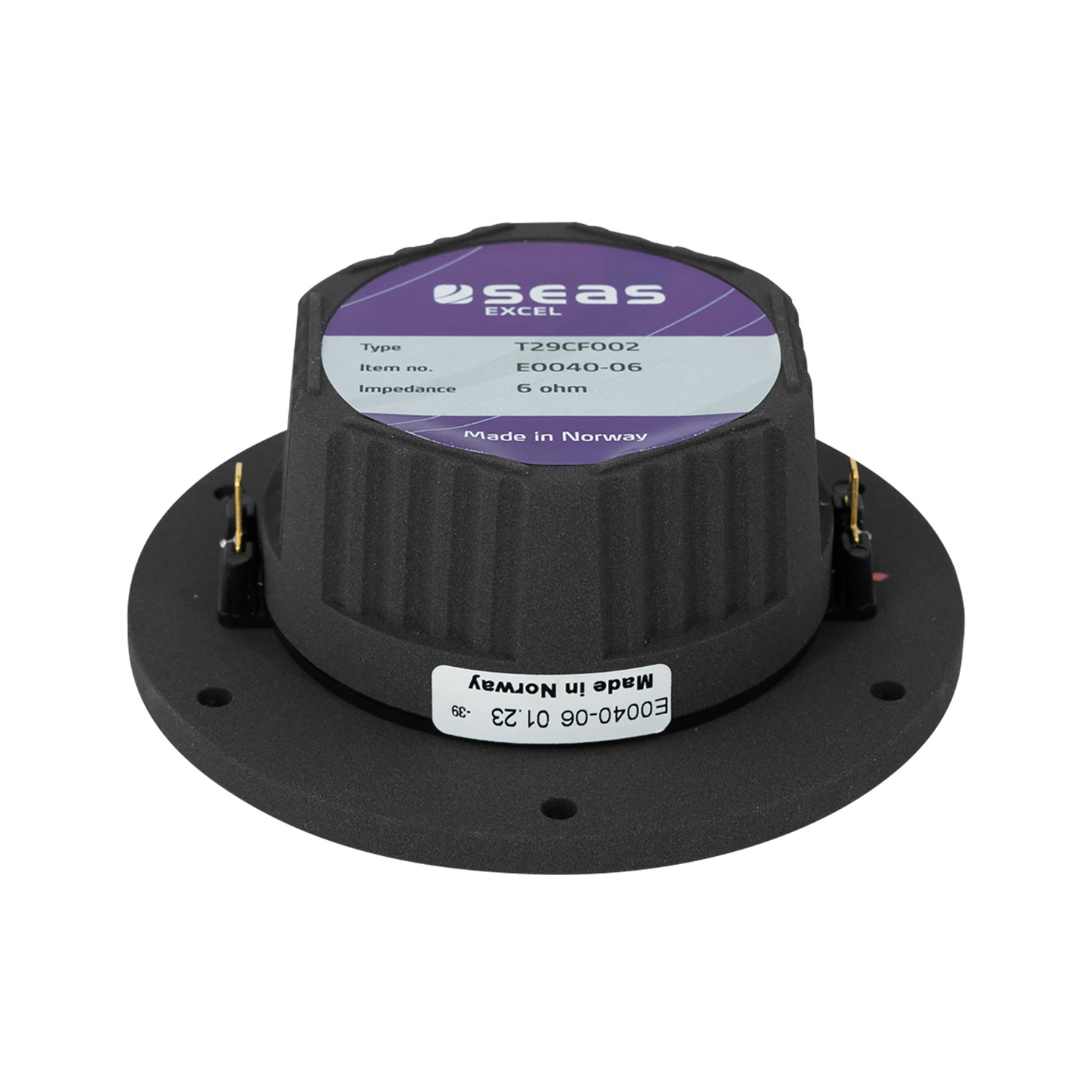

        A 6mm precision machined aluminum front plate with moderate horn loading ensures linear frequency response and reasonable efficiency. The central part of the horn is made from chrome plated precision machined brass. A substantial injection molded rear chamber made from zinc eliminates unwanted chamber wall resonances and conducts heat away from the magnet system. The rear chamber and the front plate are Nextel painted to obtain a durable and attractive finish.

        Toon meer

        Specificaties

        Artikelnummer
        T29CF002
        Tweeter type
        Dome
        Tweeter serie
        Excel Series
        Cone / Dome Diameter
        25 mm | 1"
        Belastbaarheid (RMS)
        90 Watts
        Impedantie (Z)
        6 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        92.5 dB
        Frequentierespons
        2,000 to 25,000 Hz
        Resonantiefrequentie (Fs)
        500 Hz
        Gelijstroomweerstand (Re)
        4.7 ohms
        Voice Coil Inductance (Le)
        0.05 mH
        Totale buitendiameter
        4.33"
        Montagegatdiameter
        2.93"
        Diepte
        1.69"

        Toon meer
