    SEAS Excel T25CF001 - E0006-06 1" Fabric Dome Tweeter

    € 114,95 Niet op voorraad: binnen 1 week leverbaar
    The T25CF001 is a 25mm fabric dome with moderately high efficiency. An optimally shaped dome and a wide SONOMEX surround, both manufactured by SEAS, ensure excellent performance and consistency. Low viscosity magnetic fluid which provides excellent coolin... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €109,20 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    Highlights

    • Double magnet system increases sensitivity and provides better control of the voice coil
    • 90 Watts RMS Power Handling
    • 91 dB 2.83V/1m Sensitivity



    Product details

    Seas Excel T25CF001 - E0006-06 1" Fabric Dome Tweeter



    The T25CF001 is a 25mm fabric dome with moderately high efficiency. An optimally shaped dome and a wide SONOMEX surround, both manufactured by SEAS, ensure excellent performance and consistency. Low viscosity magnetic fluid which provides excellent cooling while maintaining a low resonance frequency.

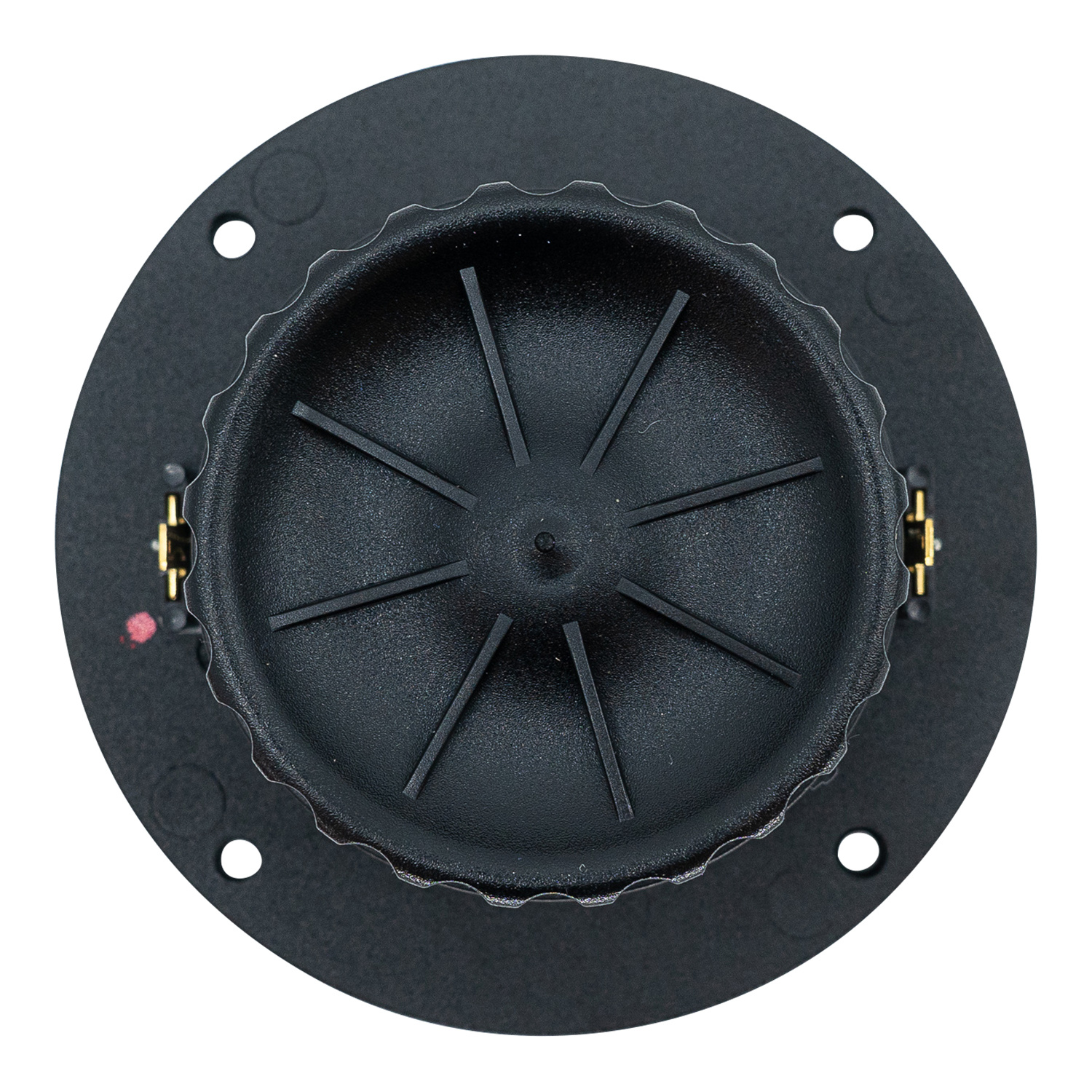

    6 mm solid metal front plate with a slight loading characteristic which ensures linear frequency response, and a stiff and stable connection to the cabinet. A substantial injection-molded rear chamber, with complex internal shape and reinforcing ribs, which eliminate unwanted chamber resonances and reflections.



    A double magnet system which increases sensitivity and provides better control of the voice coil. This system also reduces the magnetic stray fields, making the T25CF001 an ideal choice in high end A/V applications.

    Specificaties

    Artikelnummer
    T25CF001
    Tweeter Type
    Fabric Dome
    Tweeter Series
    Excel Series
    Cone / Dome Diameter
    1"
    Power Handling (RMS)
    90 Watts
    Impedance
    6 ohms
    Sensitivity
    91 dB 2.83V/1m
    Frequency Response
    2,000 to 25,000 Hz
    Resonant Frequency (Fs)
    700 Hz
    DC Resistance (Re)
    4.6 ohms
    Voice Coil Inductance (Le)
    0.05 mH
    Overall Outside Diameter
    4.34"
    Cutout Diameter
    3.35"
    Depth
    2.33"

    Reviews

    5 from 5Based on 2 reviews
    Schrijf een review
    5 van 5
    Good product,good supplier,good delivery
    Door Rama S. on 12 Februari 2021
    5 van 5
    Es wurde keine Beschreibung gegeben.
    Door Norman H. on 28 November 2020
