      SEAS Prestige T18REX/XFC - H1353-08/06 Coaxial Woofer

      € 181,78€ 219,95 10+ Op voorraad
      • -5% Bestelling 4 voor slechts € 208,95 per stuk

      Buy now, pay later

      • Gratis verzonden (NL & BE)
      • Nu besteld, dinsdag bezorgd
      • In-house technische support
      • 45 dagen bedenktijd voor retourneren
      Zakelijke offerteaanvraag
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      Highlights

      • Long term power handling (RMS) is 200 Watts (Woofer) and 180 Watts (Tweeter)
      • The coaxially arranged precoated fabric dome high frequency unit has a low resonance frequency and integrates with the cone driver to a point source
      • The cone of the woofer acts as a horn loading for the tweeter, and the chassis of the dome unit represents the throat of this horn



      Product details

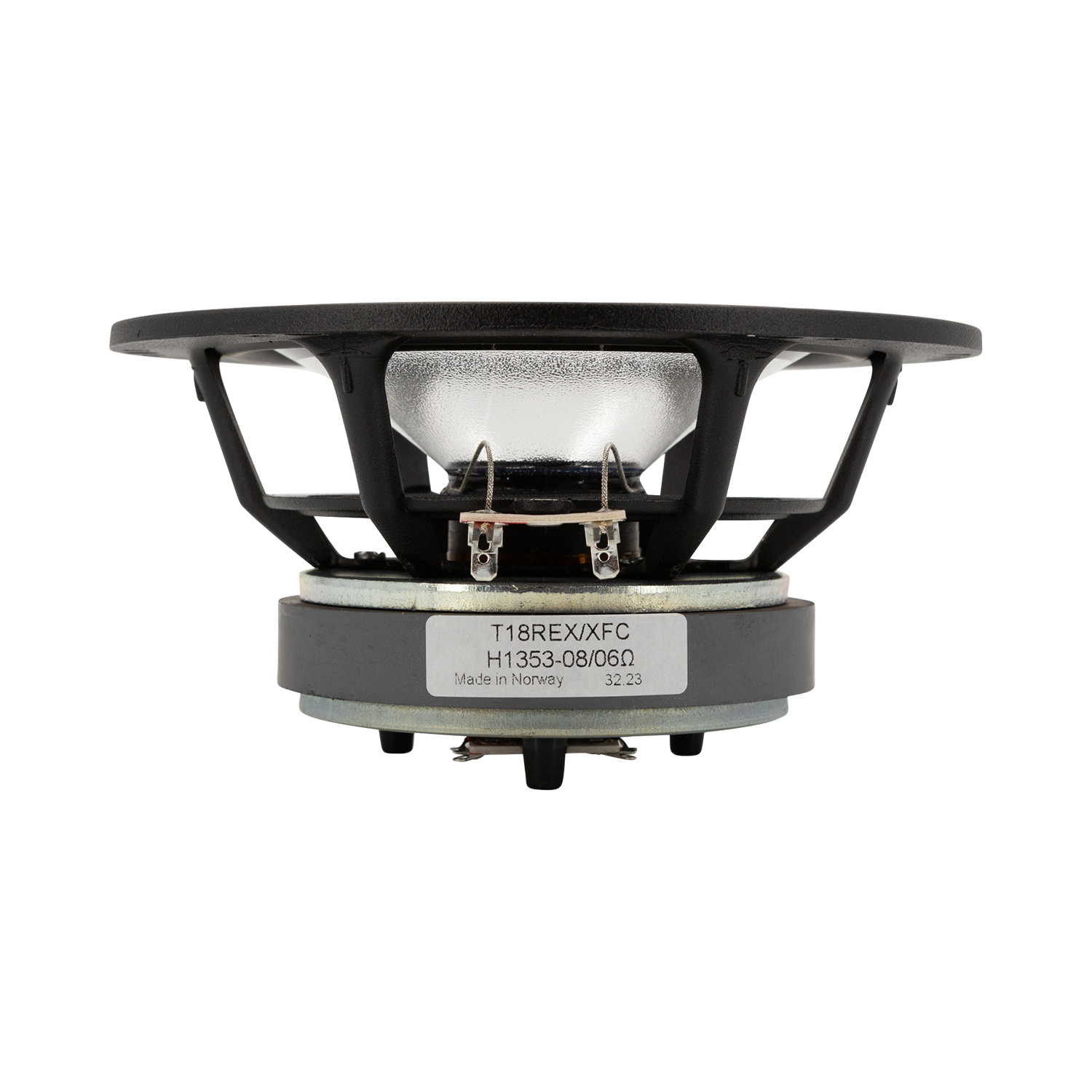

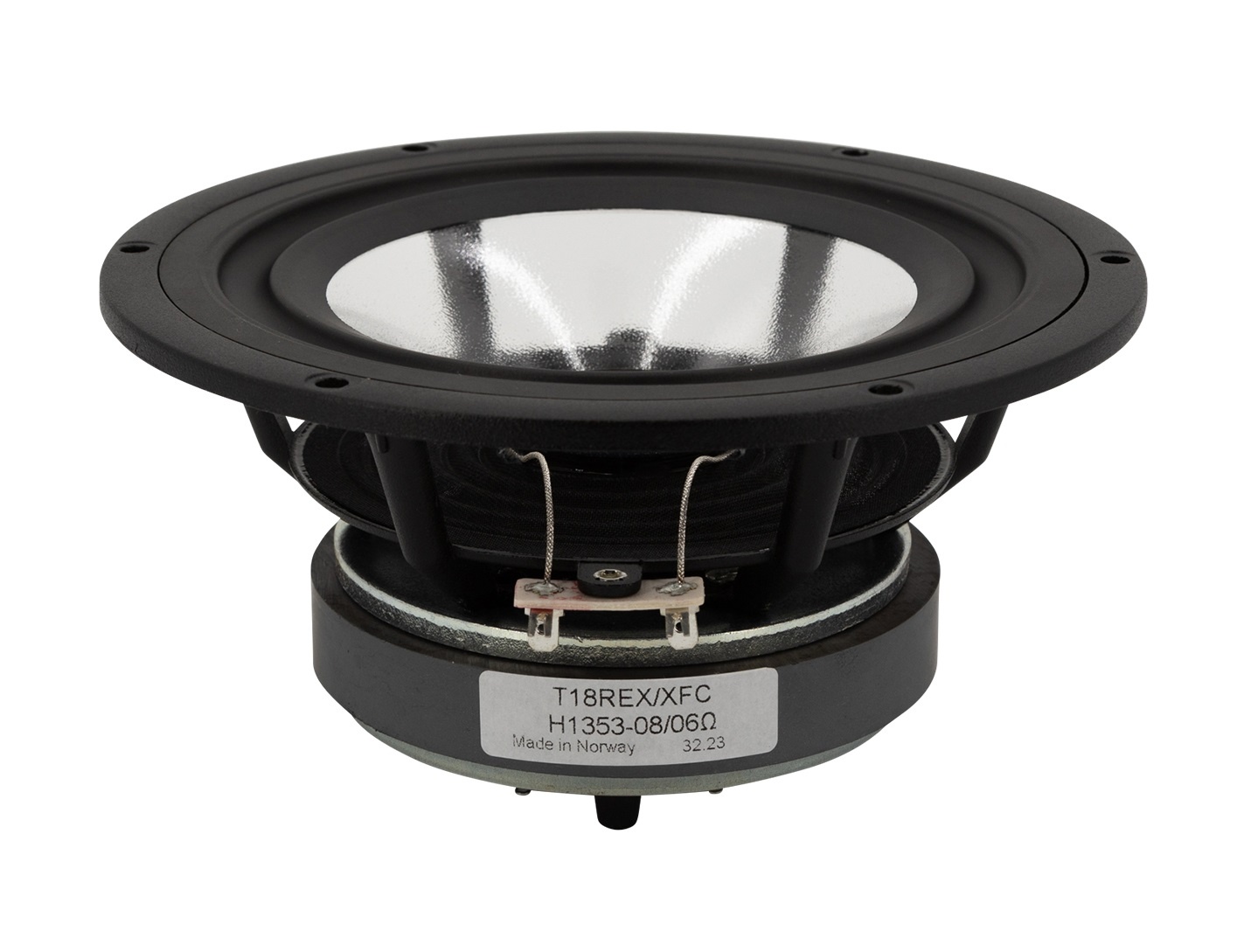

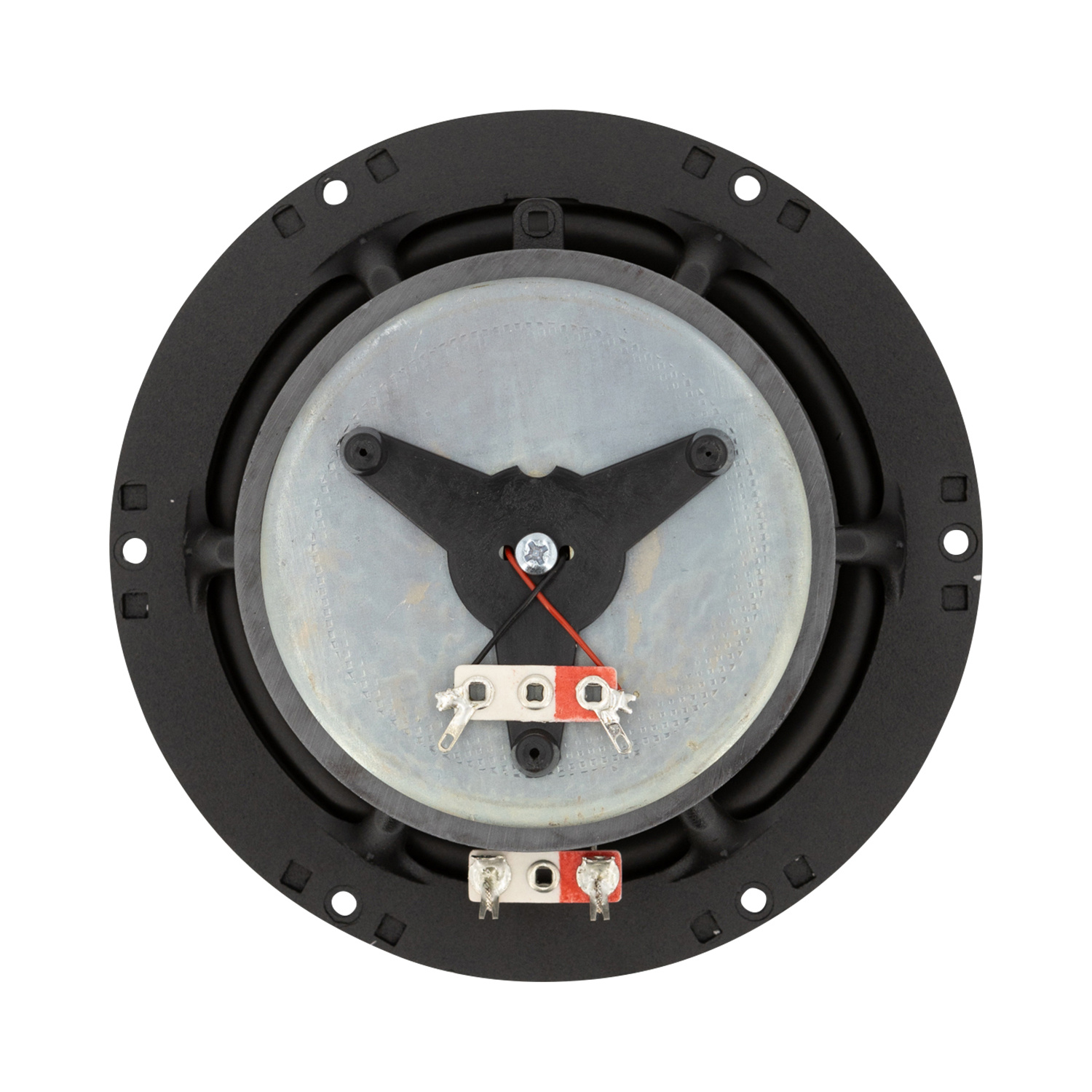

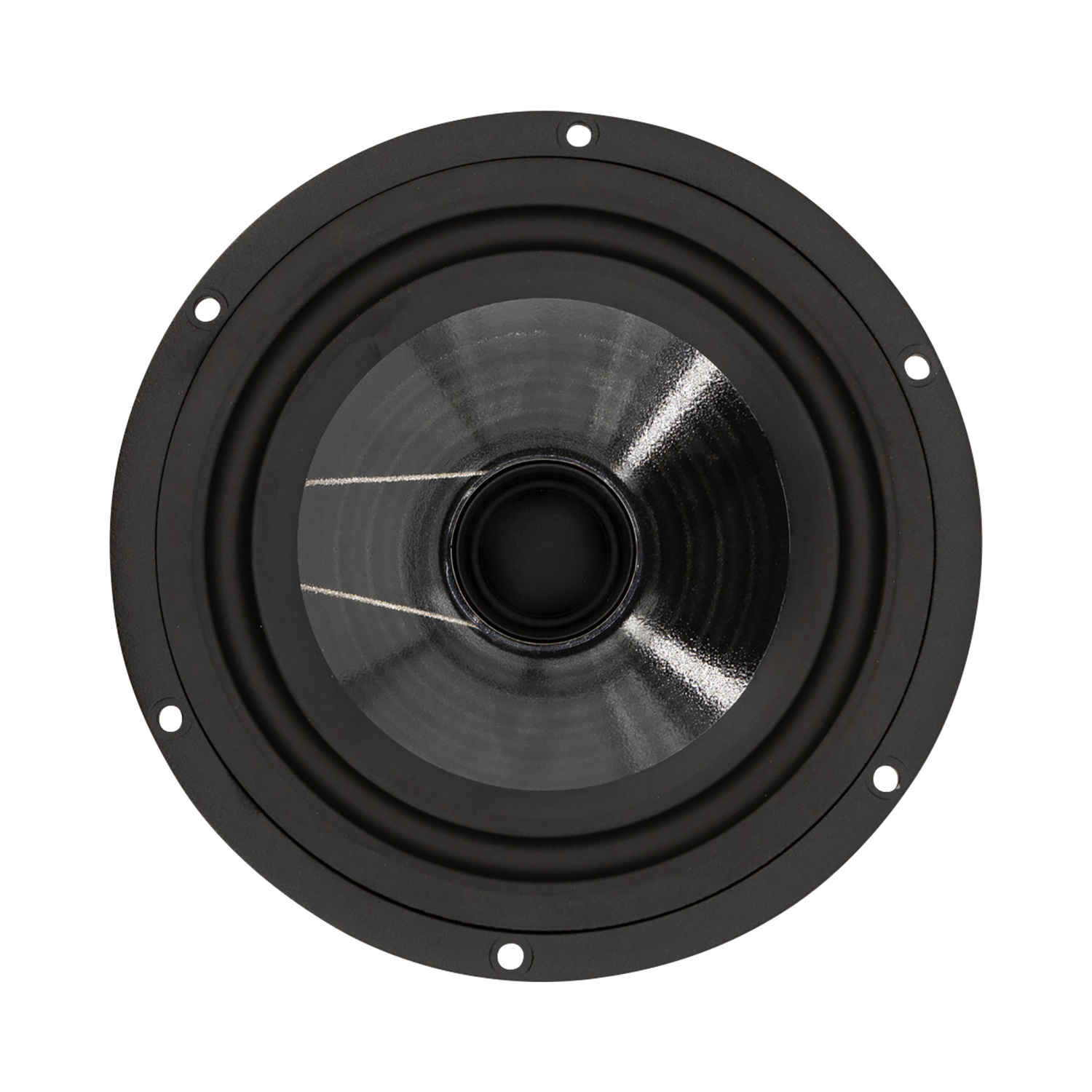

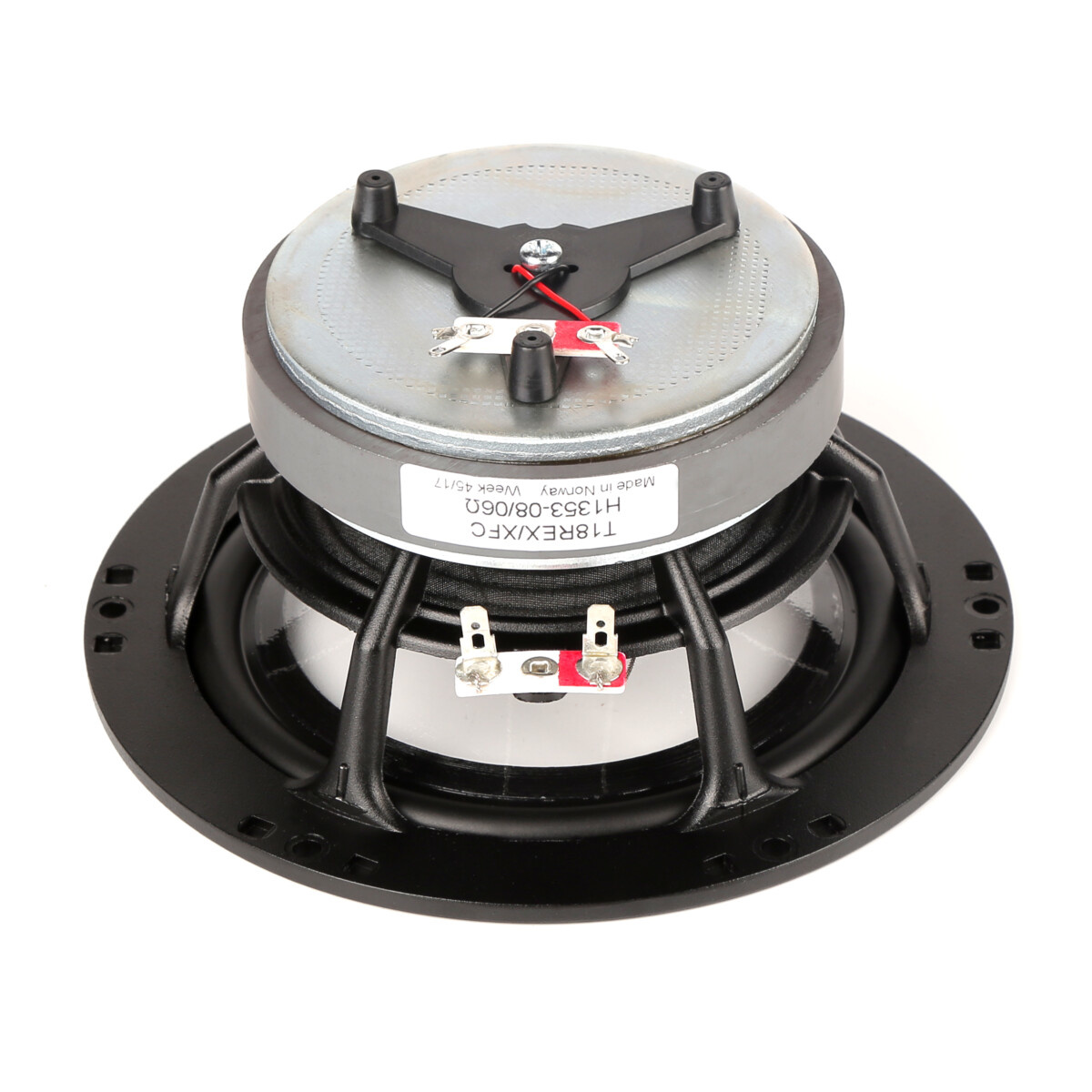

      Seas Prestige T18REX/XFC - H1353-08/06 7" Coaxial Woofer

      The PP/TPX based cone matches ideally with the adaptive rubber surround. The result is an outstandingly smooth frequency response from the mid woofer. The coaxially arranged precoated fabric dome high frequency unit has a low resonance frequency and integrates with the cone driver to a point source. The cone of the woofer acts as a horn loading for the tweeter, and the chassis of the dome unit represents the throat of this horn.

      Extremely stiff and stable injection molded metal basket, keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

      Een goed toepassingsvoorbeeld is de SEAS-toepassing Loki Mk III. Voor meer informatie, zie ons blogartikel "SEAS DIY-plannen".

      Toon meer

      Specificaties

      Artikelnummer
      T18REX/XFC
      Woofer series
      Prestige Series
      Woofer type
      Coaxial
      Nominale diameter
      7"
      Belastbaarheid (RMS)
      200 Watts
      Belastbaarheid (max)
      300 Watts
      Impedantie (Z)
      8 ohms
      Gevoeligheid
      87.5 dB 2.83V/1m
      Frequentierespons
      30 - 25,000 Hz
      Spreekspoeldiameter
      1.53"
      Gewicht magneet
      29.9 oz.
      Gelijkstroomweerstand (Re)
      6.2 ohms
      Spreekspoelinductie (Le)
      0.70 mH
      Resonantiefrequentie (Fs)
      30 Hz
      Mechanische Q (Qms)
      1.64
      Elektrische Q (Qes)
      0.29
      Totale Q (Qts)
      0.24
      Bewegende massa (Mms)
      0.82g
      Compliantie van de ophanging (Cms)
      1.9 mm/N
      Equivalentvolume (Vas)
      1.48 ft.³
      Maximale excursie (Xmax)
      3 mm
      Totale buitendiameter
      6.93"
      Totale diepte
      3.49"
      Montagegatdiameter
      5.72"
      Bolt Circle Diameter
      6.54"
      # Bevestigingsgaten
      6

      Toon meer
