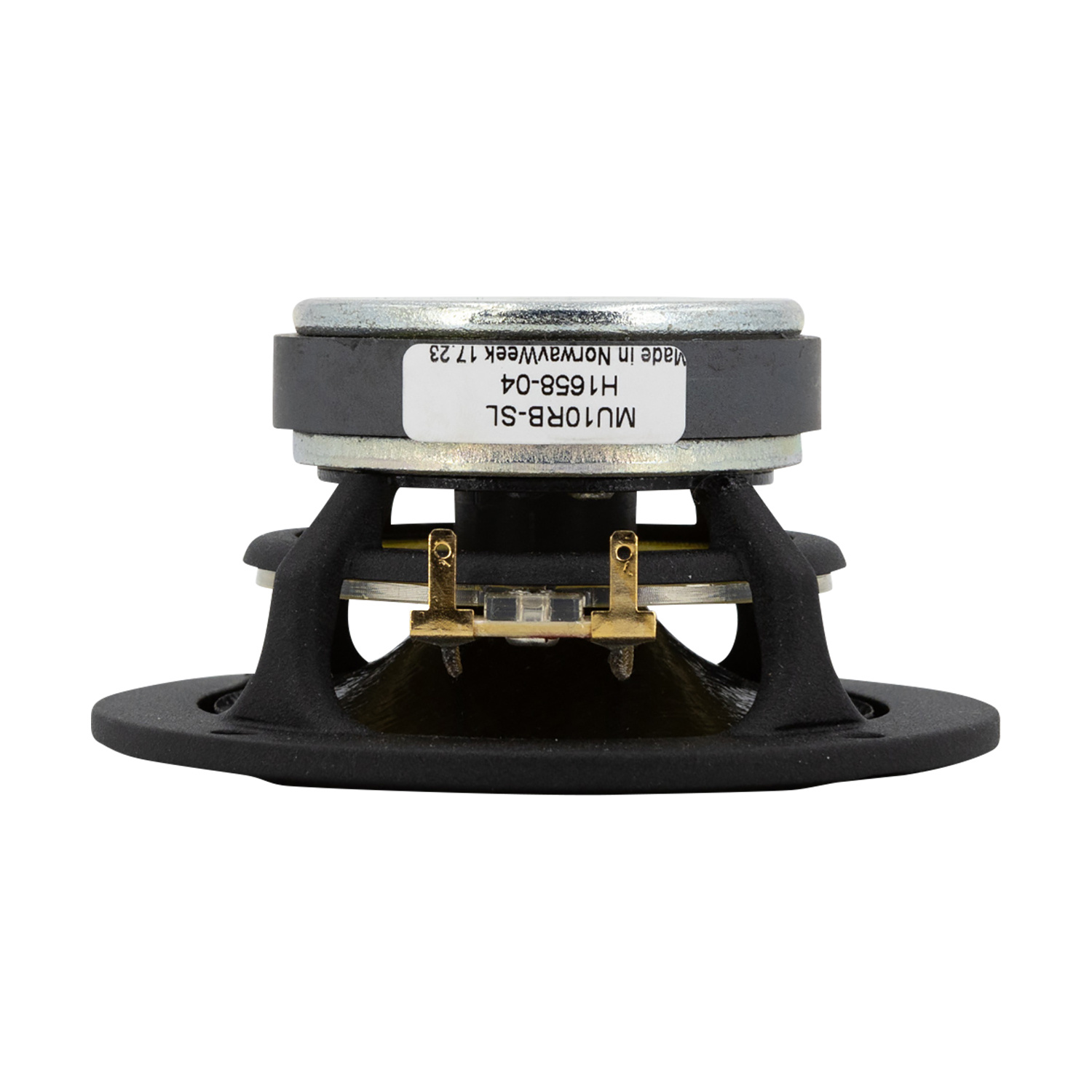

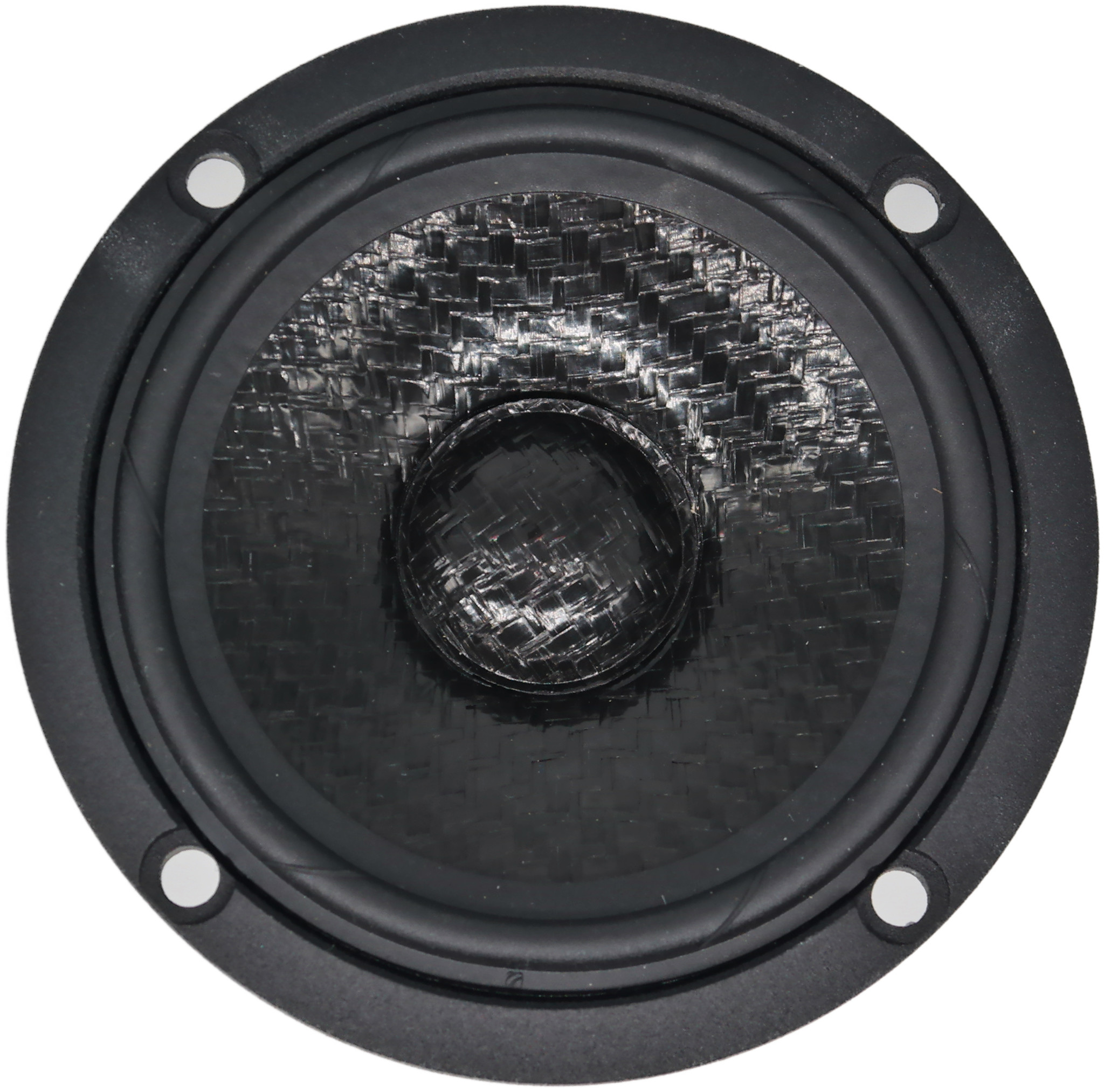

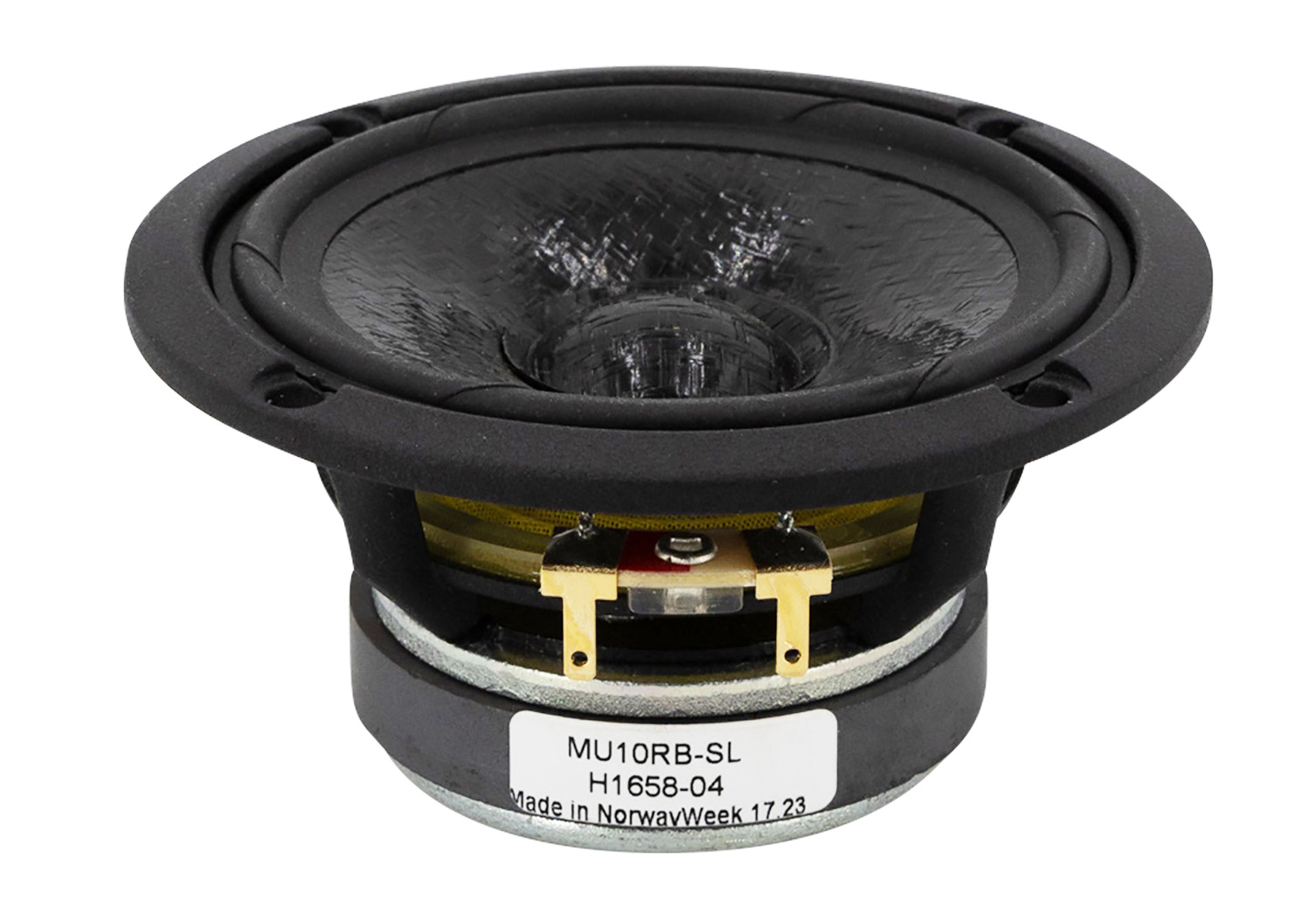

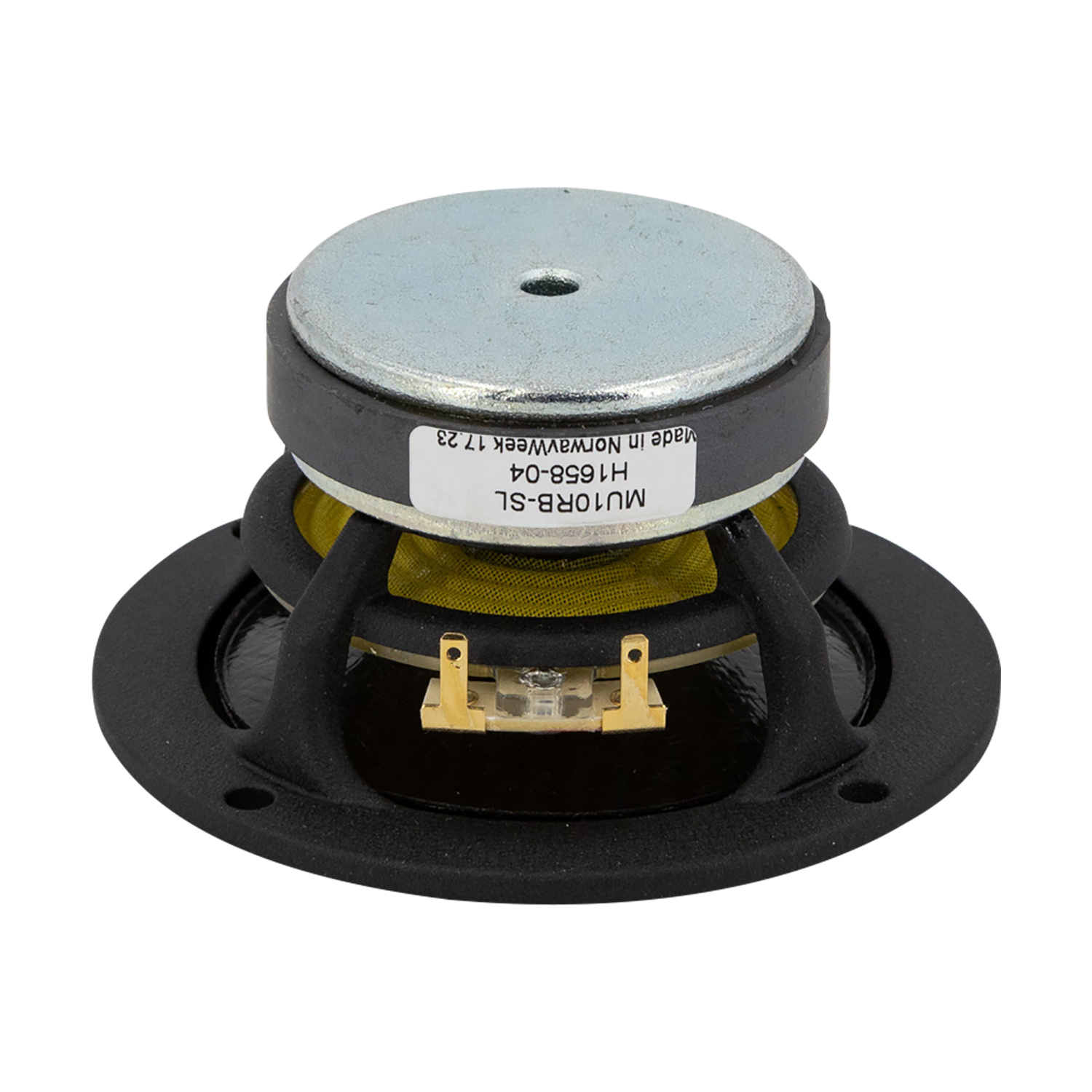

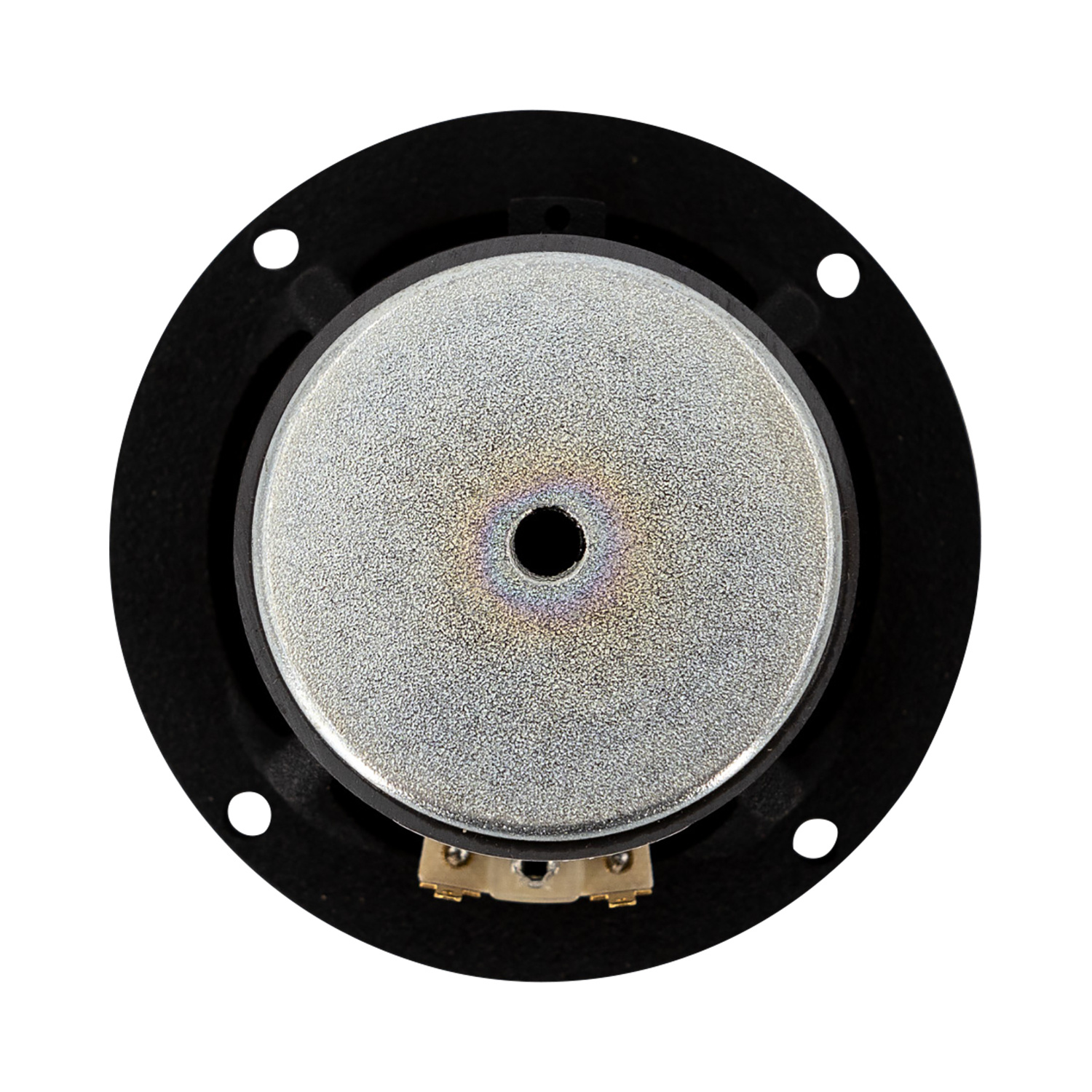

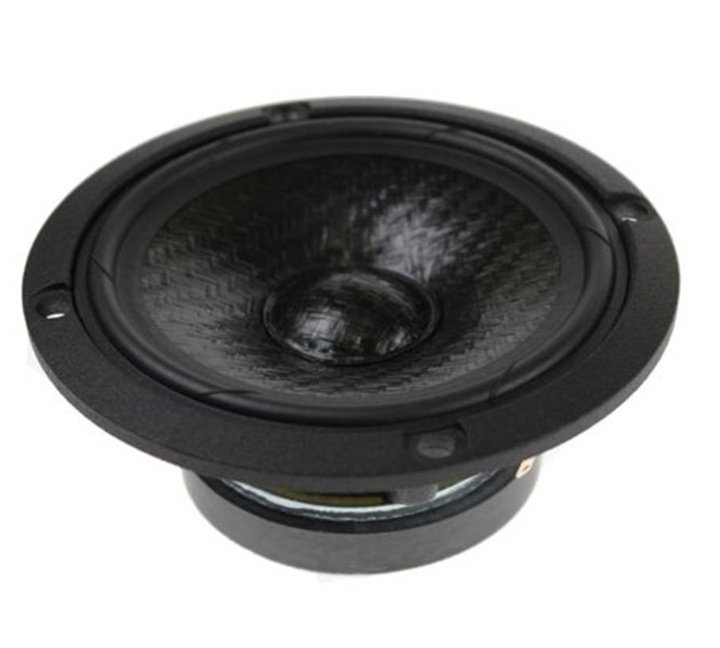

        Prestige MU10RB-SL - H1658-04 Bass-midwoofer

        Prestige MU10RB-SL - H1658-04 Bass-midwoofer

        €99,95

        SEAS Prestige MU10RB-SL - H1658-04 Bass-midwoofer

        3 reviews
        4 van 5
        3 reviews
        5 sterren
        67%
        4 sterren
        0%
        3 sterren
        33%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: SEAS
        € 82,60€ 99,95 10+ Op voorraad
        • -5% Bestel 4 voor slechts € 94,95 per stuk

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, morgen verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving

        Highlights

        • Long term power handling (RMS) is 40 Watts
        • New Curv cone, a woven polypropylene with excellent internal damping
        • The pole piece is prolonged forwards and equipped with a deep drawn copper cap to ensure excellent linearity in the force factor and coil inductance



        Product details

        Seas Prestige MU10RB-SL - H1658-04 4" Woven Poly Cone Midrange



        The MU10RB is a 4” midrange driver offering an extraordinary performance and sound clarity. New Curv cone, a woven polypropylene with excellent internal damping together with perfectly matched moving parts gives a smooth, extended frequency response.



        A high loss natural rubber surround makes this driver perform its best as a midrange. The large, open weave fabric spider reflects very little acoustic energy to the cone and offers excellent stiffness linearity. A stiff and stable injection molded aluminum chassis keeps the critical components in perfect alignment.



        The pole piece is prolonged forwards and equipped with a deep drawn copper cap to ensure excellent linearity in the force factor and coil inductance. Small size combined with an excellent performance makes this driver the perfect election for any application where limited space is a critical parameter.

        Toon meer

        Specificaties

        Artikelnummer
        MU10RB-SL
        Woofer series
        Prestige Series
        Woofer type
        Midwoofer
        Nominale diameter
        4"
        Belastbaarheid (RMS)
        40 Watts
        Belastbaarheid (max)
        100 Watts
        Impedantie (Z)
        4 ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        84.7 dB
        Frequentierespons
        100 to 20,000 Hz
        Spreekspoeldiameter
        0.31"
        Gewicht magneet
        3.17 oz.
        Gelijkstroomweerstand (Re)
        3.3 ohms
        Spreekspoelinductie (Le)
        0.14 mH
        Resonantiefrequentie (Fs)
        100 Hz
        Mechanische Q (Qms)
        1.63
        Elektrische Q (Qes)
        1.15
        Totale Q (Qts)
        0.67
        Bewegende massa (Mms)
        4.51g
        Compliantie van de ophanging (Cms)
        0.6 mm/N
        Equivalentvolume (Vas)
        0.03 ft.³
        Maximale excursie (Xmax)
        2 mm
        Totale buitendiameter
        3.86"
        Totale diepte
        1.93"
        Montagegatdiameter
        3.15"
        Bolt Circle Diameter
        3.5"
        # Bevestigingsgaten
        4
        Diameter bevestigingsgaten
        0.2"

        Toon meer

        3 van 5
        Tried using it in 3 way, 2 way small monitors and desktop 1 way monitors but its always similar weird sound that I have hard time describing. Maybe its resonating or something but it doesn't sound to good although has insame amount of details.
        Door Wadim on 15 Februari 2023
        5 van 5
        Great mid driver.
        Door Hans H. on 6 Augustus 2020
