      SEAS Prestige MCA15RCY - H1262-08 Bass-midwoofer

      € 79,71€ 96,45 10+ Op voorraad
      • -5% Bestelling 4 voor slechts € 91,63 per stuk

      Buy now, pay later

      • Gratis verzending vanaf € 99 (NL & BE)
      • Nu besteld, dinsdag bezorgd
      • In-house technische support
      • 45 dagen bedenktijd voor retourneren
      Zakelijke offerteaanvraag
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      Highlights

      • Long term power handling (RMS) is 100 Watts
      • Large magnet system and the light cone give high sensitivity with low distortion and good transient response
      • Reduced sound reflection, air flow noise and cavity resonance



      Product details

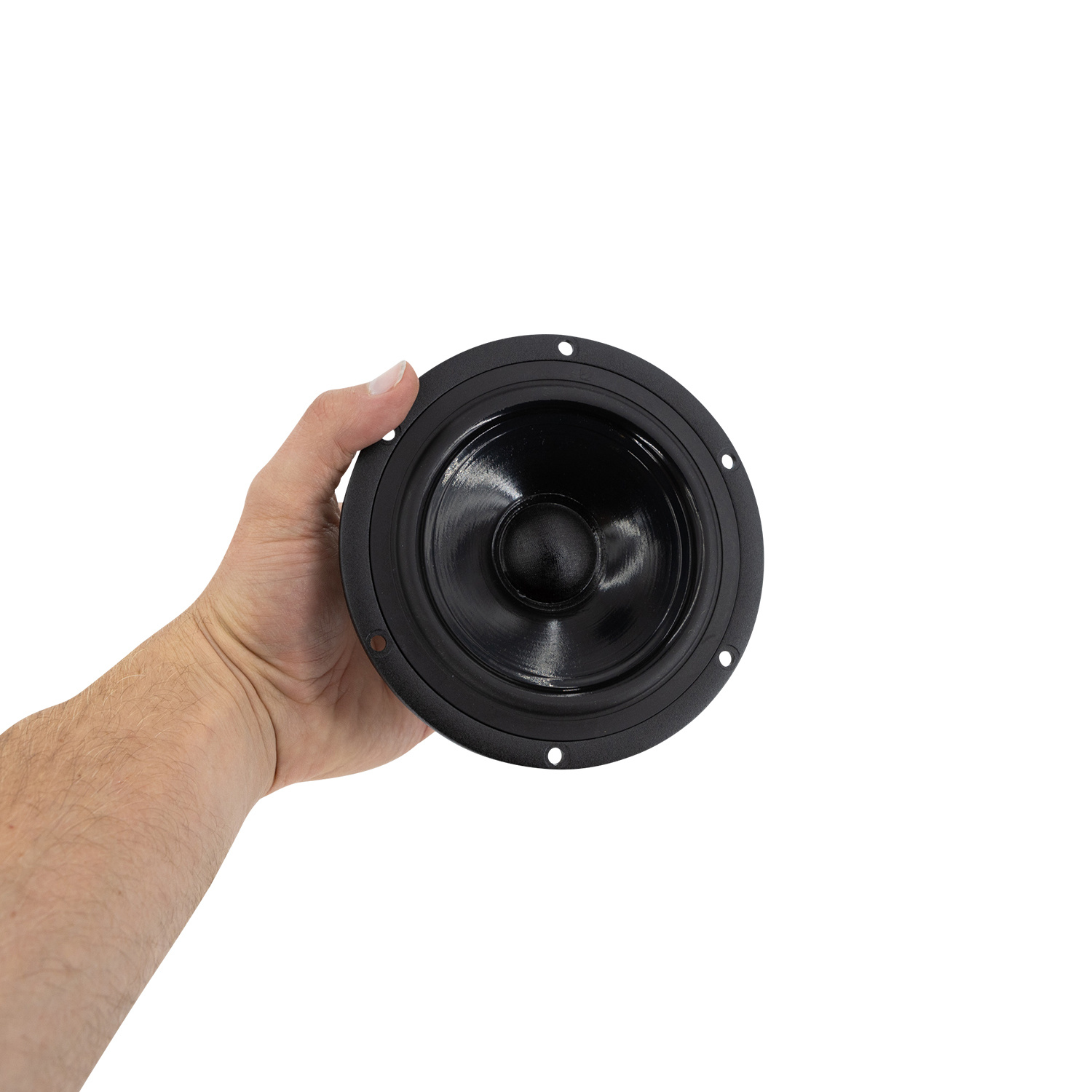

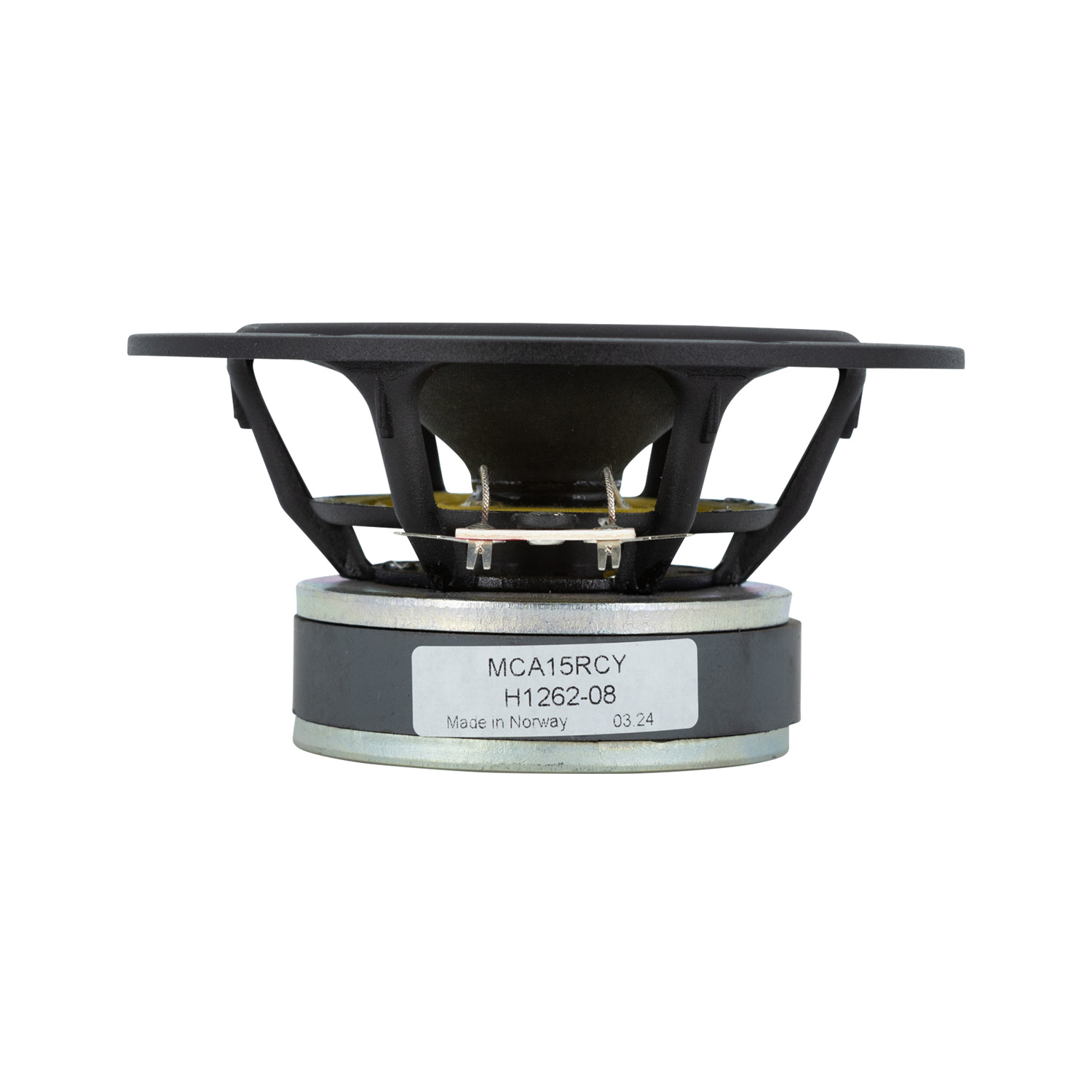

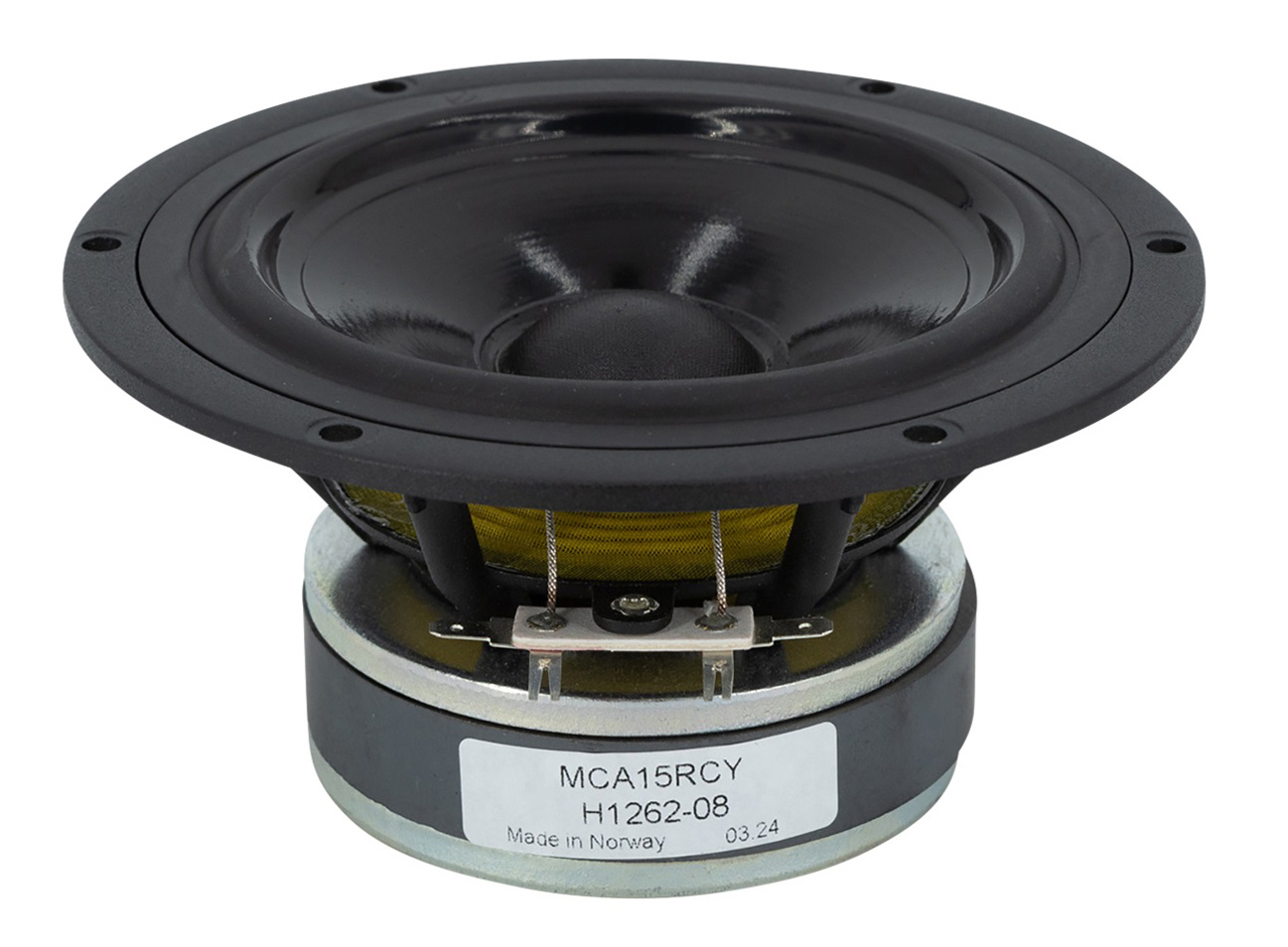

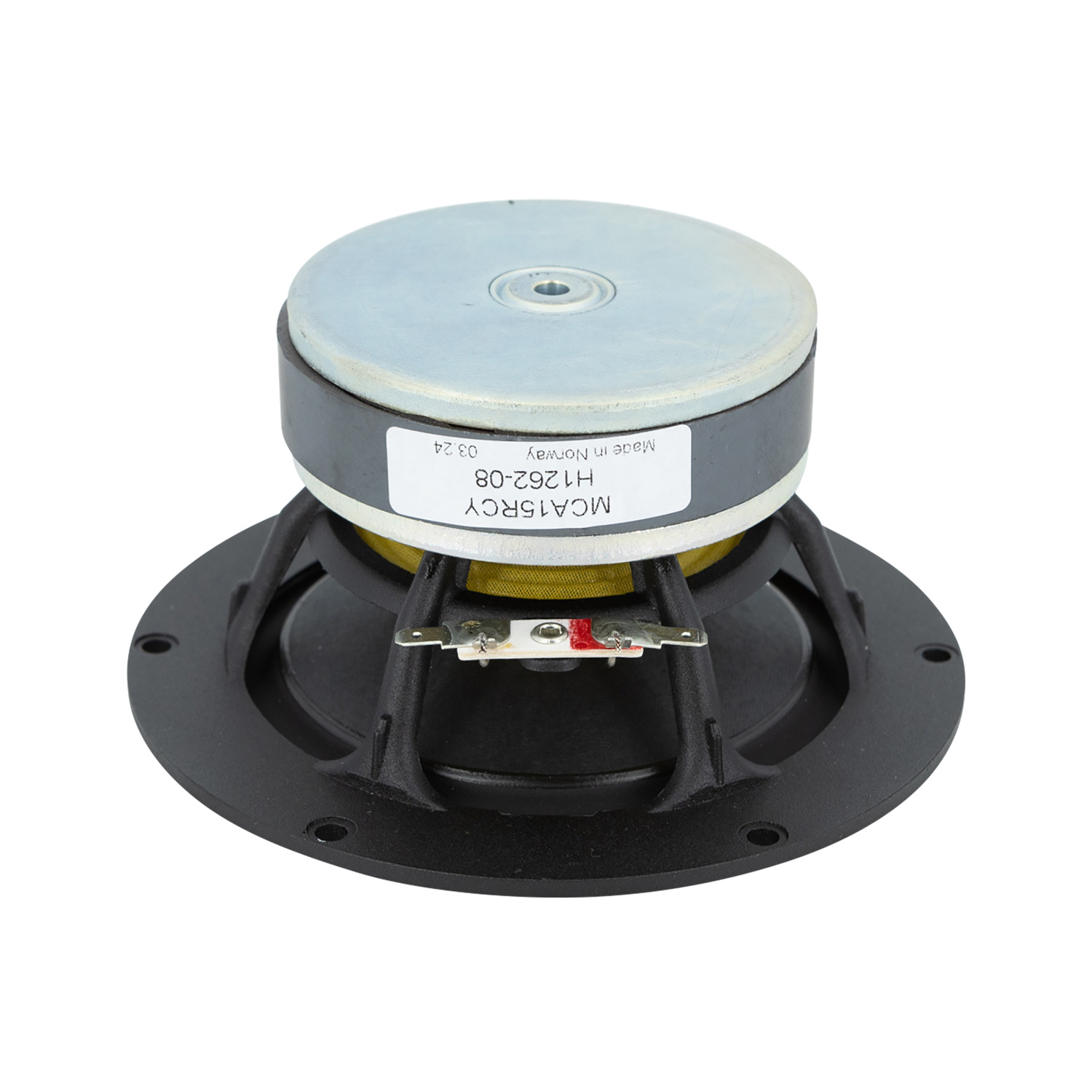

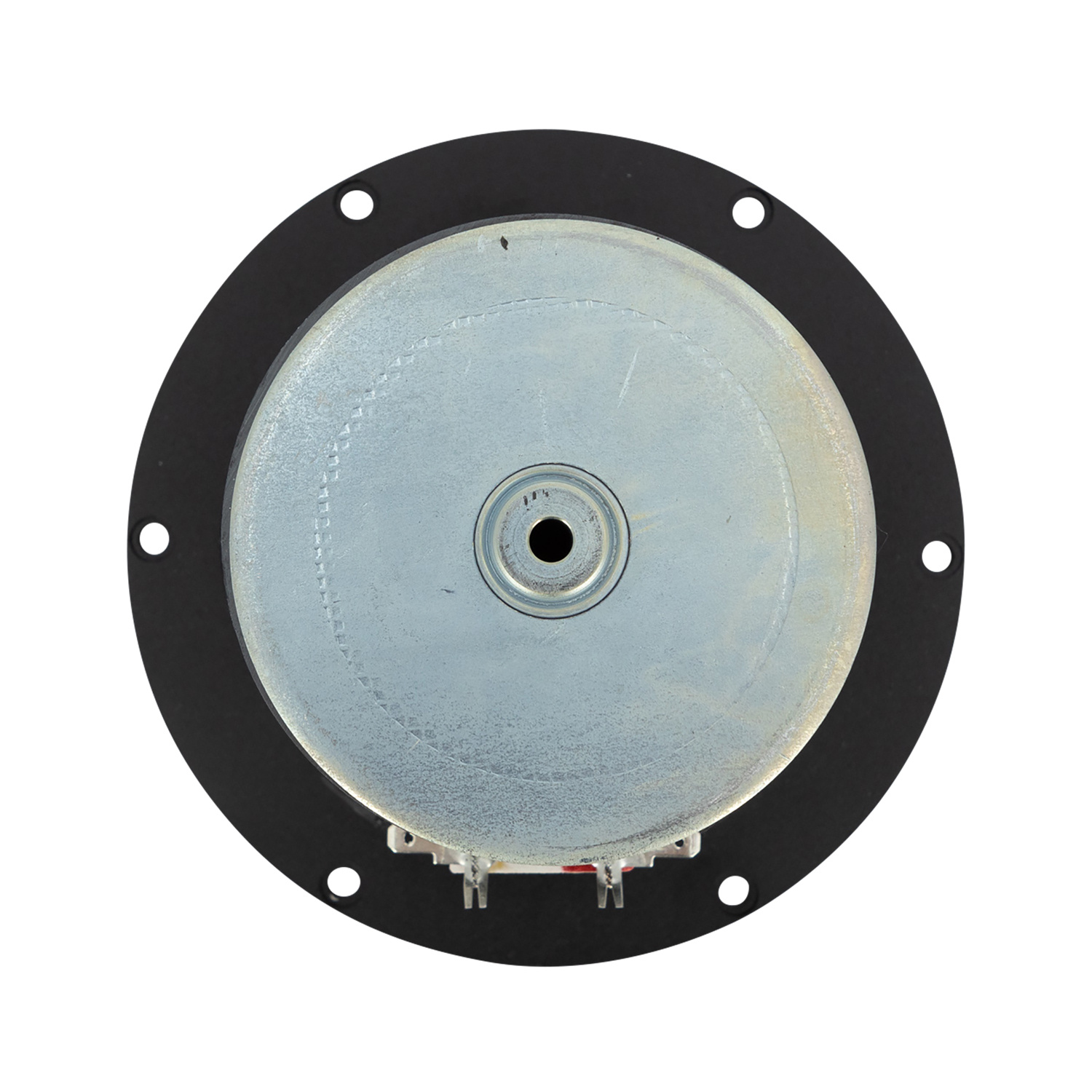

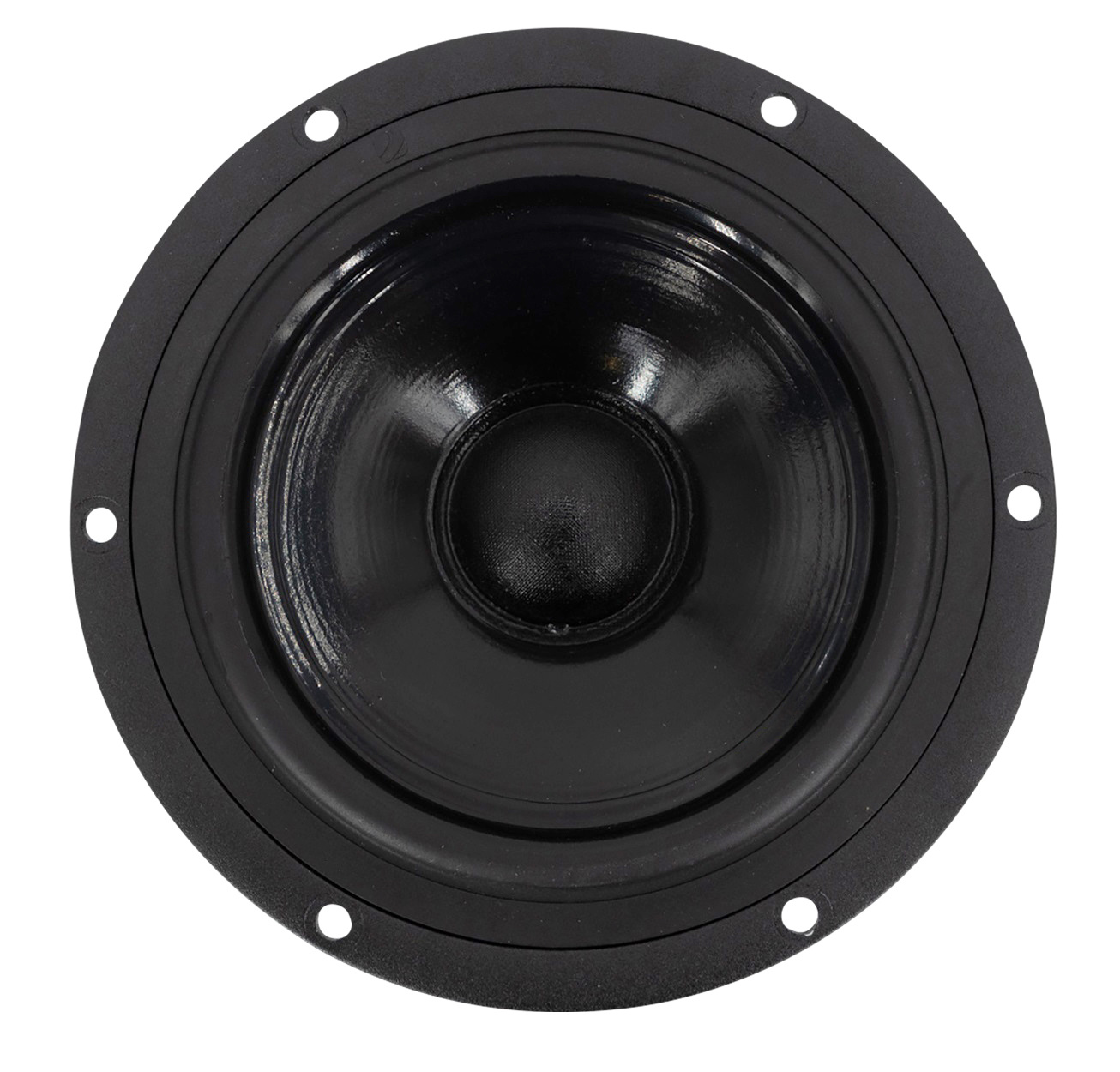

      Seas Prestige MCA15RCY - H1262-08 5.5" Coated Paper Midrange



      The MCA15RCY is a 15 cm (5’’) cone driver, developed for use as a high quality midrange unit. Classically coated paper cone gives a smooth extended frequency response with a controlled roll off.



      The large magnet system, together with the light cone give high sensitivity with low distortion and good transient response.



      Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

      Toon meer

      Specificaties

      Artikelnummer
      MCA15RCY
      Woofer series
      Prestige Series
      Woofer type
      Midwoofer
      Nominale diameter
      5"
      Belastbaarheid (RMS)
      100 Watts
      Belastbaarheid (max)
      300 Watts
      Impedantie (Z)
      8 ohms
      Gevoeligheid
      89.5 dB 2.83V/1m
      Frequentierespons
      100 to 4,000 Hz
      Spreekspoeldiameter
      1.02"
      Gewicht magneet
      14.8 oz.
      Gelijkstroomweerstand (Re)
      5.8 ohms
      Spreekspoelinductie (Le)
      0.73 mH
      Resonantiefrequentie (Fs)
      51 Hz
      Mechanische Q (Qms)
      1.57
      Elektrische Q (Qes)
      0.30
      Totale Q (Qts)
      0.25
      Bewegende massa (Mms)
      7.1g
      Compliantie van de ophanging (Cms)
      1.4 mm/N
      Equivalentvolume (Vas)
      0.42 ft.³
      Maximale excursie (Xmax)
      1.7 mm
      Totale buitendiameter
      5.75"
      Totale diepte
      2.82"
      Montagegatdiameter
      4.41"
      # Bevestigingsgaten
      6
