        LUCID Bookshelf Components Pack with DSP

        SEAS LUCID Bookshelf Components Pack with DSP

        €1.999,95 €2.249,95

        2 Op voorraad

        Toevoegen aan winkelwagen

        SEAS LUCID Bookshelf Components Pack with DSP

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: SEAS
        Toon alle DIY component packs
        Paar
        LUCID Bookshelf Components Pack with DSP
        LUCID Bookshelf Components Pack with DSP
        LUCID Bookshelf Components Pack with DSP
        LUCID Bookshelf Components Pack with DSP
        € 1.859,46
        € 2.249,95
        € 1.652,85€ 1.999,95 2 Op voorraad
        • -5% Bestel 4 voor slechts € 1.899,95 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Voor 16u besteld, vandaag verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        LUCID Bookshelf Components Pack with DSP
        LUCID Bookshelf Components Pack with DSP
        LUCID Bookshelf Components Pack with DSP
        LUCID Bookshelf Components Pack with DSP

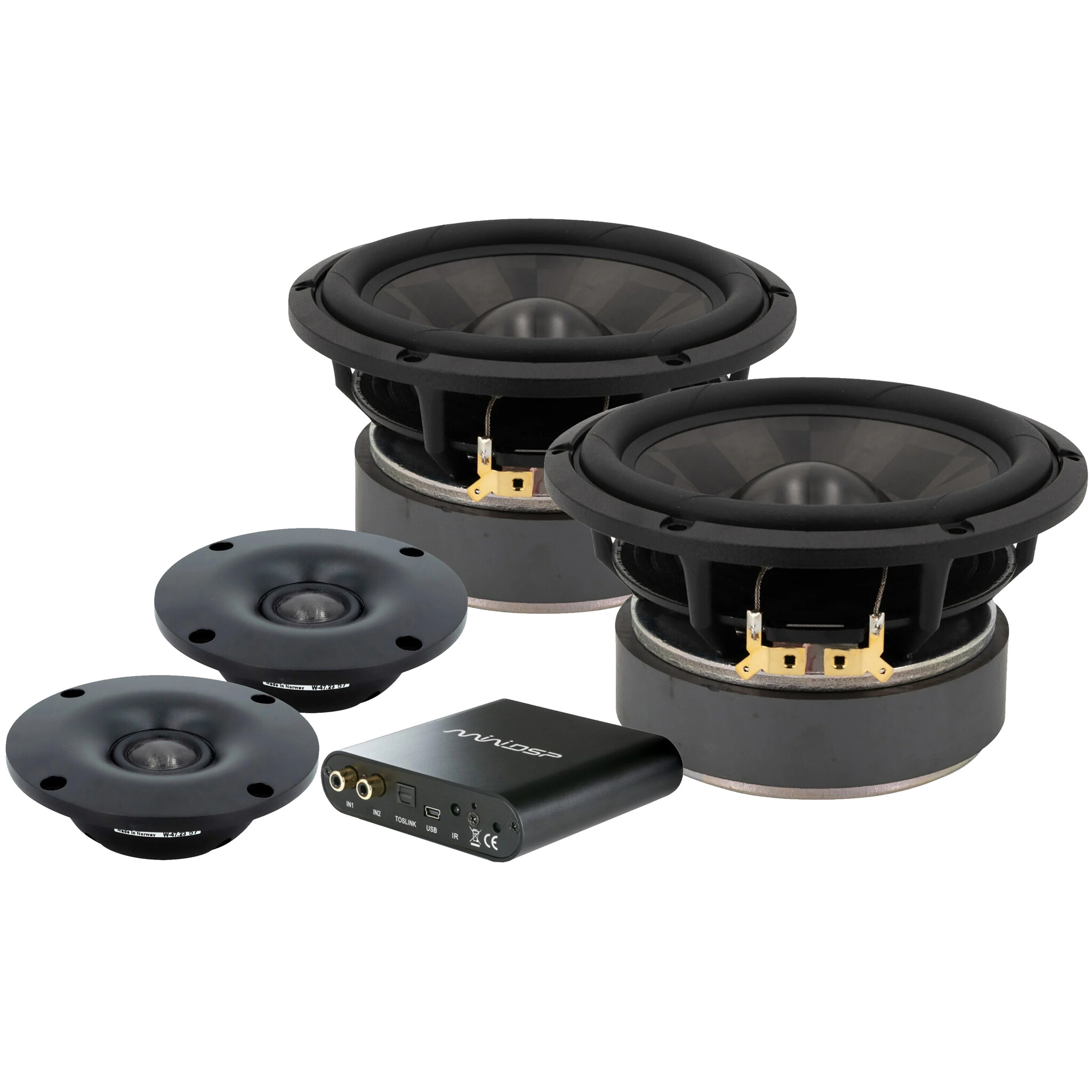

        Productomschrijving SEAS LUCID DSP Bookshelf Components Pack

        The SEAS Lucid is a high-performance active bookshelf speaker kit designed for audiophiles seeking an immersive and engaging listening experience. Utilizing SEAS Metamodal TPCD drivers and advanced DSP technology, the Lucid delivers exceptional audio clarity and precision in a compact enclosure.



        Highlights of the SEAS Lucid DSP Bookshelf Components Pack

        • Features the SEAS T29X001 1" Metamodal TPCD dome tweeter for accurate high-frequency reproduction.
        • Incorporates the SEAS W16NX005 6.5" Metamodal TPCD woofer for dynamic and controlled bass response.
        • Employs a 14-liter closed-box design to minimize port noise and resonances, enhancing transient response.
        • Utilizes a miniDSP 2x4 HD Boxed for active crossover implementation, allowing precise tuning and EQ adjustments.



        Product details SEAS Lucid DSP Bookshelf Components Pack

        SEAS Lucid DIY Active Bookshelf Speaker Kit



        The SEAS Lucid is meticulously engineered to provide audiophiles with a premium DIY speaker solution that combines state-of-the-art driver technology with the flexibility of digital signal processing. Central to this kit are the SEAS Metamodal TPCD drivers: the T29X001 1" dome tweeter and the W16NX005 6.5" woofer. The tweeter's Metamodal TPCD dome balances stiffness, weight, and damping, ensuring clear and accurate high-frequency reproduction. The woofer's large excursion capability and compact size deliver dynamic low-end performance with wide dispersion, facilitating a seamless transition between drivers.

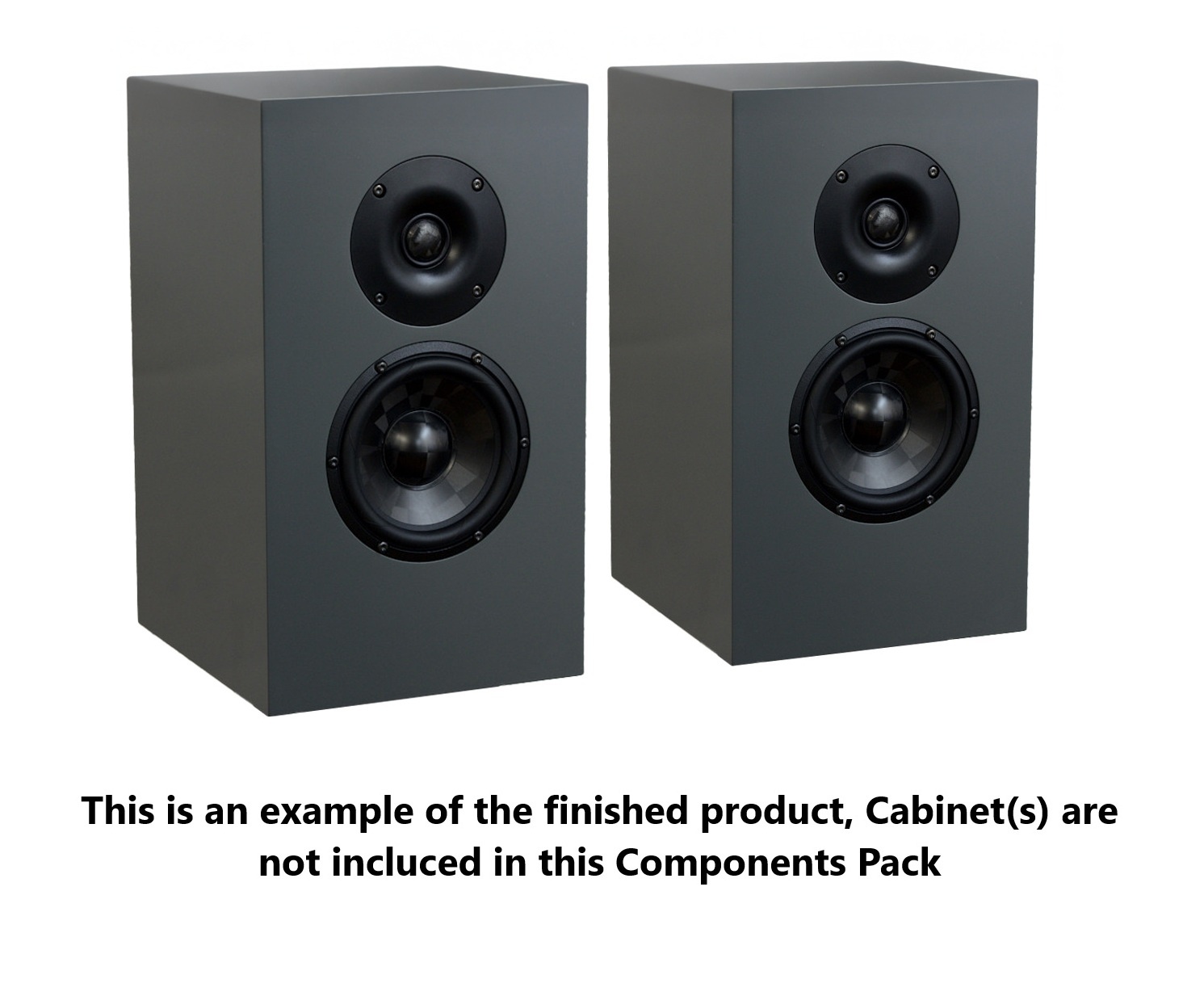

        The recommended enclosure is a 14-liter closed box, chosen to eliminate issues associated with ported designs, such as port noise and midrange leakage. This design enhances transient response and provides a tight, controlled bass. The wider baffle lowers the baffle step frequency, adding body to the midrange and contributing to a balanced tonal character.



        The active crossover is implemented using a miniDSP 2x4 HD Boxed, allowing for rapid testing and fine-tuning of various setups. This approach enables precise EQ adjustments, particularly beneficial for tailoring the low-end response of the closed-box design. The crossover is configured to achieve a smooth and slightly declining response within the listening window (0-30 degrees) and a consistent power response. An all-pass filter is employed to align the phase of the drivers over a broad frequency range, ensuring a seamless crossover at approximately 3.3 kHz. Additionally, a high-pass filter at 40 Hz is applied to the woofer to suppress distortion from excessive low-frequency excursion, with the option to adjust or disable this filter based on user preference and SPL requirements.



        The SEAS Lucid kit offers DIY enthusiasts a sophisticated and adaptable speaker system capable of delivering high-fidelity sound. Its combination of advanced driver materials, thoughtful enclosure design, and the versatility of DSP makes it an excellent choice for those seeking to build a modern, active bookshelf speaker system.

        Toon meer

        Specificaties

        Artikelnummer
        LUCID
        EAN
        9505332927984
        Nominale diameter
        6" Woofer + 1" Tweeter
        Belastbaarheid (RMS)
        180 Watts (Woofer) + 120 Watts (Tweeter)
        Belastbaarheid (max)
        300 Watts (Woofer)
        Impedantie (Z)
        8 Ω (Woofer) + 4 Ω (Tweeter)
        Gevoeligheid (SPL bij 1m / 2.83V)
        87.3 dB (Woofer) + 91 dB (Tweeter)
        Frequentierespons
        20-4.000 Hz (Woofer) + 2.000-30.000 Hz (Tweeter)
        Spreekspoeldiameter
        39 mm (Woofer) + 26 mm (Tweeter)
        Gelijkstroomweerstand (Re)
        6.4 Ω (Woofer) + 3.6 Ω (Tweeter)
        Spreekspoelinductie (Le)
        0.45 mH (Woofer) + 0.01 (Tweeter)
        Resonantiefrequentie (Fs)
        40 Hz (Woofer) + 515 Hz (Tweeter)
        Mechanische Q (Qms)
        4.37 (Woofer)
        Elektrische Q (Qes)
        0.34 (Woofer)
        Totale Q (Qts)
        0.32 (Woofer)
        Bewegende massa (Mms)
        13.4 g (Woofer)
        Effectief oppervlak (Sd)
        104 cm² (Woofer)
        Equivalentvolume (Vas)
        18 Liters (Woofer)
        Maximale excursie (Xmax)
        11 mm (Woofer)
        Spreekspoel vormermateriaal
        Titanium (Woofer)
        Totale buitendiameter
        146 mm (Woofer) + 110 mm (Tweeter)
        Totale diepte
        78.8 mm (Woofer) + 38.8 mm (Tweeter)
        Montagegatdiameter
        126 mm (Woofer) + 85.6 mm (Tweeter)
        # Bevestigingsgaten
        6 (Woofer) + 4 (Tweeter)
        Diameter bevestigingsgaten
        5 mm (Woofer) + 4.5 mm (Tweeter)
