    SEAS Prestige L22RN4X/P - H1208 8" Aluminum Cone Woofer

    € 99,95 Niet op voorraad: binnen 1 week leverbaar
    Extremely stiff aluminum cone gives tremendous bass precision. The cone and the low loss rubber surround show no sign of the familiar cone edge resonance and distortion associated with soft cones. 4-layer, extremely long, high temperature voice coil wound... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €94,95 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    Highlights

    • Long term power handling (RMS) is 110 Watts
    • Extremely stiff aluminum cone provides tremendous bass precision
    • Large magnet system provides reasonably high efficiency and low Q



    Product details

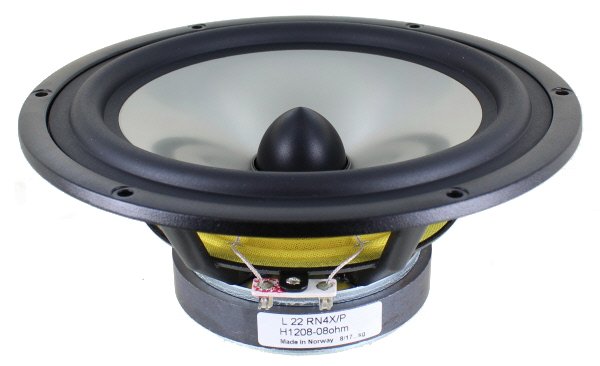

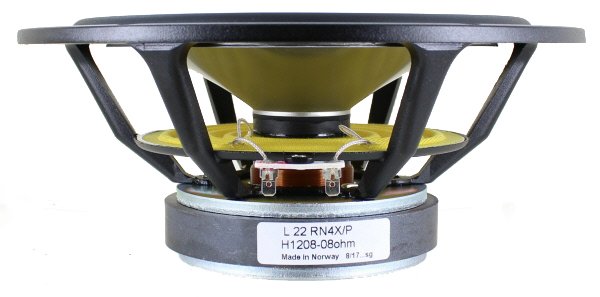

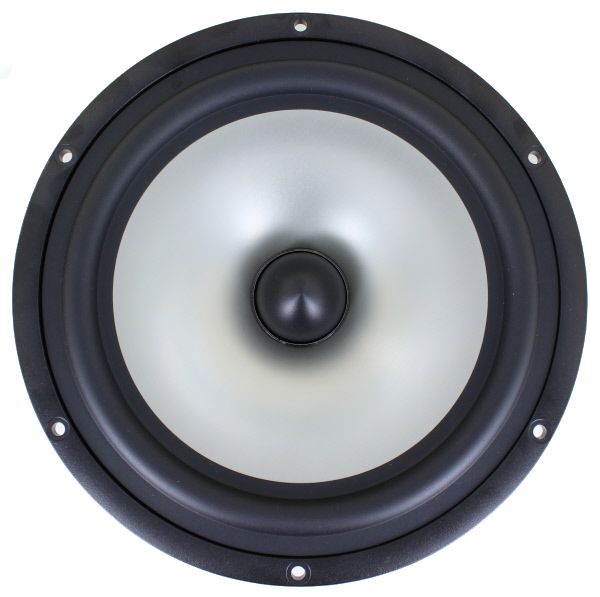

    Seas Prestige L22RN4X/P - H1208 8" Aluminum Cone Woofer



    Extremely stiff aluminum cone gives tremendous bass precision. The cone and the low loss rubber surround show no sign of the familiar cone edge resonance and distortion associated with soft cones. 4-layer, extremely long, high temperature voice coil wound on an aluminum voice coil former gives a high power handling capacity.



    Phase plug reduces compression due to temperature variations in the voice coil, eliminates resonances that would occur in the volume between the dust cap and the pole piece and increases the power handling capacity. Large magnet system provides reasonably high efficiency and low Q.



    Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

    Specificaties

    Artikelnummer
    L22RN4X/P
    Woofer Series
    Prestige Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    8"
    Power Handling (RMS)
    125 Watts
    Power Handling (max)
    300 Watts
    Impedance
    8 ohms
    Sensitivity
    86.5 dB 2.83V/1m
    Frequency Response
    20 to 1,000 Hz
    Voice Coil Diameter
    1.53"
    Magnet Weight
    22.5 oz.
    DC Resistance (Re)
    6.1 ohms
    Voice Coil Inductance (Le)
    3.76 mH
    Resonant Frequency (Fs)
    21 Hz
    Mechanical Q (Qms)
    3.13
    Electromagnetic Q (Qes)
    0.29
    Total Q (Qts)
    0.27
    Diaphragm Mass Inc. Airload (Mms)
    40g
    Mechanical Compliance of Suspension (Cms)
    1.4 mm/N
    Compliance Equivalent Volume (Vas)
    3.28 ft.³
    Maximum Linear Excursion (Xmax)
    7 mm
    Overall Outside Diameter
    8.69"
    Overall Depth
    3.76"
    Baffle Cutout Diameter
    7.34"
    Bolt Circle Diameter
    8.25"
    # Mounting Holes
    6
    Mounting Hole Diameter
    0.2"
