        Prestige L19RNX1 - H1878-08 Bass-midwoofer

        Prestige L19RNX1 - H1878-08 Bass-midwoofer

        €269,95

        SEAS Prestige L19RNX1 - H1878-08 Bass-midwoofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: SEAS
        € 223,10€ 269,95 5 Op voorraad
        • -5% Bestel 4 voor slechts € 256,45 per stuk

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, morgen bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving

        Highlights

        • High break-up point
        • Titanium voice coil former
        • Very stiff and optimally shaped aluminum cone
        • Unique radial reinforced rubber surround
        • Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment



        Product details

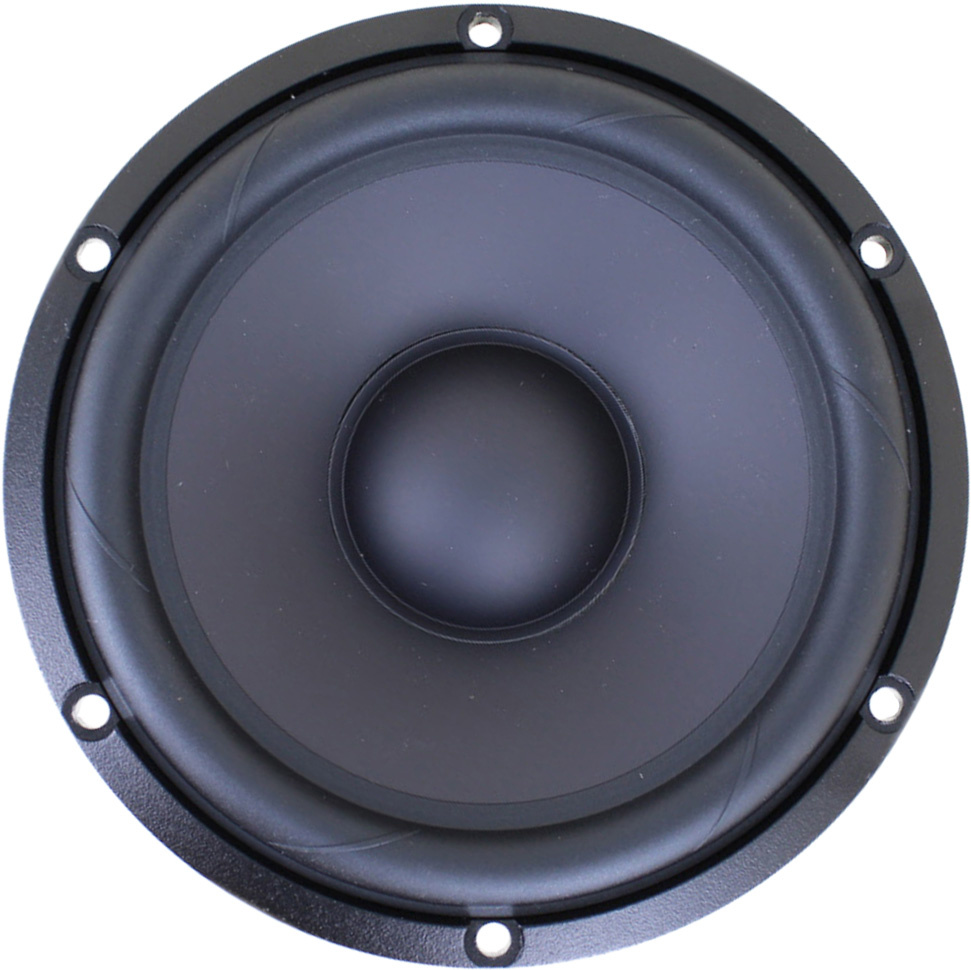

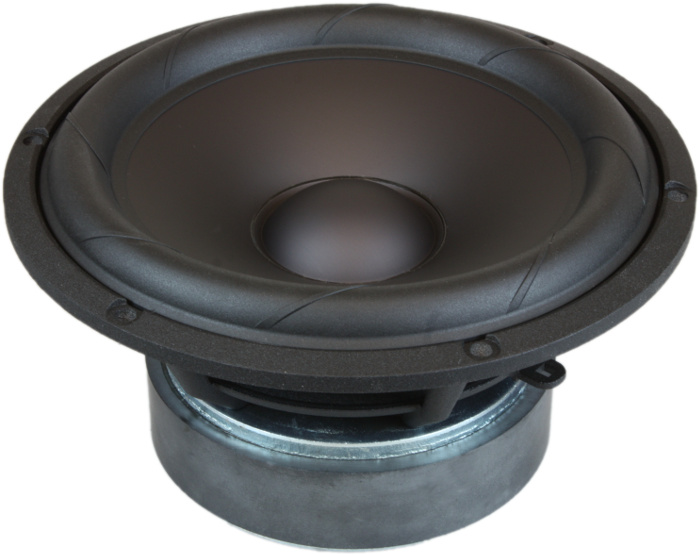

        Seas Prestige L19RNX1 - H1878-08 7" Aluminum Cone Woofer



        L19RNX1 is a 7” high-fidelity woofer with a very stiff and optimally shaped aluminum cone. This pushes the cone break-up high up in frequency and avoid any resonances in the working range for a very natural and clean sound.



        A titanium voice coil former with a long copper winding for excellent force transfer, transient sound reproduction and large linear excursion. A unique radial reinforced rubber surround reduces radial resonances and prevents surround break up at large excursions. This combination results in very low mechanical damping for better clarity and brings out the micro details in the music.



        An FEA optimized magnet system with precisely fitted copper parts for excellent linearity, high power handling and low distortion.



        The extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

        Toon meer

        Specificaties

        Artikelnummer
        L19RNX1
        Woofer series
        Prestige Titan Series
        Woofer type
        Woofer
        Nominale diameter
        7"
        Belastbaarheid (RMS)
        200 watts
        Belastbaarheid (max)
        330 watts
        Continuous Program Power
        -
        Impedantie (Z)
        8 ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        86 dB
        Frequentierespons
        20 - 3000 Hz
        Spreekspoeldiameter
        39 mm
        Gewicht magneet
        900 grams
        Gelijkstroomweerstand (Re)
        6.2 ohms
        Spreekspoelinductie (Le)
        0.66 mH
        Resonantiefrequentie (Fs)
        32 Hz
        Mechanische Q (Qms)
        5.50
        Elektrische Q (Qes)
        0.41
        Totale Q (Qts)
        0.38
        Bewegende massa (Mms)
        25.4g
        Compliantie van de ophanging (Cms)
        0.96 mm/N
        Effectief oppervlak (Sd)
        146 cm²
        Maximaal verplaatst volume (Vd)
        102 cm³
        Krachtsfactor (BL)
        -
        Equivalentvolume (Vas)
        29 liters
        Maximale excursie (Xmax)
        7 mm
        Driver's Mechanical Losses (Rms)
        -
        Cone / Diaphragm Material
        Aluminum
        Surroundmateriaal
        Rubber
        Spreekspoel draadmateriaal
        Copper
        Spreekspoel vormermateriaal
        Titanium
        Dual Voice Coil
        -
        Mand- /framemateriaal
        -
        Magneetmateriaal
        -
        Magnetisch afgeschermd
        -
        Totale buitendiameter
        176 mm
        Totale diepte
        87 mm
        Montagegatdiameter
        154 mm
        Bolt Circle Diameter
        166 mm
        Diameter bevestigingsgaten
        5 mm
        Gesloten volume
        -
        Gesloten F3
        -
        Gepoort volume
        -
        Gepoort F3
        -

        Toon meer
