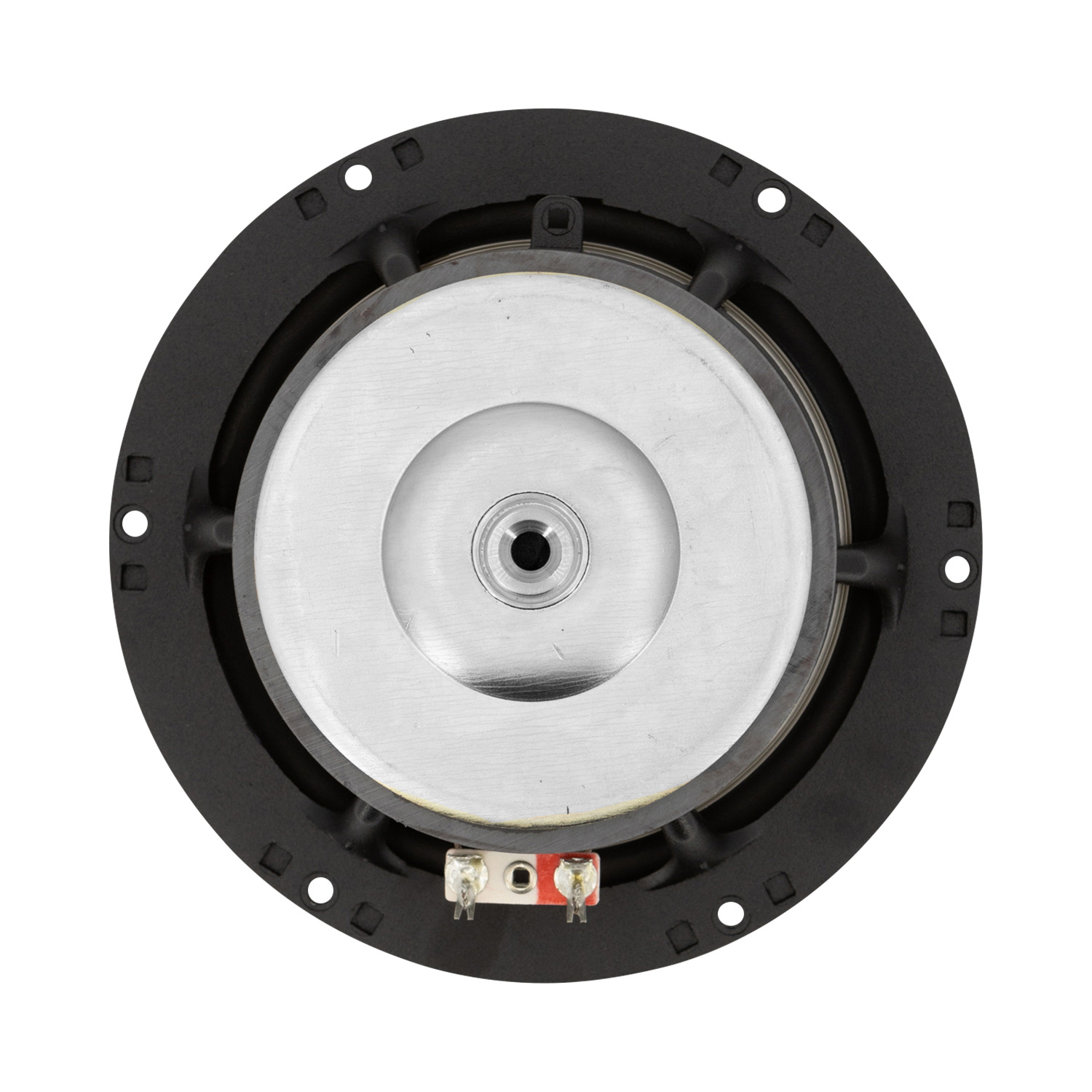

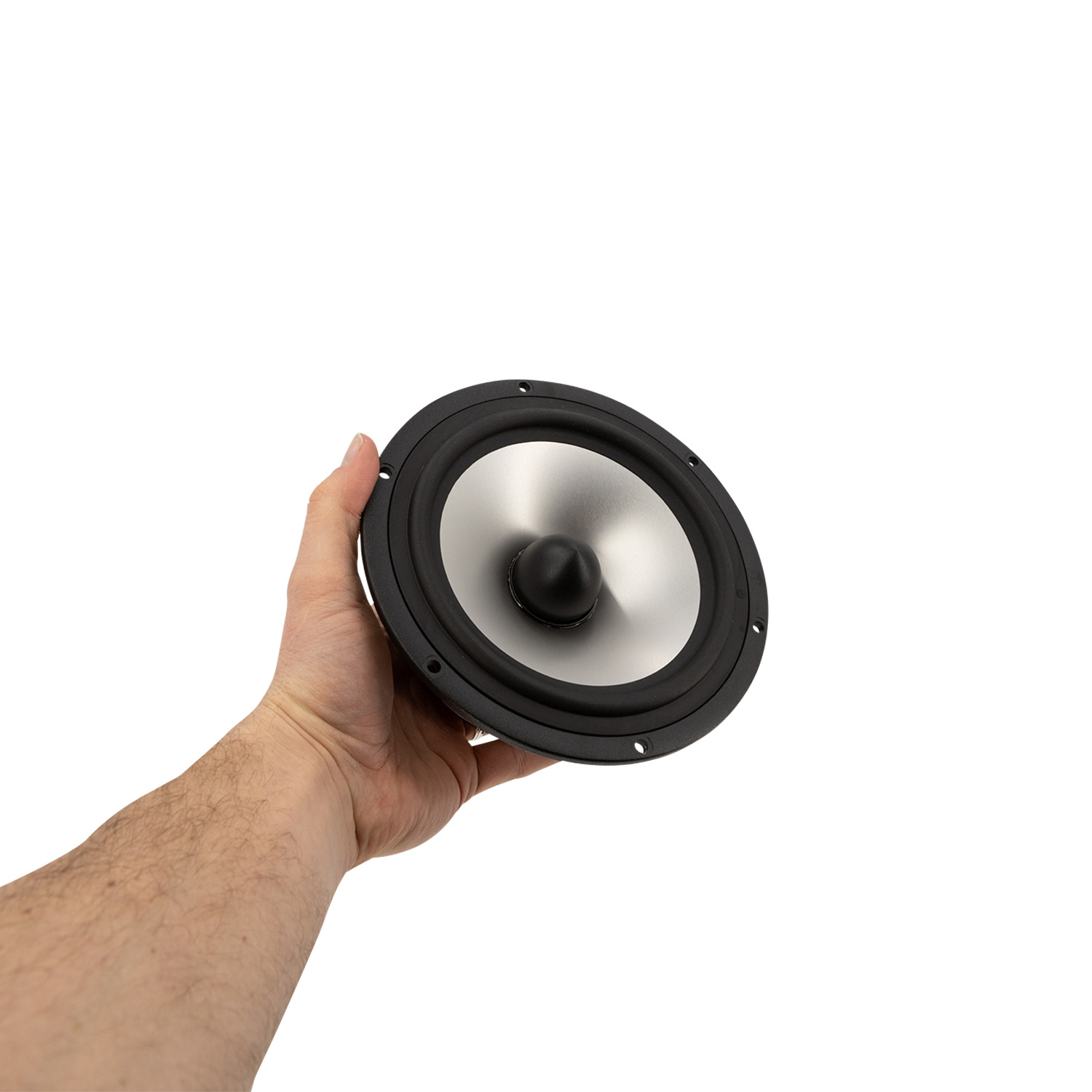

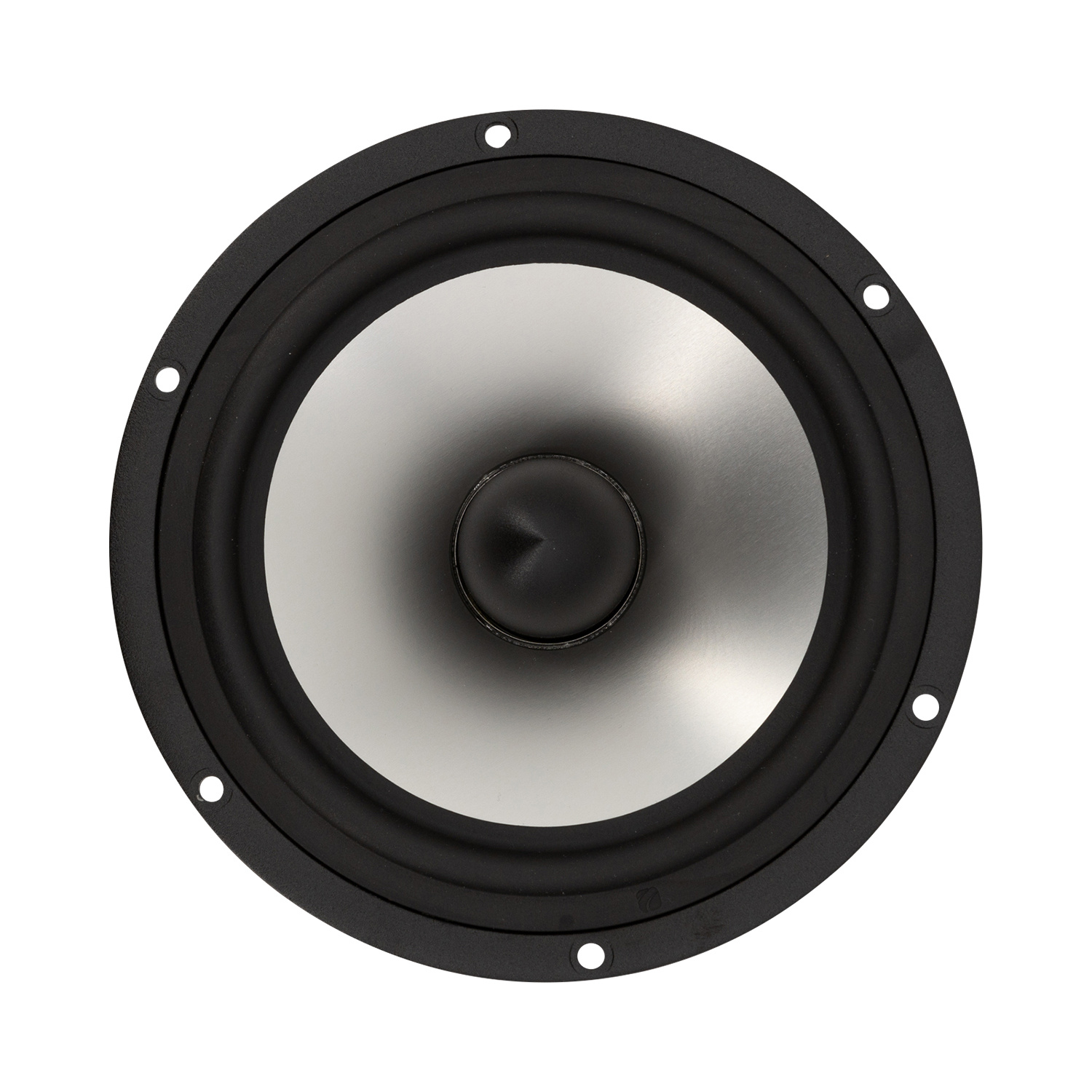

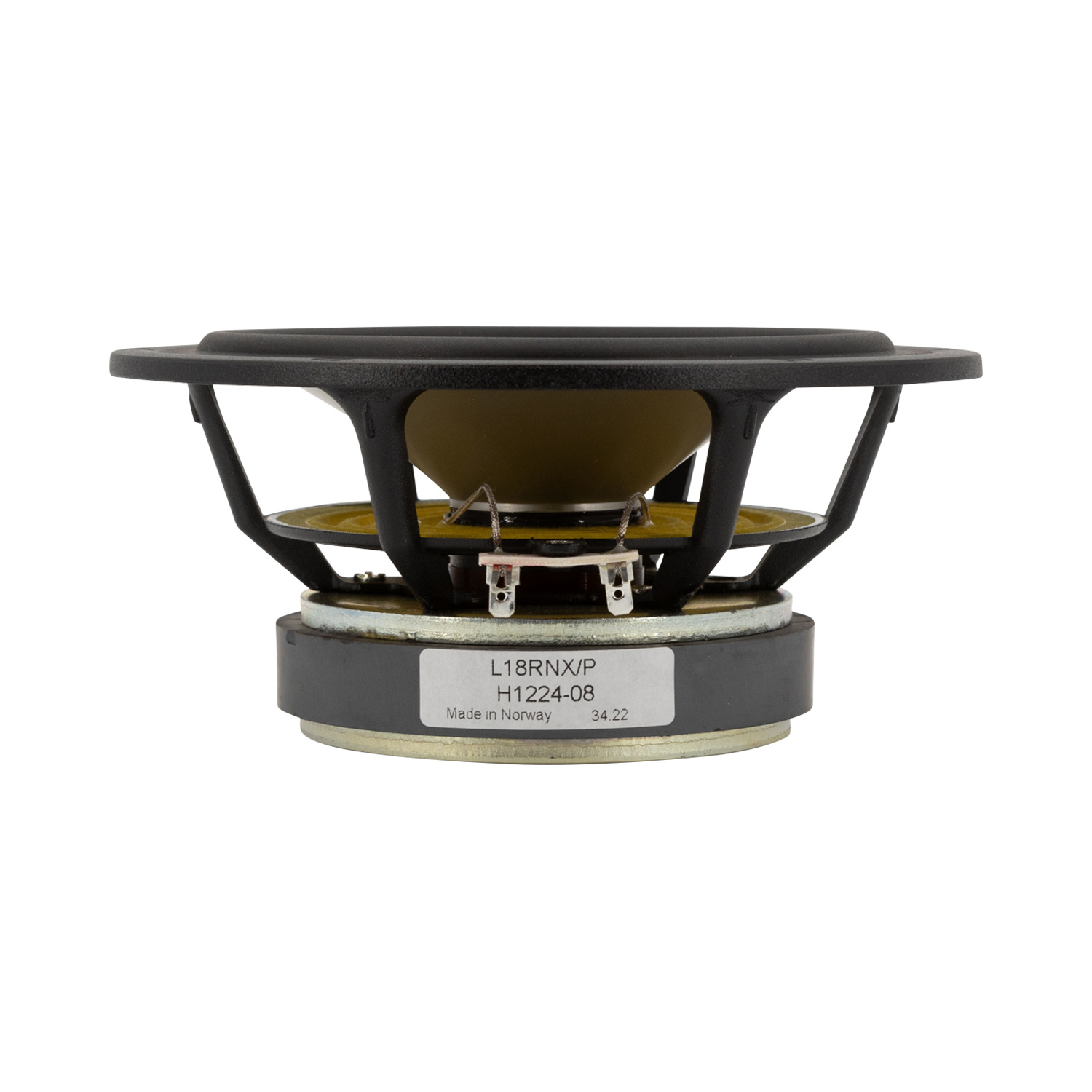

    SEAS Prestige L18RNX/P - H1224 7" Aluminum Cone Woofer

    € 89,95 1 Op voorraad: levertijd 1 werkdag
    L18RNX/P is a 6,5” High Fidelity woofer with an injection molded metal chassis, intended for bass reflex and transmission line designs.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €85,45 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    Highlights

    • Long term power handling (RMS) is 100 Watts
    • Injection molded metal chassis, intended for bass reflex and transmission line designs
    • Seas SpiderRing® technology



    Product details

    L18RNX/P is a 6,5” High Fidelity woofer with an injection molded metal chassis, intended for bass reflex and transmission line designs. Stiff, yet light aluminum cone and low loss rubber surround show no sign of the familiar 500-1500 Hz cone edge resonance and distortion associated with soft cones.



    The large magnet system gives a good transient response, and the bumped back plate together with the very long, and light weight copper clad aluminum voice coil allow for extreme coil excursion with low distortion.



    Extremely stiff and stable injection molded metal basket, keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

    Specificaties

    Artikelnummer
    L18RNX/P
    Woofer Series
    Prestige Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    7"
    Power Handling (RMS)
    100 Watts
    Power Handling (max)
    250 Watts
    Impedance
    8 ohms
    Sensitivity
    88 dB 2.83V/1m
    Frequency Response
    45 to 3,000 Hz
    Voice Coil Diameter
    1.54"
    Magnet Weight
    22.6 oz.
    DC Resistance (Re)
    5.8 ohms
    Voice Coil Inductance (Le)
    1.06 mH
    Resonant Frequency (Fs)
    36 Hz
    Mechanical Q (Qms)
    2.09
    Electromagnetic Q (Qes)
    0.36
    Total Q (Qts)
    0.31
    Diaphragm Mass Inc. Airload (Mms)
    13.6g
    Mechanical Compliance of Suspension (Cms)
    1.4 mm/N
    Compliance Equivalent Volume (Vas)
    0.88 ft.³
    Maximum Linear Excursion (Xmax)
    6 mm
    Overall Outside Diameter
    6.93"
    Overall Depth
    3.28"
    Baffle Cutout Diameter
    5.72"
    Bolt Circle Diameter
    6.54"
    # Mounting Holes
    6
    Mounting Hole Diameter
    0.2"
