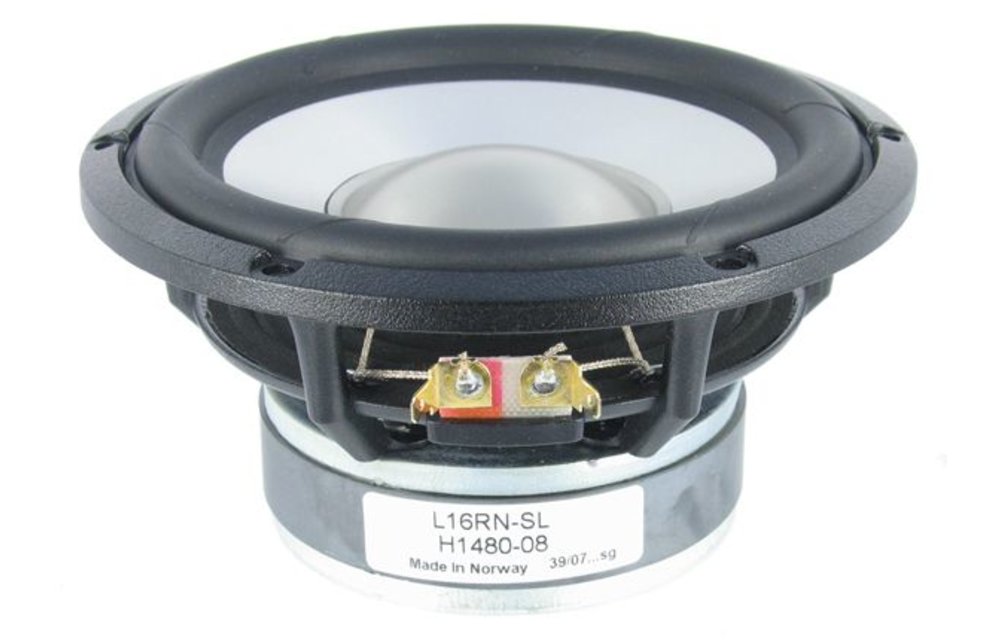

    SEAS Prestige L16RN-SL - H1480 5" Aluminum Cone Woofer 8 Ohm

    € 89,95 1 Op voorraad: levertijd 1 werkdag
    The L16RN-SL is a 5" High Fidelity woofer with an injection molded metal chassis, specially designed in cooperation with Linkwitz Labs in Corte Medera, California. It is specified for use in the Linkwitz Pluto and LXmini omni-directional loudspeakers but... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €85,45 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Highlights

    • Specified for use in the Linkwitz Pluto and LXmini omni-directional loudspeakers but also possible to use in standard bass reflex and transmission line designs
    • Extreme coil excursion with low distortion
    • Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment



    Product details

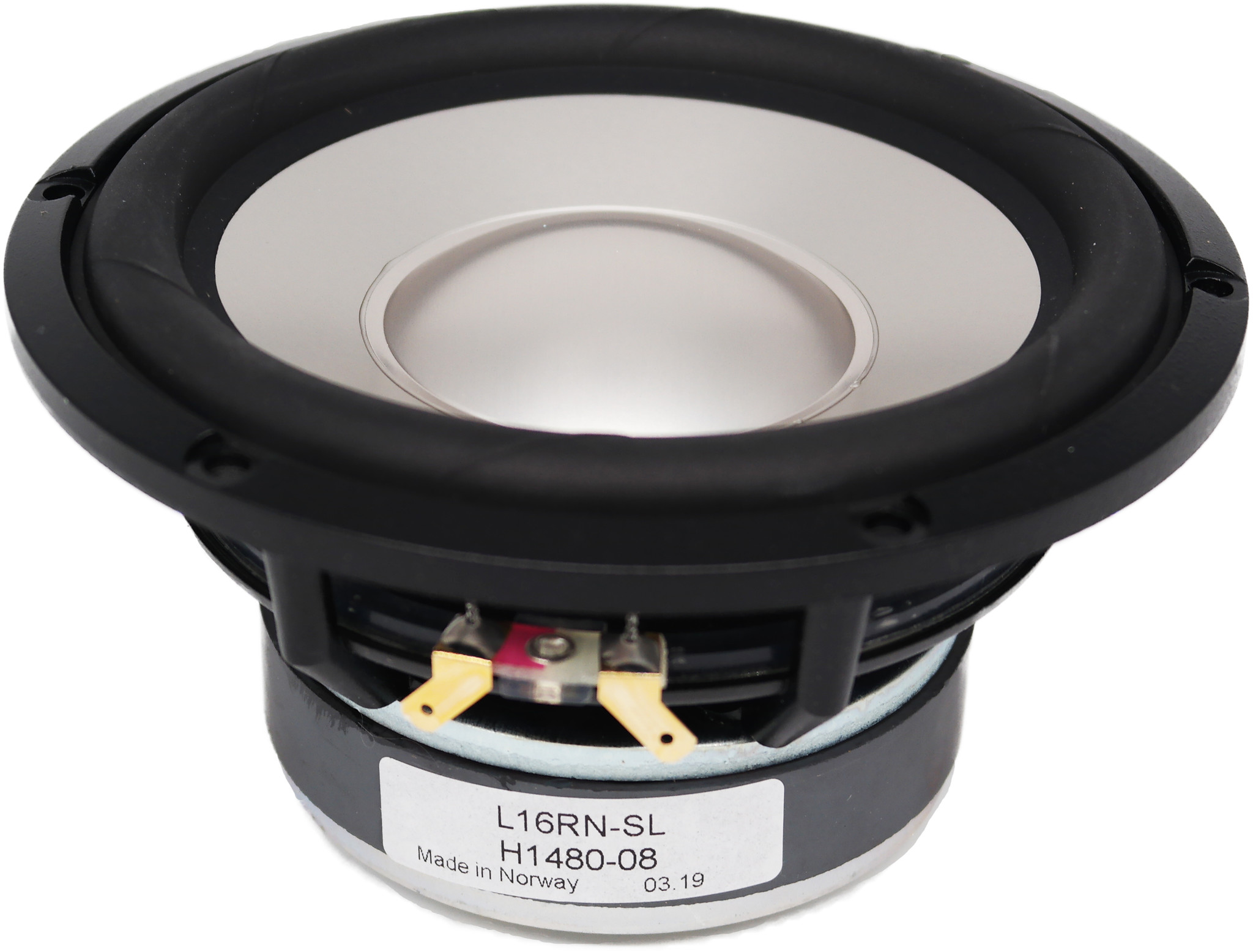

    Seas Prestige L16RN-SL - H1480 5" Aluminum Cone Woofer



    The L16RN-SL is a 5" High Fidelity woofer with an injection molded metal chassis, specially designed in cooperation with Linkwitz Labs in Corte Medera, California. It is specified for use in the Linkwitz Pluto and LXmini omni-directional loudspeakers but can also be used in standard bass reflex and transmission line designs.



    Stiff, yet light aluminum cone and low loss rubber surround show no sign of the familiar 500-1500 Hz cone edge resonance and distortion associated with soft cones. A bumped back plate in the magnet system, together with the very long and light weight copper clad aluminum voice coil, allow extreme coil excursion with low distortion. A heavy copper ring below the T-shaped pole piece reduces nonlinear and modulation distortion. Extremely stiff and stable injection molded metal basket, keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

    Specificaties

    Artikelnummer
    L16RN-SL
    Woofer Series
    Prestige Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    5"
    Power Handling (RMS)
    80 Watts
    Power Handling (max)
    250 Watts
    Continuous Program Power
    -
    Impedance
    8 ohms
    Sensitivity
    84 dB 2.83V/1m
    Frequency Response
    45 to 2,000 Hz
    Voice Coil Diameter
    39 mm
    Magnet Weight
    0.42 kg
    DC Resistance (Re)
    6 ohms
    Voice Coil Inductance (Le)
    0.64 mH
    Resonant Frequency (Fs)
    37 Hz
    Mechanical Q (Qms)
    2.48
    Electromagnetic Q (Qes)
    0.55
    Total Q (Qts)
    0.45
    Diaphragm Mass Inc. Airload (Mms)
    14.7 g
    Mechanical Compliance of Suspension (Cms)
    1.3 mm/N
    Surface Area of Cone (Sd)
    104 cm²
    Volume of Displacement (Vd)
    62.4 cm³
    BL Product (BL)
    6.1 N/A
    Compliance Equivalent Volume (Vas)
    19 liters
    Maximum Linear Excursion (Xmax)
    6 mm
    Driver's Mechanical Losses (Rms)
    -
    Cone / Diaphragm Material
    Aluminum
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper-clad aluminum
    Voice Coil Former
    -
    Dual Voice Coil
    -
    Basket / Frame Material
    Injection molded metal
    Magnet Material
    -
    Shielded
    -
    Overall Outside Diameter
    146 mm
    Overall Depth
    76 mm
    Baffle Cutout Diameter
    127 mm
    Bolt Circle Diameter
    137 mm
    # Mounting Holes
    6
    Mounting Hole Diameter
    5 mm
    Sealed Volume
    -
    Sealed F3
    -
    Vented Volume
    -
    Vented F3
    -

    Reviews

    5 from 5Based on 2 reviews
    Schrijf een review
    5 van 5
    No description was given
    Door Andrew C. on 16 December 2020
    5 van 5
    Ich nutze den Tieftöner in den LX Minis, die ich gerade fertig gebaut habe. Sie klingen richtig gut und kommen mit Linkwitz Transformation runter auf 50 Hz bei -3 dB in einer geschlossenen Box.
    Die Lieferung war wieder extrem schnell, trotz Corona. Danke dafür!
    Door Vinzenz H. on 25 Juni 2020
