    SEAS Prestige FU10RB - H1600-08 4" Full Range

    € 60,45 2 Op voorraad: levertijd 1 werkdag
    The FU10RB is a 4” full range driver offering an extraordinary performance and sound clarity. New Curv cone, a woven polypropylene with excellent internal damping together with perfectly matched moving parts gives a smooth, extended frequency response.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €57,43 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    Highlights

    • Long term power handling (RMS) is 40 Watts
    • New Curv cone, a woven polypropylene with excellent internal damping
    • Small size combined with excellent performance



    Product details

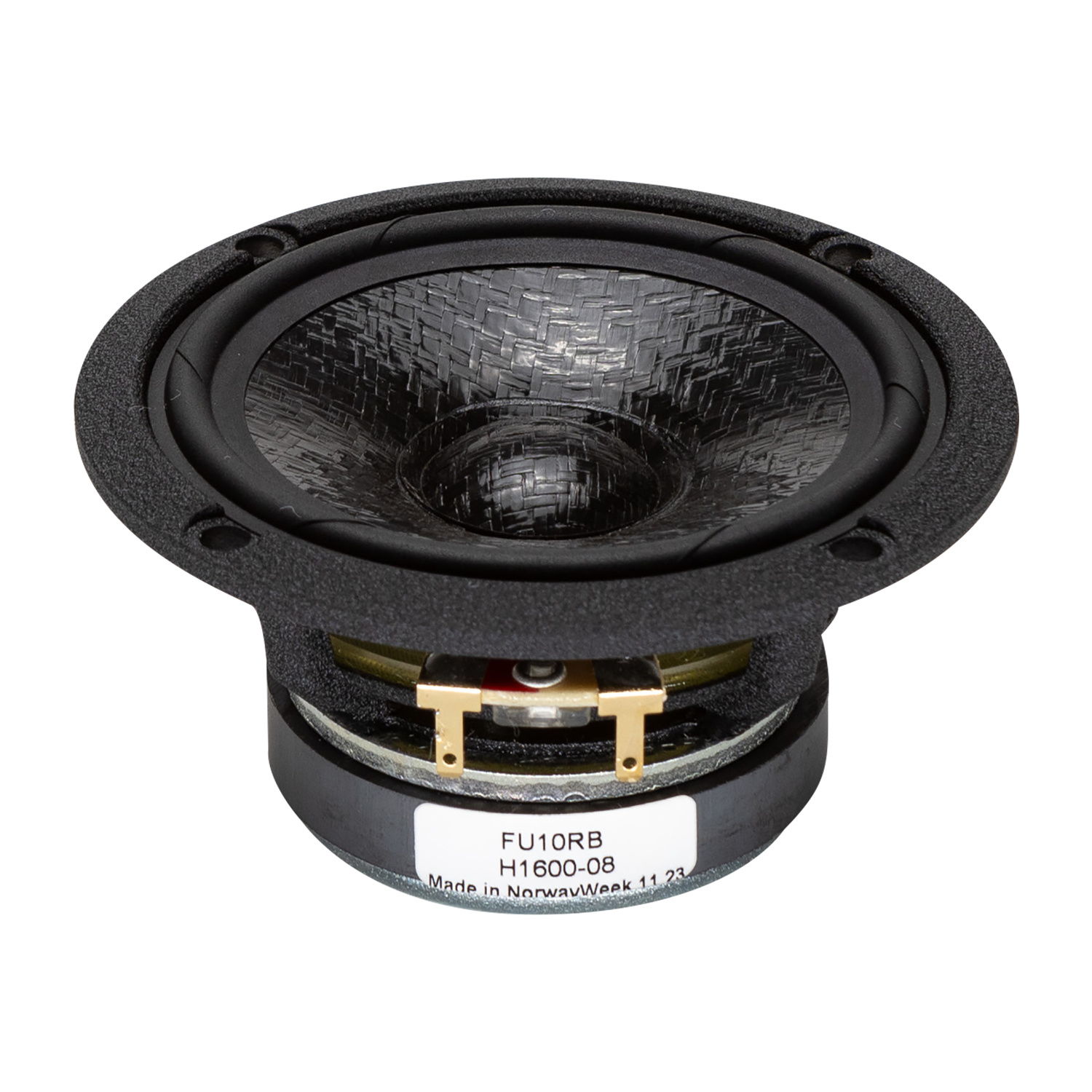

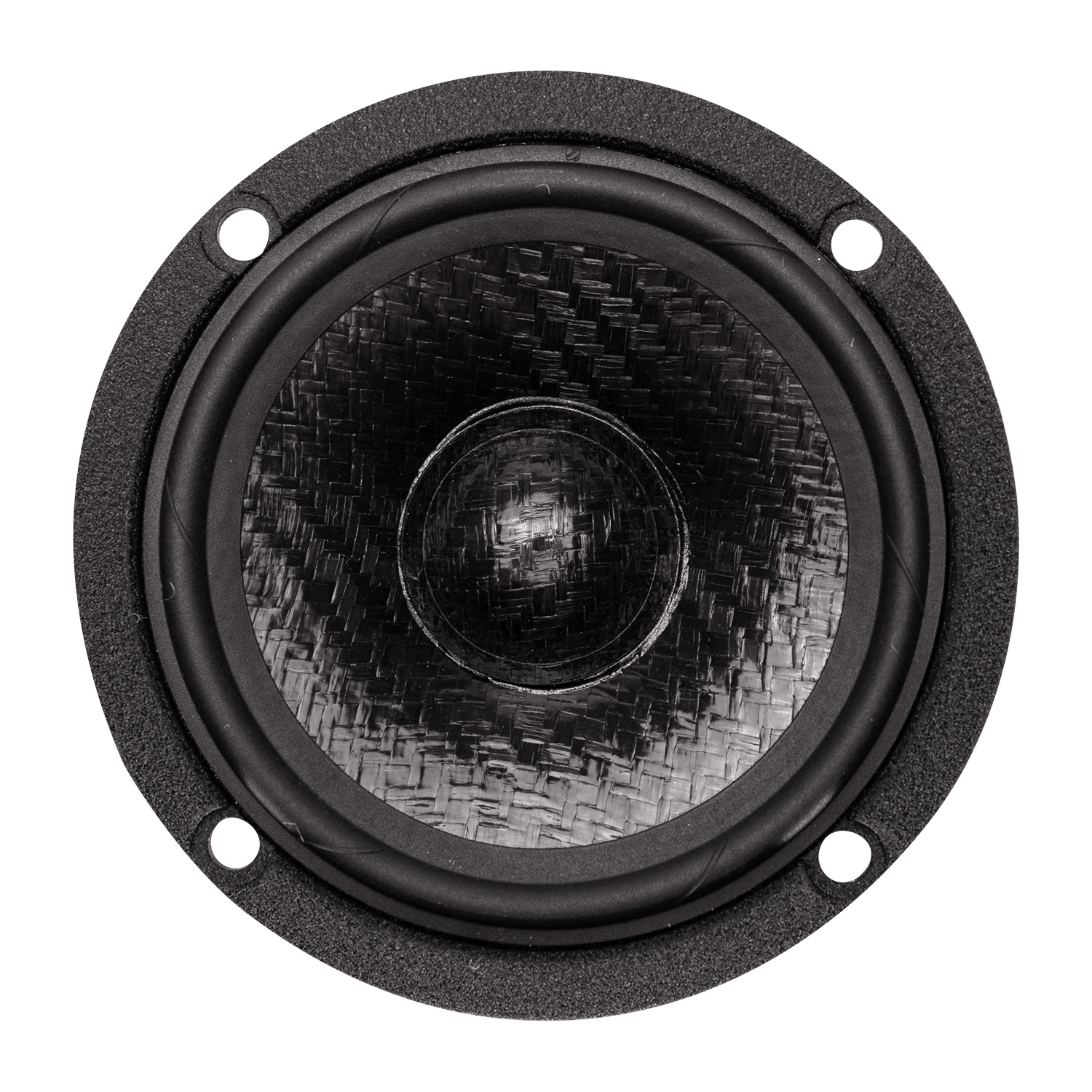

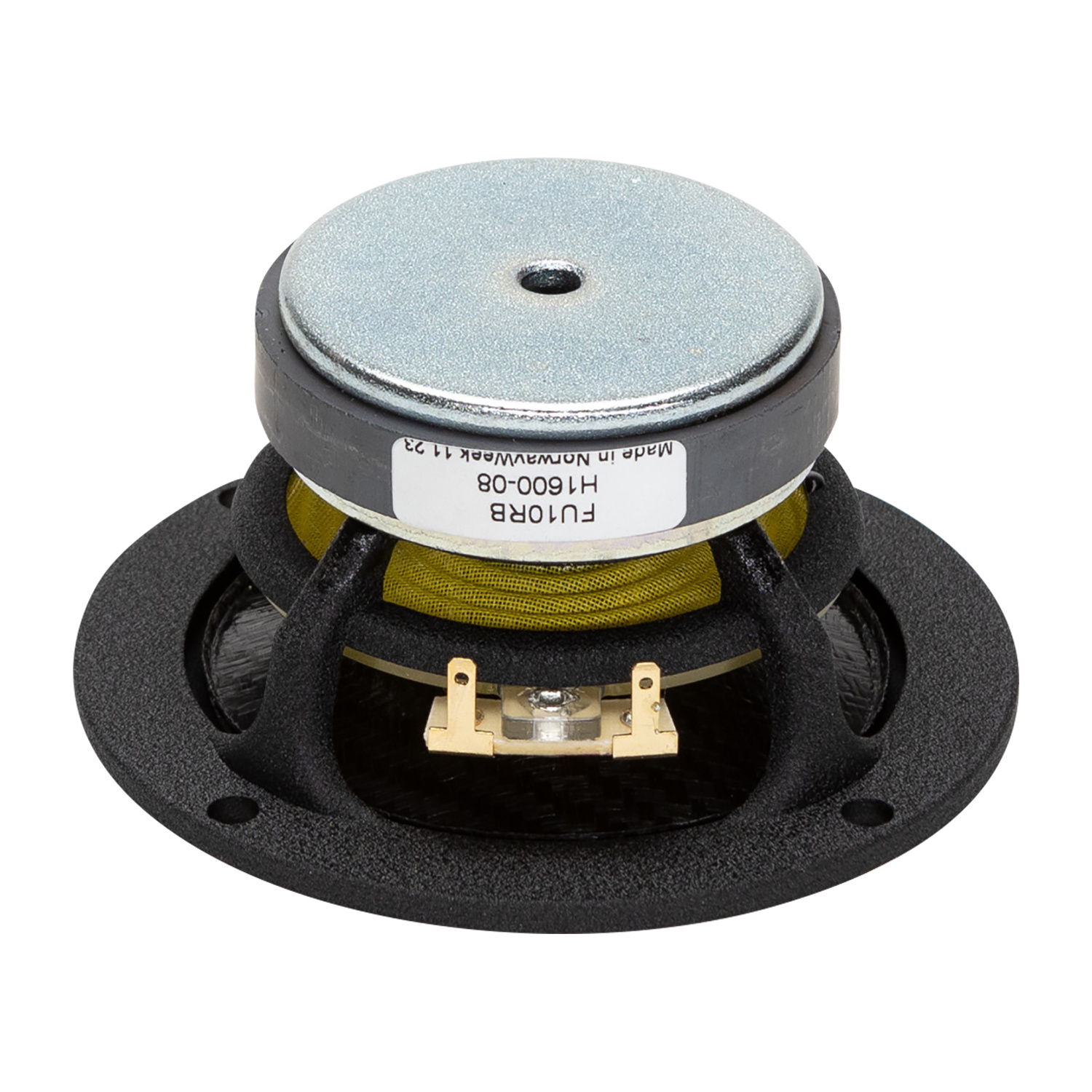

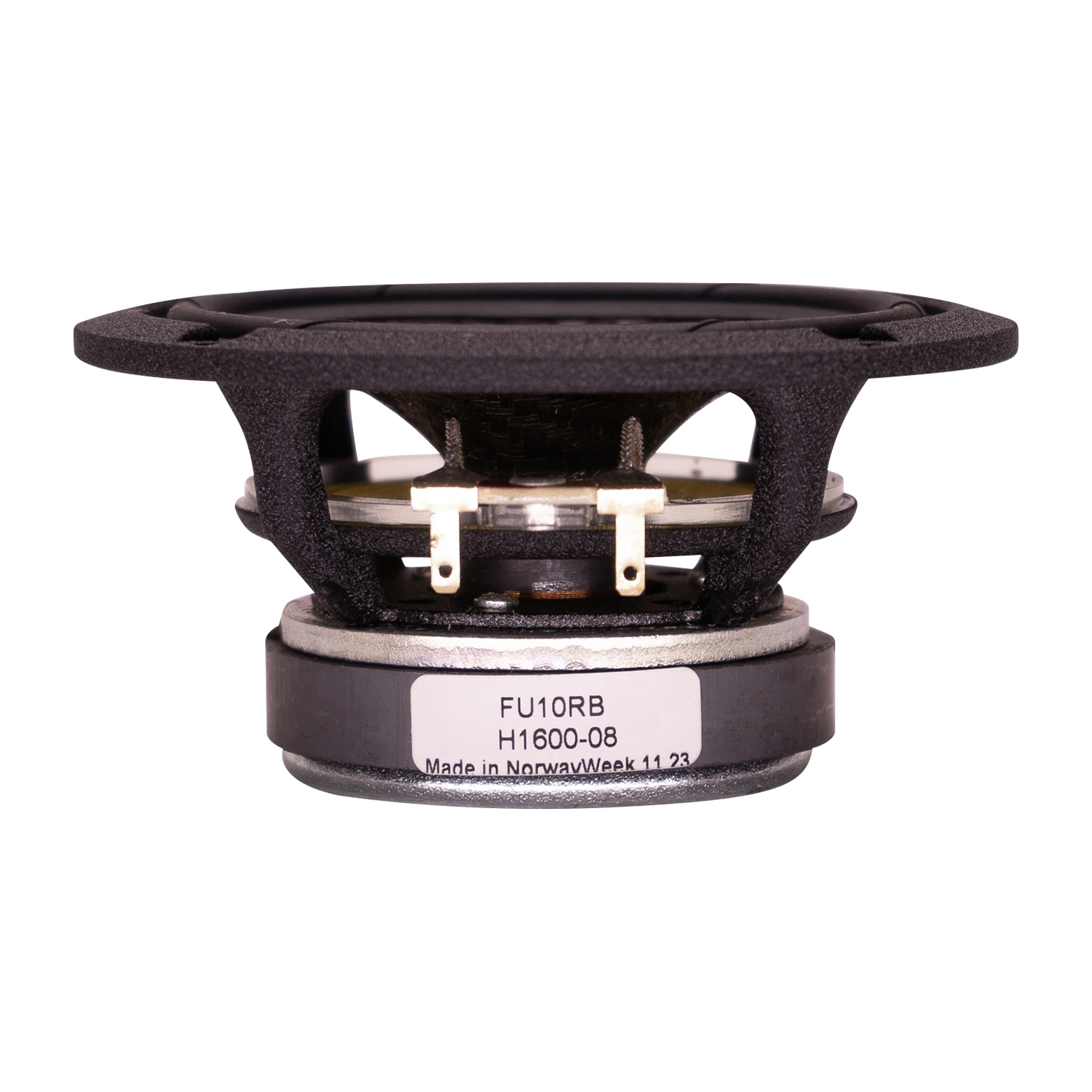

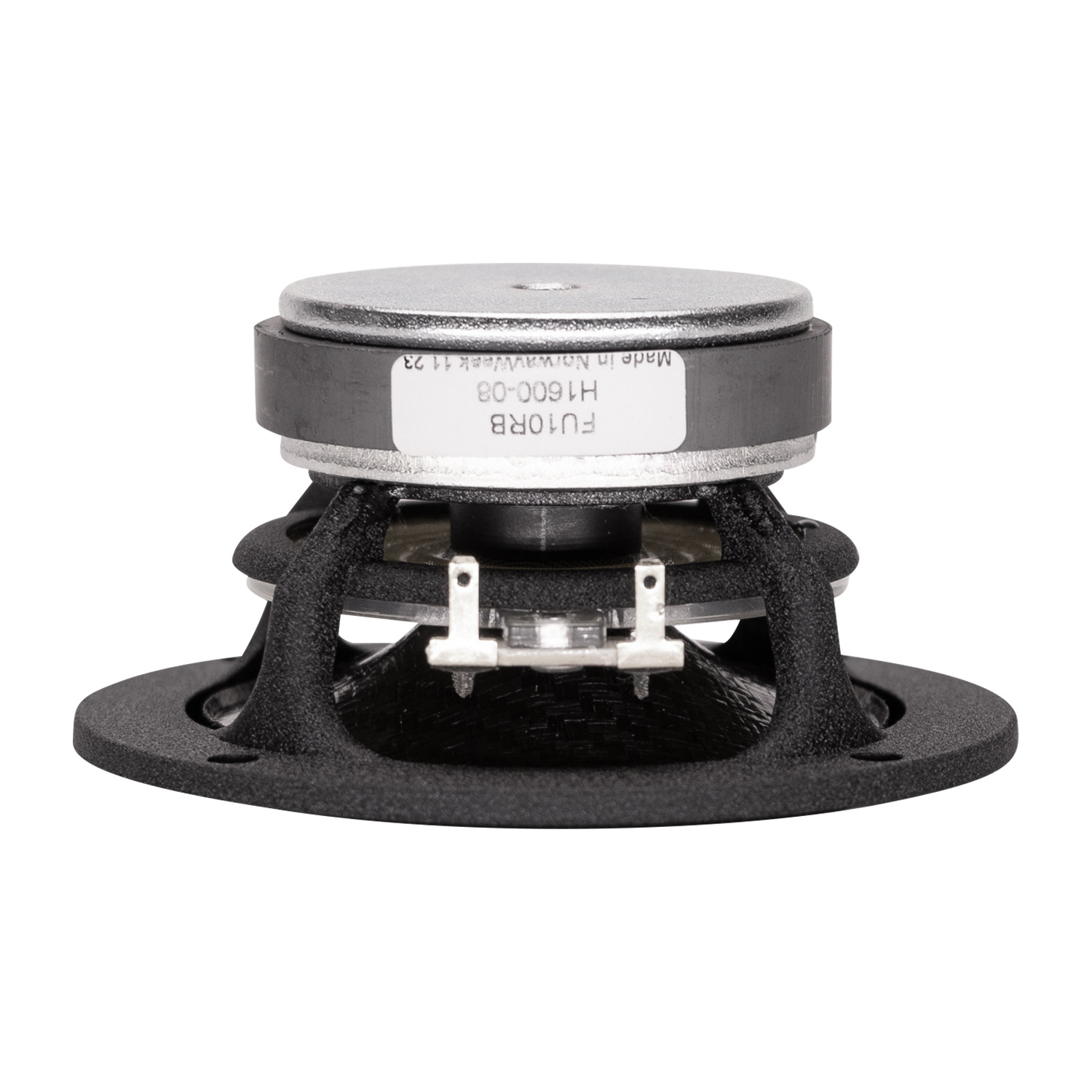

    Seas Prestige FU10RB - H1600-08 4" Full Range



    The FU10RB is a 4” full range driver offering an extraordinary performance and sound clarity. New Curv cone, a woven polypropylene with excellent internal damping together with perfectly matched moving parts gives a smooth, extended frequency response.



    The large, open weave fabric spider reflects very little acoustic energy to the cone and offers excellent stiffness linearity. A stiff and stable injection molded aluminum chassis keeps the critical components in perfect alignment. The pole piece is prolonged forwards and equipped with a deep drawn copper cap to ensure excellent linearity in the force factor and coil inductance.



    Small size combined with an excellent performance makes this driver the perfect election for any application where limited space is a critical parameter.

    Specificaties

    Artikelnummer
    FU10RB
    Woofer Series
    Prestige Series
    Woofer Type
    Full-range
    Nominal Diameter
    4"
    Power Handling (RMS)
    40 Watts
    Power Handling (max)
    100 Watts
    Impedance
    8 ohms
    Sensitivity
    82.1 dB 2.83V/1m
    Frequency Response
    100 to 20,000 Hz
    Voice Coil Diameter
    0.74"
    Magnet Weight
    3.17 oz.
    DC Resistance (Re)
    6.42 ohms
    Voice Coil Inductance (Le)
    0.16 mH
    Resonant Frequency (Fs)
    102 Hz
    Mechanical Q (Qms)
    3.25
    Electromagnetic Q (Qes)
    1.36
    Total Q (Qts)
    0.96
    Diaphragm Mass Inc. Airload (Mms)
    4.05g
    Mechanical Compliance of Suspension (Cms)
    0.6 mm/N
    Compliance Equivalent Volume (Vas)
    0.03 ft.³
    Maximum Linear Excursion (Xmax)
    2 mm
    Overall Outside Diameter
    3.86"
    Overall Depth
    1.93"
    Baffle Cutout Diameter
    3.15"
    Bolt Circle Diameter
    3.5"
    # Mounting Holes
    4
