        Exotic W8 - X2-08 Midrange Woofer

        Exotic W8 - X2-08 Midrange Woofer

        €829,95

        SEAS Exotic W8 - X2-08 Midrange Woofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: SEAS
        € 685,91€ 829,95 4 Op voorraad
        • -5% Bestel 4 voor slechts € 788,45 per stuk

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, morgen verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving

        Highlights

        • High sensitivity and low distortion
        • Special foam rubber surround
        • The magnet system uses an Alnico V ring magnet for high sensitivity and excellent stability



        Product Details

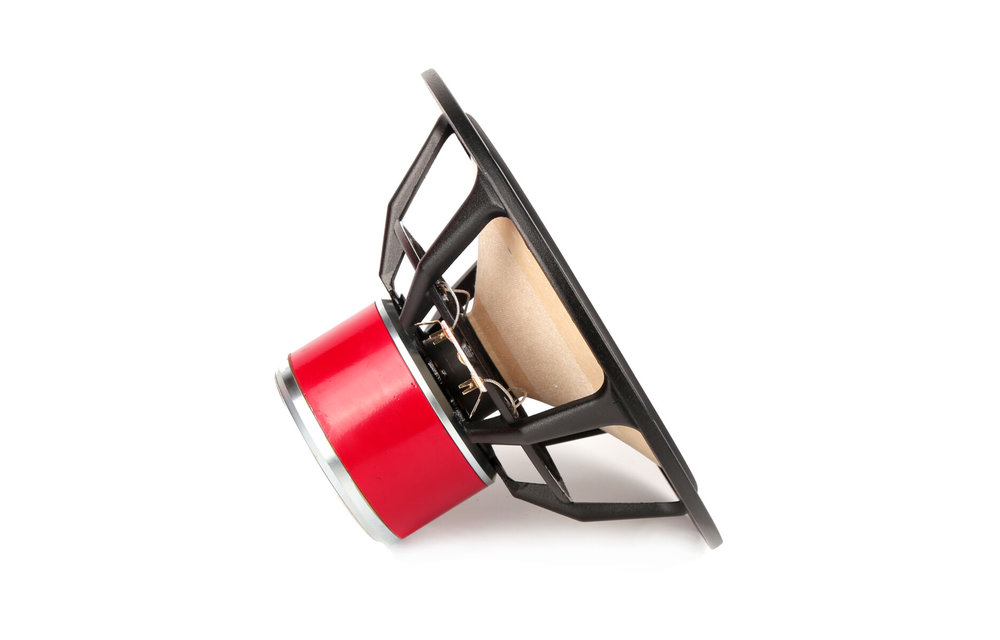

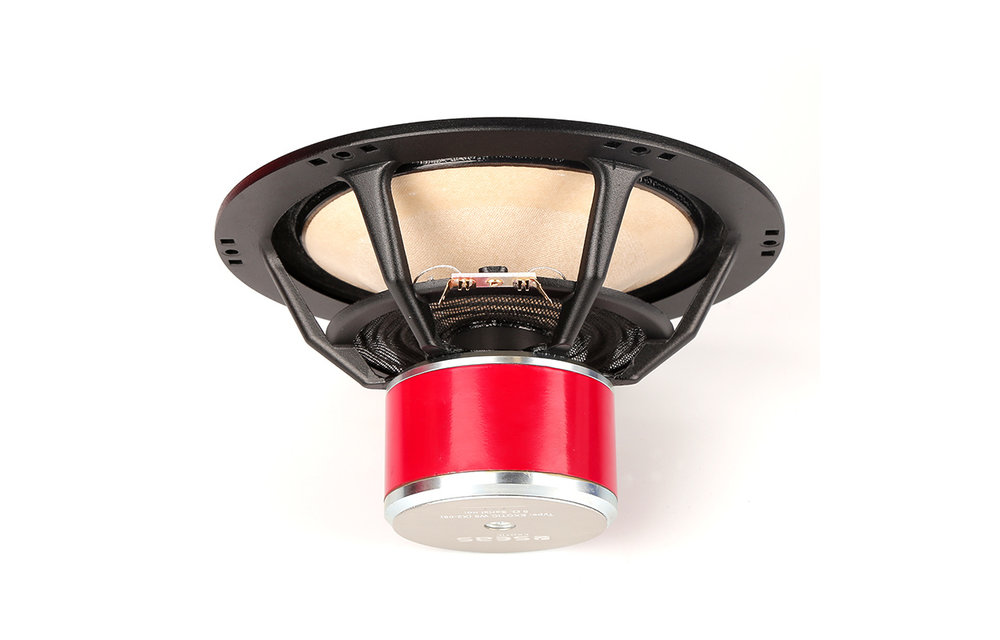

        Seas Exotic W8 X2-08 8" Midrange Woofer - Alnico Magnet



        The Exotic W8 is an 8-inch woofer-midrange driver designed for smooth, wide frequency response, high sensitivity and low distortion. The special paper cone is embedded with papyrus fibers to optimize stiffness and damping. A special foam rubber surround reduces mass by 40% compared to conventional rubber surrounds, resulting in higher sensitivity and excellent damping properties. Unlike most plastic foam materials, this material is stable and will offer decades of trouble-free operation. A new and proprietary spider design dramatically improves the performance of this critical suspension part. By combining an extremely open weave with a new resin formulation, all noises normally generated by the friction of the threads rubbing together are virtually eliminated. Additionally, the open weave is highly acoustically transparent, minimizing the reflections and resonances associated with conventional spider designs. A high-temperature copper voice coil is wound on a rigid, non-conductive glass fiber former. High-quality H2 lead-out wires eliminate noise due to roping and resonances. The magnet system uses an Alnico V ring magnet for high sensitivity and excellent stability. Massive copper rings above and below the magnet gap lower distortion due to eddy currents and flux modulation. A hand-turned phase plug made from ash offers optimal radiation conditions for the critical mid-frequency band. A stiff and stable injection moulded zinc basket keeps the critical components in perfect alignment. Generous windows both above and below the spider reduce sound reflection, air flow noise and cavity resonances to a minimum.

        Toon meer

        Specificaties

        Artikelnummer
        EXOTIC W8
        Woofer series
        Exotic
        Woofer type
        Midrange
        Nominale diameter
        8"
        Belastbaarheid (RMS)
        100 W
        Belastbaarheid (max)
        100 W
        Impedantie (Z)
        8 Ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        94 dB
        Spreekspoeldiameter
        39 mm
        Gewicht magneet
        0.8 kg
        Gelijkstroomweerstand (Re)
        6 Ohms
        Spreekspoelinductie (Le)
        0.43 mH
        Resonantiefrequentie (Fs)
        36 Hz
        Mechanische Q (Qms)
        5.10
        Elektrische Q (Qes)
        0.25
        Totale Q (Qts)
        0.24
        Bewegende massa (Mms)
        13.9 g
        Moving Mass Of Diaphragm (Mmd)
        11.6 g
        Compliantie van de ophanging (Cms)
        1200 µm/N
        Effectief oppervlak (Sd)
        212 cm²
        Maximaal verplaatst volume (Vd)
        63.6 cm³
        Krachtsfactor (BL)
        9.2 T·m
        Equivalentvolume (Vas)
        78 Litres
        Maximale excursie (Xmax)
        3 mm
        Driver's Mechanical Losses (Rms)
        0.7 N·s/m
        Cone / Diaphragm Material
        Paper

        Toon meer
