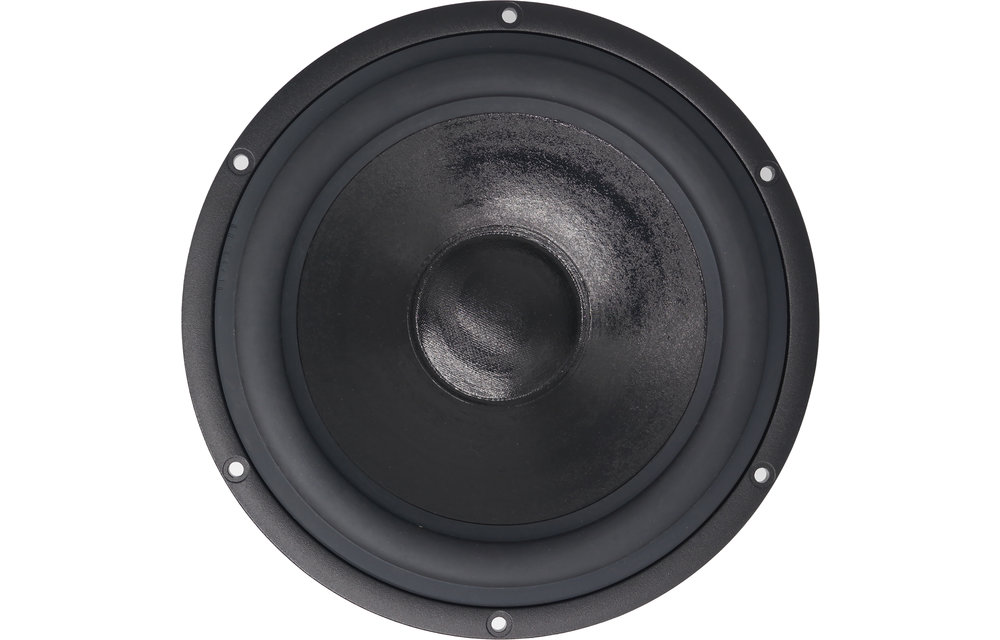

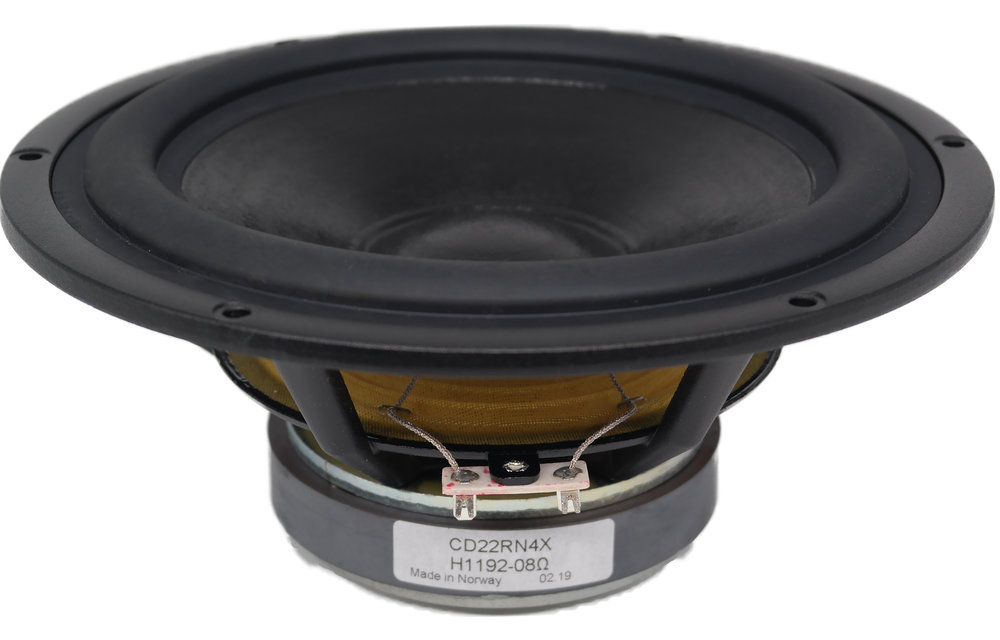

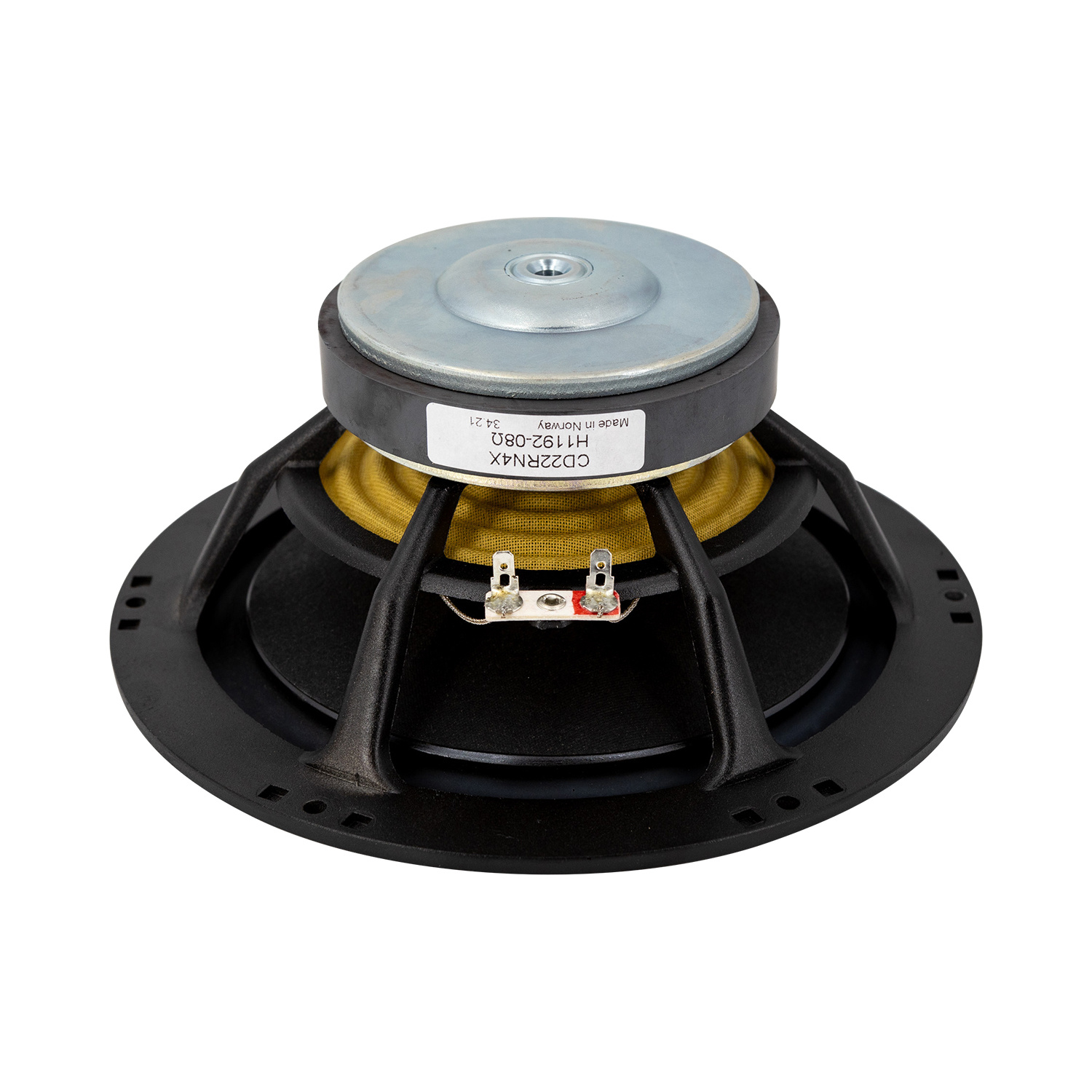

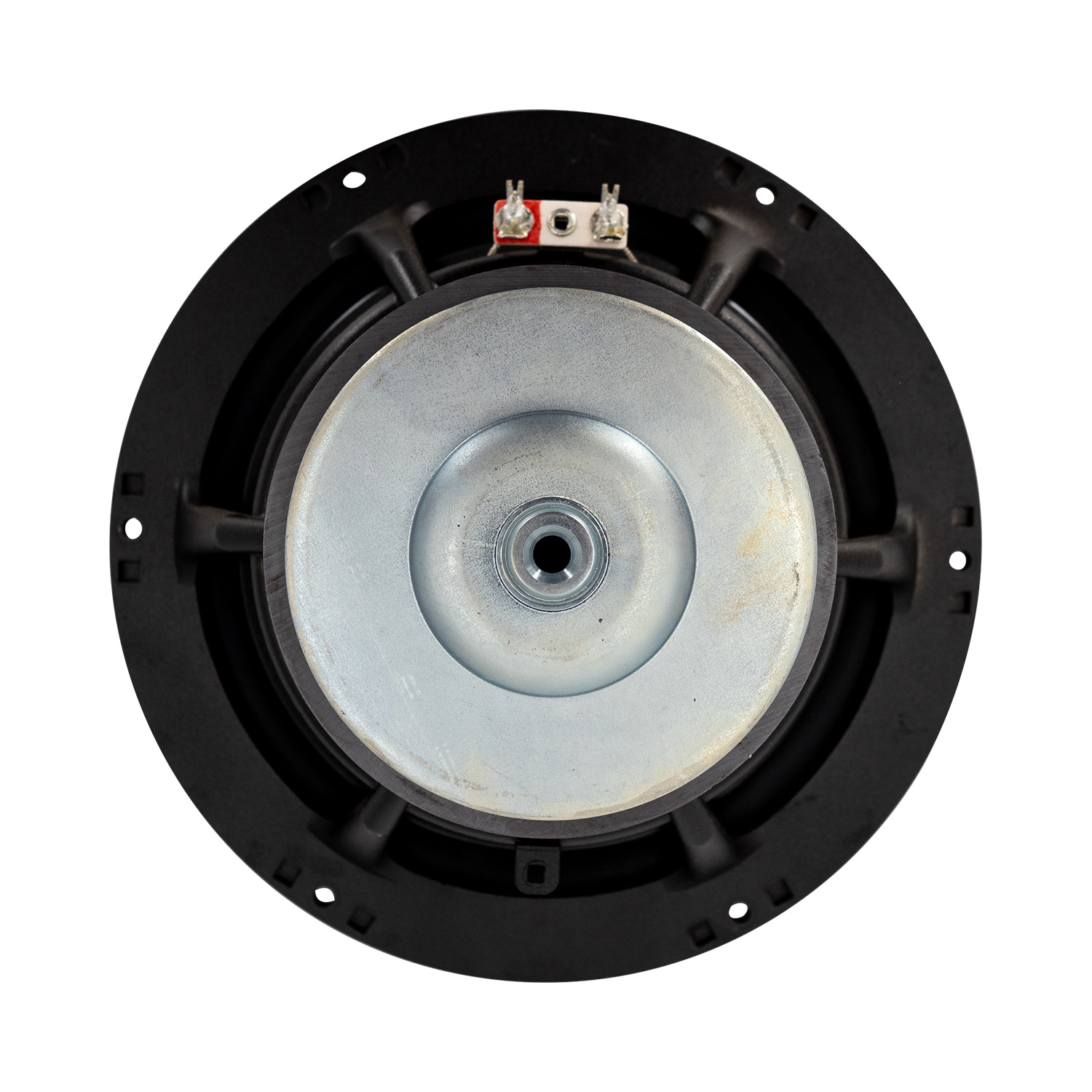

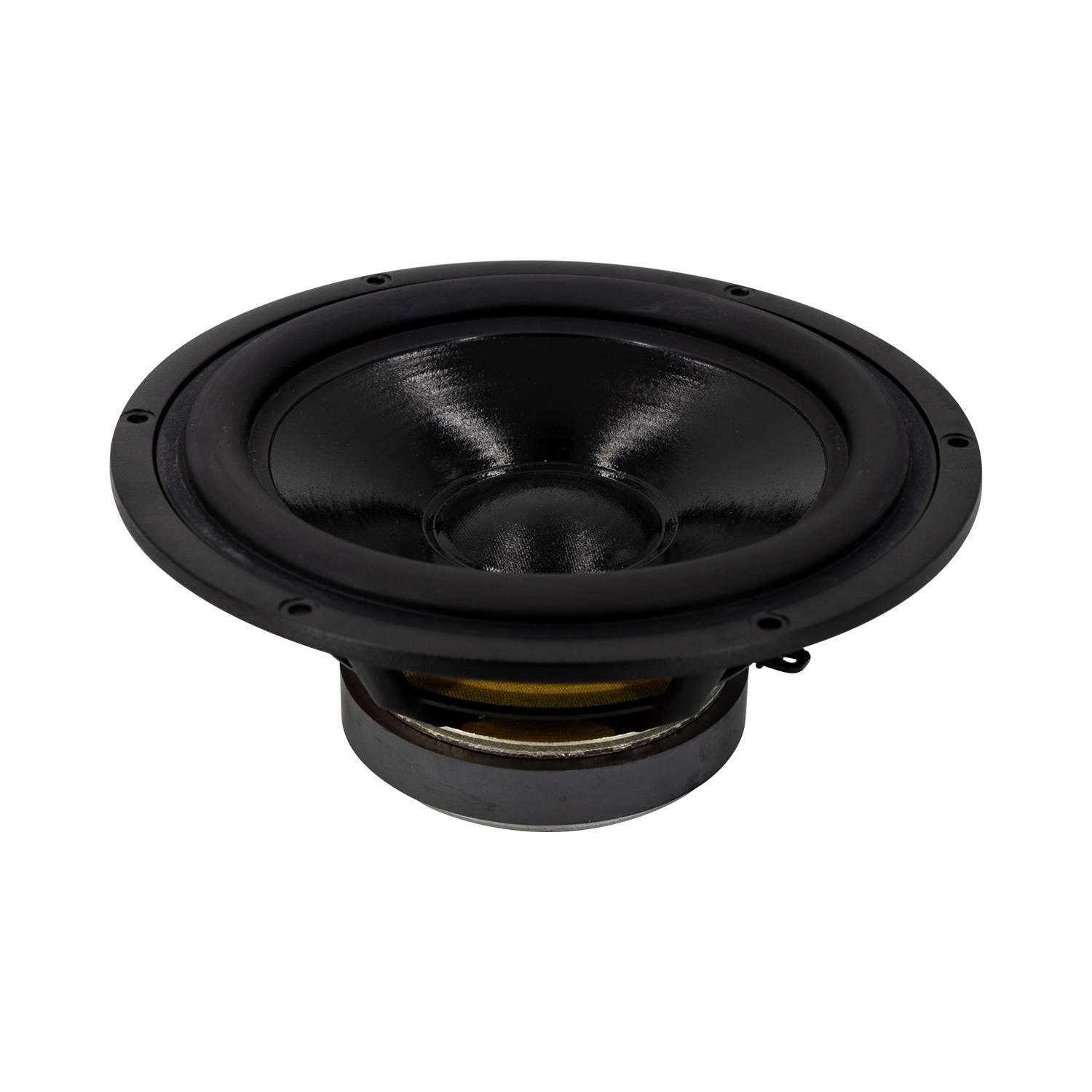

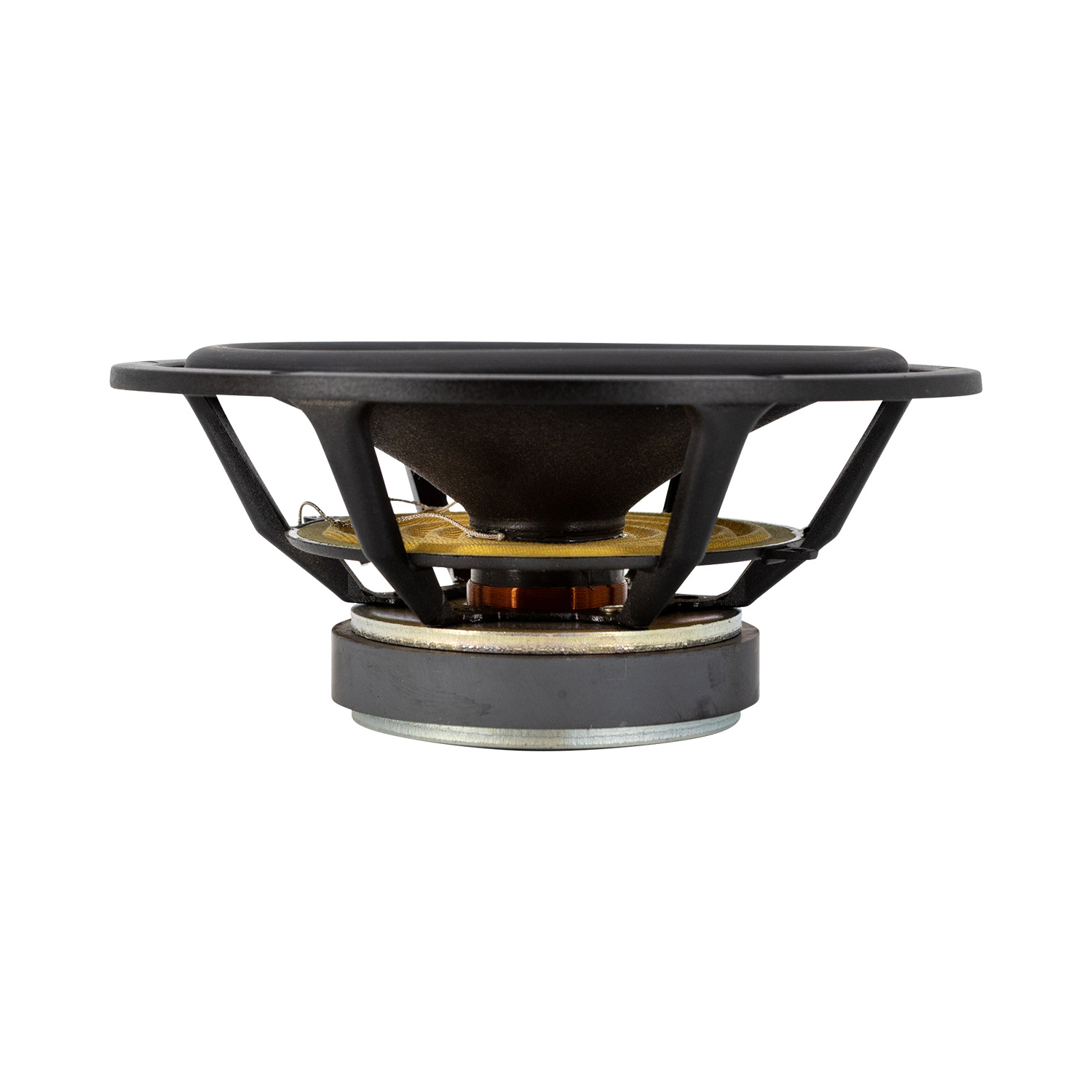

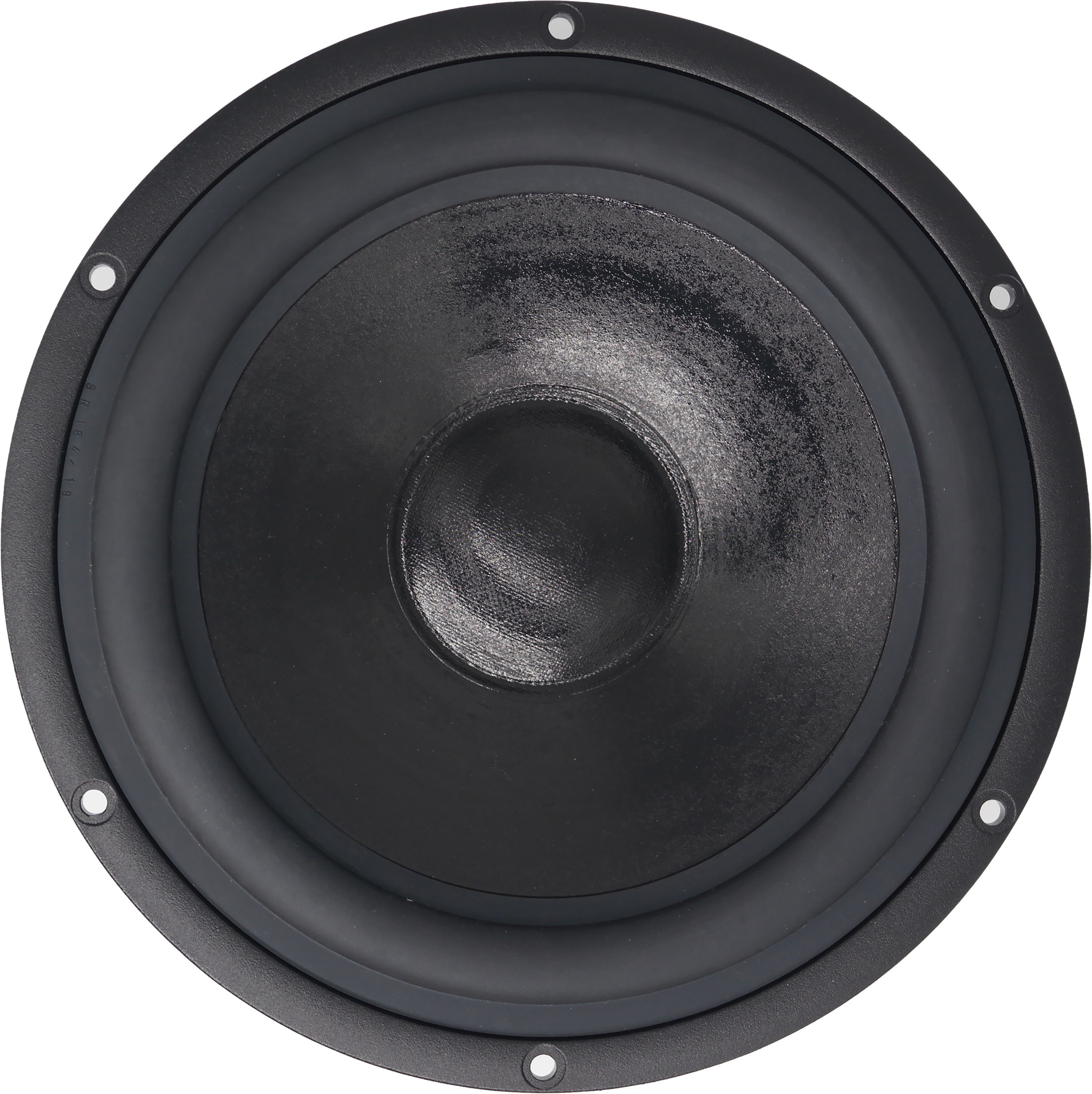

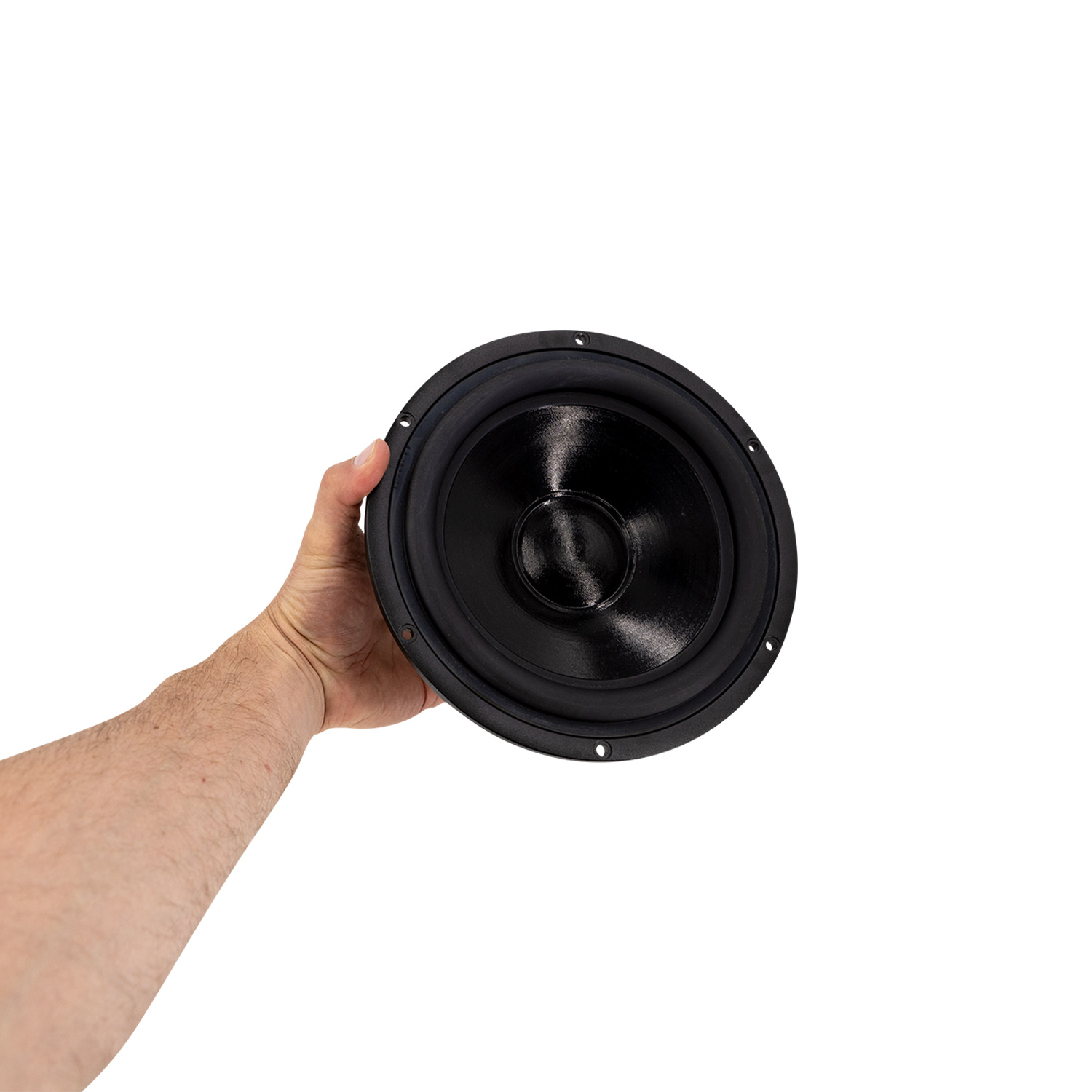

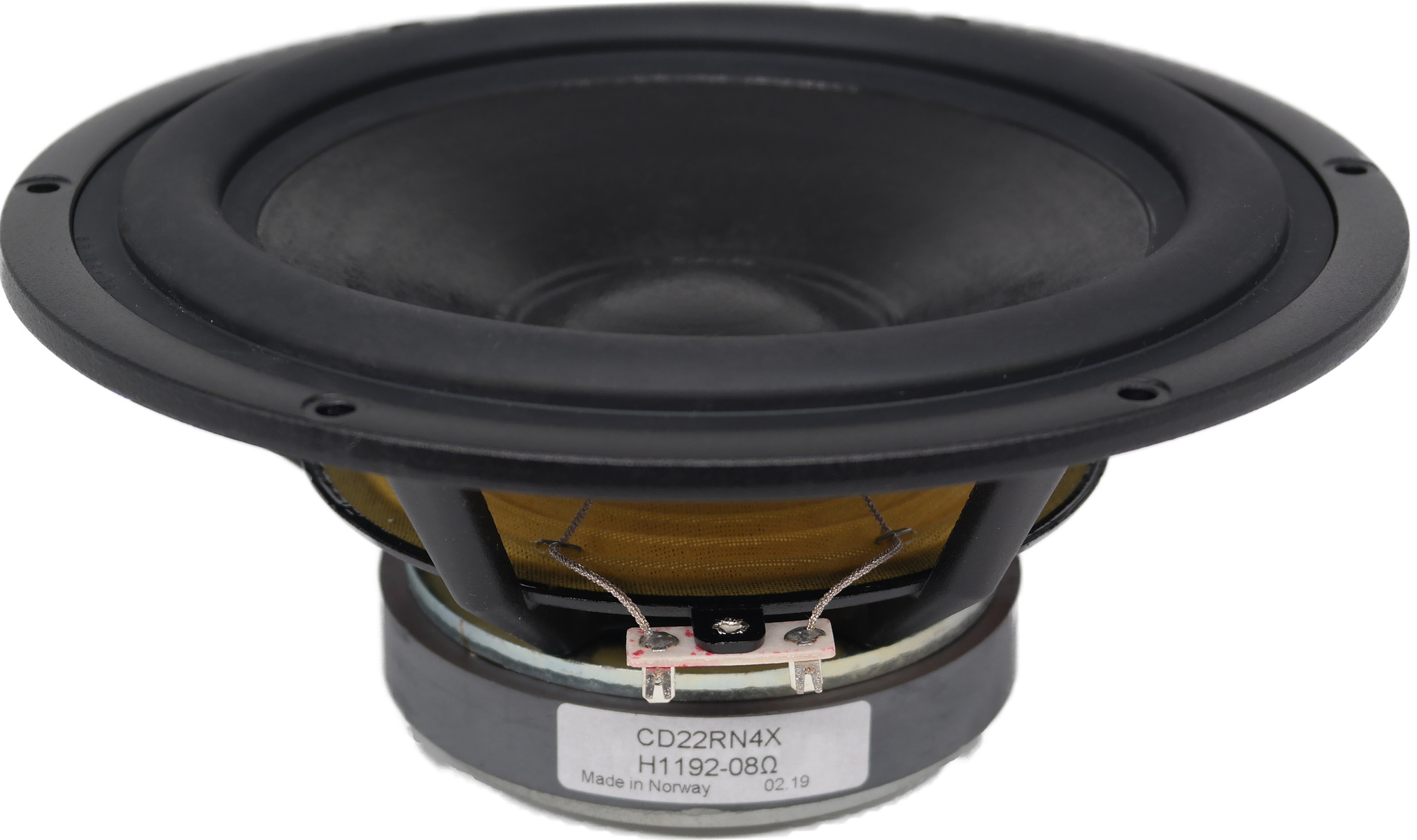

        Prestige CD22RN4X - H1192 Woofer

        SEAS Prestige CD22RN4X - H1192 Woofer

        €169,95

        5 Op voorraad7 verwacht op 18-09-2026

        SEAS Prestige CD22RN4X - H1192 Woofer

        2 klantbeoordelingen
        5 van 5
        2 klantbeoordelingen
        5 sterren
        100%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: SEAS
        € 140,45€ 169,95 5 Op voorraad7 verwacht op 18-09-2026
        • -5% Bestel 4 voor slechts € 161,45 per stuk

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Voor 16u besteld, vandaag verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving SEAS Prestige CD22RN4X - H1192 Woofer

        Highlights

        • Long term power handling (RMS) is 100 Watts
        • Natural rubber surround produces a well behaved roll off characteristic and reduces potential resonance problems
        • Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment



        Product details

        Seas Prestige CD22RN4X - H1192 8" Treated Paper Cone Woofer



        Double treated, hard paper cone designed to be very stiff without losing the damping capability, together with a natural rubber surround produces a well behaved roll off characteristic and reduces potential resonance problems.



        Large magnet system with bumped back plate together with a long 4 layer voice coil gives long linear excursion. The magnet system has a T-shaped cross section of the pole piece for low modulation distortion. Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonances.

        Toon meer

        Specificaties

        Artikelnummer
        CD22RN4X
        EAN
        0696277269990
        Woofer series
        Prestige
        Woofer type
        Midwoofer
        Nominale diameter
        8 " | 221 mm
        Belastbaarheid (RMS)
        100 W
        Belastbaarheid (max)
        250 W
        Impedantie (Z)
        8 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        87 dB
        Frequentierespons
        20 - 2500 Hz
        Spreekspoeldiameter
        39 mm
        Gewicht magneet
        0.64 kg
        Gelijkstroomweerstand (Re)
        6.1 Ω
        Spreekspoelinductie (Le)
        3.47 mH
        Resonantiefrequentie (Fs)
        20 Hz
        Mechanische Q (Qms)
        3.28
        Elektrische Q (Qes)
        0.26
        Totale Q (Qts)
        0.24
        Bewegende massa (Mms)
        41.6 g
        Compliantie van de ophanging (Cms)
        1.5 mm/N
        Effectief oppervlak (Sd)
        230 cm²
        Krachtsfactor (BL)
        11.4 N/A
        Equivalentvolume (Vas)
        108 L
        Maximale excursie (Xmax)
        7 mm
        Driver's Mechanical Losses (Rms)
        1.67 Ns/m
        Cone / Diaphragm Material
        Double treated hard paper
        Surroundmateriaal
        Rubber
        Mand- /framemateriaal
        Injection moulded metal
        Totale buitendiameter
        221.0 mm
        Totale diepte
        90.0 mm
        Montagegatdiameter
        186.4 mm
        Bolt Circle Diameter
        209.5 mm
        # Bevestigingsgaten
        6
        Diameter bevestigingsgaten
        5.0 mm

        Toon meer

        5 van 5
        Great as expected!
        Door Pekka H. on 21 April 2020
        5 van 5
        Excellent performance to price ratio. Highly recommended product!
        Door Gaby M. on 31 Maart 2020
