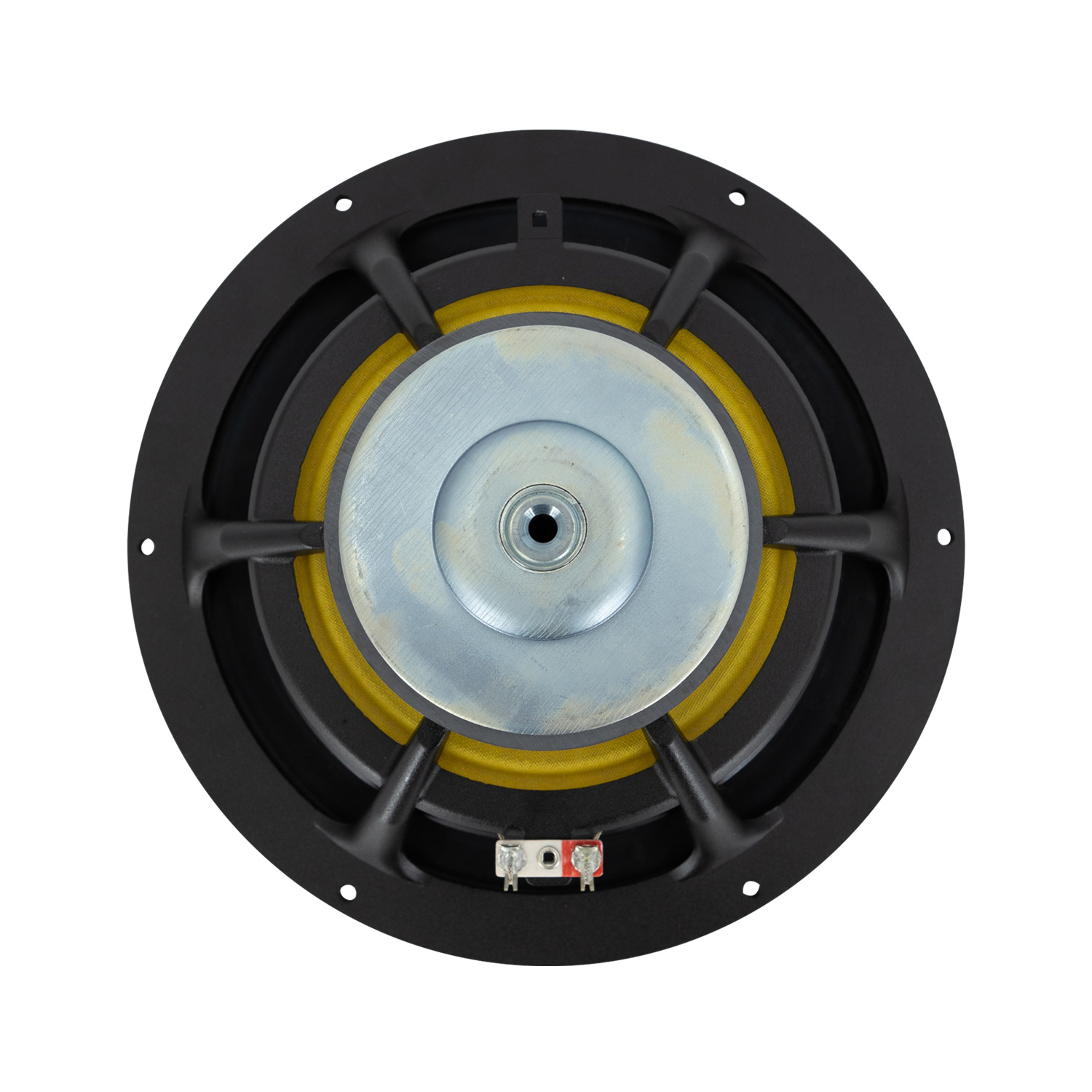

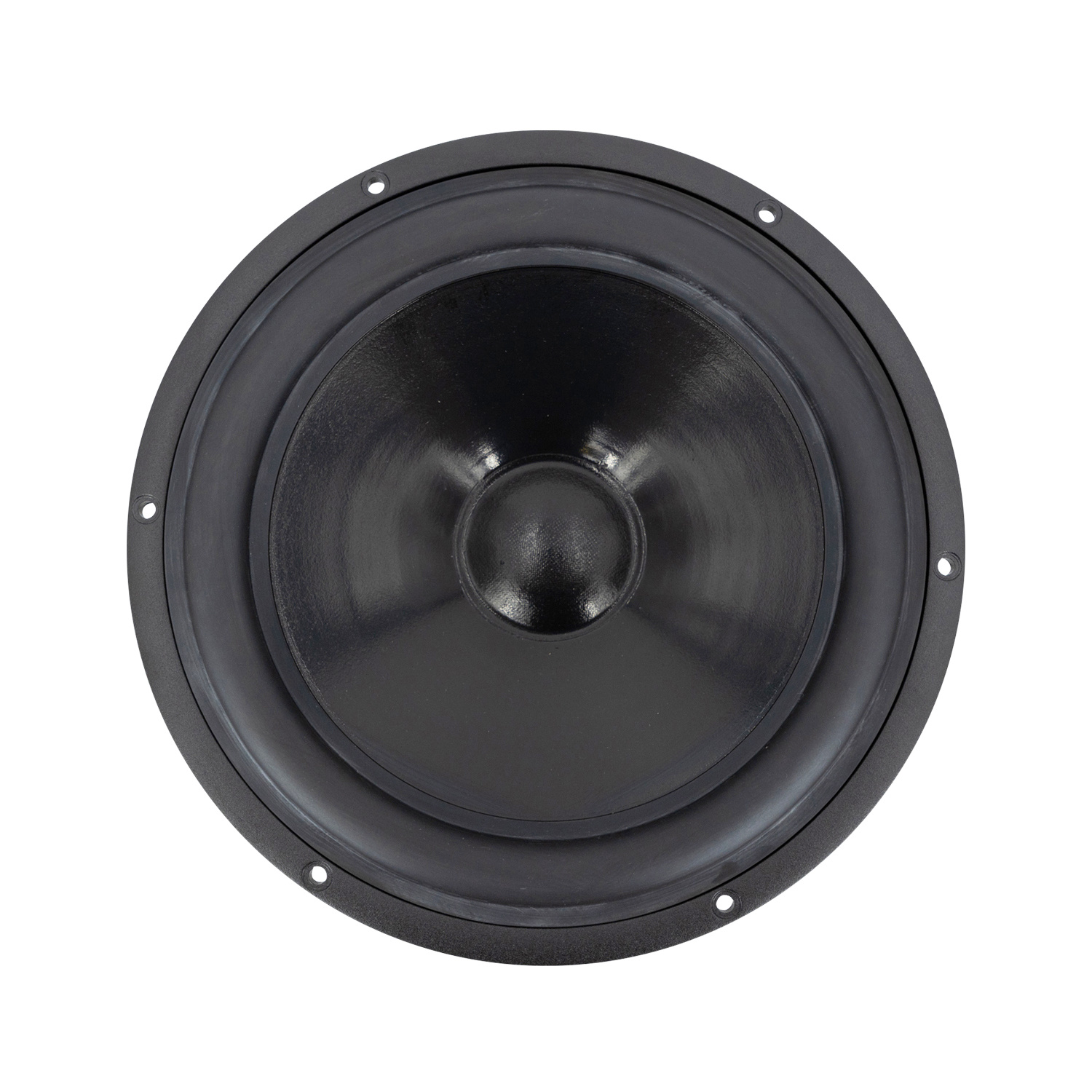

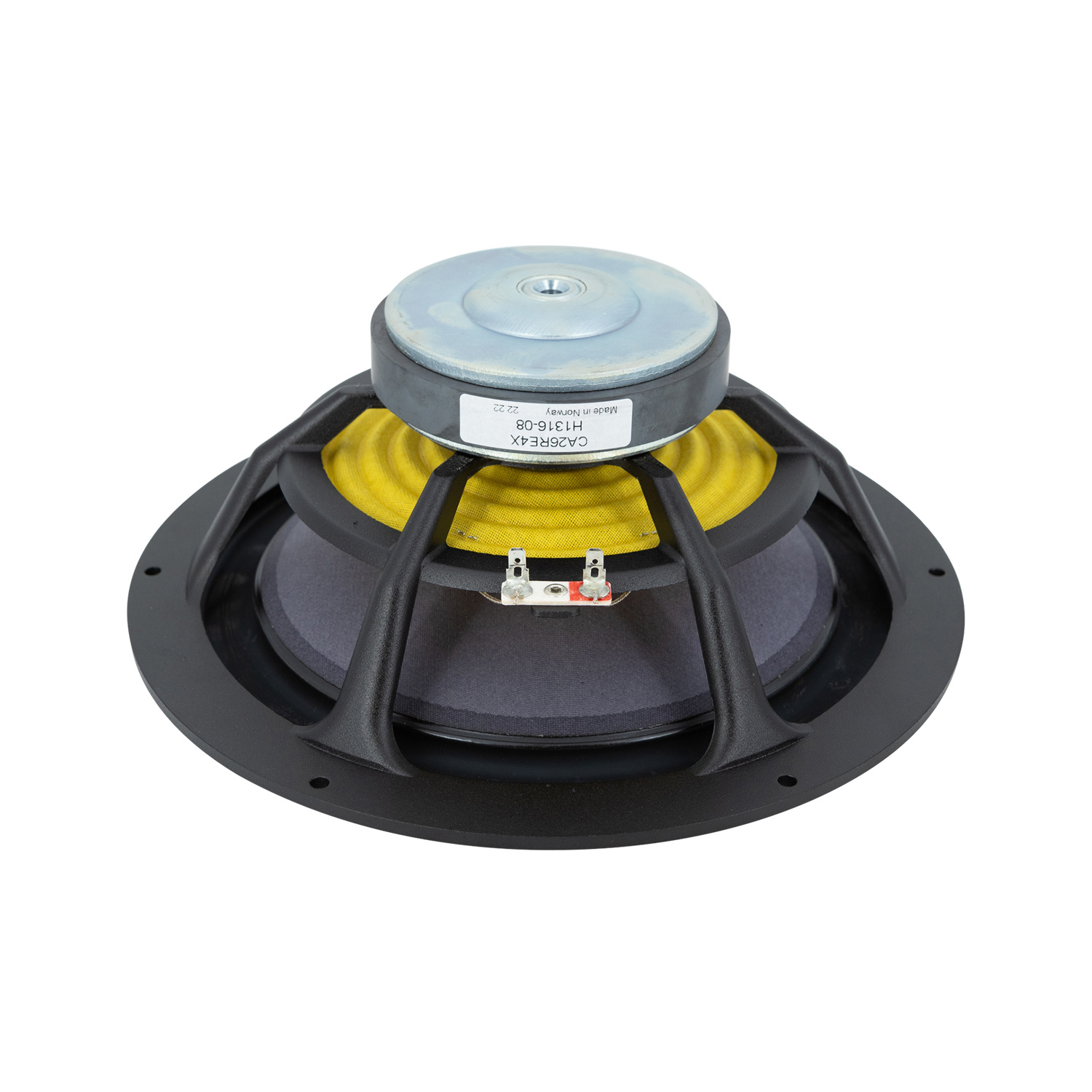

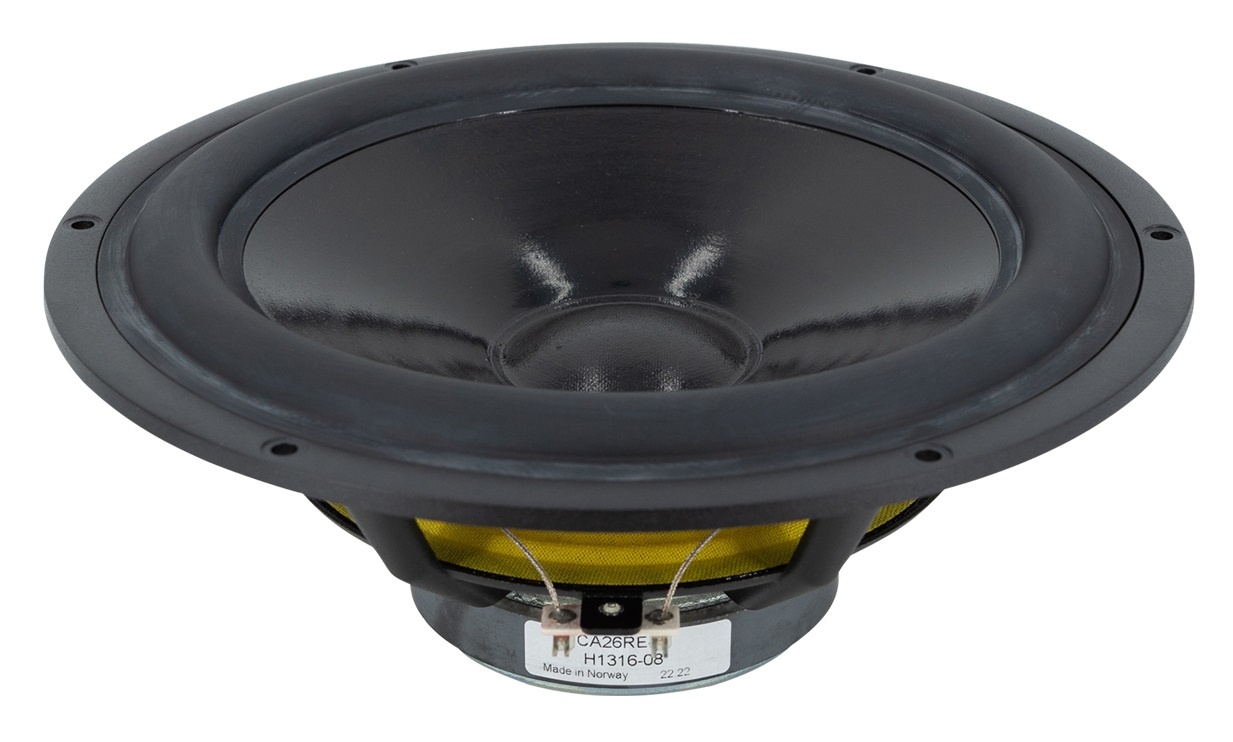

    SEAS Prestige CA26RE4X - H1316-08 10" Coated Paper Cone Woofer

    € 149,95 2 Op voorraad: levertijd 1 werkdag
    Classical manually coated paper cone and matching natural rubber surround produce a smooth response and reduce potential resonance problems. Four layer voice coil provides a well behaved roll off characteristic. Large magnet system gives good sensitivity... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €142,45 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Highlights

    • Long term power handling (RMS) is 80 Watts
    • Four layer voice coil provides a well behaved roll off characteristic
    • Large magnet system gives good sensitivity and transient response



    Product details

    Seas Prestige CA26RE4X - H1316-08 10" Coated Paper Cone Woofer



    Classical manually coated paper cone and matching natural rubber surround produce a smooth response and reduce potential resonance problems. Four layer voice coil provides a well behaved roll off characteristic. Large magnet system gives good sensitivity and transient response.



    Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

    Specificaties

    Artikelnummer
    CA26RE4X
    Woofer Series
    Prestige Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    10"
    Power Handling (RMS)
    80 Watts
    Power Handling (max)
    300 Watts
    Impedance
    8 ohms
    Sensitivity
    91 dB 2.83V/1m
    Frequency Response
    30 to 1,500 Hz
    Voice Coil Diameter
    1.53"
    Magnet Weight
    22.5 oz.
    DC Resistance (Re)
    6.1 ohms
    Voice Coil Inductance (Le)
    3.08 mH
    Resonant Frequency (Fs)
    25 Hz
    Mechanical Q (Qms)
    3.99
    Electromagnetic Q (Qes)
    0.30
    Total Q (Qts)
    0.28
    Diaphragm Mass Inc. Airload (Mms)
    38.5g
    Mechanical Compliance of Suspension (Cms)
    1.1 mm/N
    Compliance Equivalent Volume (Vas)
    5.79 ft.³
    Maximum Linear Excursion (Xmax)
    4 mm
    Overall Outside Diameter
    10.59"
    Overall Depth
    4.19"
    Baffle Cutout Diameter
    9.14"
    Bolt Circle Diameter
    10.08"
    # Mounting Holes
    6
    Mounting Hole Diameter
    0.2"

    Reviews

    5 from 5Based on 1 reviews
    Schrijf een review
    5 van 5
    Great woofer! Clean, warm sound. The paper cone has controlled break up, T/S parameters close to specified. The woofer has very high quality basket. Highly recommended for audiophile use!
    Door Jon Vegar Stensli on 20 April 2021
