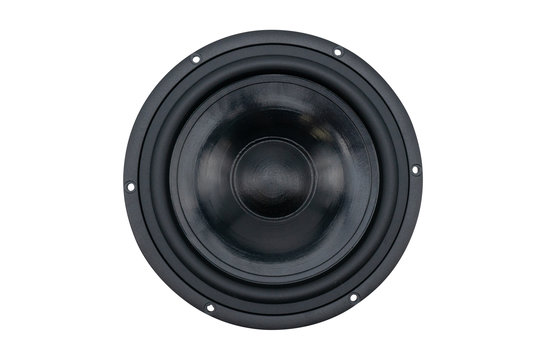

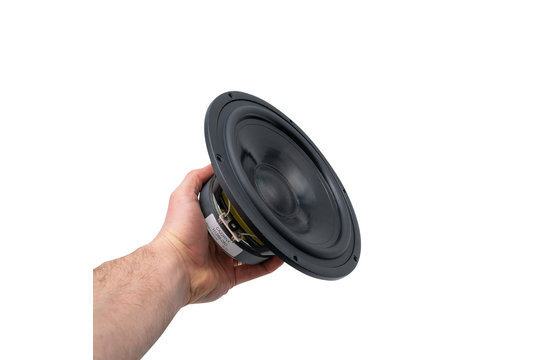

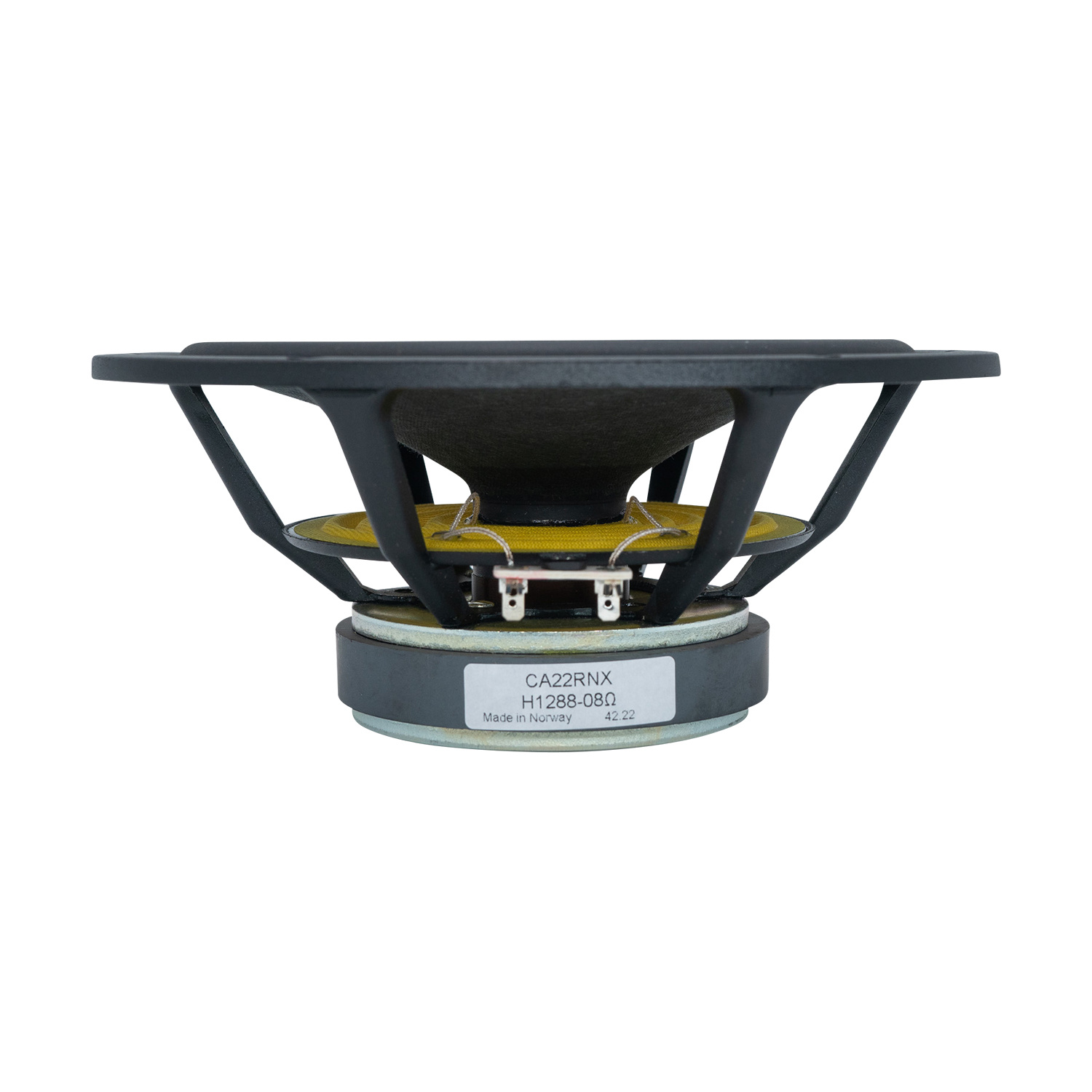

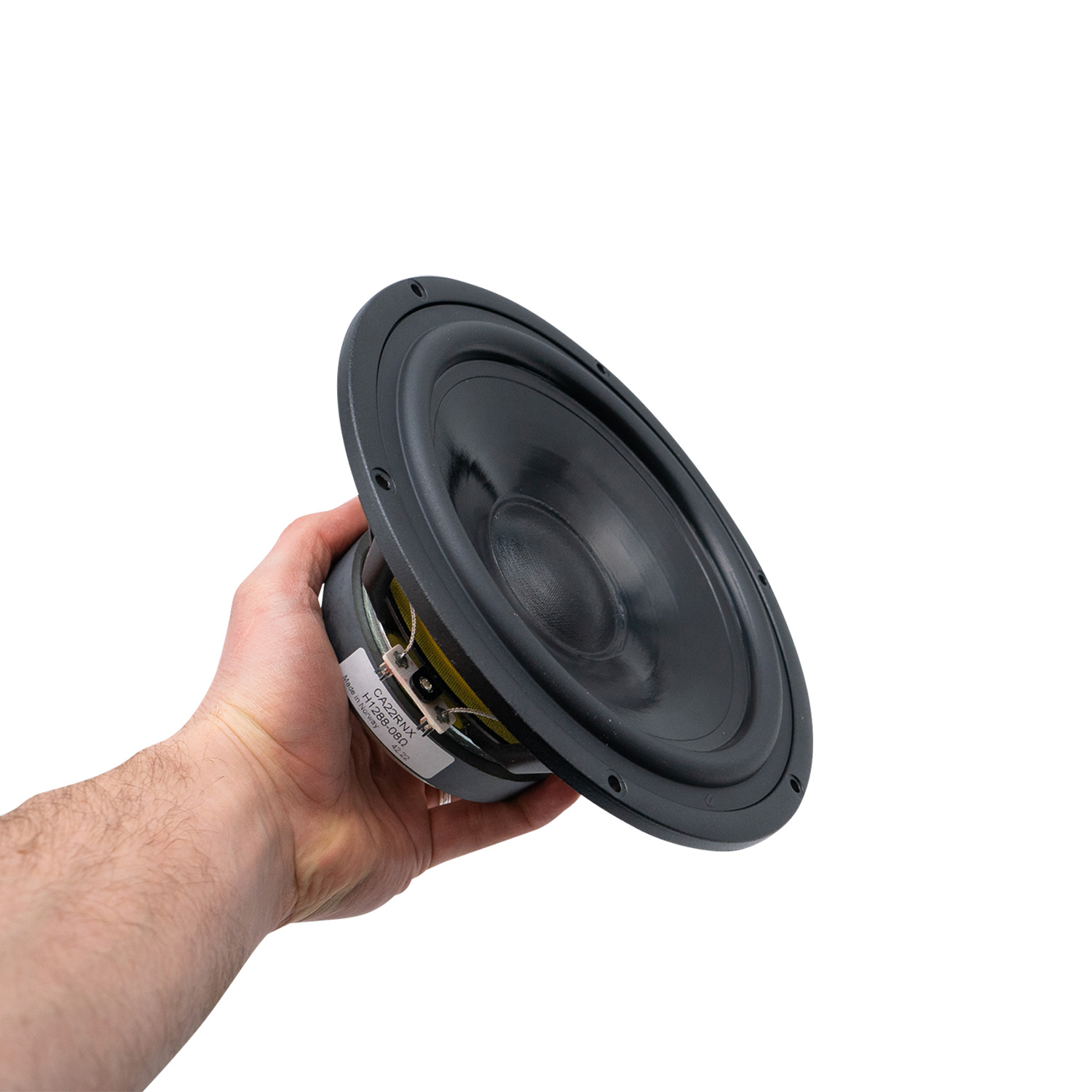

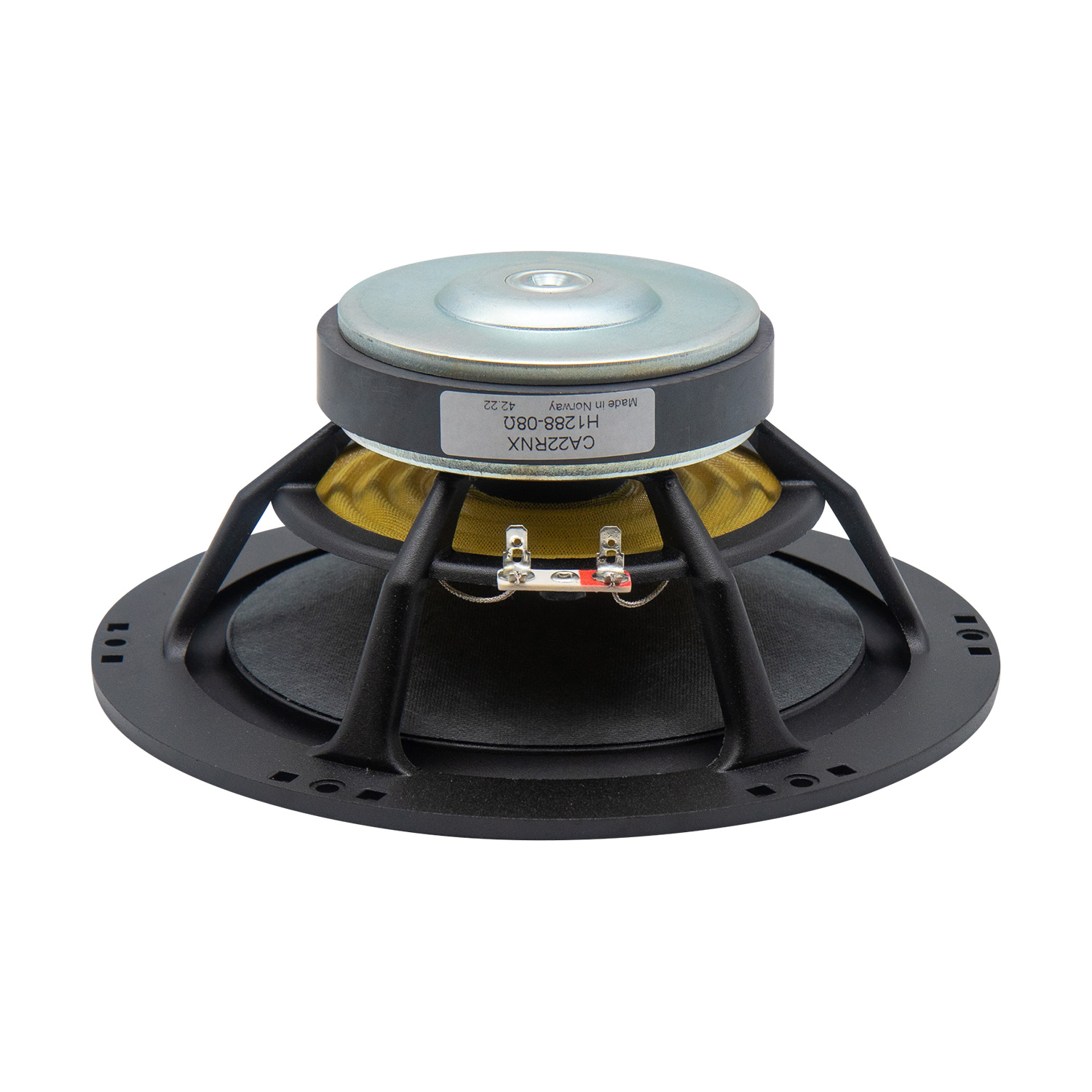

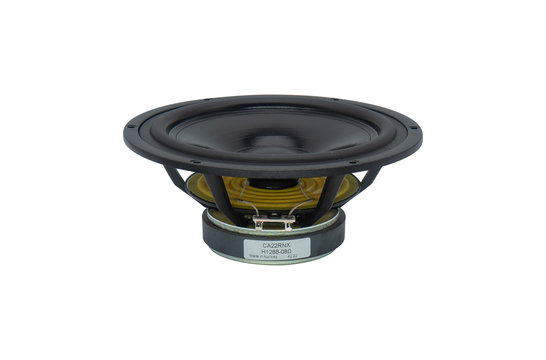

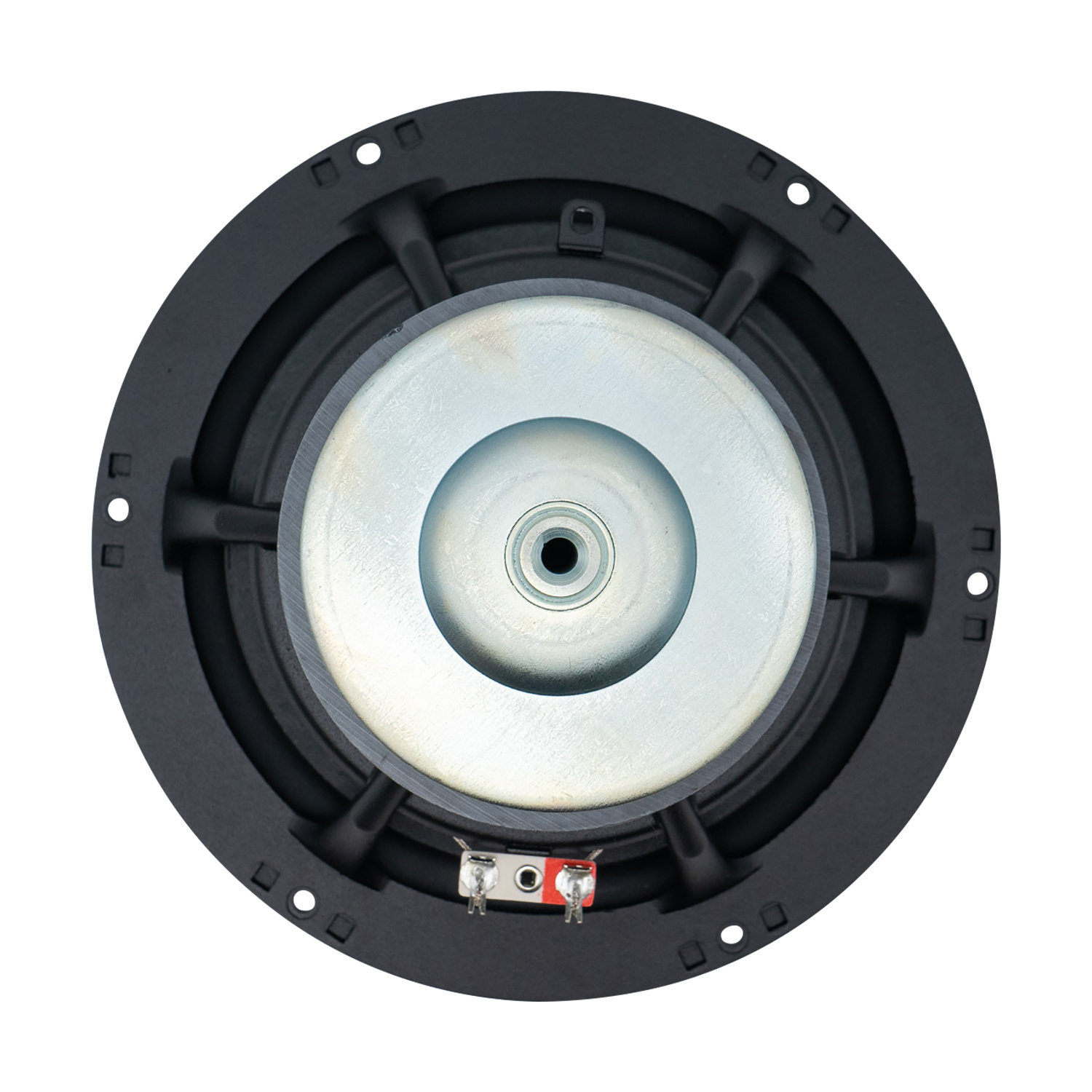

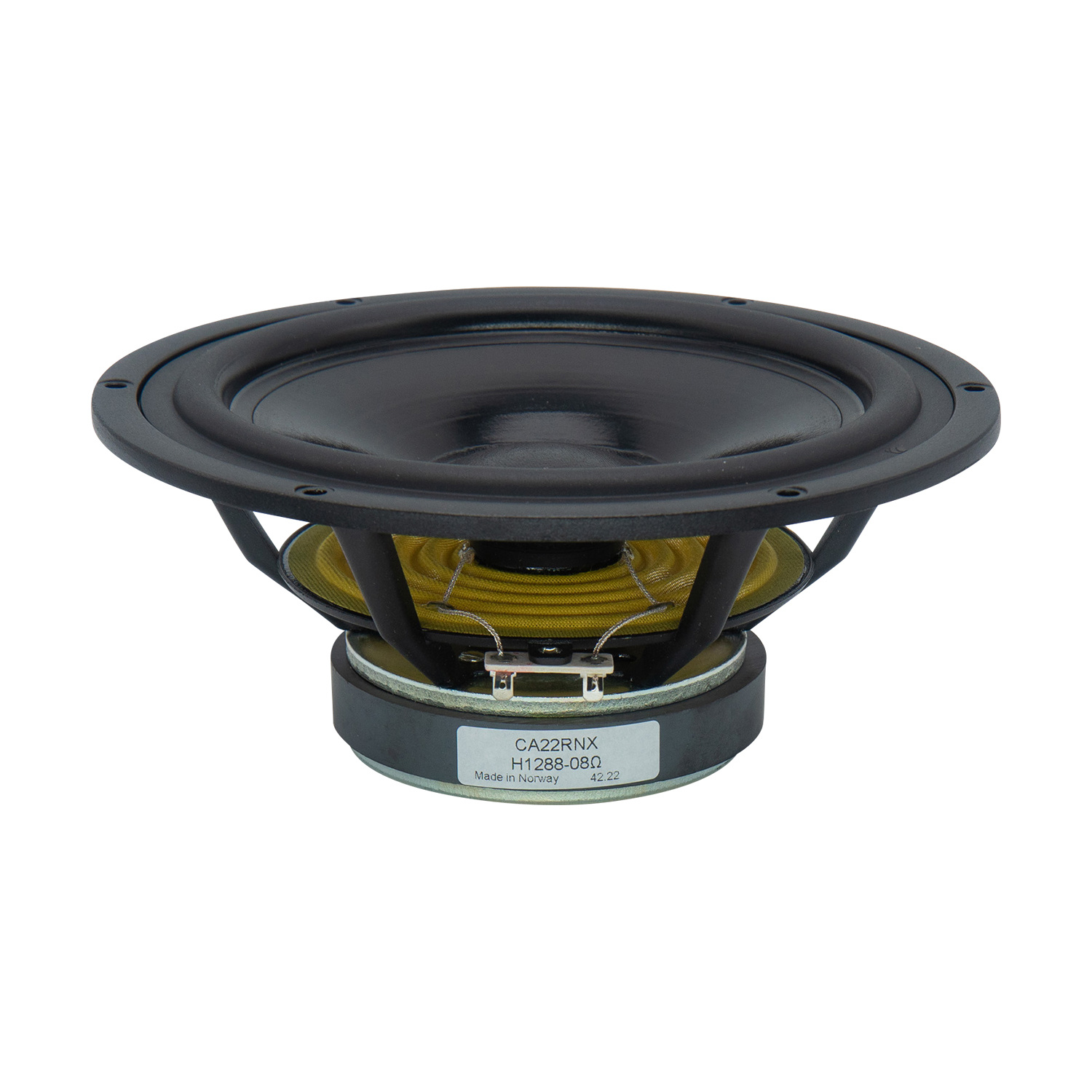

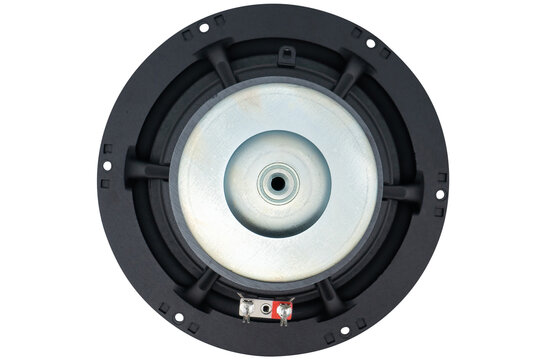

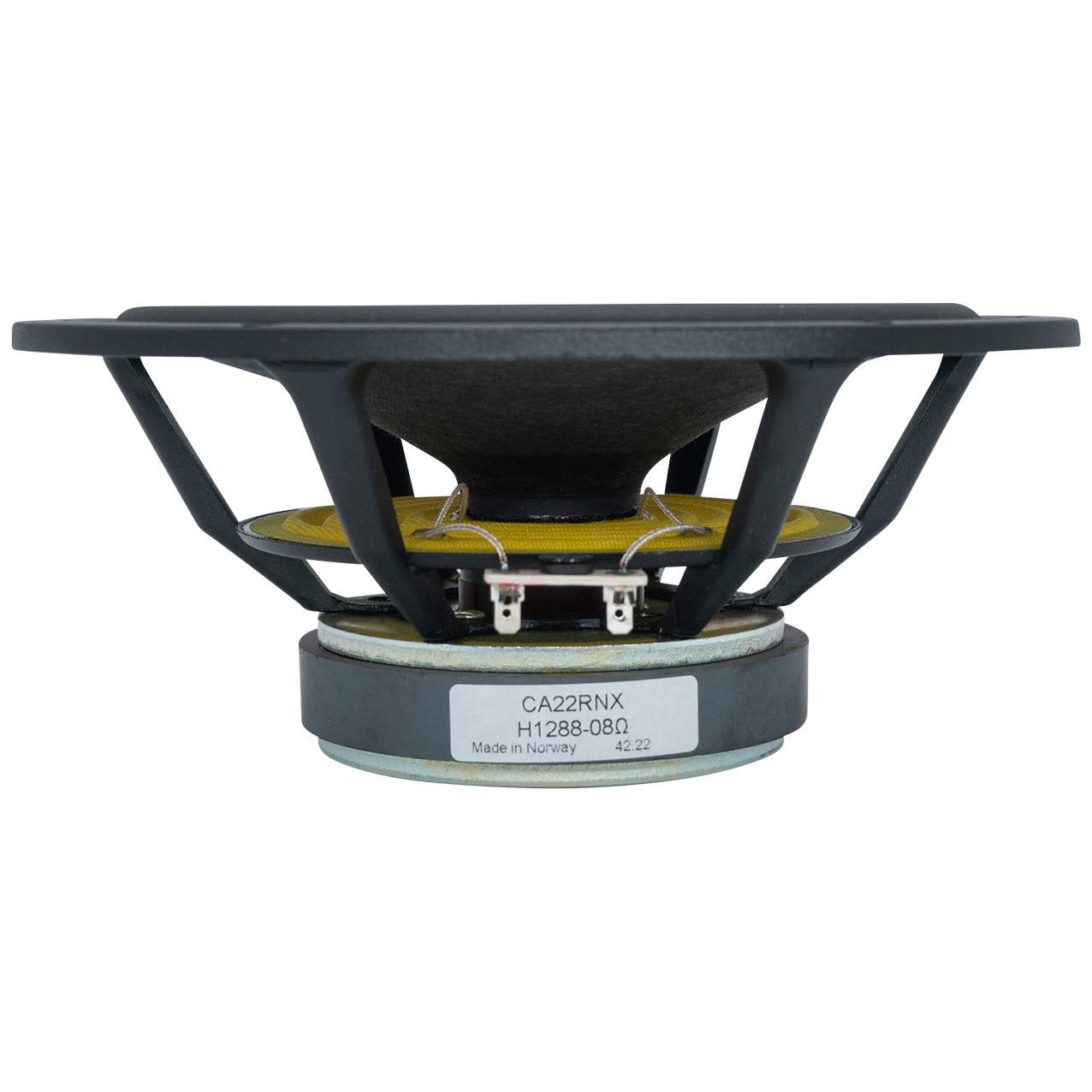

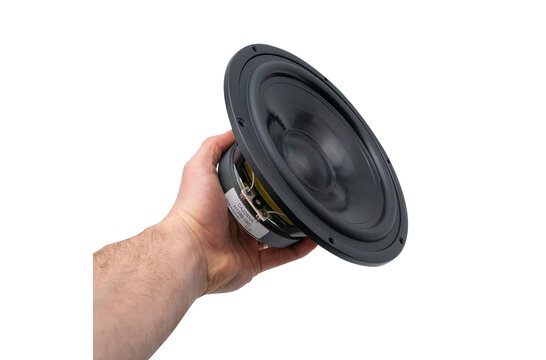

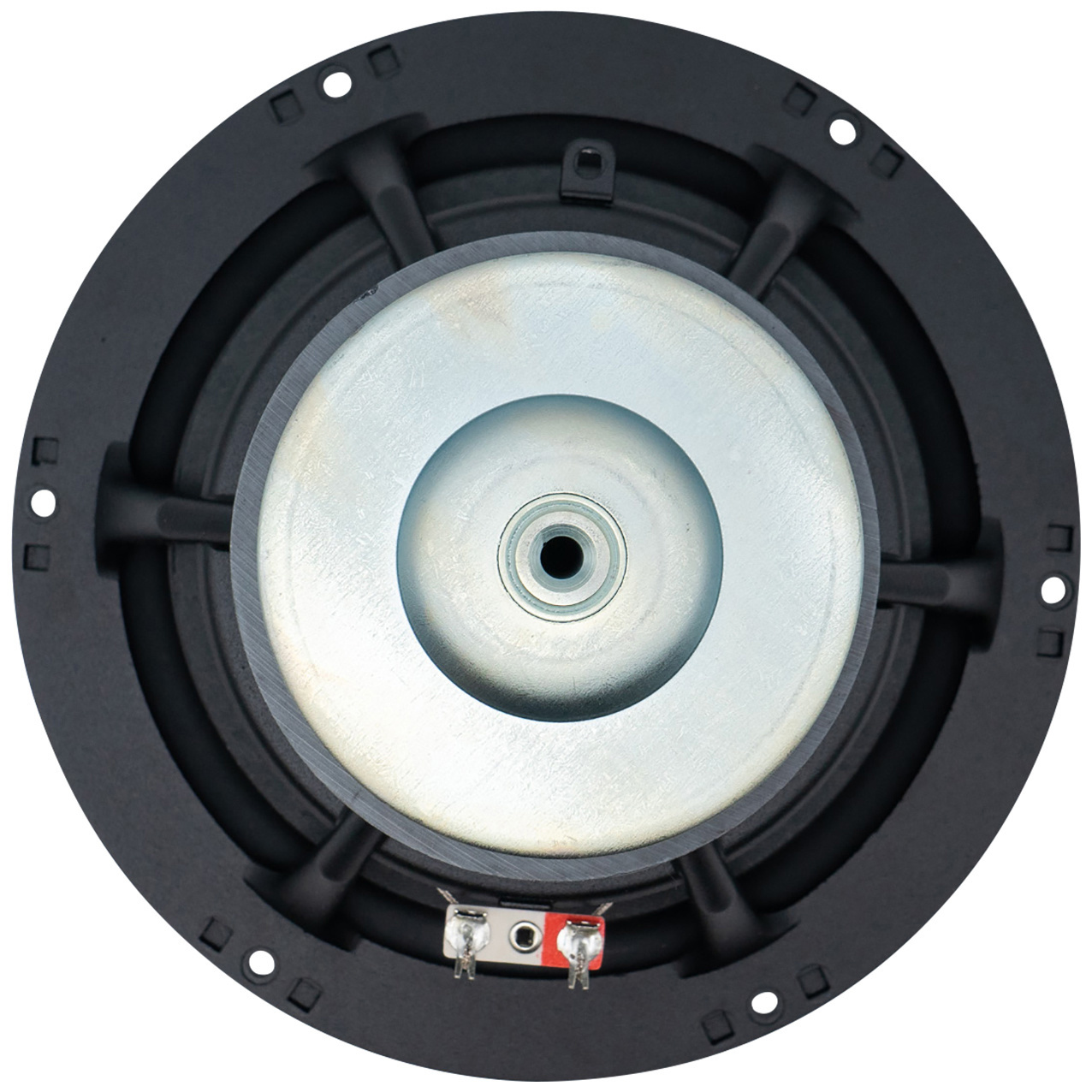

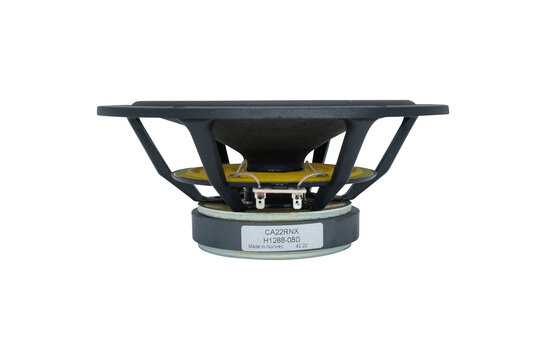

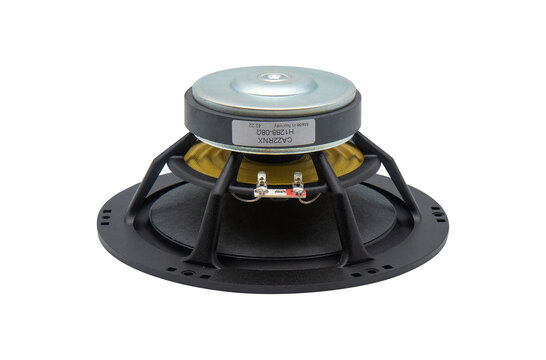

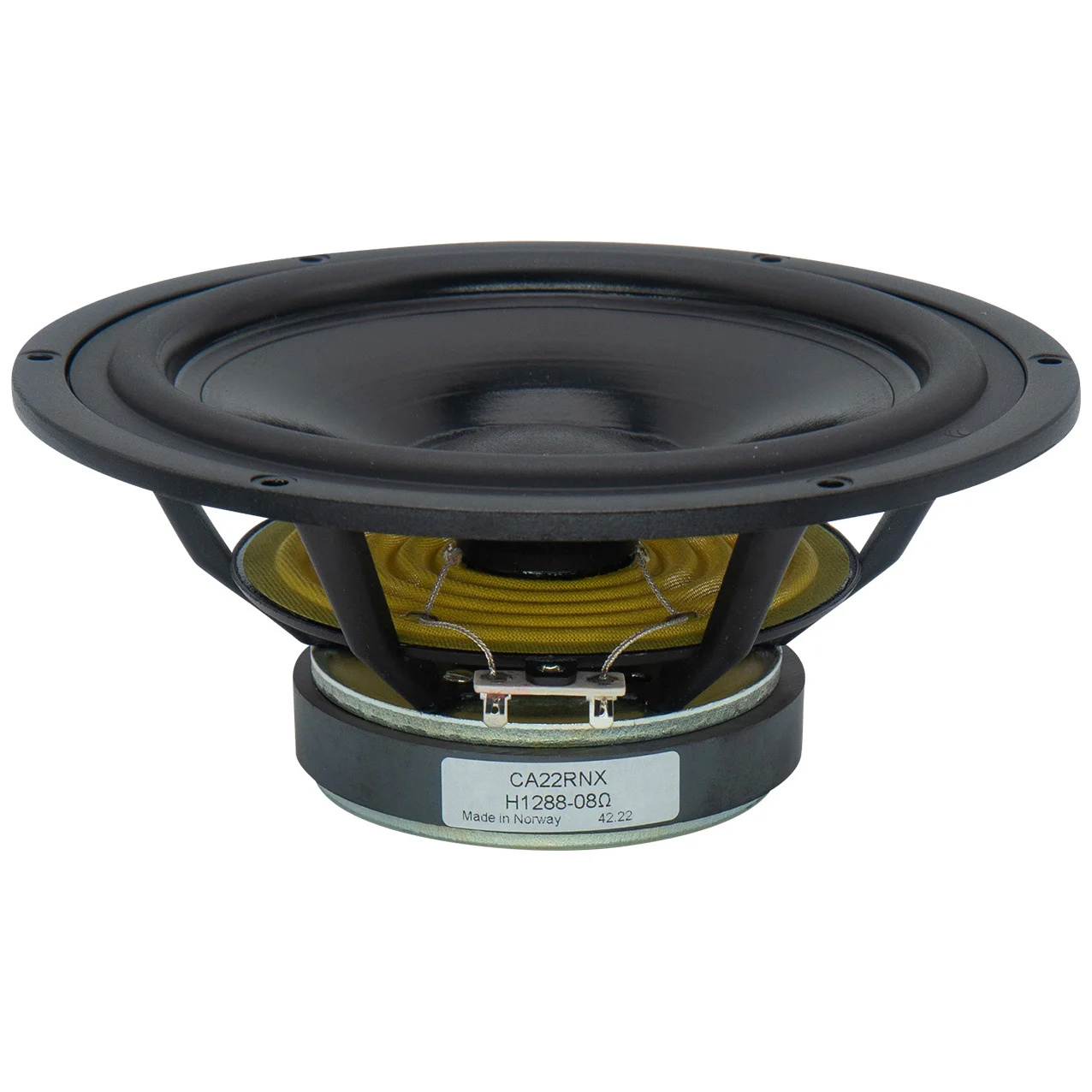

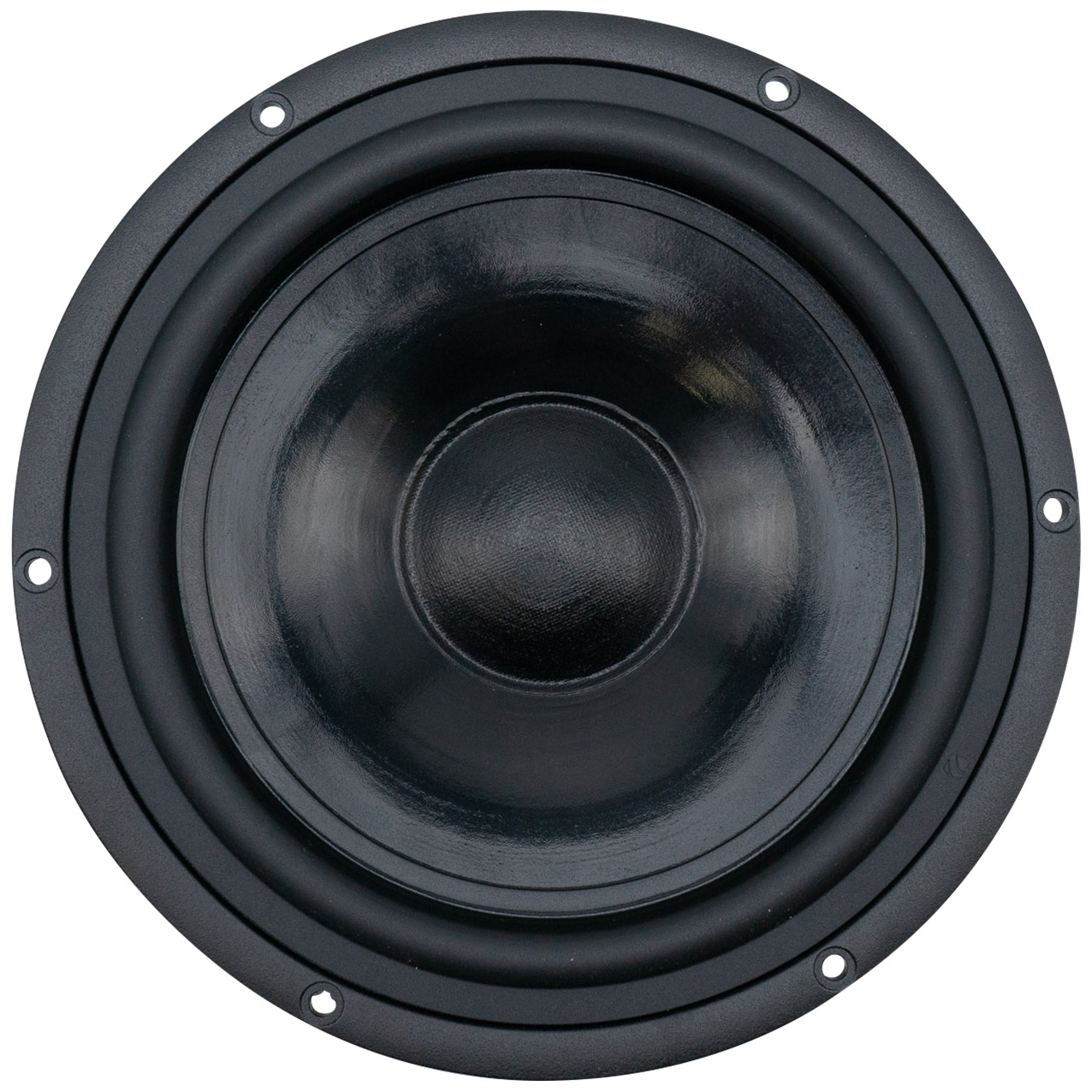

        Prestige CA22RNX - H1288 Bass-midwoofer

        Prestige CA22RNX - H1288 Bass-midwoofer

        €144,95

        SEAS Prestige CA22RNX - H1288 Bass-midwoofer

        1 reviews
        5 van 5
        1 reviews
        5 sterren
        100%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: SEAS
        € 119,79€ 144,95 8 Op voorraad
        • -5% Bestel 4 voor slechts € 137,70 per stuk

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Voor 16u besteld, vandaag verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving

        Highlights

        • Handcoated paper cone
        • Long, high-temperature voice coil wound
        • Large magnet system



        Product Details

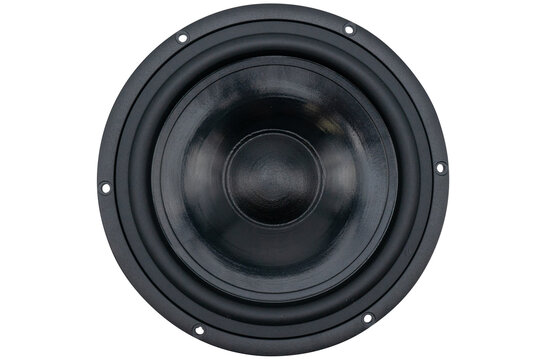

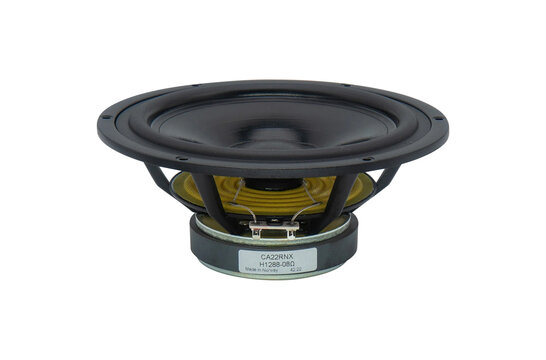

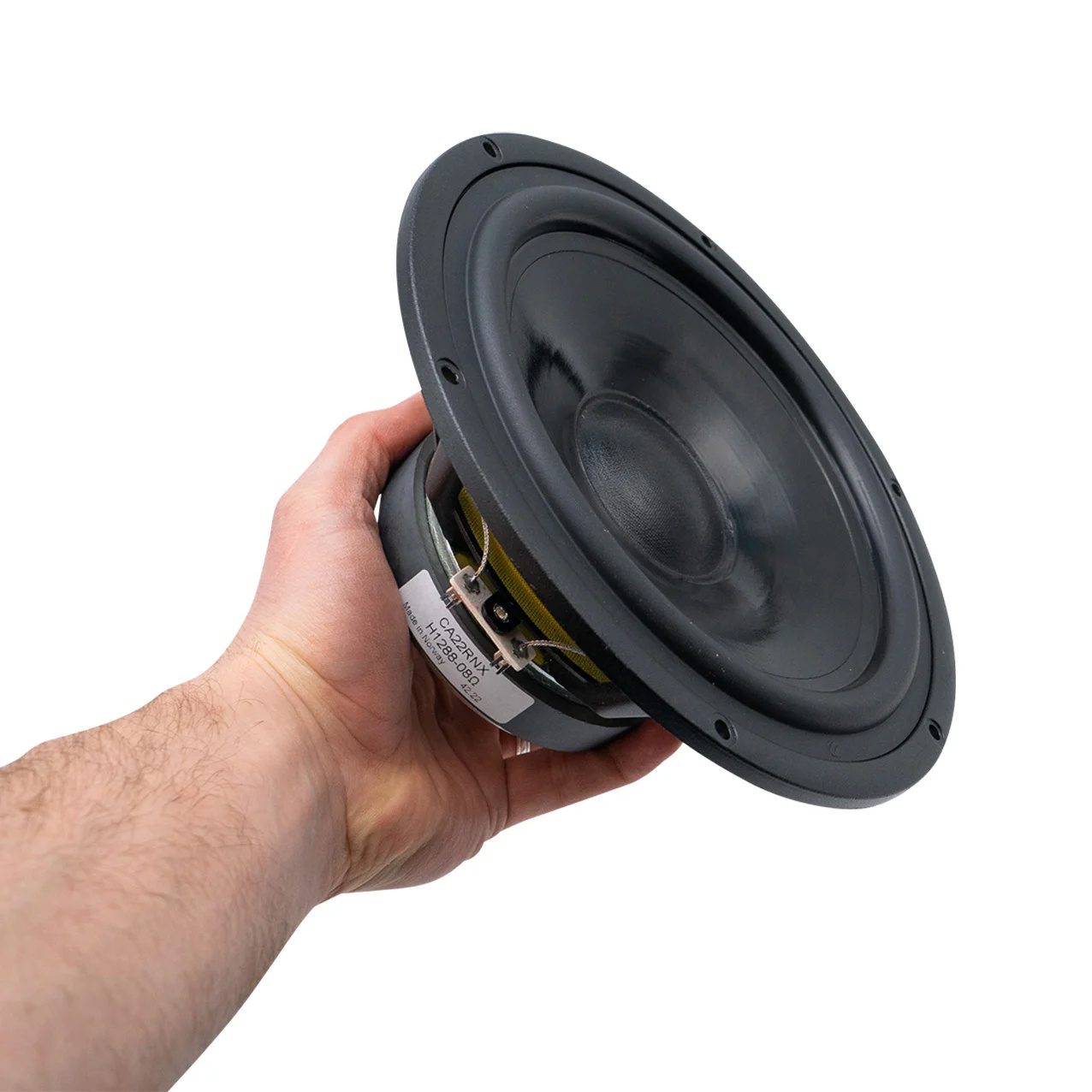

        SEAS Prestige CA22RNX - H1288 8" Coated Paper Cone Woofer

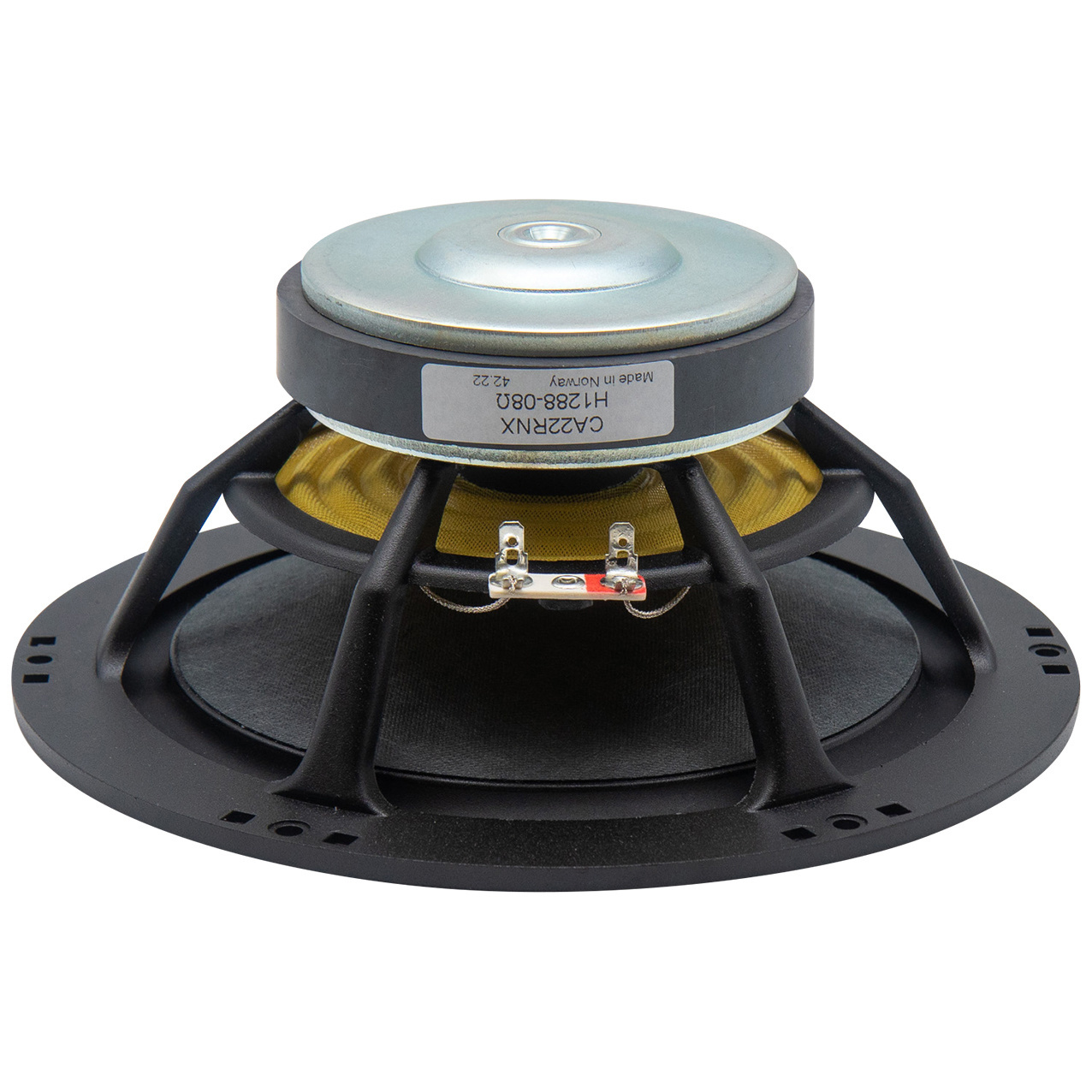

        Classical hand-coated paper cone and matching natural rubber surround produce a well-behaved roll-off characteristic and reduce potential resonance problems. Long, high-temperature voice coil wound on an aluminium voice coil former gives low distortion and high power handling capacity. Large magnet system provides high efficiency and good transient response. Bumped backplate in the magnet system allows maximum utilization of the long voice coil without mechanical limitation. Extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

        Toon meer

        Specificaties

        Artikelnummer
        CA22RNX
        Woofer series
        Prestige
        Woofer type
        Long Throw Woofer
        Nominale diameter
        8"
        Belastbaarheid (RMS)
        80 W
        Belastbaarheid (max)
        EC 268-5 250 W
        Gevoeligheid (SPL bij 1m / 2.83V)
        89.5 dB
        Spreekspoeldiameter
        39 mm
        Gewicht magneet
        0.64 kg
        Gelijkstroomweerstand (Re)
        6.1 ohm
        Spreekspoelinductie (Le)
        1.0 mH
        Resonantiefrequentie (Fs)
        29 Hz
        Mechanische Q (Qms)
        2.04
        Elektrische Q (Qes)
        0.52
        Totale Q (Qts)
        0.41
        Bewegende massa (Mms)
        20.9 g
        Effectief oppervlak (Sd)
        230 cm²
        Krachtsfactor (BL)
        7.0 N/A
        Equivalentvolume (Vas)
        97 Litres
        Maximale excursie (Xmax)
        6 mm

        Toon meer

        5 van 5
        SUPER
        Door PETAR on 9 Januari 2022
        Prestige CA22RNX - H1288 Bass-midwoofer
        € 119,79
        € 144,95
        Prestige CA22RNX - H1288 Bass-midwoofer
        8 Op voorraad
