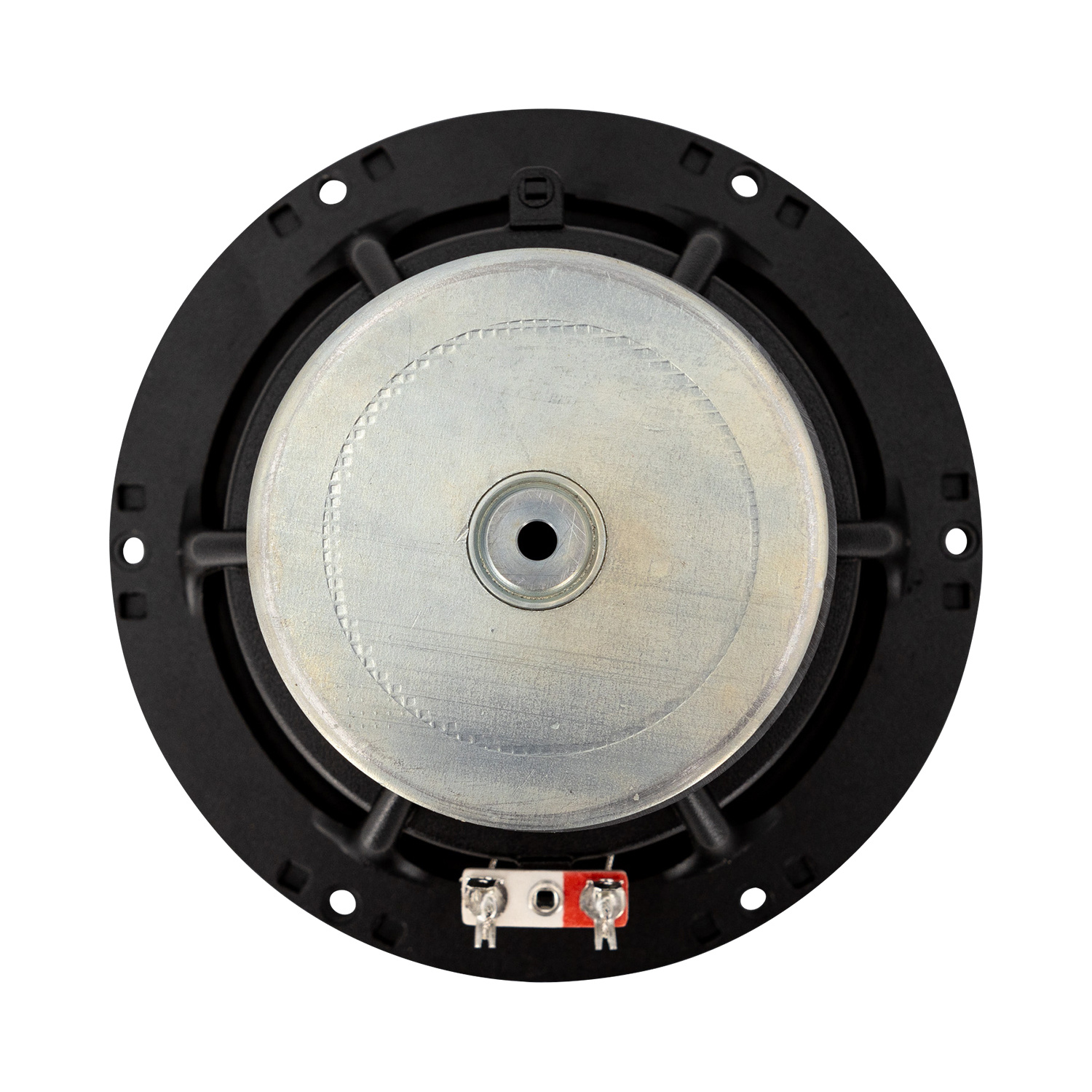

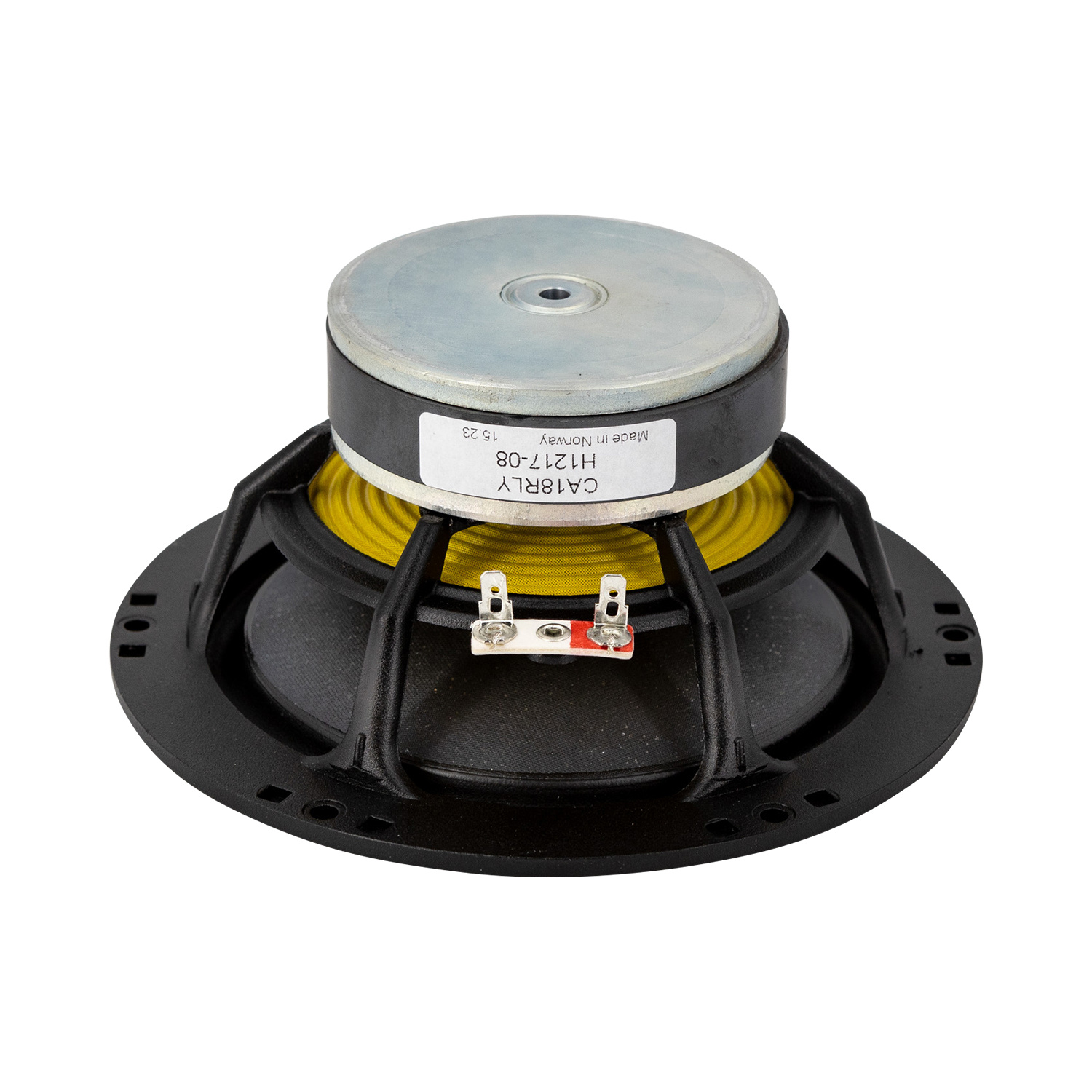

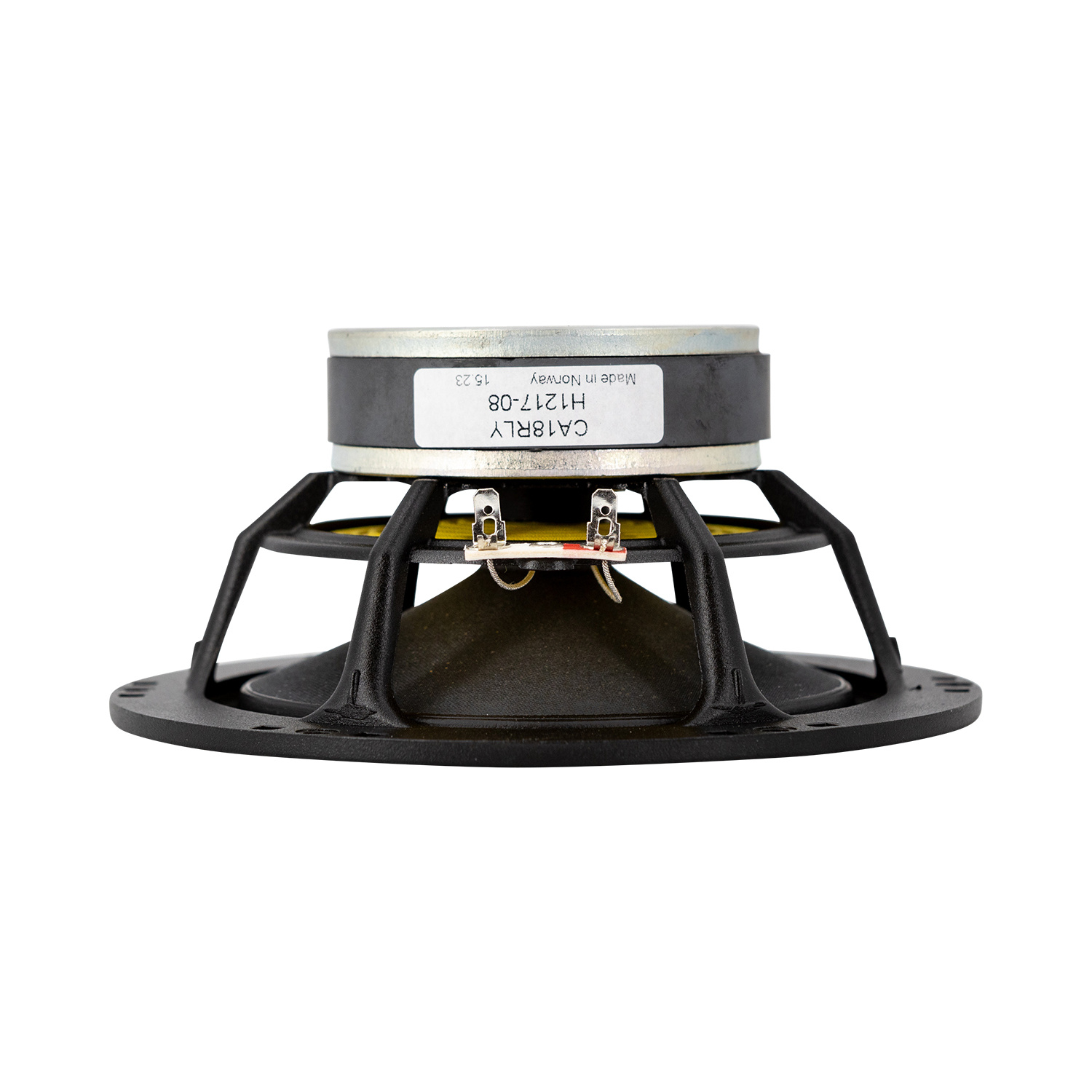

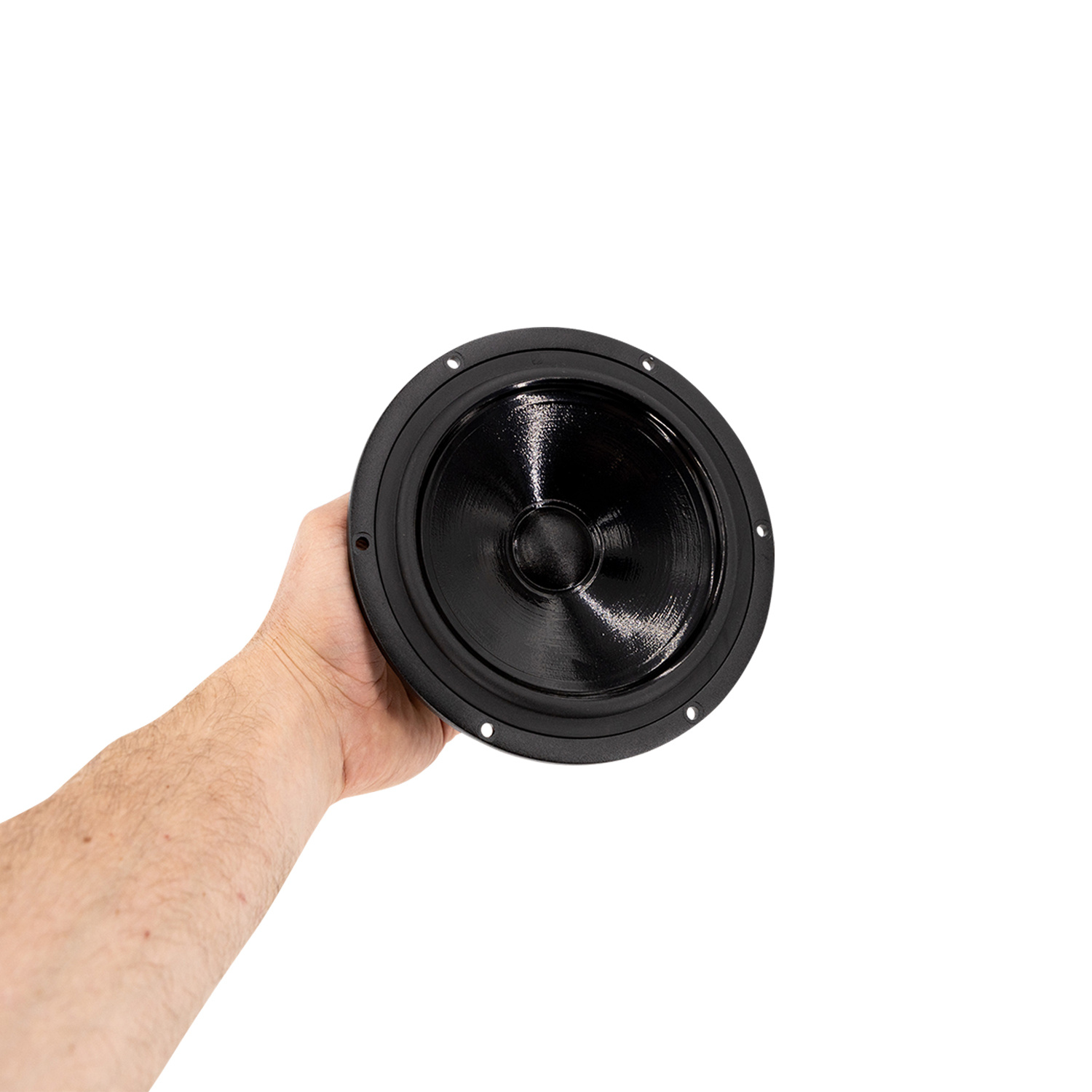

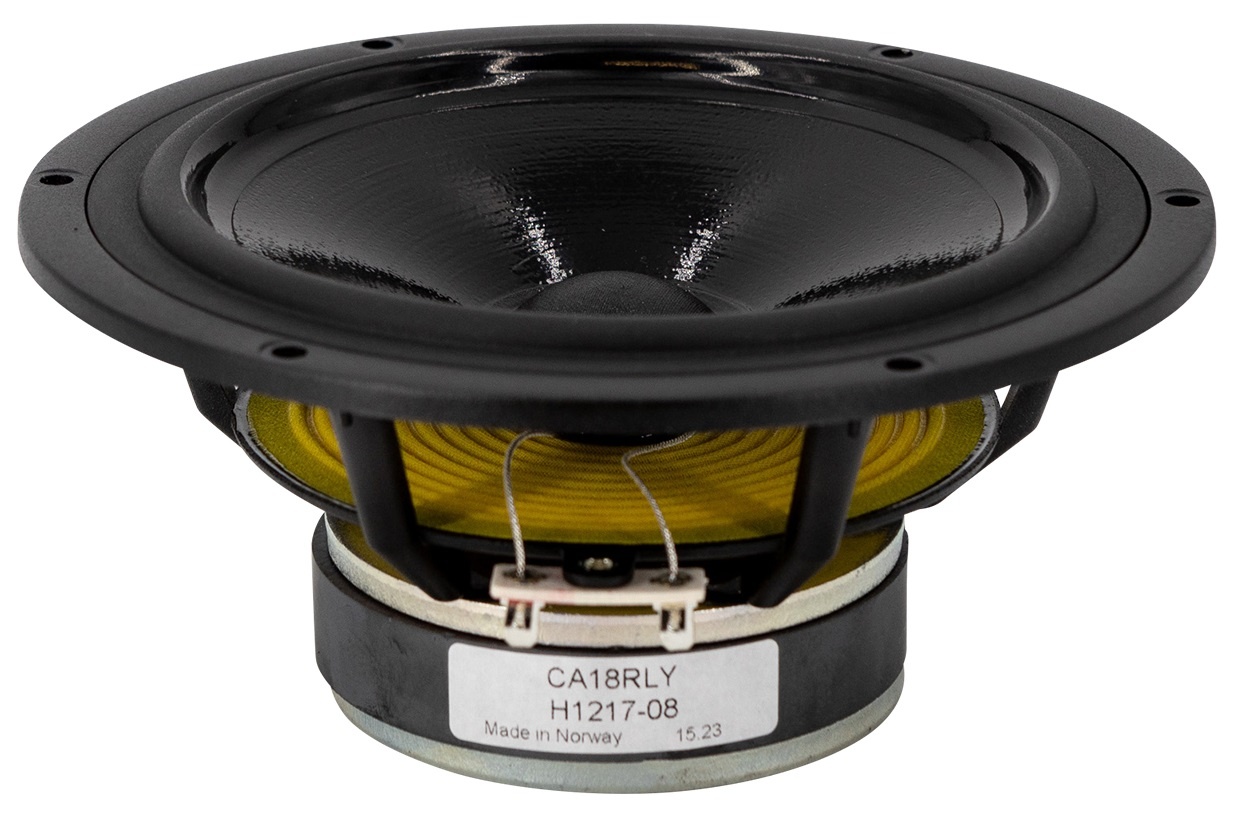

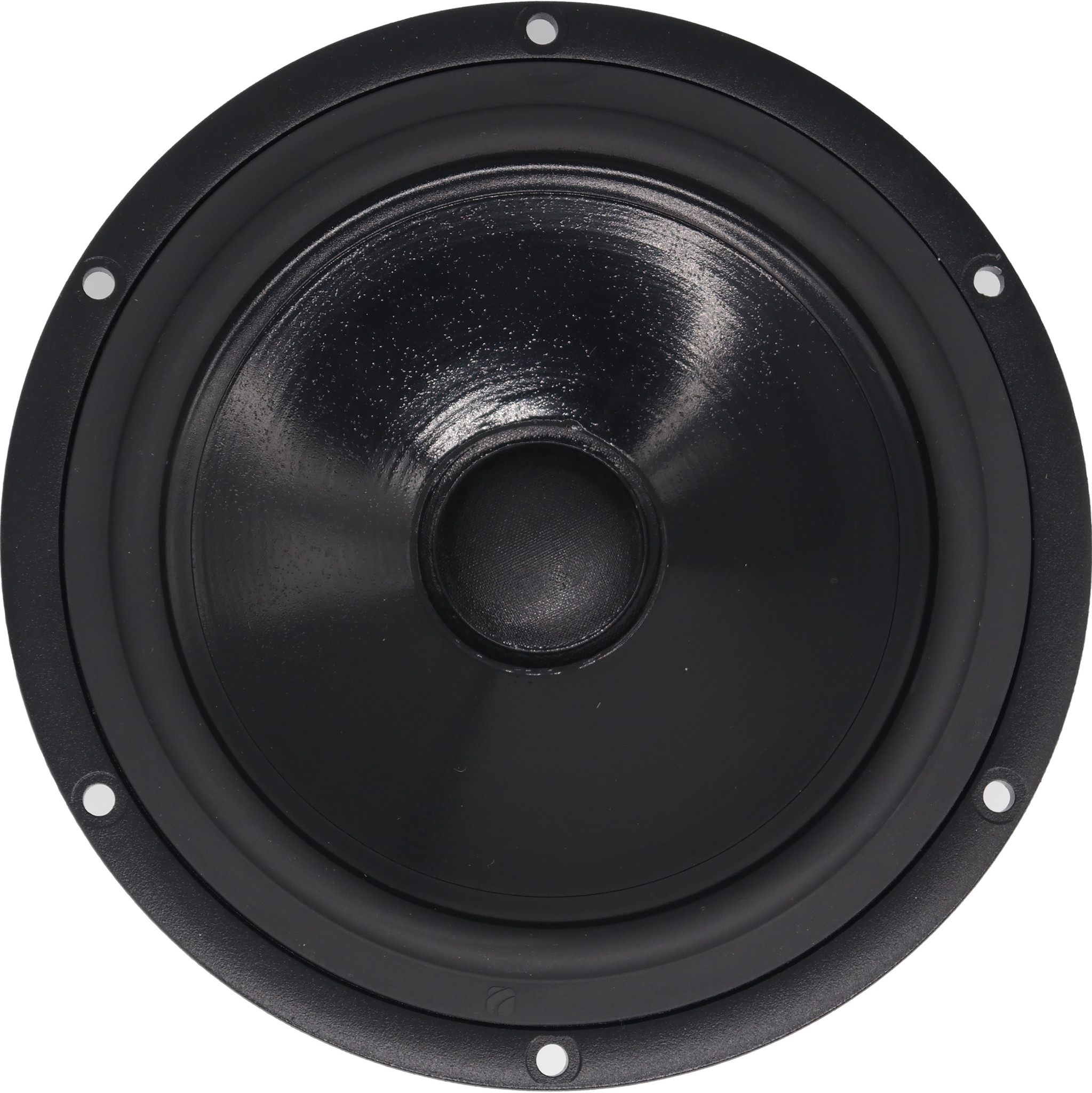

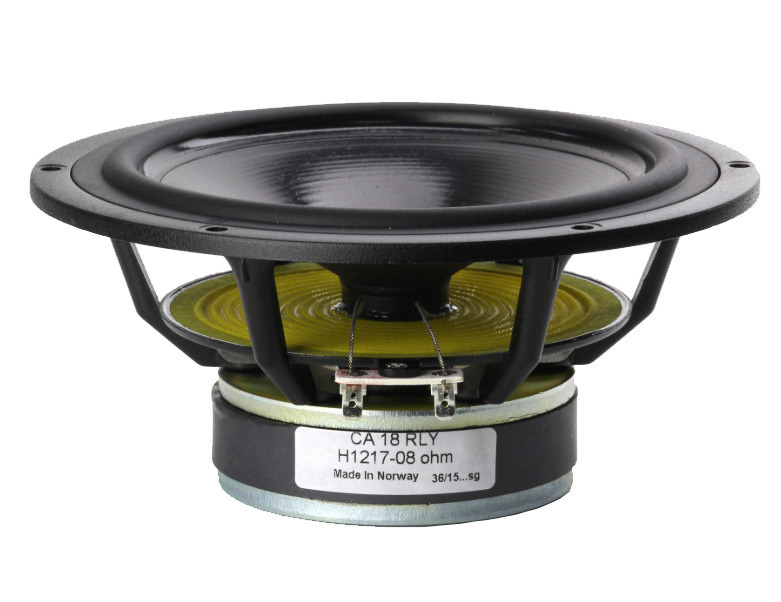

    SEAS Prestige CA18RLY - H1217-08 6,5" Coated Paper Cone Woofer

    € 78,25 Niet op voorraad: binnen 1 week leverbaar
    6,5" High Fidelity cone driver, developed for use as a high quality woofer or woofer/midrange unit. Classical coated paper cone gives a smooth extended frequency response with a controlled roll off.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €74,34 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    Highlights

    • Long term power handling (RMS) is 80 Watts
    • Classical coated paper cone gives a smooth extended frequency response with a controlled roll off
    • Large magnet system provides high efficiency and low Q



    Product details

    Seas Prestige CA18RLY - H1217-08 7" Coated Paper Cone Woofer



    6,5" High Fidelity cone driver, developed for use as a high quality woofer or woofer/midrange unit. Classical coated paper cone gives a smooth extended frequency response with a controlled roll off.



    High temperature, light weight, CCAW voice coil wound on an aluminum voice coil former gives a high power handling capacity. The extremely stiff and stable injection molded metal basket, keeps the critical components in perfect alignment.



    Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum. The large magnet system provides high efficiency and low Q.

    Specificaties

    Artikelnummer
    CA18RLY
    Woofer Series
    Prestige Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    7"
    Power Handling (RMS)
    80 Watts
    Power Handling (max)
    250 Watts
    Impedance
    8 ohms
    Sensitivity
    90 dB 2.83V/1m
    Frequency Response
    35 to 3,000 Hz
    Voice Coil Diameter
    1.02"
    Magnet Weight
    14.8 oz.
    DC Resistance (Re)
    5.8 ohms
    Voice Coil Inductance (Le)
    1.05 mH
    Resonant Frequency (Fs)
    42 Hz
    Mechanical Q (Qms)
    2.92
    Electromagnetic Q (Qes)
    0.56
    Total Q (Qts)
    0.47
    Diaphragm Mass Inc. Airload (Mms)
    10.6g
    Mechanical Compliance of Suspension (Cms)
    1.4 mm/N
    Compliance Equivalent Volume (Vas)
    1.13 ft.³
    Maximum Linear Excursion (Xmax)
    5 mm
    Overall Outside Diameter
    6.93"
    Overall Depth
    3.08"
    Baffle Cutout Diameter
    5.72"
    Bolt Circle Diameter
    6.54"
    # Mounting Holes
    6
    Mounting Hole Diameter
    0.2"

    Reviews

    4 from 5Based on 2 reviews
    Schrijf een review
    5 van 5
    Super top
    Door Gaëtan A. on 8 Februari 2021
    2 van 5
    Geluid op zich goed, maar lastige woofer om in een bestaand systeem in te passen.
    Door Wim v. on 24 November 2020
