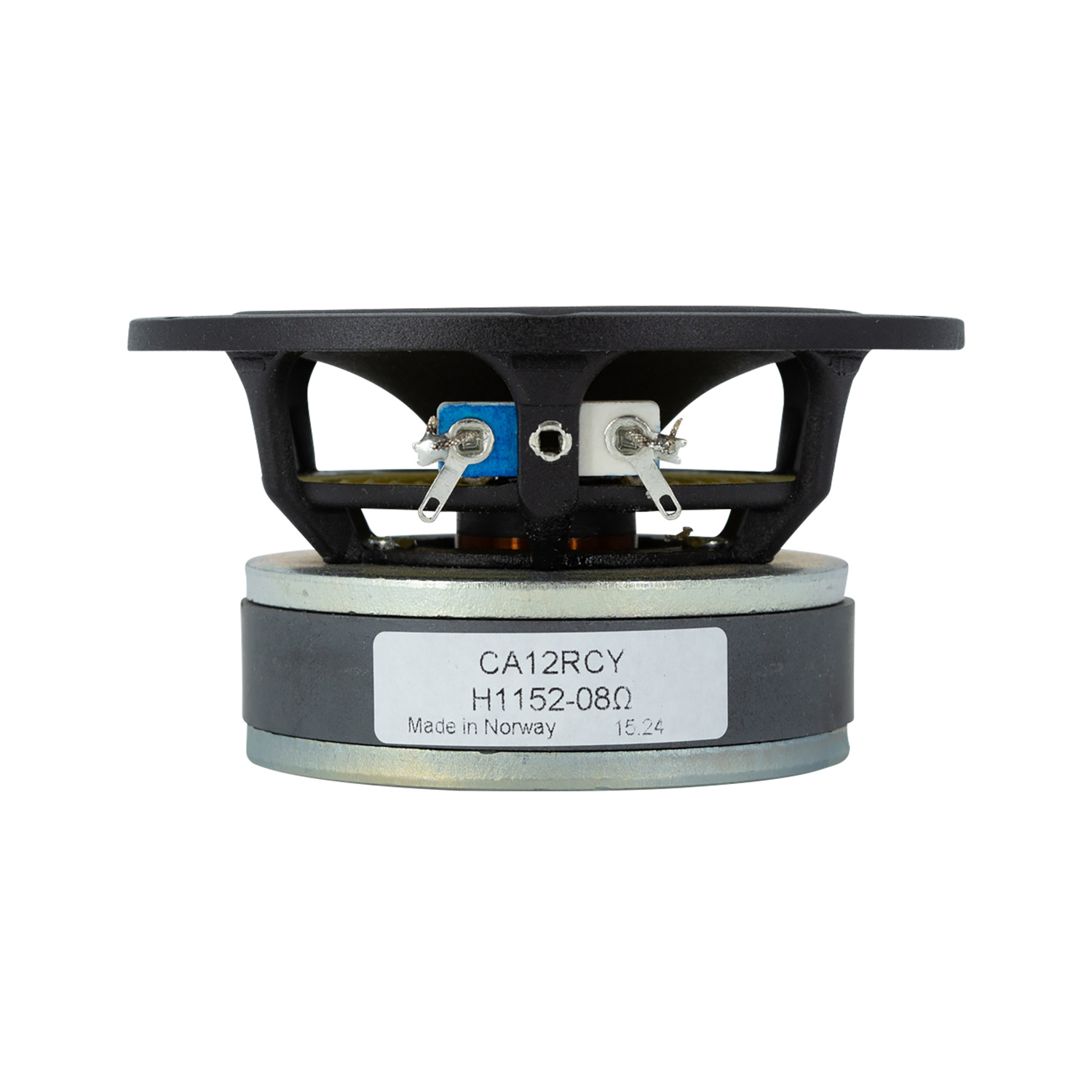

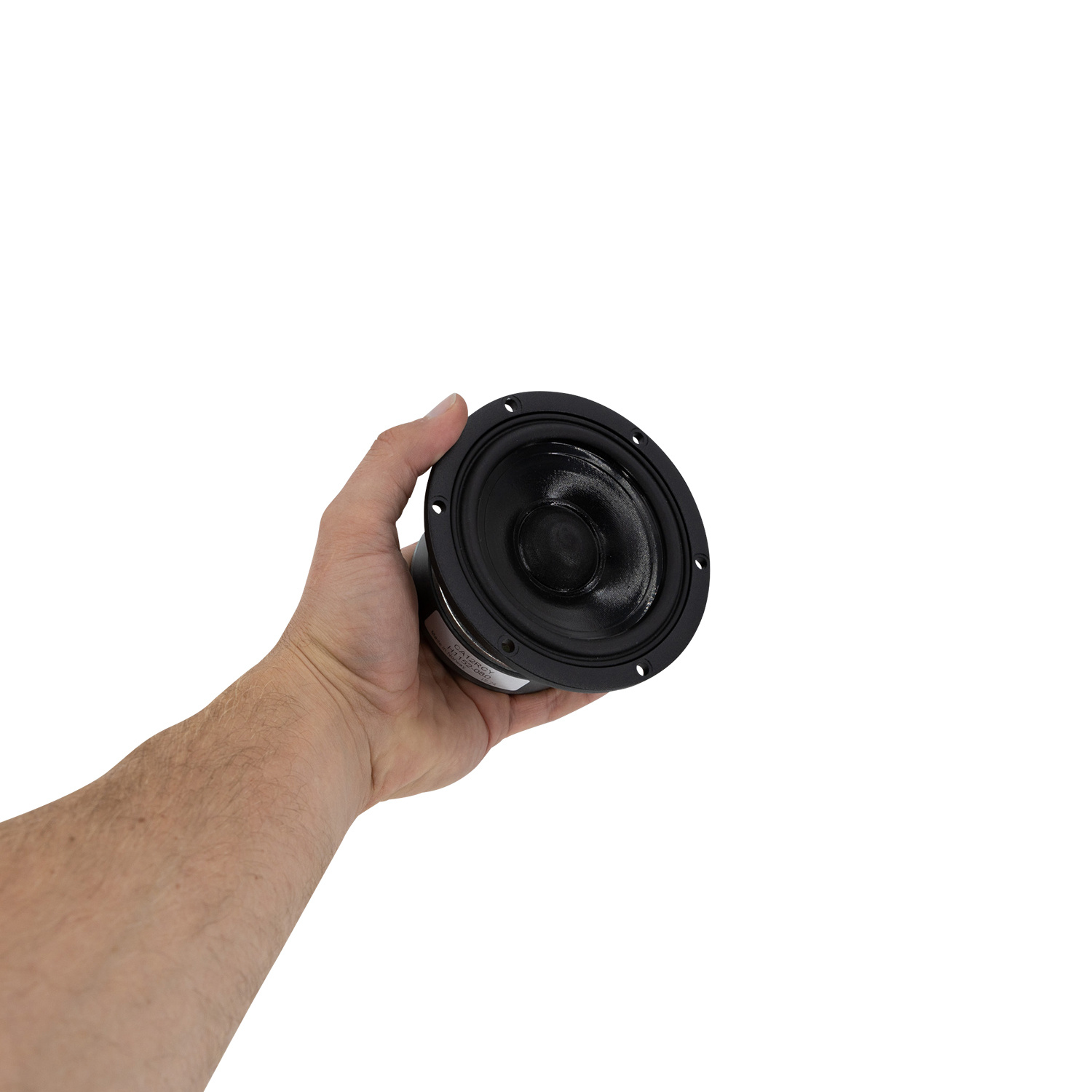

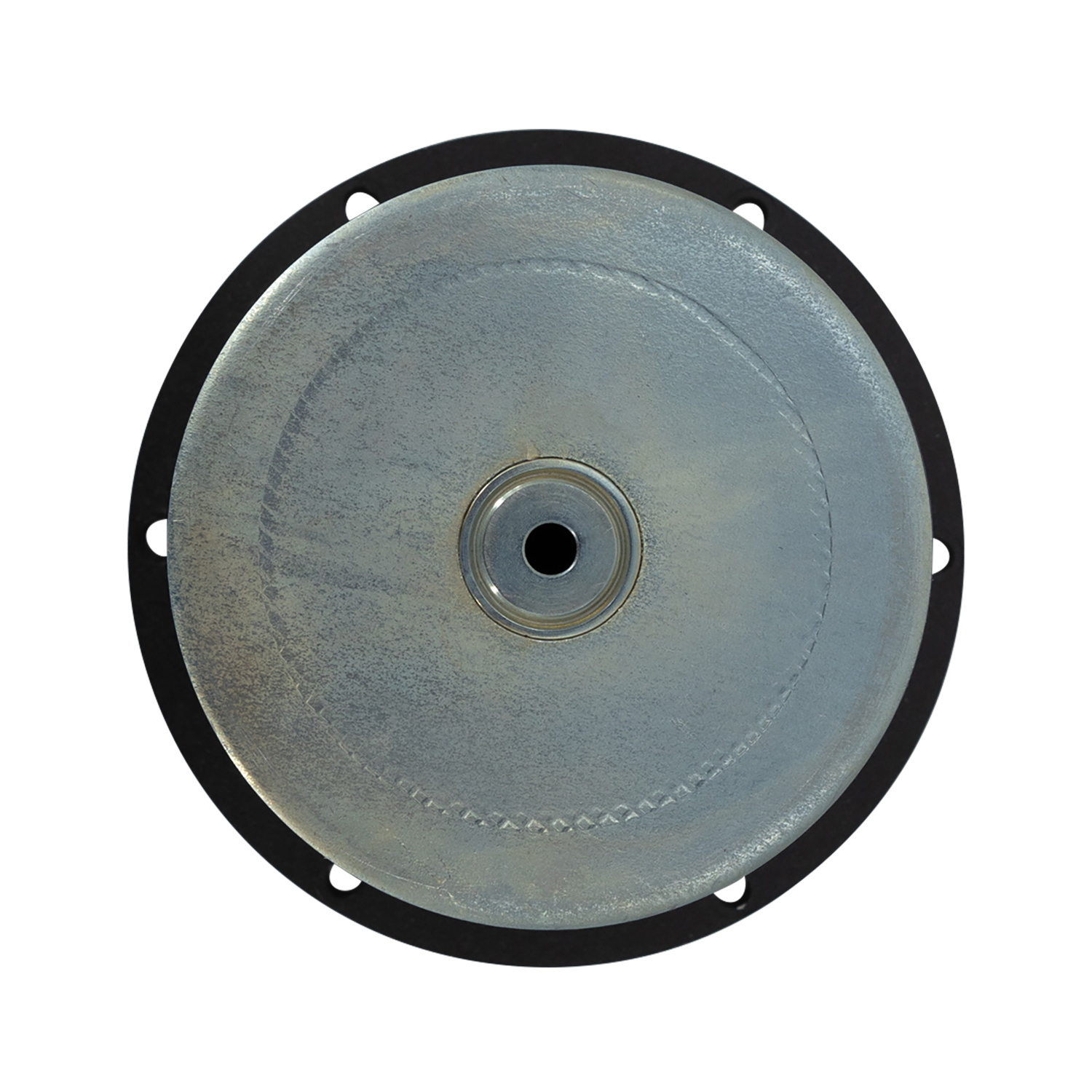

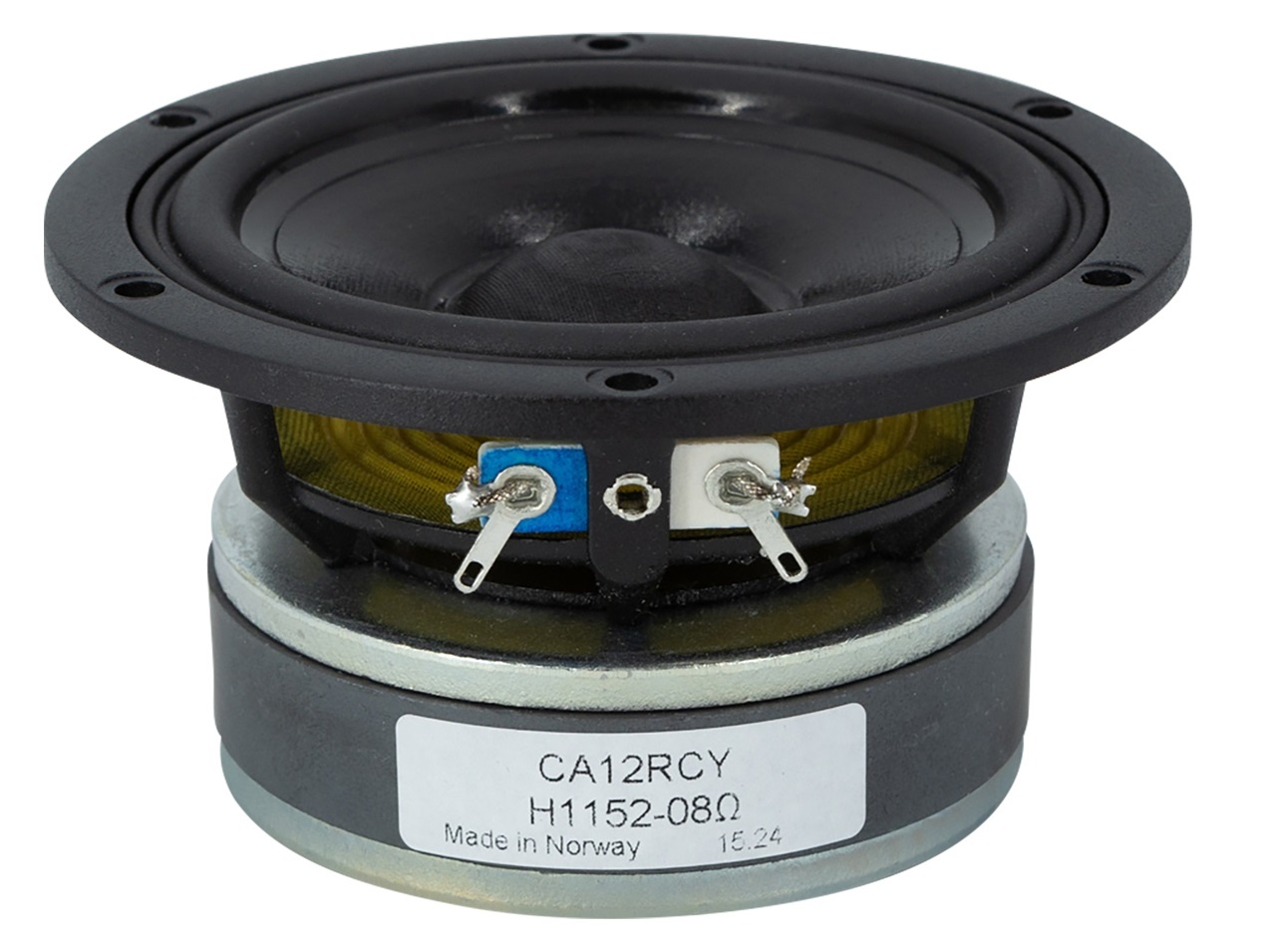

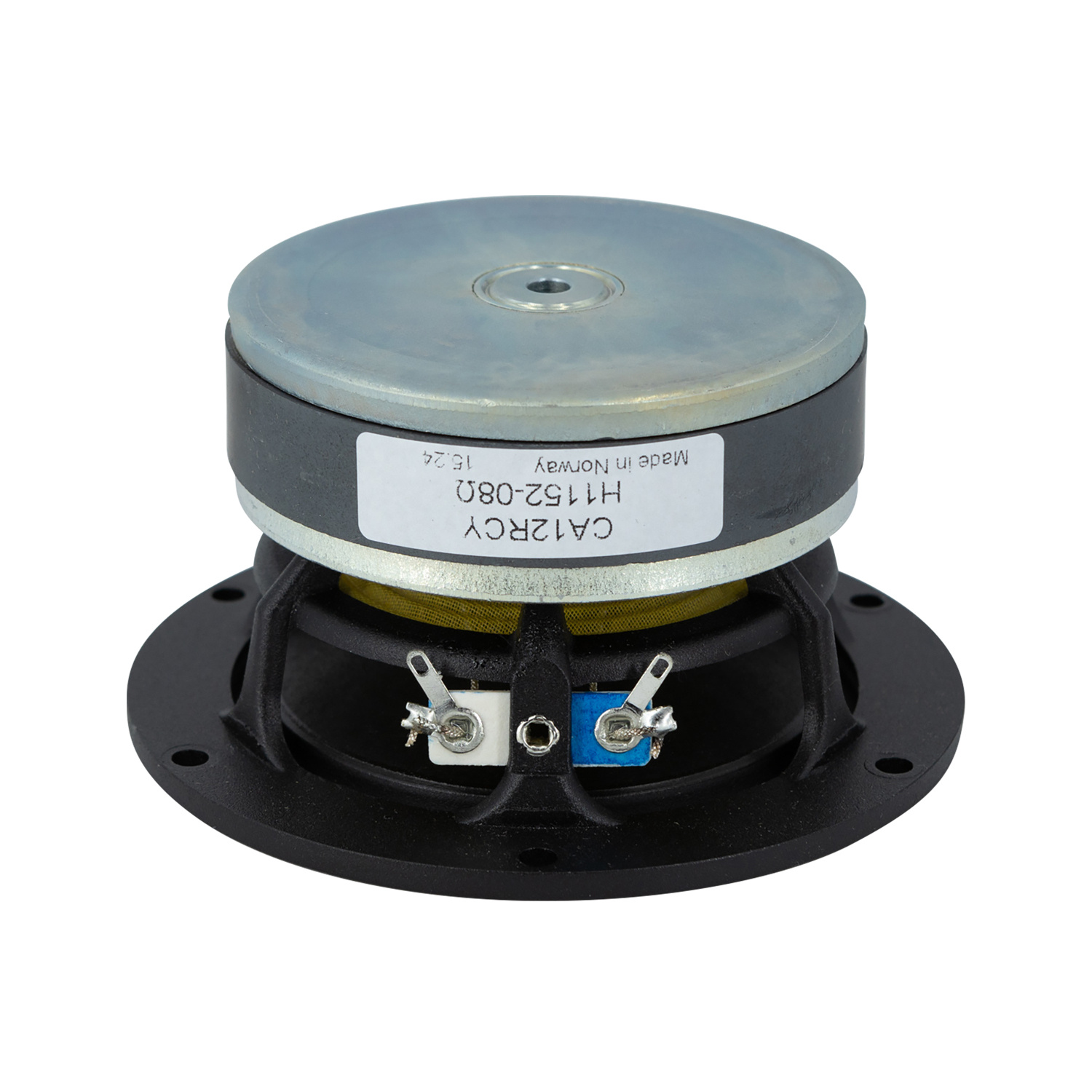

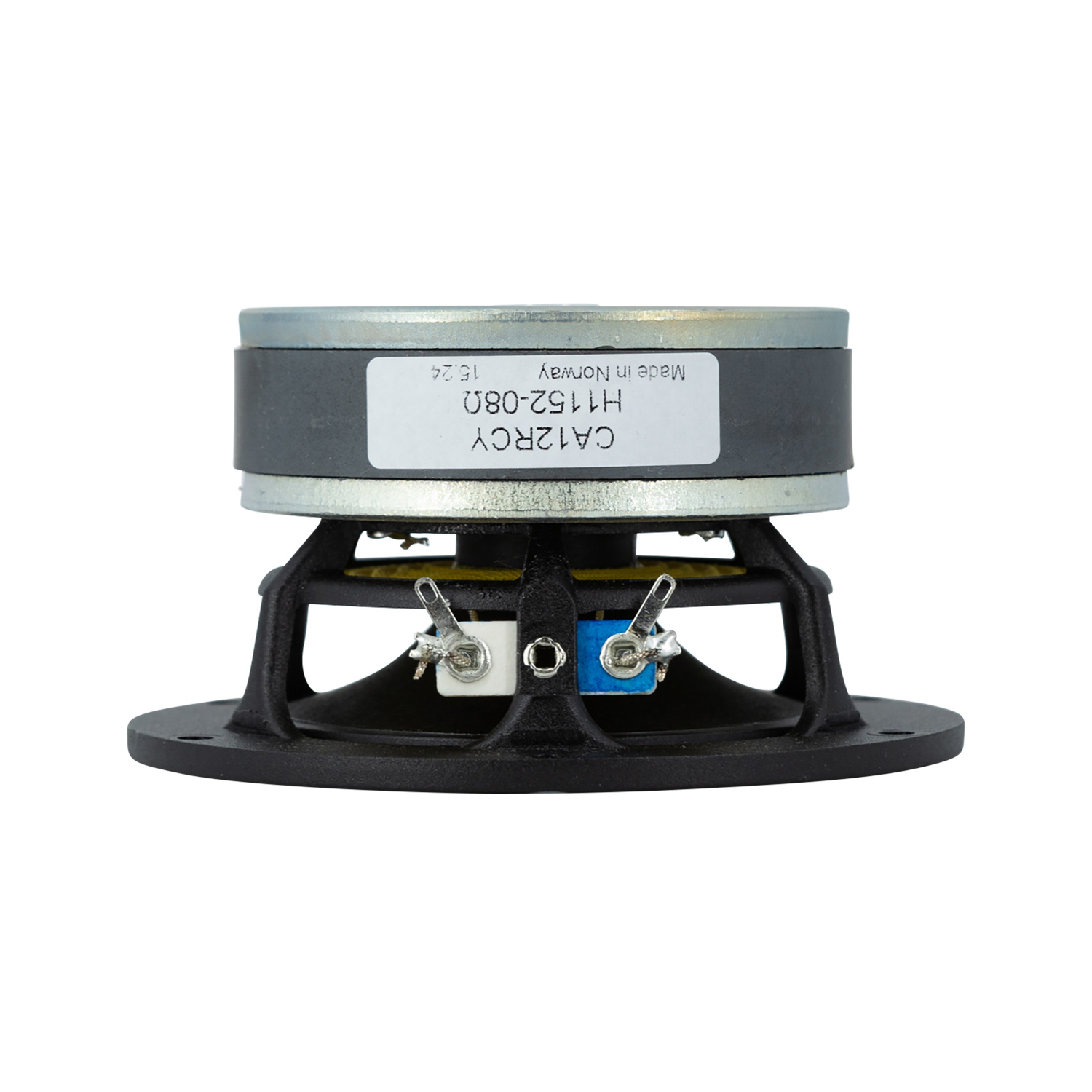

    SEAS Prestige CA12RCY - H1152-08 4.5" Coated Paper Cone Woofer

    € 66,45 Niet op voorraad: binnen 1 week leverbaar
    Natural rubber surround and handcoated paper cone with coated fabric dust cap, reduce resonances and distortion. Large magnet system and a symmetrical driving force accomplished through a special coil winding technique for the voice coil gives an excellen... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €63,13 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    Highlights

    • Natural rubber surround and handcoated paper cone with coated fabric dust cap, reduce resonances and distortion
    • Large magnet system and symmetrical driving force
    • Very large magnet system allows a reasonable efficiency and a low Q



    Product details

    Seas Prestige CA12RCY - H1152-08 4.5" Coated Paper Cone Woofer



    Natural rubber surround and handcoated paper cone with coated fabric dust cap, reduce resonances and distortion. Large magnet system and a symmetrical driving force accomplished through a special coil winding technique for the voice coil gives an excellent linearity. Very large magnet system provides a reasonable efficiency and a low Q.



    Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

    Specificaties

    Artikelnummer
    CA12RCY
    Woofer Series
    Prestige Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    4.5"
    Power Handling (RMS)
    60 Watts
    Power Handling (max)
    200 Watts
    Impedance
    8 ohms
    Sensitivity
    86 dB 2.83V/1m
    Frequency Response
    45 to 5,000 Hz
    Voice Coil Diameter
    1"
    Magnet Weight
    14 oz.
    DC Resistance (Re)
    6.4 ohms
    Voice Coil Inductance (Le)
    1.05 mH
    Resonant Frequency (Fs)
    57 Hz
    Mechanical Q (Qms)
    2.17
    Electromagnetic Q (Qes)
    0.36
    Total Q (Qts)
    0.31
    Diaphragm Mass Inc. Airload (Mms)
    6.1g
    Mechanical Compliance of Suspension (Cms)
    1.3 mm/N
    Compliance Equivalent Volume (Vas)
    0.17 ft.³
    Maximum Linear Excursion (Xmax)
    3 mm
    Overall Outside Diameter
    4.74"
    Overall Depth
    2.5"
    Baffle Cutout Diameter
    3.77"
    Bolt Circle Diameter
    4.36"
    # Mounting Holes
    6
    Mounting Hole Diameter
    0.19"
