        Excel C18EN002/A - E0060-08/06S Coaxial Woofer

        Excel C18EN002/A - E0060-08/06S Coaxial Woofer

        €569,95

        SEAS Excel C18EN002/A - E0060-08/06S Coaxial Woofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: SEAS
        € 471,03€ 569,95 2 Op voorraad
        • -5% Bestel 4 voor slechts € 541,45 per stuk

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, morgen verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving

        Highlights

        • Long term power handling (RMS) is 100 Watts (Woofer) and 90 Watts (Tweeter)
        • Low-mass, surface-treated aluminum/magnesium alloy cone
        • Powerful neodymium magnet system results in high midrange sensitivity with minimal back wave reflections



        Product details

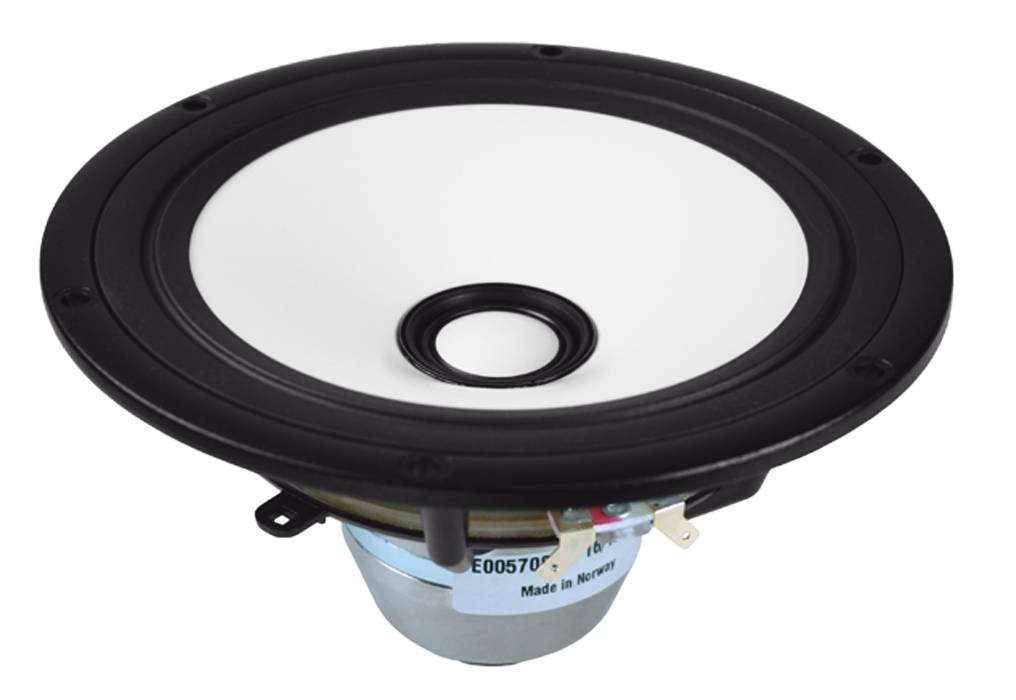

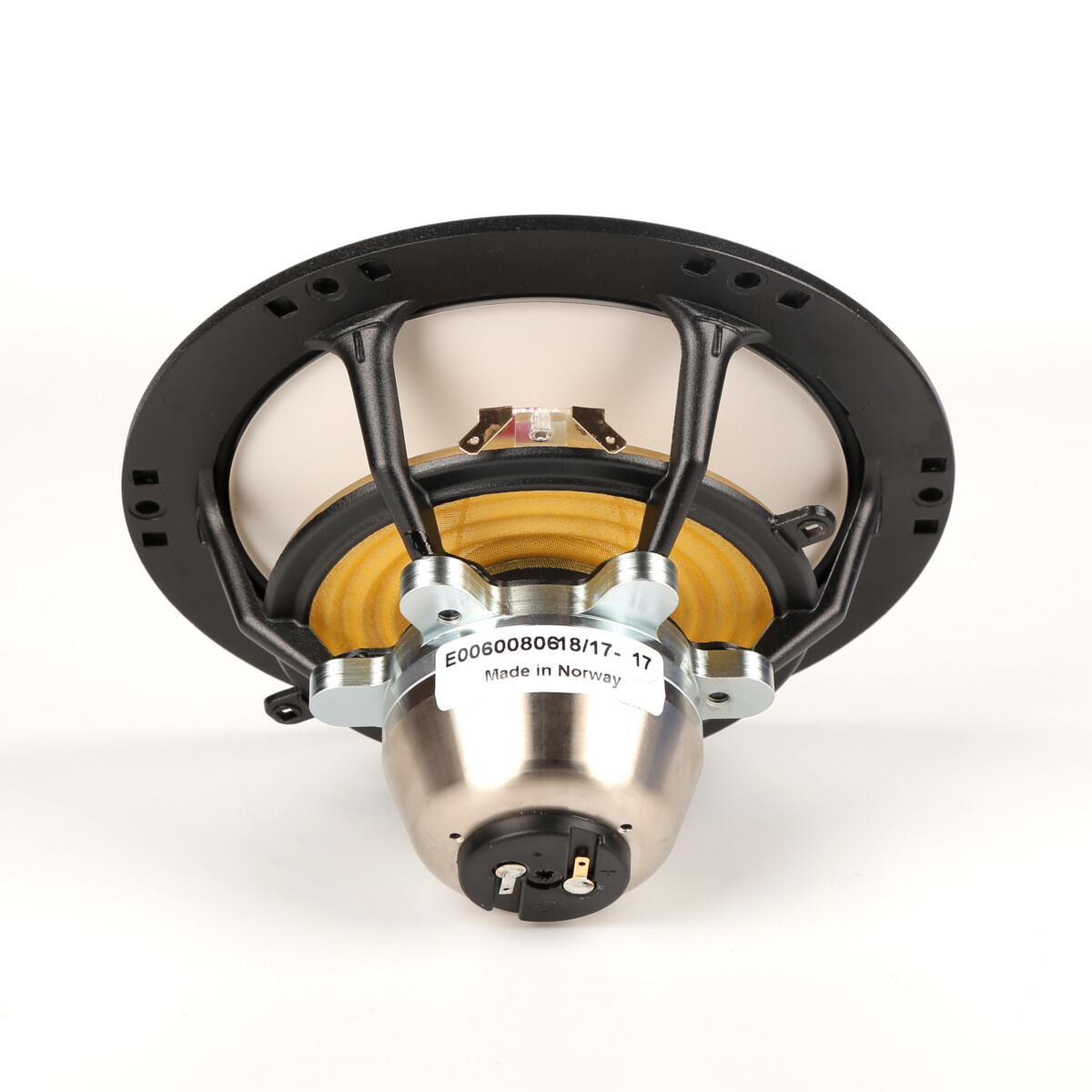

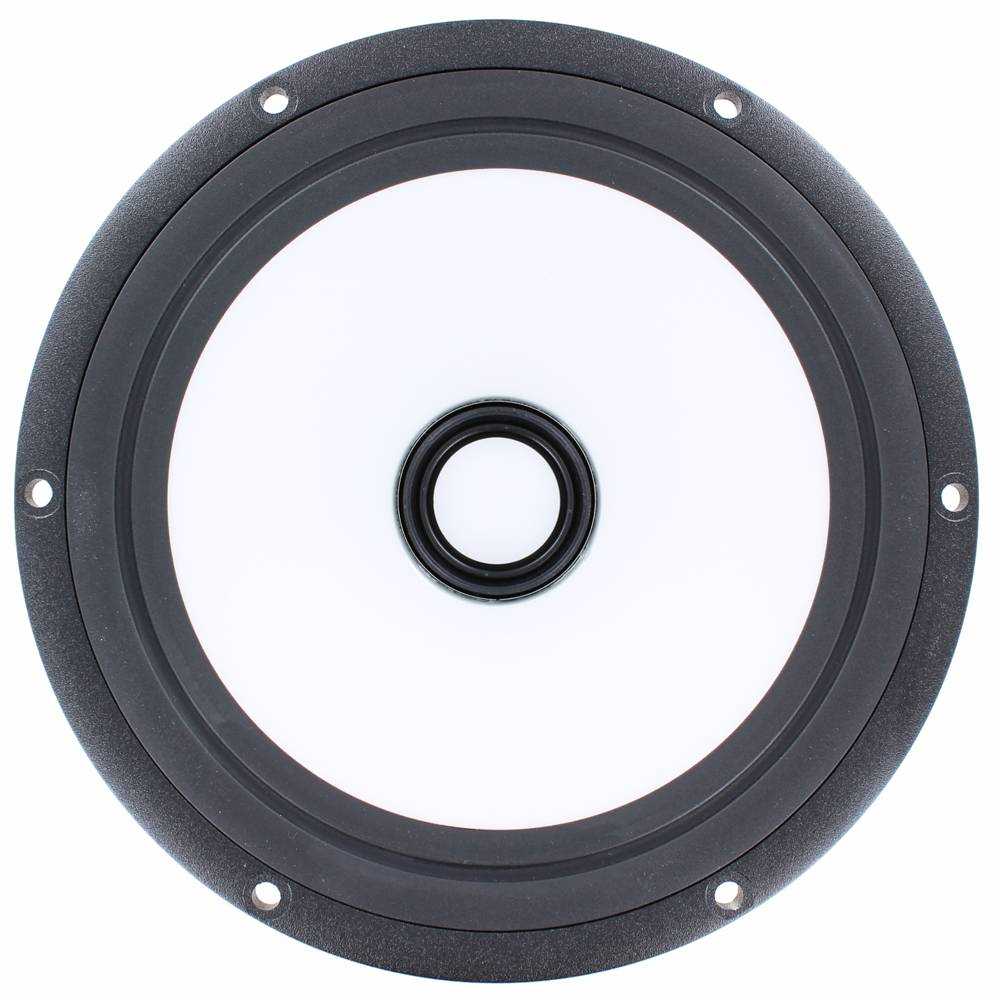

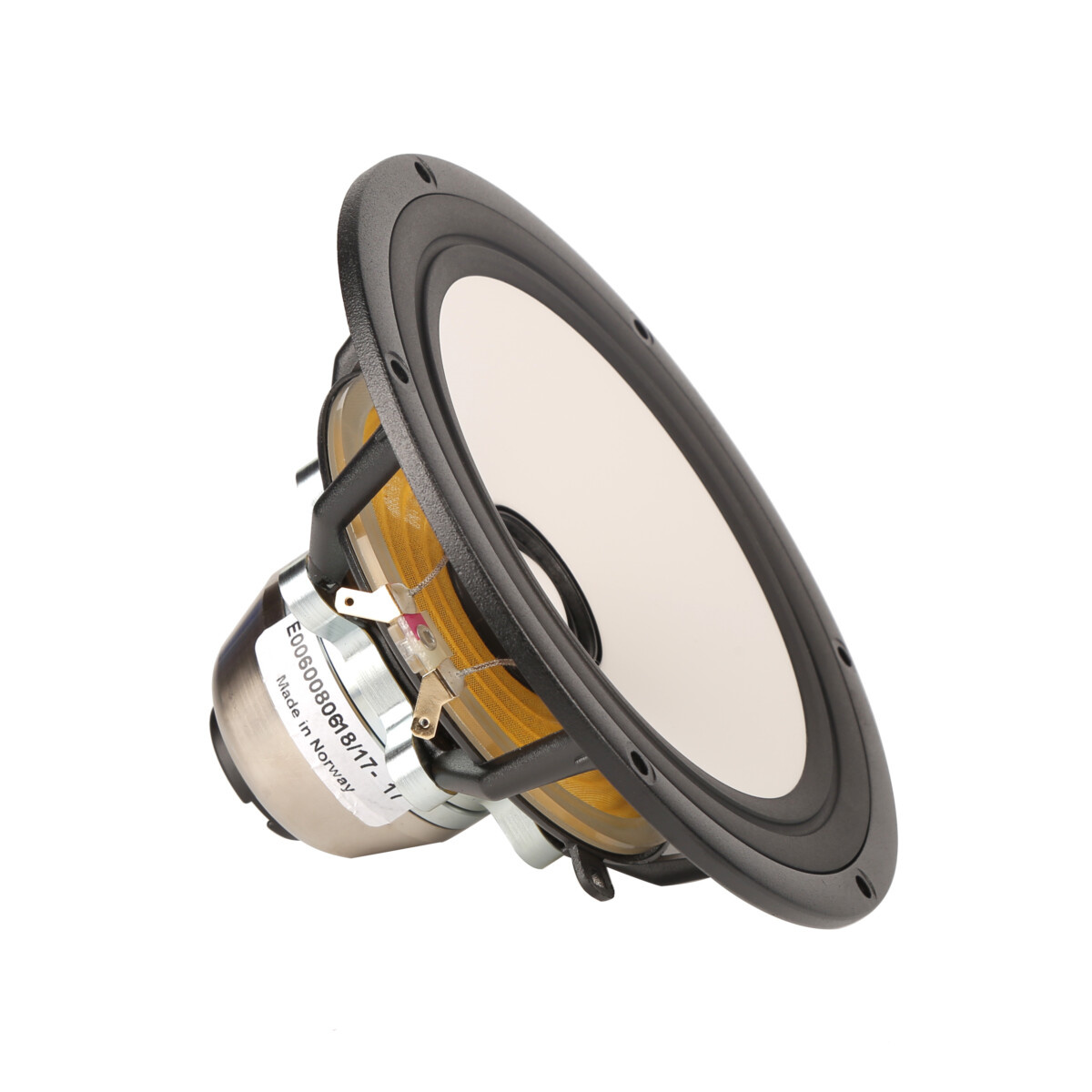

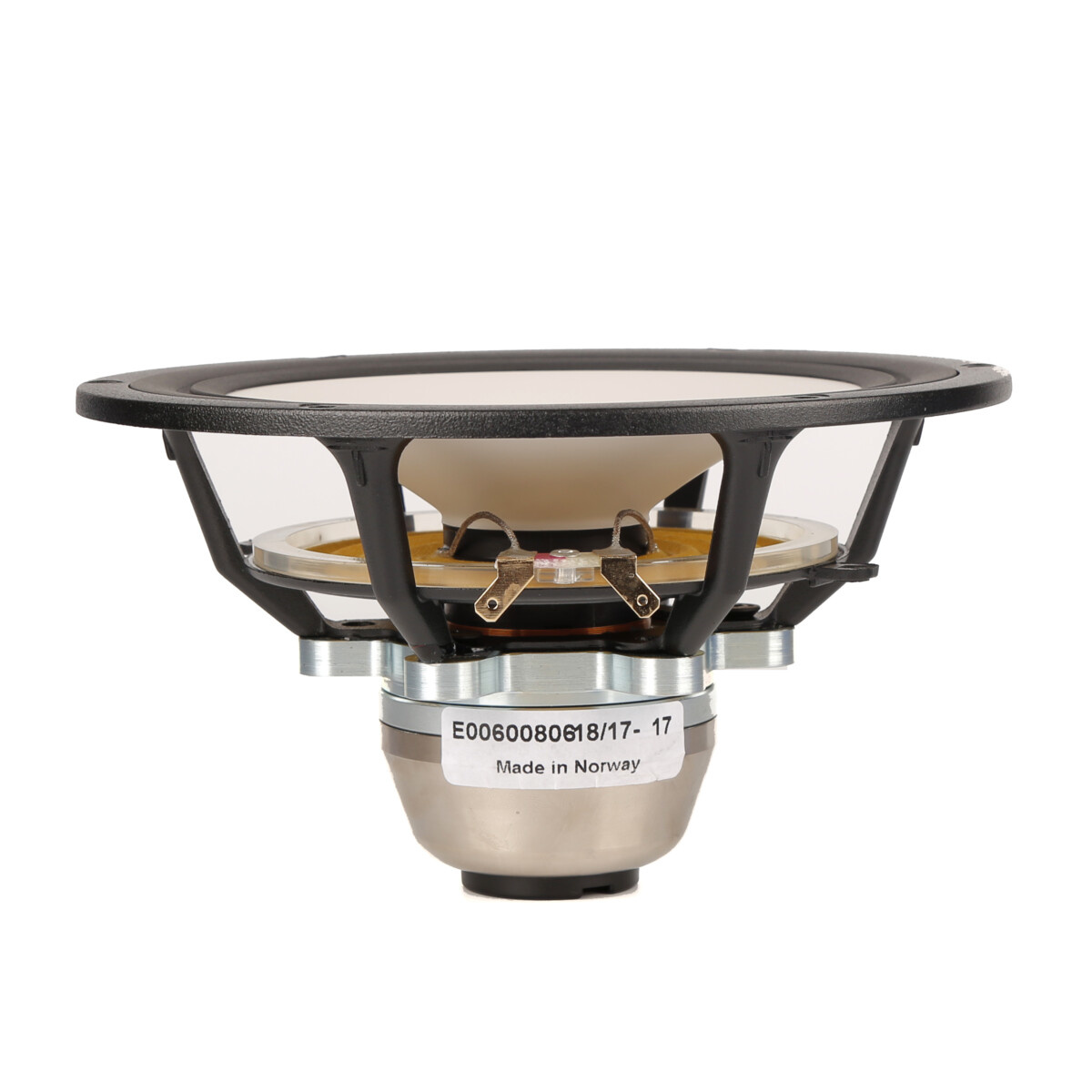

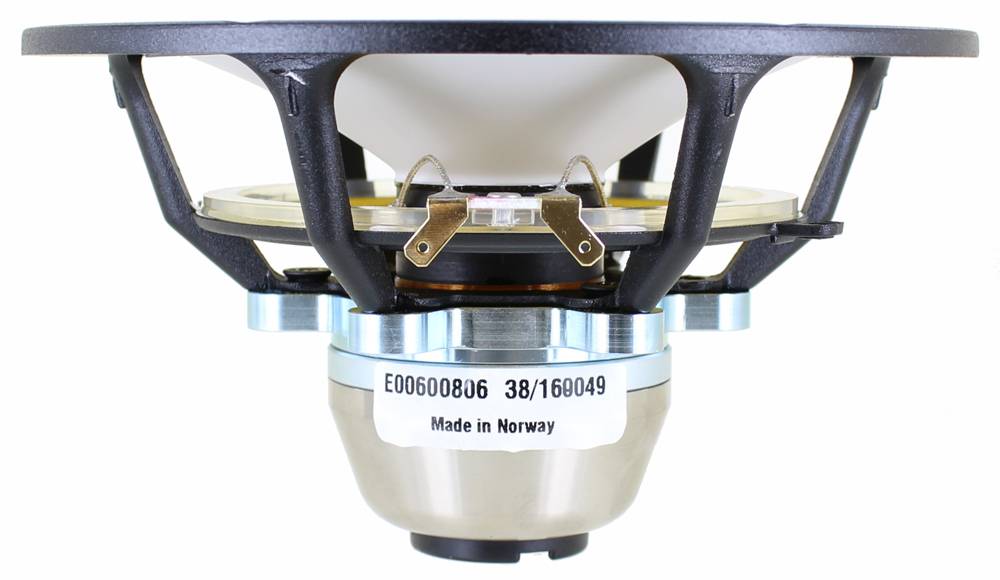

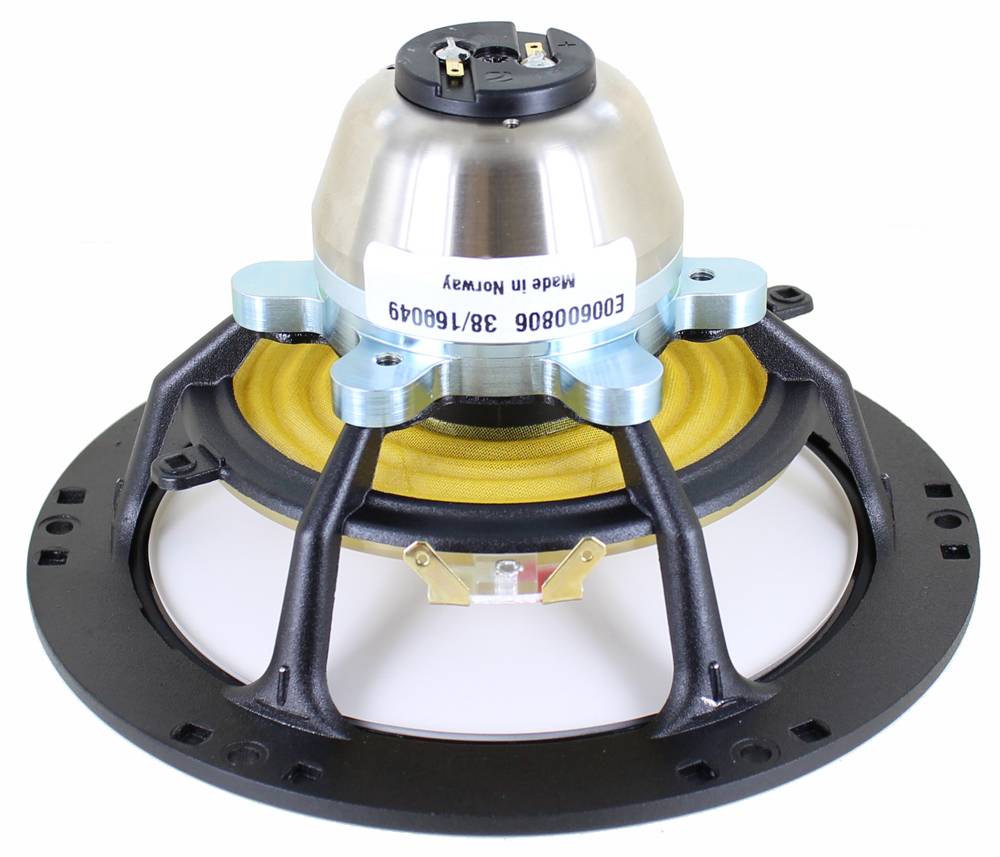

        Seas Excel C18EN002/A - E0060-08/06S 6.5" Coaxial Woofer



        This driver features a low-mass, surface-treated aluminum/magnesium alloy cone which behaves like a piston throughout the audible frequency range, without any sign of midrange resonances. The coaxially mounted aluminum/magnesium alloy dome tweeter has a low resonance frequency and integrates with the cone driver to form a point source. The cone profile has been carefully designed to optimally load the tweeter’s radiation.



        A completely new rubber surround reduces resonances and prevents surround break up in the midrange band. The surround’s small inverted roll, combined with a profile that follows the shape of the cone, results in almost total elimination of diffraction effects on the tweeter’s output. The powerful neodymium magnet system, with its small profile and optimal shape, results in high midrange sensitivity with minimal back wave reflections.



        Heavy copper rings mounted above and below the T-shaped pole piece reduce nonlinear and modulation distortion and increase overload margin. The crown-shaped copper tweeter support ring eliminates any resonance coming from the cavity between the tweeter body and midrange voice coil former. All these features work together to provide a smooth and well behaved off-axis response throughout the entire operating range.



        A great application example would be the SEAS application De KingRO4Y MkIII. To learn more, please check out our blog article "SEAS DIY-plannen".

        Toon meer

        Specificaties

        Artikelnummer
        C18EN002/A
        Woofer series
        Excel Series
        Woofer type
        Coaxial
        Nominale diameter
        6.5"
        Belastbaarheid (RMS)
        100 Watts
        Belastbaarheid (max)
        250 Watts
        Impedantie (Z)
        8 ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        87 dB
        Frequentierespons
        150 - 25,000 Hz
        Spreekspoeldiameter
        1.53"
        Gewicht magneet
        33.5 oz.
        Gelijkstroomweerstand (Re)
        6.2 ohms
        Spreekspoelinductie (Le)
        0.62 mH
        Resonantiefrequentie (Fs)
        98 Hz
        Mechanische Q (Qms)
        2.16
        Elektrische Q (Qes)
        0.86
        Totale Q (Qts)
        0.62
        Bewegende massa (Mms)
        1.69g
        Compliantie van de ophanging (Cms)
        0.17 mm/N
        Equivalentvolume (Vas)
        0.13 ft.³
        Maximale excursie (Xmax)
        3 mm
