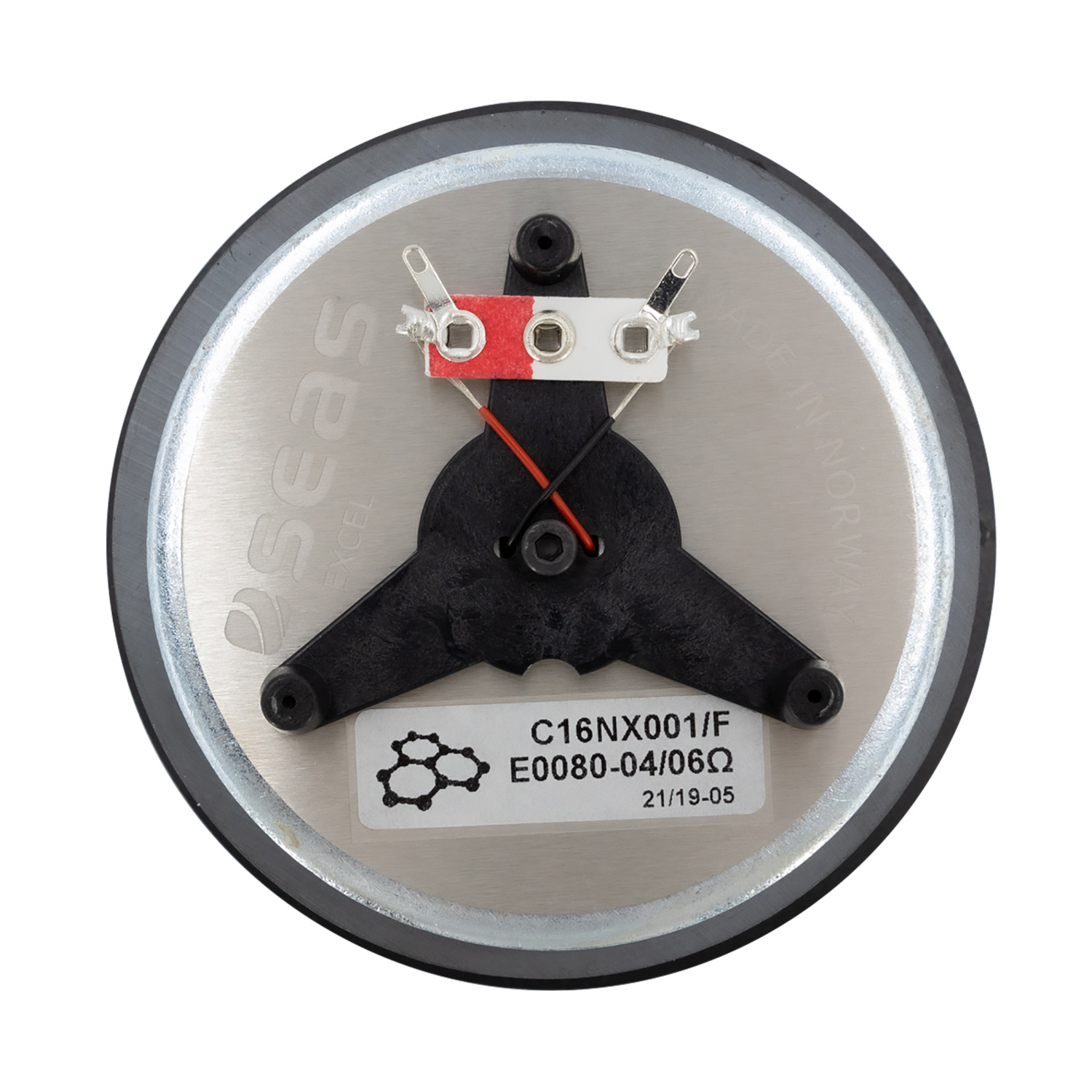

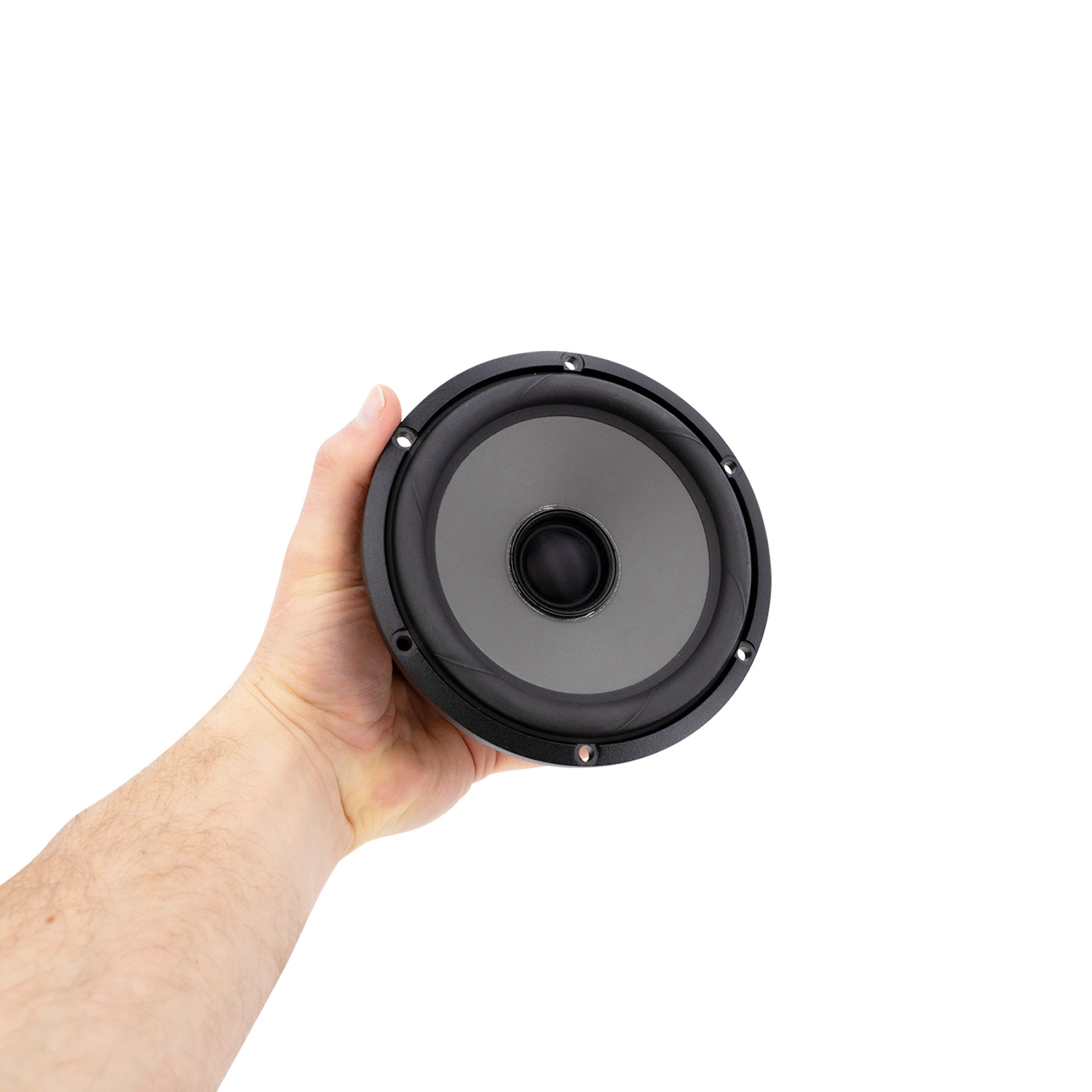

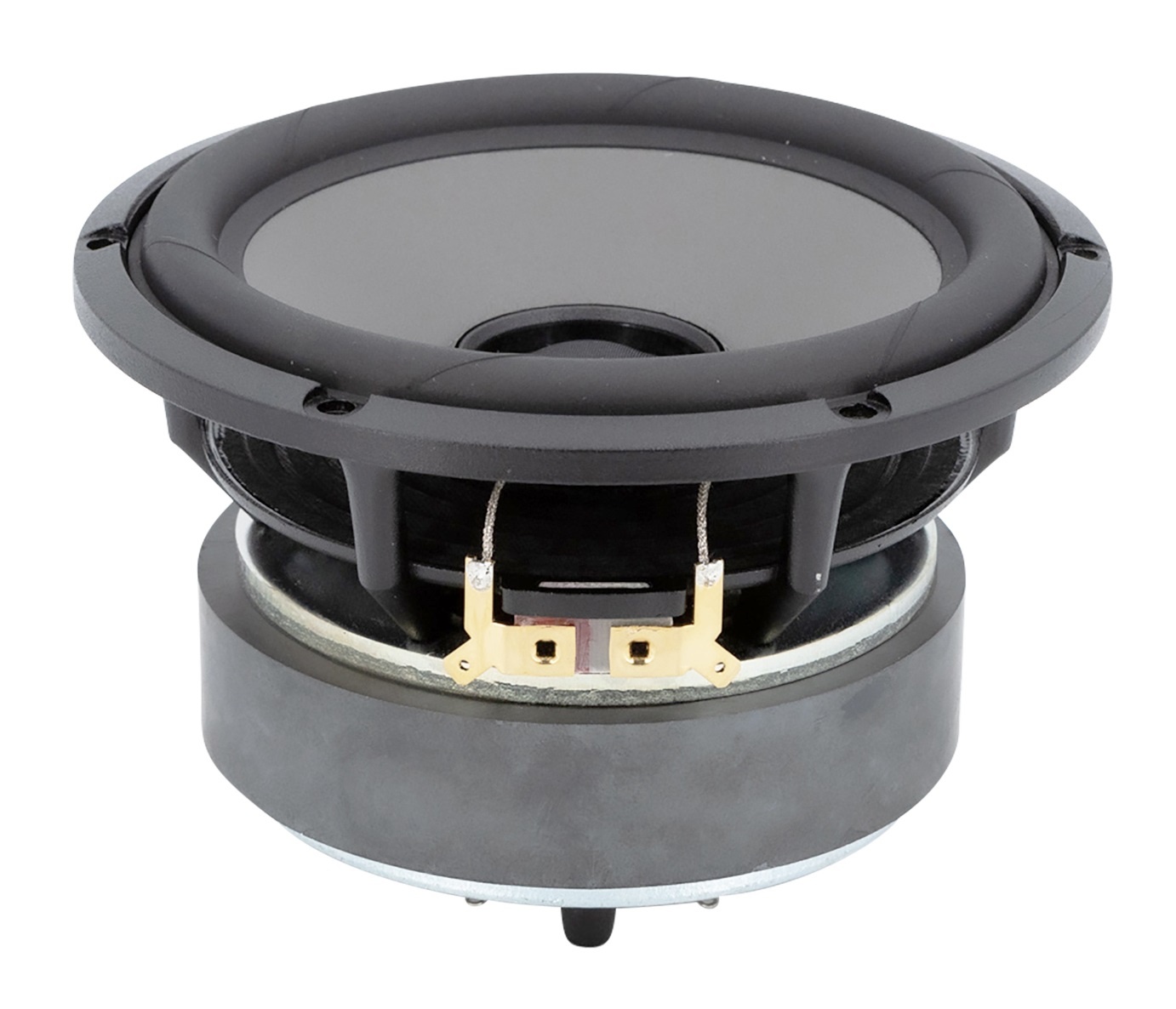

    SEAS Excel Graphene C16NX001/F - E0080-04/06 5" Coaxial Woofer 4 Ohms

    € 499,95 2 Op voorraad: levertijd 1 werkdag
    The precision cast, machined and Graphene treated magnesium cone acts as a piston through the working frequency band without showing any sign of midrange resonances.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €474,95 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    Highlights

    • FEA optimised magnet system
    • Graphene treated magnesium cone
    • Titanium former for woofer and tweeter
    • Unique radial reinforced rubber surround
    • Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment



    Product details

    Seas Excel Graphene C16NX001/F - E0080-04/06 5" Coaxial Woofer 4 Ohms



    The precision cast, machined and Graphene treated magnesium cone acts as a piston through the working frequency band without showing any sign of midrange resonances.

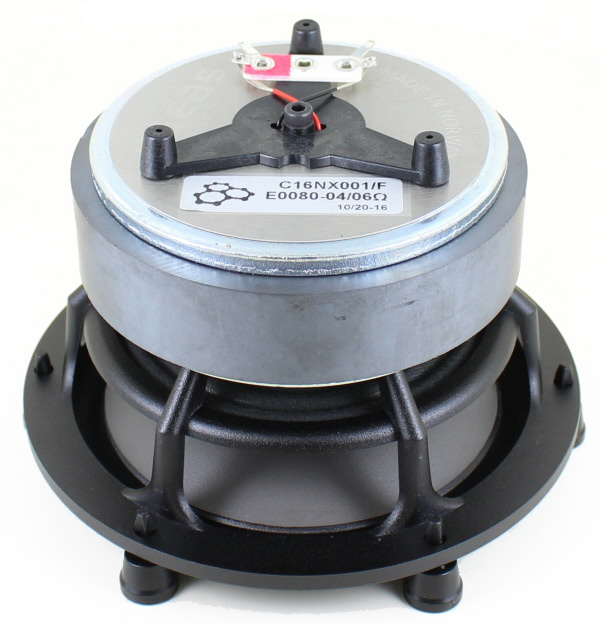

    The woofer has an FEA optimised magnet system with precisely fitted copper parts for excellent linearity, high powerhandling and low distortion. A titanium voice coil former with a long copper clad aluminium winding for excellent force transfer, transient sound reproduction and large linear excursion. This results in very low mechanical damping for better clarity and brings out the micro details in the music.

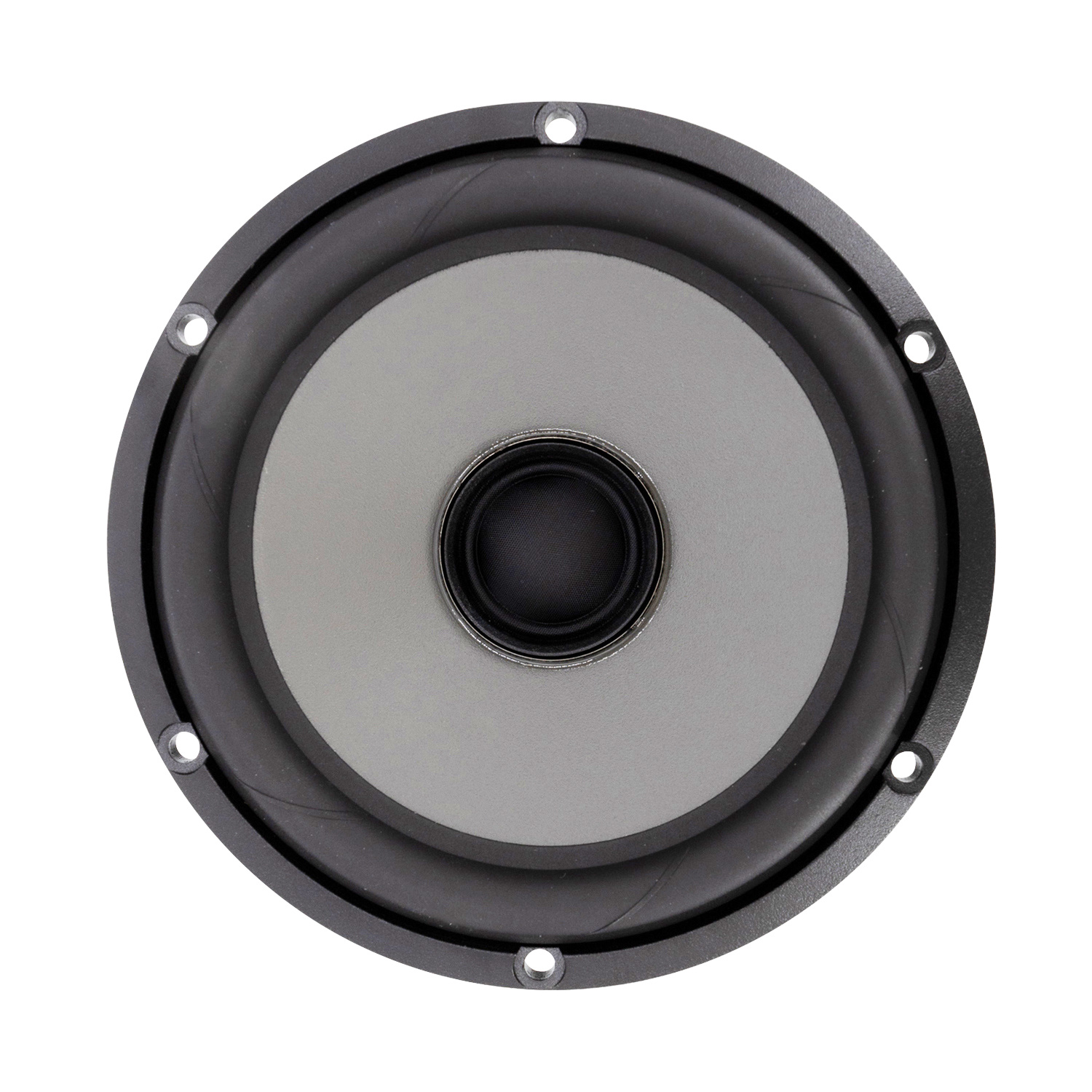

    The coaxially arranged tweeter with a precoated fabric dome is fitted with a Titanium former, has a low resonance frequency and integrates with the cone driver to form a point source for excellent sound stage imaging.

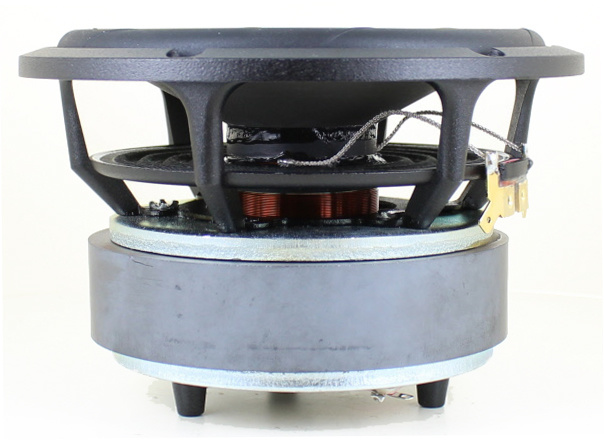

    The extremely stiff and stable injection moulded metal basket designed for smooth air-flow, keeps the critical components in perfect alignment and reduce sound reflection, air flow noise and cavity resonance to a minimum.

    Specificaties

    Artikelnummer
    C16NX001/F
    Woofer Series
    Excel Graphene
    Woofer Type
    Coaxial
    Nominal Diameter
    5"
    Power Handling (RMS)
    <p>150 watts (woofer)</br>90 watts (tweeter)</p>
    Power Handling (max)
    <p>250 watts (woofer)</br>220 watts (tweeter)</p>
    Continuous Program Power
    -
    Impedance
    <p>4 ohms (woofer)</br>6 ohms (tweeter)</p>
    Sensitivity
    <p>88.5 dB at 2.83V/1m (woofer)</br>90 dB at 2.83V/1m (tweeter)</p>
    Frequency Response
    20 - 20,000 Hz
    Voice Coil Diameter
    <p>39 mm (woofer)</br>26 mm (tweeter)</p>
    Magnet Weight
    -
    DC Resistance (Re)
    <p>3 ohms (woofer)</br>4.7 ohms (tweeter)</p>
    Voice Coil Inductance (Le)
    <p>0.23 mH (woofer)</br>0.05 mH (tweeter)</p>
    Resonant Frequency (Fs)
    <p>35 Hz (woofer)</br>1165 Hz (tweeter)</p>
    Mechanical Q (Qms)
    4.85
    Electromagnetic Q (Qes)
    0.33
    Total Q (Qts)
    0.31
    Diaphragm Mass Inc. Airload (Mms)
    16.2g
    Mechanical Compliance of Suspension (Cms)
    1.26 mm/N
    Surface Area of Cone (Sd)
    94 cm²
    Volume of Displacement (Vd)
    65.8 cm³
    BL Product (BL)
    -
    Compliance Equivalent Volume (Vas)
    16 liters
    Maximum Linear Excursion (Xmax)
    7 mm
    Driver's Mechanical Losses (Rms)
    -
    Cone / Diaphragm Material
    Graphene treated magnesium
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper-clad aluminum
    Voice Coil Former
    Titanium
    Dual Voice Coil
    -
    Basket / Frame Material
    -
    Magnet Material
    -
    Shielded
    -
    Overall Outside Diameter
    146 mm
    Overall Depth
    89 mm
    Baffle Cutout Diameter
    127 mm
    # Mounting Holes
    6
    Mounting Hole Diameter
    5 mm
    Sealed Volume
    -
    Sealed F3
    -
    Vented Volume
    -
    Vented F3
    -
