        Productomschrijving SEAS BRAGI MTM Components Pack

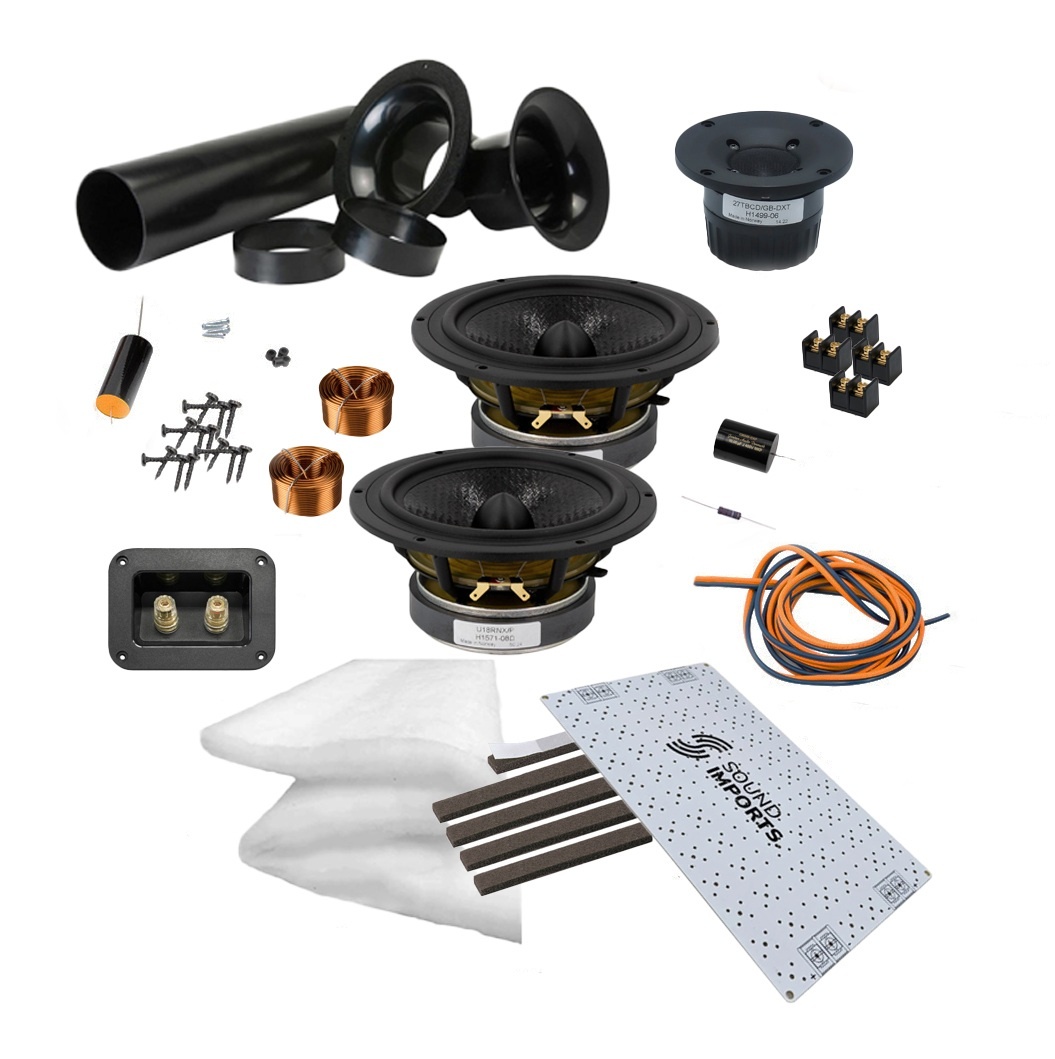

        The SEAS Bragi is a meticulously engineered 2-way MTM (Midwoofer-Tweeter-Midwoofer) loudspeaker kit designed for audiophiles seeking high-fidelity sound reproduction. This kit combines advanced driver technology with a thoughtfully designed crossover network to deliver exceptional audio performance in a compact form factor.



        Highlights of the SEAS Bragi Loudspeaker Kit

        • Dual 6.5" SEAS U18RNX/P woofers featuring woven polypropylene Curv cones for smooth and extended frequency response.
        • 27 mm SEAS 27TBCD/GB-DXT tweeter with DXT lens for controlled directivity and excellent off-axis performance.
        • Symmetrical crossover design at 2.6 kHz ensuring seamless integration between drivers.
        • Compact bass-reflex cabinet design with a 30-liter volume for balanced bass reproduction.



        Product details SEAS Bragi Loudspeaker Kit

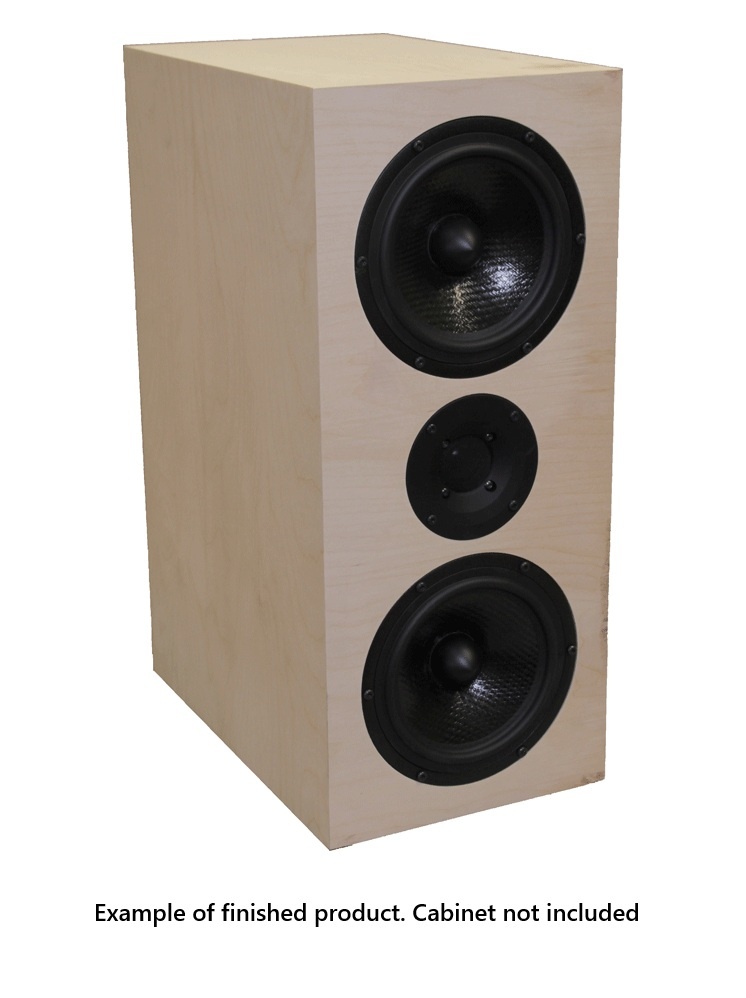

        SEAS Bragi 2-Way MTM Loudspeaker Kit



        The Bragi loudspeaker kit features two SEAS U18RNX/P woofers, each equipped with a woven polypropylene Curv cone. This material offers excellent internal damping, resulting in a smooth and extended frequency response. The woofers are designed with a large magnet system and a long, lightweight copper-clad aluminum voice coil, allowing for significant excursion with low distortion. The bullet-shaped phase plug reduces compression and resonance issues, enhancing overall performance.



        The high frequencies are handled by the SEAS 27TBCD/GB-DXT tweeter, which incorporates an aluminum/magnesium alloy dome and a unique DXT lens. This design addresses directivity control, off-axis response, and baffle diffraction issues, ensuring consistent performance across a wide listening area. The tweeter's rear chamber is optimally damped, allowing for use with moderately low crossover frequencies.



        The crossover network is a symmetrical 2nd order design with a crossover frequency at 2.6 kHz. This configuration aligns the phase of the drivers effectively, providing a smooth transition between the woofers and the tweeter. The simplicity of the crossover contributes to the system's dynamic and detailed sound quality, even at high power levels.

        Toon meer

        Specificaties

        Artikelnummer
        BRAGI
        EAN
        9502984574580
        Woofer series
        Prestige woofers
        Nominale diameter
        Woofer 6.5” Tweeter 1”
        Belastbaarheid (RMS)
        160 Watts
        Impedantie (Z)
        4 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        88 dB
        Frequentierespons
        38- 25.000 Hz
