    SEAS Prestige 27TBCD/GB-DXT - H1499-06 1'' Aluminum Dome Tweeter

    € 66,07€ 79,95 >10 Op voorraad: levertijd 1 werkdag
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €75,95 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Highlights

    • Compensation magnet increases sensitivity and reduces the magnetic strayfield while allowing its use in close proximity to CRT screens
    • 55 Watts RMS Power Handling
    • 92 dB 2.83V/1m Sensitivity



    Product details

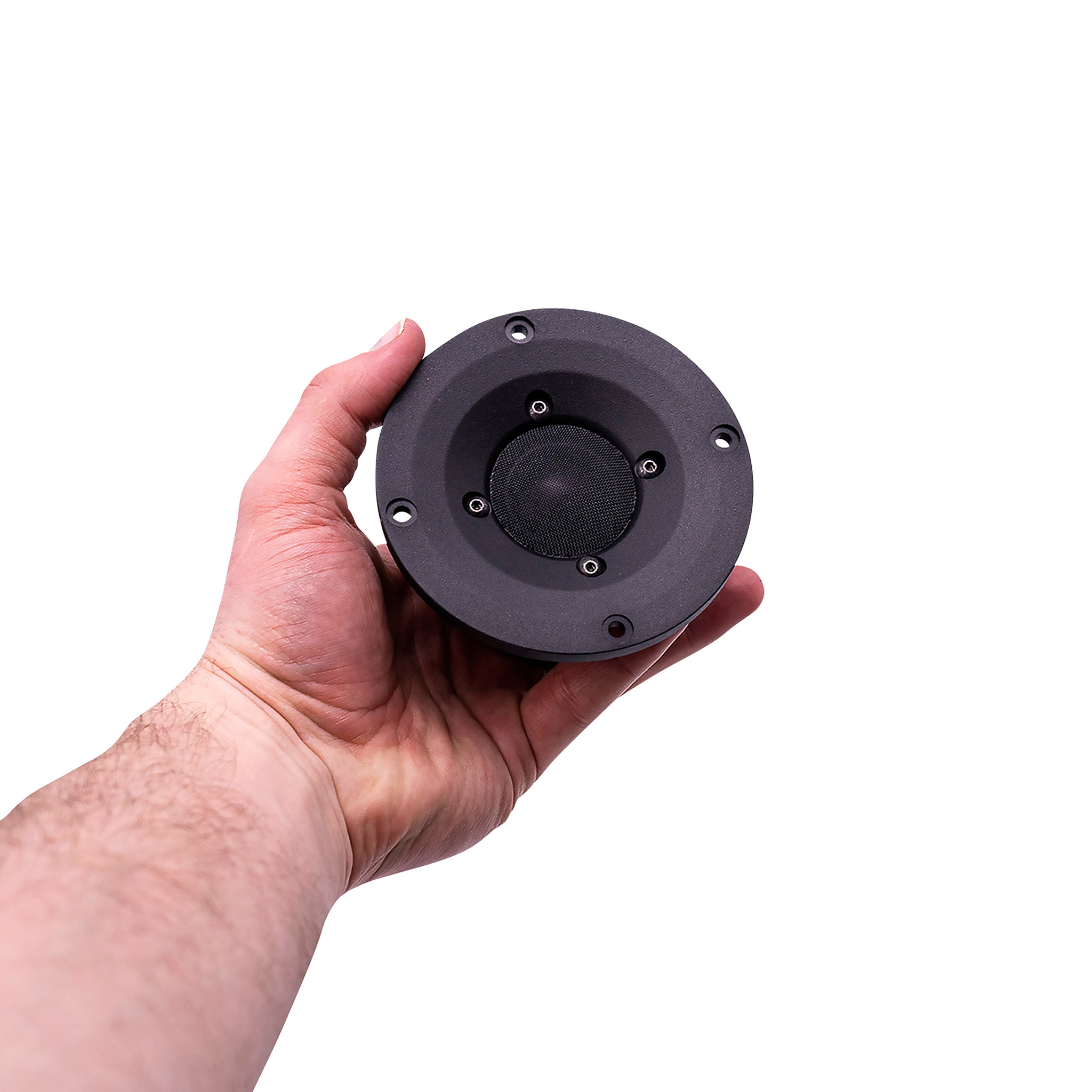

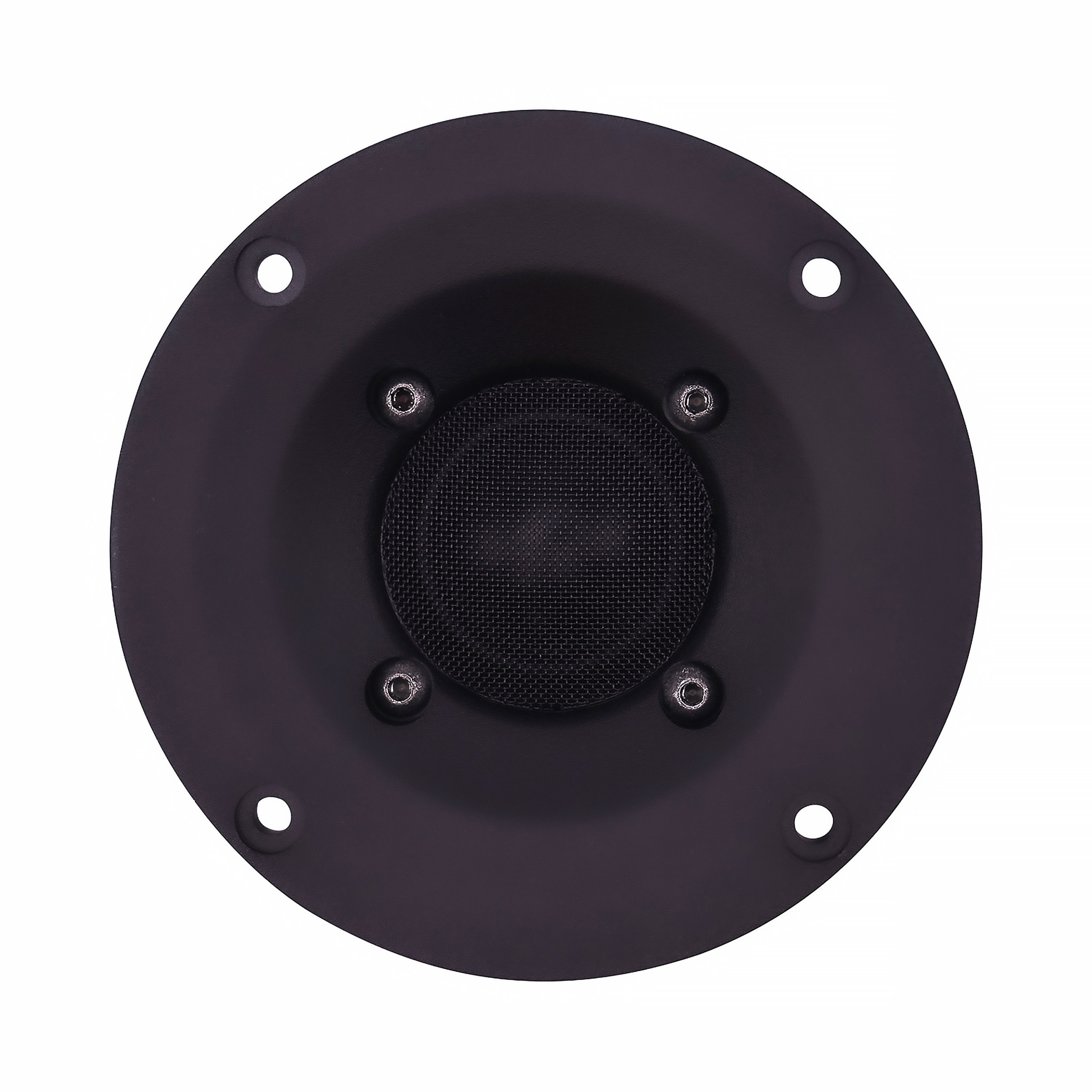

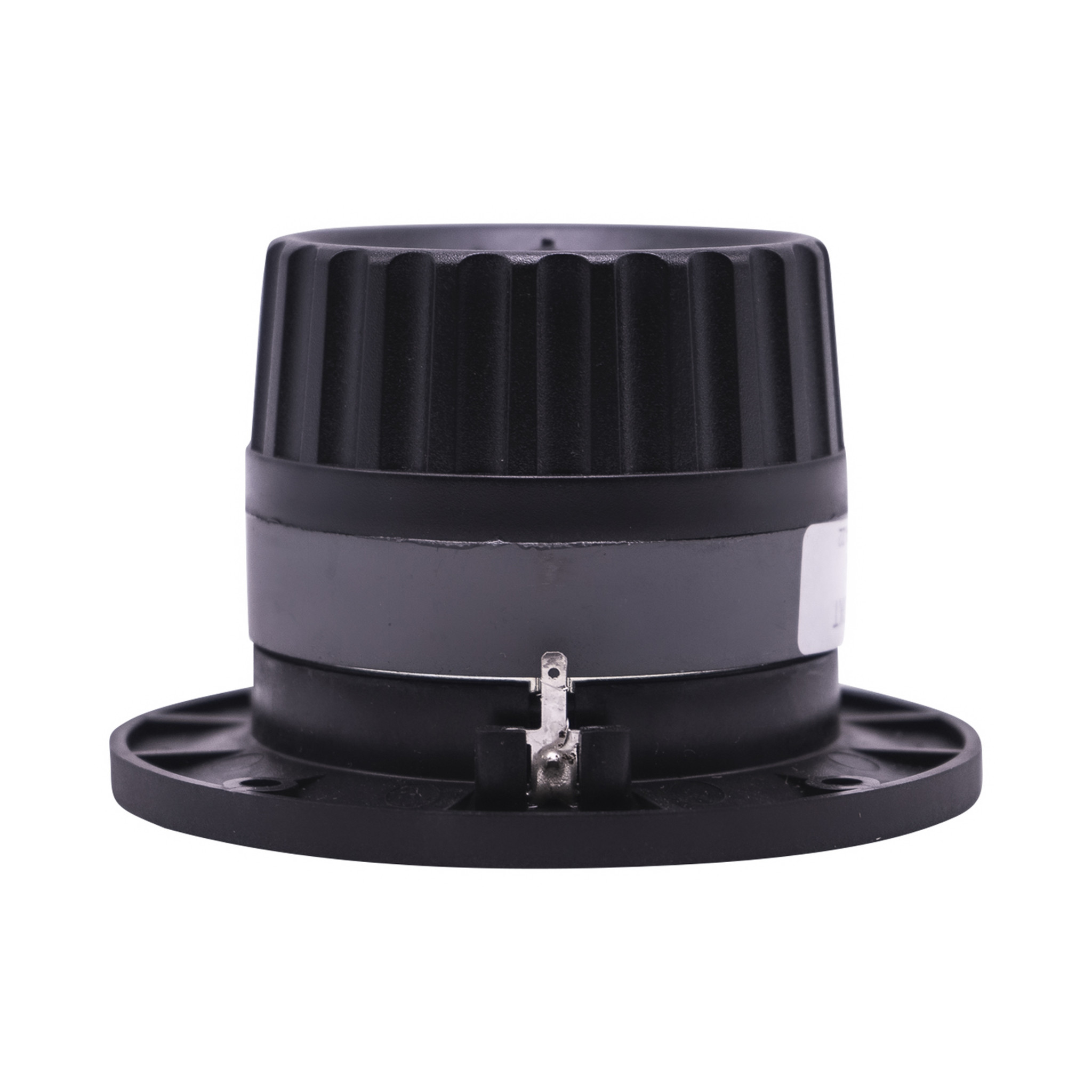

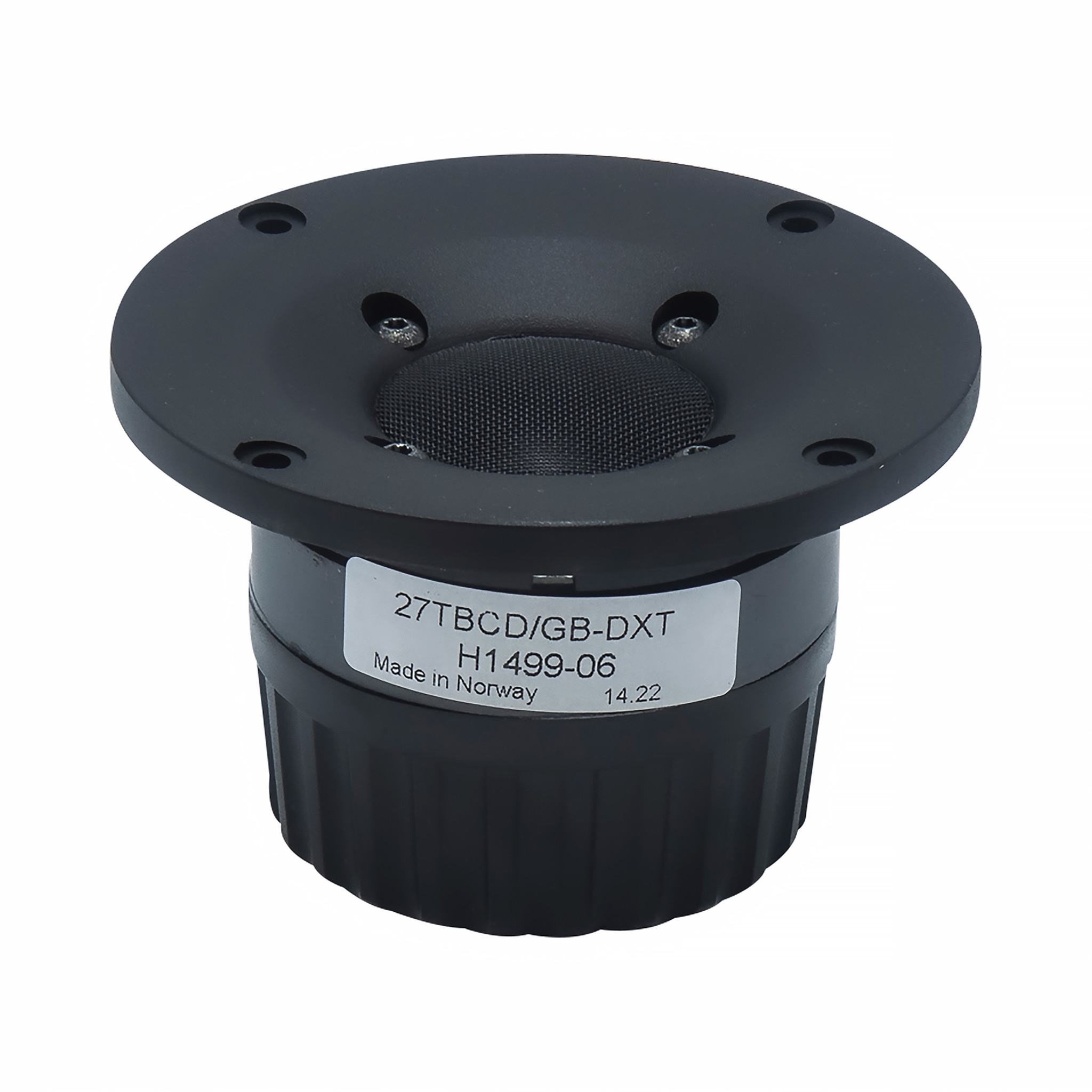

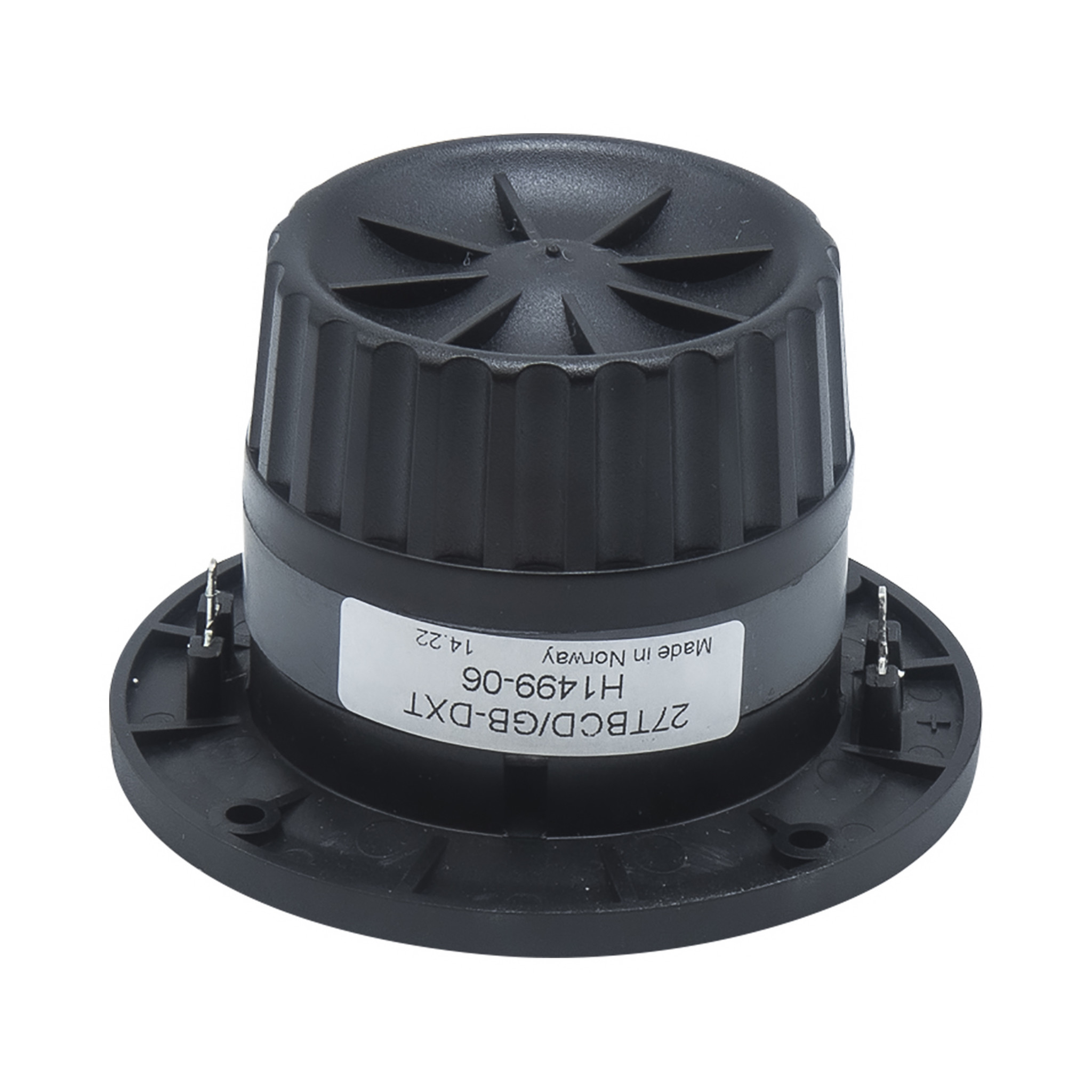

    Seas Prestige 27TBCD/GB-DXT - H1499-06 1'' Aluminum Dome Tweeter



    The 27TBCD/GB-DXT is a High Definition aluminum/magnesium alloy dome tweeter with DXT® lens. An optimally shaped dome and a wide SONOMEX surround, both manufactured by SEAS, ensure excellent performance and consistency. The compensation magnet increases the sensitivity and reduces the magnetic strayfield and allows use in close proximity to CRT screens. A fine mesh grid protects the diaphragm.



    The stiff and stable rear chamber with optimal acoustic damping allows the tweeter to be used with moderately low crossover frequencies. This revolutionary DXT® tweeter addresses the major issues regarding directivity control in traditional loudspeaker designs as well as off-axis response, integration with midrange units and baffle diffractions.

    Specificaties

    Artikelnummer
    27TBCD/GB-DXT
    Tweeter type
    Aluminum Dome
    Tweeter serie
    Prestige Series
    Cone / Dome Diameter
    1''
    Belastbaarheid (RMS)
    55 Watts
    Impedantie (Z)
    6 ohms
    Gevoeligheid
    92 dB 2.83V/1m
    Frequentierespons
    2,000 to 25,000 Hz
    Resonantiefrequentie (Fs)
    900 Hz
    Gelijstroomweerstand (Re)
    4.8 ohms
    Voice Coil Inductance (Le)
    0.05 mH
    Totale buitendiameter
    4.1"
    Montagegatdiameter
    3.35"
    Diepte
    2.57"

    Reviews

    5 from 5Based on 2 reviews
    Schrijf een review
    5 van 5
    Als Ersatz für meine kaputte Pioneer s99t Hochtöner. Super Klang
    Door Ramiz M. on 30 December 2019
    5 van 5
    From my perspective the Seas DXT is one of the best tweeters available, also Grimm are using it in their LS1 as well as the Kii Three (both >8.000EUR a pair).

    The frequency response shows a wide increase from 790Hz to 10.000Hz caused/proofe that the Waveguide works. But the increase is easily to handle (active but also passive) so that we end around 88db @ 2,83V/m. The harmonic distortion is low even at 100db, from 2.000Hz K2 will be under 1% and K3 is also very low...

    The major benefit of the DXT is the extreme uniform sound dispersion pattern, which is close to constant directivity!

    My recommendation for best directivity is a very small baffle with wide chamfers close to the tweeter!

    Best regards
    Door MS on 2 Augustus 2019
