Highlights
- Smooth, extended frequency response.
- Specially designed soft Sonotex surround which allows a low fundamental frequency (4,000 to 20,000 Hz)
- 90 Watts RMS Power Handling
- 88 dB 2.83V/1m Sensitivity
Product details

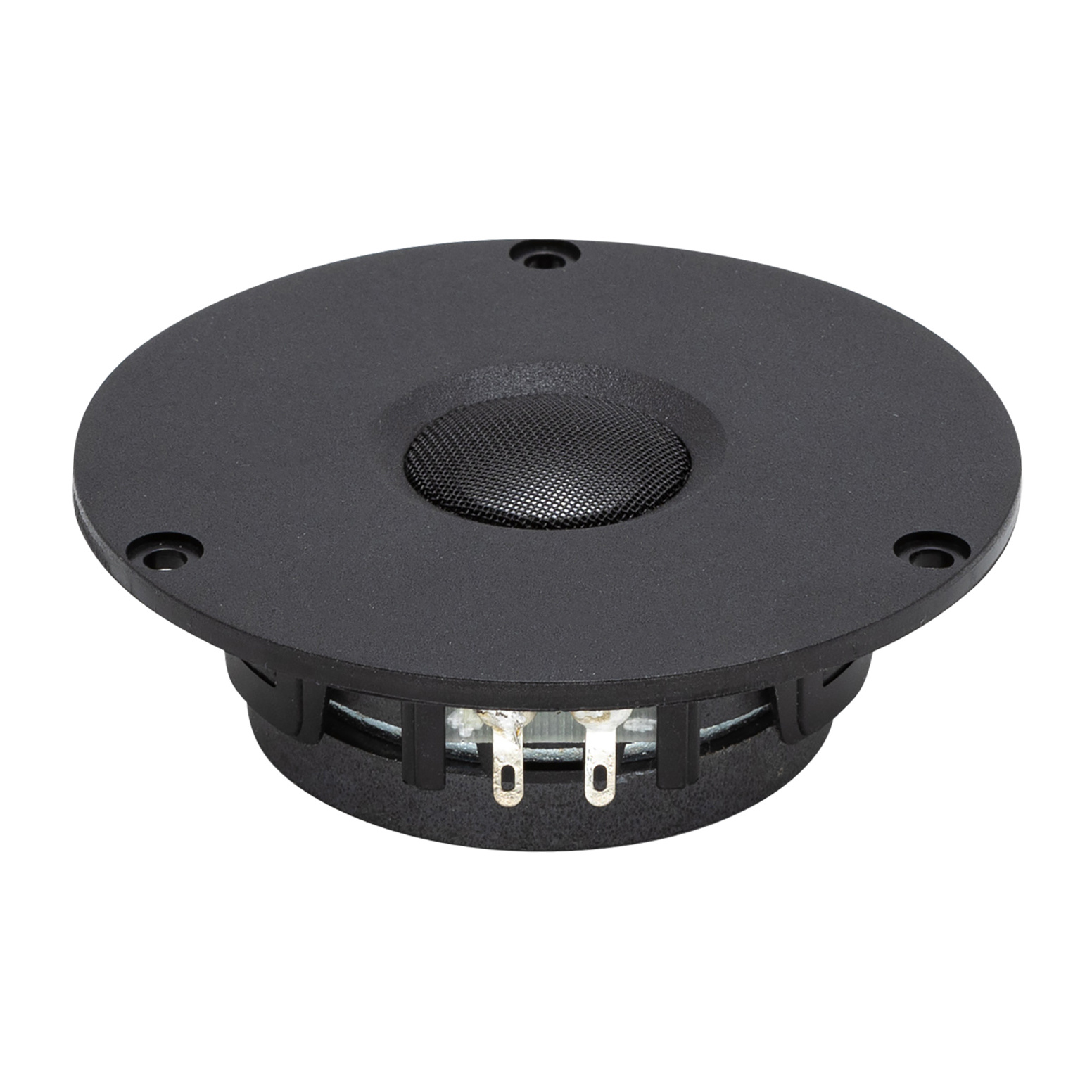

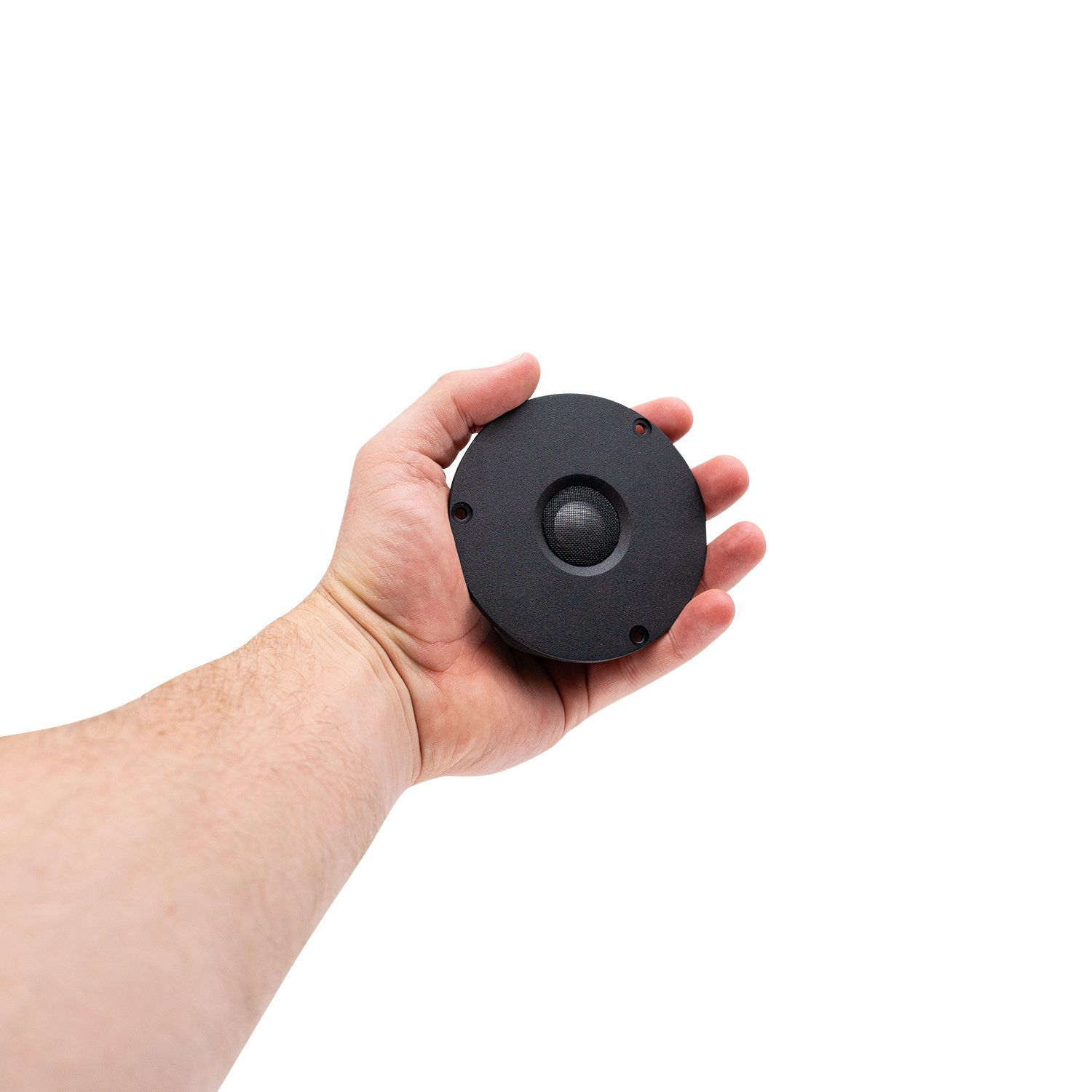

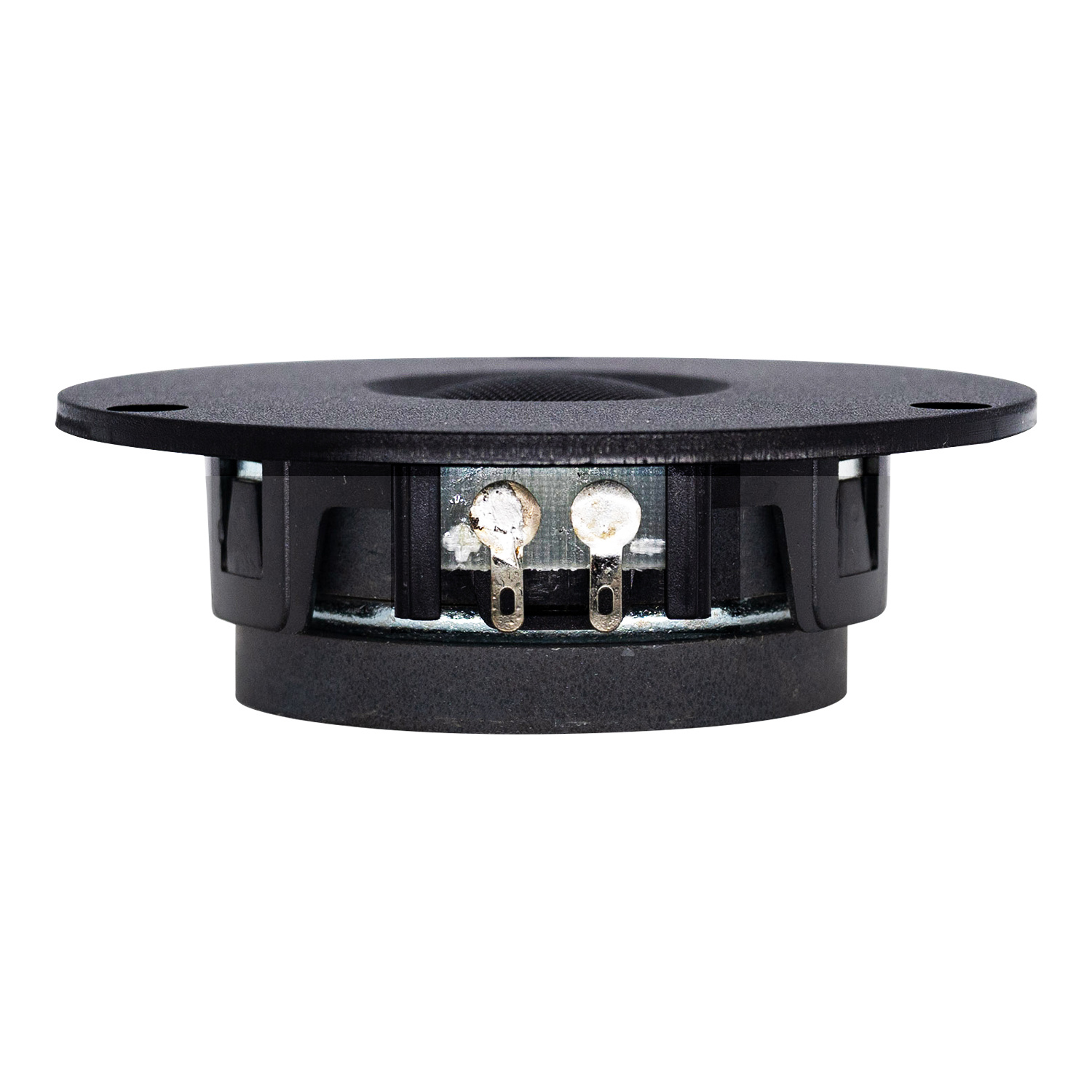

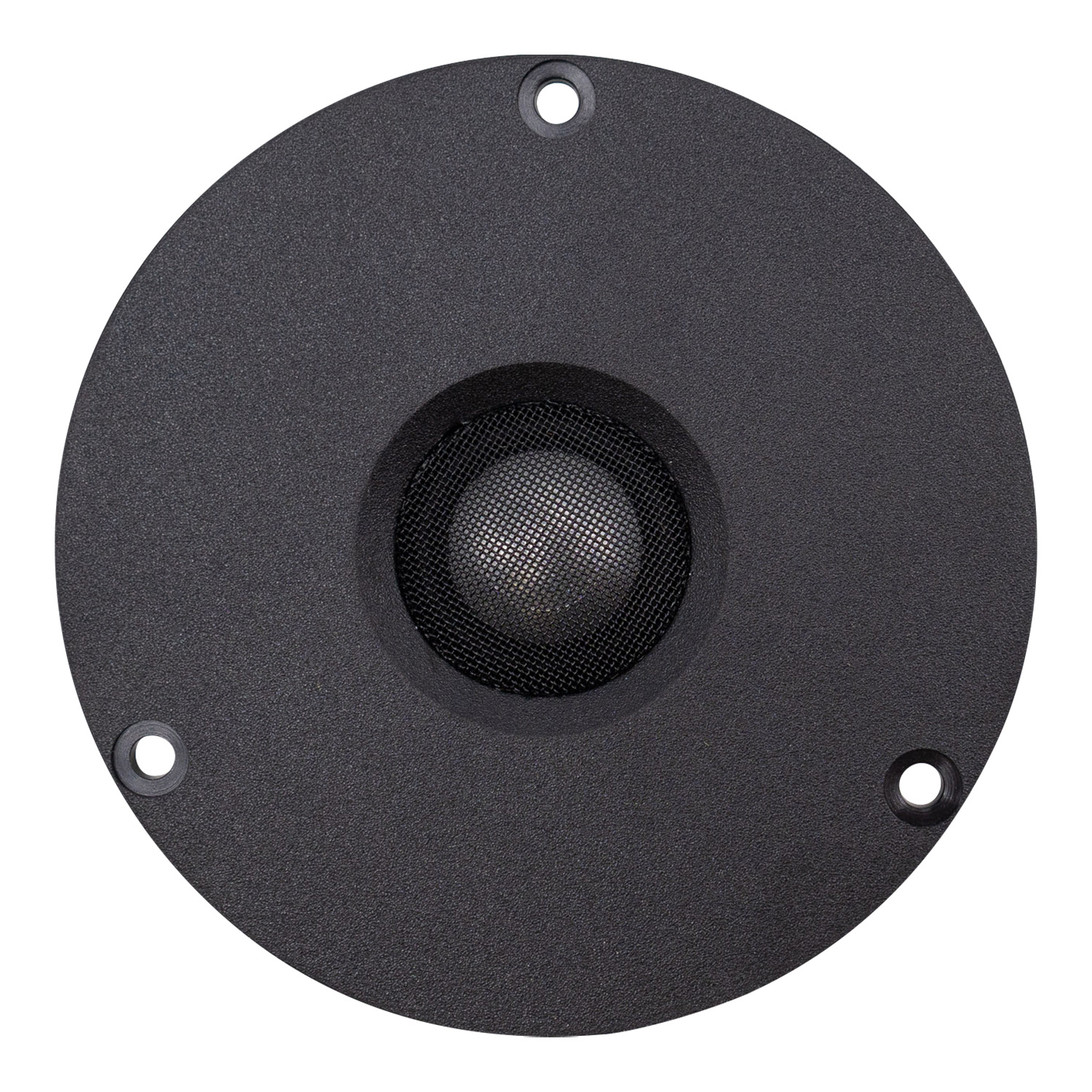

Seas Prestige 19TAFD/G - H0532-8 3/4" Aluminum Dome Tweeter
19mm High Fidelity dome tweeter with smooth, extended frequency response. Aluminum diaphragm suspended by a specially designed soft Sonotex surround which allows a low fundamental frequency.
Double magnet reduces stray fi elds around the magnet system and allows the unit to be used in close proximity to a CRT. The double magnet also gives a higher sensitivity. Fine mesh grid protects the diaphragm and carries a phase plate which compensates for a slight axial roll off towards 20 kHz.
Voice coil windings immersed in magnetic fl uid increase short term power handling capacity and reduce the compression at high power levels.
