        Illuminator R3004/602010 1" Ring Radiator

        Illuminator R3004/602010 1" Ring Radiator


        Scan-Speak Illuminator R3004/602010 1" Ring Radiator

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        4 sterren
        3 sterren
        2 sterren
        1 ster
        Bekijk alle reviews
        € 156,98€ 189,95 7 Op voorraad
        • -5% Bestel 4 voor slechts € 180,45 per stuk

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, morgen bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!



        • 1" Soft Ring Dome
        • Ring Neodymium Magnet
        • Patented Symmetrical Drive (SD-2) motor
        • Patented Phase Plug Design
        • Aluminum Face Plate and Housing
        • Sound Transparent Protective Grill
        • Deep Non Resonant Alu Rear Chamber
        • 9mm (2.44") diameter flange with 55.1mm (2.17") depth (see drawing below)
        • Excellent choice for both home hi-fi and autosound applications where depth is not an issue


        Product details

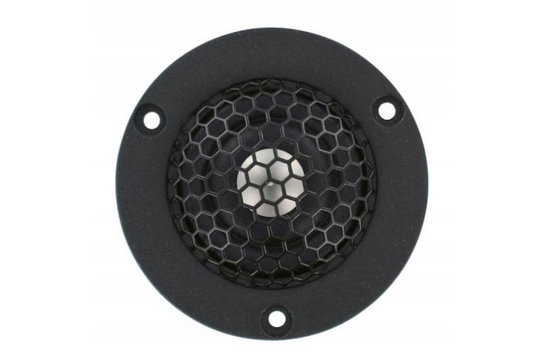

        Scan-Speak Illuminator R3004/602010 1" Ring Radiator


        The large-roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion. The face plates are die cast in aluminum for a beautiful look with maximum mechanical stability.


        The R3004-602010 is optimized to offer small package sizes that can fit into tight spaces such as compact cabinets and automotive trim pieces where you have extra depth. The back chamber is die cast in aluminum and designed with a contoured shape that functions as a heat sink in high power applications.


        Specifications: Compliance Equivalent Volume (Vas): 0.0007 ft.³ • BL Product (BL): 1.7 Tm • Mechanical Compliance of Suspension (Cms): 0.41 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.35 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 5.6 cm2

        Toon meer


        Tweeter type
        Ring Radiator
        Tweeter serie
        Illuminator Series
        Cone / Dome Diameter
        25 mm | 1"
        Belastbaarheid (RMS)
        50 Watts
        Power Handling (max)
        130 Watts
        Impedantie (Z)
        4 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        87.4 dB
        Resonantiefrequentie (Fs)
        420 Hz
        Gelijstroomweerstand (Re)
        3 ohms
        Voice Coil Inductance (Le)
        0.02 mH
        Mechanische Q (Qms)
        Electromagnetic Q (Qes)
        Totale Q (Qts)
