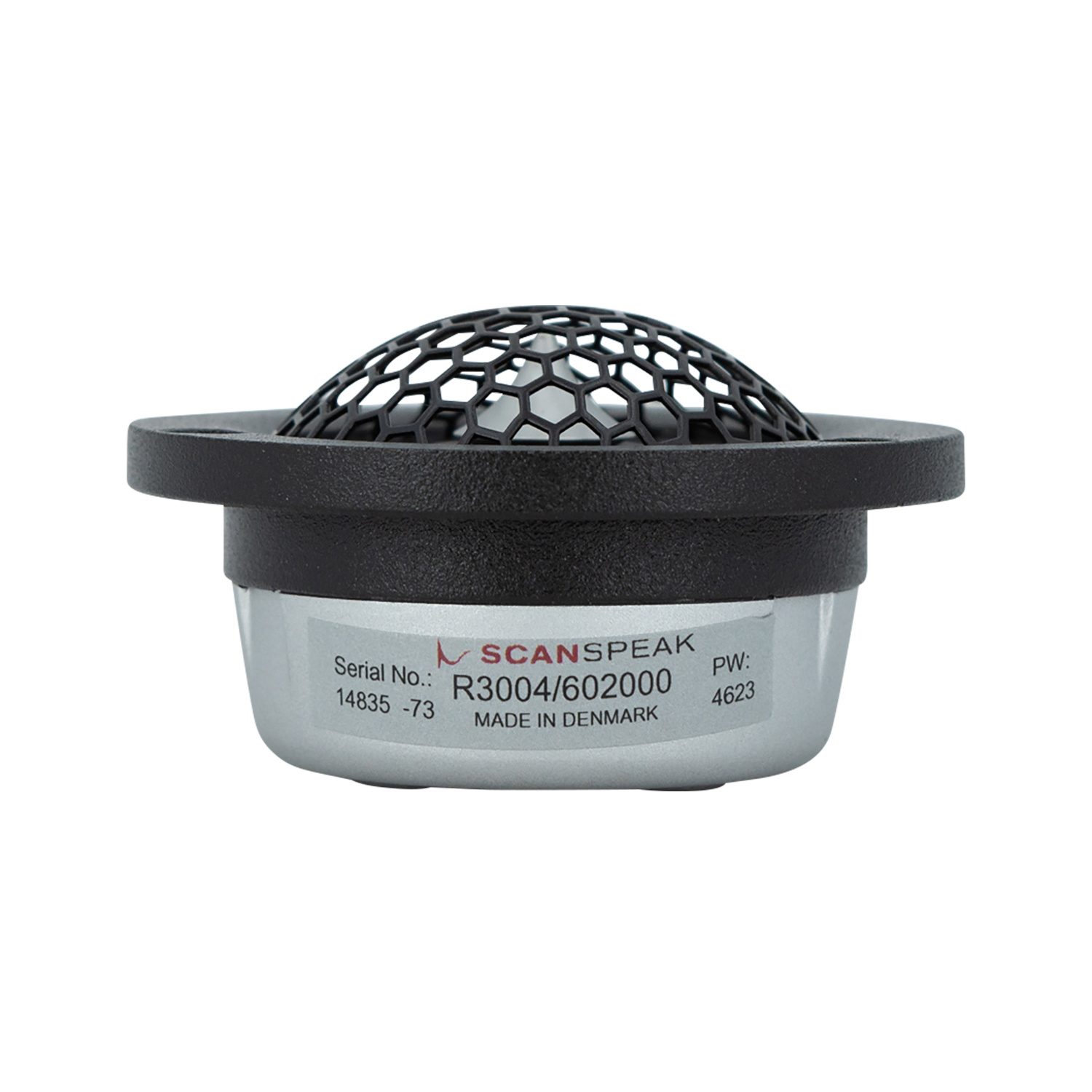

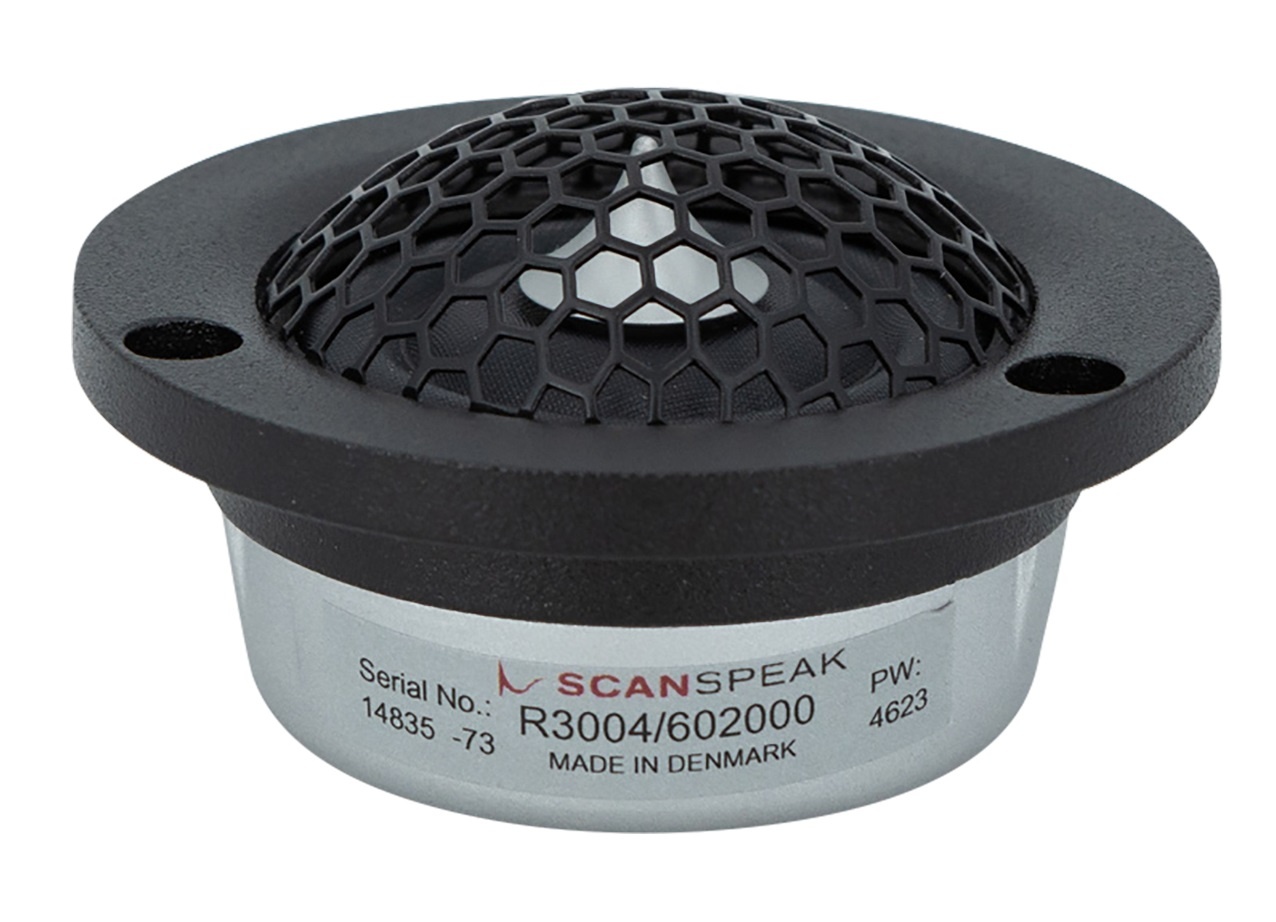

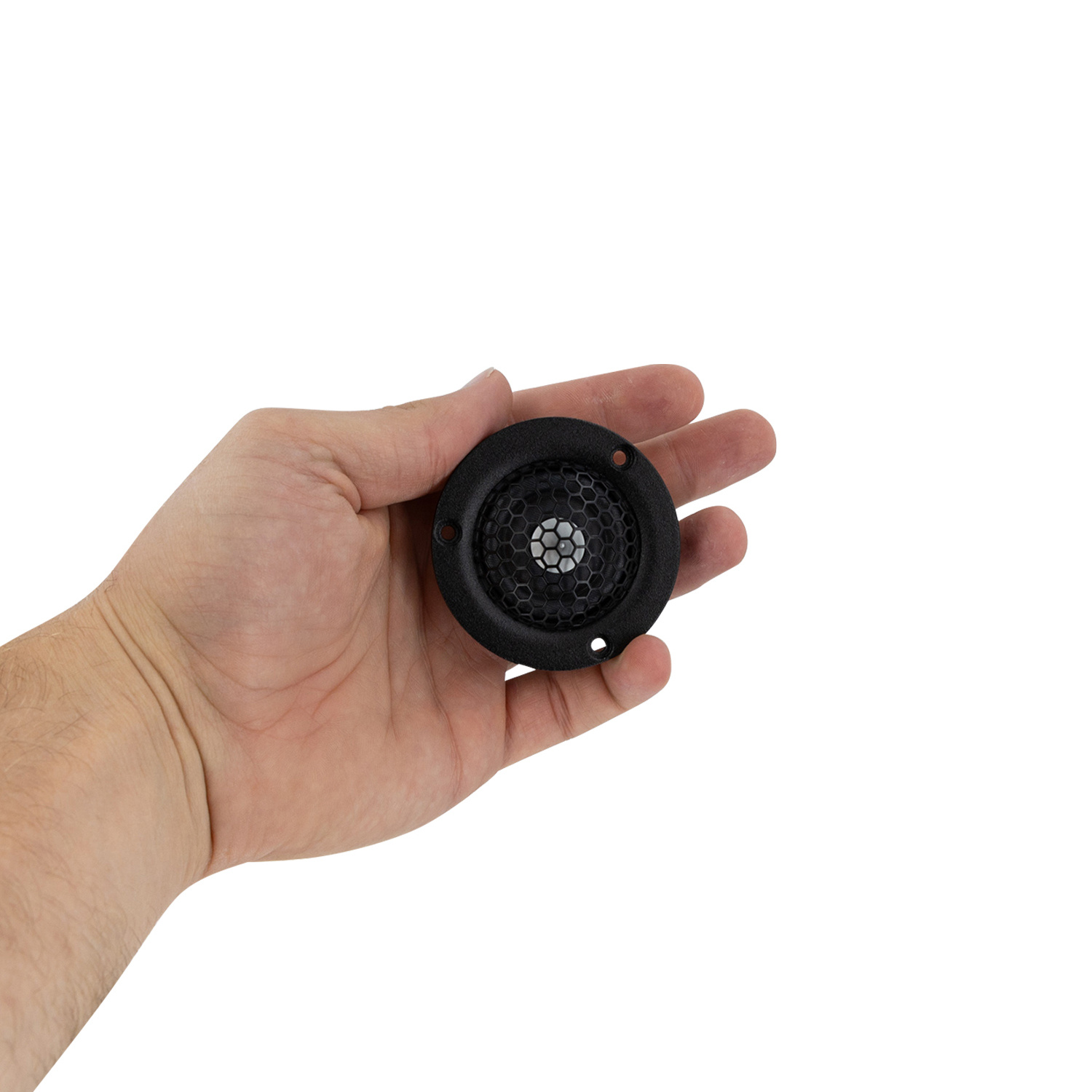

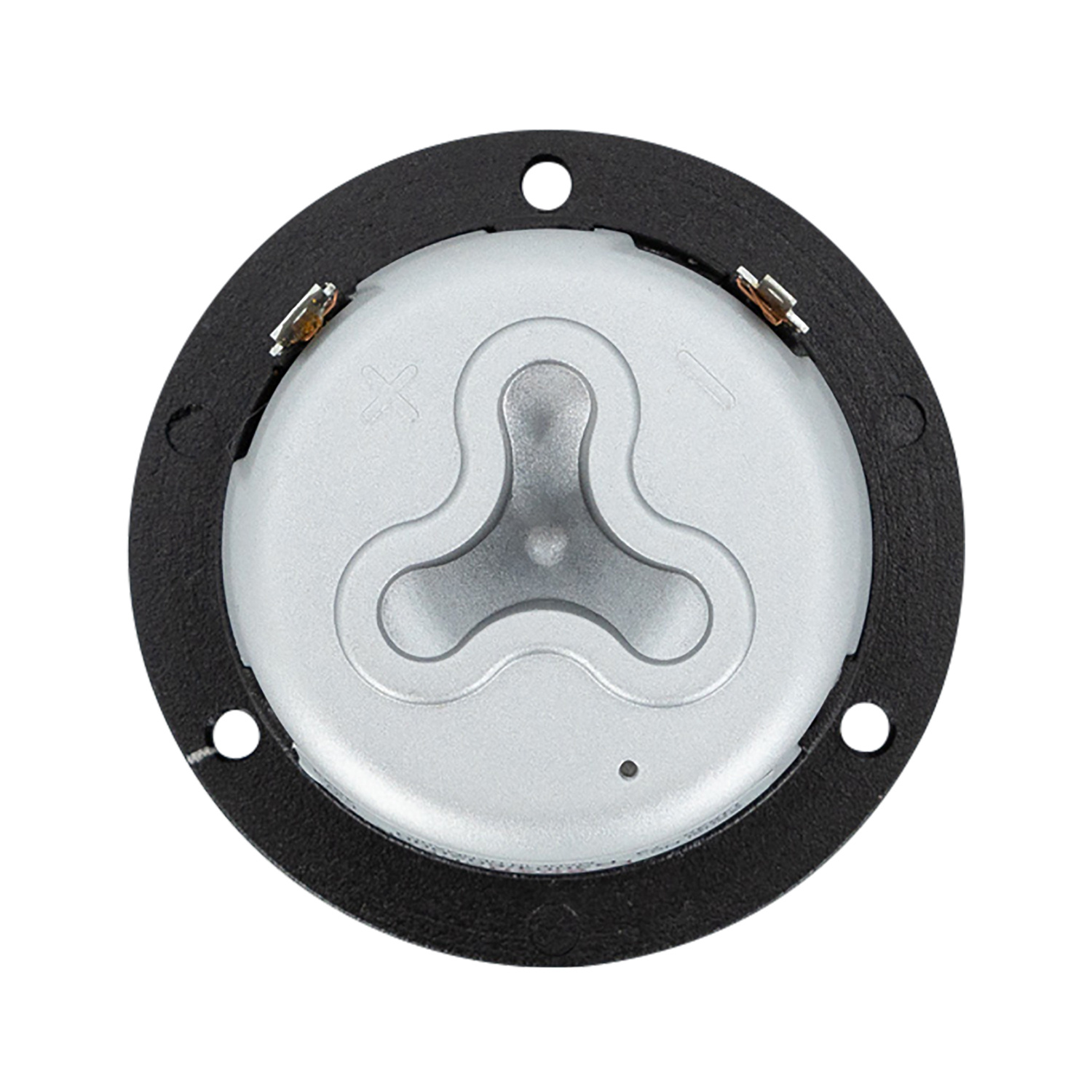

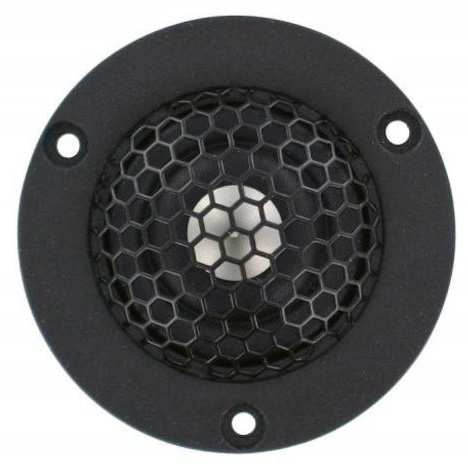

        Illuminator R3004/602000 1" Ring Radiator

        Illuminator R3004/602000 1" Ring Radiator

        €179,95

        Scan-Speak Illuminator R3004/602000 1" Ring Radiator

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        € 148,72€ 179,95 4 Op voorraad
        • -5% Bestel 4 voor slechts € 170,95 per stuk

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, morgen bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving

        Highlights

        • 1" Soft Ring Dome
        • Ring Neodymium Magnet
        • Patented Symmetrical Drive (SD-2) motor
        • Patented Phase Plug Design
        • Aluminum Face Plate and Housing
        • Sound Transparent Protective Grill
        • Shallow Non Resonant Alu Rear Chamber
        • 9mm (2.44") diameter flange with 21.5mm (0.85") depth
        • Excellent choice for both home hi-fi and autosound applications



        Product details

        Scan-Speak Illuminator R3004/602000 1" Ring Radiator



        The large-roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion. The face plates are die cast in aluminum for a beautiful look with maximum mechanical stability.



        The R3004-602000 is optimized to offer small package sizes that can fit into tight spaces such as compact cabinets and automotive trim pieces. The back chamber is die cast in aluminum and designed with a contoured shape that functions as a heat sink in high power applications.



        Specifications: Compliance Equivalent Volume (Vas): 0.0003 ft.³ • BL Product (BL): 1.7 Tm • Mechanical Compliance of Suspension (Cms): 0.19 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.35 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 5.6 cm2

        Toon meer

        Specificaties

        Artikelnummer
        R3004/602000
        Tweeter type
        Ring Radiator
        Tweeter serie
        Illuminator Series
        Cone / Dome Diameter
        25 mm | 1"
        Belastbaarheid (RMS)
        50 Watts
        Power Handling (max)
        130 Watts
        Impedantie (Z)
        4 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        87.4 dB
        Resonantiefrequentie (Fs)
        625 Hz
        Gelijstroomweerstand (Re)
        3 ohms
        Voice Coil Inductance (Le)
        0.02 mH
        Mechanische Q (Qms)
        5.73
        Electromagnetic Q (Qes)
        1.43
        Totale Q (Qts)
        1.14

        Toon meer
