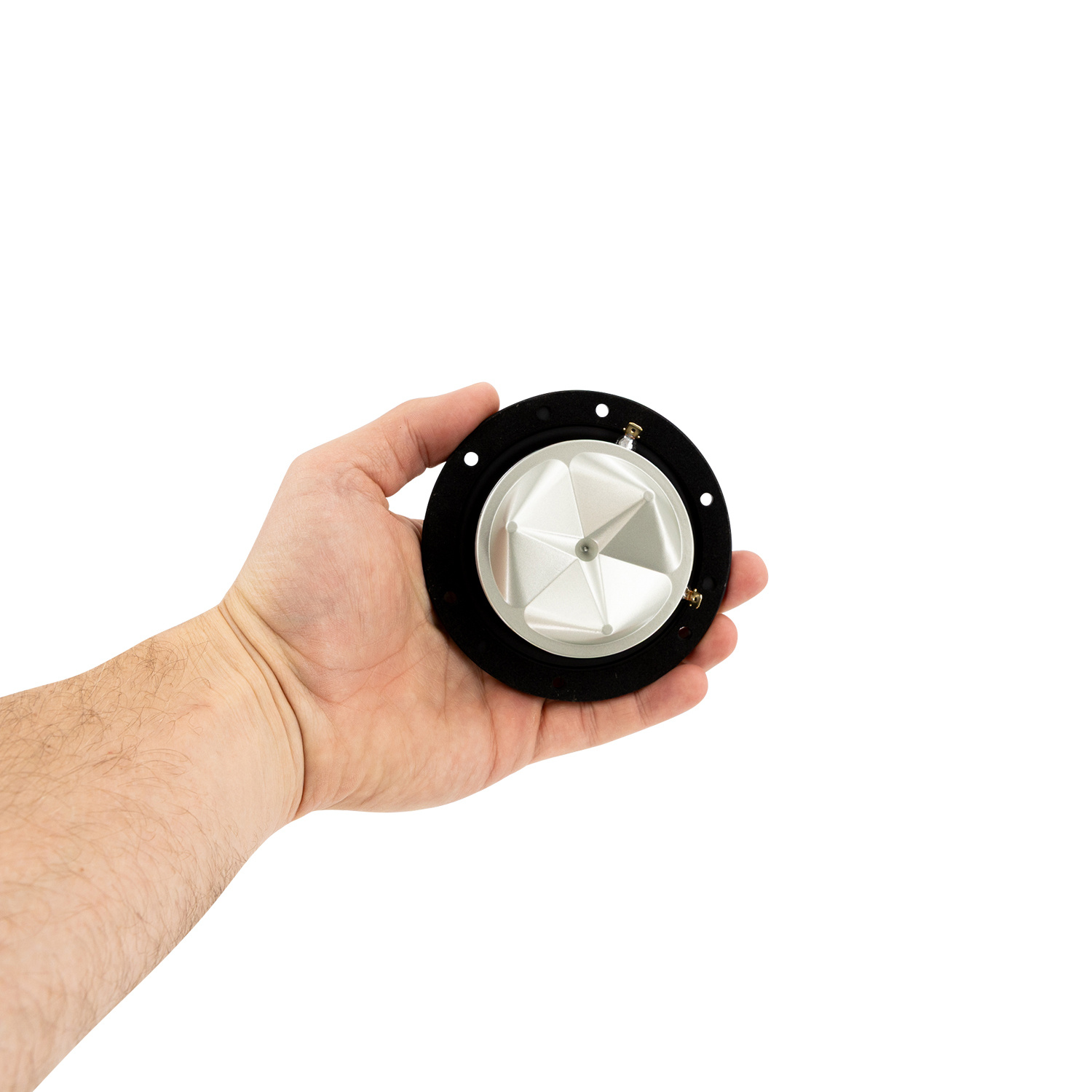

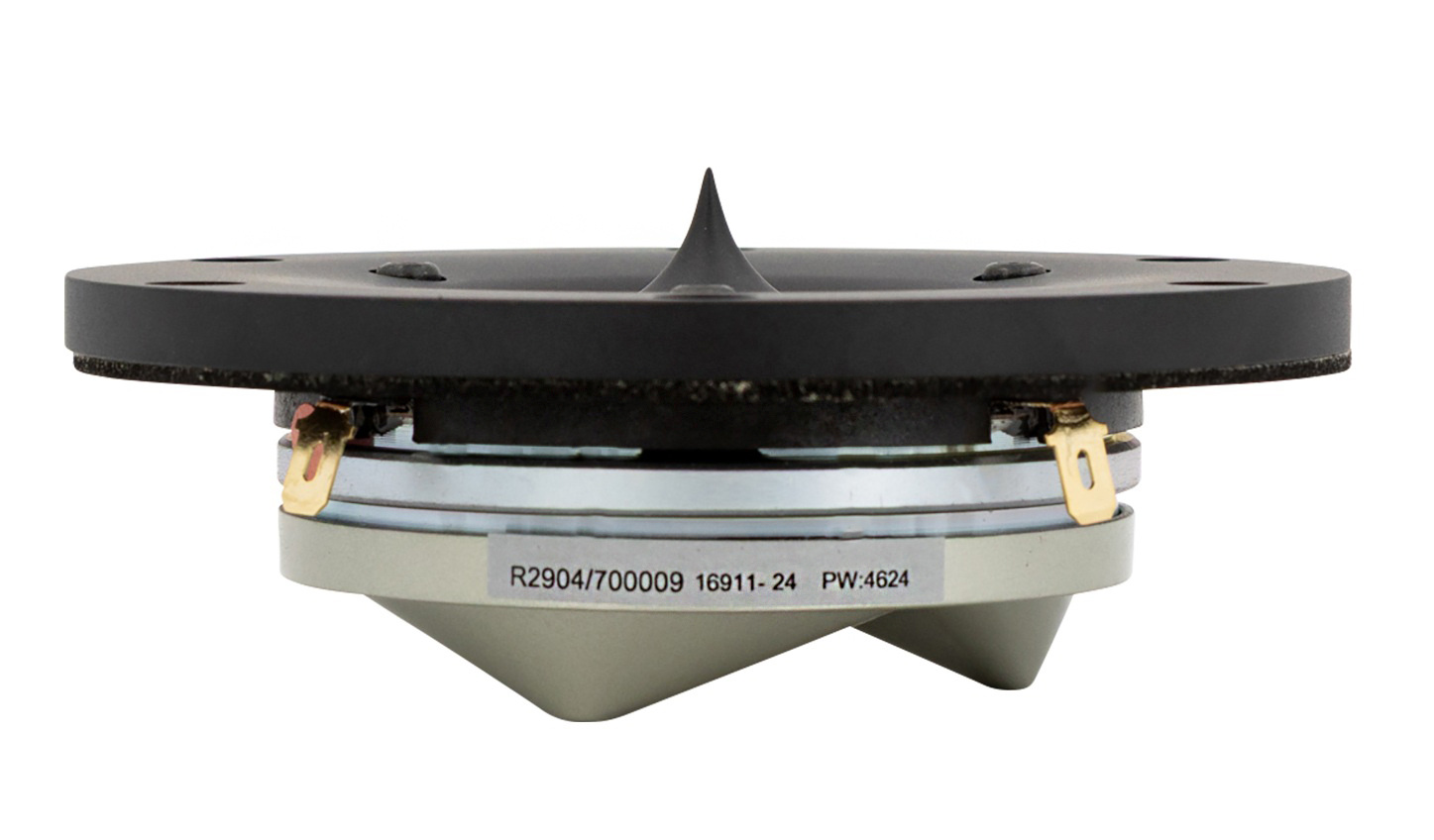

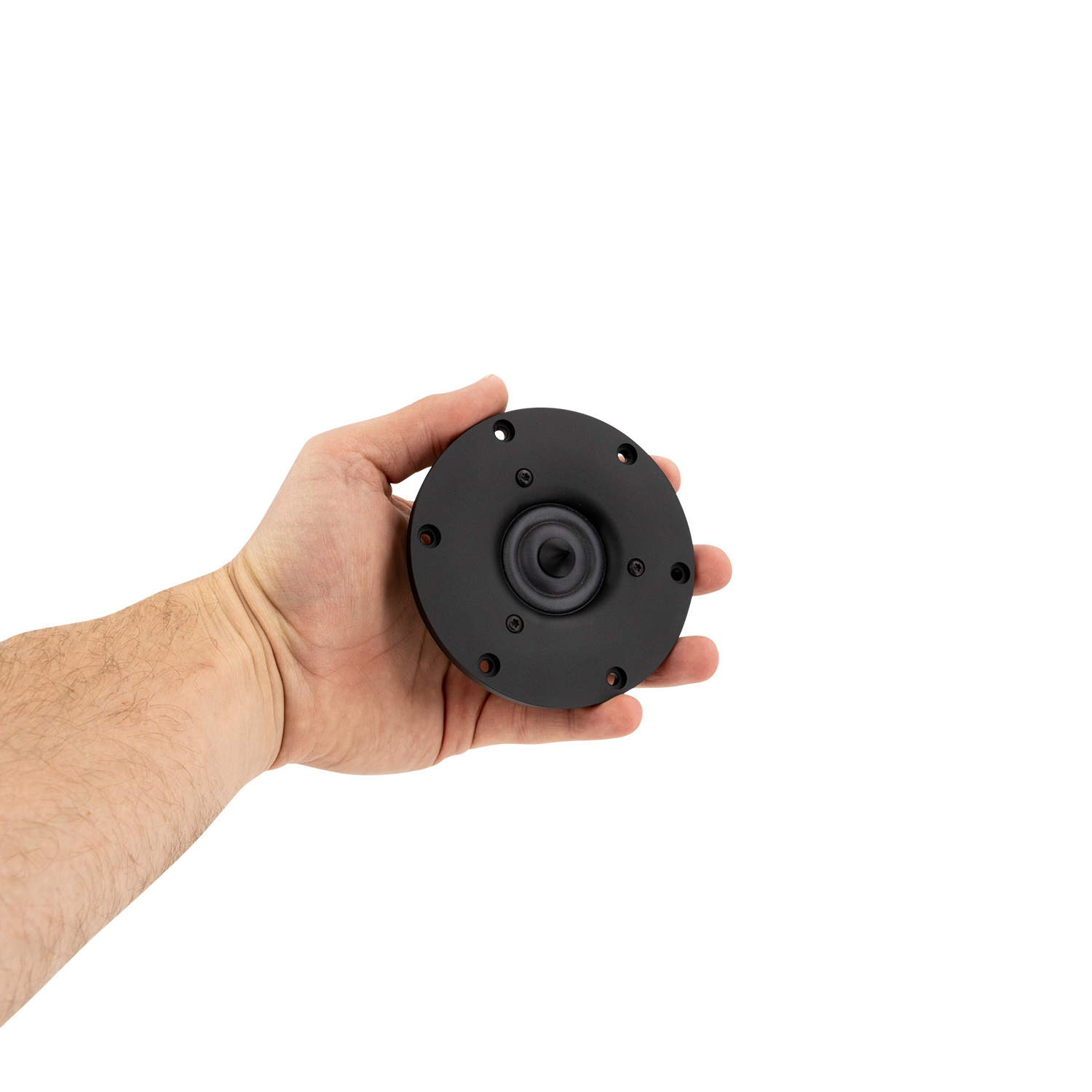

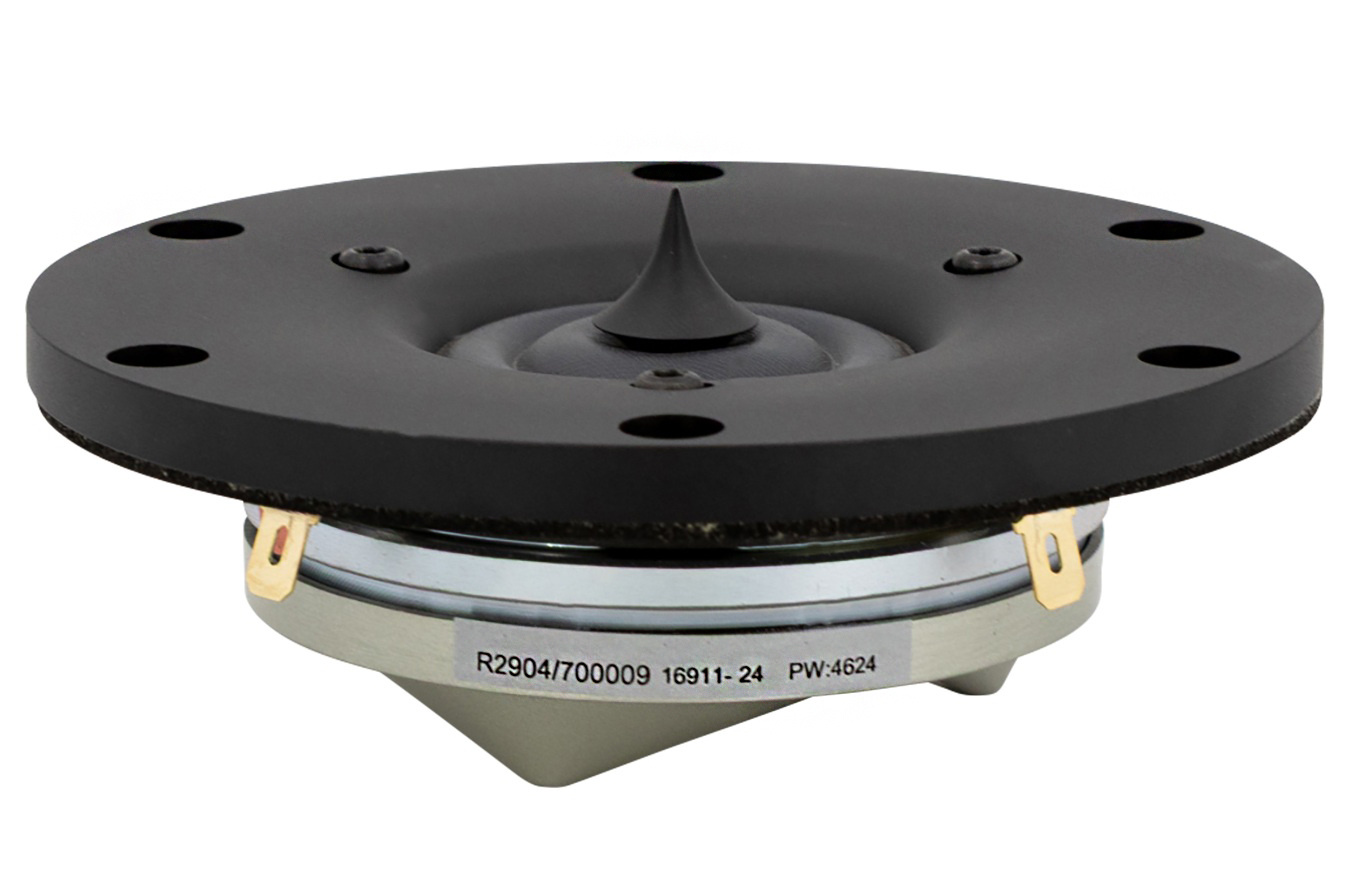

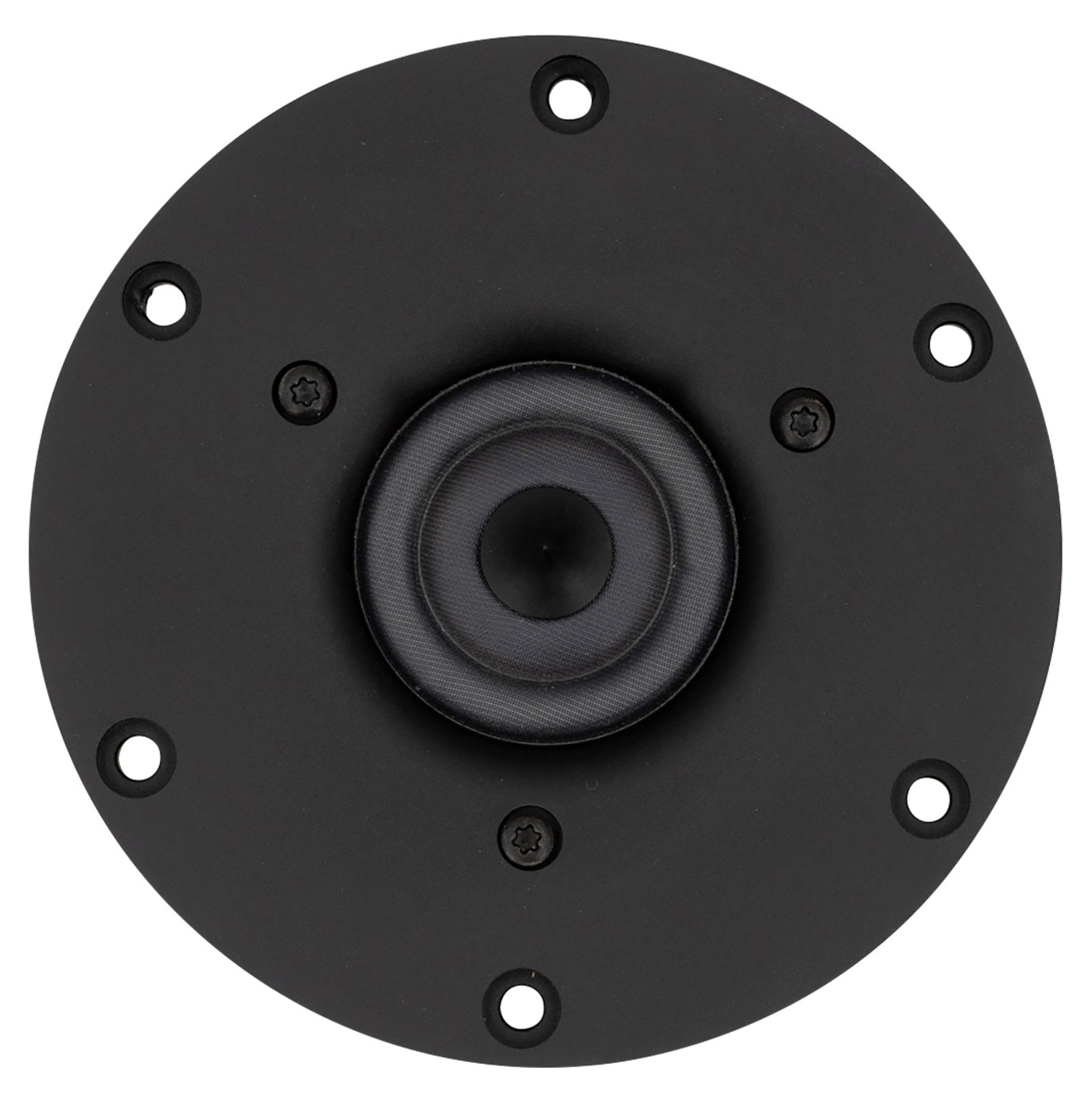

    Scan-Speak Revelator R2904/700000 1" Ring Radiator

    € 299,95 3 Op voorraad: levertijd 1 werkdag
    The Scan-speak R2904-700000 tweeter is the new flagship tweeter in the Scan-speak line. This tweeter incorporates many innovative design concepts. The first notable difference is the use of a phase plug. The dome is attached to the phase plug, so the radi... Toon meer
    3 variaties R2904/700000
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €284,95 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    Highlights

    • 1" Ring Dome Diaphragm
    • Patented Symmetrical Drive (SD-2) motor
    • Non Resonant Alu Rear Chamber
    • Patented Phase Plug Design
    • Large Ring Neo Magnet for High Output
    • Anodized Mashined Alu Face Plate



    Product details

    Scan-Speak Revelator R2904/700000 1" Ring Radiator



    The Scan-speak R2904-700000 tweeter is the new flagship tweeter in the Scan-speak line. This tweeter incorporates many innovative design concepts. The first notable difference is the use of a phase plug. The dome is attached to the phase plug, so the radiating area is now concentrated around the voice coil.



    This offers more control and reduces distortion and loss that occur at the center of the dome on dome tweeters. The phase plug also acts as a wave guide, reducing high frequency cancellations. A specially designed venting system uses a needle to cut down on turbulence in the air cavity. Better dynamics are achieved by not using ferrofluid, voice coil cooling is performed by the venting system and conduction through copper rings. The new SD-2 neodymium magnet system improves transient response.



    Specifications: Compliance Equivalent Volume (Vas): 0.0003 ft.³ • BL Product (BL): 2.8 Tm • Mechanical Compliance of Suspension (Cms): 0.31 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.3 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 5.6 cm2

    Specificaties

    Artikelnummer
    R2904/700000
    Tweeter Type
    Ring Radiator
    Tweeter Series
    Revelator Series
    Cone / Dome Diameter
    1"
    Impedance
    4 ohms
    Sensitivity
    94.5 dB 2.83V/1m
    Resonant Frequency (Fs)
    520 Hz
    DC Resistance (Re)
    3 ohms
    Voice Coil Inductance (Le)
    0.01 mH
    Mechanical Q (Qms)
    2.90
    Electromagnetic Q (Qes)
    0.38
    Total Q (Qts)
    0.33
