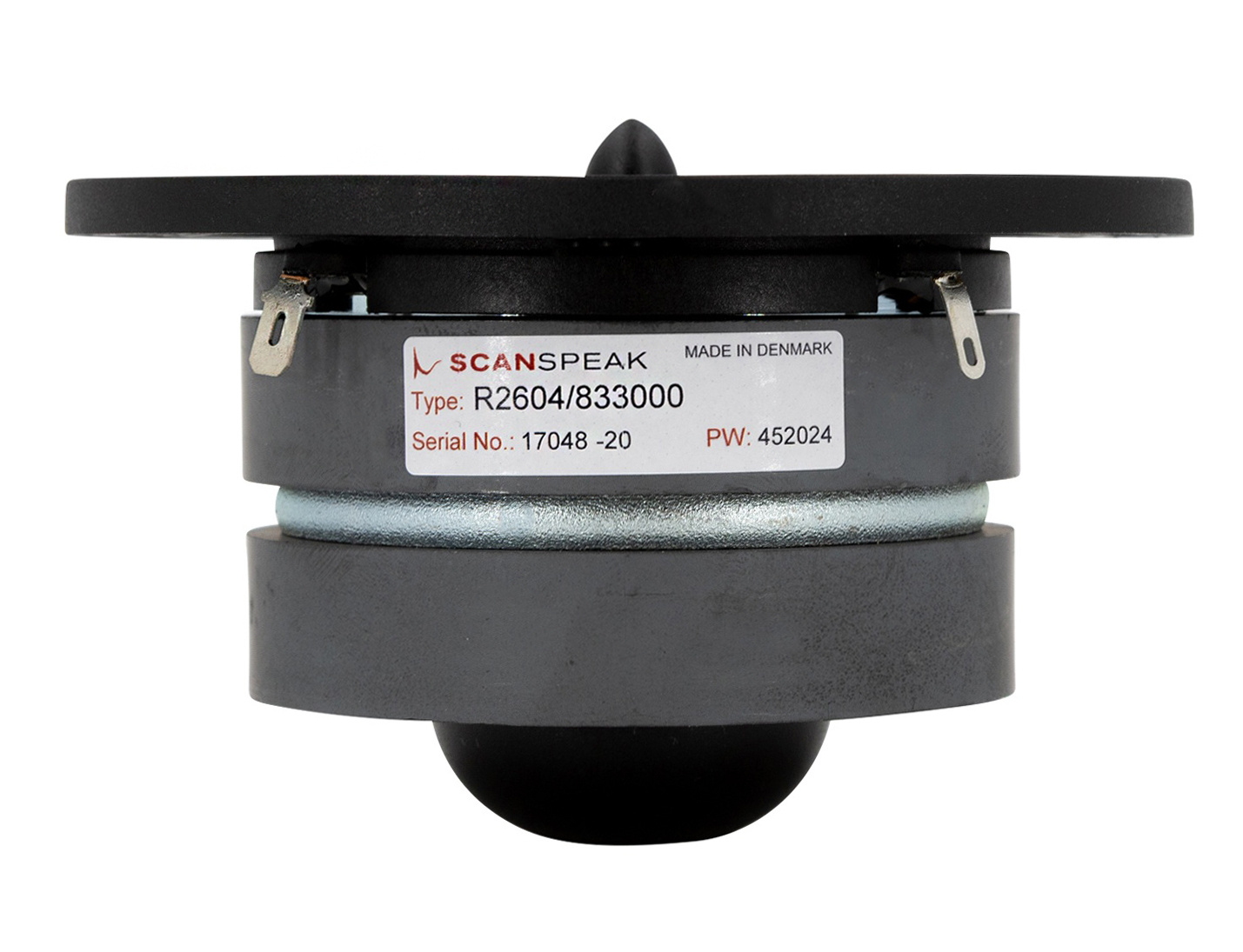

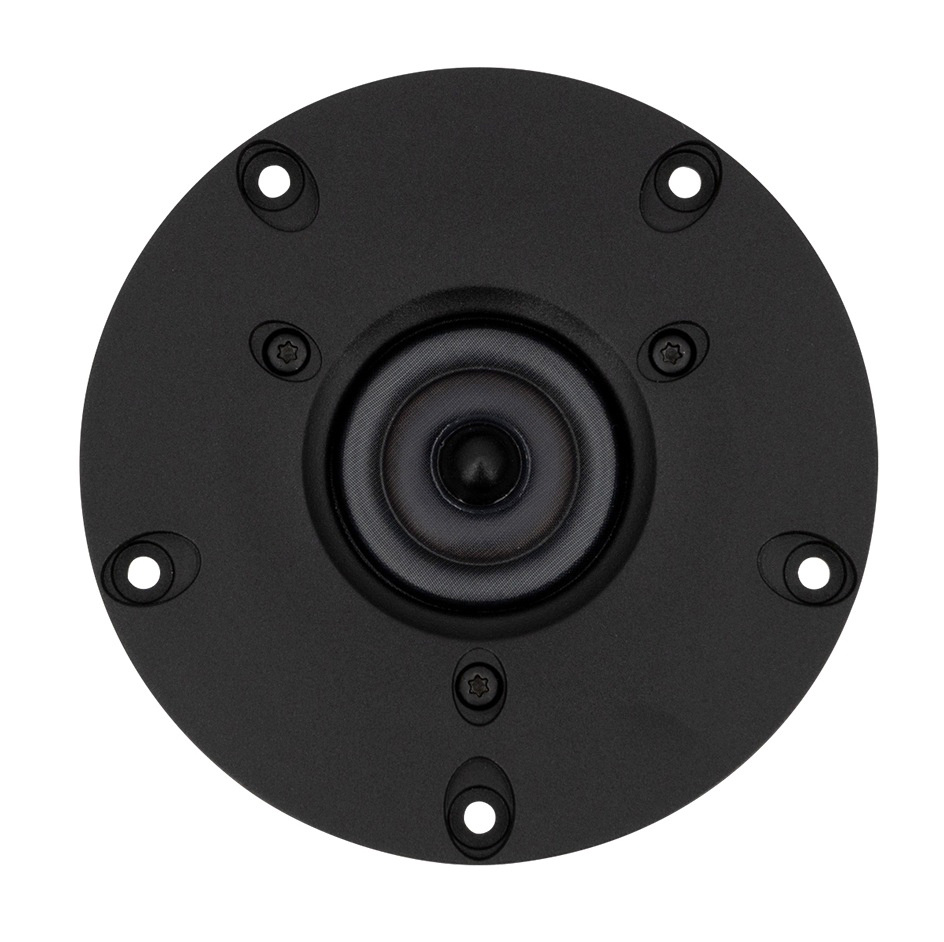

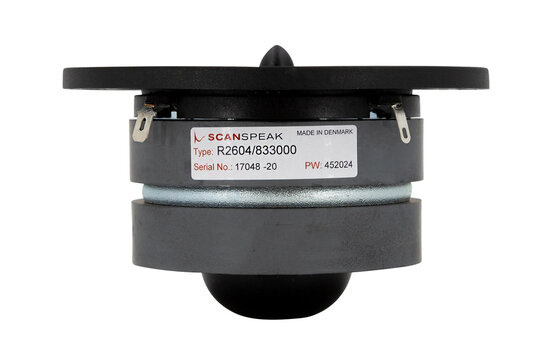

      Scan-Speak Discovery R2604/833000 1" Ring Radiator

      Merk: Scan-Speak
      Toon alle Audio componenten
      1" | 4 Ω

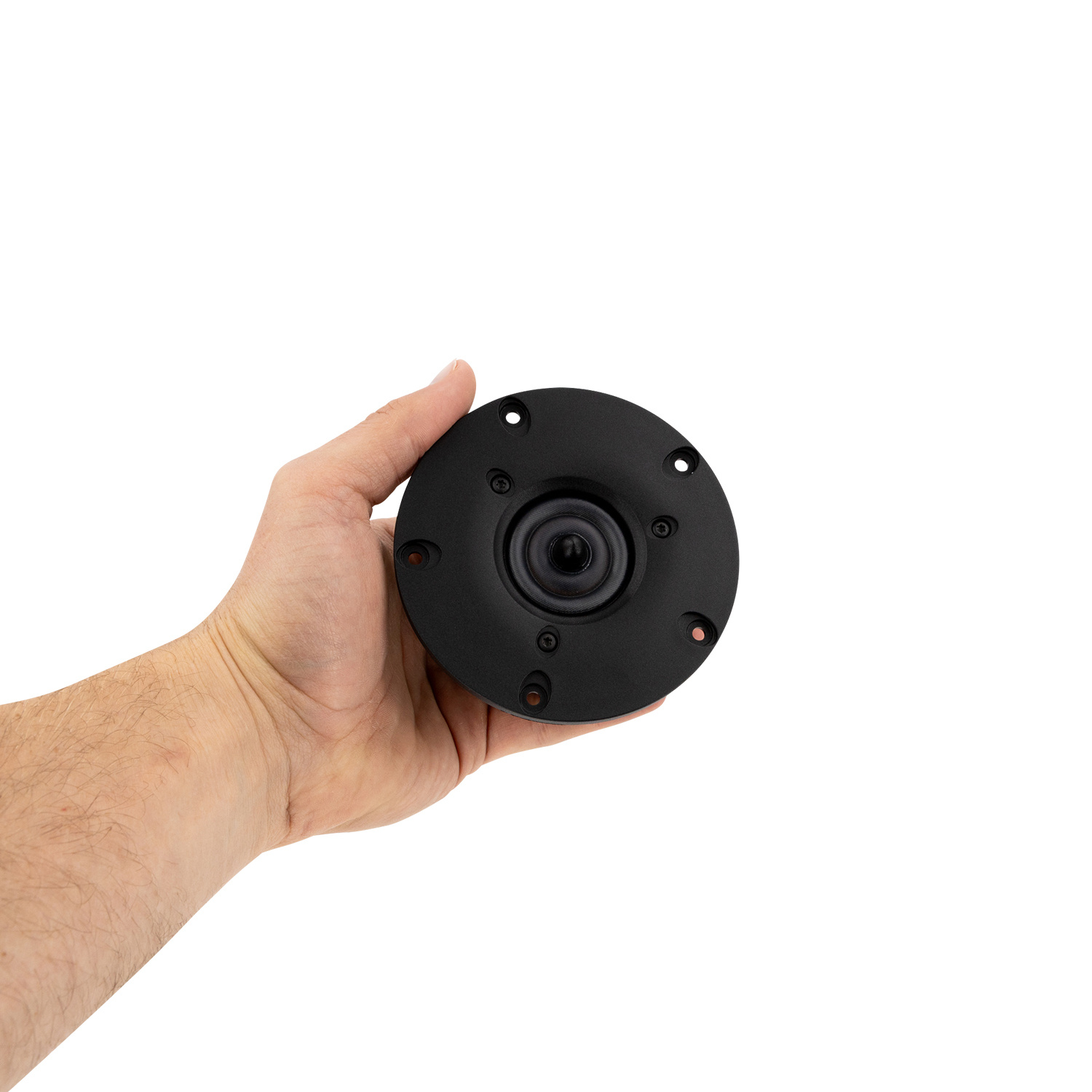

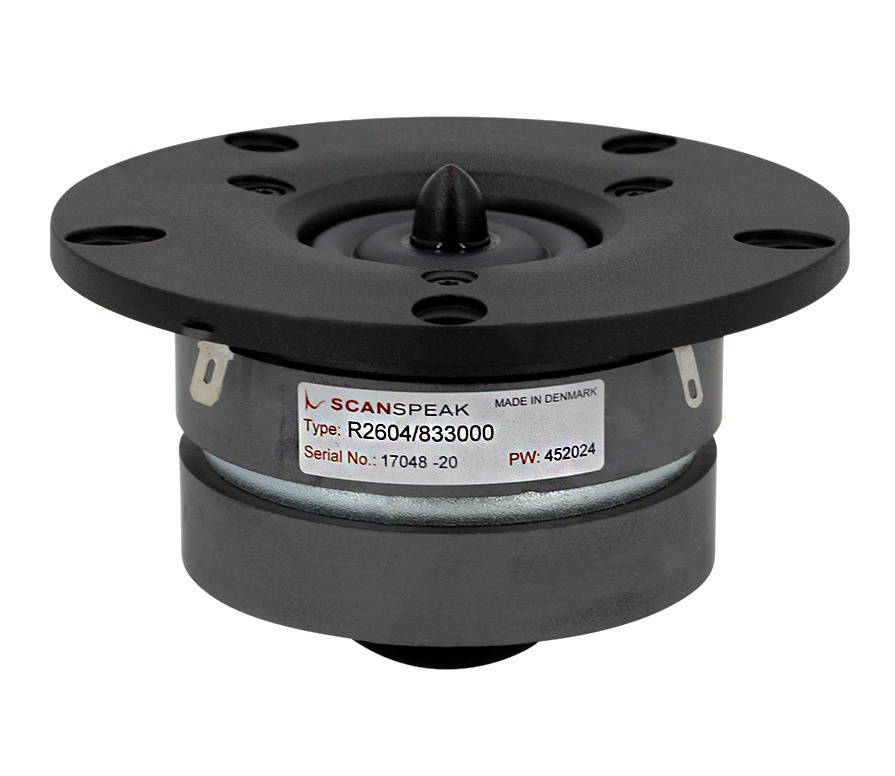

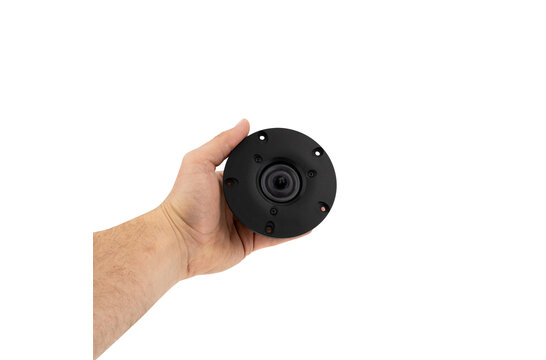

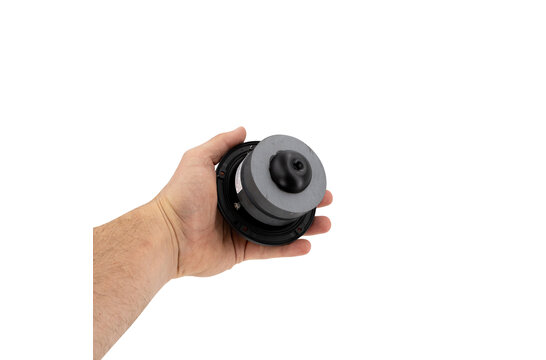

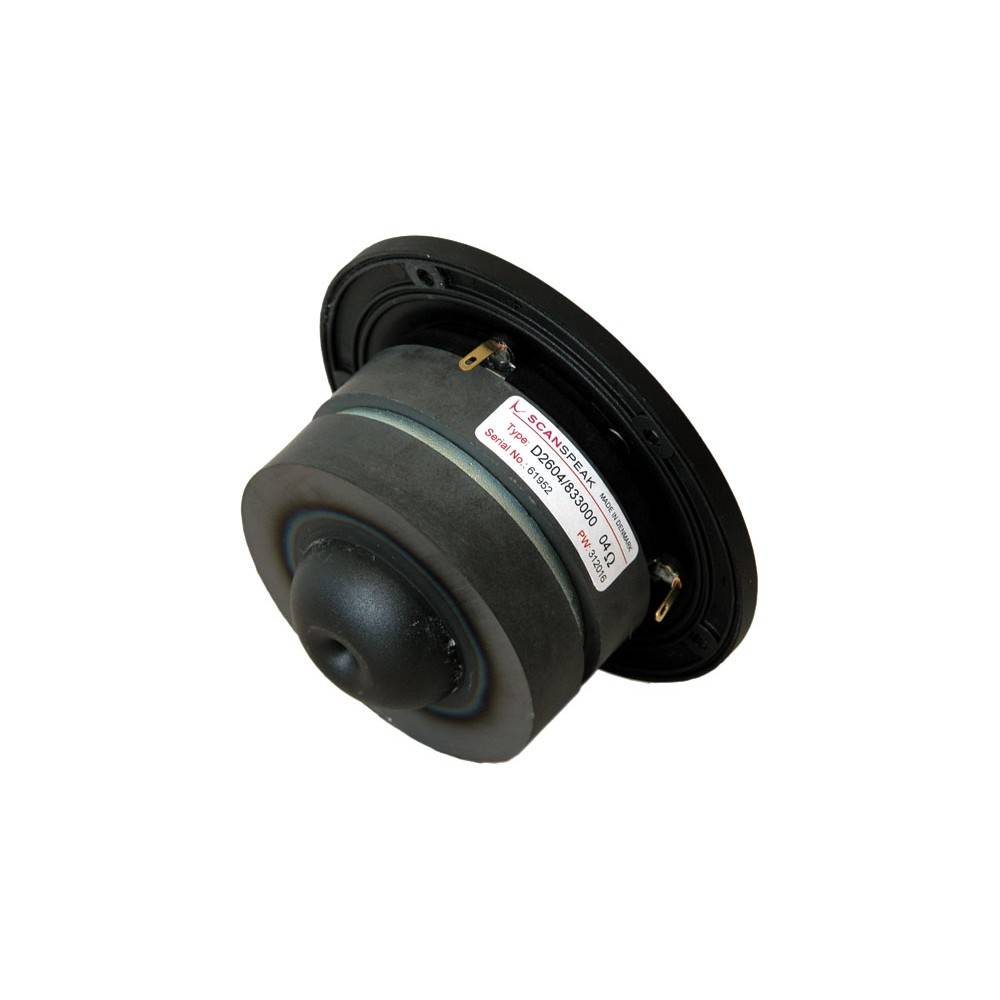

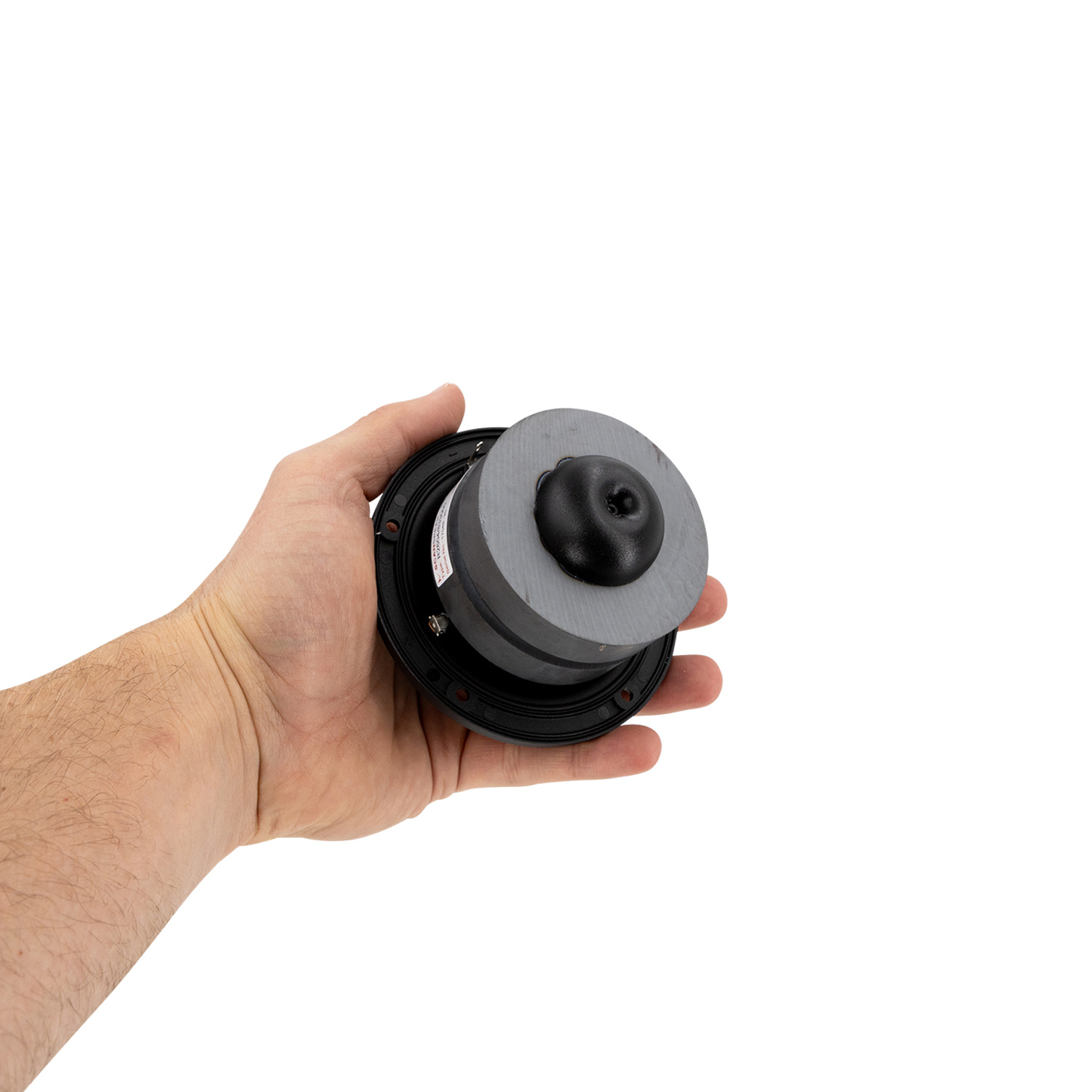

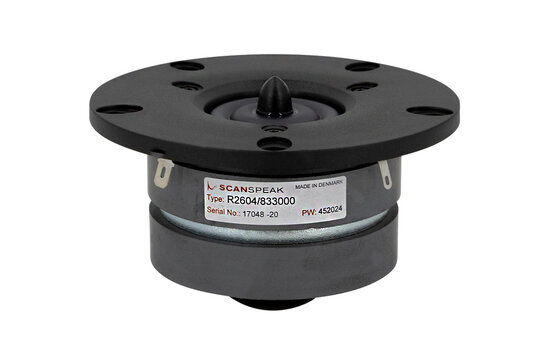

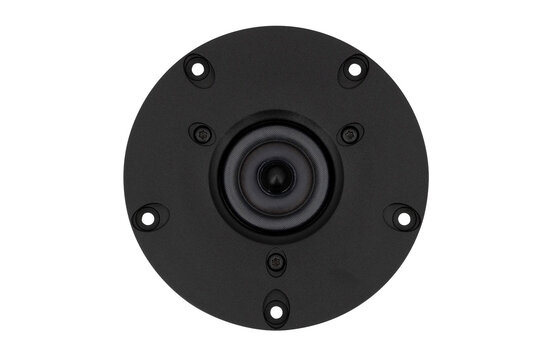

      Discovery R2604/833000 1" Ring Radiator
      Discovery R2604/833000 1" Ring Radiator
      Discovery R2604/833000 1" Ring Radiator
      Discovery R2604/833000 1" Ring Radiator
      Discovery R2604/833000 1" Ring Radiator
      Discovery R2604/833000 1" Ring Radiator
      Discovery R2604/833000 1" Ring Radiator
      Discovery R2604/833000 1" Ring Radiator
      € 55,95 >10 Op voorraad: levertijd 1 werkdag
      The dual magnet version of the ring dome tweeter provides extra magnetic energy to increase the sensitivity and to extend the frequency response to above 40kHz. The additional volume from the second magnet also increases the size of the chamber, lowering... Toon meer
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestel 4 voor slechts €53,15 per stuk
      +-
      In winkelwagen
      • Gratis verzending vanaf €99,
      • Voor 16u besteld, vandaag verstuurd*
      • Betaal met IDEAL, PayPal en meer
      • In-house technische support
      Discovery R2604/833000 1" Ring Radiator
      Discovery R2604/833000 1" Ring Radiator
      Discovery R2604/833000 1" Ring Radiator
      Discovery R2604/833000 1" Ring Radiator
      Discovery R2604/833000 1" Ring Radiator
      Discovery R2604/833000 1" Ring Radiator
      Discovery R2604/833000 1" Ring Radiator
      Discovery R2604/833000 1" Ring Radiator

      Productomschrijving

      Highlights

      • Dual Ring Radiator Diaphragm (Patented)
      • Wave-guide centre plug (Patented)
      • Extended frequency to above 40kHz
      • High Sensitivity - 92dB
      • Low Resonance Frequency - 440Hz
      • Low Distortion
      • Double Magnet
      • Copper Clad Alu-wire



      Product details

      Scan-Speak Discovery R2604/833000 1” Ring Radiator



      The dual magnet version of the ring dome tweeter provides extra magnetic energy to increase the sensitivity and to extend the frequency response to above 40kHz.  The additional volume from the second magnet also increases the size of the chamber, lowering the resonance frequency.   This tweeter is an excellent choice for any high-end home or automotive system.



      Specifications: Compliance Equivalent Volume (Vas): 0.0007 ft.³ • BL Product (BL): 2.3 Tm • Mechanical Compliance of Suspension (Cms): 0.44 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.3 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 5.4 cm2

      Specificaties

      Artikelnummer
      R2604/833000
      Tweeter Type
      Ring Radiator
      Tweeter Series
      Discovery Series
      Cone / Dome Diameter
      1"
      Power Handling (RMS)
      100 Watts
      Impedance
      4 ohms
      Sensitivity
      92 dB 2.83V/1m
      Resonant Frequency (Fs)
      440 Hz
      DC Resistance (Re)
      2.9 ohms
      Voice Coil Inductance (Le)
      0.02 mH
      Mechanical Q (Qms)
      2.18
      Electromagnetic Q (Qes)
      0.46
      Total Q (Qts)
      0.38

      Reviews

      5 from 5Based on 3 reviews
      Schrijf een review
      5 van 5
      Preis-/ Leistung einfach unschlagbar
      Door Erich R. on 8 Oktober 2020
      4 van 5
      Good tweeter, but it take’s alot power. And time to break in. Otherwise very good tweeter!
      Door Nikolaj Blak D. on 25 September 2020
