- 1" Textile Dome Diaphragm
- Patented Symmetrical Drive (SD-2) motor
- Die Cast Rubber Painted Alu Face Plate
- Large Roll Surround for Wide Dispersion

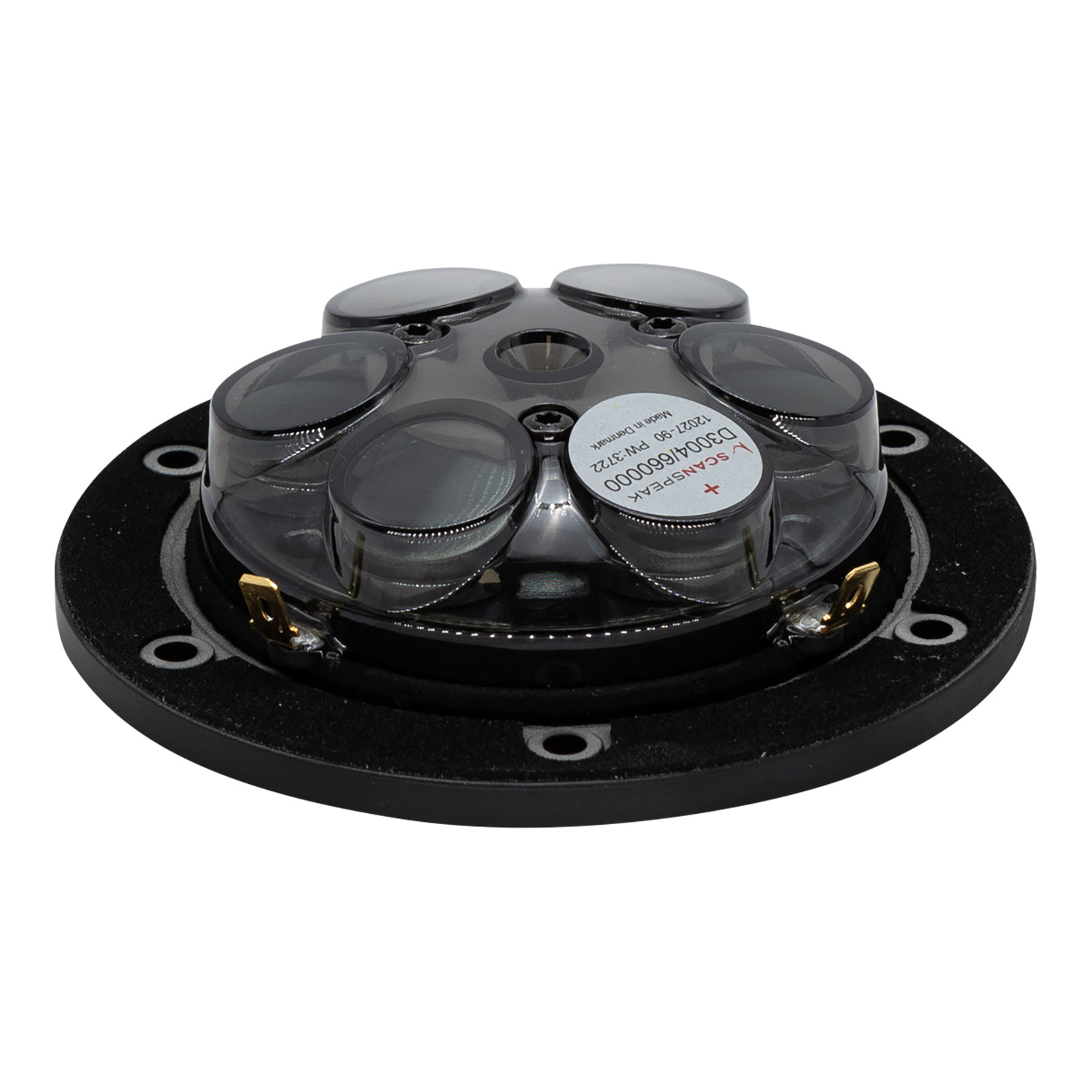

- AirCirc Motor Design w. 6 Neo magnets

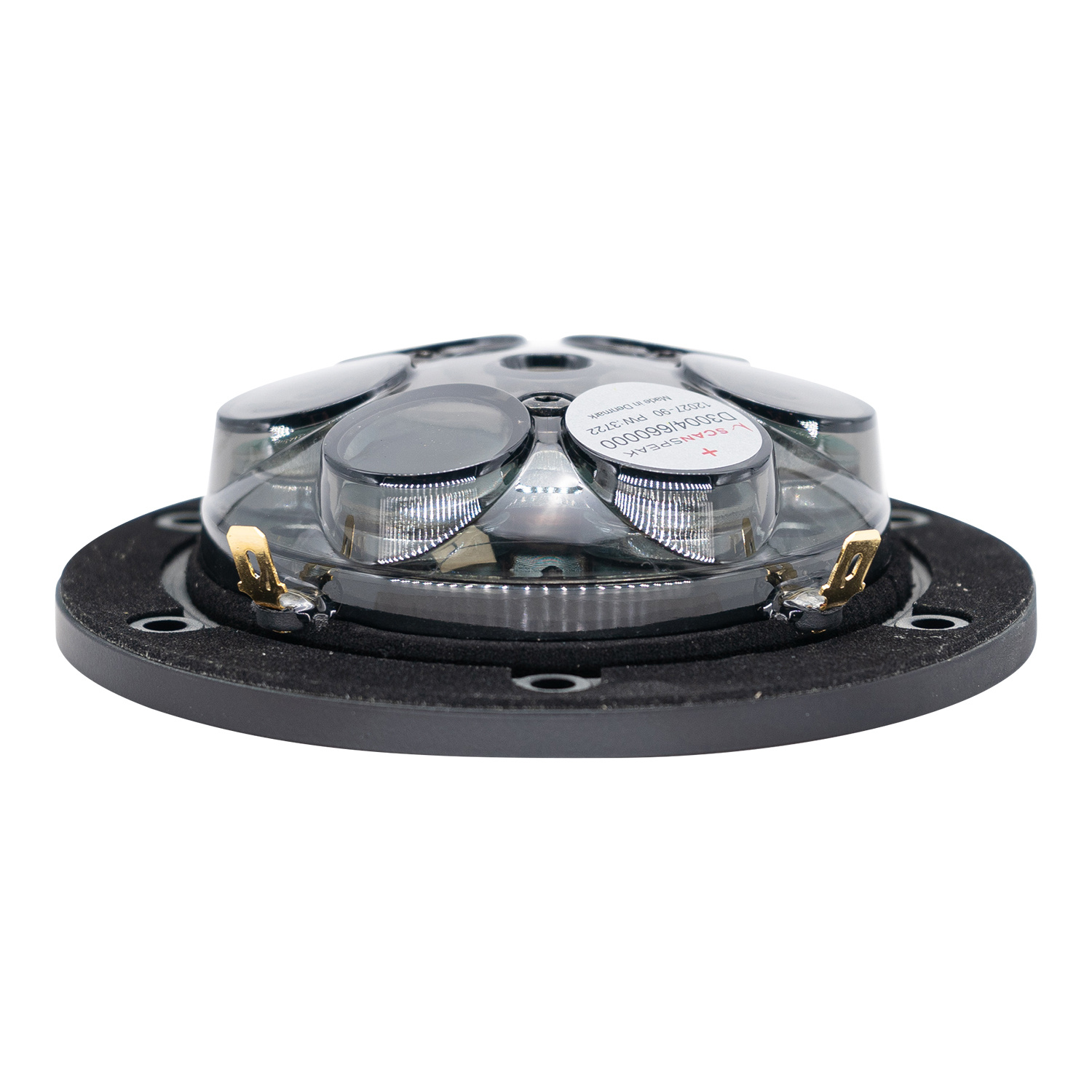

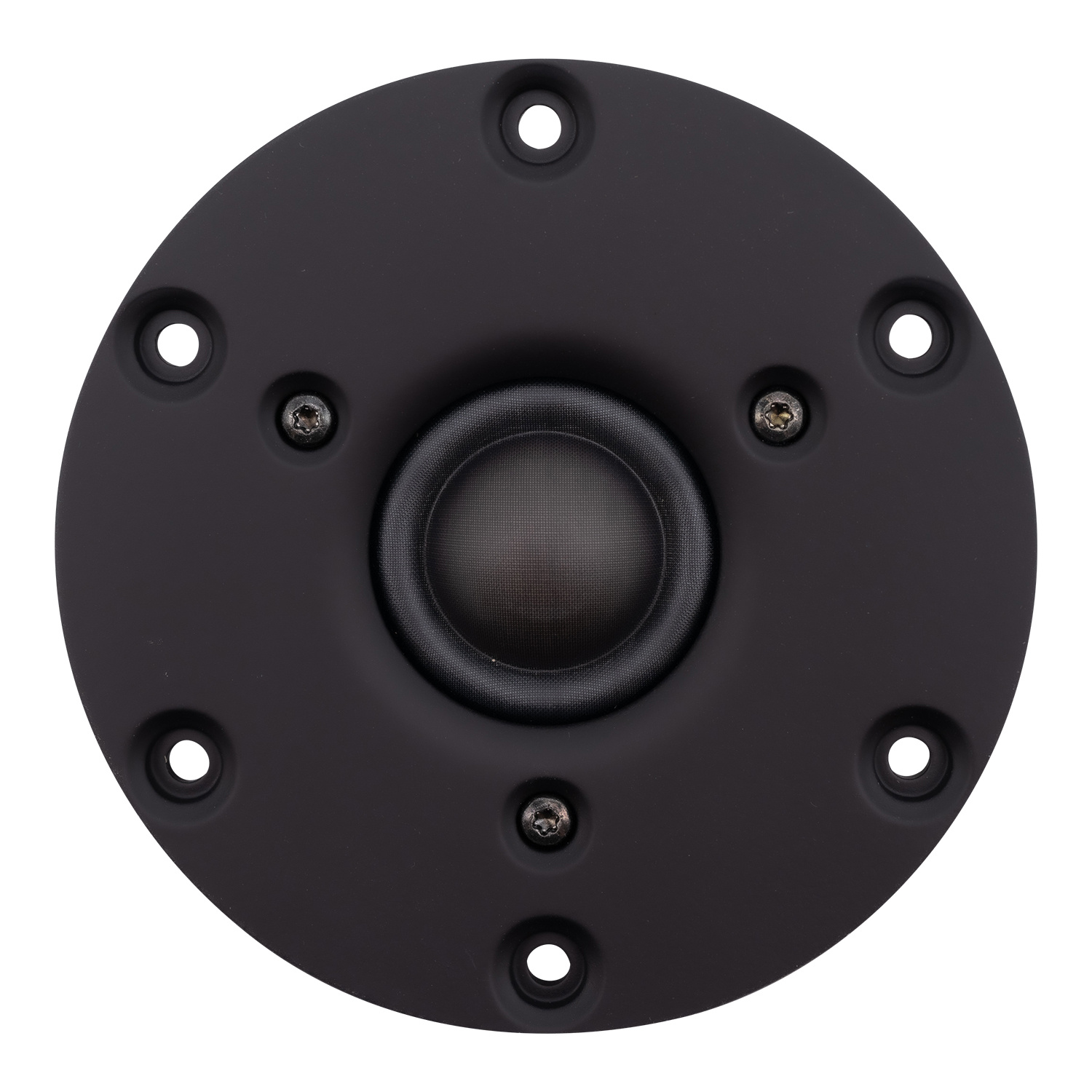

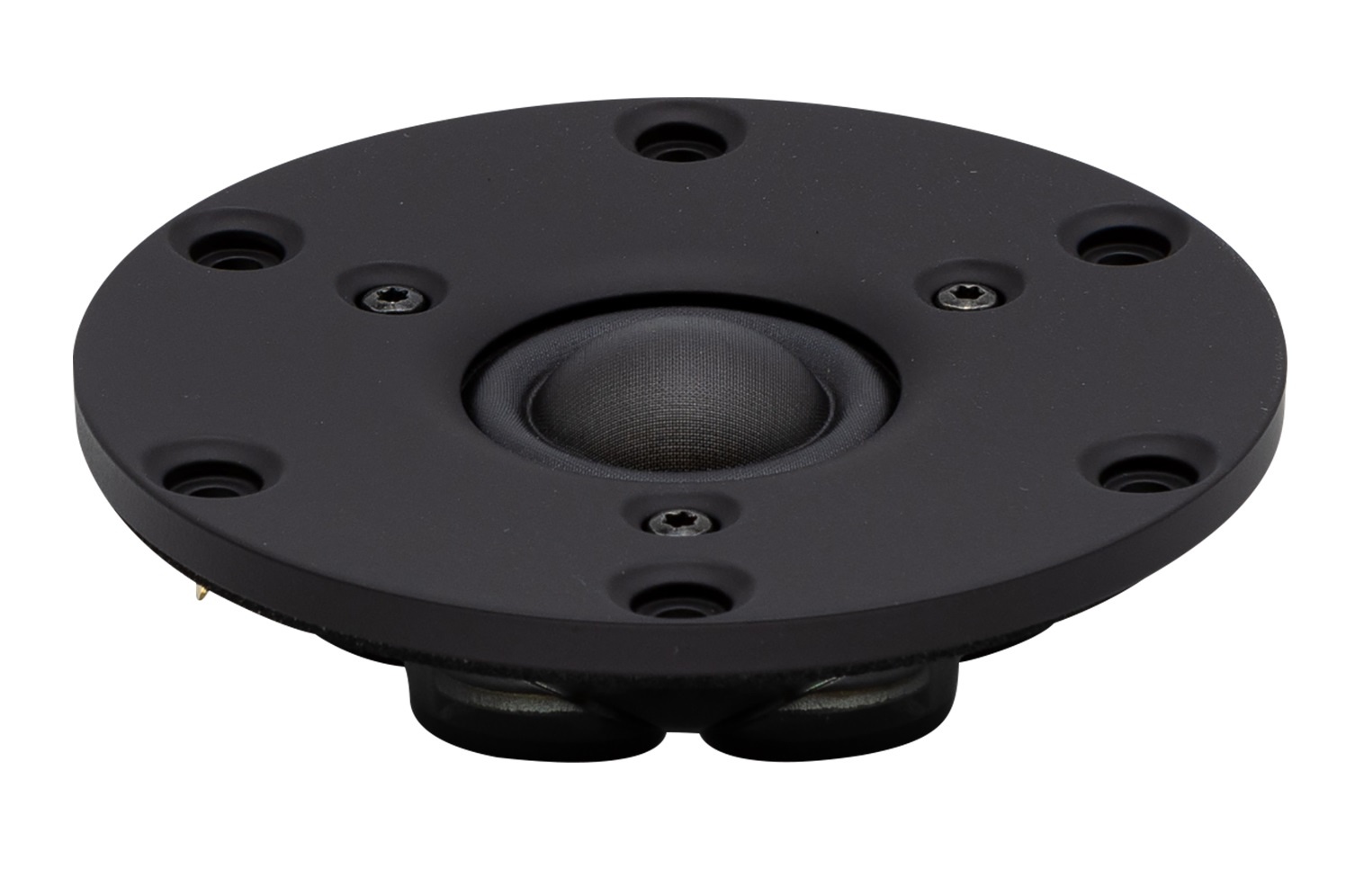

Scan-Speak Illuminator D3004/660000 1" Textile Dome Tweeter
The Illuminator tweeters stand for superb vocal rendition and excellent imaging at all listening locations. Its large roll surround and textile dome diaphragm provides a flat frequency response to above 30KHz with outstanding off-axis dispersion. The unique AirCirc Magnet System, and its rear chamber, results in elimination of reflections and resonances that compromise the performance of traditional motors.
Specifications: Compliance Equivalent Volume (Vas): 0.0007 ft.³ • BL Product (BL): 2.3 Tm • Mechanical Compliance of Suspension (Cms): 0.33 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.35 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 7 cm 2
