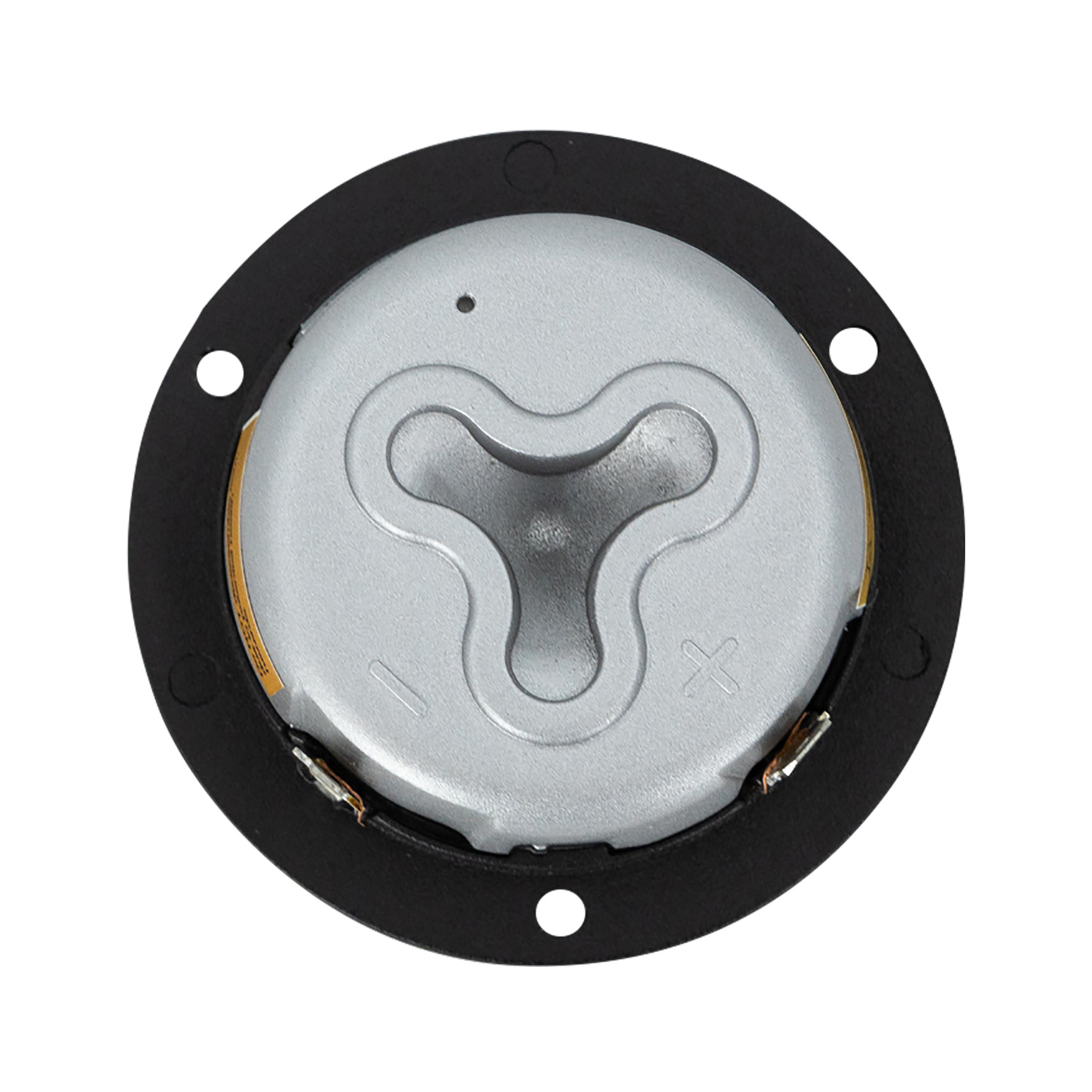

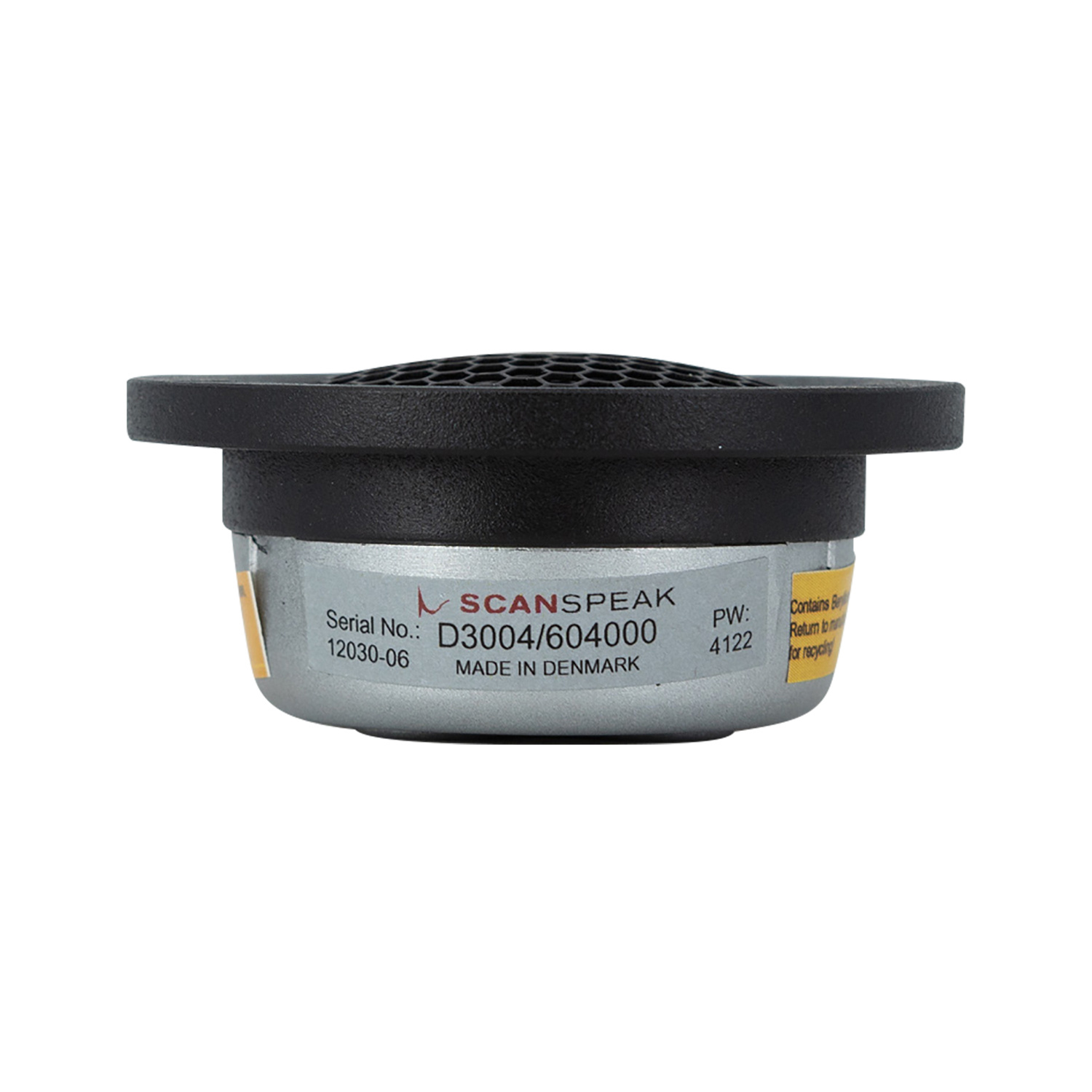

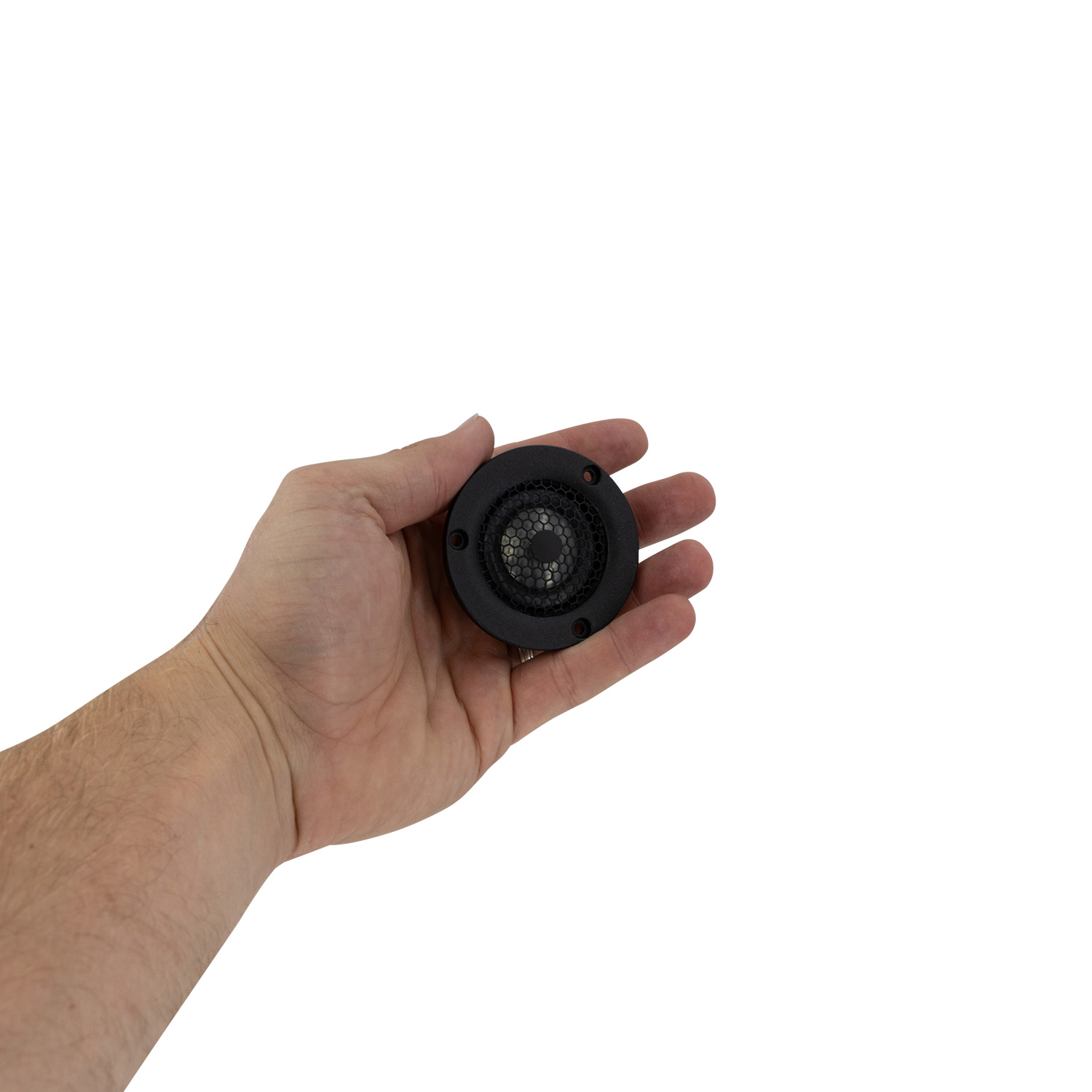

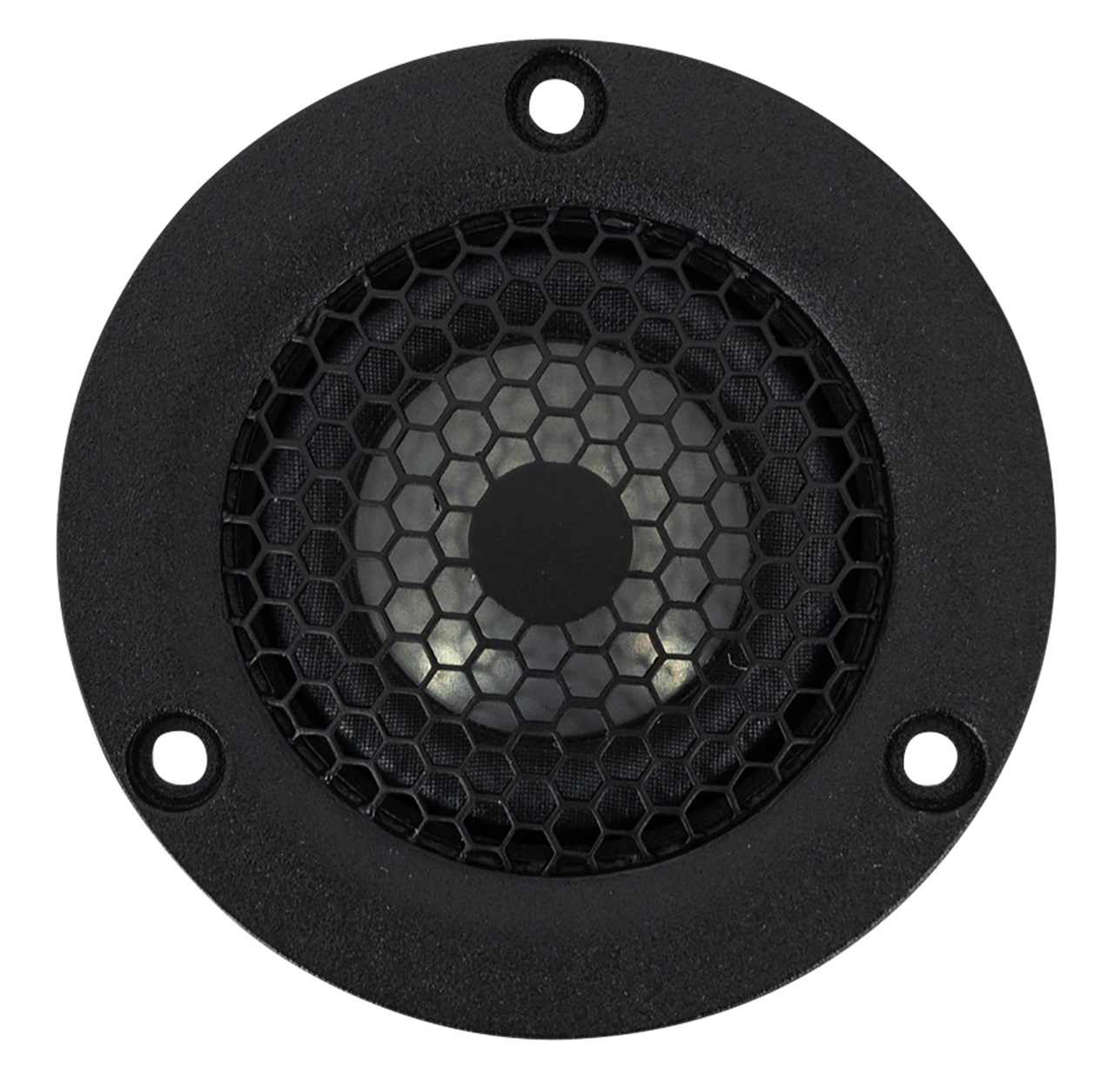

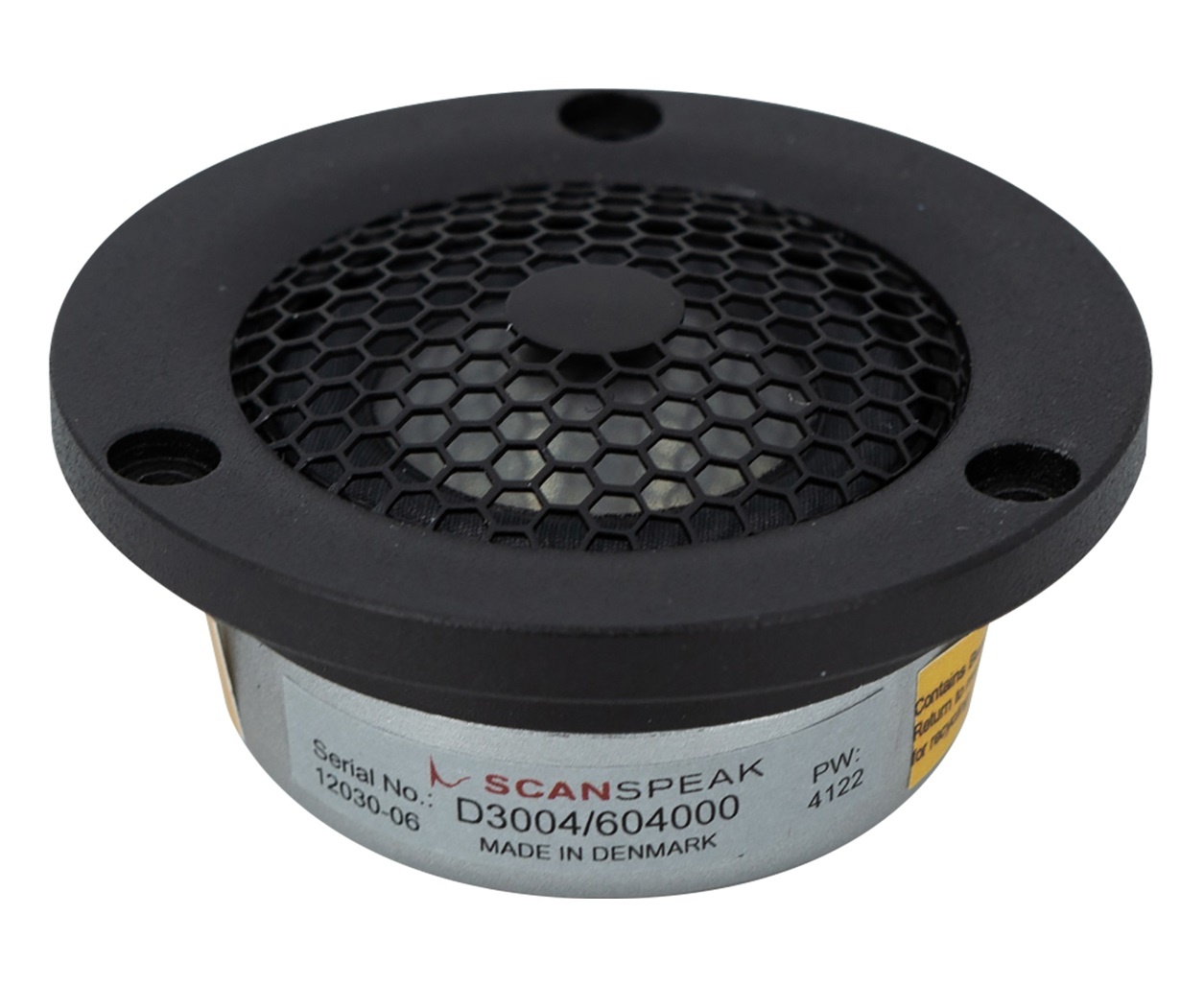

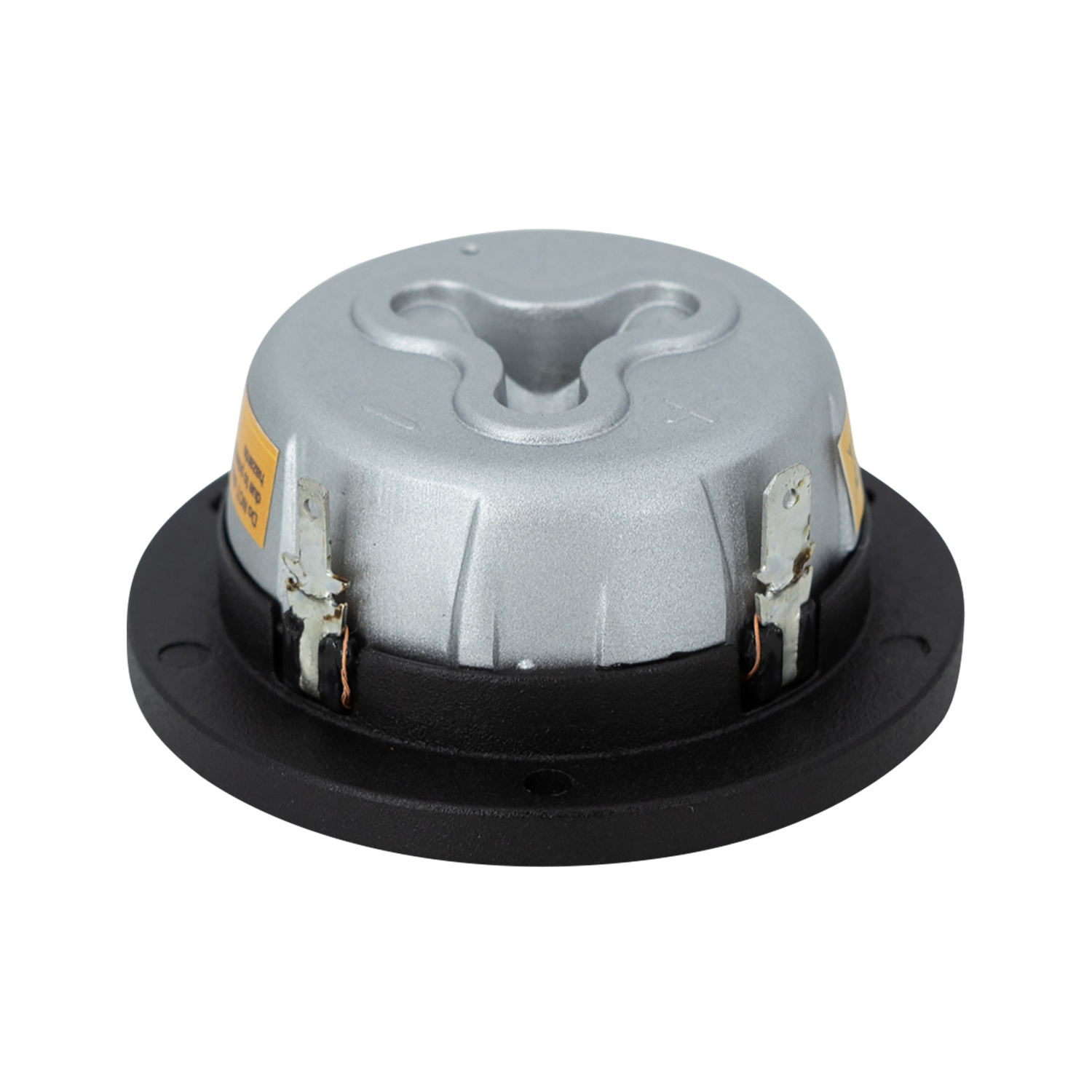

        Illuminator D3004/604000 1" Beryllium Dome Tweeter

        Illuminator D3004/604000 1" Beryllium Dome Tweeter

        €349,95

        Scan-Speak Illuminator D3004/604000 1" Beryllium Dome Tweeter

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        € 289,21€ 349,95 7 Op voorraad
        • -5% Bestel 4 voor slechts € 332,45 per stuk

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, morgen verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving

        Highlights

        • 1" Beryllium Diaphragm (99% pure Be)
        • High Efficiency (90.9dB) and Low Resonance (750Hz)
        • Patented Symmetrical Drive (SD-2) motor
        • Shallow Non Resonant Alu Rear Chamber
        • Neodymium Magnet
        • Aluminum Face Plate and Chamber
        • Sound Transparent Protective Grill
        • 61.9mm (2.44") diameter flange with 21.5mm (.85") depth
        • Excellent choice for both home hi-fi and autosound applications



        Product details

        Scan-Speak Illuminator D3004/604000 1" Beryllium Dome Tweeter



        This 1” compact Illuminator beryllium tweeter is an example of a big sound in a small body. As beryllium is a material characterized by great stiffness, light weight and high damping, the beryllium diaphragm offers all the properties required to reproduce excellent sound.



        Indeed, the D3004/604000 sounds fantastic. It has very low distortion and a distinct clarity that brings out the best in all types of music. Some have described the sound as holographic. The face plates are die cast in aluminum for a beautiful look with maximum mechanical stability.



        The D3004-604000 is optimized to offer small package sizes that can fit into tight spaces such as compact cabinets and automotive trim pieces. The back chamber is die cast in aluminum and designed with a contoured shape that functions as a heat sink in high power applications.



        Specifications: Compliance Equivalent Volume (Vas): 0.0003 ft.³ • BL Product (BL): 1.20 Tm • Mechanical Compliance of Suspension (Cms): 0.19 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.24 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 7 cm2

        Toon meer

        Specificaties

        Artikelnummer
        D3004/604000
        Tweeter type
        Dome
        Tweeter serie
        Illuminator Series
        Cone / Dome Diameter
        25 mm | 1"
        Belastbaarheid (RMS)
        50 Watts
        Power Handling (max)
        250 Watts
        Impedantie (Z)
        4 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        90.9 dB
        Frequentierespons
        2,000 - 20,000 Hz
        Resonantiefrequentie (Fs)
        750 Hz
        Gelijstroomweerstand (Re)
        2.85 ohms
        Voice Coil Inductance (Le)
        0.03 mH
        Mechanische Q (Qms)
        4.02
        Electromagnetic Q (Qes)
        2.18
        Totale Q (Qts)
        1.41
