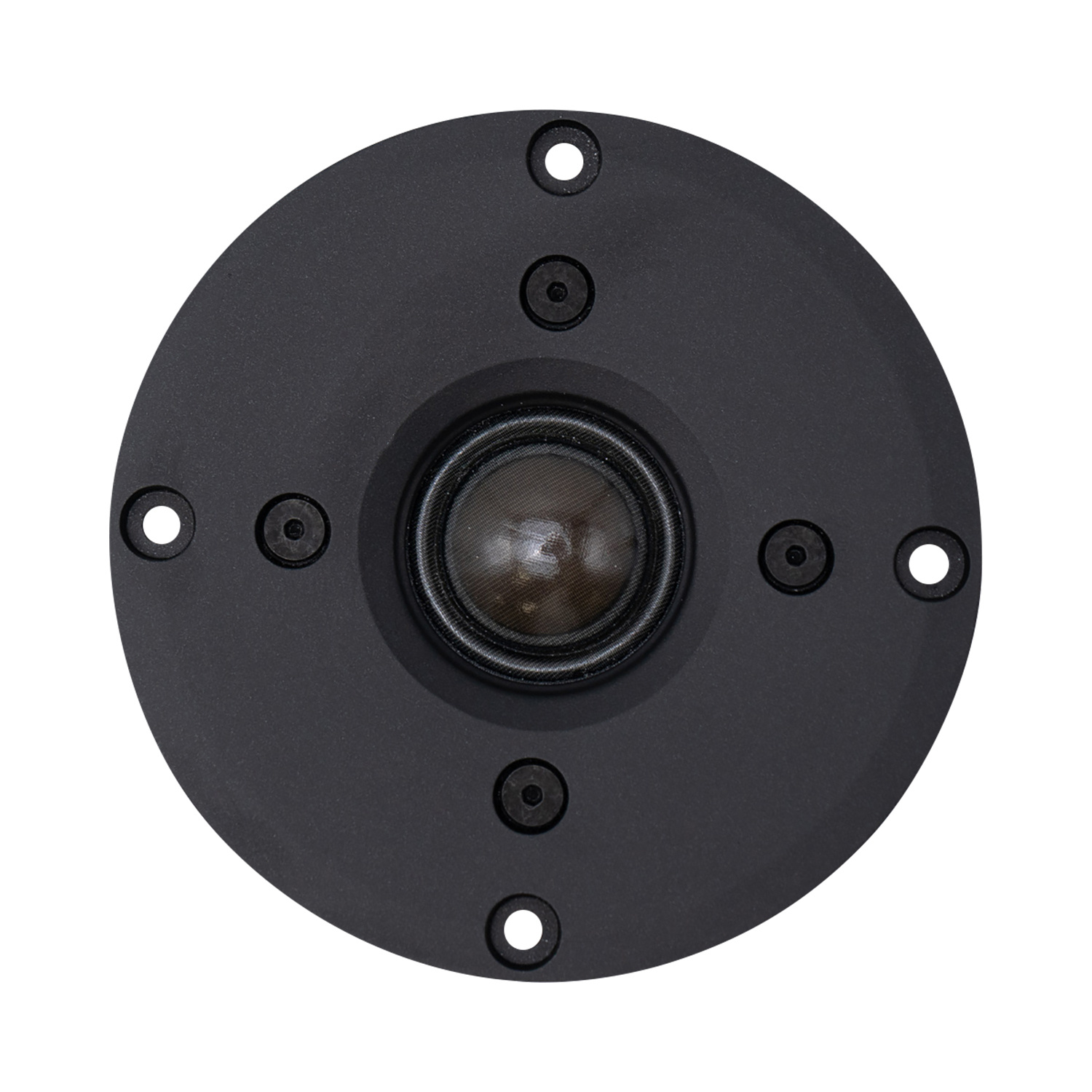

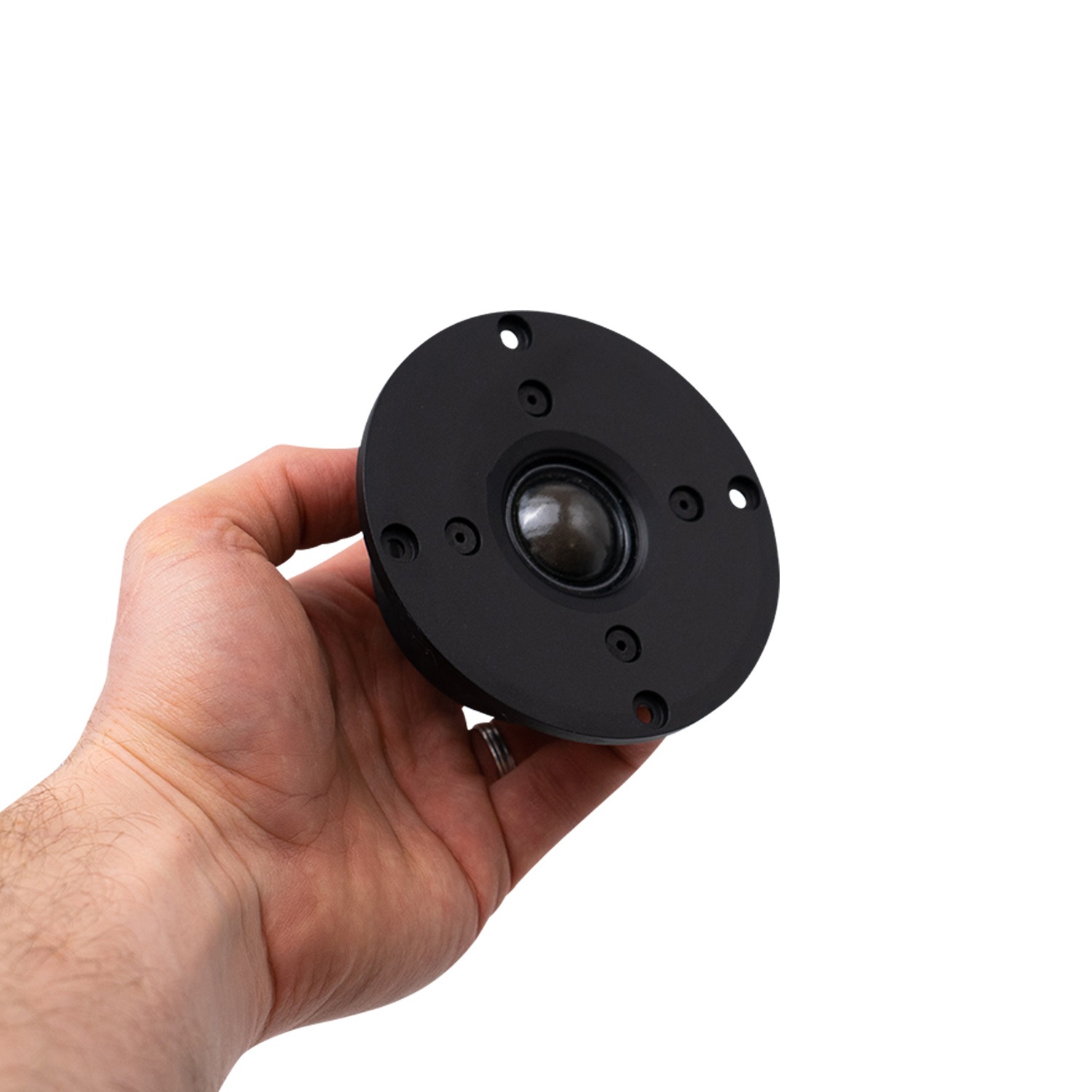

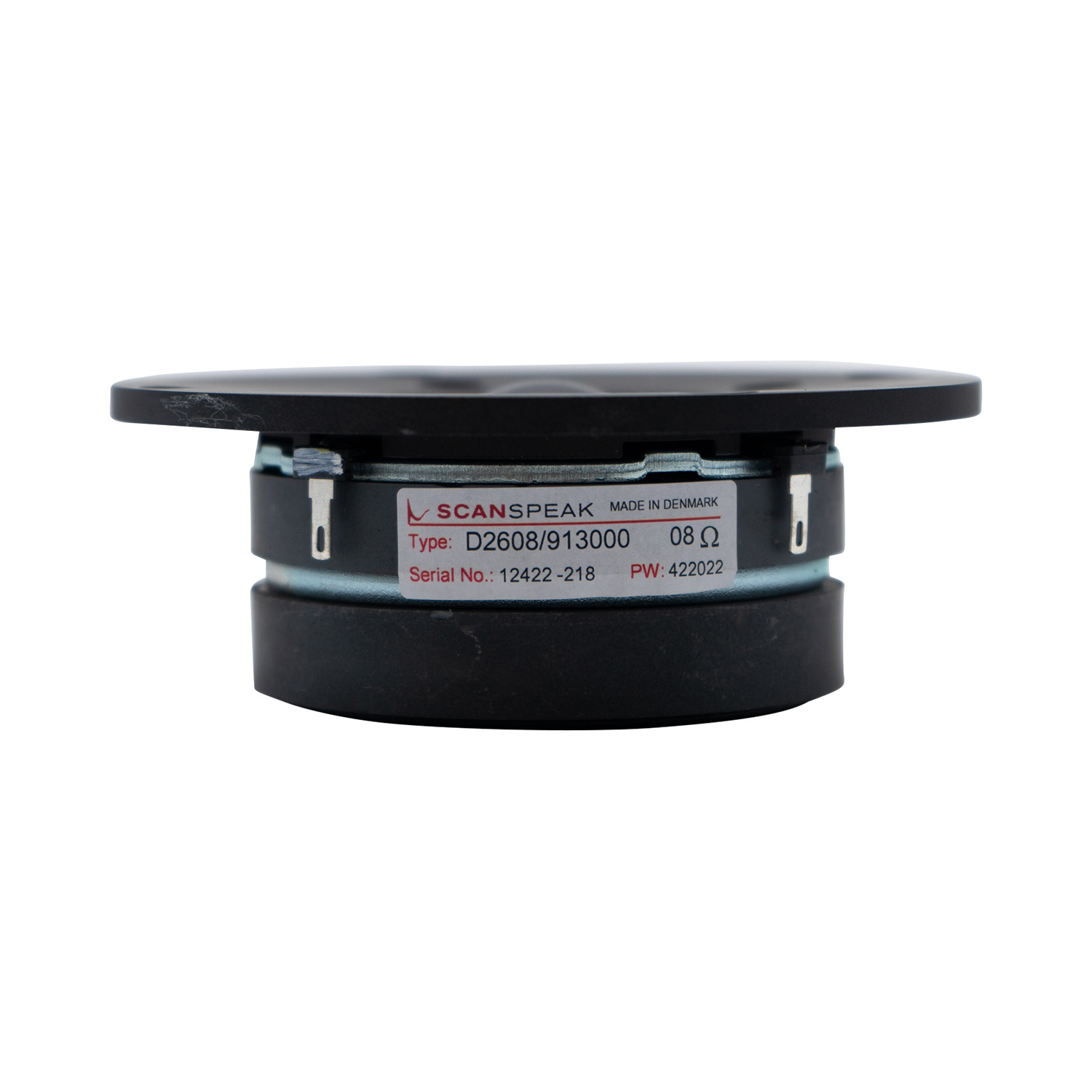

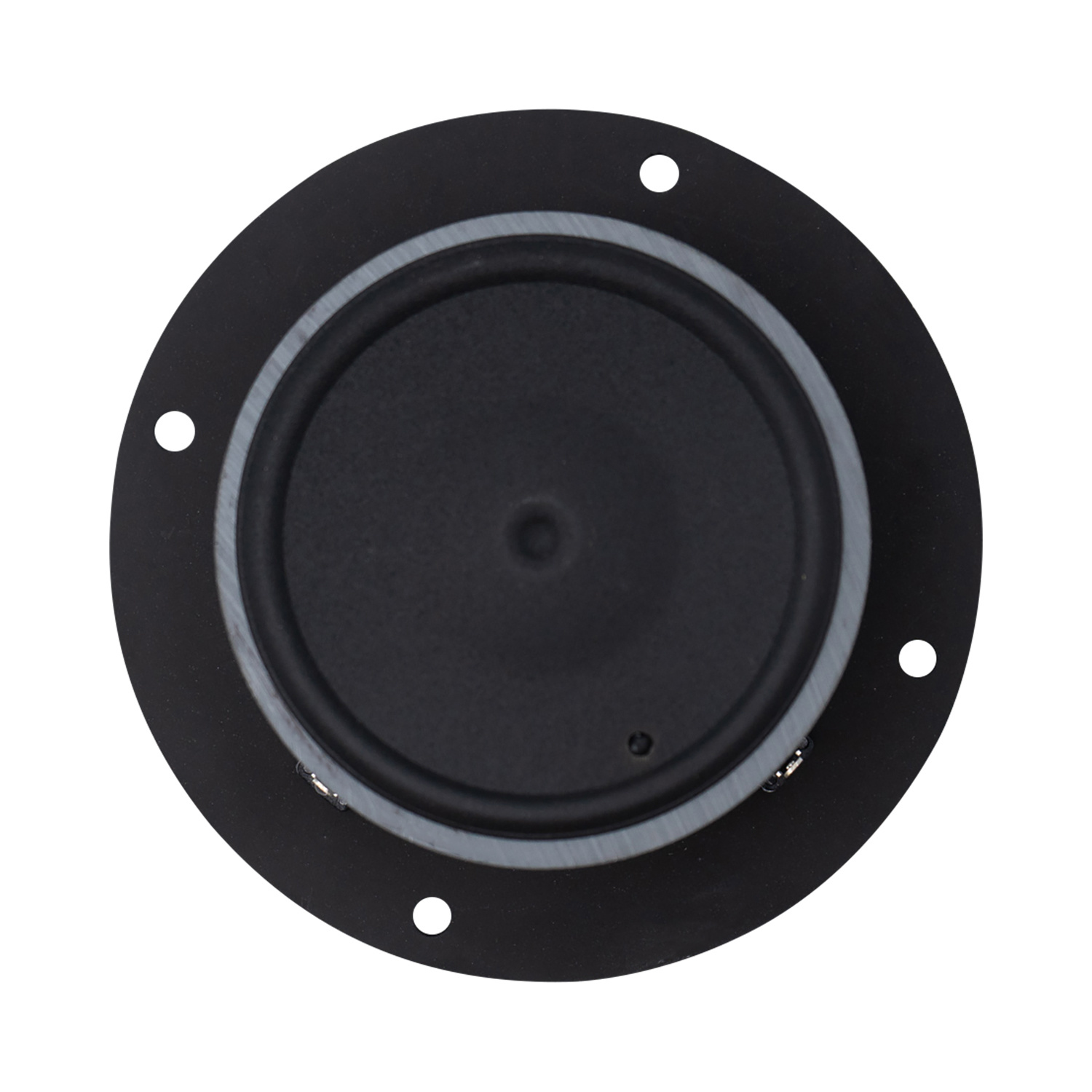

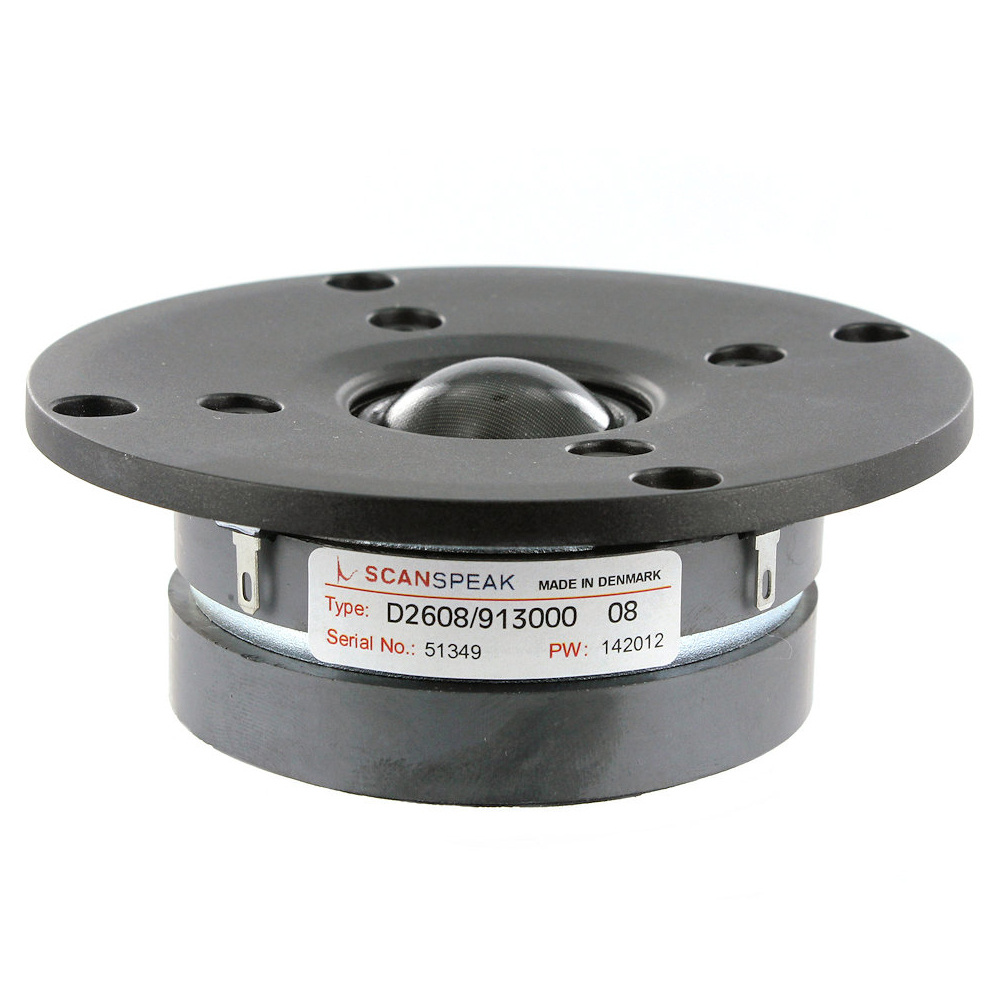

Discovery D2608/913000 1" Textile Dome Tweeter

€93,45

Toevoegen aan winkelwagen

Scan-Speak Discovery D2608/913000 1" Textile Dome Tweeter

Name: Scan-Speak Discovery D2608/913000 1" Textile Dome Tweeter
Brand: Scan-Speak
SKU: D2608/913000
Price: 93.45 EUR
Availability: InStock
Rating: 5 (6 reviews)

6 reviews

Merk: Scan-Speak

Toon alle Scan-Speak tweeters

1" | 8 Ω

Discovery D2608/913000 1" Textile Dome Tweeter

€ 77,23€ 93,45 8 Op voorraad10 verwacht op 10-05-2024

Gratis verzending vanaf € 99
Voor 16u besteld, vandaag verstuurd
Ten minste twee jaar garantie
45 dagen bedenktijd voor retourneren

Klantbeoordeling:

Vergelijk

Zakelijke offerteaanvraag

Heeft u vragen over dit product?

Onze klantenservice helpt u graag verder!

Productomschrijving

Highlights

Very low mass textile soft dome diaphragm
Optimized magnet system with double magnet
Low damping magnetic fluid cooling
Fully Vented Motor System for Low compression
8 ohm, positive terminal with white paint mark
Replaceable voice coil assembly
Black Die-Cast Aluminum Face Plate
Made in Denmark

Product details

Scan-Speak Discovery D2608/913000 1" Textile Dome Tweeter

The Discovery tweeter uses a very light, low mass “soft dome" with high internal damping, and a highly-optimized, low-compression magnet system, which was designed especially for the low mass dome. The result is a driver that has both good sensitivity and an impressive range into the lower frequencies. The low mass dome, coupled with a fully vented motor system provides non-compressed sound reproduction over the entire frequency response. This combination allows the Discovery tweeter to be used in systems with lower cross-over points than is recommended for most normal tweeters, making this product a powerful tool for any acoustic designer in the process of tuning a system.

Specifications: Compliance Equivalent Volume (Vas): 0.0007 ft.³ • BL Product (BL): 2.6 Tm • Mechanical Compliance of Suspension (Cms): 0.29 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.18 g • Maximum Linear Excursion (Xmax): 0.5 mm • Surface Area of Cone (Sd): 7 cm²
