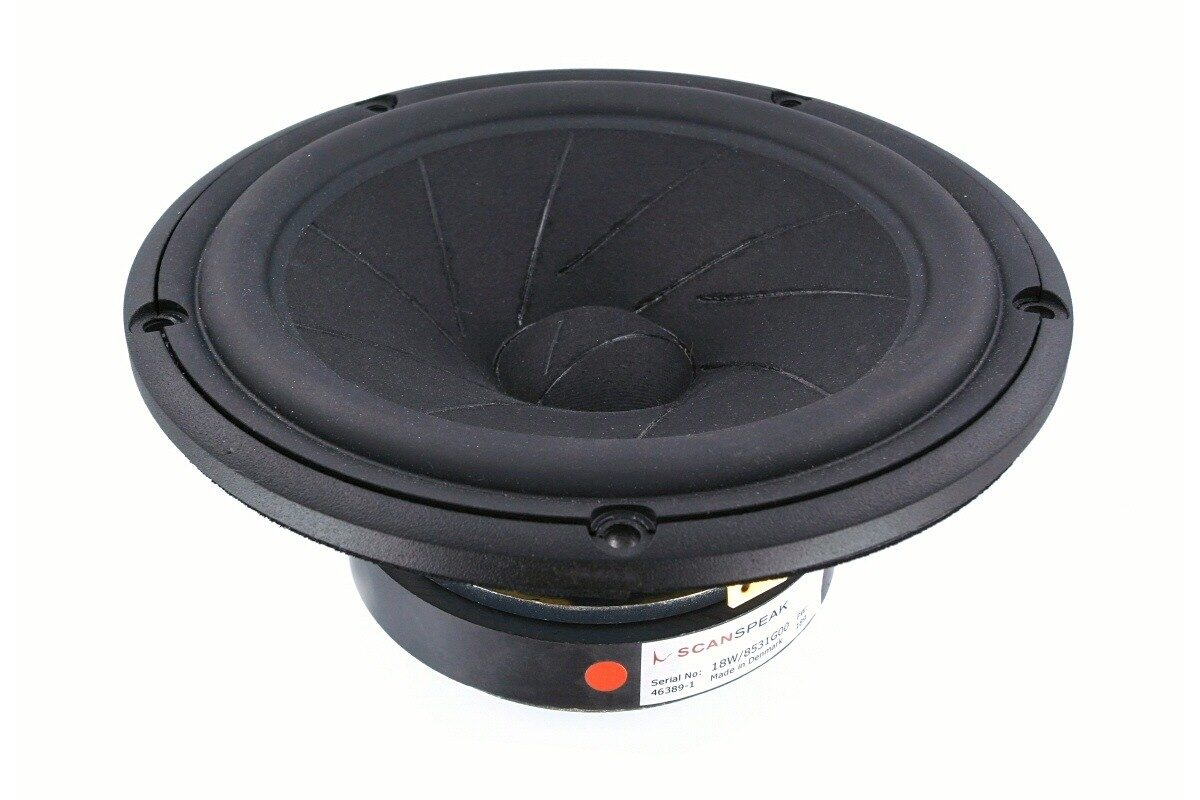

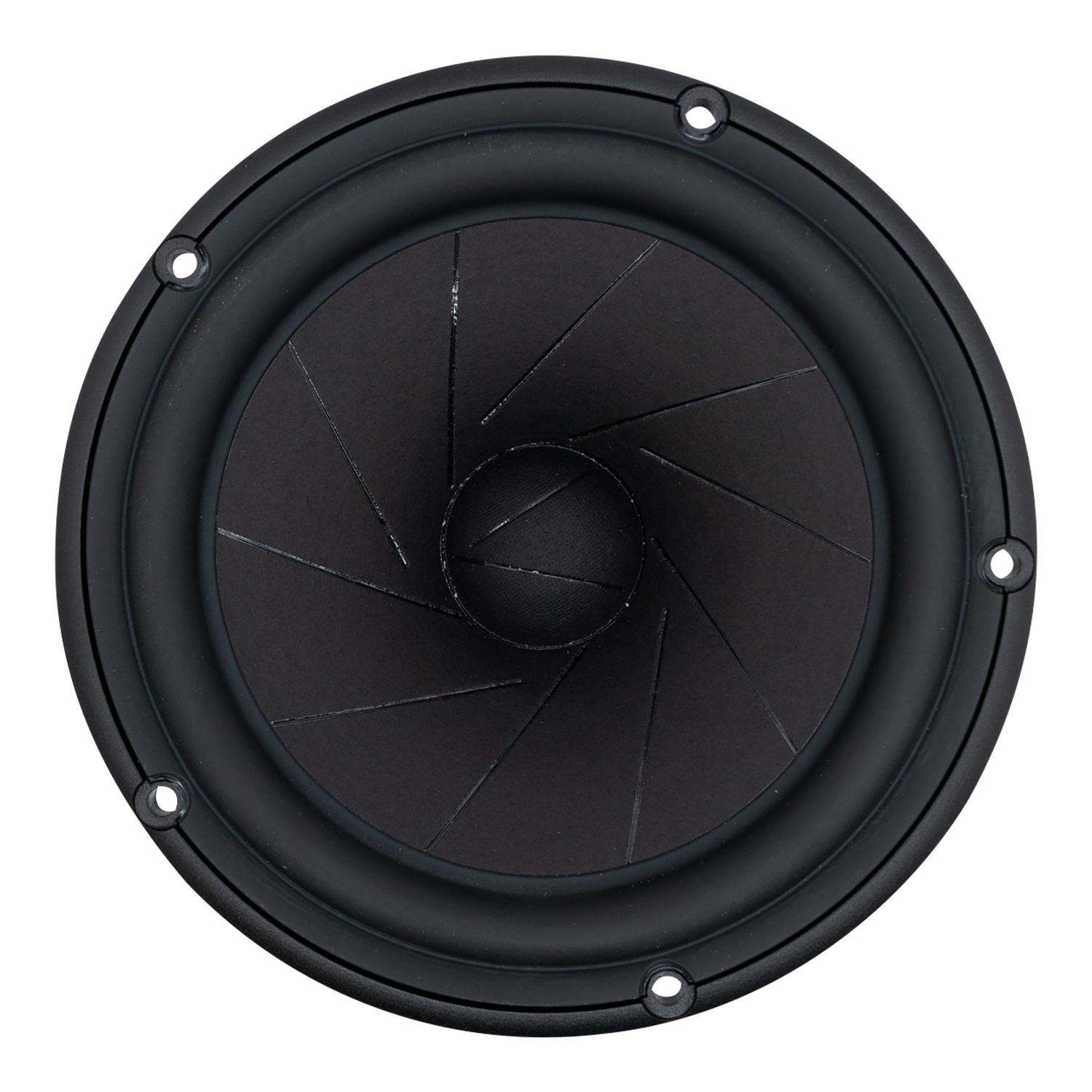

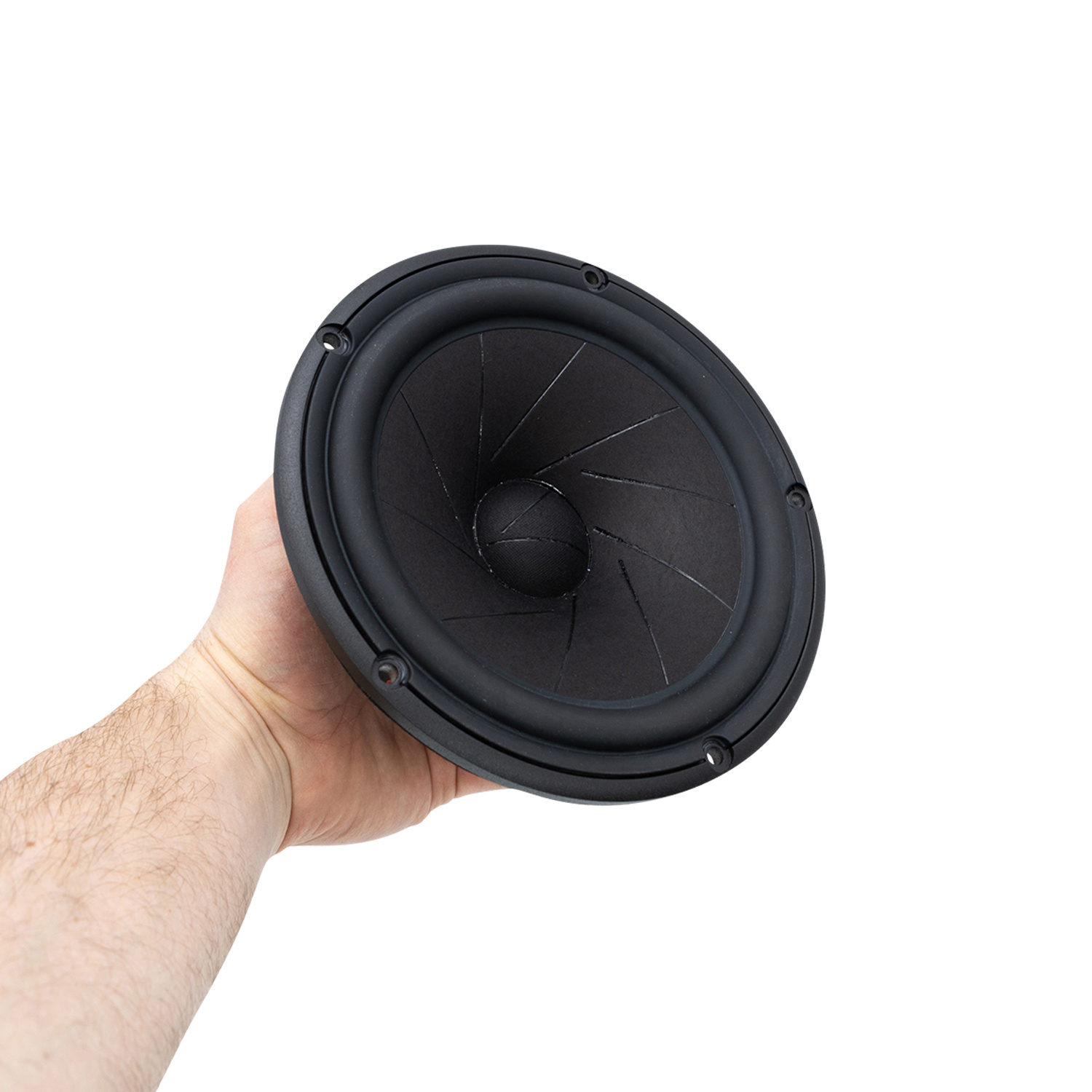

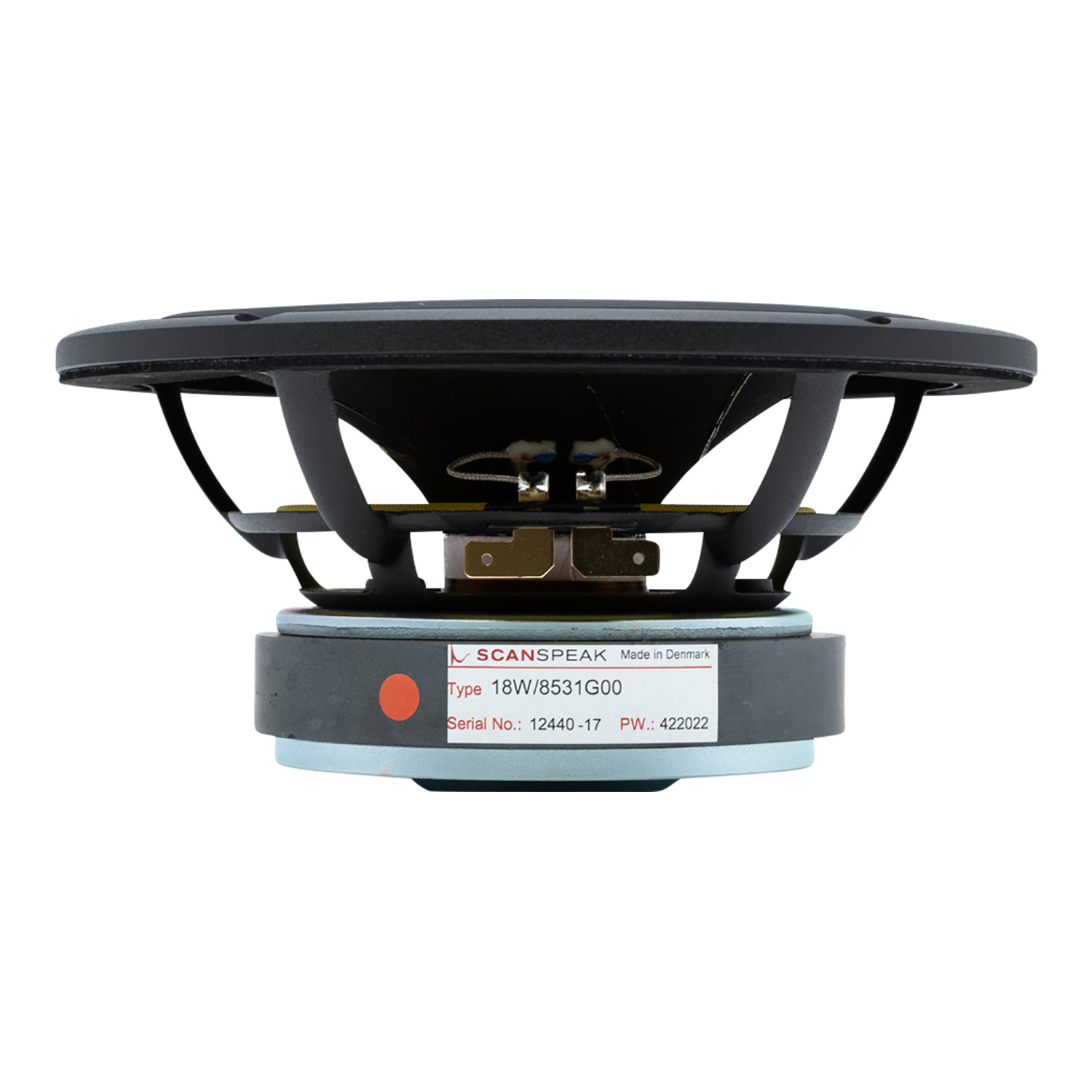

        Scan-Speak Revelator 18W/8531G00 7" Woofer

        1 reviews
        Merk: Scan-Speak
        Toon alle Audio componenten
        7" | 8 Ω
        Revelator 18W/8531G00 7" Woofer
        Revelator 18W/8531G00 7" Woofer
        Revelator 18W/8531G00 7" Woofer
        Revelator 18W/8531G00 7" Woofer
        € 165,25€ 199,95 4 Op voorraad: levertijd 1 werkdag
        The Scan-speak 18W/8531G-00 is a 7" Revelator mid/woofer. It features a non-resonant cone and dust cap structure, dynamic linear suspension, SD-1 magnet system, “Grasshopper" cast chassis with maximized air flow and resonance terminating mounting system.... Toon meer
        Volume voordeel Geniet van deze geweldige kortingsdeals
        • -5% Bestel 4 voor slechts €189,95 per stuk
        +-
        In winkelwagen
        • Verzending altijd verzekerd en met track & trace
        • Voor 16u besteld, vandaag verstuurd*
        • Gratis verzending vanaf €99
        • In-house technische support
        Revelator 18W/8531G00 7" Woofer
        Revelator 18W/8531G00 7" Woofer
        Revelator 18W/8531G00 7" Woofer
        Revelator 18W/8531G00 7" Woofer

        Productomschrijving

        Highlights

        • Patented Symmetrical Drive Motor Design
        • Low-Loss linear suspension
        • Die cast Alu Chassis vented below spider
        • Sliced Cone (Controls Cone Breakups)
        • Low Damping SBR Rubber Surround
        • Large Ferrite Magnet System



        Product details

        Scan-Speak Revelator 18W/8531G00 7" Woofer



        The Scan-speak 18W/8531G-00 is a 7" Revelator mid/woofer. It features a non-resonant cone and dust cap structure, dynamic linear suspension, SD-1 magnet system, “Grasshopper" cast chassis with maximized air flow and resonance terminating mounting system. Less resonance in all structures, lower compression and higher linearity, faster termination of excess energy and higher sound pressure capability. The 18W/8531G should have an F3 of about 55Hz sealed and can get down to 33Hz vented.

        Specificaties

        Artikelnummer
        18W/8531G00
        Woofer Series
        Revelator Series
        Nominal Diameter
        7"
        Power Handling (RMS)
        60 Watts
        Impedance
        8 ohms
        Sensitivity
        87 dB 2.83V/1m
        Voice Coil Diameter
        1.49"
        DC Resistance (Re)
        5.8 ohms
        Voice Coil Inductance (Le)
        0.35 mH
        Resonant Frequency (Fs)
        28 Hz
        Mechanical Q (Qms)
        5.10
        Electromagnetic Q (Qes)
        0.39
        Total Q (Qts)
        0.36
        Diaphragm Mass Inc. Airload (Mms)
        17.5g
        Mechanical Compliance of Suspension (Cms)
        1.85 mm/N
        Surface Area of Cone (Sd)
        150 cm2
        BL Product (BL)
        6.8 Tm
        Compliance Equivalent Volume (Vas)
        2.05 ft.³
        Maximum Linear Excursion (Xmax)
        6.5 mm
