        Illuminator 15WU/8741T00 Bass-midwoofer

        Illuminator 15WU/8741T00 Bass-midwoofer

        €359,95

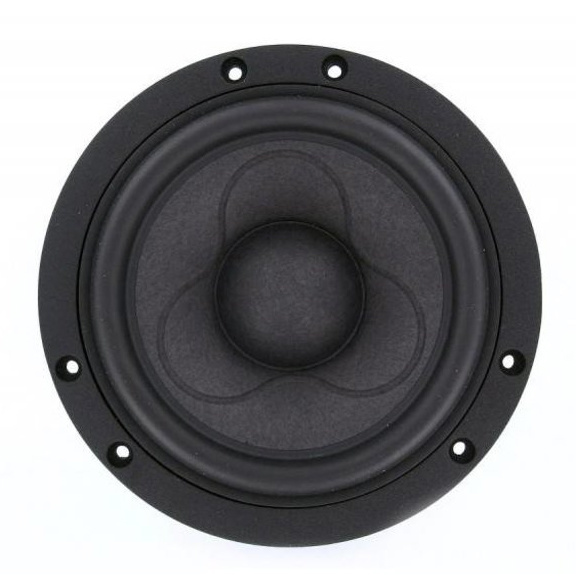

        Scan-Speak Illuminator 15WU/8741T00 Bass-midwoofer

        1 reviews
        5 van 5
        1 reviews
        5 sterren
        100%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        € 297,48€ 359,95 4 Op voorraad
        • -5% Bestel 4 voor slechts € 341,95 per stuk

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Voor 16u besteld, vandaag verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving

        Highlights

        • Under-Hung Neodymium Motor Design
        • Patented Sandwich Paper Cone
        • Low-loss linear suspension
        • Patented Symmetrical Drive (SD-3)
        • Exceptionally Long Linear Excursion



        Product details

        Scan-Speak Illuminator 15WU/8741T00 5,5" Woofer

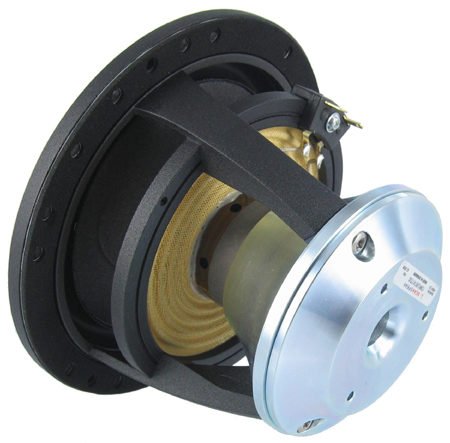

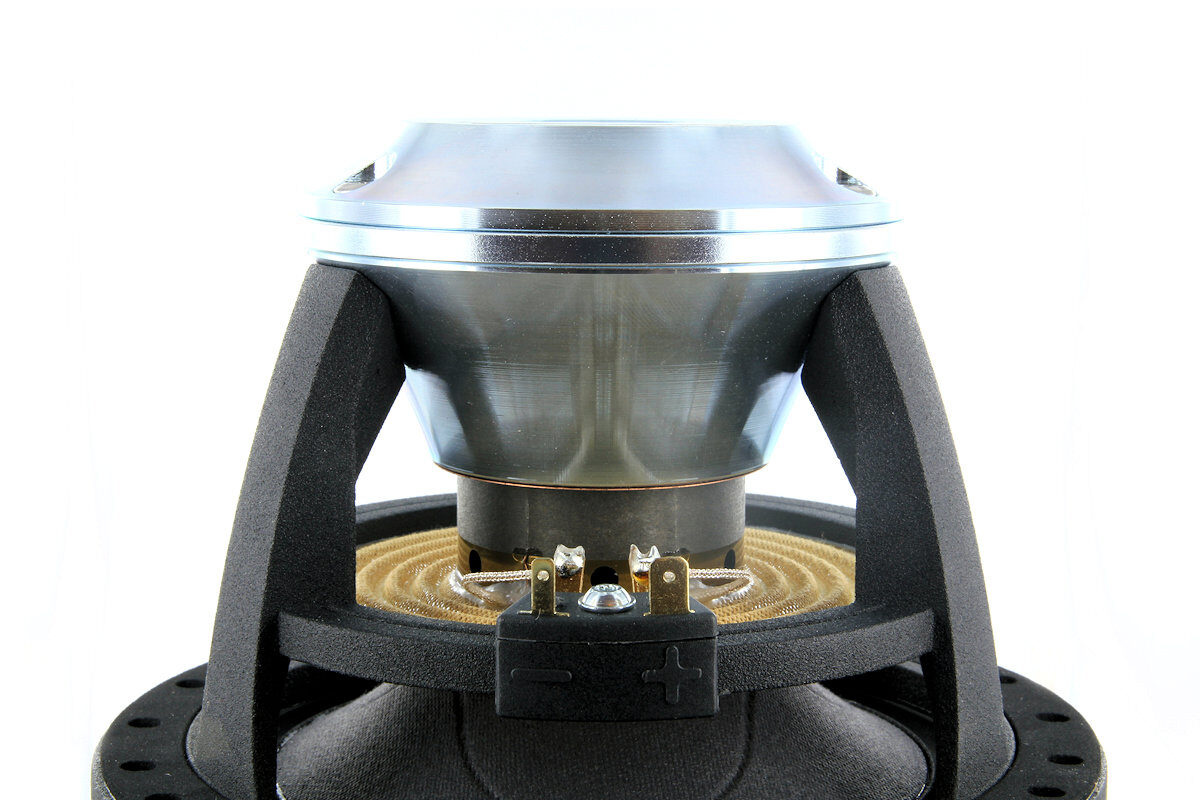

        The Illuminator woofers are based on compact under-hung motor systems with large neodymium ring magnets. The patent pending motor offers a very long linear excursion together with a very high force factor. The top plate is shaped to “guide” the backside airflow around the motor and with the very open cast aluminum chassis design the driver is virtually free from compression.

        Toon meer

        Specificaties

        Artikelnummer
        15WU/8741T00
        Woofer series
        Illuminator
        Woofer type
        Illuminator
        Belastbaarheid (RMS)
        80 Watts
        Belastbaarheid (max)
        150 Watts
        Impedantie (Z)
        8 ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        83.4 dB
        Spreekspoeldiameter
        1.65"
        Gelijkstroomweerstand (Re)
        5.9 ohms
        Spreekspoelinductie (Le)
        0.41 mH
        Resonantiefrequentie (Fs)
        35 Hz
        Mechanische Q (Qms)
        3.37
        Elektrische Q (Qes)
        0.28
        Totale Q (Qts)
        0.26
        Bewegende massa (Mms)
        12.3g
        Compliantie van de ophanging (Cms)
        1.68 mm/N
        Effectief oppervlak (Sd)
        92 cm2
        Krachtsfactor (BL)
        7.5 Tm
        Equivalentvolume (Vas)
        0.70 ft.³
        Maximale excursie (Xmax)
        9 mm

        Toon meer
