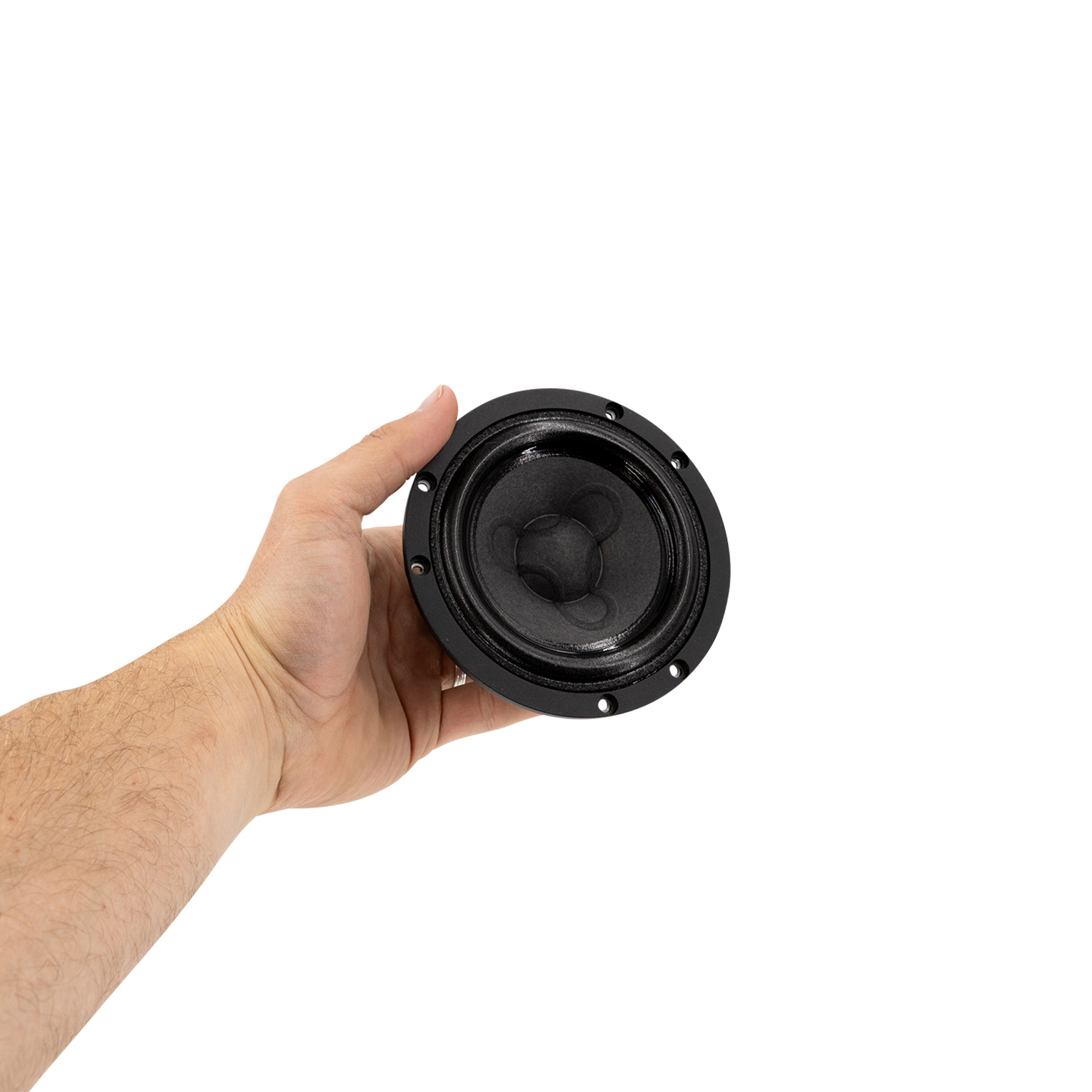

    Scan-Speak Illuminator 12MU/8731T00 4" Woofer

    € 273,45 2 Op voorraad: levertijd 1 werkdag
    The Illuminator woofers are based on compact under-hung motor systems with large neodymium ring magnets. The patent pending motor offers a very long linear excursion together with a very high force factor. The top plate is shaped to “guide” the backside a... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €259,78 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    Highlights

    • Neodymium magnet
    • Under hung motor system

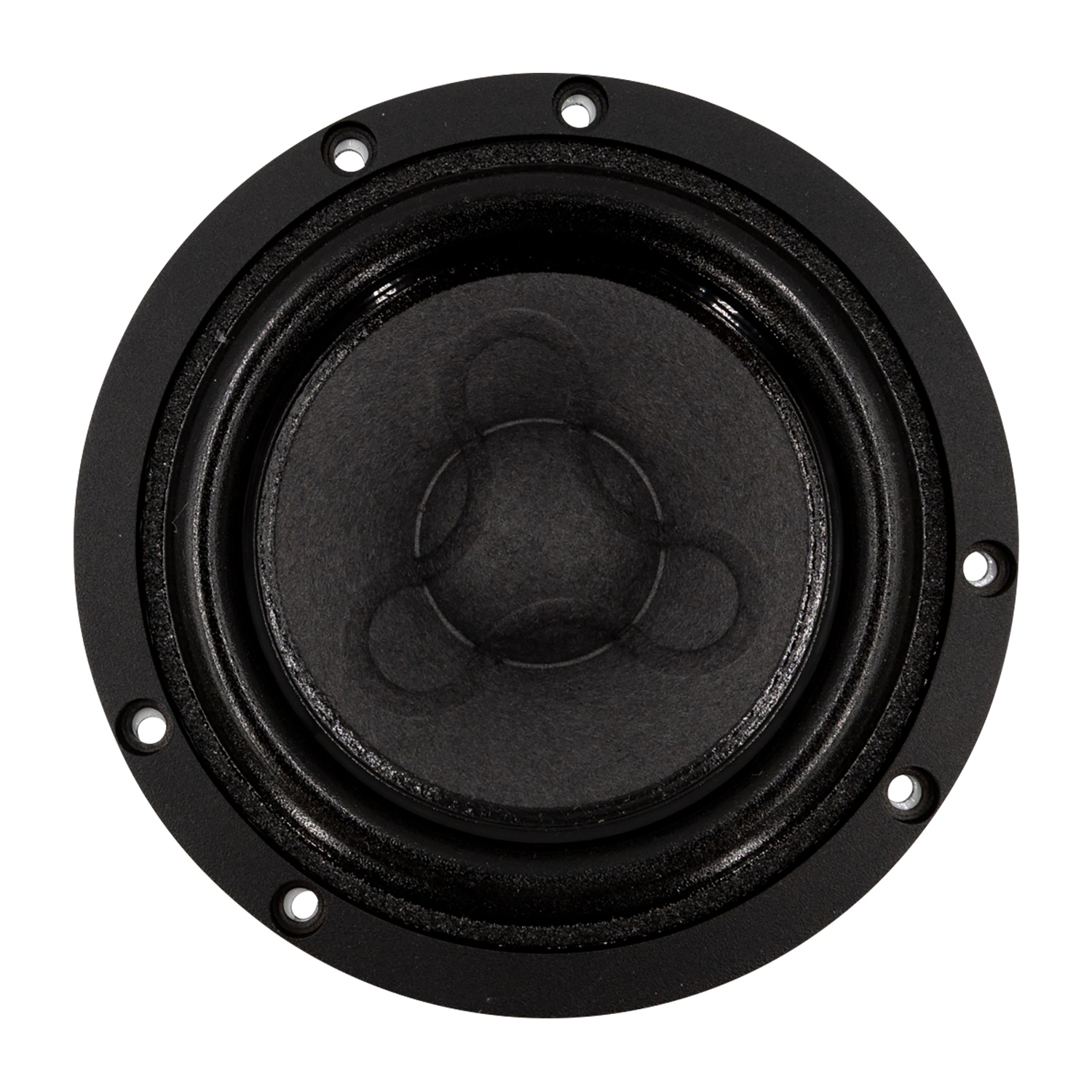

    • One piece cone and dust cap, full cone technology
    • Very Wide Frequency Response 100-10KHz
    • Patented Symmetrical Drive (SD-3)
    • Low-loss Linear Suspension
    • Foam surround
    • High Output 87dB @ 2,83V



    Product details

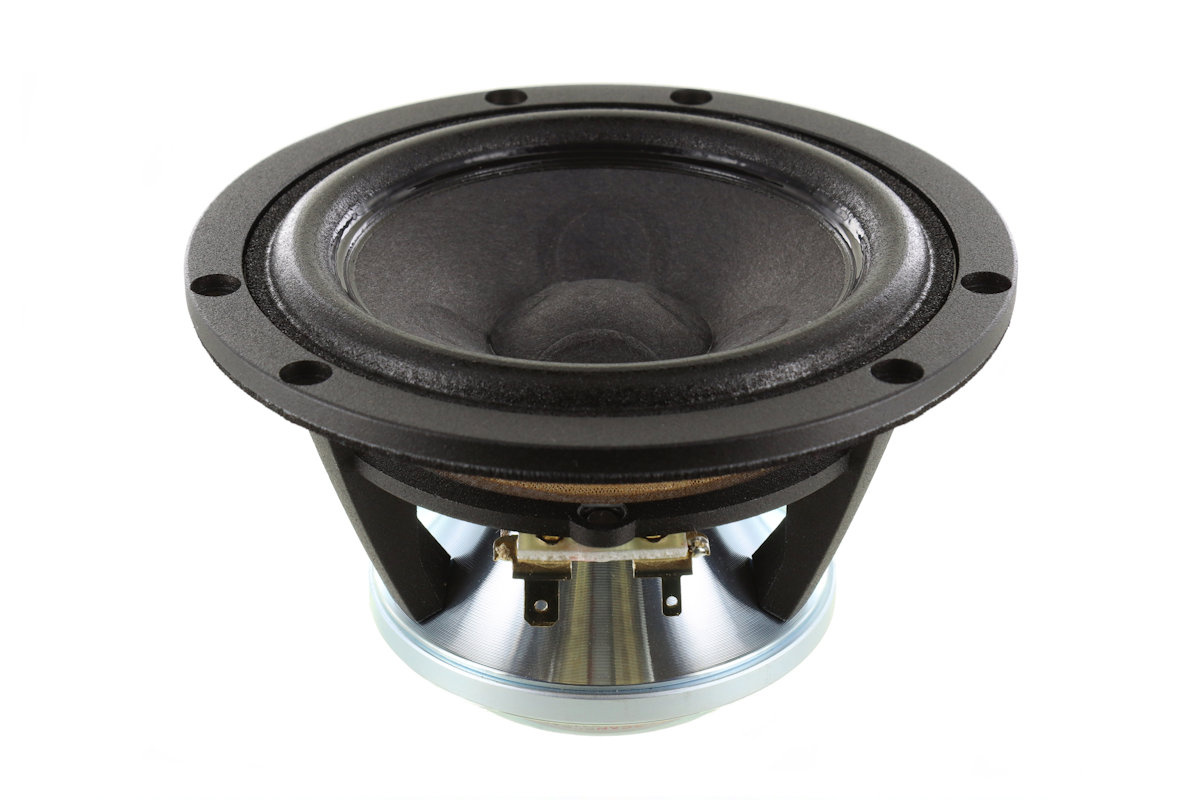

    Scan-Speak Illuminator 12MU/8731T00 4" Woofer

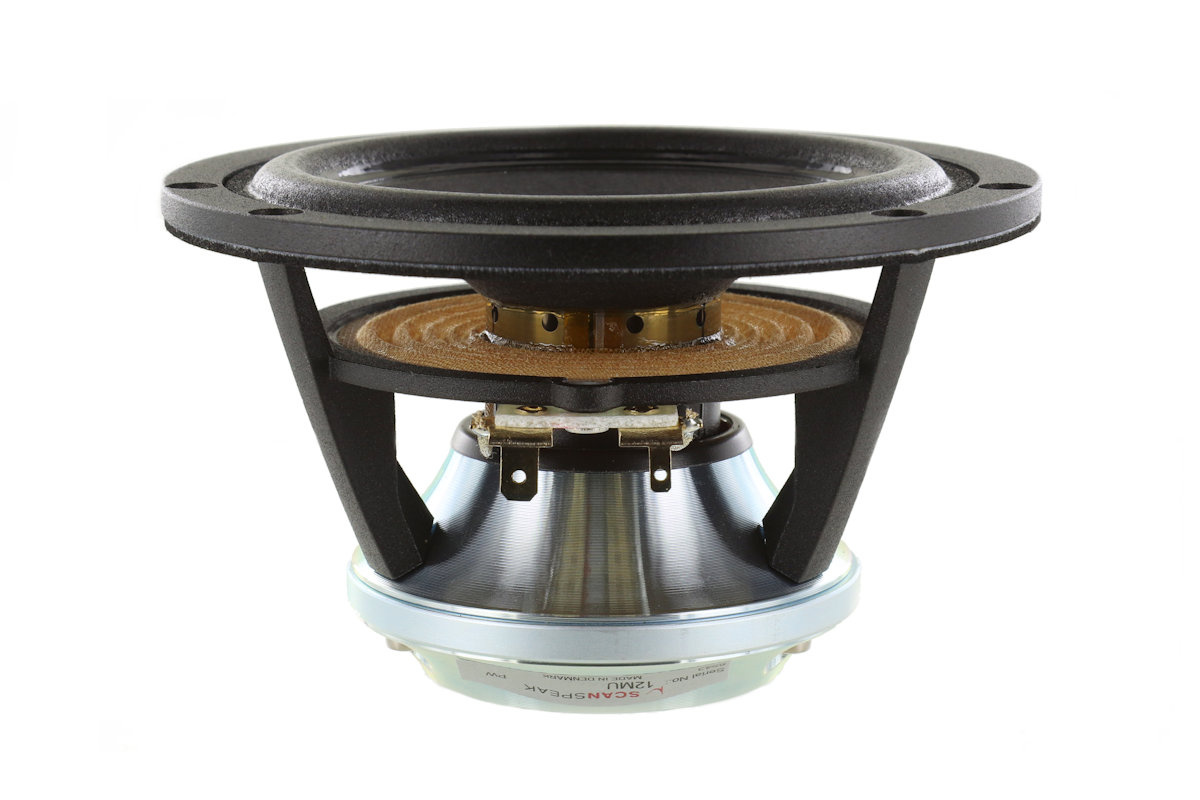

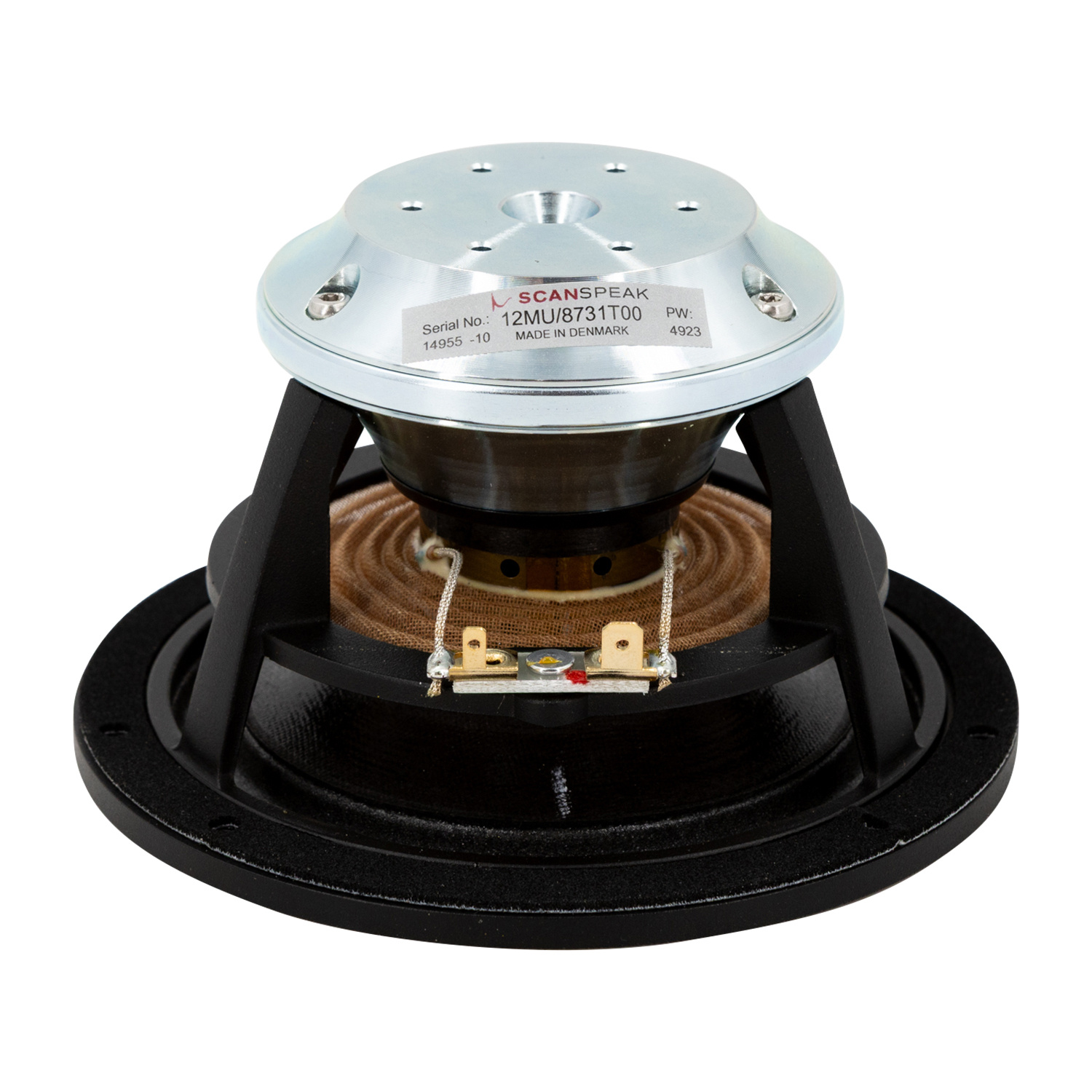

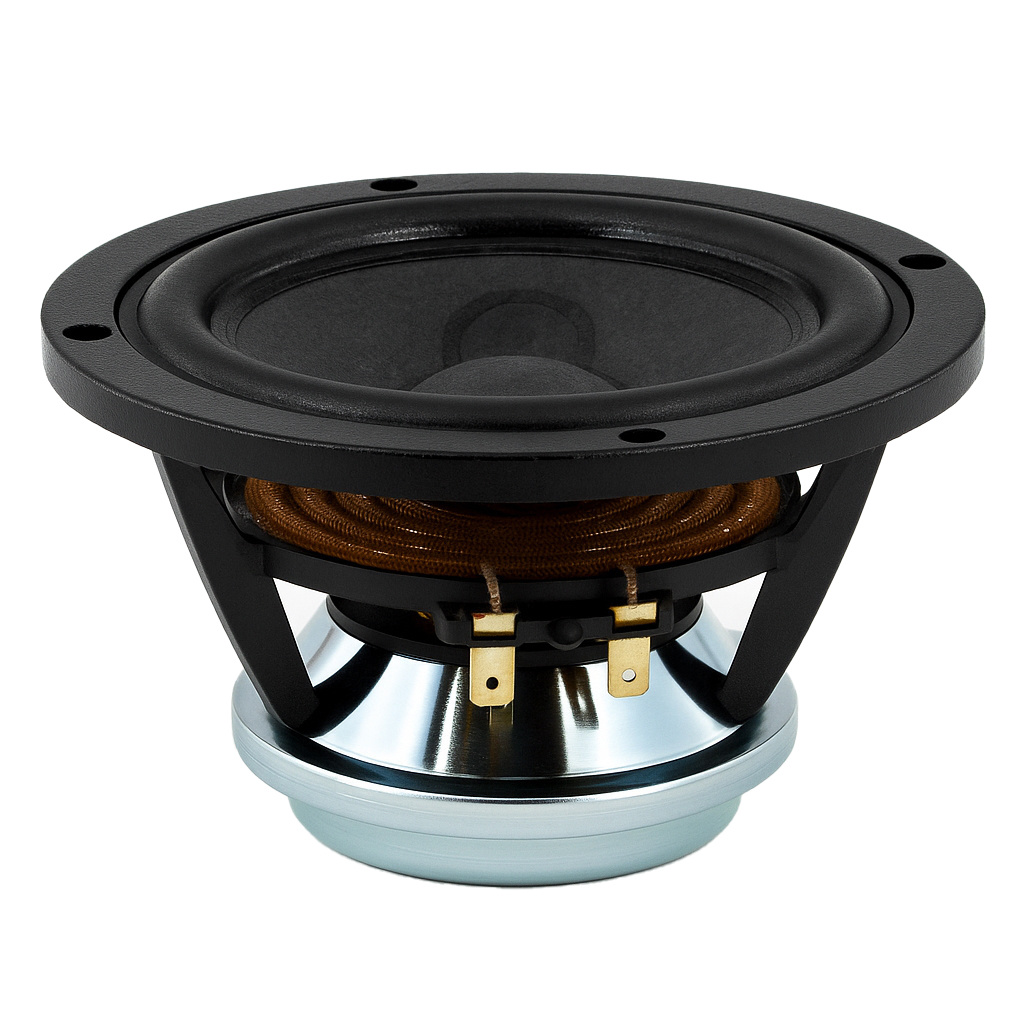

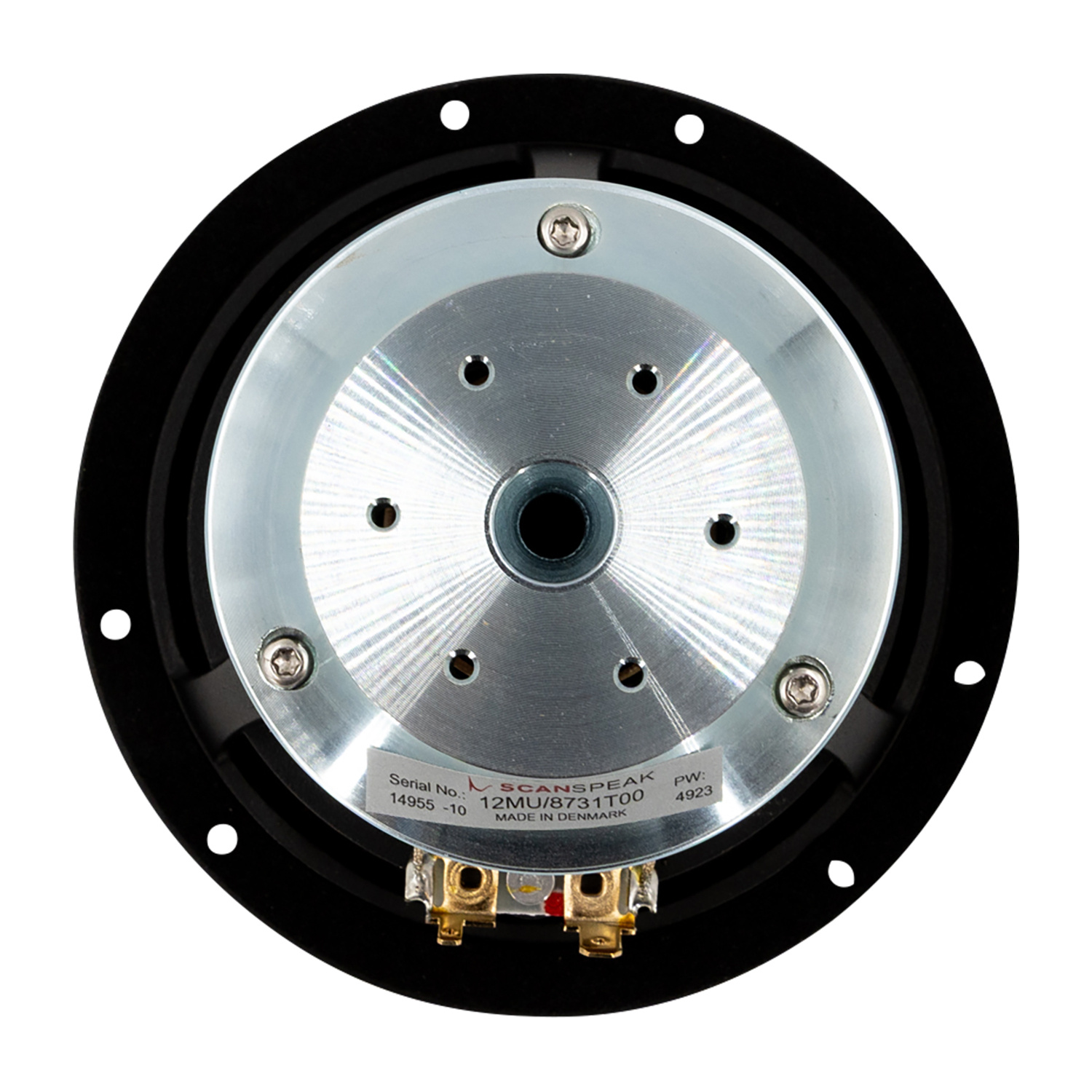

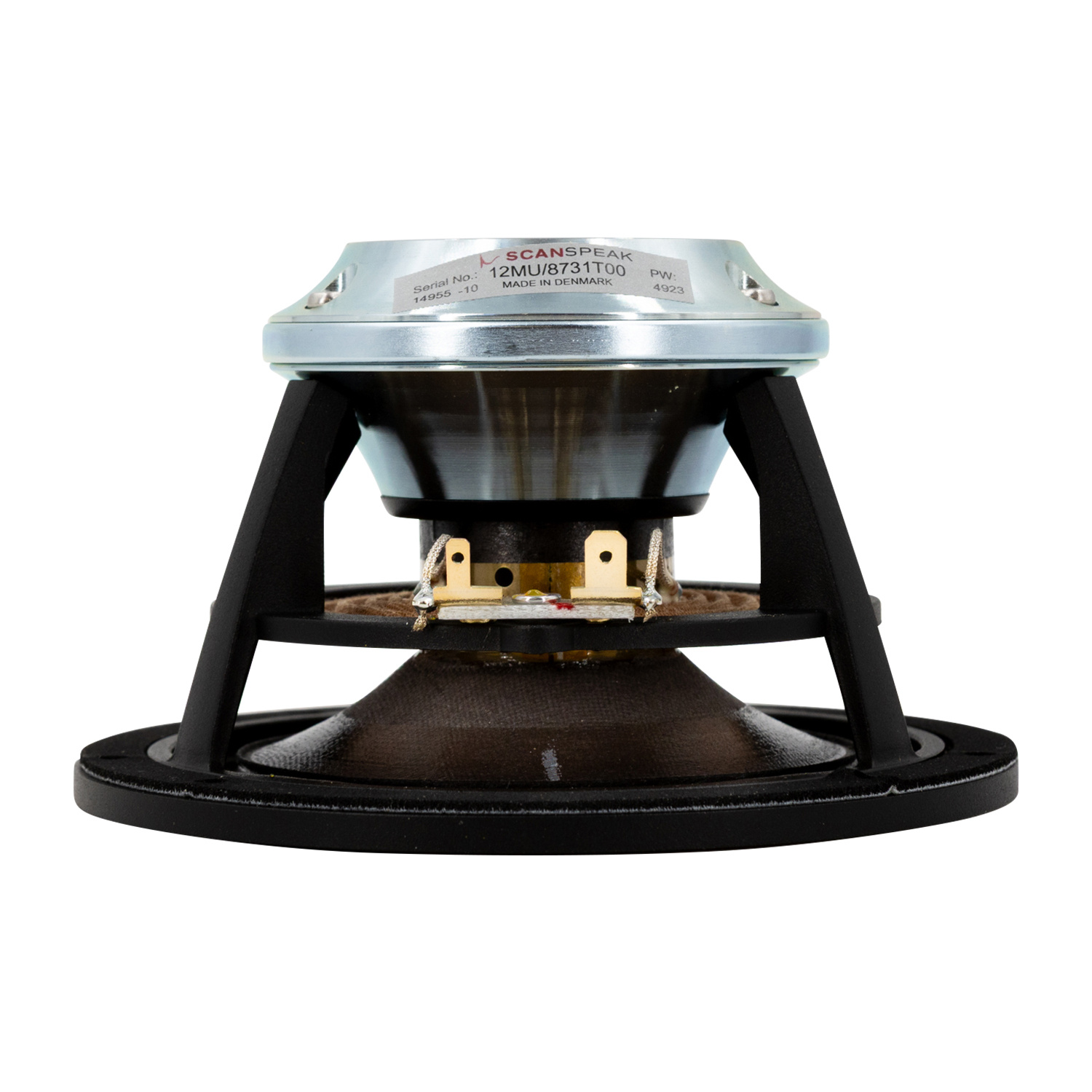

    The Illuminator woofers are based on compact under-hung motor systems with large neodymium ring magnets. The patent pending motor offers a very long linear excursion together with a very high force factor. The top plate is shaped to “guide” the backside airflow around the motor and with the very open cast aluminum chassis design the driver is virtually free from compression.



    The under-hung voice coil is precision wound with CCAW ribbon wire on a titanium bobbin for a low loss yet high power handling design. The vented pole piece has contoured openings to eliminate any hint of turbulence noise. The uniquely shaped top plate and open air frame ensure there is virtually no dynamic compression caused by restriction of the diaphragm back wave.

    Specificaties

    Artikelnummer
    12MU/8731T00
    Woofer Series
    Illuminator Series
    Woofer Type
    Illuminator
    Power Handling (RMS)
    80 Watts
    Power Handling (max)
    150 Watts
    Impedance
    8 ohms
    Sensitivity
    87.2 dB 2.83V/1m
    Voice Coil Diameter
    1.25"
    DC Resistance (Re)
    5.9 ohms
    Voice Coil Inductance (Le)
    1.25"
    Resonant Frequency (Fs)
    66 Hz
    Mechanical Q (Qms)
    3.63
    Electromagnetic Q (Qes)
    0.31
    Total Q (Qts)
    0.29
    Diaphragm Mass Inc. Airload (Mms)
    4.7g
    Mechanical Compliance of Suspension (Cms)
    1.24 mm/N
    Surface Area of Cone (Sd)
    58 cm2
    BL Product (BL)
    6.1 Tm
    Compliance Equivalent Volume (Vas)
    0.20 ft.³
    Maximum Linear Excursion (Xmax)
    3.4 mm

    Reviews

    5 from 5Based on 1 reviews
    Schrijf een review
    5 van 5
    Sehr guter Frequenzgang und minimale Verzerrungen. Ich bin begeistert. Einziger Wermutstropfen: man bekommt von Scan Speak außer dem Datenblatt keine Daten für die Simulation der Frequenzweiche. Das muss man selbst messen.
    Door Wolfgang E. on 7 Mei 2020
