    Scan-Speak Revelator 12M/4631G00 4" Woofer

    € 259,95 2 Op voorraad: levertijd 1 werkdag
    The Revelator 12M-4631G00 midrange is well known for its sliced paper cone technology. The slices are filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combination with Scan-Speaks low-loss linear suspension it repre... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €246,95 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Highlights

    • Excellent Midrange reproduction
    • Low-Loss Linear Suspension
    • Compact Neodymium Magnet System
    • Sliced Cone (Controls Cone Breakups)
    • High Output 89dB @ 2,83V



    Product details

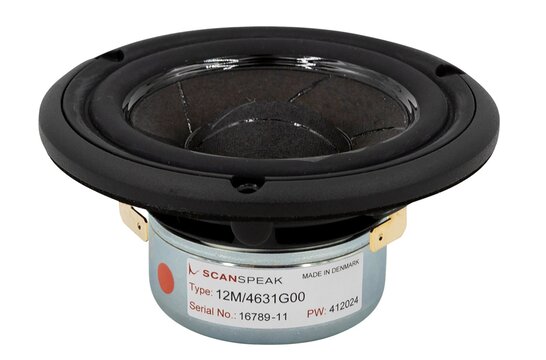

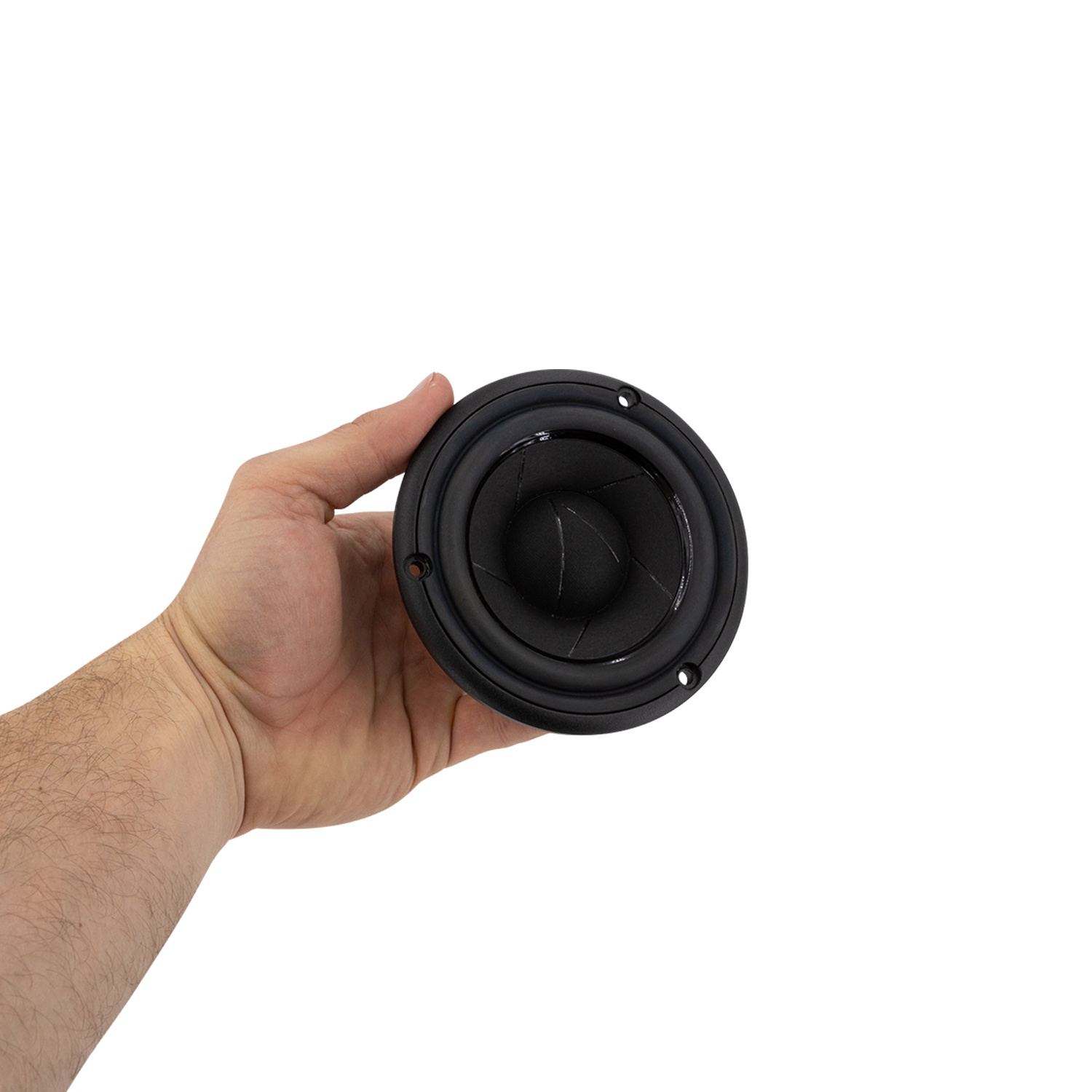

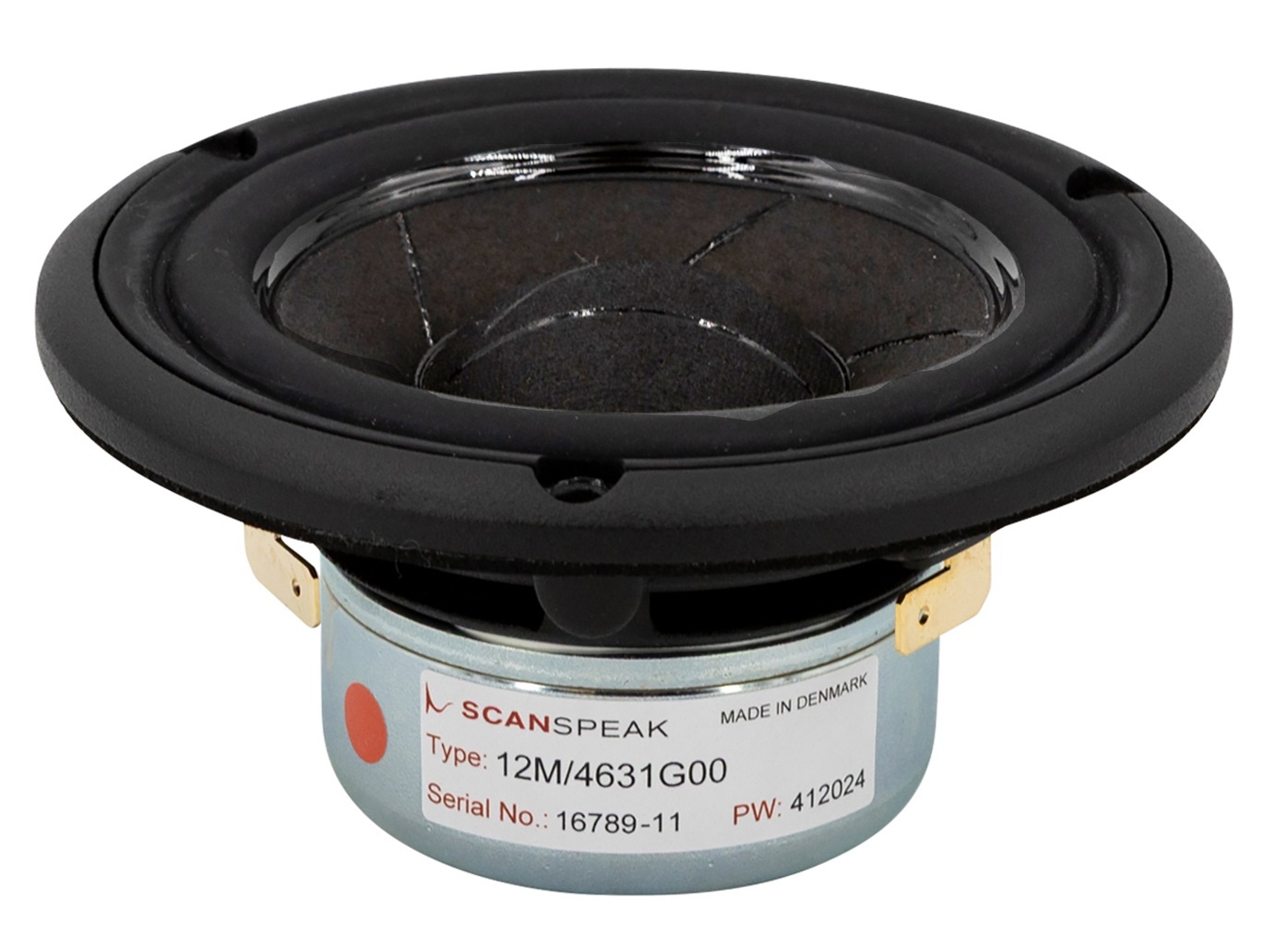

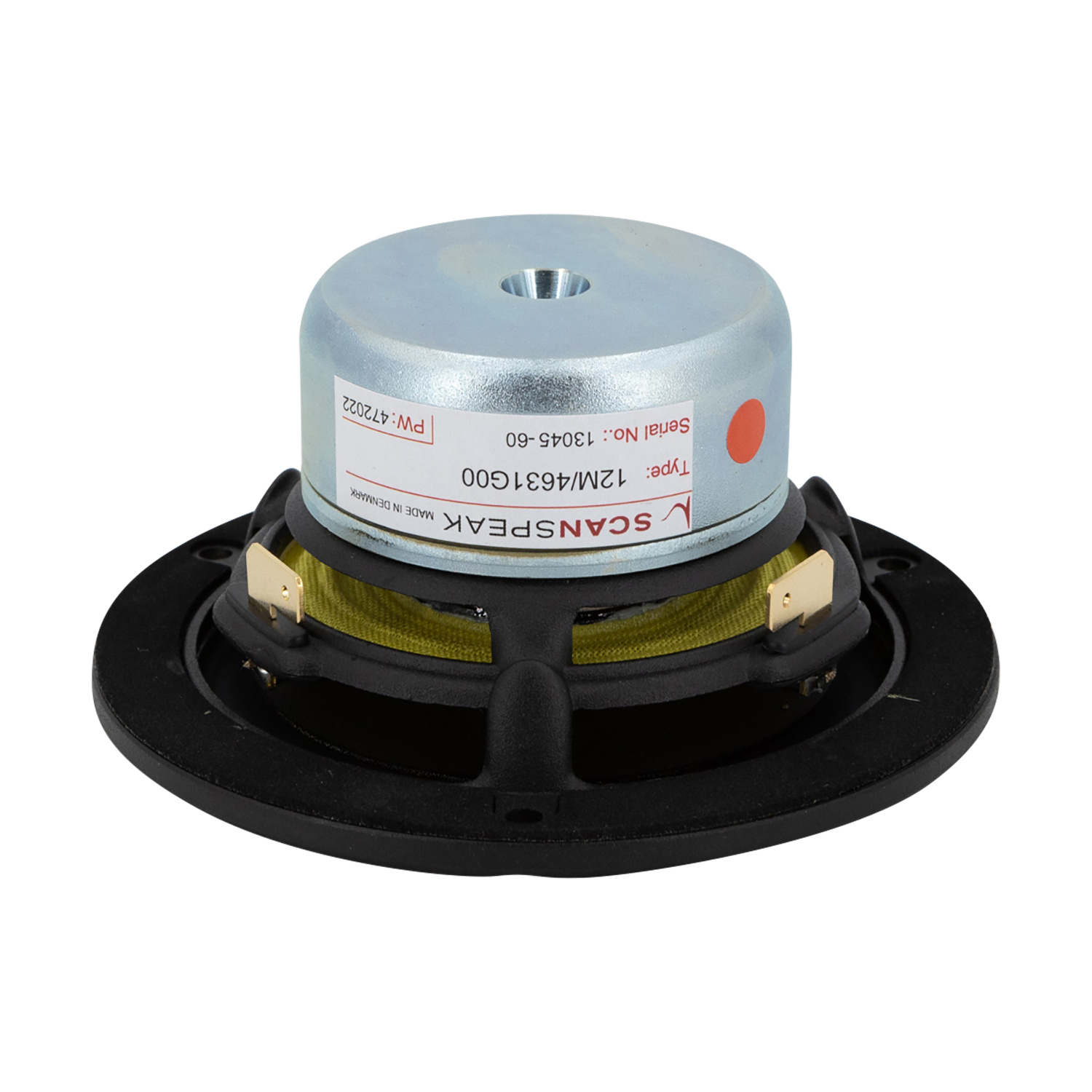

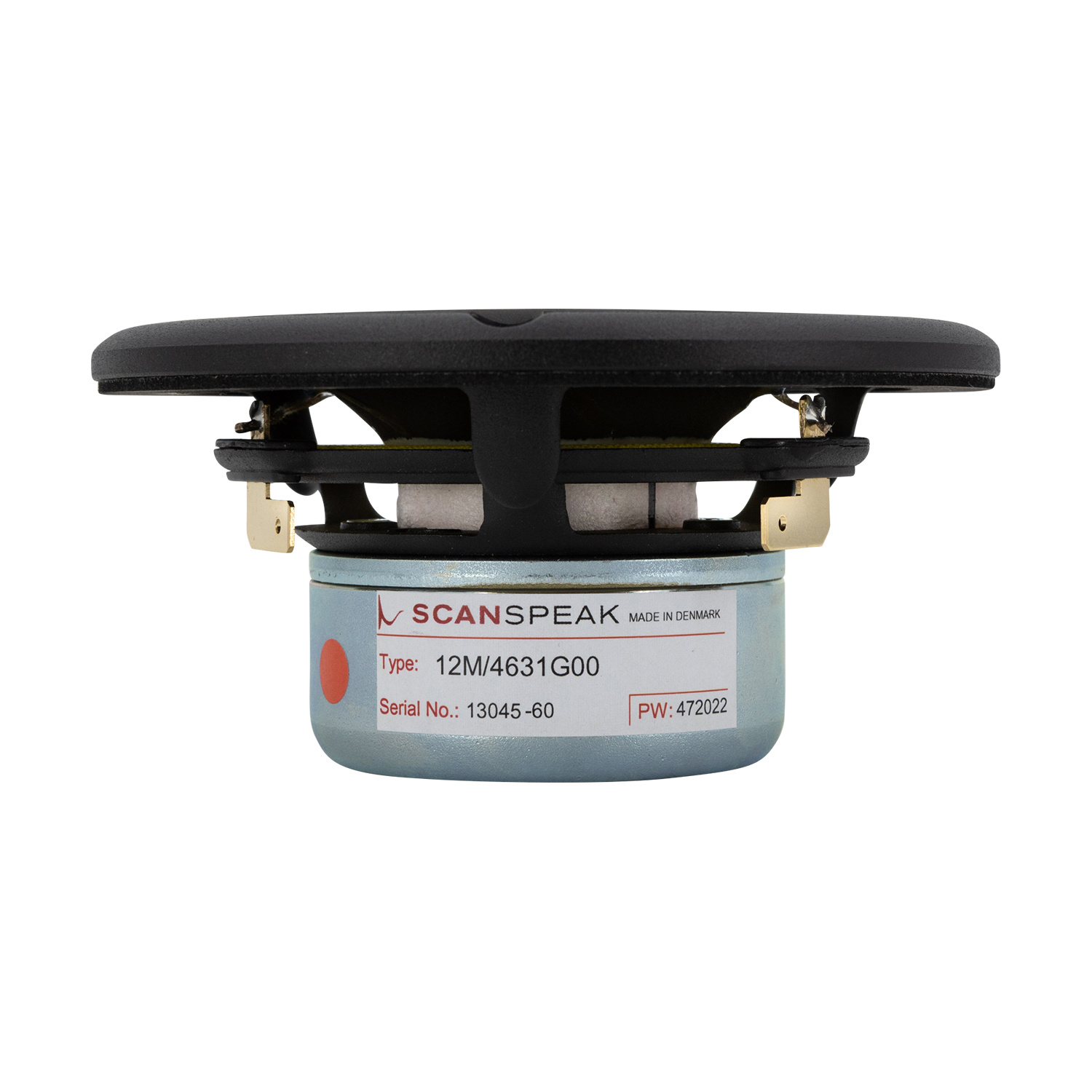

    Scan-Speak Revelator 12M/4631G00 4" Woofer



    The Revelator 12M-4631G00 midrange is well known for its sliced paper cone technology. The slices are filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combination with Scan-Speaks low-loss linear suspension it represented a breakthrough in midrange clarity and overall smooth frequency response characteristics.  A neodymium magnet has been chosen to reduce the depth yet increase the magnetic energy. The short field length of a neodymium magnet also allows this driver to by used for A/V.

    Specificaties

    Artikelnummer
    12M/4631G00
    Woofer Series
    Revelator Series
    Nominal Diameter
    4"
    Power Handling (RMS)
    40 Watts
    Impedance
    4 ohms
    Sensitivity
    89 dB 2.83V/1m
    Voice Coil Diameter
    1.49"
    DC Resistance (Re)
    3.2 ohms
    Voice Coil Inductance (Le)
    0.22 mH
    Resonant Frequency (Fs)
    75 Hz
    Mechanical Q (Qms)
    5.57
    Electromagnetic Q (Qes)
    0.35
    Total Q (Qts)
    0.33
    Diaphragm Mass Inc. Airload (Mms)
    6.5g
    Mechanical Compliance of Suspension (Cms)
    0.69 mm/N
    Surface Area of Cone (Sd)
    49 cm2
    BL Product (BL)
    5.3 Tm
    Compliance Equivalent Volume (Vas)
    0.08 ft.³
    Maximum Linear Excursion (Xmax)
    3 mm
