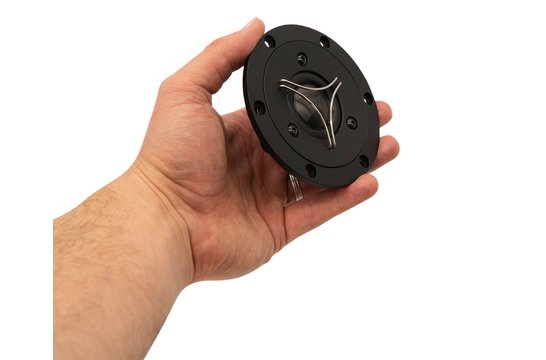

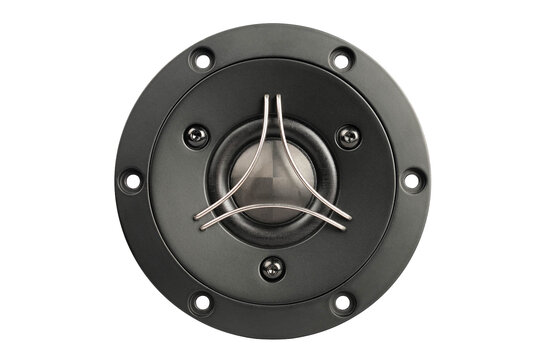

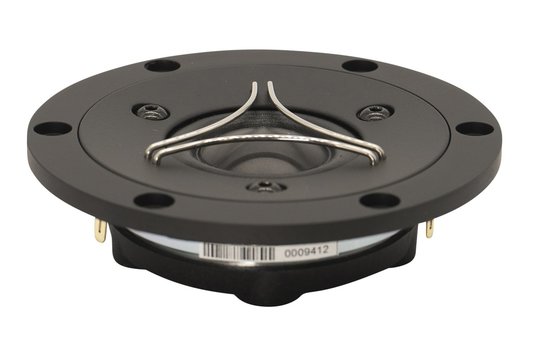

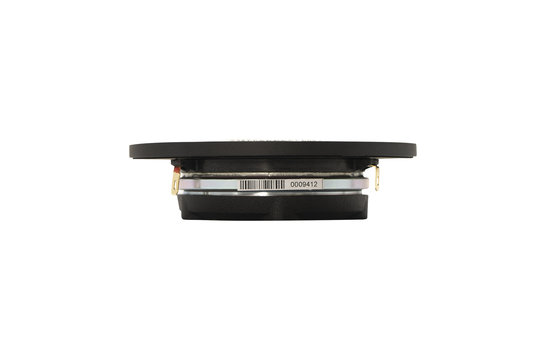

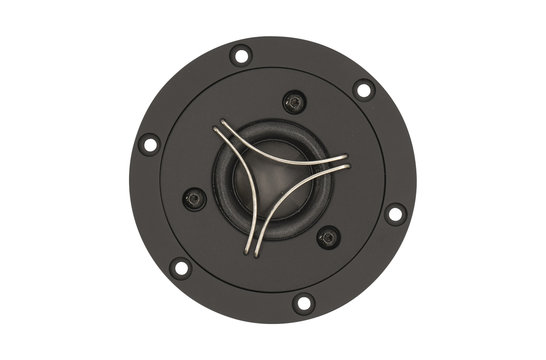

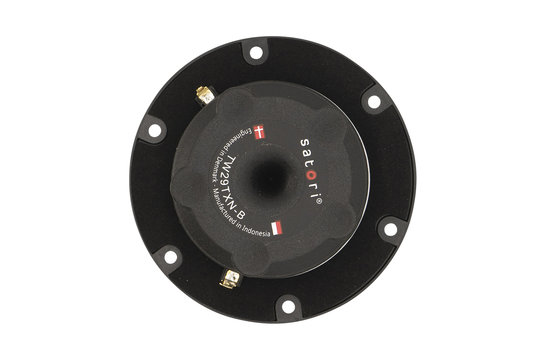

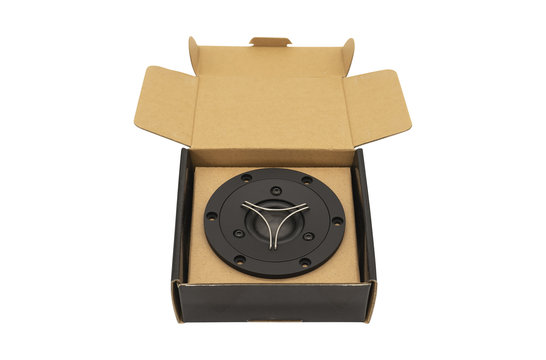

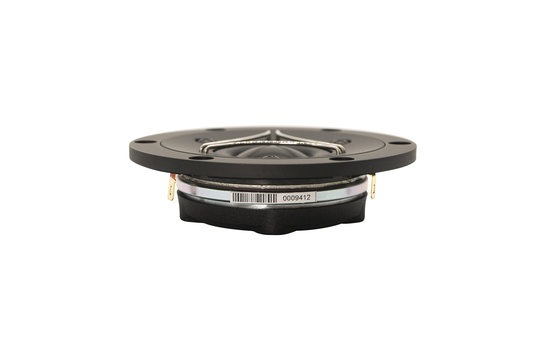

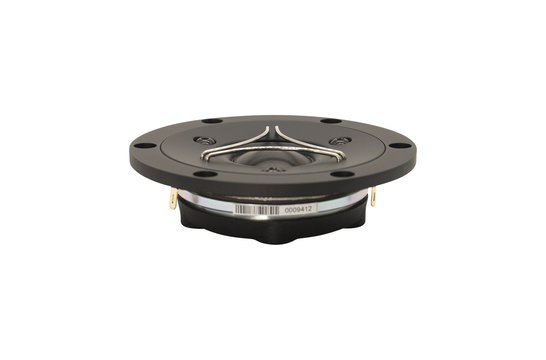

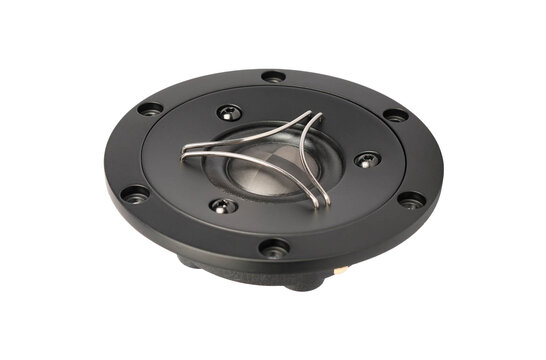

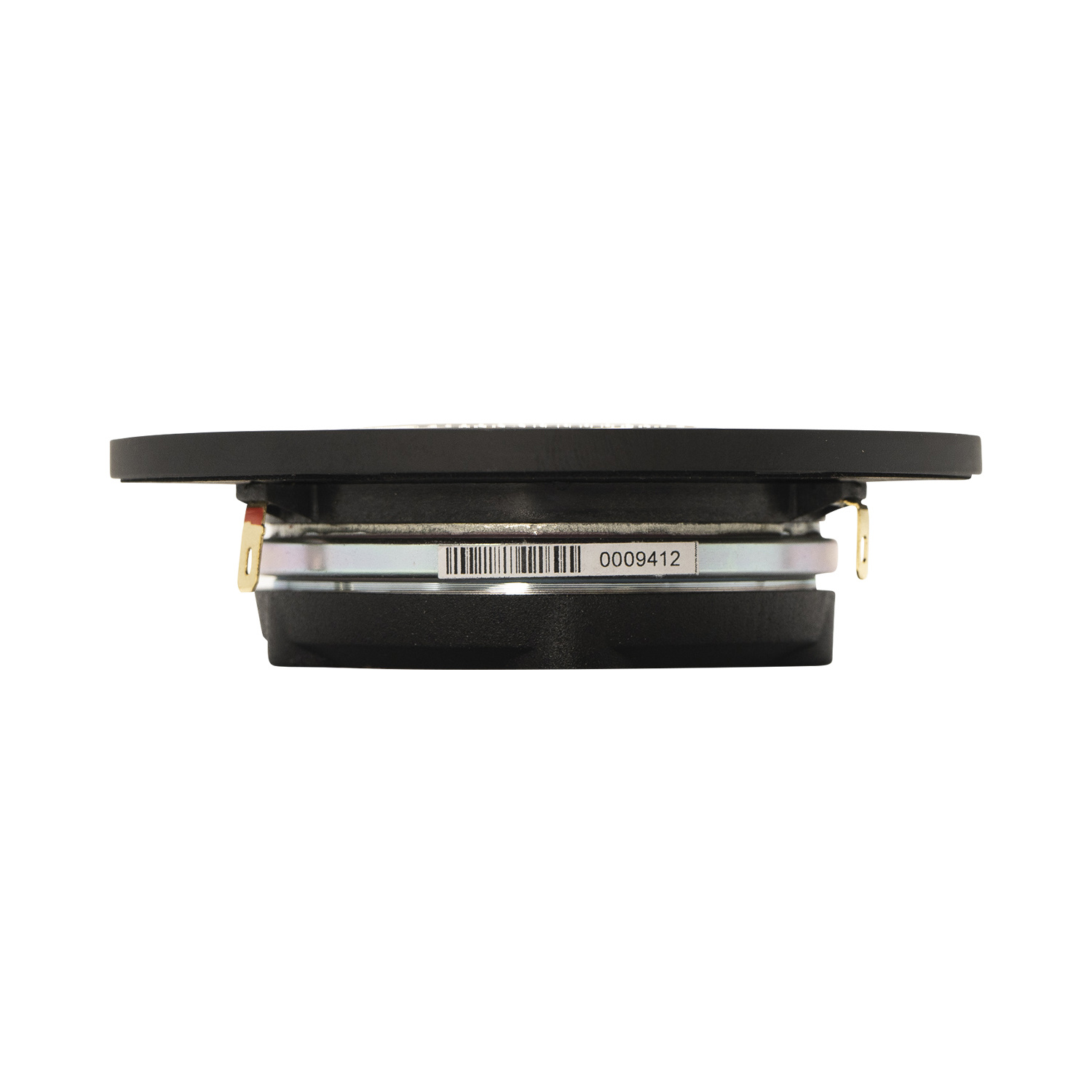

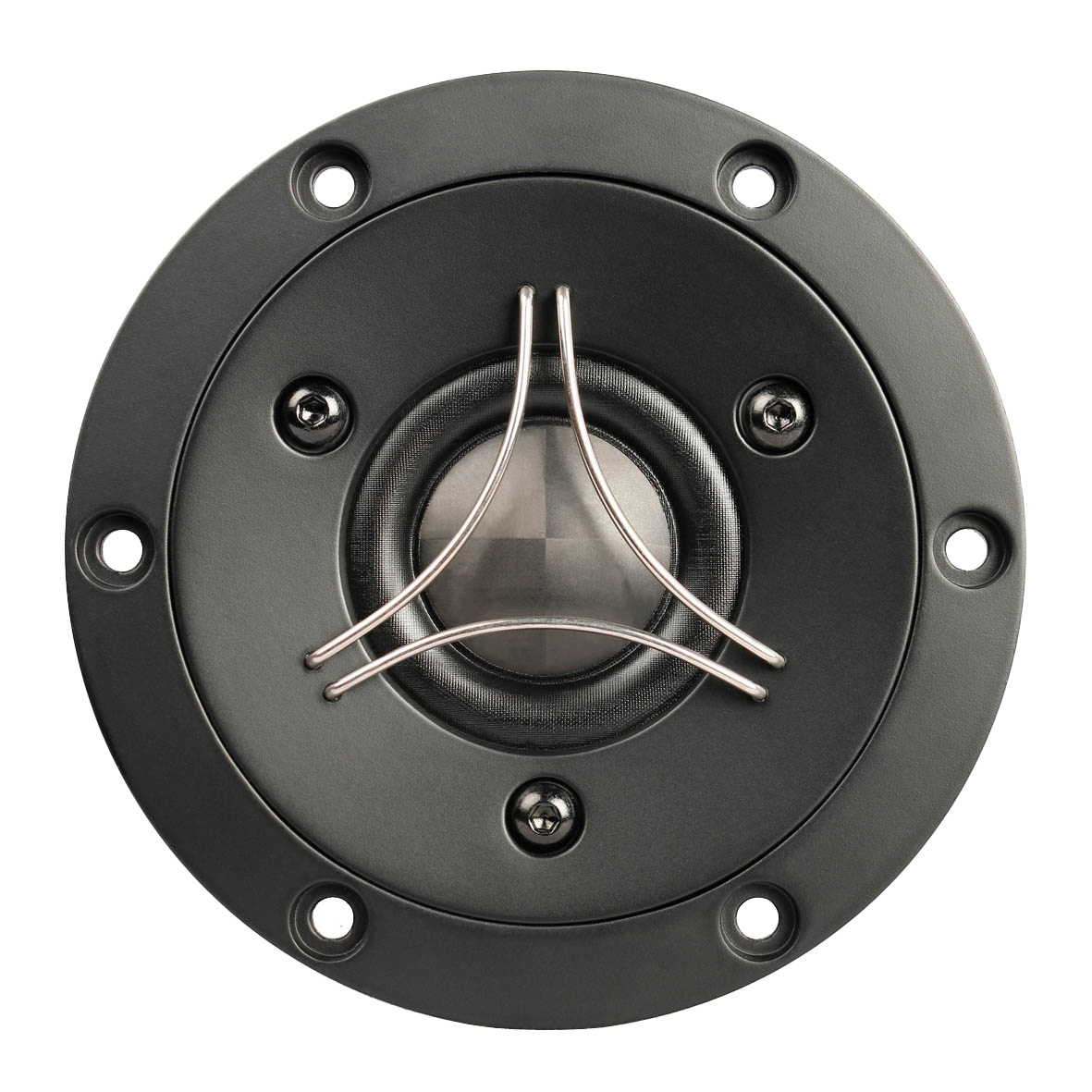

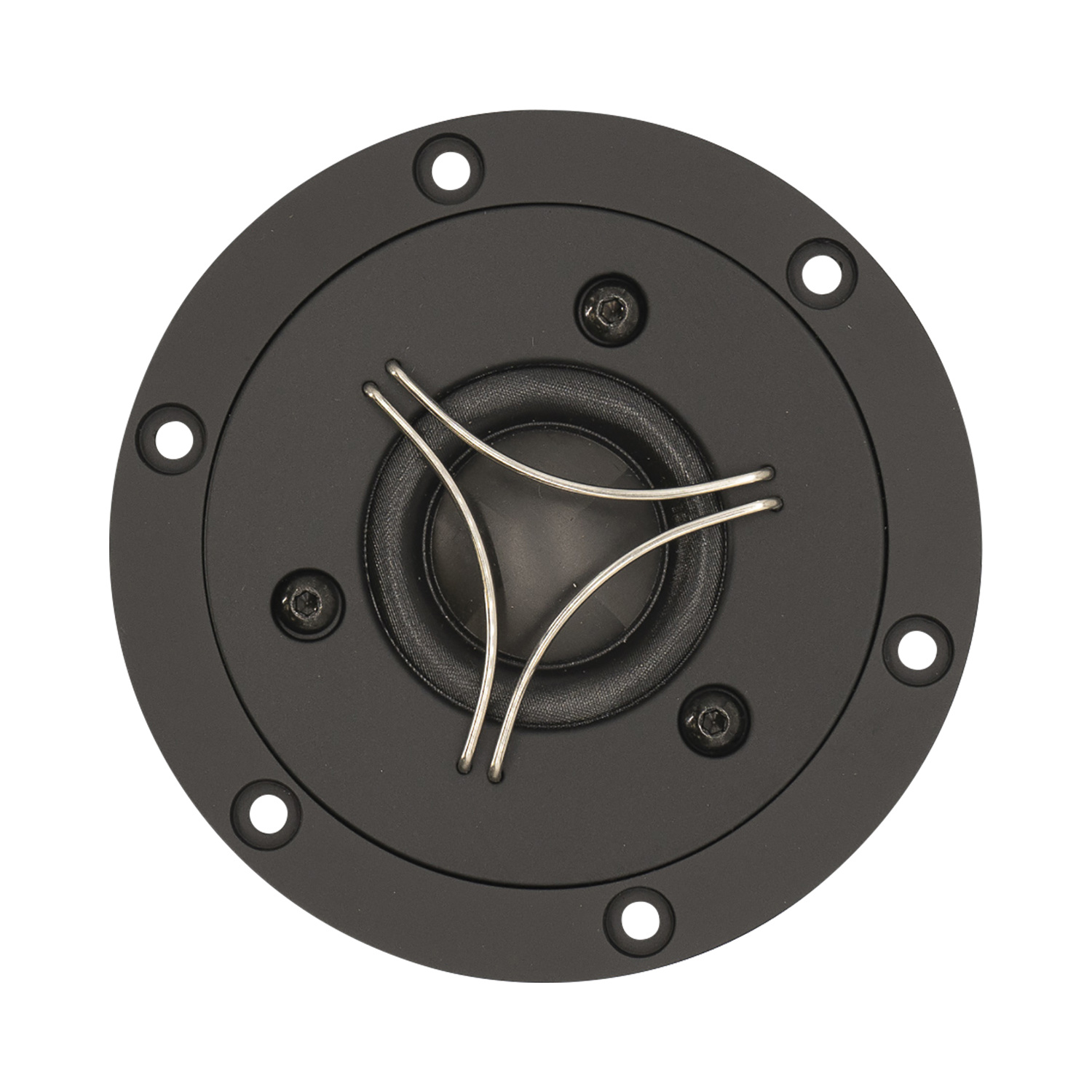

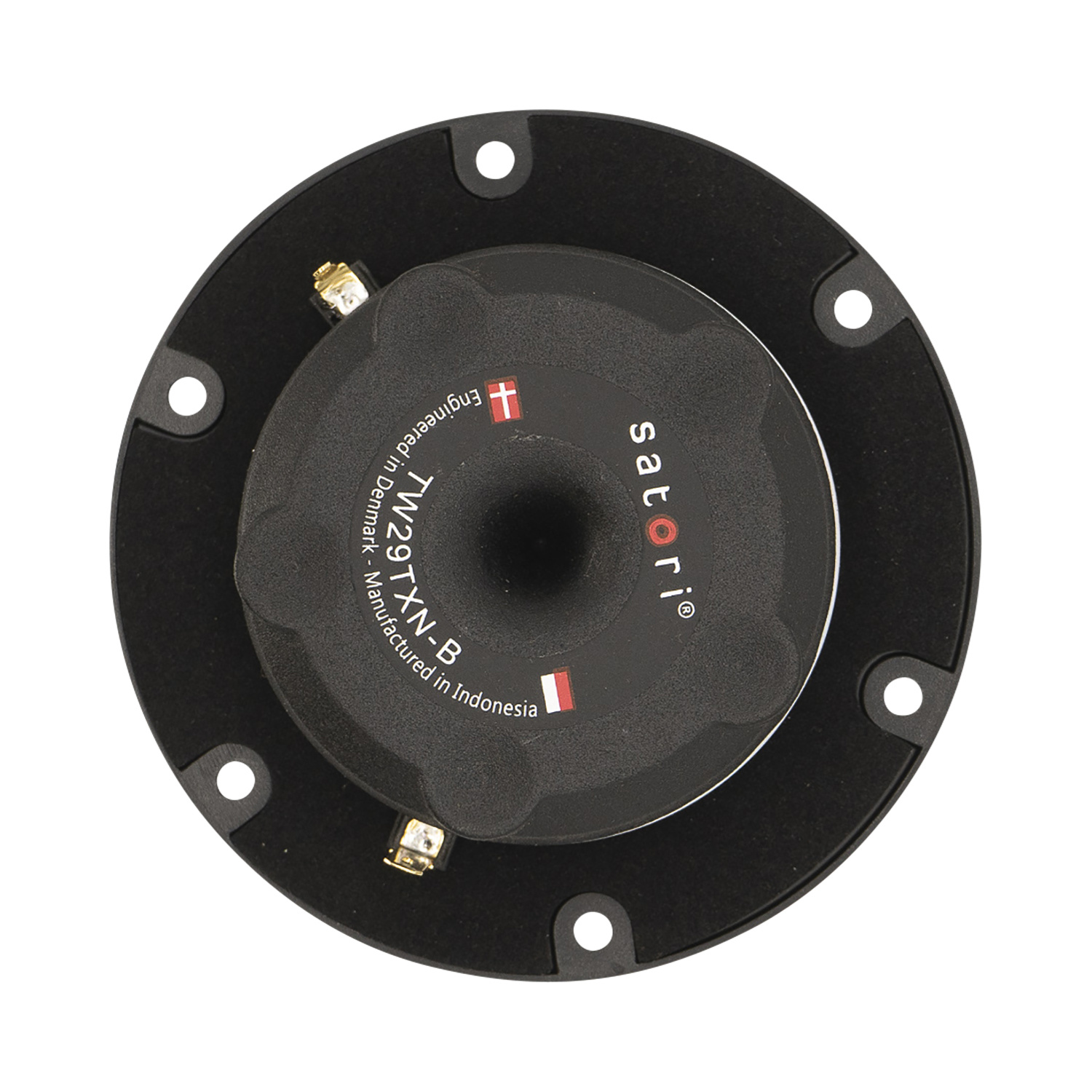

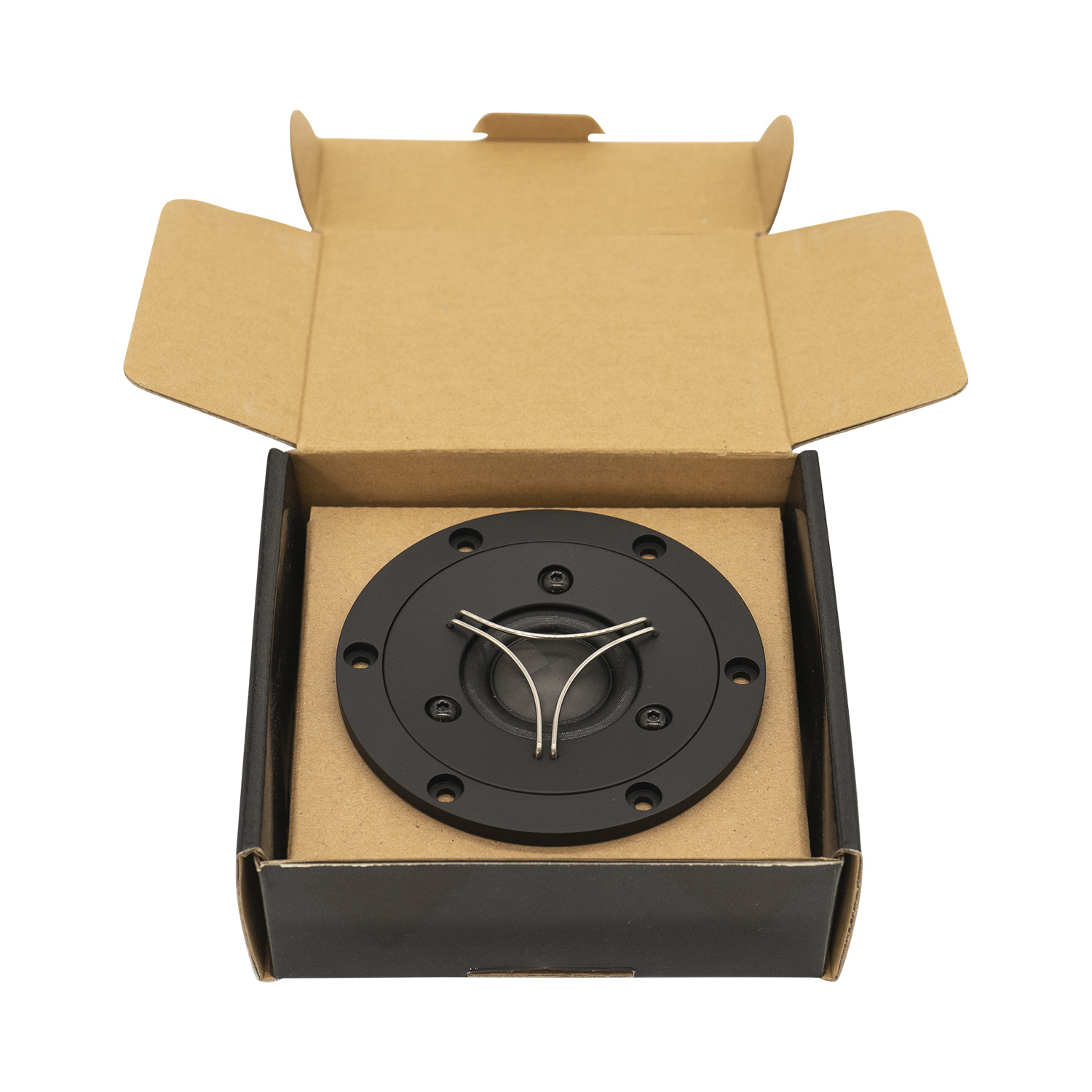

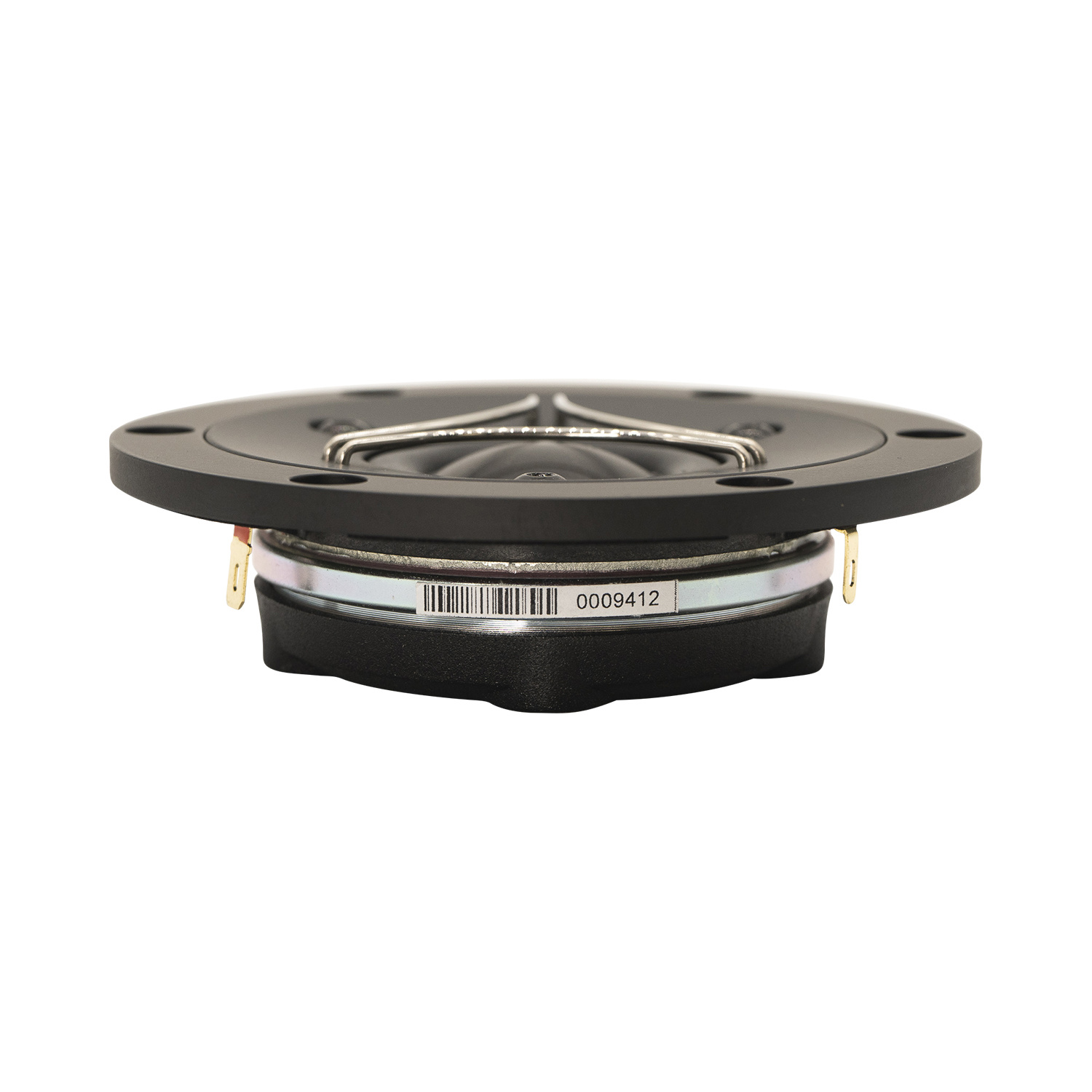

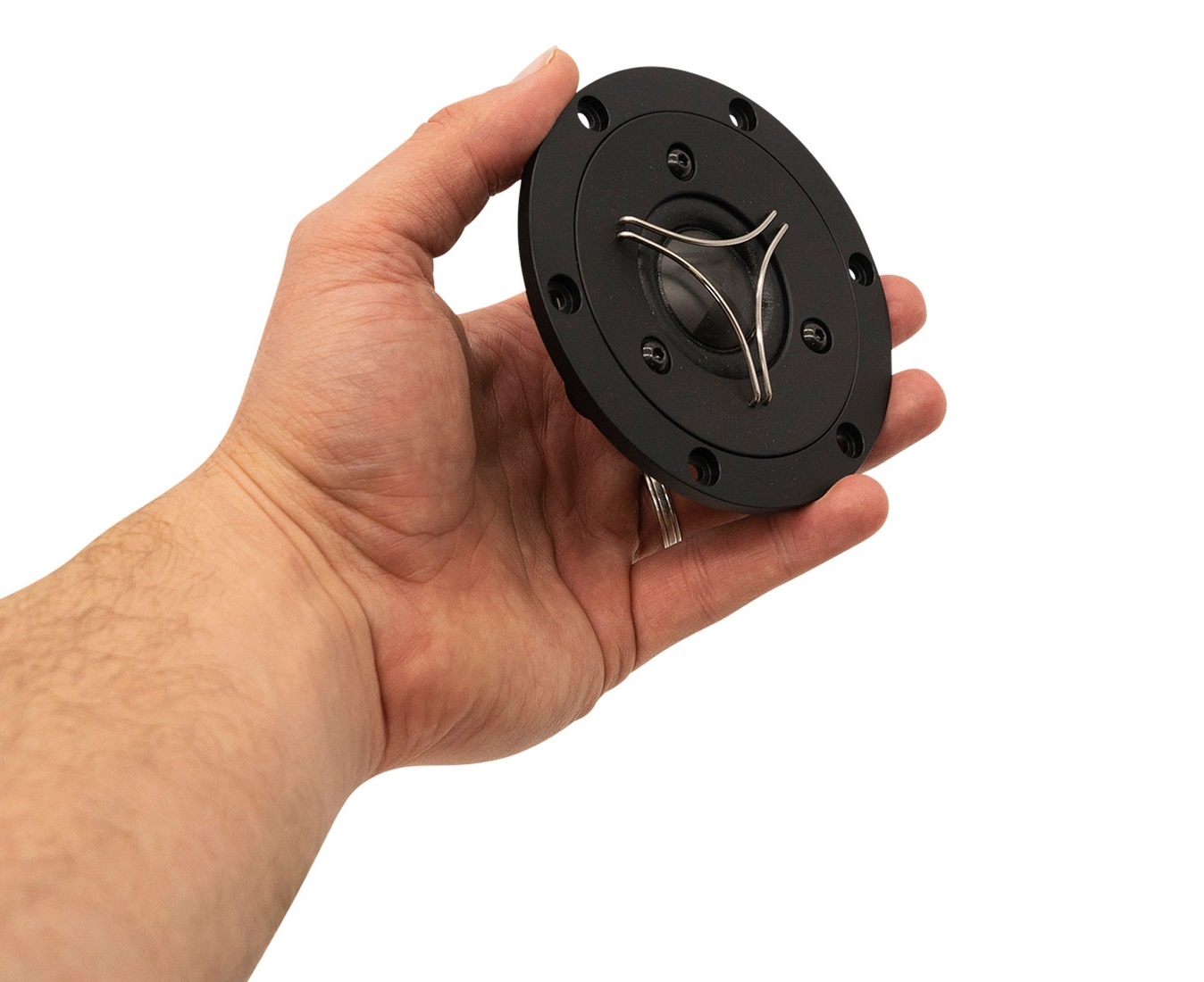

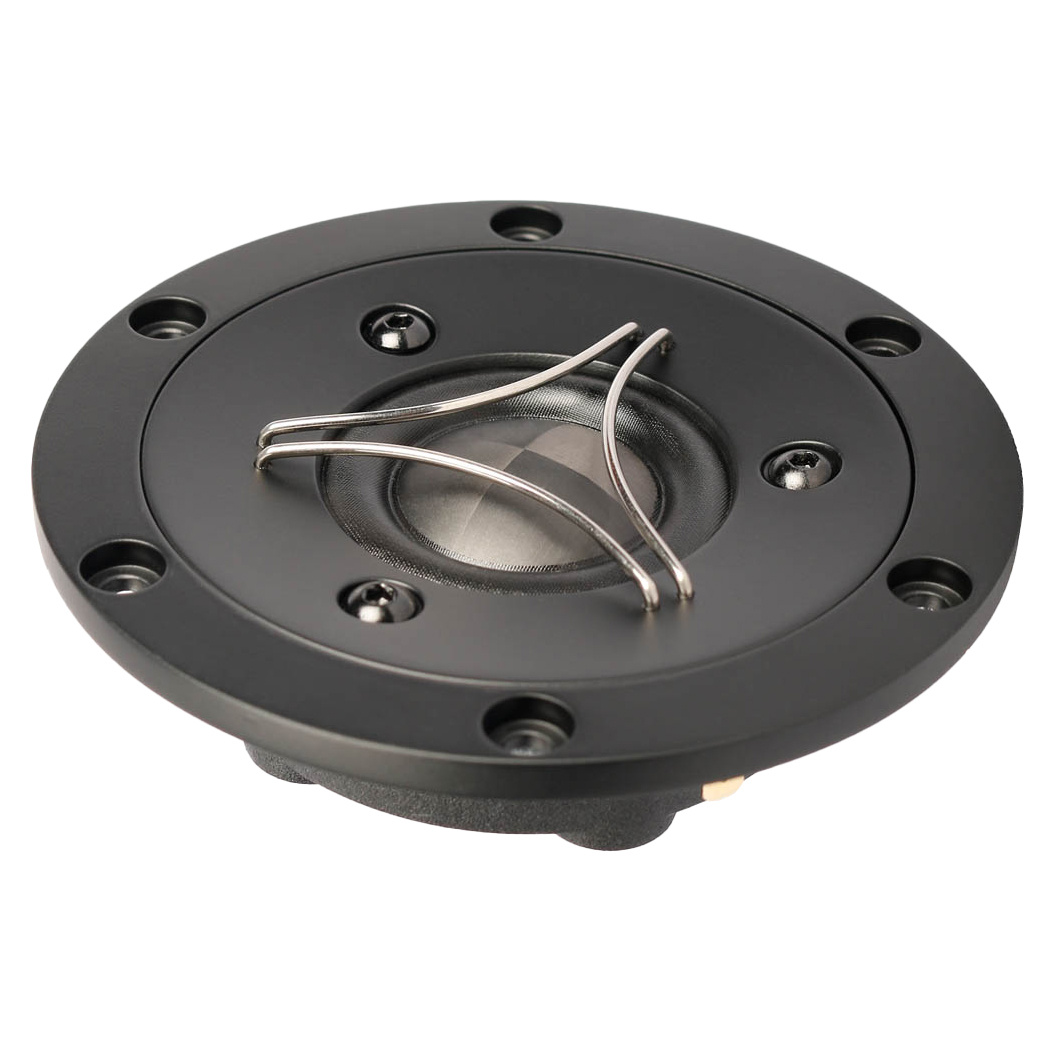

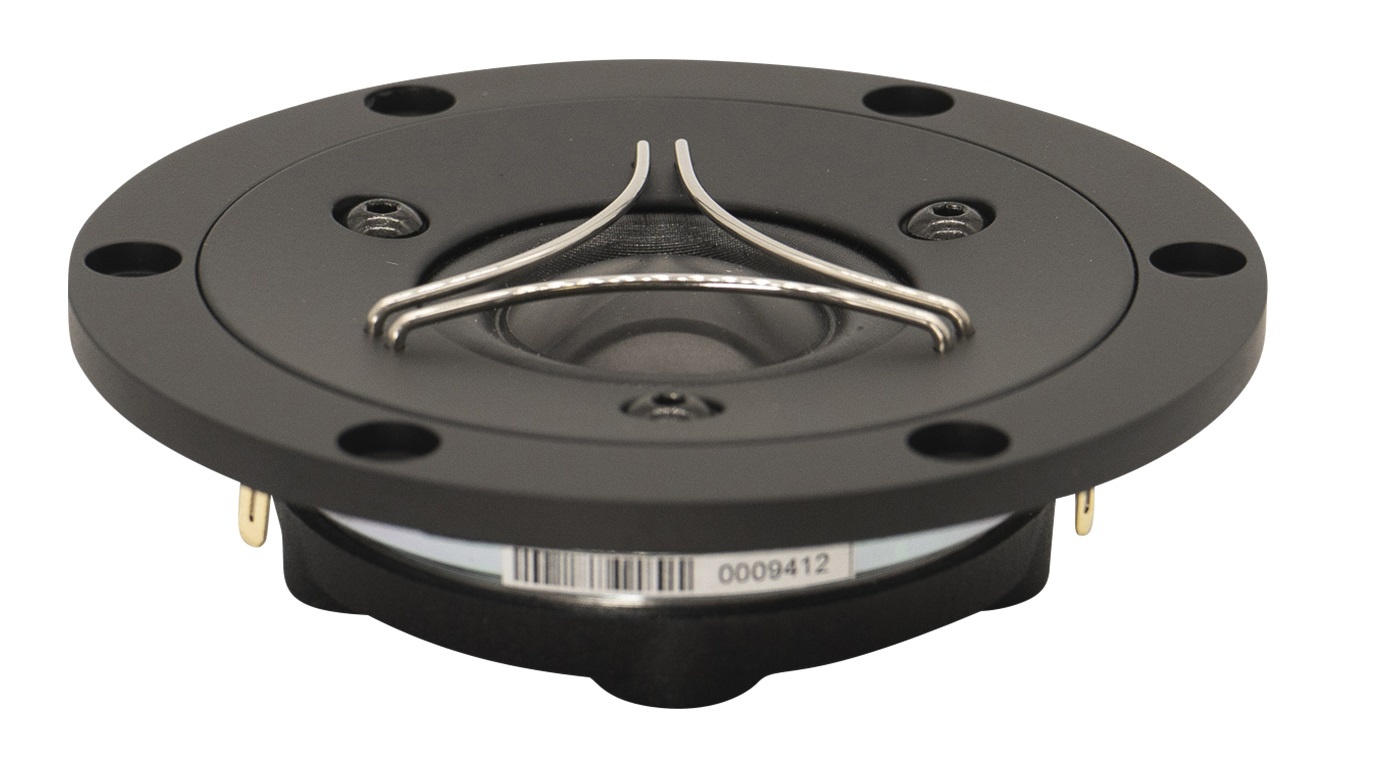

      SB Acoustics SATORI TW29TXN-B TeXtreme DomeTweeter

      € 214,83€ 259,95 4 Op voorraad
      • -5% Bestelling 4 voor slechts € 246,95 per stuk

      Buy now, pay later

      • Gratis verzonden (NL & BE)
      • Voor 16u besteld, vandaag verstuurd
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Zakelijke offerteaanvraag
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      Highlights

      • Advanced TeXtreme dome
      • Two part alumimium faceplate with integrated mechanical decoupling
      • Dual balanced compression chambers for improved dynamics
      • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
      • High saturation neodymium motor system with T-shaped pole piece for lower distortion
      • Non-reflective cast aluminium chamber with optimized damping for improved dynamics
      • Shallow flow optimized magnet structure for optimum coupling tot rear chamber
      • CCAW voice coil for low moving mass
      • Long life silver lead wires
      • Low resonance frequency for extended range



      Product details

      SB Acoustics SATORI TW29TXN-B TeXtreme Dome Tweeter



      TeXtreme is a special carbon fiber material, that uses Spread Tow technology to create extremely thin laminar carbon fiber tapes. This minimizes the weight of the material without sacrificing strength. The use of TeXtreme as a dome material allows for a very stiff and lightweight dome. Combined with a copper coated aluminium wire voice coil makes this a smaller moving mass. The added benefit of the Textreme material is its strength to weight ratio. Allowing for a efficient driver that doesn’t distort easily because it maintains optimum pistonic motion for longer.



      But new fancy materials mean nothing if they are not combined with a quality design. Which SB-acoustic offers with its SATORI line of product. Creating a unique low-distortion high efficiency driver.

      Toon meer

      Specificaties

      Artikelnummer
      TW29TXN-B
      Tweeter type
      Dome
      Tweeter serie
      SATORI
      Cone / Dome Diameter
      25 mm | 1"
      Belastbaarheid (RMS)
      80 Watts
      Impedantie (Z)
      4 Ω
      Gevoeligheid
      96 dB(2.83V/1m)
      Resonantiefrequentie (Fs)
      650 Hz
      Gelijstroomweerstand (Re)
      3.0 Ohms
      Mechanische Q (Qms)
      1.62
      Electromagnetic Q (Qes)
      0.65
      Totale Q (Qts)
      0.46

      Toon meer

      Reviews

      5 from 5Based on 2 reviews
      Schrijf een review
      5 van 5

      I haven't had time to test them yet, but I assume they are as good as their reputation - especially the caviar cone and it's stratospherical properties.

      • +Expectation enhancing
      • -Cannot replace constructor experience
      • -Also, does not have magical properties
      Door Aila Woudiver on 25 Februari 2022
      5 van 5
      Brilliant tweeters. Smooth, silky, transparent, detailed. All tweeters should be at least as good as this. Most are not.
      Door Master Kenjit on 19 December 2020
