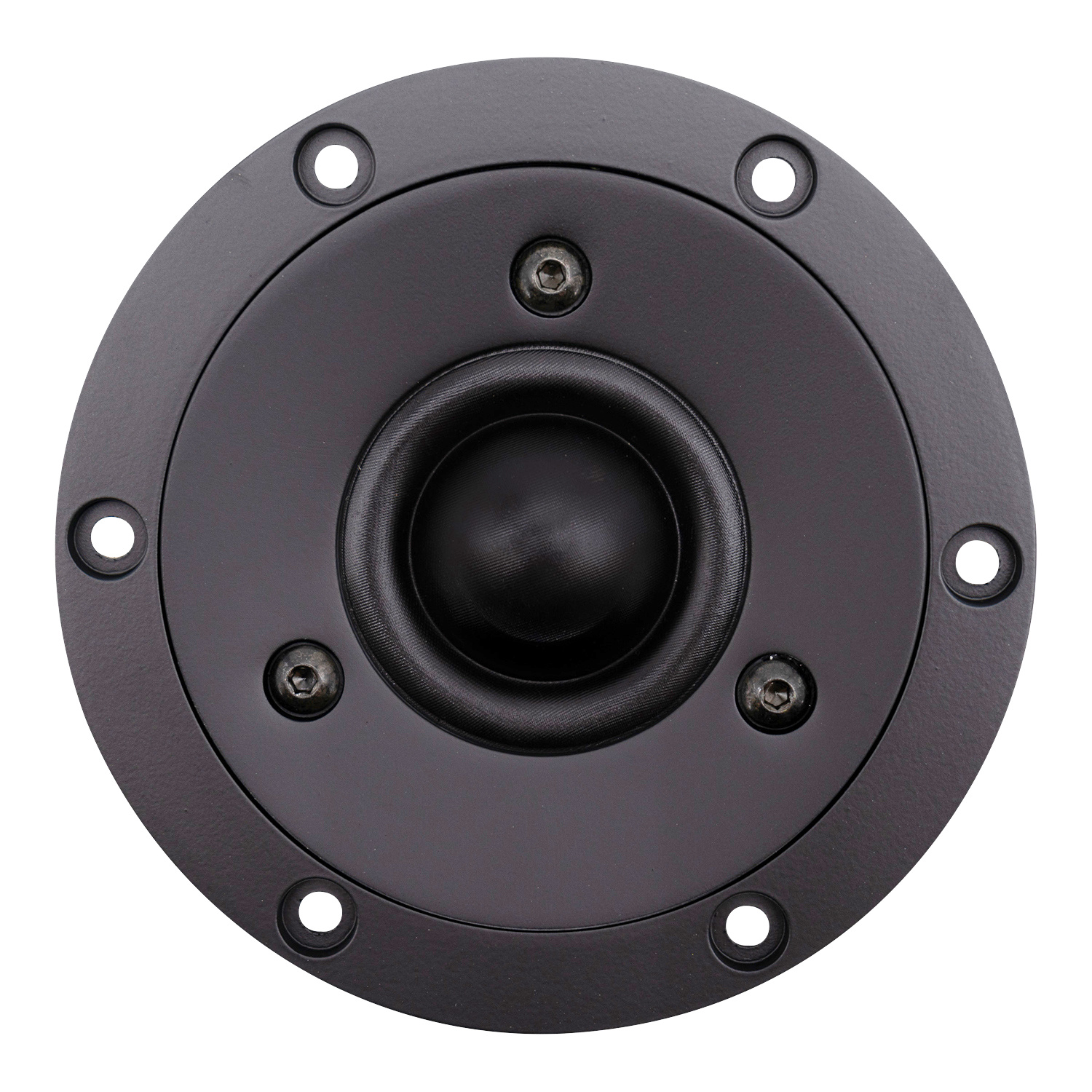

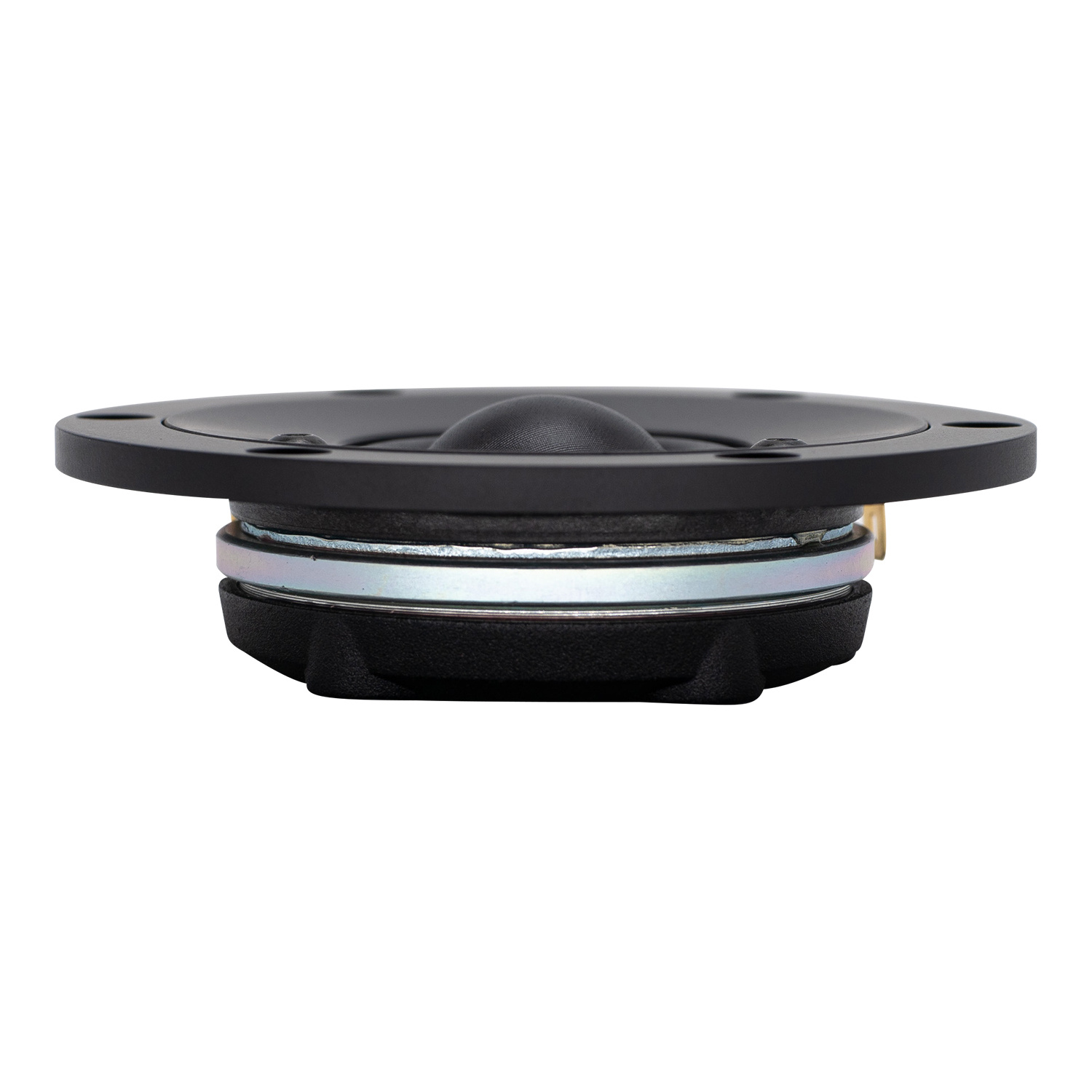

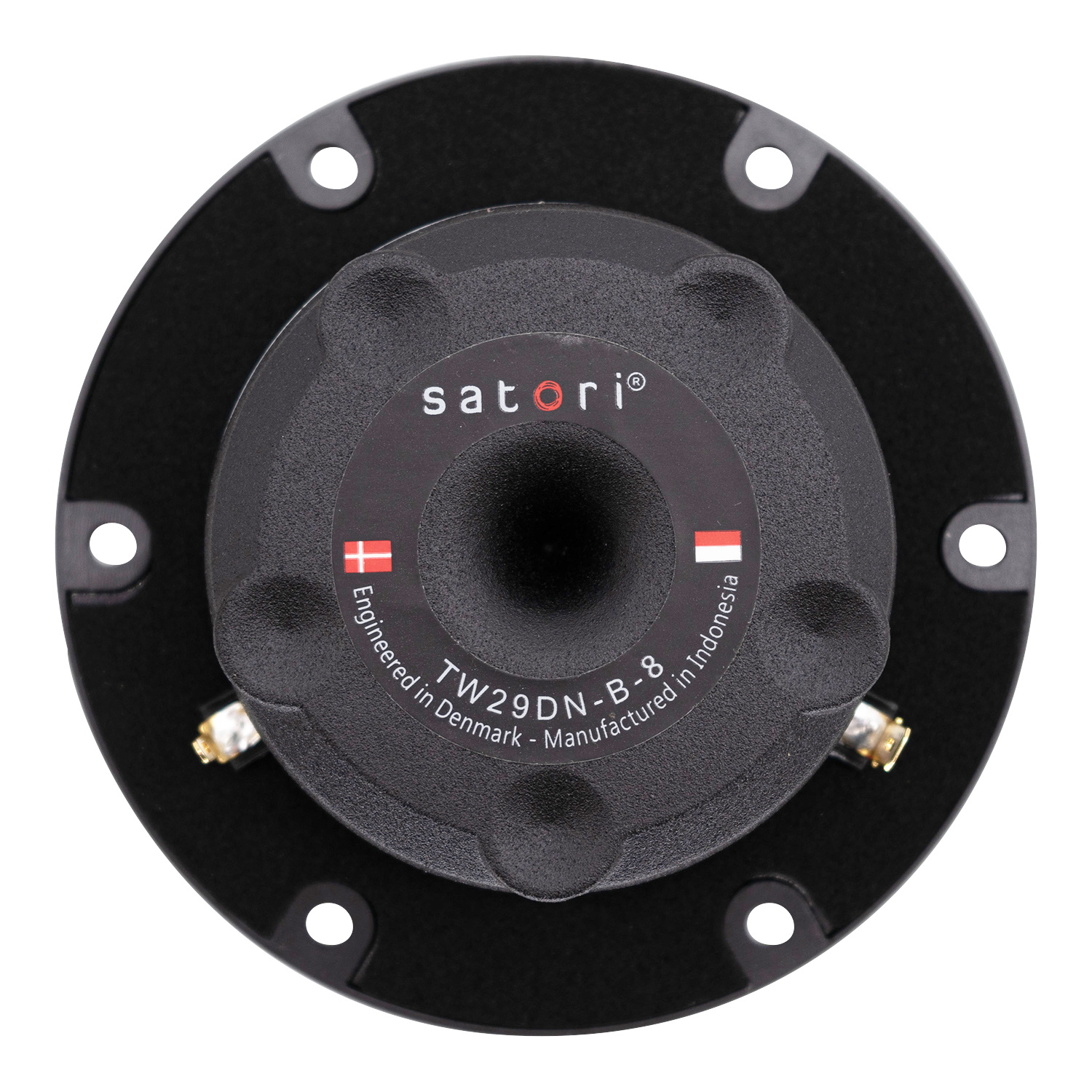

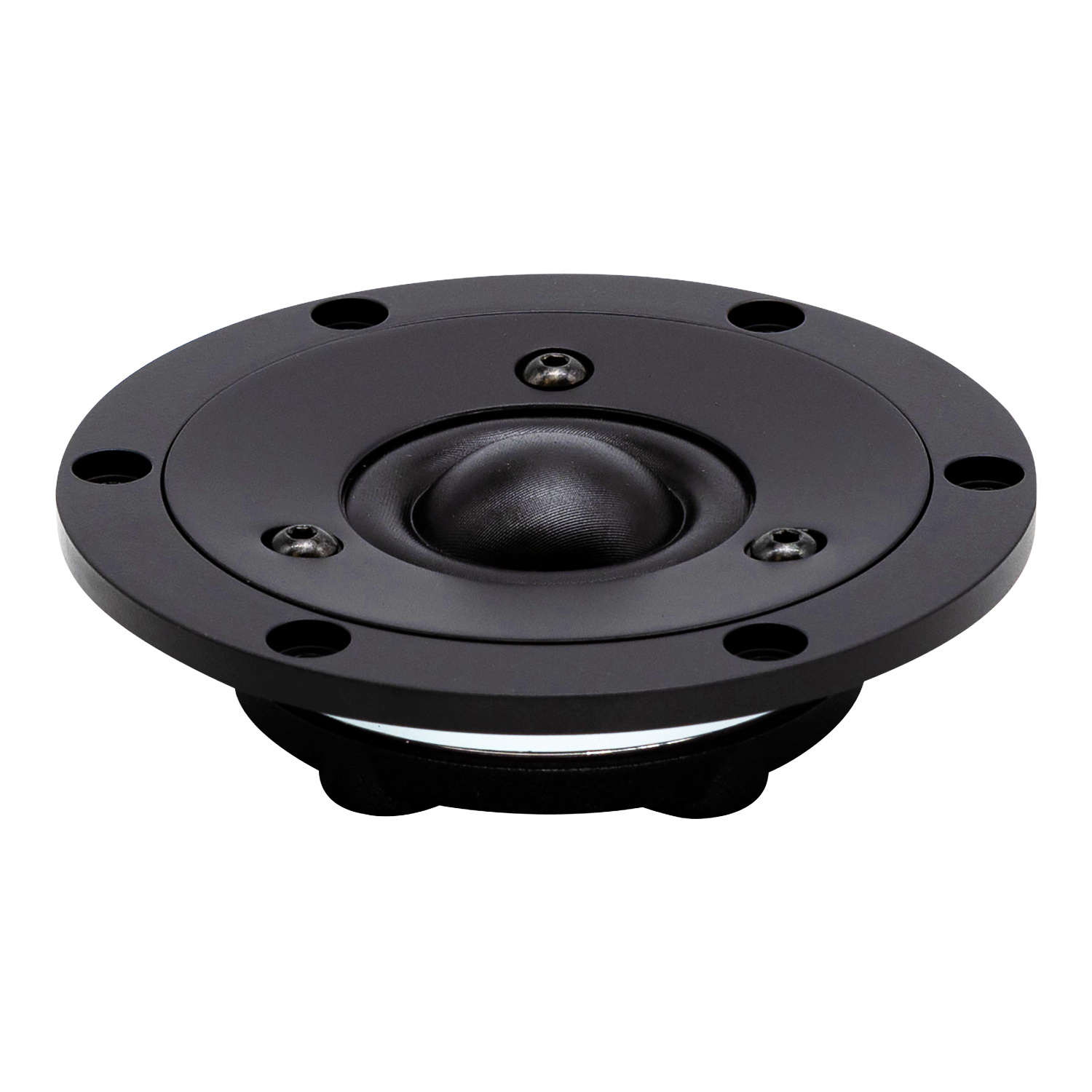

        Satori TW29DN-B-8 Dome Tweeter Black

        SB Acoustics Satori TW29DN-B-8 Dome Tweeter Black

        €154,95

        7 Op voorraad

        SB Acoustics Satori TW29DN-B-8 Dome Tweeter Black

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        € 128,06€ 154,95 7 Op voorraad
        • -5% Bestel 4 voor slechts € 147,20 per stuk

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, morgen verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Voor- en nadelen

        Volgens onze specialisten
        • CCAW voice coil for low moving mass, non-reflective cast aluminium chamber with optimized damping for improved dynamics
        • Saturation controlled motor system with T-shaped pole piece for lower distortion

        Productomschrijving SB Acoustics Satori TW29DN-B-8 Dome Tweeter

        The SB Acoustics Satori TW29DN-B-8 Tweeter features a traditional soft textile dome with a wide surround and a high power neodymium magnet system incorporating a T shaped pole piece. Efficiency is very high with excellent extension. The tweeter has a large surround dome for increased acoustic output, dual balanced compression chamber for improved dynamics, dual copper caps for absolute minimum voice coil inductance and minimum phase shift, two part aluminium faceplate with integrated mechanical decoupling.



        Highlights

        • Large surround dome for increased acoustic output
        • Dual balanced compression chamber for improved dynamics
        • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
        • Two part aluminium faceplate with integrated mechanical decoupling
        • Saturation controlled motor system with T-shaped pole piece for lower distortion
        • Non-reflective cast aluminium chamber with optimized damping for improved dynamics
        • Flow optimized vented pole piece for optimum coupling to rear chamber
        • CCAW voice coil for low moving mass
        • Long life silver lead wires
        • Low resonance frequency for extended range



        Product details

        SB Acoustics Satori TW29DN-B-8 Dome Tweeter Black



        The SB Acoustics Satori TW29DN-B-8 Tweeter has a traditional soft textile dome with a wide surround and a high power neodymium magnet system incorporating a T shaped pole piece. Efficiency is very high with excellent extension. The tweeter has a large surround dome for increased acoustic output, dual balanced compression chamber for improved dynamics, dual copper caps for absolute minimum voice coil inductance and minimum phase shift, two part aluminium faceplate with integrated mechanical decoupling.



        The SB Acoustics Satori TW29DN-B-8 is a high-quality tweeter that is designed to provide clear, detailed sound with excellent dynamics. It is a good choice for a variety of applications, including home audio, studio monitors, and professional sound reinforcement. It has a nominal impedance of 8 ohms, a free-air resonance of 650 Hz, a sensitivity of 93 dB, and a total Q-factor of 0.46. It is rated for a maximum power handling of 80 watts.

        Toon meer

        Specificaties

        Artikelnummer
        TW29DN-B-8
        EAN
        8785256848003
        Tweeter type
        Dome
        Cone / Dome Diameter
        29 mm
        Power Handling (max)
        80 Watt
        Impedantie (Z)
        8 Ohm
        Gevoeligheid (SPL bij 1m / 2.83V)
        93 dB
        Frequentierespons
        1000 Hz-22 kHz
        Gelijstroomweerstand (Re)
        3.0 Ohm
        Voice Coil Inductance (Le)
        0.02 mH
        Mechanische Q (Qms)
        1.61
        Electromagnetic Q (Qes)
        0.65
        Totale Q (Qts)
        0.46
        Totale buitendiameter
        103 mm
        Diepte
        29,3 mm
        Aanbevolen kantelfrequentie
        2600 Hz, 12 dB/oct.
