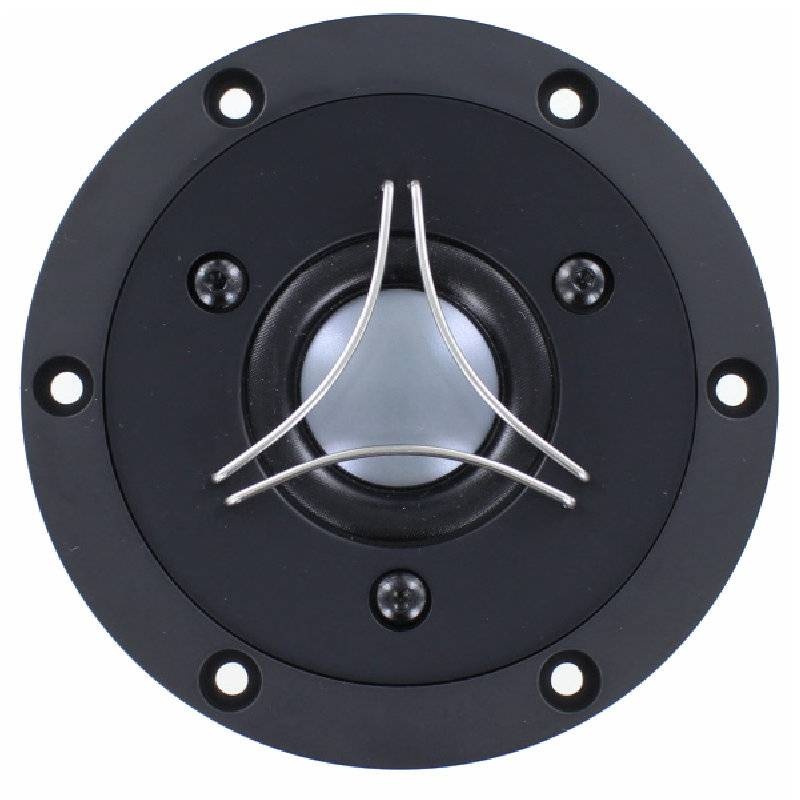

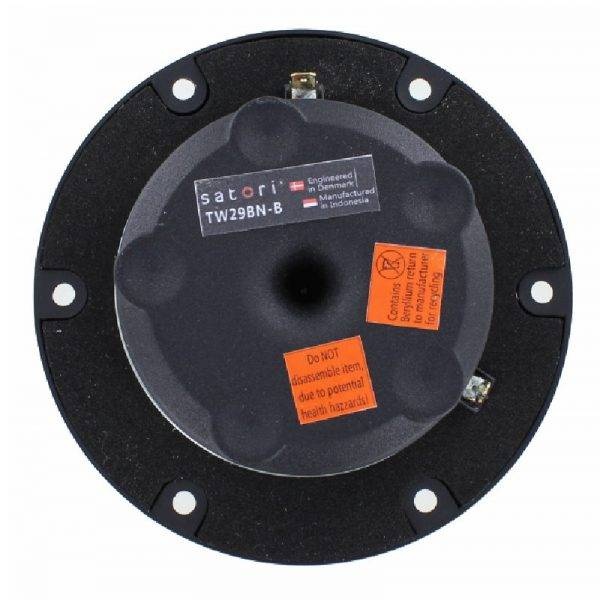

        Satori TW29BN Beryllium Dome Tweeter

        Satori TW29BN Beryllium Dome Tweeter


        SB Acoustics Satori TW29BN Beryllium Dome Tweeter

        4 reviews
        5 van 5
        4 reviews
        5 sterren
        4 sterren
        3 sterren
        2 sterren
        1 ster
        Bekijk alle reviews
        € 338,80€ 409,95 4 Op voorraad
        3 variaties Black - 4 Ohm
        • -5% Bestel 4 voor slechts € 389,45 per stuk

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, morgen verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!



        • Beryllium dome for non-resonant high frequency extension
        • Two part aluminum faceplate with integrated mechanical decoupling
        • Dual balanced compression chambers for improved dynamics
        • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
        • High saturation neodymium motor system with T-shaped pole piece for lower distortion
        • Non-reflective cast aluminum chamber with optimized damping for improved dynamics
        • Shallow flow optimized magnet structure for optimum coupling to rear chamber
        • CCAW voice coil for low moving mass
        • Long life silver lead wires
        • Low resonance frequency for extended range


        Product details

        SB Acoustics Satori TW29BN Beryllium Dome Tweeter


        The new Satori Beryllium dome tweeter has arrived!  Beryllium is known for its open and spatial sound, often described as holographic.  The self-damping properties of Beryllium allow for an extended response without a huge spike in the response at higher frequencies seen in most metal dome tweeters.  All dome materials have a different tonal and spatial presentation.  Beryllium has a real positive difference, providing an experience unlike all other dome materials.


        Specifications: BL Product (BL): 3.1 Tm N • Diaphragm Mass Inc. Airload (Mms): 0.46 g • Maximum Linear Excursion (Xmax): 0.25 mm • Surface Area of Cone (Sd): 9.6 cm2

        Toon meer


        Tweeter type
        Tweeter serie
        Cone / Dome Diameter
        25 mm | 1"
        Belastbaarheid (RMS)
        80 Watts
        Impedantie (Z)
        4 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        95 dB
        Resonantiefrequentie (Fs)
        725 Hz
        Gelijstroomweerstand (Re)
        3 ohms
        Voice Coil Inductance (Le)
        0.02 mH
        Mechanische Q (Qms)
        Electromagnetic Q (Qes)
        Totale Q (Qts)

        Toon meer

        5 van 5
        Very good and precise high frequency response. Near field 3way monitor system.
        Door Salvatore on 17 Maart 2024
        5 van 5
        I was not sure if the Beryllium would be worth the investment. But I am amazed by the sound quality and pleased with my choice!!
        Door Martijn on 12 Juli 2023
