SB29BAC-C000-4 Beryllium Dome Tweeter

€284,95

Toevoegen aan winkelwagen

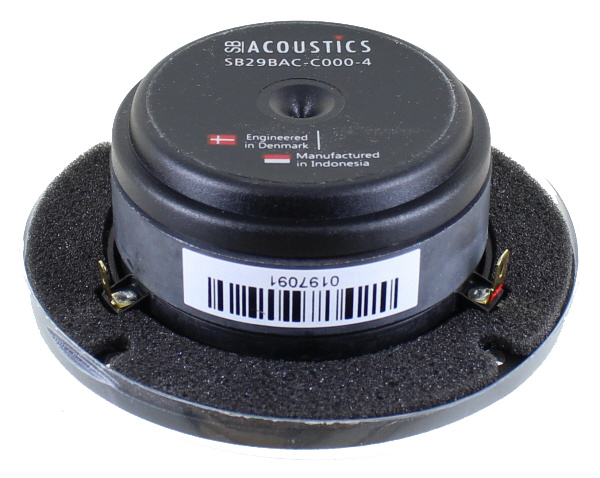

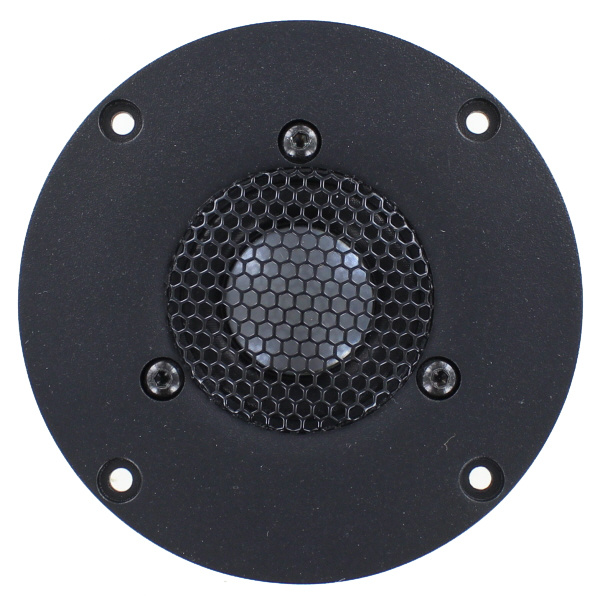

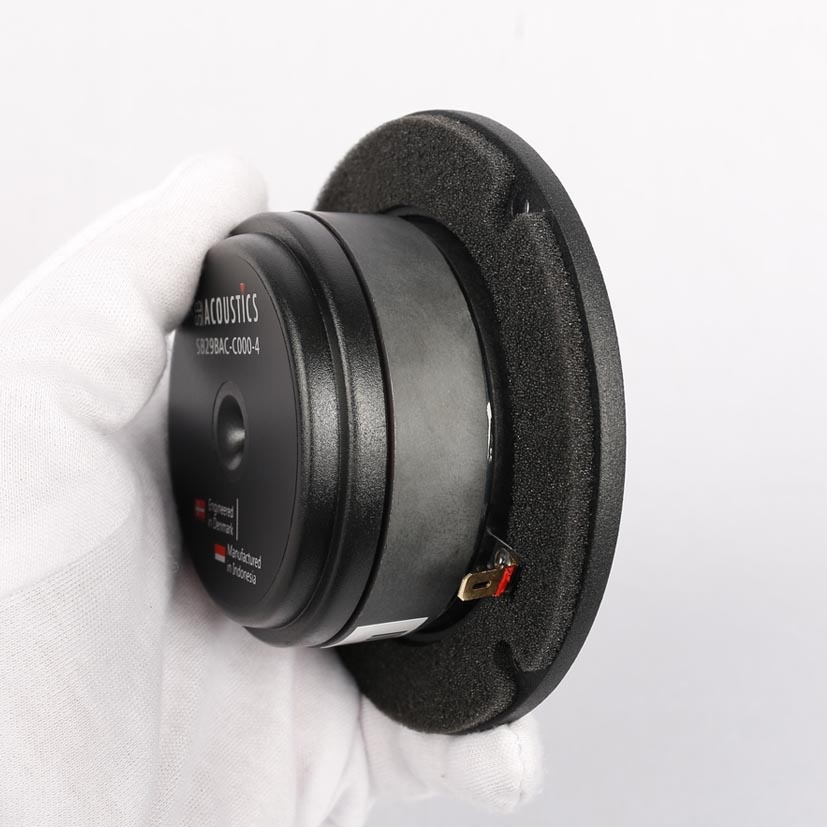

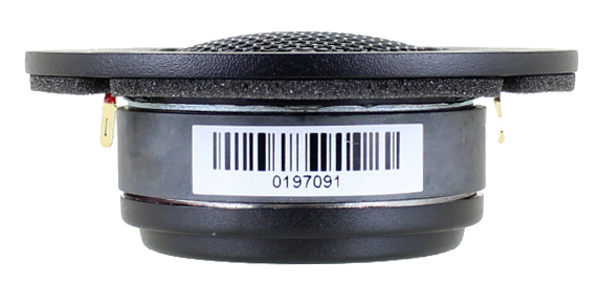

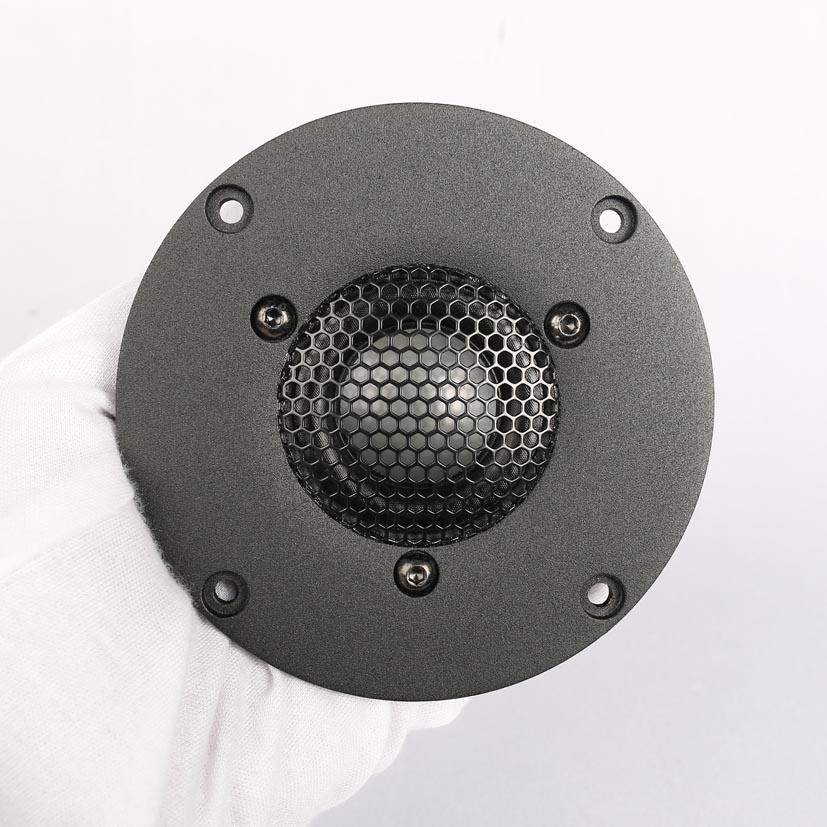

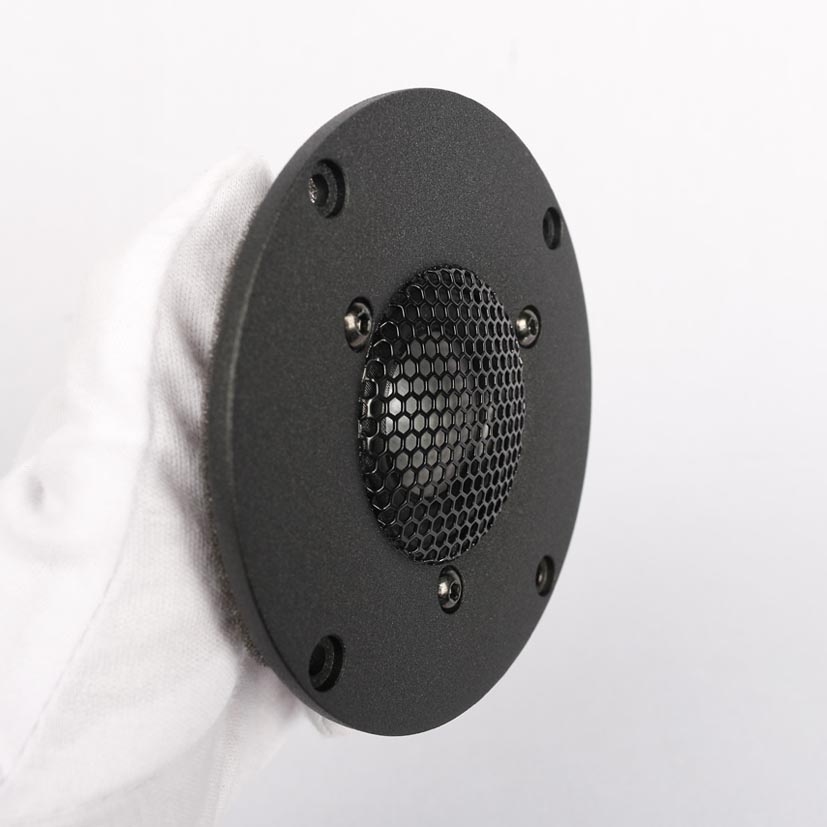

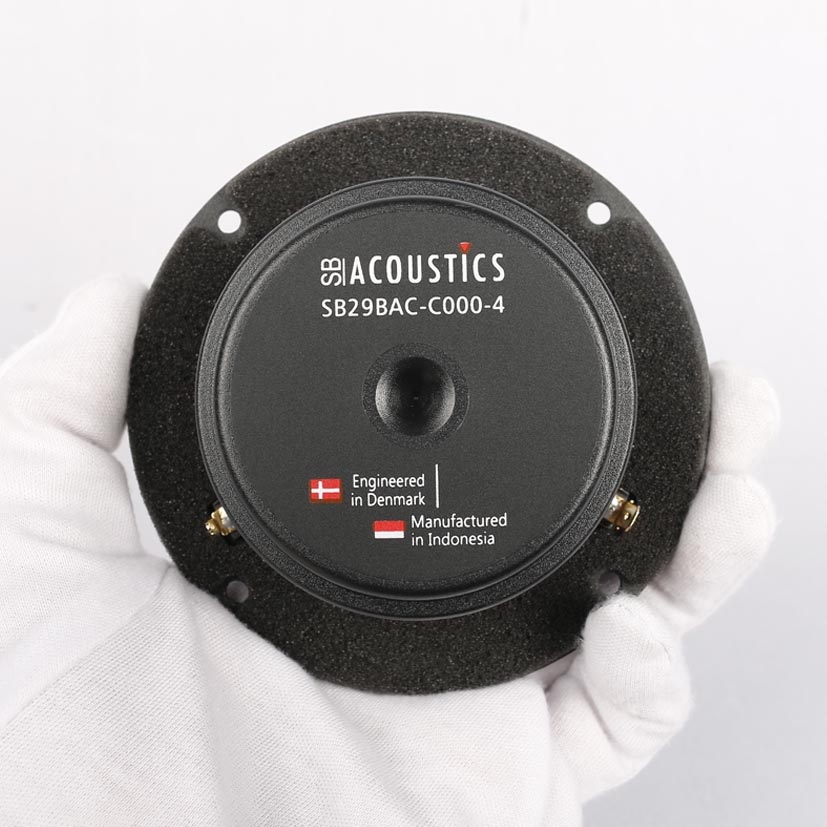

SB Acoustics SB29BAC-C000-4 Beryllium Dome Tweeter

1 reviews

Merk: SB Acoustics

Toon alle SB Acoustics tweeters

1⅛" | 4 Ω

€ 235,50€ 284,95 4 Op voorraad

Gratis verzonden (NL & BE)
Nu besteld, morgen bezorgd
Ten minste twee jaar garantie
45 dagen bedenktijd voor retourneren

Klantbeoordeling:

Vergelijk

Zakelijke offerteaanvraag

Heeft u vragen over dit product?

Onze klantenservice helpt u graag verder!

Voor- en nadelen

Volgens onze specialisten

Beryllium dome for non-resonant high frequency extension
Non-reflective rear chamber with optimized damping for improved dynamics

Productomschrijving

The SB Acoustics SB29BAC-C000-4 Dome Tweeter is another high-end tweeter that features a beryllium dome for non-resonant high frequency extension, large surround dome for increased acoustic output, copper cap for reduced voice coil inductance and minimum phase shift, saturation controlled motor system for low distortion, and dual balanced compression chambers for improved dynamics. It is part of the SB Acoustics’ dome tweeters product line.

Highlights

Beryllium dome for non-resonant high frequency extension
Large surround dome for increased acoustic output
Copper cap for reduced voice coil inductance and minimum phase shift
Saturation controlled motor system for low distortion
Dual balanced compression chambers for improved dynamics
Flow optimized vented pole piece for optimum coupling to rear chamber
Non-reflective rear chamber with optimized damping for improved dynamics
CCAW voice coil for low moving mass
Long life flexible lead wires
Cast aluminium faceplate
Low resonance frequency

Product details

SB29BAC-C000-4 Beryllium Dome Tweeter

The SB Acoustics SB29BAC-C000-4 Dome Tweeter is another high-end tweeter that features a beryllium dome for non-resonant high frequency extension. Beryllium is a very stiff and lightweight material that has a high modulus of elasticity and is used in high-end tweeters because it can produce a very accurate sound. The large surround dome increases the acoustic output of the tweeter, while the copper cap reduces voice coil inductance and minimum phase shift. The saturation controlled motor system is used for low distortion, while the dual balanced compression chambers are used for improved dynamics.

Toon meer

Specificaties

Artikelnummer: SB29BAC-C000-4
Tweeter type: Dome
Tweeter serie: Beryllium
Cone / Dome Diameter: 29 mm
Power Handling (max): 80 Watt
Impedantie (Z): 4 Ohm
Gevoeligheid (SPL bij 1m / 2.83V): 93 dB
Frequentierespons: 400-40000 Hz
Resonantiefrequentie (Fs): 650 Hz
Gelijstroomweerstand (Re): 3 Ohm
Voice Coil Inductance (Le): 0,05 mH
Mechanische Q (Qms): 2.71
Electromagnetic Q (Qes): 1.22
Totale Q (Qts): 0.84
Montagegatdiameter: 104 mm
Diepte: 33.3 mm
Aanbevolen kantelfrequentie: 400-40000 Hz

Reviews

1 reviews

Schrijf een review

5 van 5

These Beryllium-tweeters are just fantastic. Haven’t heard tweeters of this kind of quality before, Totally a new experience. My QUAD 2905`s are now being prepared for sale….!

Door Erik on 12 Maart 2024
