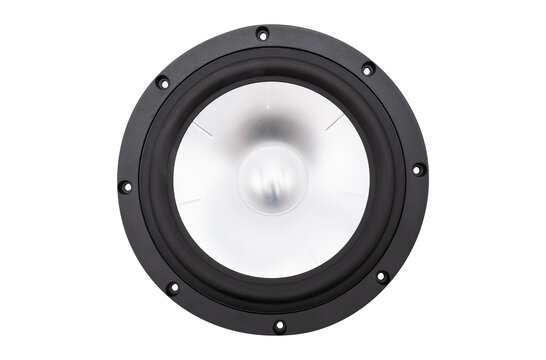

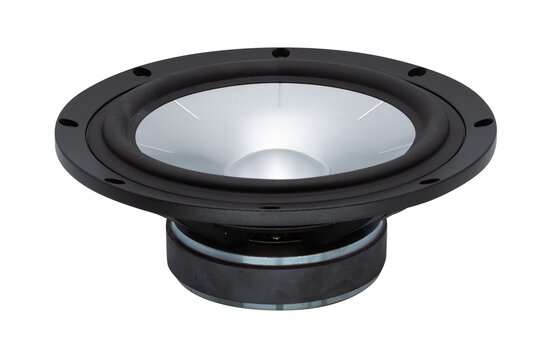

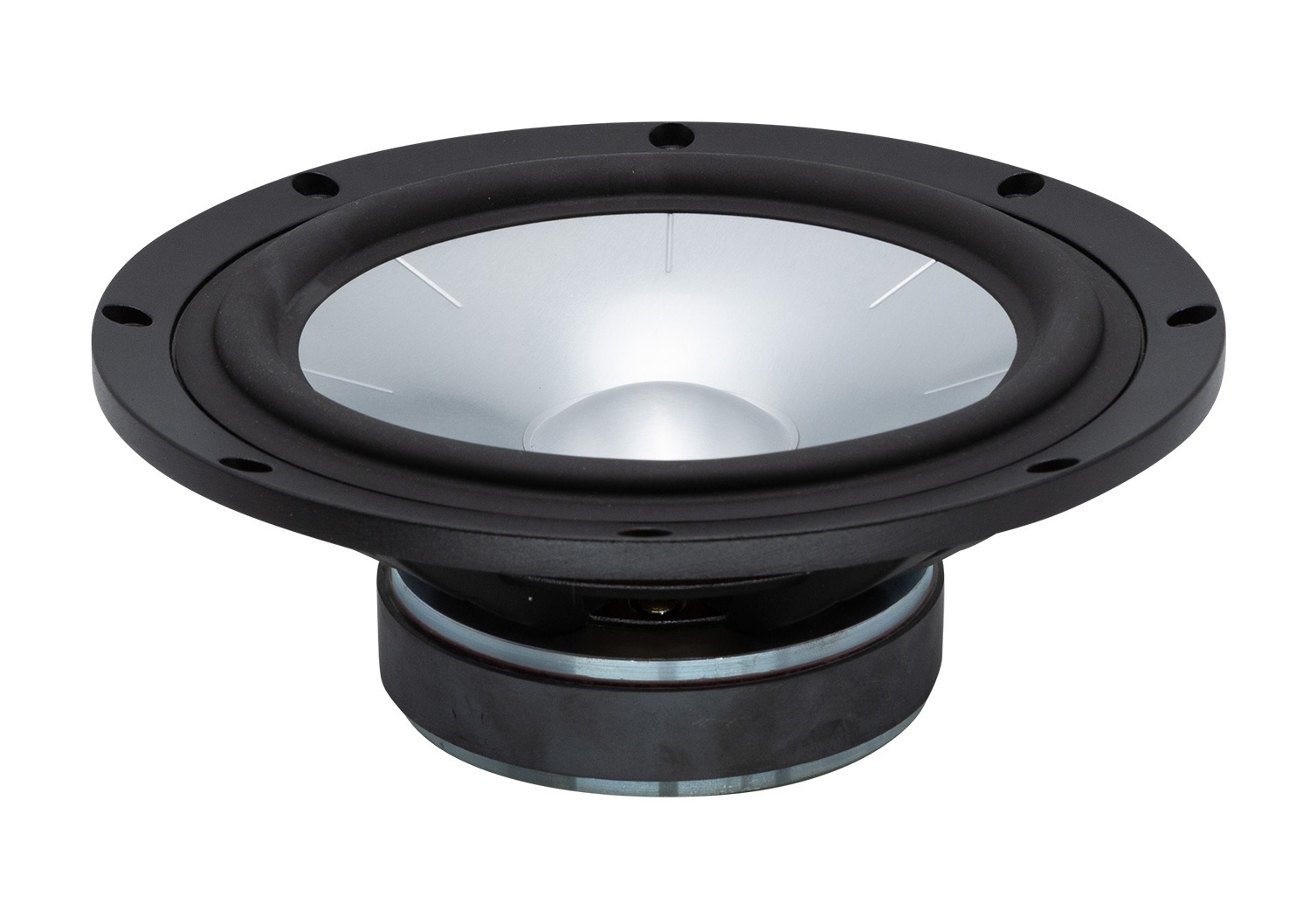

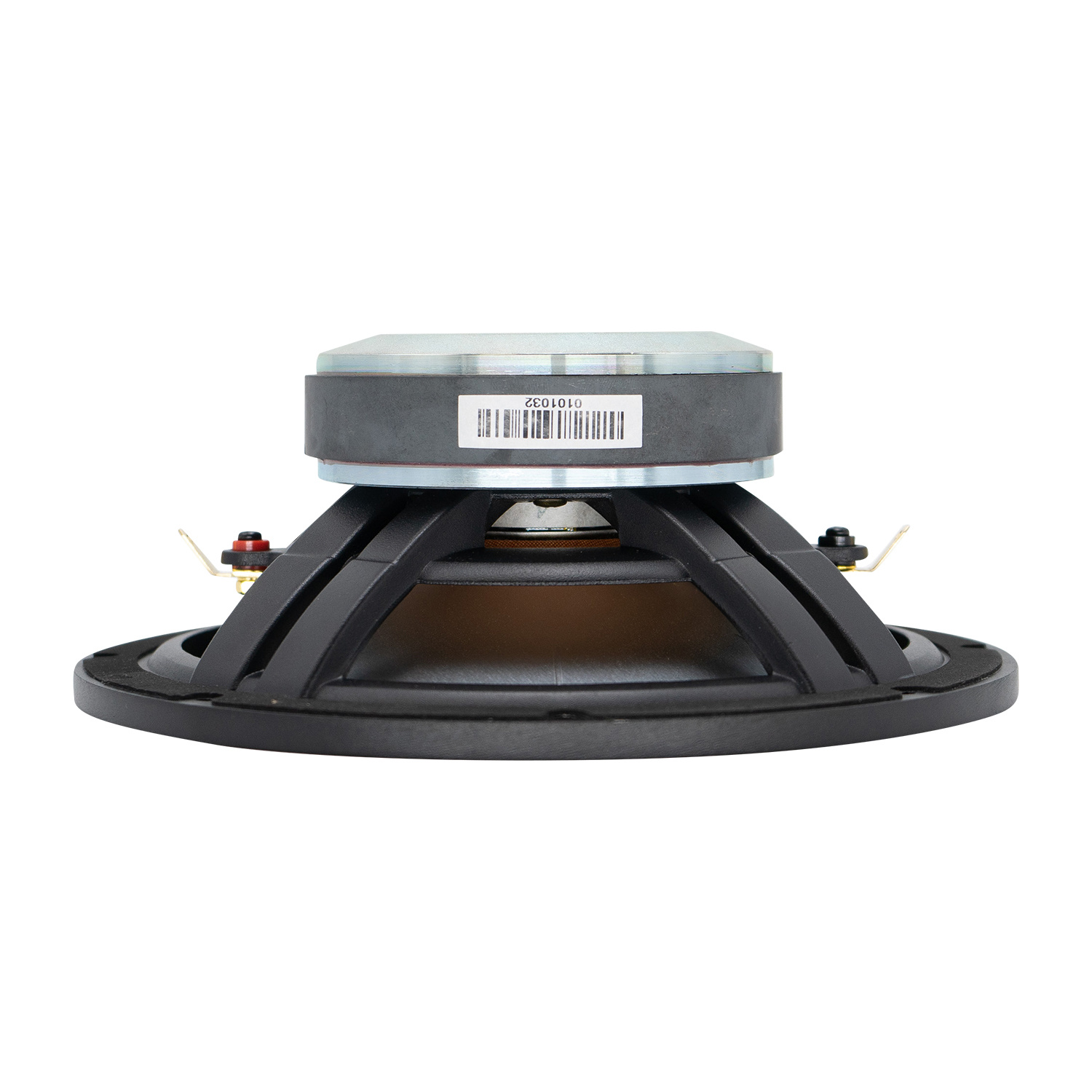

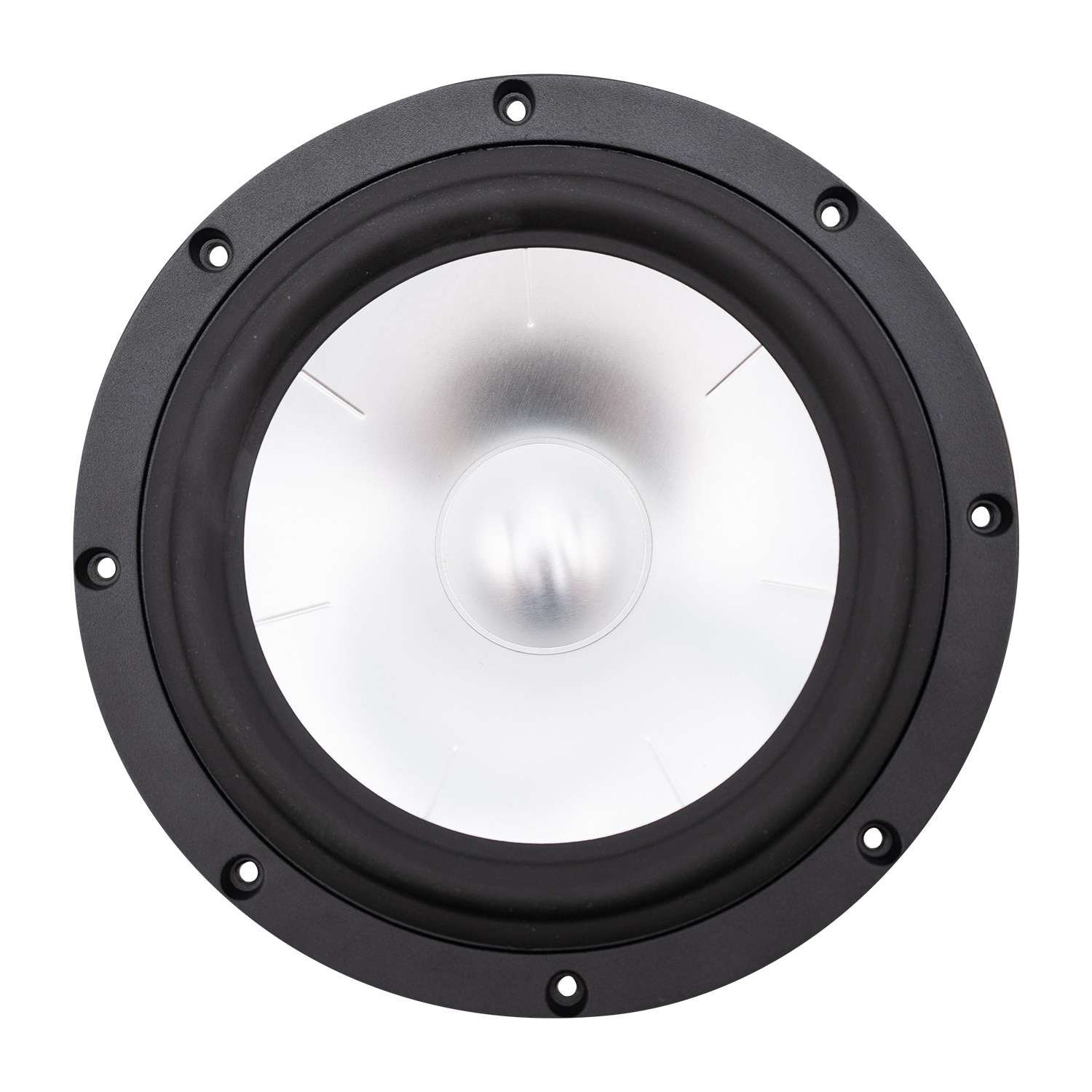

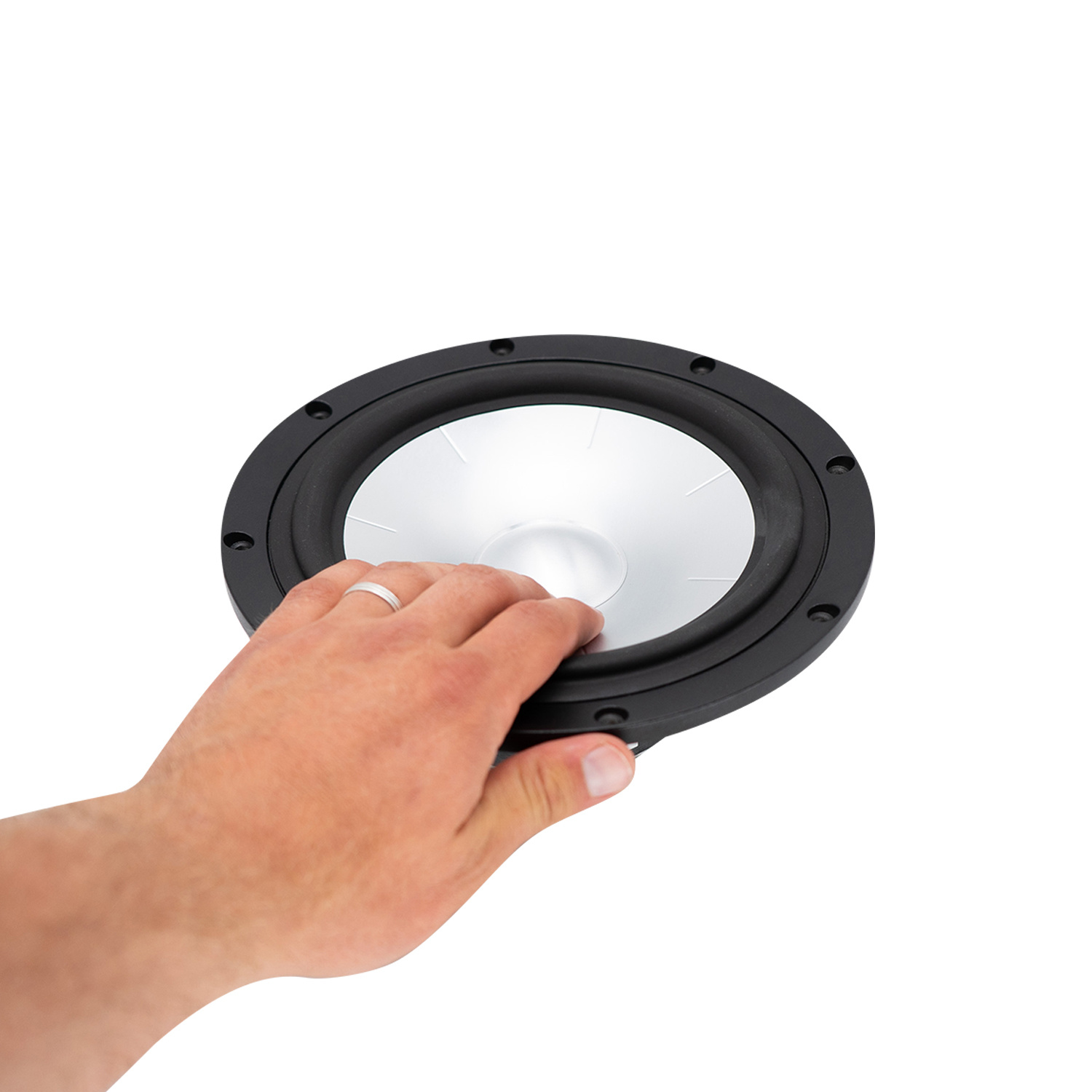

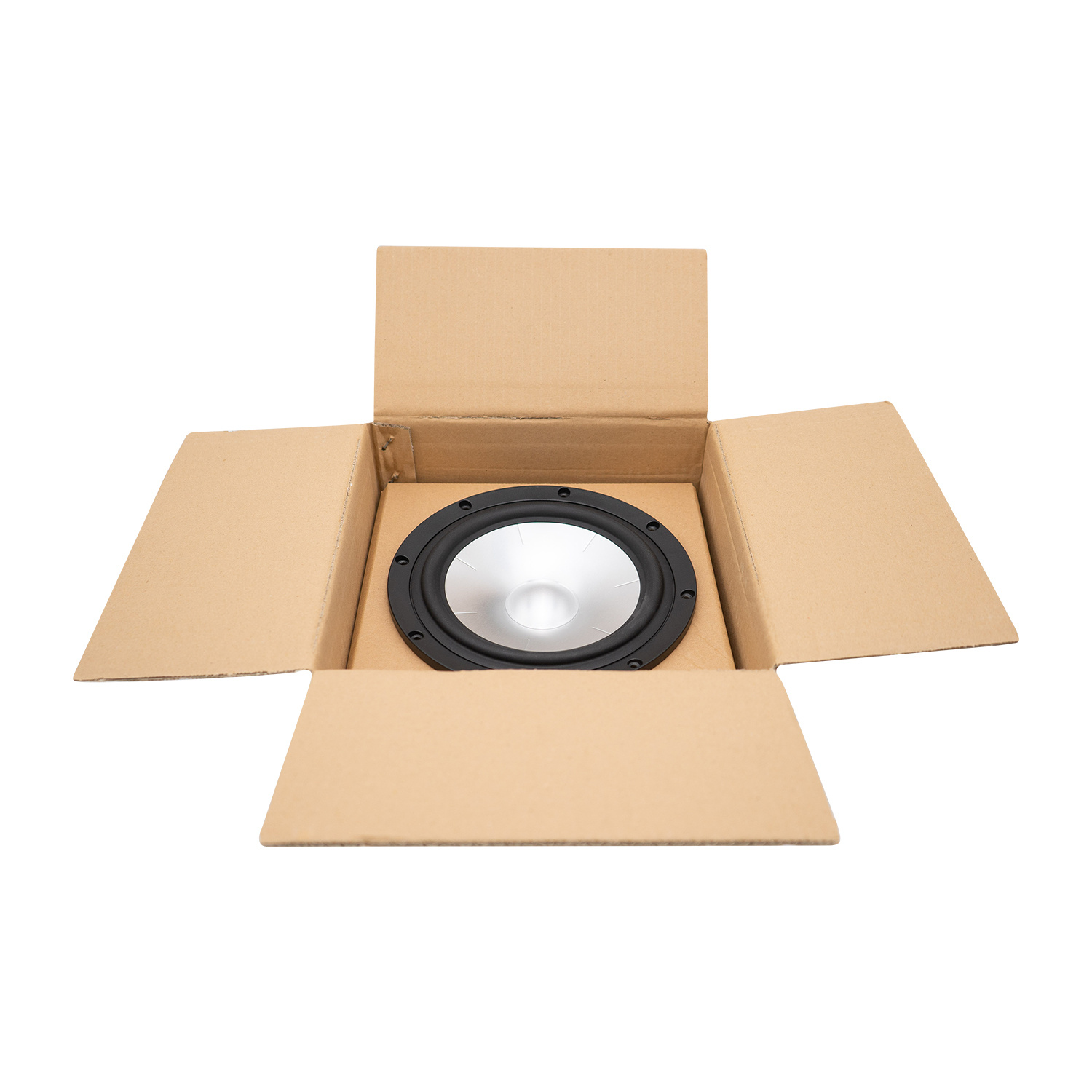

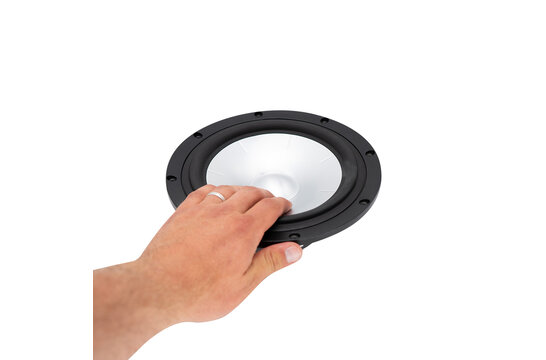

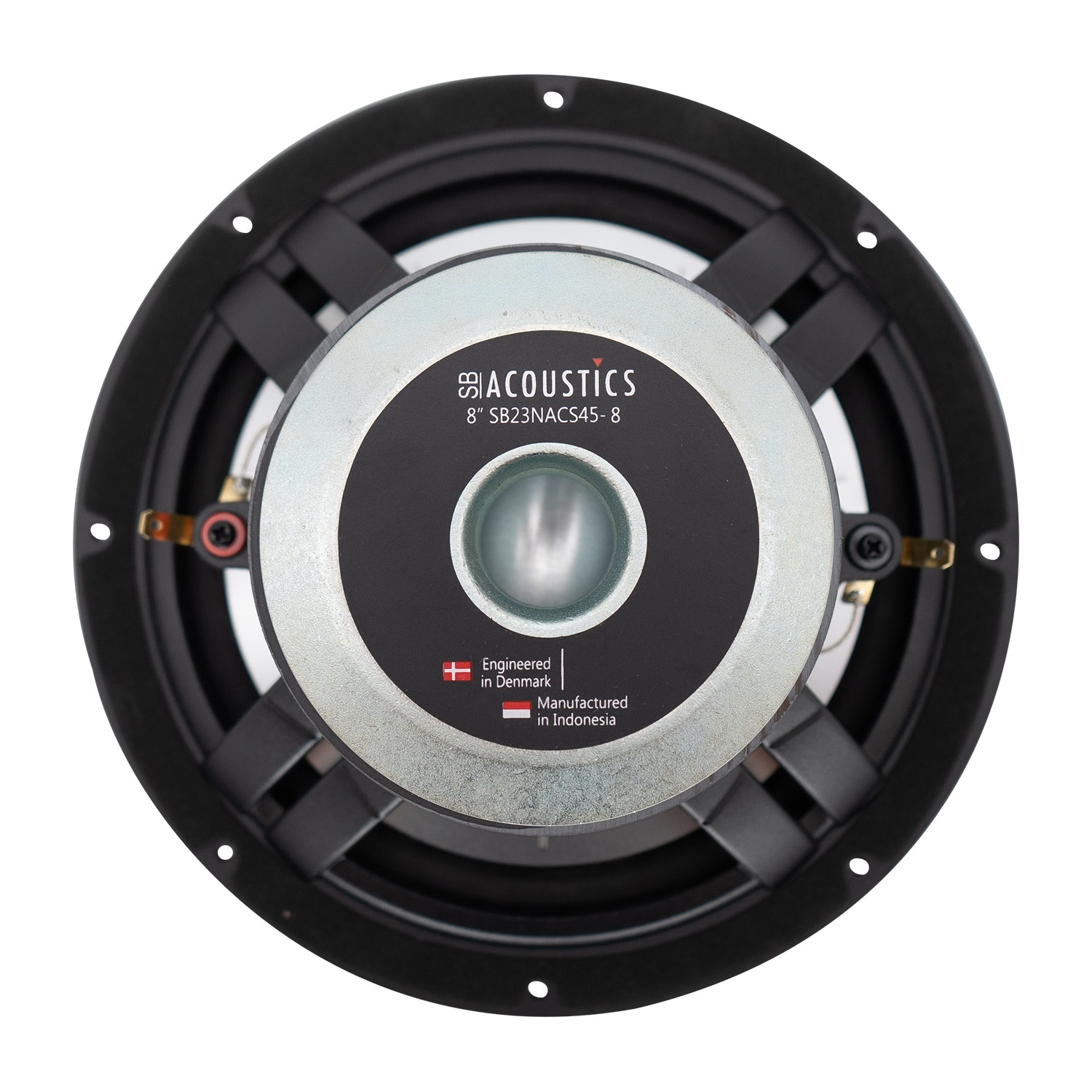

    SB Acoustics SB23NACS45-8 8" Aluminum Cone Woofer

    € 104,95 2 Op voorraad: levertijd 1 werkdag
    The SB Acoustics SB23NACS45-8 features a soft low damping rubber surround for improved transient response and a geometrically reinforced aluminum cone for improved break-up control. Shorting ring in motor system for reduced distortion and vented pole piec... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €99,70 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    Highlights

    • Soft low damping rubber surround for improved transient response
    • Geometrically reinforced aluminum cone for improved break-up control
    • Shorting ring in motor system for reduced distortion
    • Vented pole piece for reduced compression

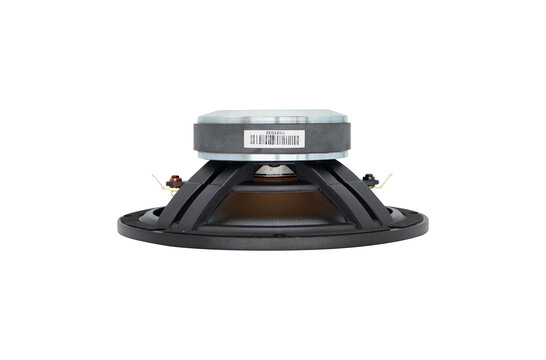

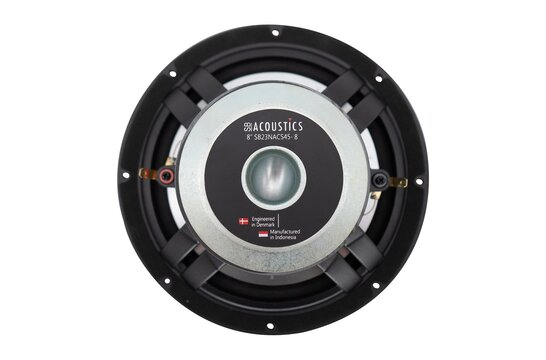

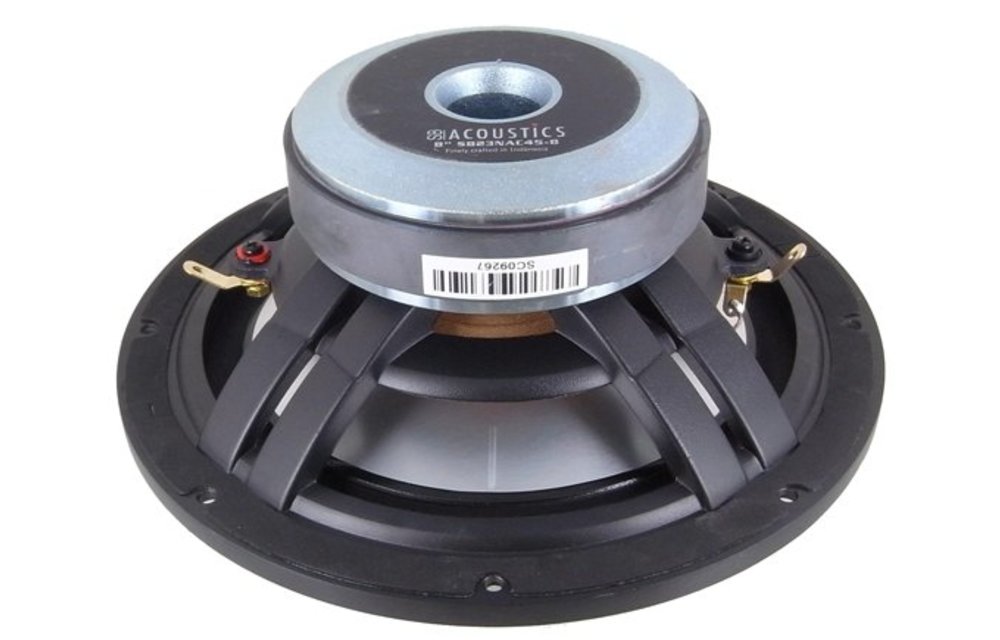

    • Vented cast aluminum chassis for optimum strength and low compression
    • Shallow design
    • Non-conducting fiber glass voice coil former for minimum damping
    • CCAW voice coil for reduced moving mass
    • Long life silver lead wires



    Product details

    SB Acoustics SB23NACS45-8 8" Aluminum Cone Woofer



    The SB Acoustics SB23NACS45-8 features a soft low damping rubber surround for improved transient response and a geometrically reinforced aluminum cone for improved break-up control. Shorting ring in motor system for reduced distortion and vented pole piece for reduced compression. Vented cast aluminum chassis for optimum strength and low compression and non-conducting fiber glass voice coil former for minimum damping. CCAW voice coil for reduced moving mass. Long life silver lead wires.

    Specificaties

    Artikelnummer
    SB23NACS45-8
    Woofer Series
    NAC Series
    Woofer Type
    Full-range
    Nominal Diameter
    8"
    Power Handling (RMS)
    60 Watts
    Impedance
    8 ohms
    Sensitivity
    87.5 dB 2.83V/1m
    Voice Coil Diameter
    1.79"
    DC Resistance (Re)
    5.6 ohms
    Voice Coil Inductance (Le)
    0.60 mH
    Resonant Frequency (Fs)
    25 Hz
    Mechanical Q (Qms)
    5.6
    Electromagnetic Q (Qes)
    0.4
    Total Q (Qts)
    0.37
    Diaphragm Mass Inc. Airload (Mms)
    28.5 g
    Mechanical Compliance of Suspension (Cms)
    1.42 mm/N
    Surface Area of Cone (Sd)
    216 cm2
    BL Product (BL)
    7.9 Tm
    Compliance Equivalent Volume (Vas)
    3.31 ft.³
    Maximum Linear Excursion (Xmax)
    13 mm
