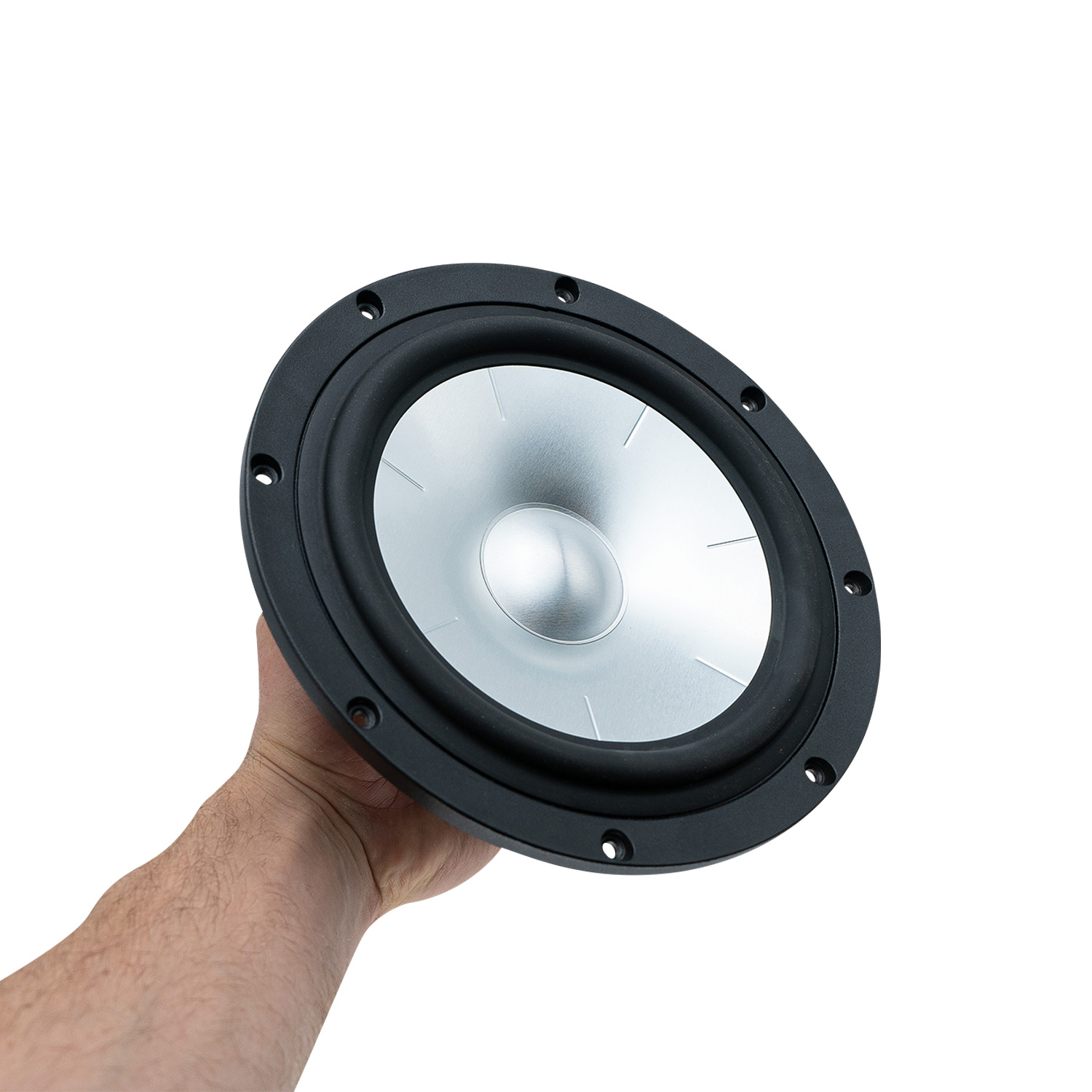

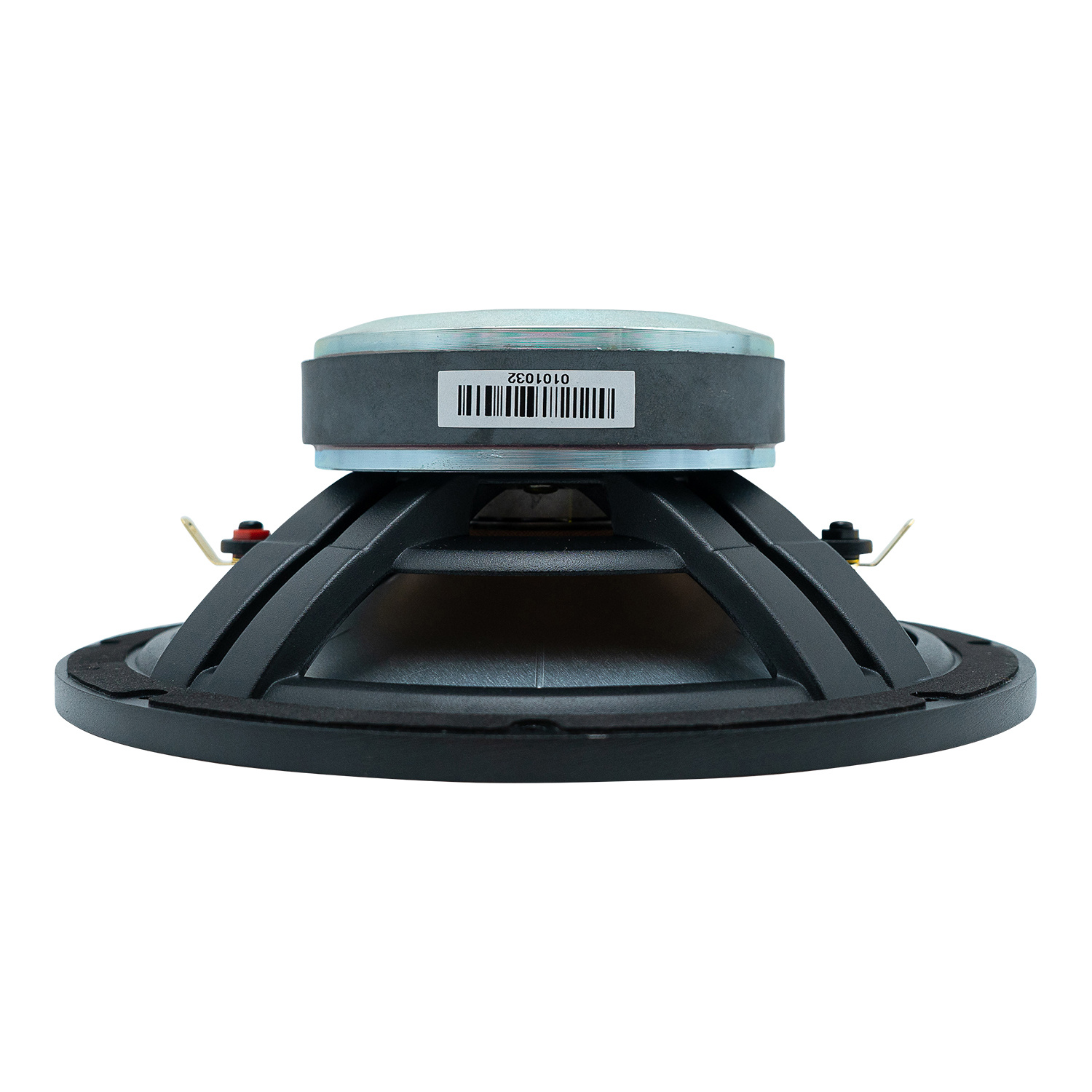

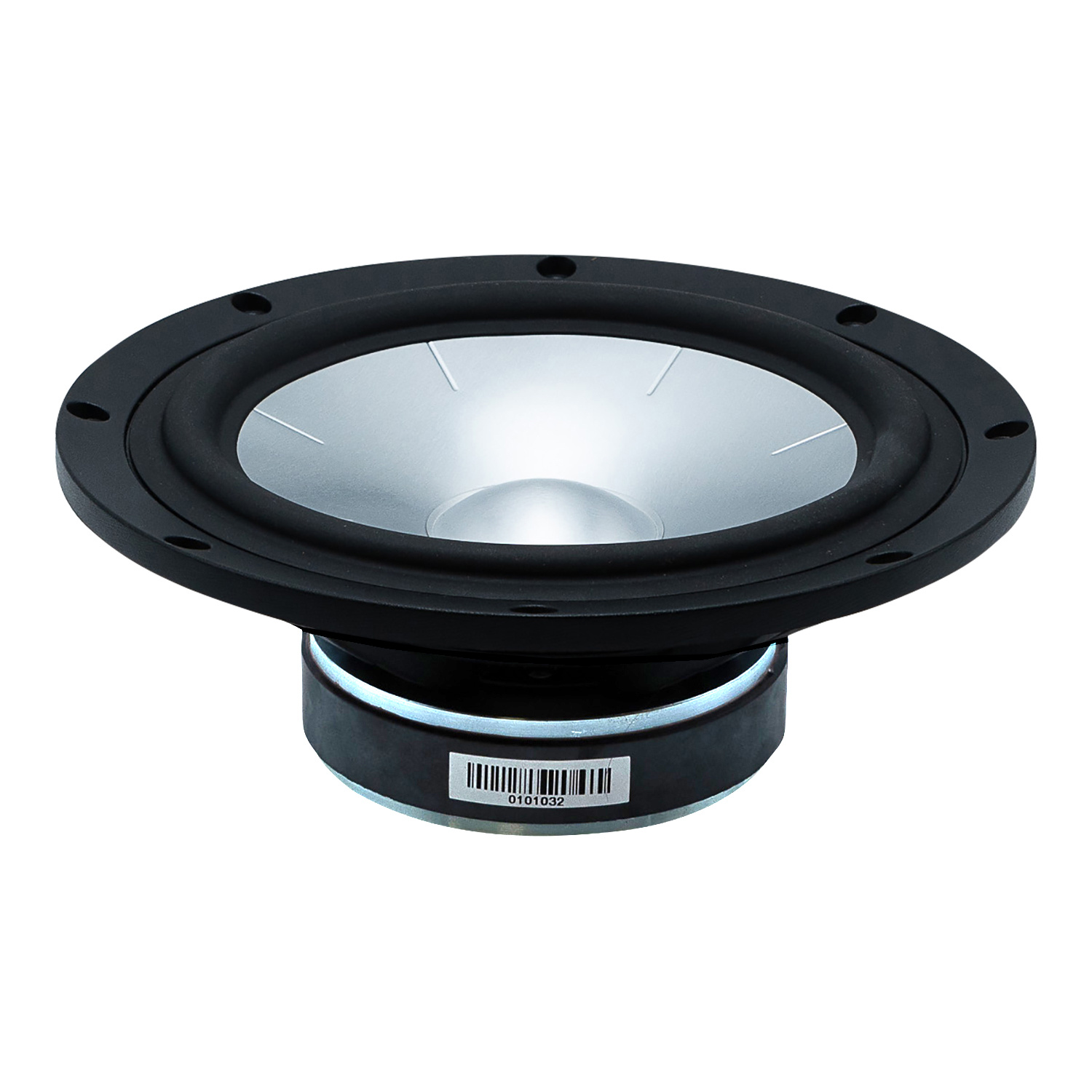

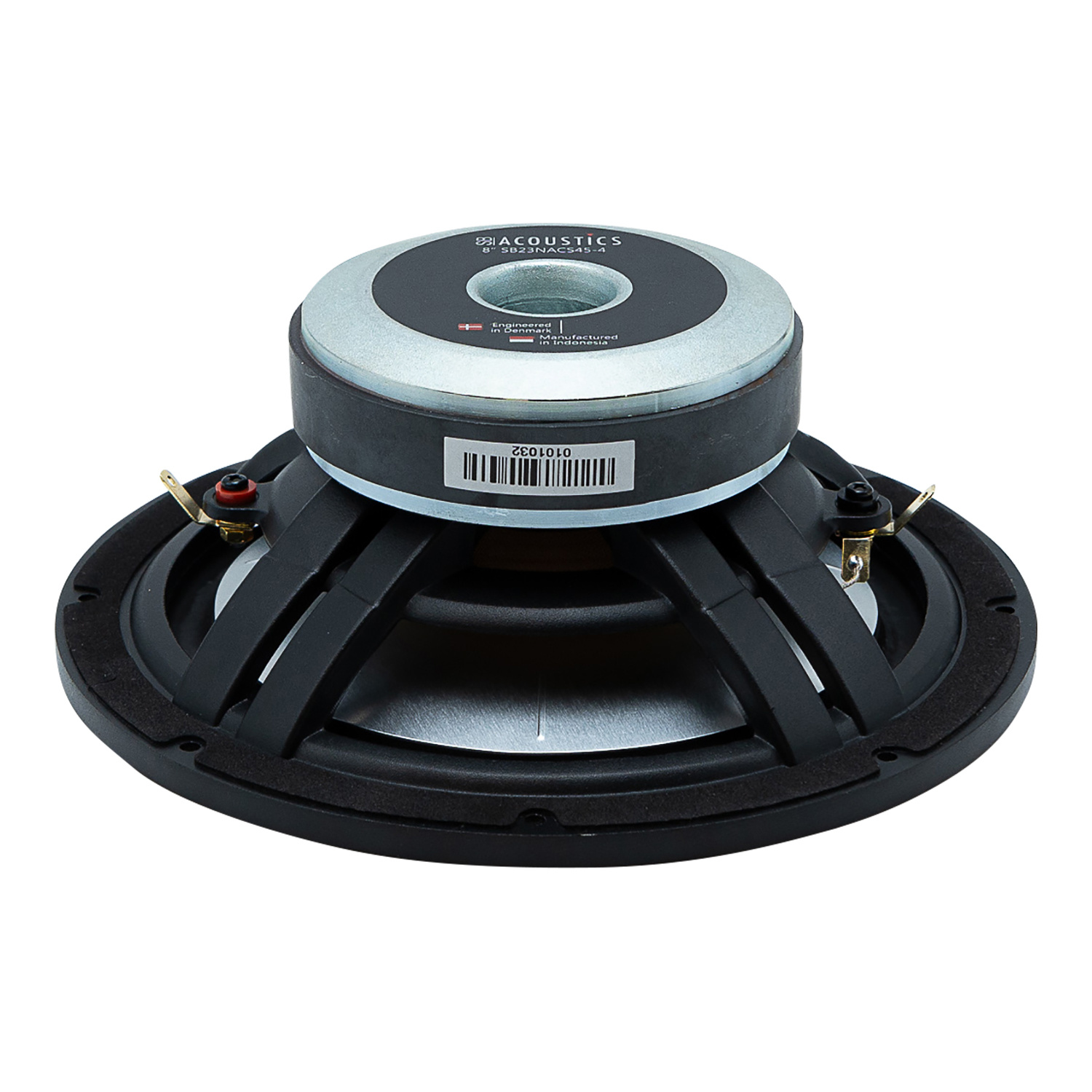

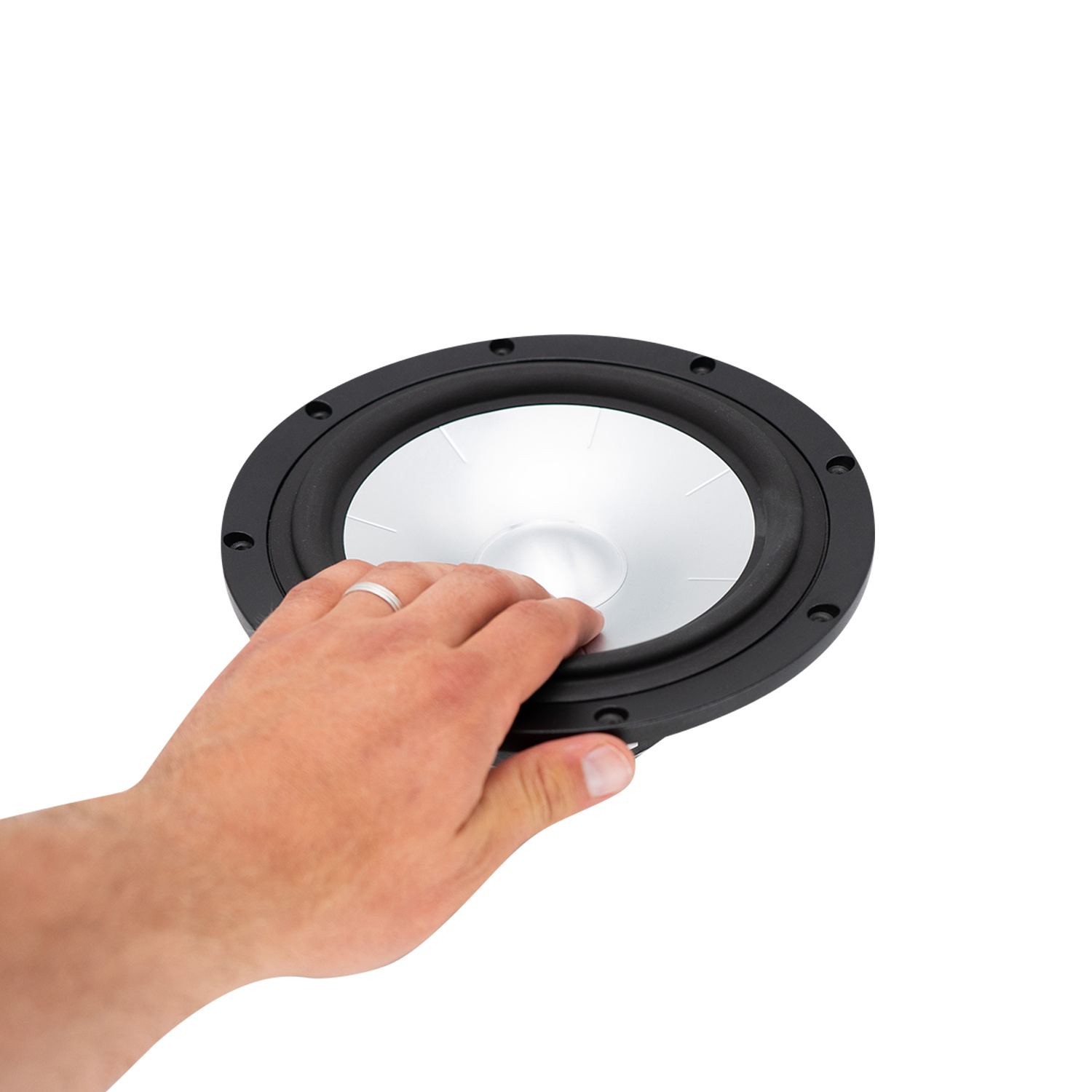

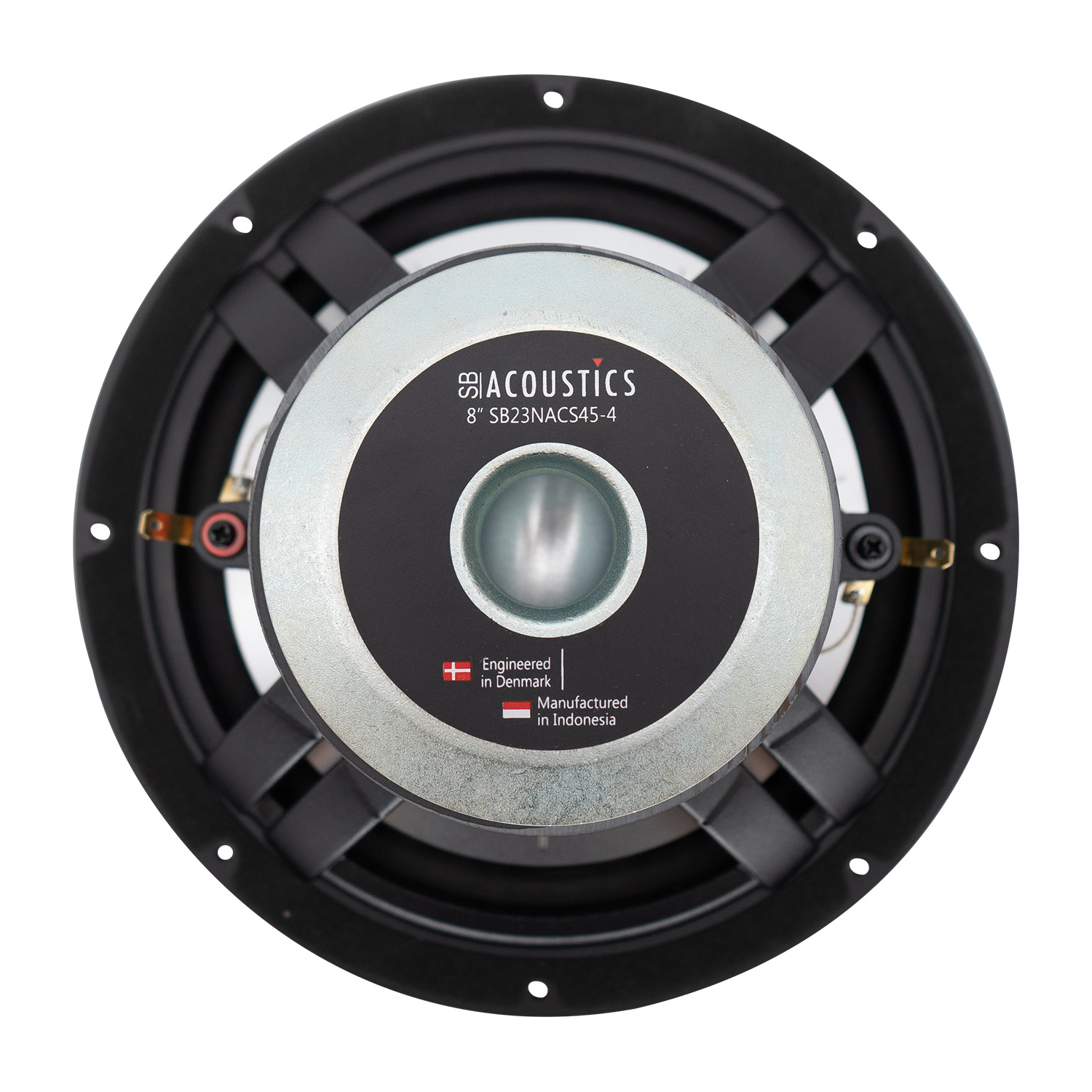

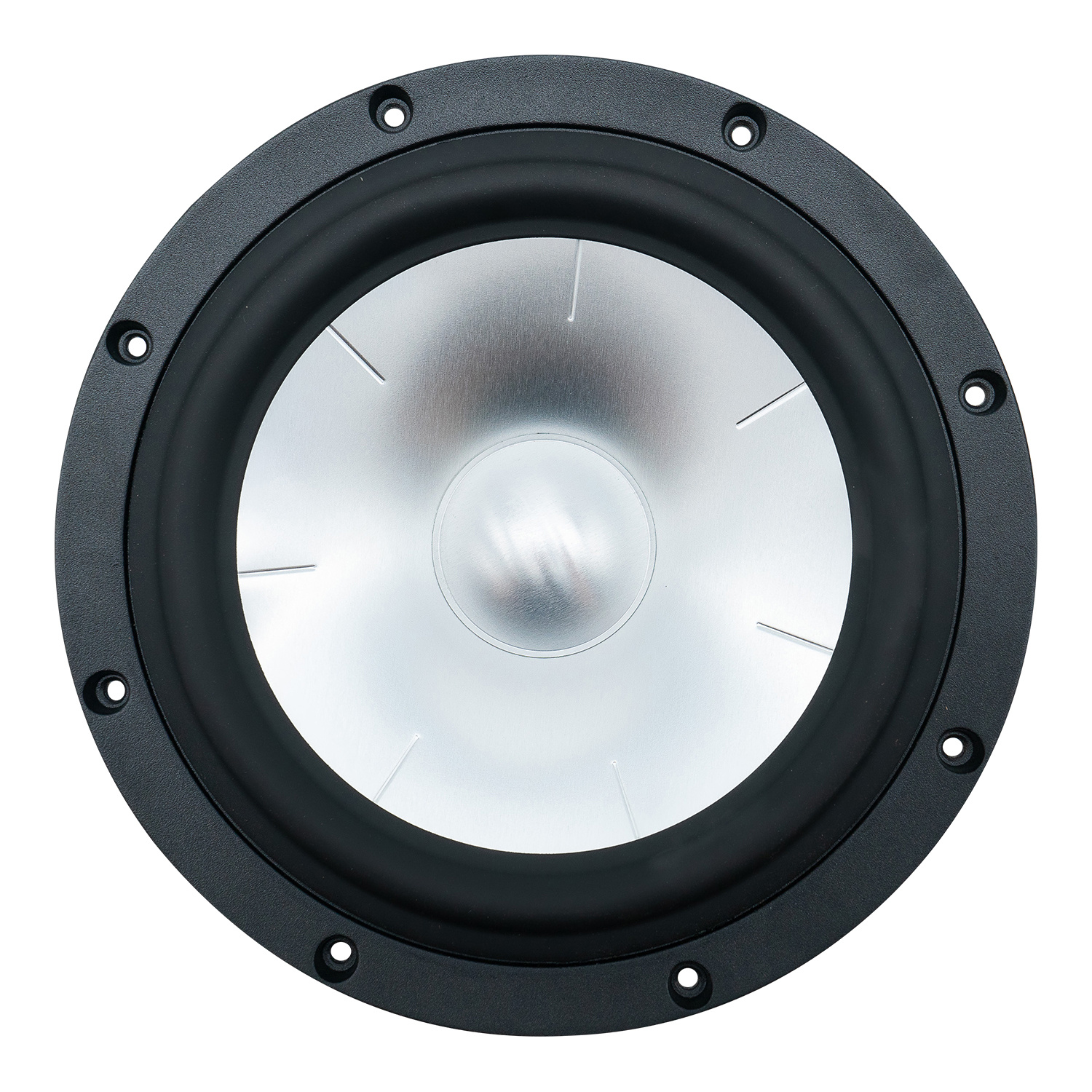

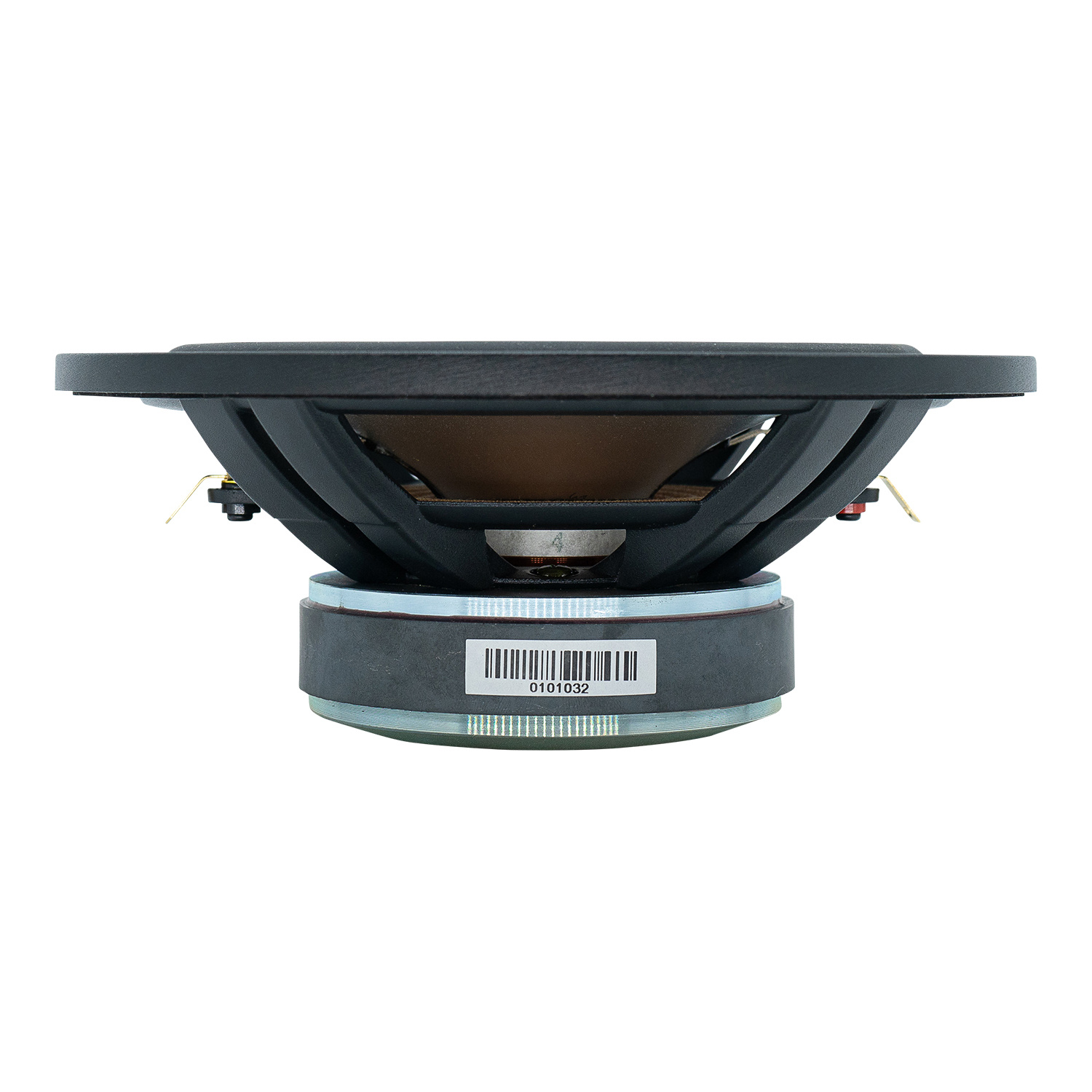

      SB Acoustics SB23NACS45-4 8" Aluminum Cone Woofer

      Merk: SB Acoustics
      Toon alle Audio componenten
      8" | 4 Ω
      SB23NACS45-4 8" Aluminum Cone Woofer
      SB23NACS45-4 8" Aluminum Cone Woofer
      SB23NACS45-4 8" Aluminum Cone Woofer
      SB23NACS45-4 8" Aluminum Cone Woofer
      SB23NACS45-4 8" Aluminum Cone Woofer
      SB23NACS45-4 8" Aluminum Cone Woofer
      € 104,95 4 Op voorraad: levertijd 1 werkdag
      The SB Acoustics SB23NACS45-4 features a soft low damping rubber surround for improved transient response and a geometrically reinforced aluminum cone for improved break-up control. Shorting ring in motor system for reduced distortion and vented pole piec... Toon meer
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestel 4 voor slechts €99,70 per stuk
      +-
      In winkelwagen
      • Verzending altijd verzekerd en met track & trace
      • Voor 16u besteld, vandaag verstuurd*
      • Gratis verzending vanaf €99
      • In-house technische support
      SB23NACS45-4 8" Aluminum Cone Woofer
      SB23NACS45-4 8" Aluminum Cone Woofer
      SB23NACS45-4 8" Aluminum Cone Woofer
      SB23NACS45-4 8" Aluminum Cone Woofer
      SB23NACS45-4 8" Aluminum Cone Woofer
      SB23NACS45-4 8" Aluminum Cone Woofer

      Productomschrijving

      Highlights

      • Soft low damping rubber surround for improved transient response
      • Geometrically reinforced aluminum cone for improved break-up control
      • Shorting ring in motor system for reduced distortion
      • Vented pole piece for reduced compression
      • Vented cast aluminum chassis for optimum strength and low compression
      • Shallow design
      • Non-conducting fiber glass voice coil former for minimum damping
      • CCAW voice coil for reduced moving mass
      • Long life silver lead wires



      Product details

      SB Acoustics SB23NACS45-4 8" Aluminum Cone Woofer



      The SB Acoustics SB23NACS45-4 features a soft low damping rubber surround for improved transient response and a geometrically reinforced aluminum cone for improved break-up control. Shorting ring in motor system for reduced distortion and vented pole piece for reduced compression. Vented cast aluminum chassis for optimum strength and low compression and non-conducting fiber glass voice coil former for minimum damping. CCAW voice coil for reduced moving mass. Long life silver lead wires.

      Specificaties

      Artikelnummer
      SB23NACS45-4
      Woofer Series
      NAC Series
      Woofer Type
      Full-range
      Nominal Diameter
      8"
      Power Handling (RMS)
      60 Watts
      Impedance
      4 ohms
      Sensitivity
      90 dB 2.83V/1m
      DC Resistance (Re)
      3.3 ohms
      Voice Coil Inductance (Le)
      0.27 mH
      Resonant Frequency (Fs)
      1.79"
      Mechanical Q (Qms)
      5.4
      Electromagnetic Q (Qes)
      0.35
      Total Q (Qts)
      0.33
      Diaphragm Mass Inc. Airload (Mms)
      32 g
      Mechanical Compliance of Suspension (Cms)
      1.45 mm/N
      Surface Area of Cone (Sd)
      216 cm2
      BL Product (BL)
      6.7 Tm
      Compliance Equivalent Volume (Vas)
      3.35 ft.³
      Maximum Linear Excursion (Xmax)
      6.5 mm
