        SB17NRX2L35-8 Bass-midwoofer

        SB Acoustics SB17NRX2L35-8 Bass-midwoofer

        €84,95

        2 Op voorraad

        Toevoegen aan winkelwagen

        SB Acoustics SB17NRX2L35-8 Bass-midwoofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: SB Acoustics
        Toon alle Nieuwe producten
        6" | 8 Ω
        SB17NRX2L35-8 Bass-midwoofer
        SB17NRX2L35-8 Bass-midwoofer
        SB17NRX2L35-8 Bass-midwoofer
        SB17NRX2L35-8 Bass-midwoofer
        SB17NRX2L35-8 Bass-midwoofer
        SB17NRX2L35-8 Bass-midwoofer
        SB17NRX2L35-8 Bass-midwoofer
        SB17NRX2L35-8 Bass-midwoofer
        € 70,21€ 84,95 2 Op voorraad
        • -5% Bestel 4 voor slechts € 80,70 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Voor 16u besteld, vandaag verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        SB17NRX2L35-8 Bass-midwoofer
        SB17NRX2L35-8 Bass-midwoofer
        SB17NRX2L35-8 Bass-midwoofer
        SB17NRX2L35-8 Bass-midwoofer
        SB17NRX2L35-8 Bass-midwoofer
        SB17NRX2L35-8 Bass-midwoofer
        SB17NRX2L35-8 Bass-midwoofer
        SB17NRX2L35-8 Bass-midwoofer

        Productomschrijving SB Acoustics SB17NRX2L35-8 Bass-midwoofer

        High-performance 6" midwoofer from SB Acoustics featuring a proprietary natural fiber cone, cast aluminum chassis, and advanced motor design for superior clarity and transient response.



        Highlights of the SB Acoustics SB17NRX2L35-8

        • Vented cast aluminum chassis minimizes compression and enhances structural integrity
        • Proprietary natural fiber cone ensures detailed and natural sound reproduction
        • Extended copper sleeve and large motor structure reduce distortion
        • Soft low-damping rubber surround and CCAW voice coil for optimized transient response



        Product details SB Acoustics SB17NRX2L35-8

        SB Acoustics SB17NRX2L35-8 6" Midwoofer

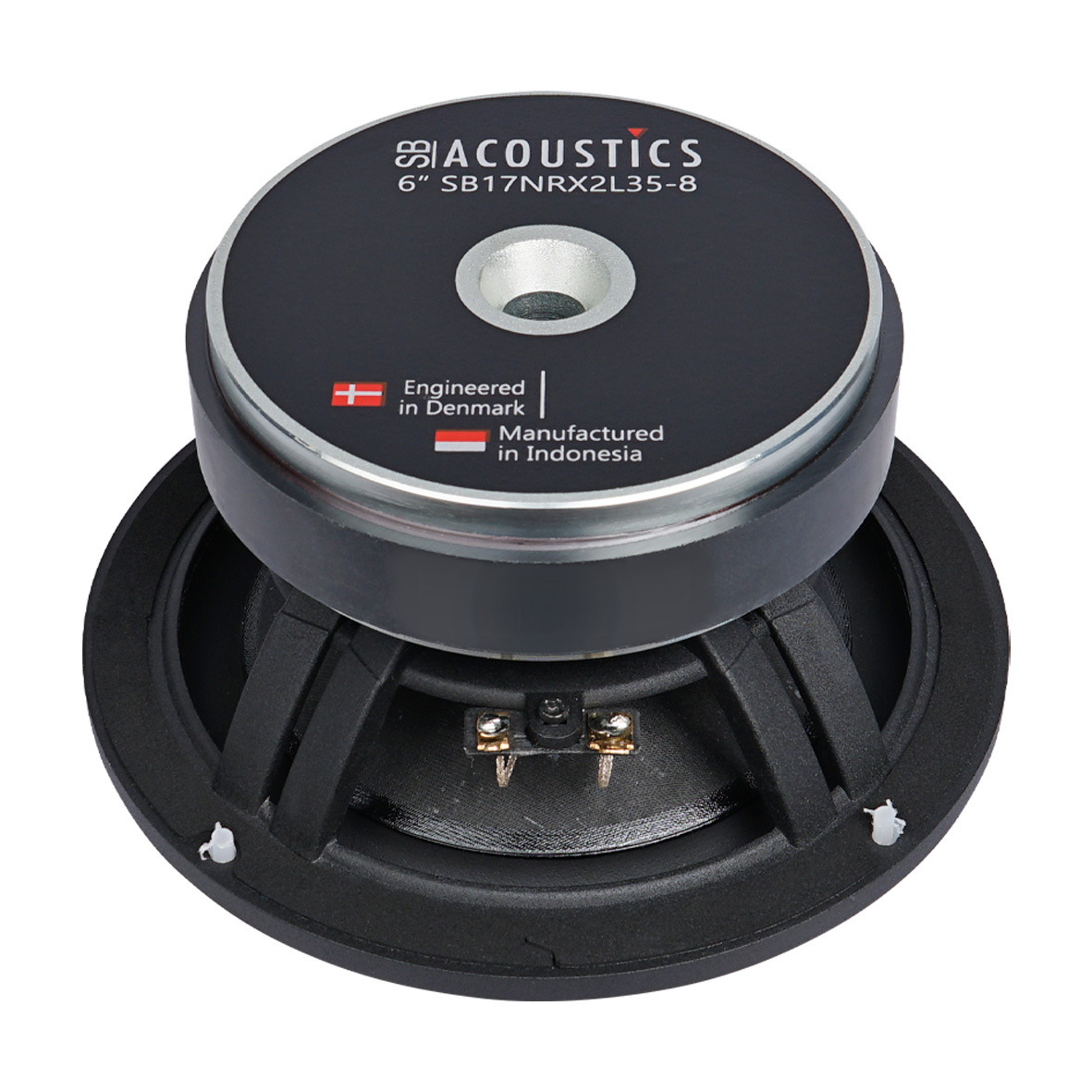

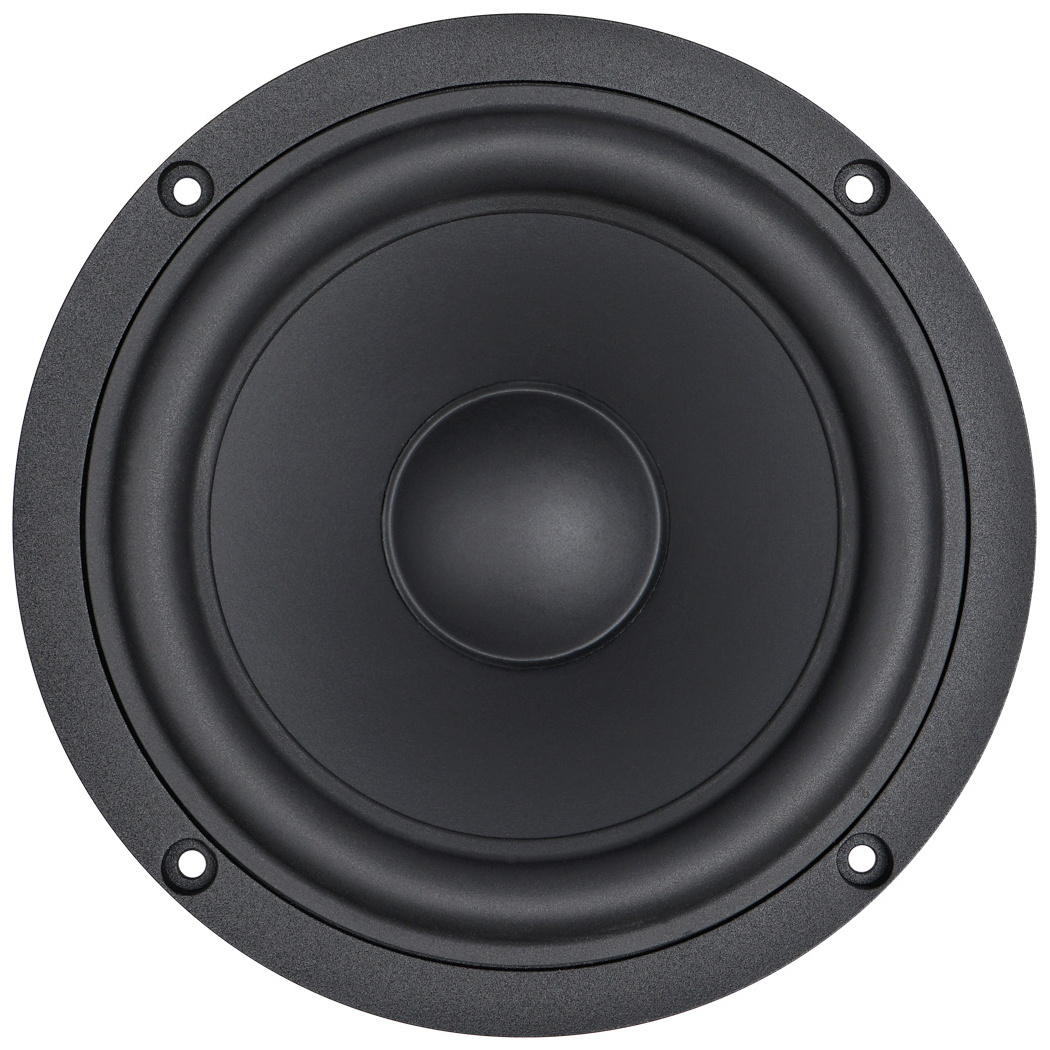

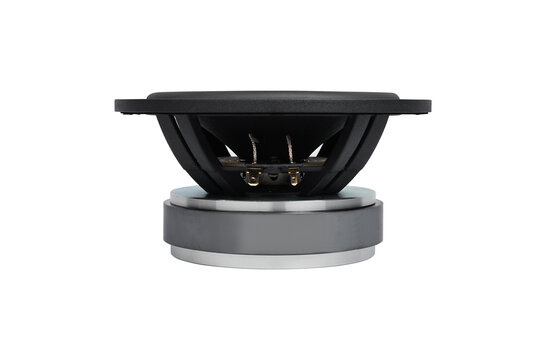

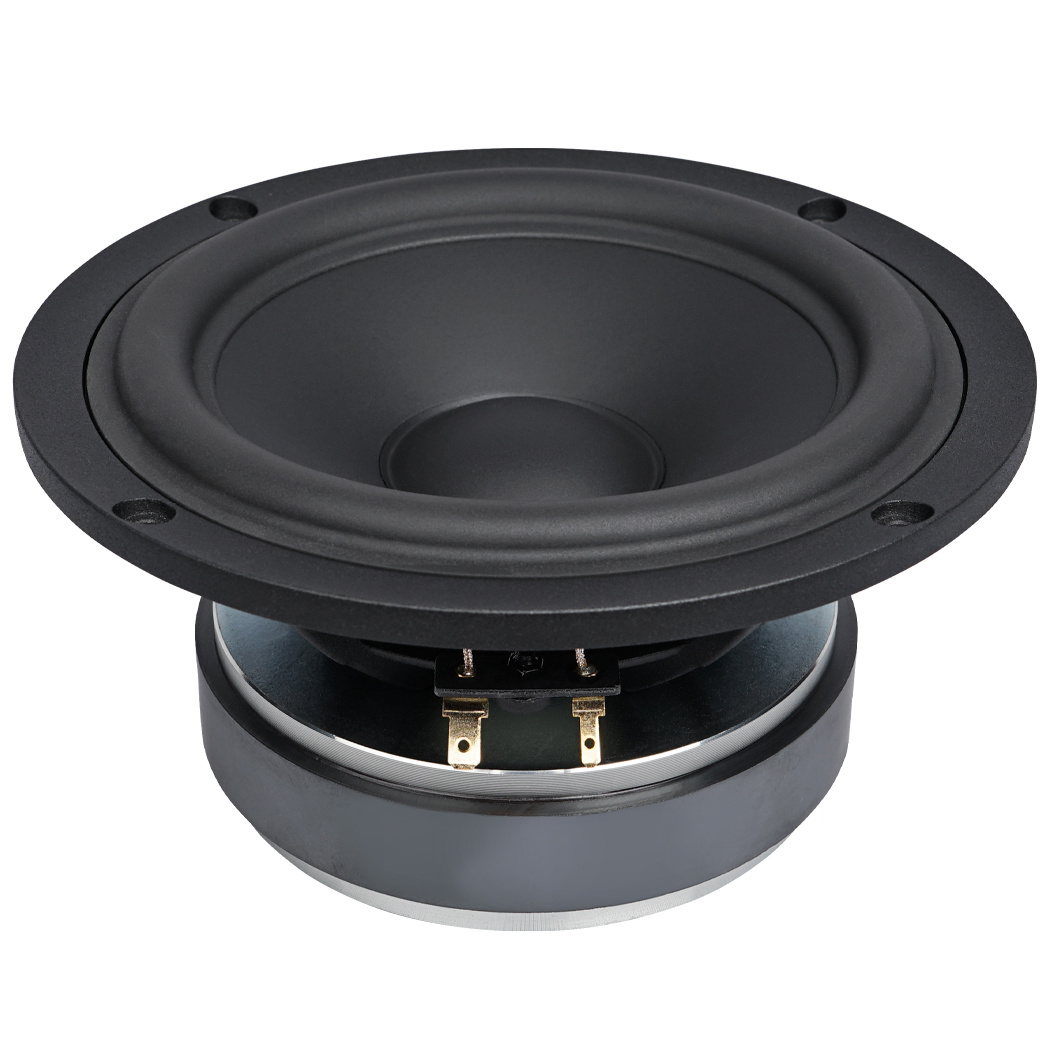

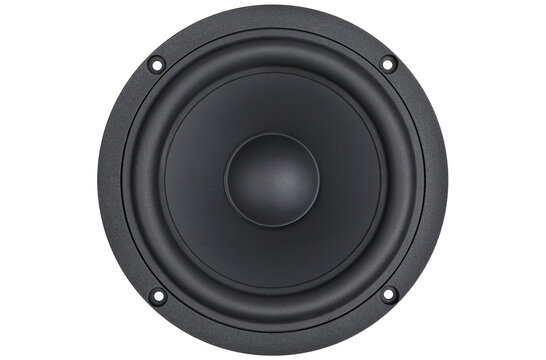

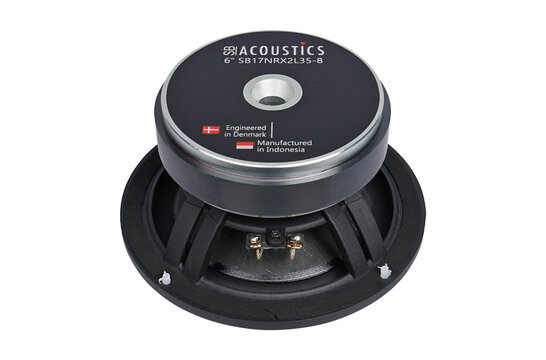

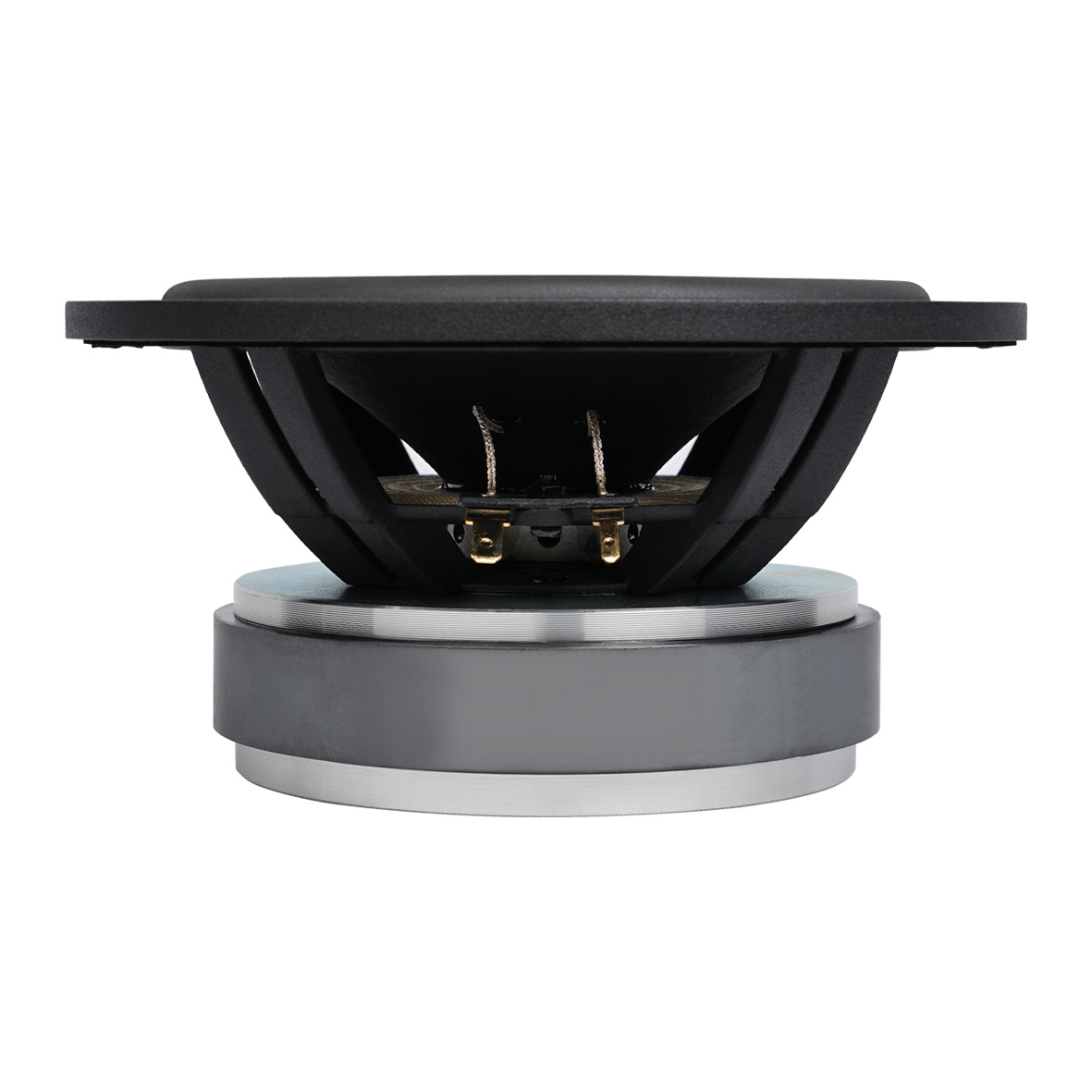

        The SB Acoustics SB17NRX2L35-8 is a 6-inch midwoofer designed for high-fidelity audio applications. It features a vented cast aluminum chassis that enhances rigidity while minimizing air compression. At the heart of this driver lies a proprietary cone made of natural fibers, manufactured in-house for consistency and sonic accuracy. Its low-damping rubber surround ensures excellent transient behavior, and the non-conductive fiberglass voice coil former helps minimize damping for increased efficiency. The motor structure is built around a large magnet with an extended copper sleeve on the pole piece, which lowers distortion and improves linearity. Additional features such as a vented coil former, vented pole piece, and long-life silver lead wires contribute to both performance and durability. The SB17NRX2L35-8 offers a nominal impedance of 8 ohms, a sensitivity of 89 dB (2.83 V / 1 m), and a free air resonance of 37.8 Hz. With a linear coil travel of 9.6 mm (peak-to-peak) and rated power handling of 50 W, this driver is ideal for both two-way systems and dedicated midrange applications where transparency and low coloration are essential.

        Toon meer

        Specificaties

        Artikelnummer
        SB17NRX2L35-8
        EAN
        9509327418570
        Belastbaarheid (RMS)
        50 Watts
        Gelijkstroomweerstand (Re)
        5.7 ohms
        Spreekspoelinductie (Le)
        0.16 mH
        Resonantiefrequentie (Fs)
        37.8 Hz
        Mechanische Q (Qms)
        4.55
        Elektrische Q (Qes)
        0.3
        Totale Q (Qts)
        0.28
        Bewegende massa (Mms)
        13.4g
        Compliantie van de ophanging (Cms)
        1.32 mm/N
        Effectief oppervlak (Sd)
        118 cm²
        Krachtsfactor (BL)
        7.84 N/A
        Equivalentvolume (Vas)
        26.1 Liters
        Maximale excursie (Xmax)
        4.8 mm

        Toon meer
