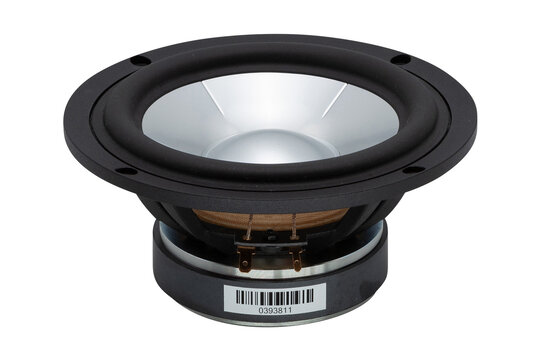

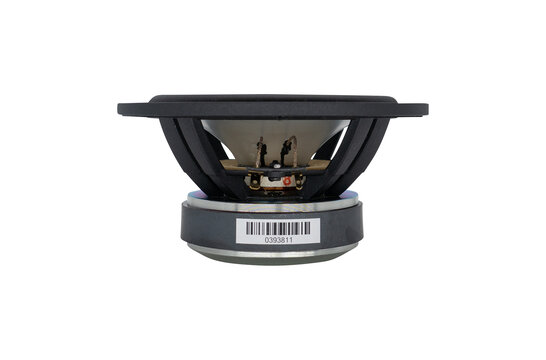

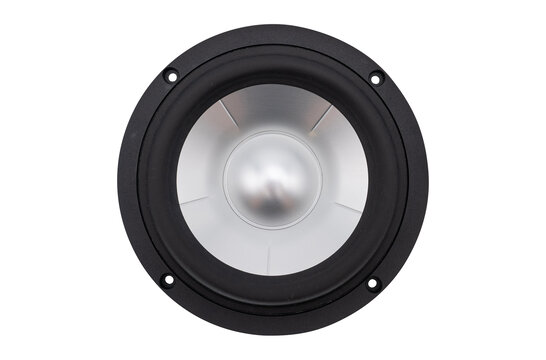

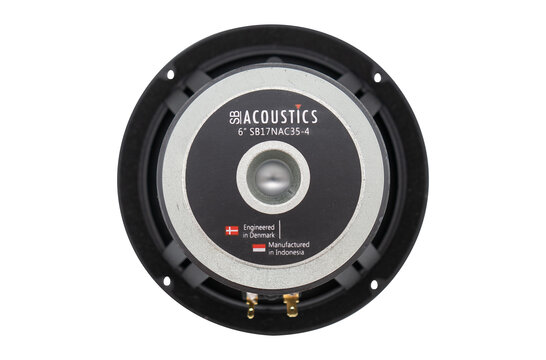

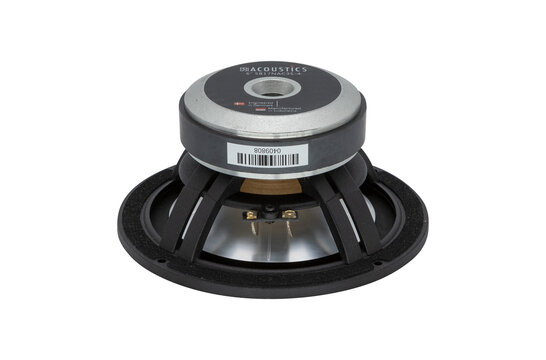

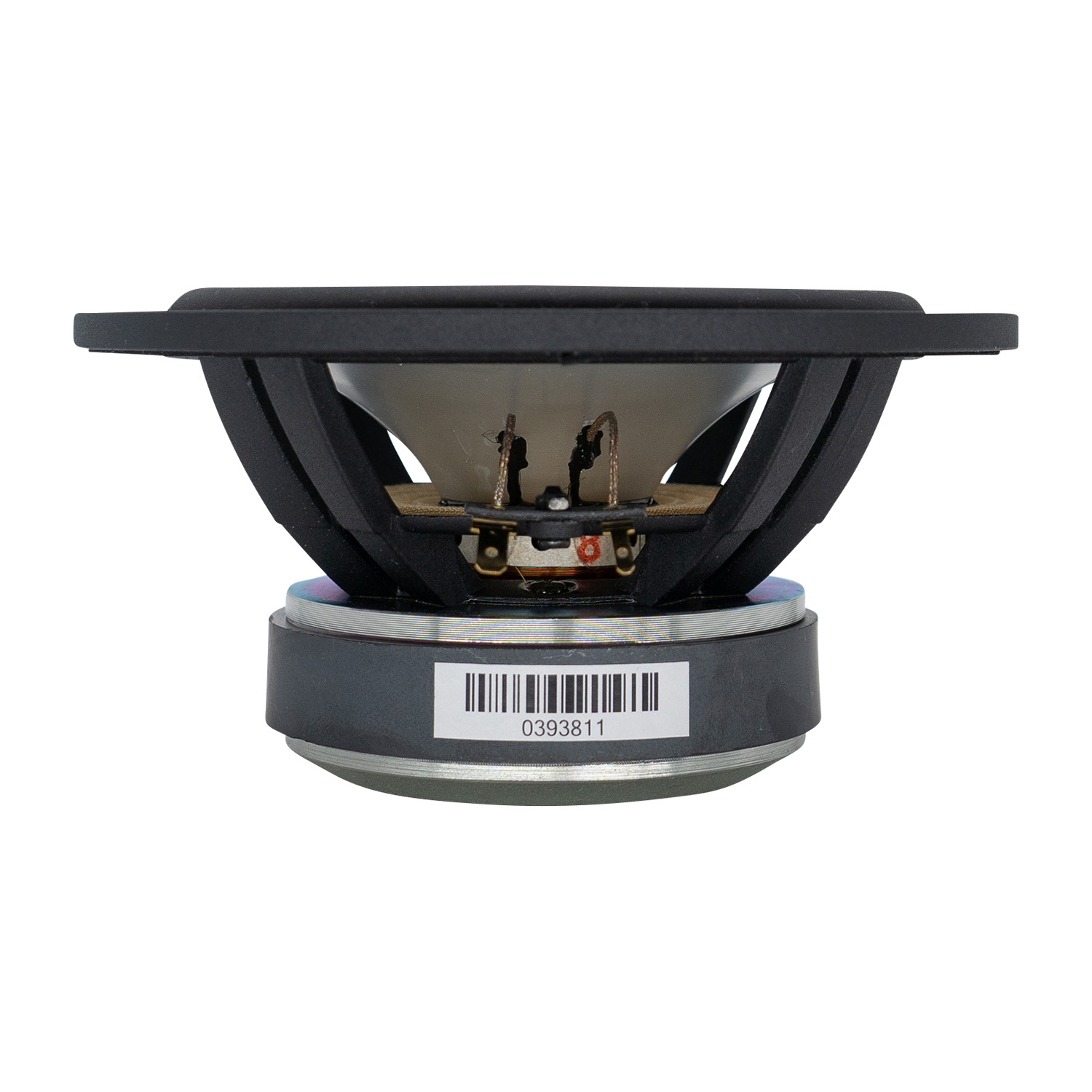

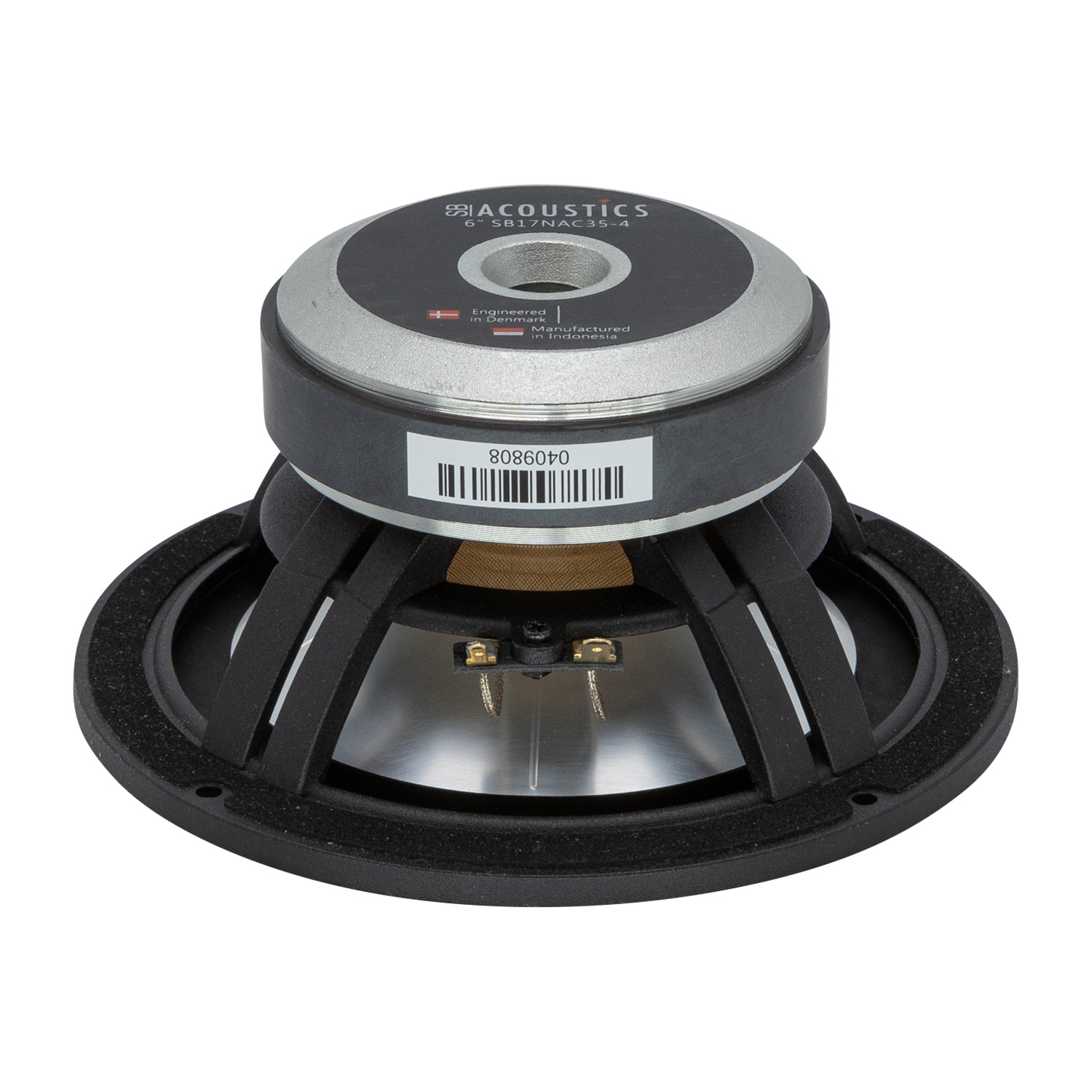

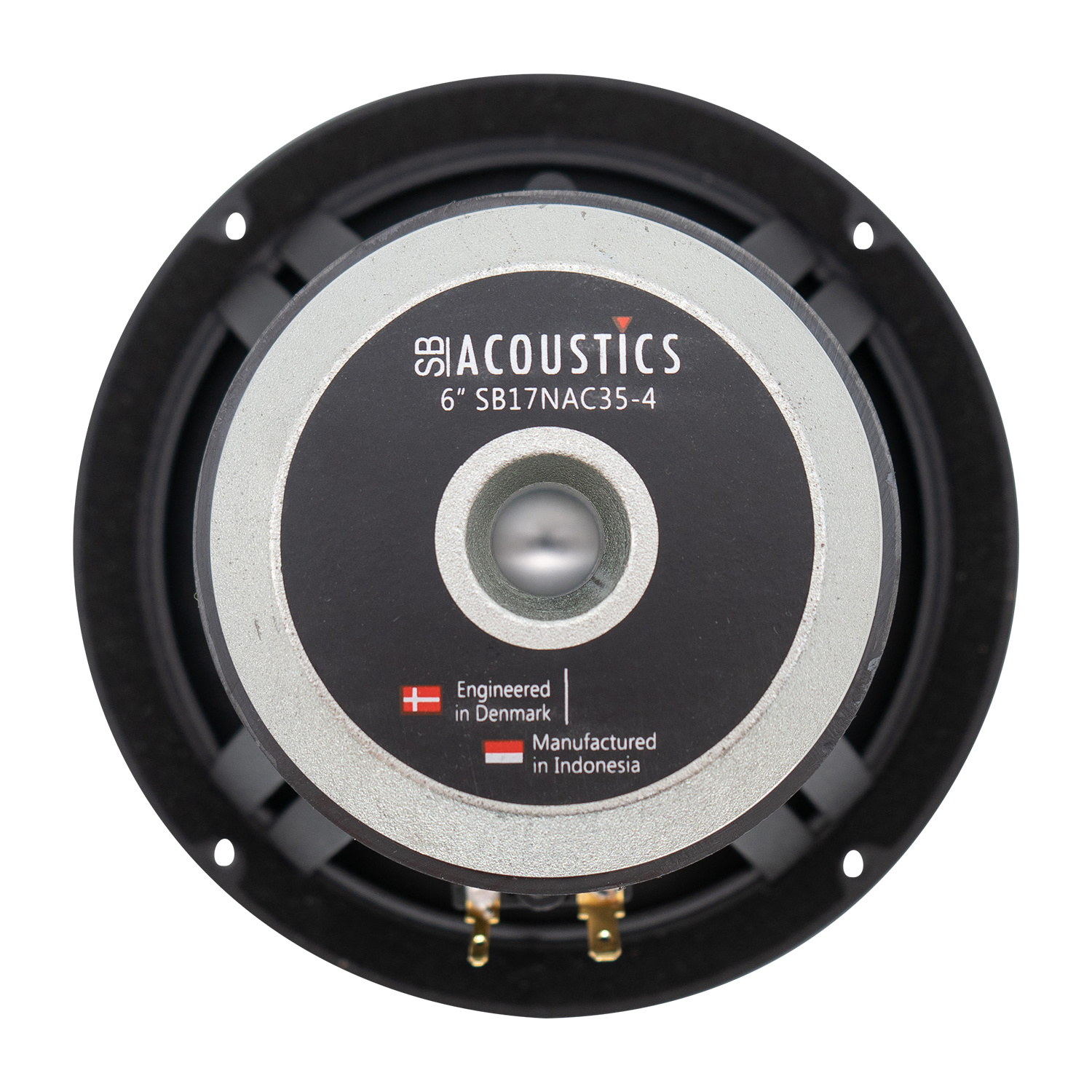

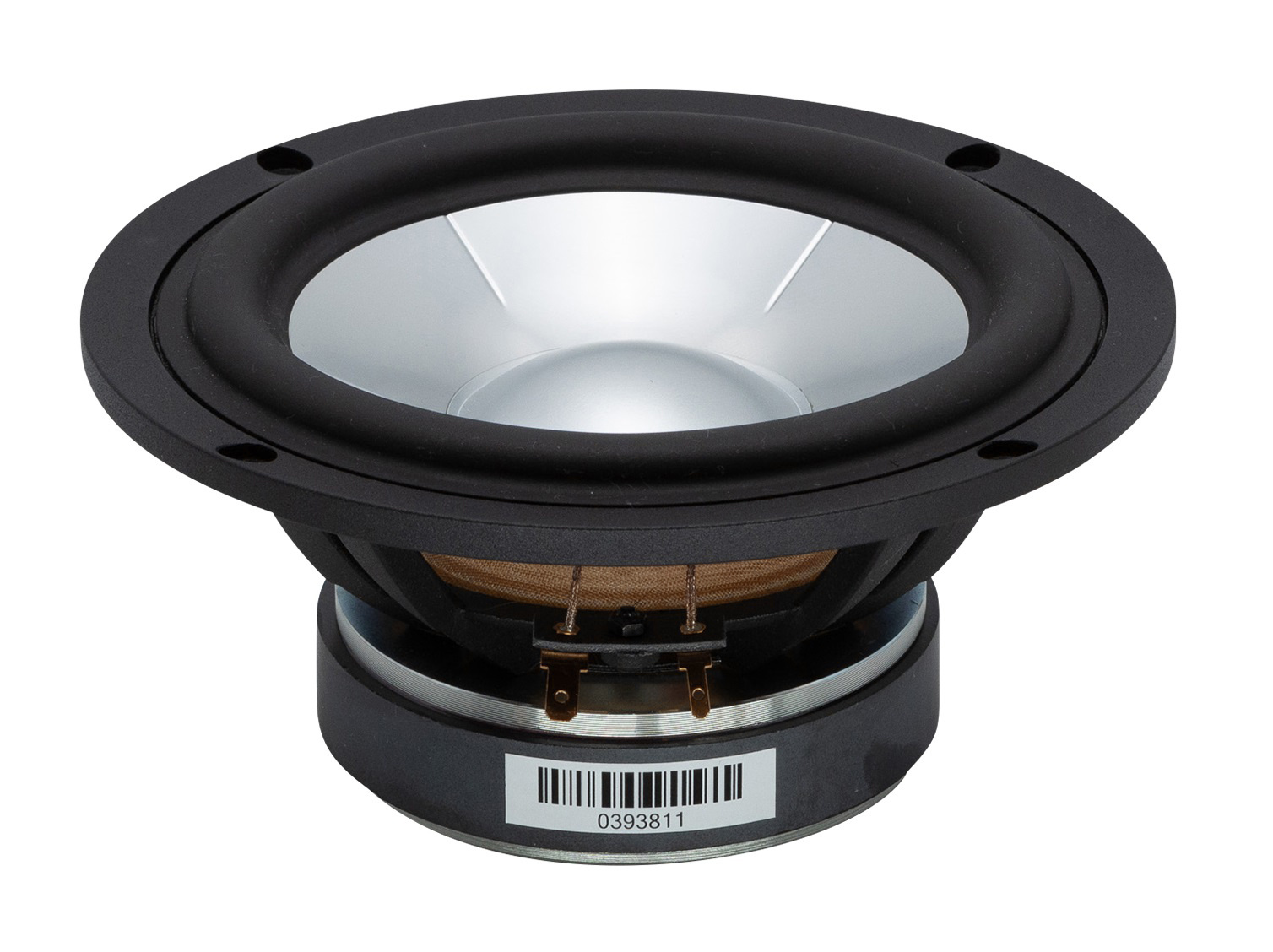

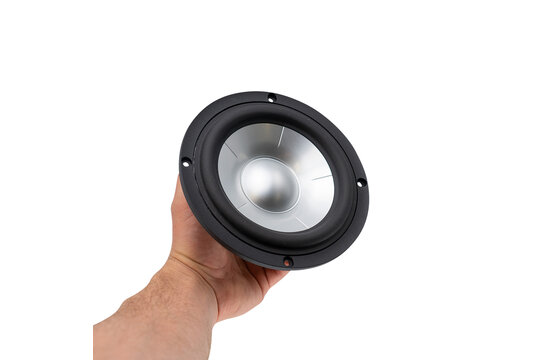

    SB Acoustics SB17NAC35-4 6'' Aluminum Cone Woofer

    € 67,25 2 Op voorraad: levertijd 1 werkdag
    The SB Acoustics SB17NAC35-4 features a vented cast aluminum chassis for optimum strength and low compression and a geometrically reinforced aluminum cone for optimum piston operation and reduced break-up.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €63,89 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Highlights

    • Vented cast aluminum chassis for optimum strength and low compression
    • Geometrically reinforced aluminum cone for optimum piston operation and reduced break-up
    • Soft low damping rubber surround for improved transient response
    • Non-conducting fiber glass voice coil former for minimum damping
    • Extended copper sleeve on pole piece for low inductance and low distortion
    • CCAW voice coil for reduced moving mass
    • Long life silver lead wires
    • Vented pole piece for reduced compression



    Product details

    SB Acoustics SB17NAC35-4 6'' Aluminum Cone Woofer



    The SB Acoustics SB17NAC35-4 features a vented cast aluminum chassis for optimum strength and low compression and a geometrically reinforced aluminum cone for optimum piston operation and reduced break-up. Soft low damping rubber surround for improved transient response. Non-conducting fiber glass voice coil former for minimum damping and extended copper sleeve on pole piece for low inductance and low distortion. CCAW voice coil for reduced moving mass. Long life silver lead wires. Vented pole piece for reduced compression.

    Specificaties

    Artikelnummer
    SB17NAC35-4
    Woofer Series
    NAC Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    6"
    Power Handling (RMS)
    60 Watts
    Impedance
    4 ohms
    Sensitivity
    90 dB 2.83V/1m
    Voice Coil Diameter
    1.39"
    DC Resistance (Re)
    3.1 ohms
    Voice Coil Inductance (Le)
    0.13 mH
    Resonant Frequency (Fs)
    32 Hz
    Mechanical Q (Qms)
    5.95
    Electromagnetic Q (Qes)
    0.34
    Total Q (Qts)
    0.32
    Diaphragm Mass Inc. Airload (Mms)
    14.8 g
    Mechanical Compliance of Suspension (Cms)
    1.67 mm/N
    Surface Area of Cone (Sd)
    118 cm2
    BL Product (BL)
    5.2 Tm
    Compliance Equivalent Volume (Vas)
    1.16 ft.³
    Maximum Linear Excursion (Xmax)
    5.5 mm

    Reviews

    5 from 5Based on 1 reviews
    Schrijf een review
    5 van 5
    Fantastic detailed driver, I was literally blown away by the amount of bass it can produce in a 17 litre vented box
    Door Jaikub on 23 Maart 2021
