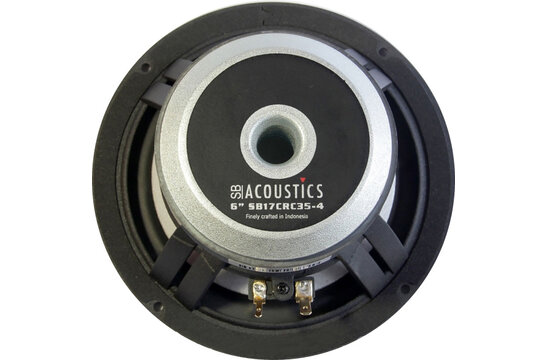

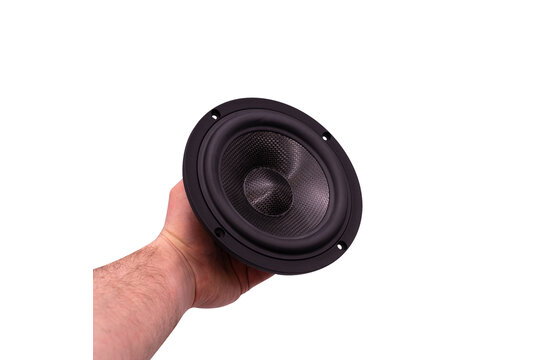

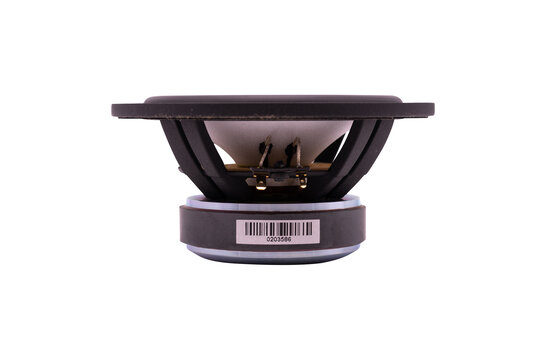

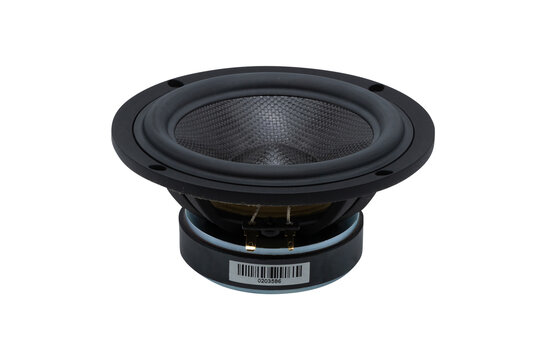

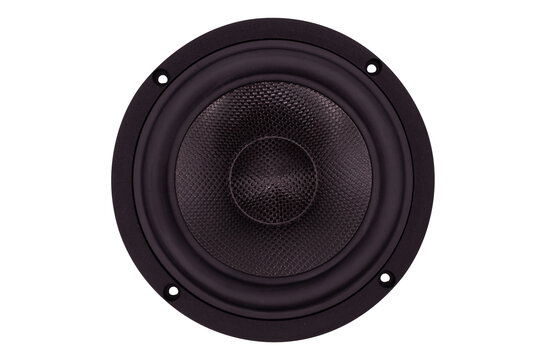

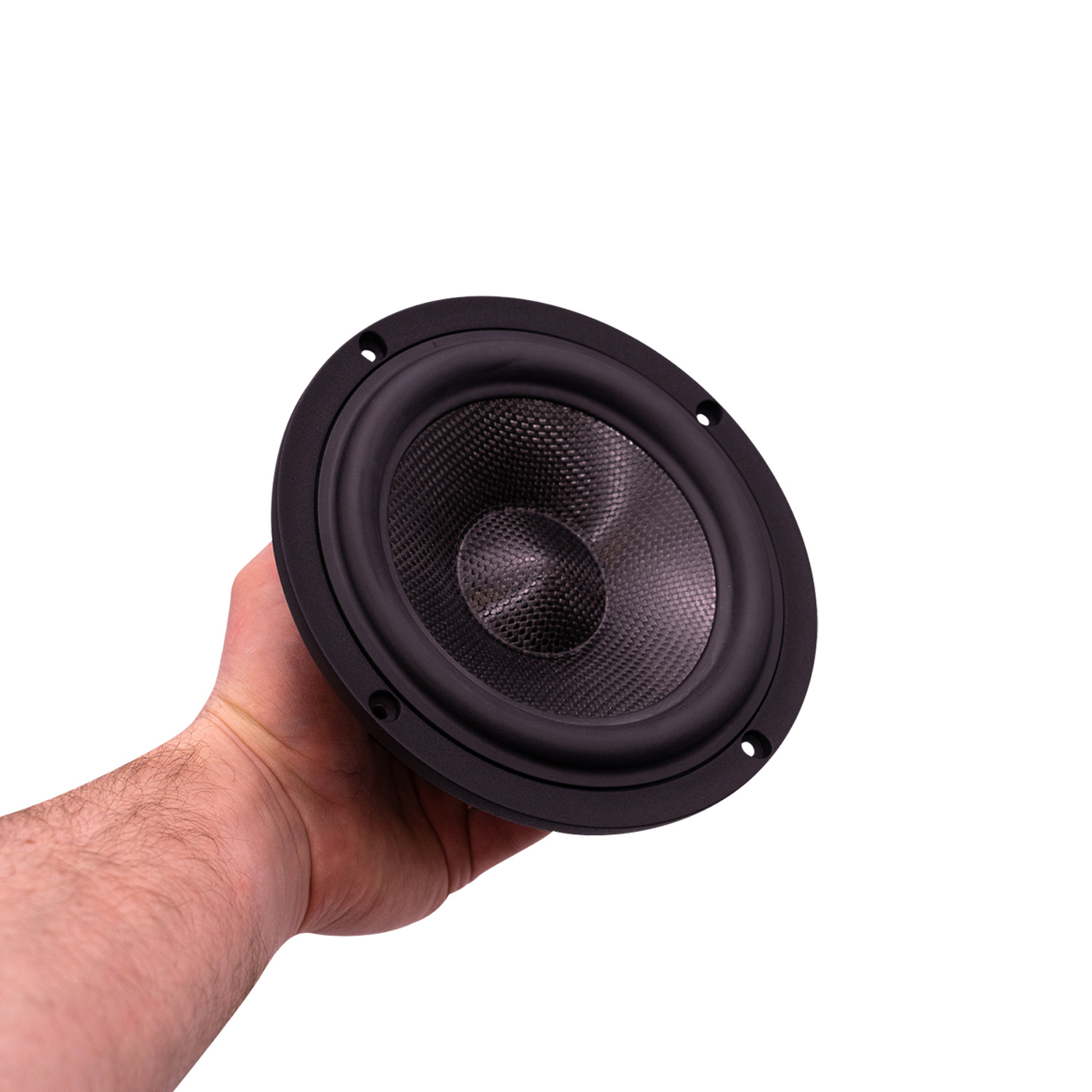

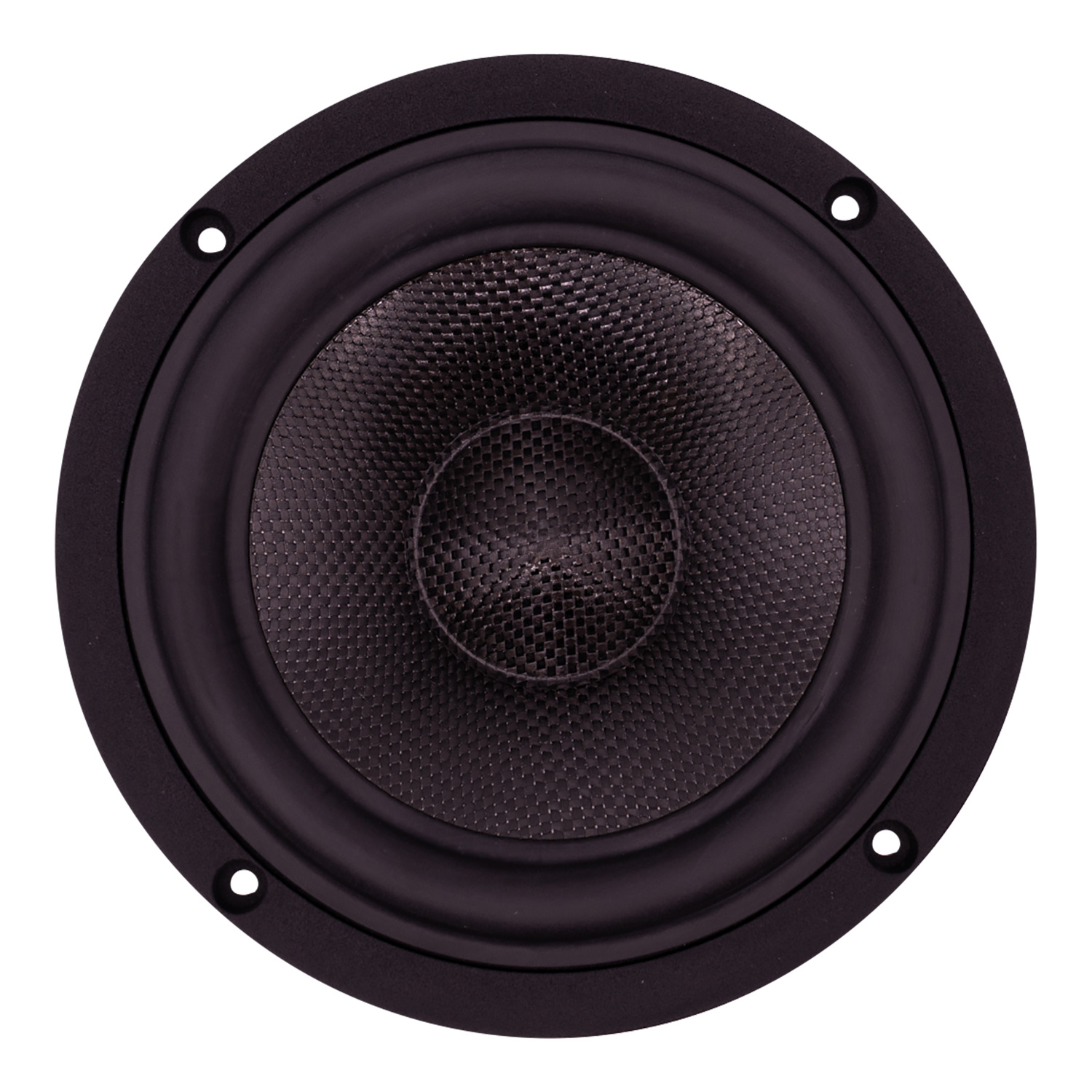

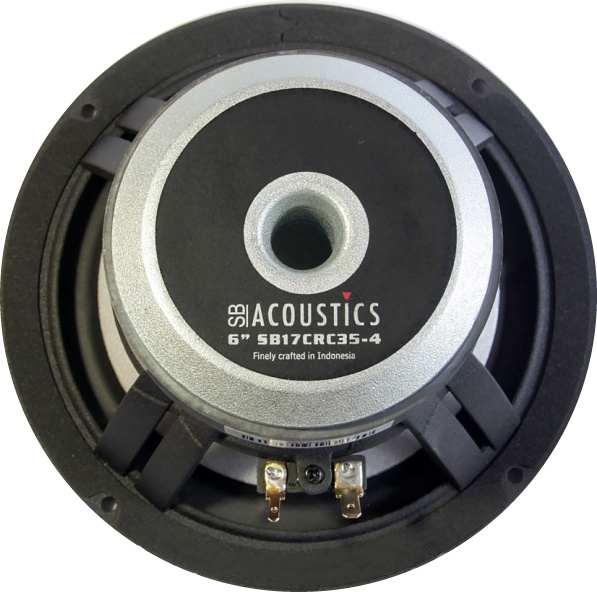

        SB Acoustics SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms

        1 reviews
        Merk: SB Acoustics
        Toon alle Audio componenten
        6" | 4 Ω
        SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
        SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
        SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
        SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
        SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
        SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
        SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
        SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
        € 76,41€ 92,45 2 Op voorraad: levertijd 1 werkdag
        Rohacellﾮ/Carbon fibre sandwich cone for optimized stiffness/damping ratio - Vented cast aluminum chassis for optimum strength and low compression - Low damping rubber surround for improved transient response - Non-conducting fibre glass voice coil former... Toon meer
        Volume voordeel Geniet van deze geweldige kortingsdeals
        • -5% Bestel 4 voor slechts €87,83 per stuk
        +-
        In winkelwagen
        • Verzending altijd verzekerd en met track & trace
        • Voor 16u besteld, vandaag verstuurd*
        • Gratis verzending vanaf €99
        • In-house technische support
        SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
        SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
        SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
        SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
        SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
        SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
        SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms
        SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms

        Productomschrijving

        Highlights

        • Extended copper sleeve on pole piece for low inductance and low distortion
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires
        • Vented pole piece for reduced compression



        Product details

        SB Acoustics SB17CRC35-4 6" Woven Carbon Fiber Cone Woofer | 4 ohms



        Rohacell®/Carbon fibre sandwich cone for optimized stiffness/damping ratio. Vented cast aluminum chassis for optimum strength and low compression. Low damping rubber surround for improved transient response. Non-conducting fibre glass voice coil former for minimum damping.

        Specificaties

        Artikelnummer
        SB17CRC35-4
        Woofer Series
        CRC Series
        Woofer Type
        Midwoofer
        Nominal Diameter
        6”
        Power Handling (RMS)
        0.65 kg/s
        Impedance
        4 Ohms
        Sensitivity
        (2.83 V / 1 m) 90 dB
        Voice Coil Diameter
        35.5 mm
        Magnet Weight
        0.54 kg
        DC Resistance (Re)
        3.1 Ω
        Voice Coil Inductance (Le)
        0.13 mH
        Resonant Frequency (Fs)
        31.5 Hz
        Mechanical Q (Qms)
        4.32
        Diaphragm Mass Inc. Airload (Mms)
        14.2 g
        Mechanical Compliance of Suspension (Cms)
        1.80 mm/N
        Surface Area of Cone (Sd)
        118 cm2
        BL Product (BL)
        5.0 Tm
        Compliance Equivalent Volume (Vas)
        35.5 liters
        Driver's Mechanical Losses (Rms)
        0.65 kg/s
        Cone / Diaphragm Material
        Rohacell®/Carbon fibre sandwich cone
        # Mounting Holes
        4

        Reviews

        1 reviews
        5 from 5Based on 1 reviews
        Schrijf een review
        5 van 5
        The sb acoustics midwoofers were delivered promptly. And sound simply fantastic. Couldn't b happier ! Thankyou Sound Imports for the swift service
        Door Richard W. on 24 November 2020
