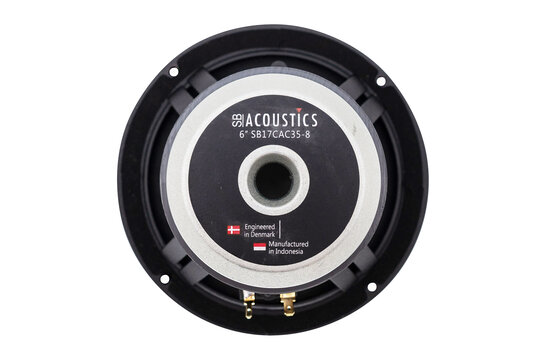

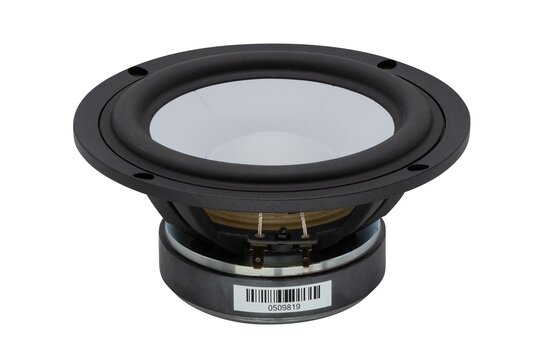

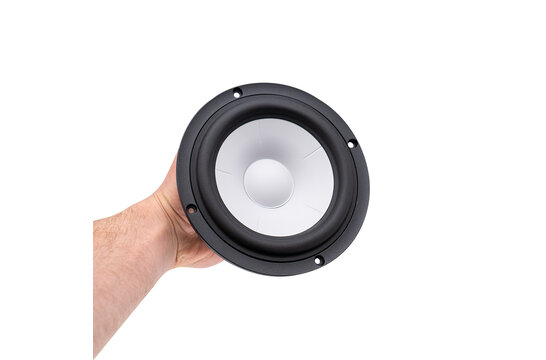

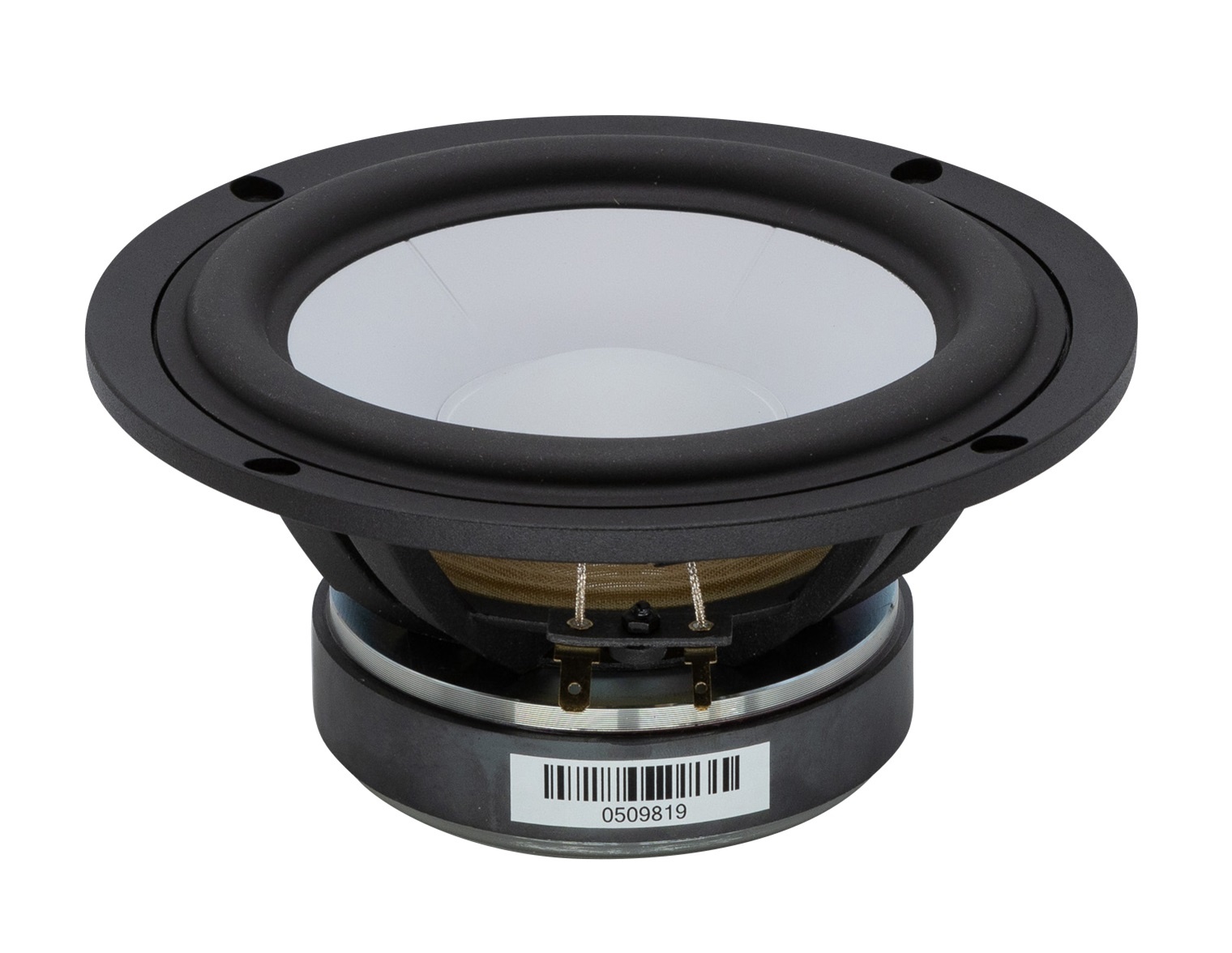

        SB17CAC35-8 Bass-midwoofer

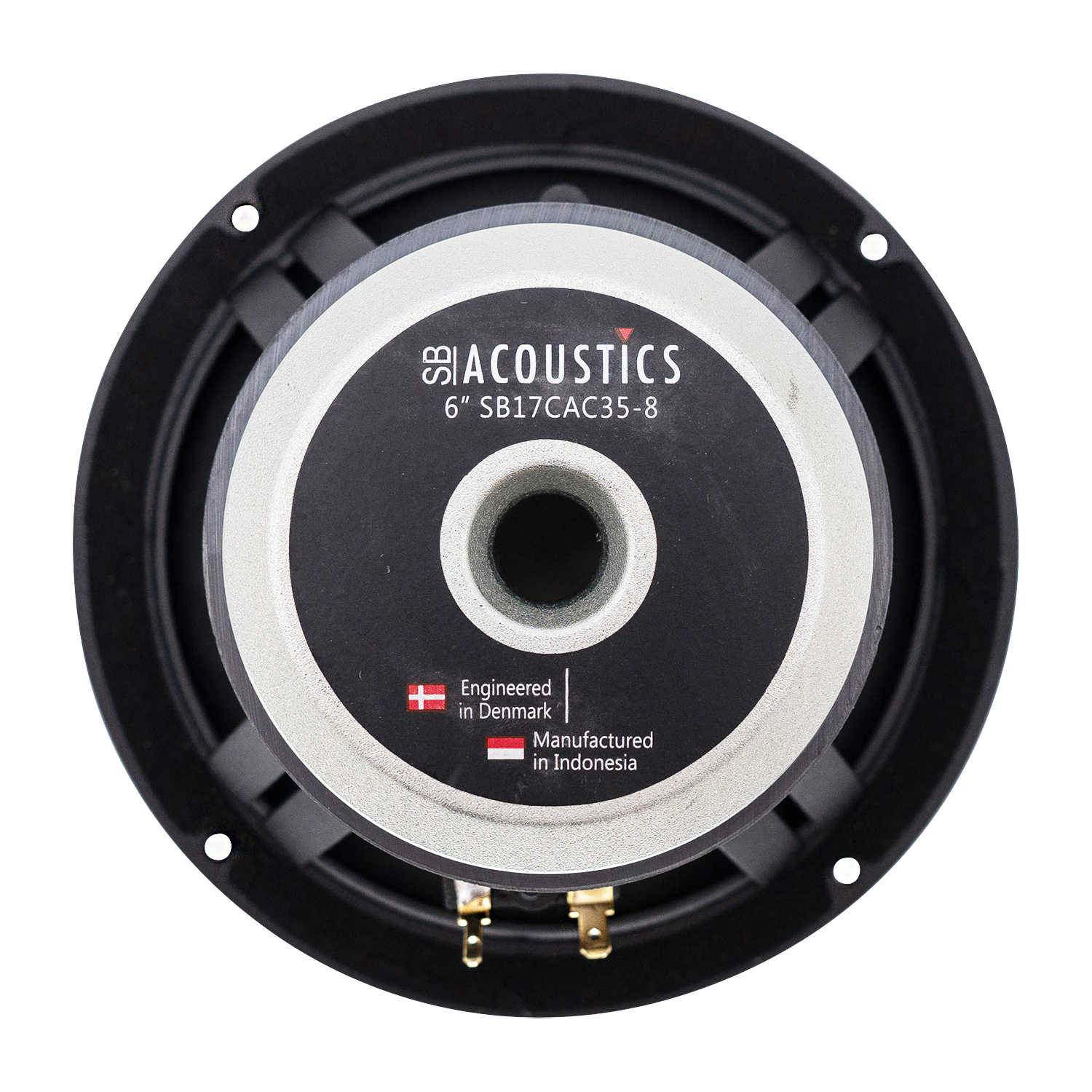

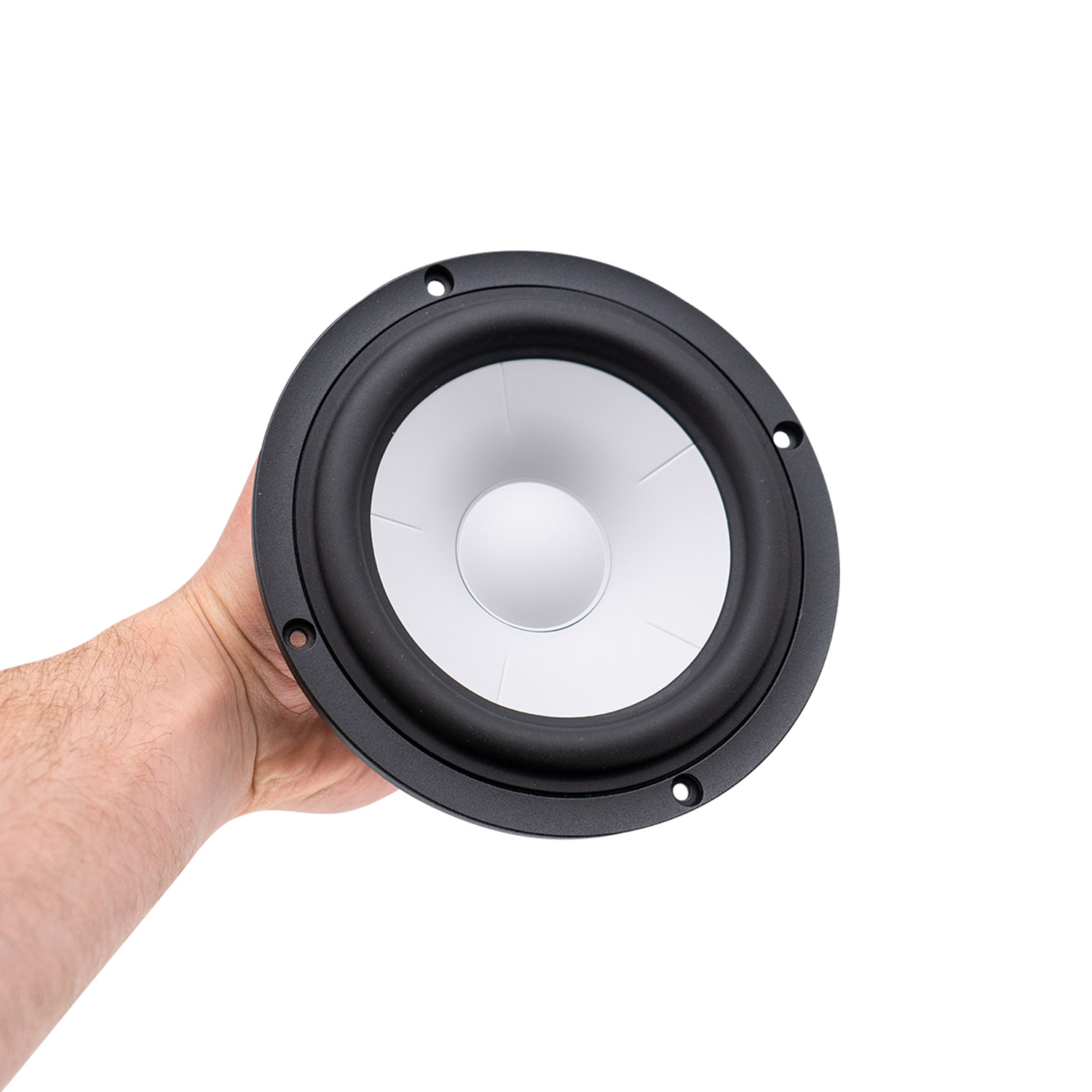

        SB Acoustics SB17CAC35-8 Bass-midwoofer

        €104,95

        8 Op voorraad

        Toevoegen aan winkelwagen

        SB Acoustics SB17CAC35-8 Bass-midwoofer

        3 klantbeoordelingen
        5 van 5
        3 klantbeoordelingen
        5 sterren
        100%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: SB Acoustics
        6" | 8 Ω
        SB17CAC35-8 Bass-midwoofer
        SB17CAC35-8 Bass-midwoofer
        SB17CAC35-8 Bass-midwoofer
        SB17CAC35-8 Bass-midwoofer
        SB17CAC35-8 Bass-midwoofer
        SB17CAC35-8 Bass-midwoofer
        SB17CAC35-8 Bass-midwoofer
        SB17CAC35-8 Bass-midwoofer
        SB17CAC35-8 Bass-midwoofer
        SB17CAC35-8 Bass-midwoofer
        SB17CAC35-8 Bass-midwoofer
        SB17CAC35-8 Bass-midwoofer
        € 86,74€ 104,95 8 Op voorraad
        • -5% Bestel 4 voor slechts € 99,70 per stuk
        € 104,95
        +-
        Toevoegen aan winkelwagen
        🔒 Veilig betalen
        iDEALBancontactMastercardBank TransferApple PayGoogle Paypaypal

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, dinsdag bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        SB17CAC35-8 Bass-midwoofer
        SB17CAC35-8 Bass-midwoofer
        SB17CAC35-8 Bass-midwoofer
        SB17CAC35-8 Bass-midwoofer
        SB17CAC35-8 Bass-midwoofer
        SB17CAC35-8 Bass-midwoofer
        SB17CAC35-8 Bass-midwoofer
        SB17CAC35-8 Bass-midwoofer
        SB17CAC35-8 Bass-midwoofer
        SB17CAC35-8 Bass-midwoofer
        SB17CAC35-8 Bass-midwoofer
        SB17CAC35-8 Bass-midwoofer

        Productomschrijving SB Acoustics SB17CAC35-8 Bass-midwoofer

        Highlights

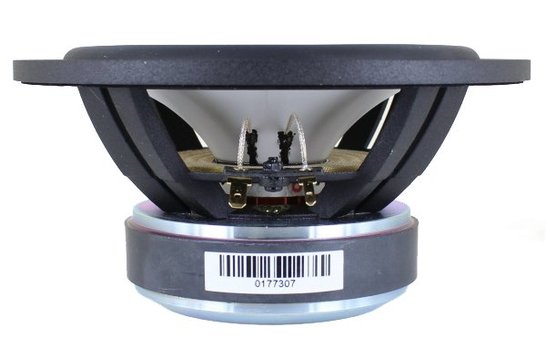

        • Vented cast aluminum chassis for optimum strength and low compression

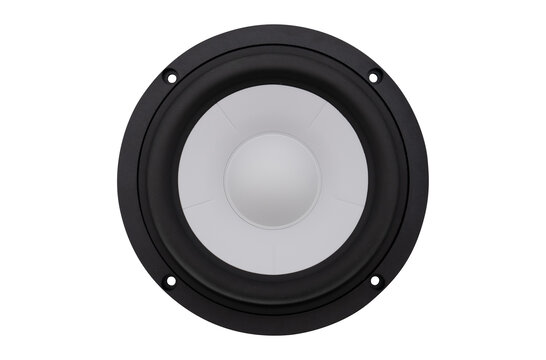

        • Geometrically reinforced ceramic cone for optimum piston operation and reduced break-up
        • Soft low damping rubber surround for improved transient response
        • Non-conducting fiber glass voice coil former for minimum damping
        • Extended copper sleeve on pole piece for low inductance and low distortion
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires
        • Vented pole piece for reduced compression



        Product details

        SB Acoustics SB17CAC35-8 6" Ceramic Woofer



        SB Ceramic cones consist of an aluminum/ceramic dual layer cone. Ceramic provides a very hard and robust surface with improved sonic properties and cosmetic appearance.



        Other than that, ceramic cones offer smoothness and harmonic richness unavailable from conventional paper cone material. Ceramic materials also offer significantly higher stiffness numbers and slightly better internal losses than typical metals such as titanium or aluminum. Compared to polymers, paper, and other soft materials, ceramics provide: significantly higher stiffness to weight ratio, more consistent performance over a wide range of temperature and humidity as well as superior immunity to UV light and sunlight, to water and salt water and to combustibility.

        Toon meer

        Specificaties

        Artikelnummer
        SB17CAC35-8
        EAN
        0696277269372
        Woofer series
        SB Acoustics CAC Ceramic series
        Woofer type
        Midwoofer
        Nominale diameter
        6"
        Belastbaarheid (RMS)
        60 Watt
        Impedantie (Z)
        8 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        86.5 dB
        Frequentierespons
        75 - 5500 Hz
        Spreekspoeldiameter
        36 mm
        Gelijkstroomweerstand (Re)
        5.7 Ω
        Spreekspoelinductie (Le)
        0.15 mH
        Resonantiefrequentie (Fs)
        28 Hz
        Mechanische Q (Qms)
        4.46
        Elektrische Q (Qes)
        0.4
        Totale Q (Qts)
        0.36
        Bewegende massa (Mms)
        15.4 g
        Compliantie van de ophanging (Cms)
        2.13 mm/N
        Effectief oppervlak (Sd)
        118 cm²
        Krachtsfactor (BL)
        6.2 Tm
        Equivalentvolume (Vas)
        41.9 L
        Maximale excursie (Xmax)
        5.5 mm
        Cone / Diaphragm Material
        Paper
        Spreekspoel draadmateriaal
        CCAW
        Spreekspoel drager materiaal
        Kapton
        Mand- /framemateriaal
        Stamped Steel
        Magneetmateriaal
        Ferrite
        Totale buitendiameter
        257 mm
        Montagegatdiameter
        235 mm

        Toon meer

        Reviews

        3 klantbeoordelingen
        Schrijf een review
        5 van 5
        With the right crossower heavenly sound. Deep and precise bass, juicy mids full of details. Six stars out of five. I can only highly recommend.
        Door Jozef on 23 Juni 2022
        5 van 5
        Used in CB with 33ltr. capacitor 800 myF.
        (Closed with a high pass) = 30Hz!
        Door lufton on 31 Augustus 2020
