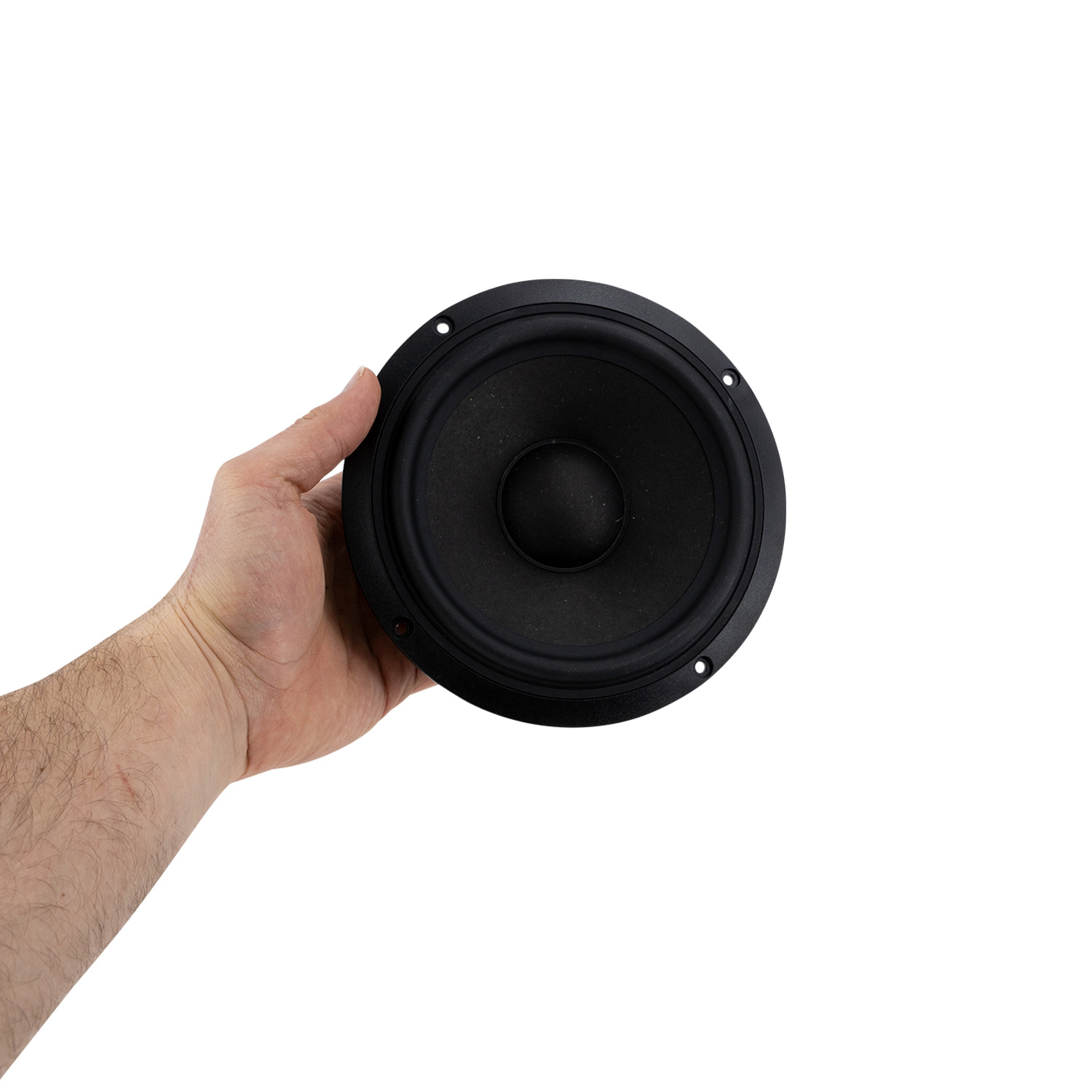

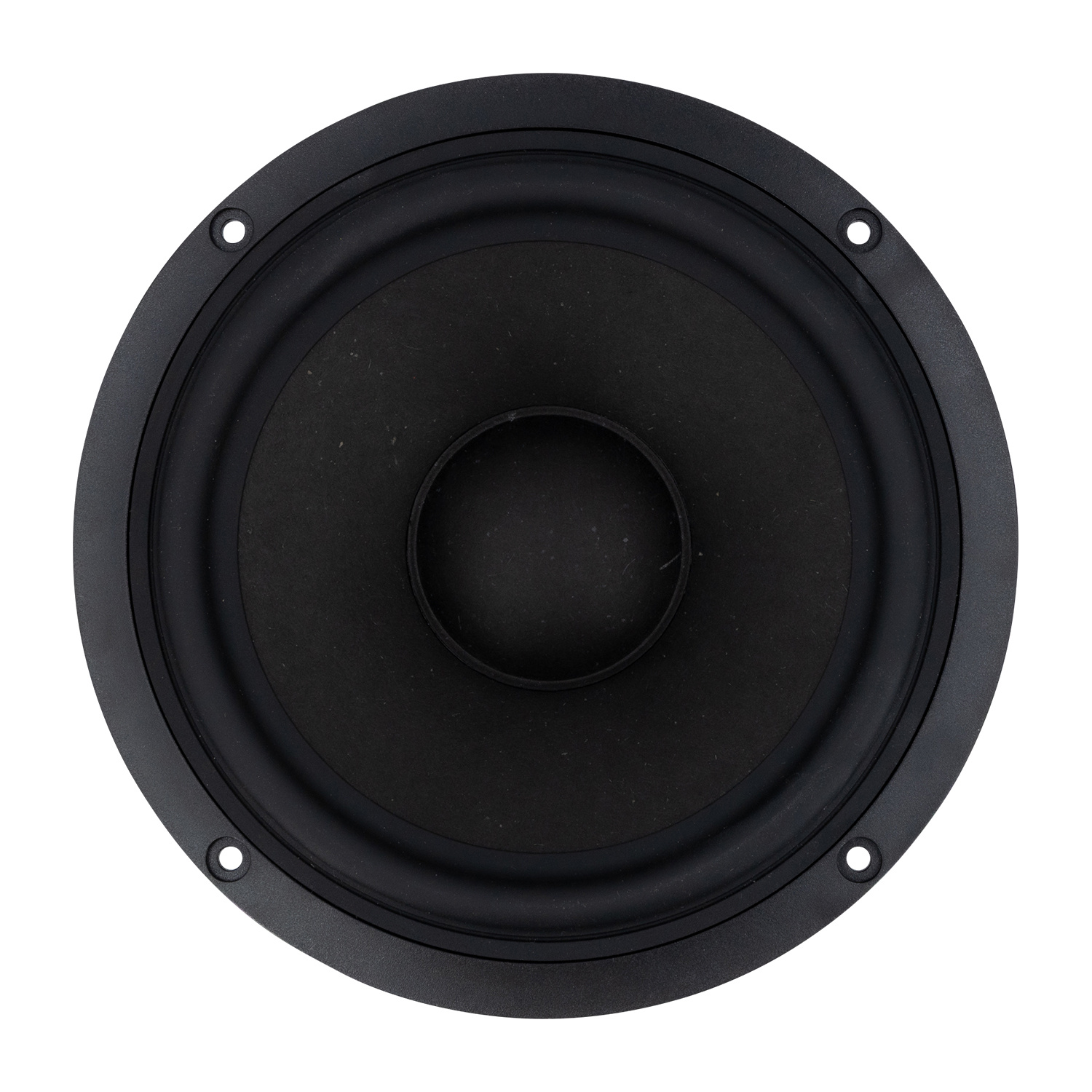

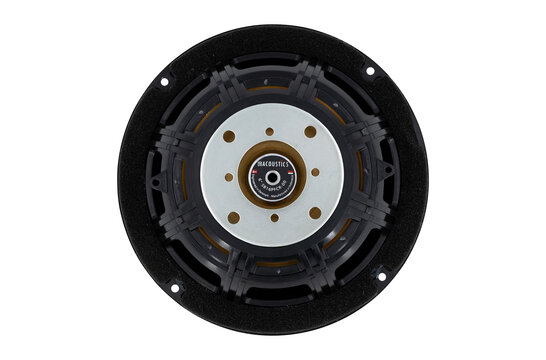

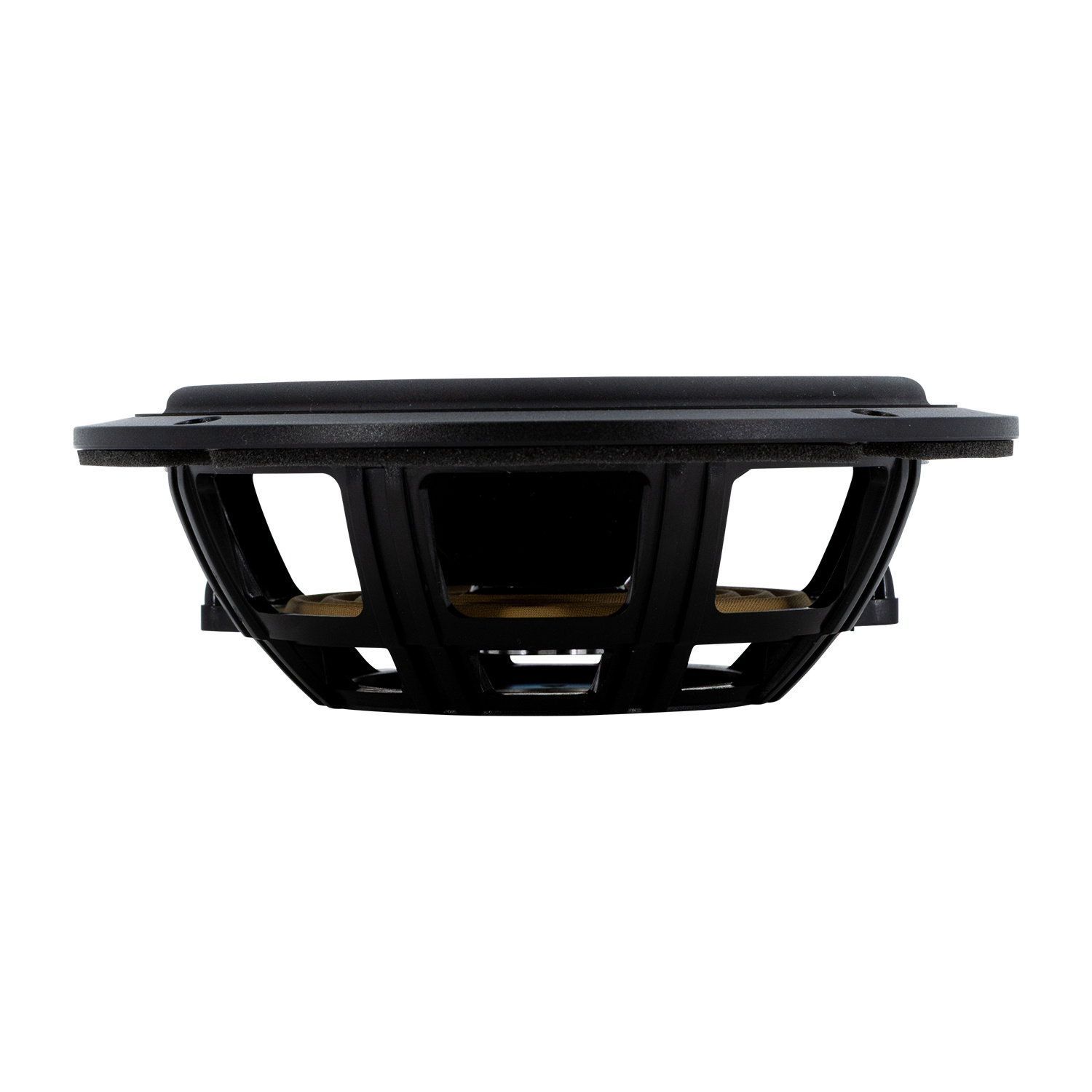

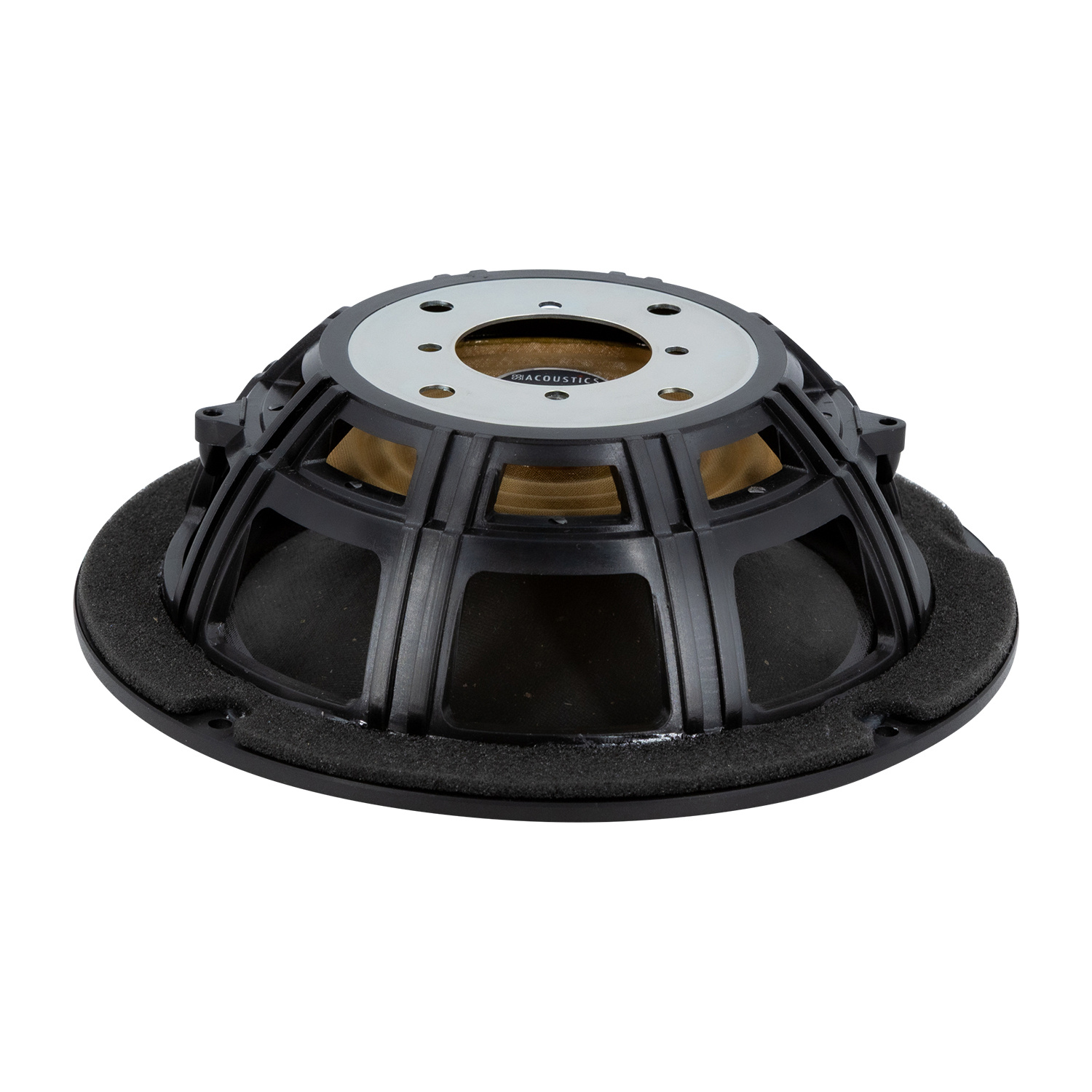

      SB Acoustics SB16PFCR-00 6" Paper Cone Passive Radiator

      Merk: SB Acoustics
      Toon alle Audio componenten
      PASSIVE | 6"

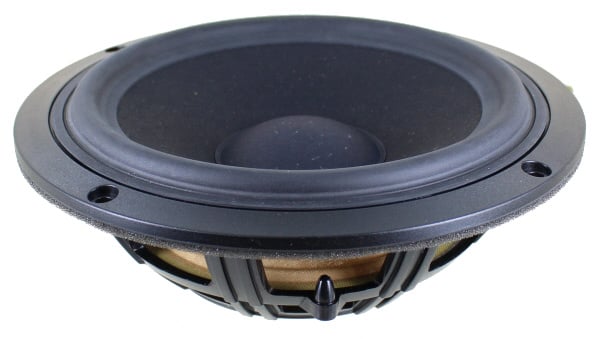

      SB16PFCR-00 6" Paper Cone Passive Radiator

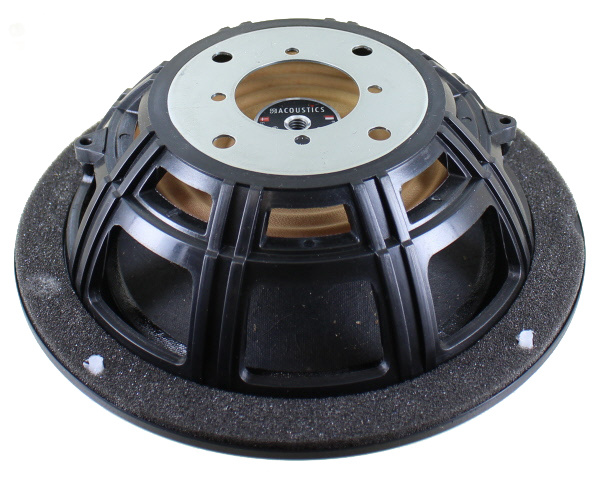

      SB16PFCR-00 6" Paper Cone Passive Radiator

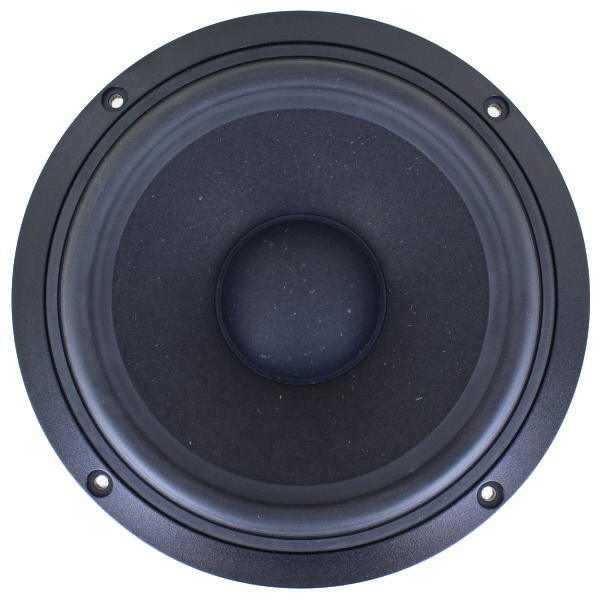

      SB16PFCR-00 6" Paper Cone Passive Radiator

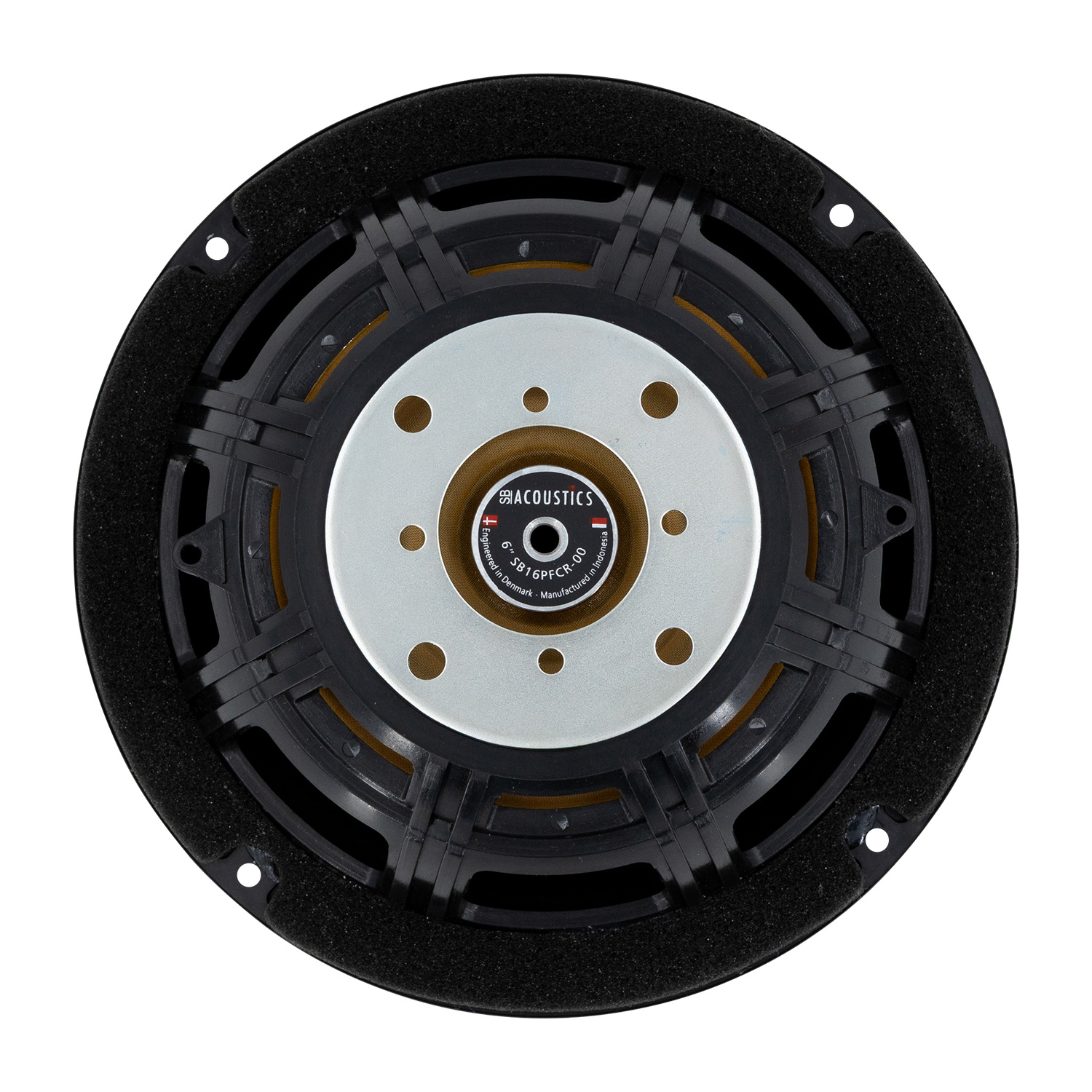

      SB16PFCR-00 6" Paper Cone Passive Radiator

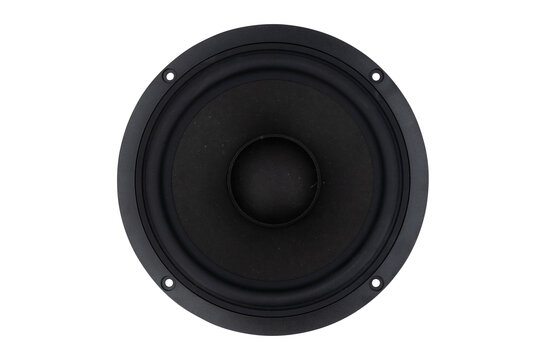

      SB16PFCR-00 6" Paper Cone Passive Radiator

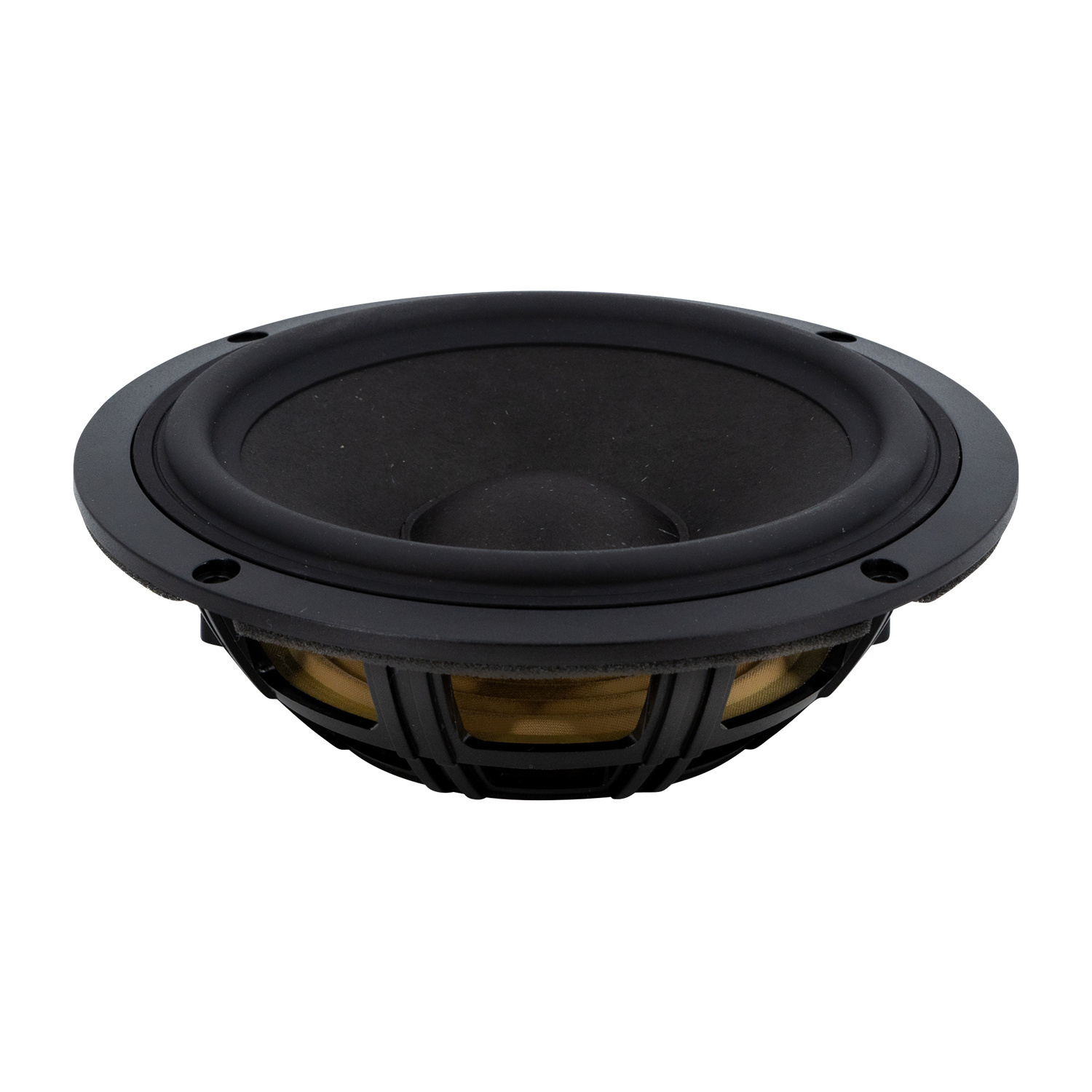

      SB16PFCR-00 6" Paper Cone Passive Radiator
      € 20,45 4 Op voorraad: levertijd 1 werkdag
      A high quality paper passive radiator. For increasing the low-end extension of an active driver.... Toon meer
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestel 4 voor slechts €19,43 per stuk
      +-
      In winkelwagen
      • Verzending altijd verzekerd en met track & trace
      • Voor 16u besteld, vandaag verstuurd*
      • Gratis verzending vanaf €99
      • In-house technische support
      SB16PFCR-00 6" Paper Cone Passive Radiator
      SB16PFCR-00 6" Paper Cone Passive Radiator
      SB16PFCR-00 6" Paper Cone Passive Radiator
      SB16PFCR-00 6" Paper Cone Passive Radiator
      SB16PFCR-00 6" Paper Cone Passive Radiator
      SB16PFCR-00 6" Paper Cone Passive Radiator

      Productomschrijving

      Highlights

      • Vented reinforced plastic chassis
      • Proprietary cone material with natural fibers made in-house
      • Soft low damping surround
      • Easily adjustable moving mass



      Product details

      SB Acoustics SB16PFCR-00 6" Paper Cone Passive Radiator



      The SB Acoustics SB16PFCR-00 is a perfect match for the PFCR series drivers. Both with its specifications and compatible visual style. A passive radiator can be used as an alternative to the port in a bass reflex cabinet, together with an active woofer of similar size or smaller. In many applications the traditional bass reflex port may produce high speed air noise or even have poor effect due to a small port area or a large port length. In such cases, a passive radiator may bring about an improvement

      Specificaties

      Artikelnummer
      SB16PFCR-00
      Woofer Type
      Passive radiator
      Nominal Diameter
      6''
      Resonant Frequency (Fs)
      22 Hz
      Mechanical Q (Qms)
      4.4
      Diaphragm Mass Inc. Airload (Mms)
      38 g
      Surface Area of Cone (Sd)
      124 cm2
      Maximum Linear Excursion (Xmax)
      10 mm (p-p)
      Driver's Mechanical Losses (Rms)
      1.2 kg/s
      Cone / Diaphragm Material
      Paper
      Surround Material
      Rubber
      Overall Outside Diameter
      178 mm
      Baffle Cutout Diameter
      144.5 mm
      # Mounting Holes
      4
