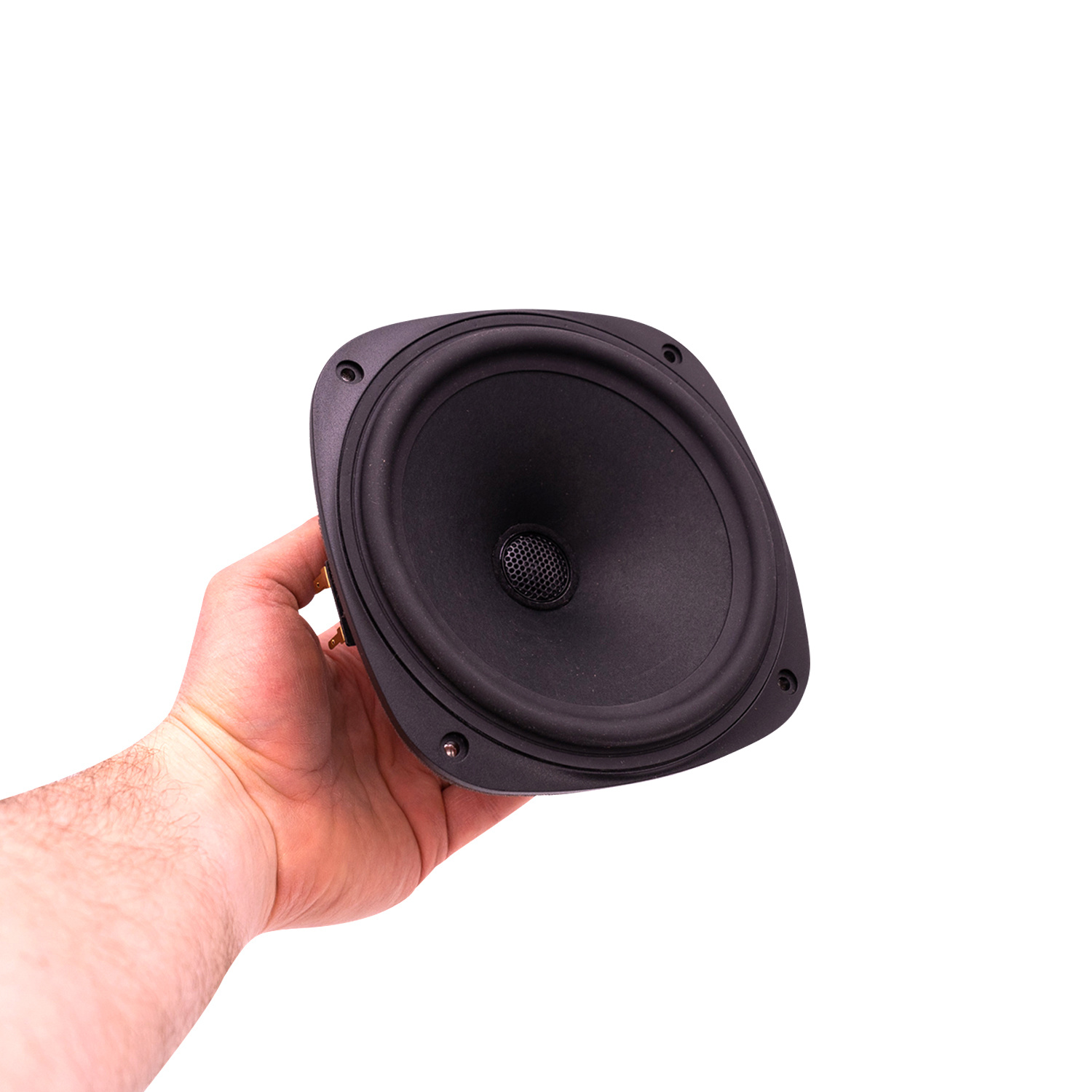

      SB Acoustics SB16PFC25-4-COAX 6" Paper Cone Coaxial

      Merk: SB Acoustics
      Toon alle Audio componenten
      6" | 4 Ω
      SB16PFC25-4-COAX 6" Paper Cone Coaxial
      SB16PFC25-4-COAX 6" Paper Cone Coaxial
      SB16PFC25-4-COAX 6" Paper Cone Coaxial
      SB16PFC25-4-COAX 6" Paper Cone Coaxial
      SB16PFC25-4-COAX 6" Paper Cone Coaxial
      SB16PFC25-4-COAX 6" Paper Cone Coaxial
      SB16PFC25-4-COAX 6" Paper Cone Coaxial
      SB16PFC25-4-COAX 6" Paper Cone Coaxial
      € 48,25 2 Op voorraad: levertijd 1 werkdag
      The SB Acoustics SB16PFC25-4-COAX is composed by a vented reinforced plastic chassis and a proprietary cone material with natural made in-house fibers. The soft low damping rubber surround allows an improved transient response.... Toon meer
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestel 4 voor slechts €45,84 per stuk
      +-
      In winkelwagen
      • Verzending altijd verzekerd en met track & trace
      • Voor 16u besteld, vandaag verstuurd*
      • Gratis verzending vanaf €99
      • In-house technische support
      SB16PFC25-4-COAX 6" Paper Cone Coaxial
      SB16PFC25-4-COAX 6" Paper Cone Coaxial
      SB16PFC25-4-COAX 6" Paper Cone Coaxial
      SB16PFC25-4-COAX 6" Paper Cone Coaxial
      SB16PFC25-4-COAX 6" Paper Cone Coaxial
      SB16PFC25-4-COAX 6" Paper Cone Coaxial
      SB16PFC25-4-COAX 6" Paper Cone Coaxial
      SB16PFC25-4-COAX 6" Paper Cone Coaxial

      Productomschrijving

      Highlights

      • Vented reinforced plastic chassis
      • Proprietary cone material with natural fibers made in-house
      • Soft low damping rubber surround for improved transient response
      • Optimized motor system
      • Non-resonant long life lead wires
      • Compact large surround dome tweeter



      Product details

      SB Acoustics SB16PFC25-4-COAX 6" Paper Cone Coaxial



      The SB Acoustics SB16PFC25-4-COAX is composed by a vented reinforced plastic chassis and a proprietary cone material with natural made in-house fibers. The soft low damping rubber surround allows an improved transient response. Optimized motor system, non-resonant long life lead wires and compact large surround dome tweeter.

      Specificaties

      Artikelnummer
      SB16PFC25-4-COAX
      Woofer Series
      PFC Series
      Woofer Type
      Coaxial
      Nominal Diameter
      6"
      Power Handling (RMS)
      40 Watts
      Impedance
      4 ohms
      Sensitivity
      90 dB 2.83V/1m
      Voice Coil Diameter
      1"
      DC Resistance (Re)
      3.2 ohms
      Voice Coil Inductance (Le)
      0.31 mH
      Resonant Frequency (Fs)
      36 Hz
      Mechanical Q (Qms)
      2.6
      Electromagnetic Q (Qes)
      0.35
      Total Q (Qts)
      0.31
      Diaphragm Mass Inc. Airload (Mms)
      12.5 g
      Mechanical Compliance of Suspension (Cms)
      1.51 mm/N
      Surface Area of Cone (Sd)
      124.7 cm2
      BL Product (BL)
      5.1 Tm
      Compliance Equivalent Volume (Vas)
      1.15 ft.³
      Maximum Linear Excursion (Xmax)
      4.65 mm

      Reviews

      0 from 5Based on 0 reviews
      Schrijf een review

      Er zijn nog geen reviews geschreven over dit product..
