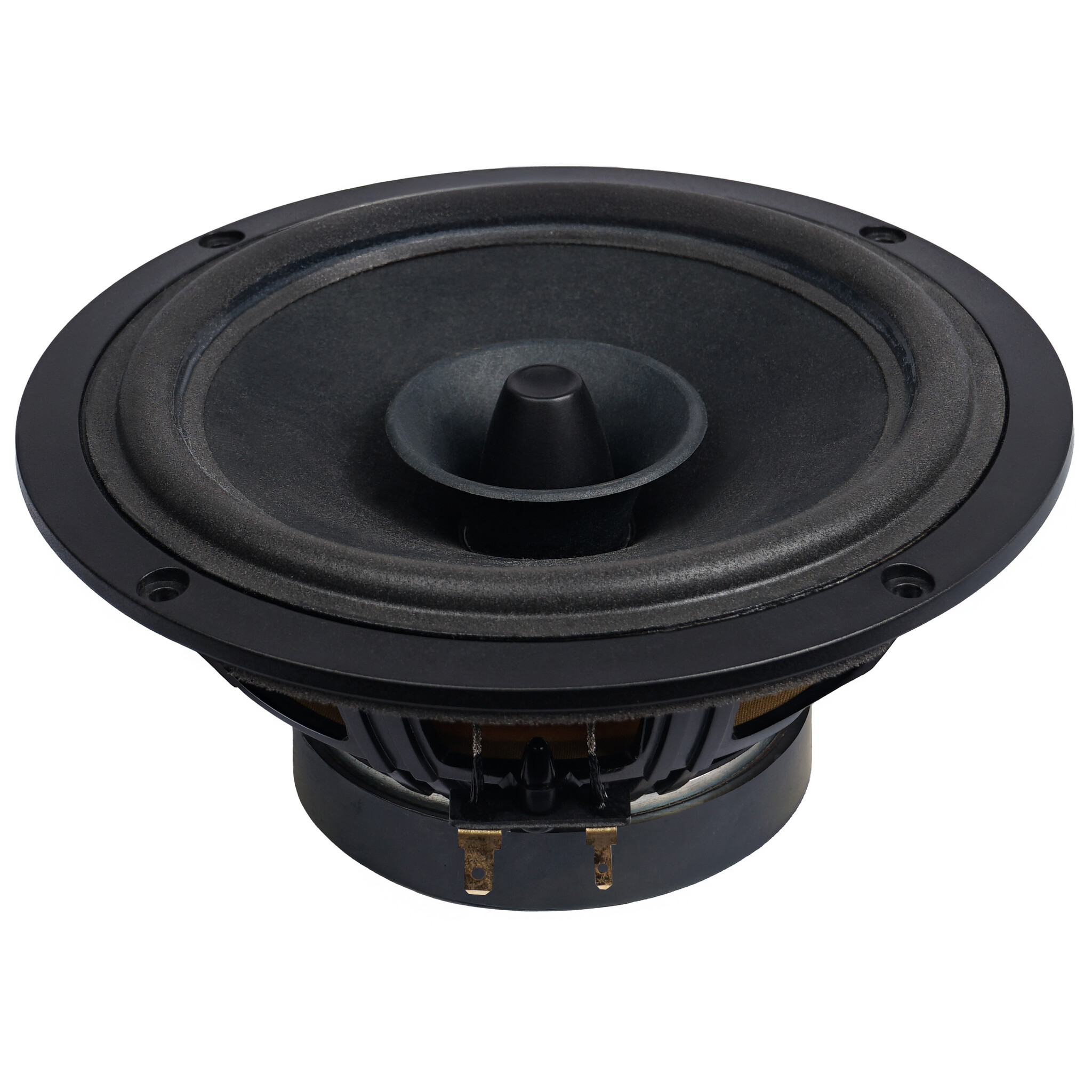

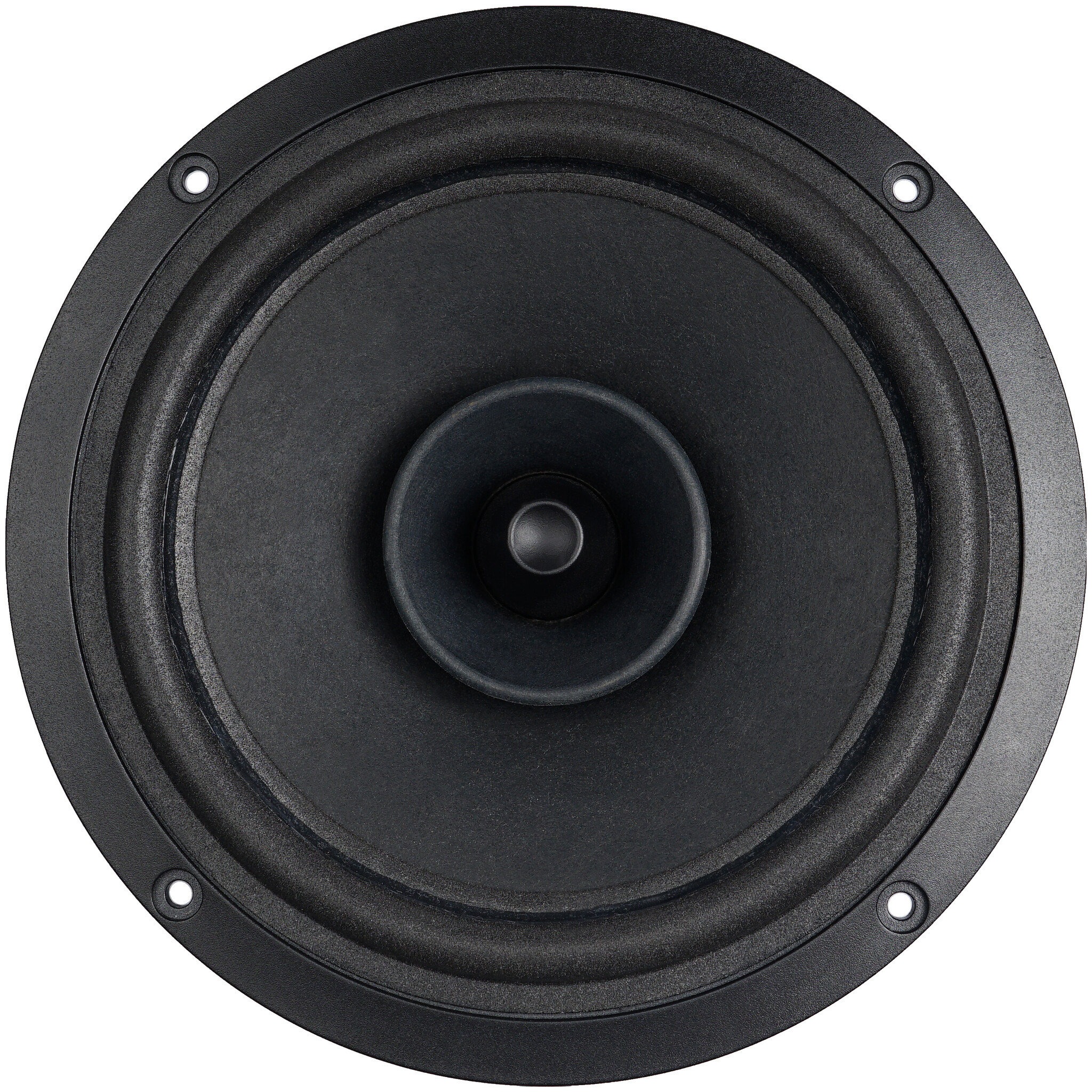

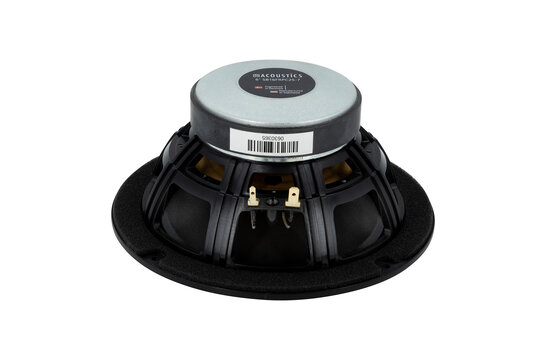

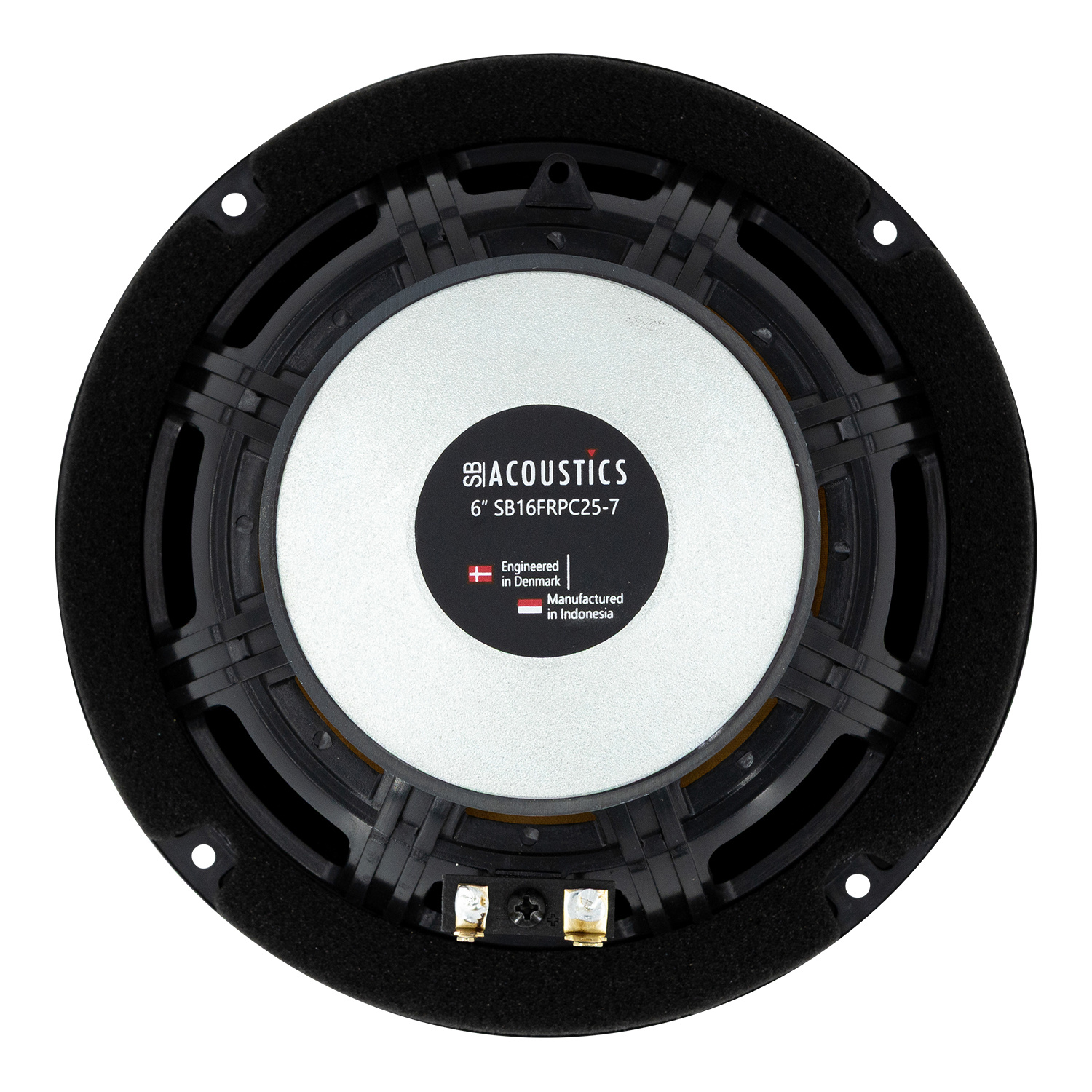

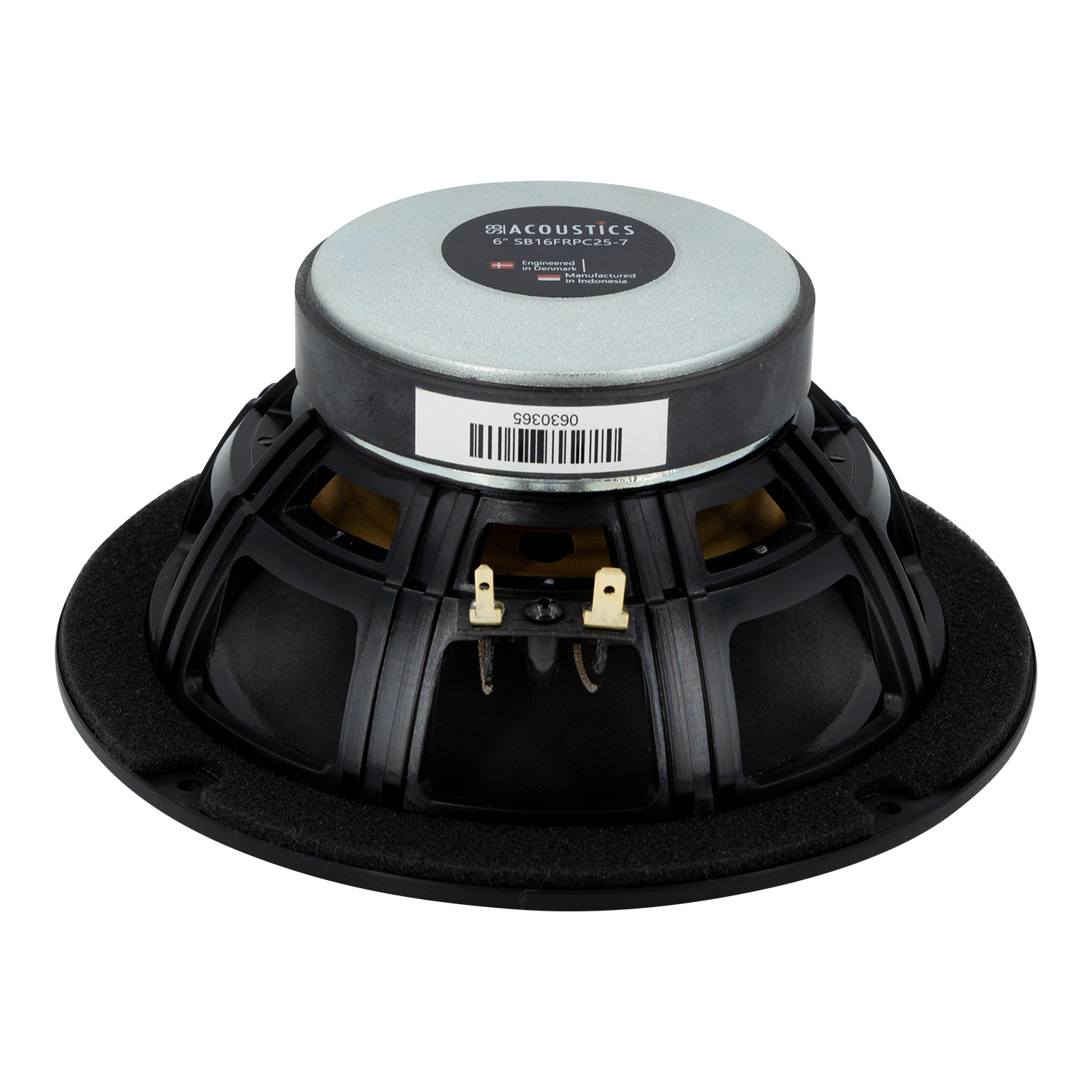

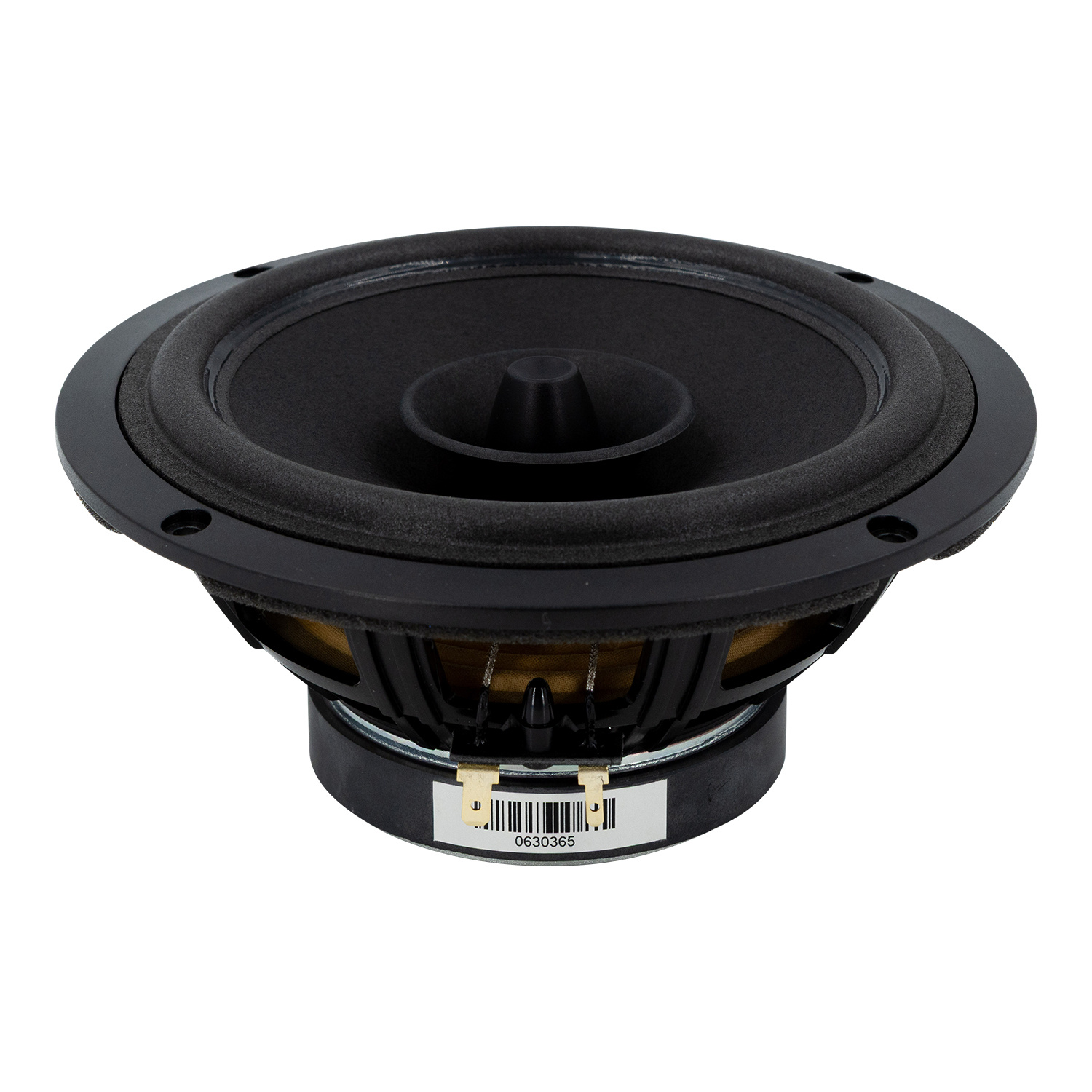

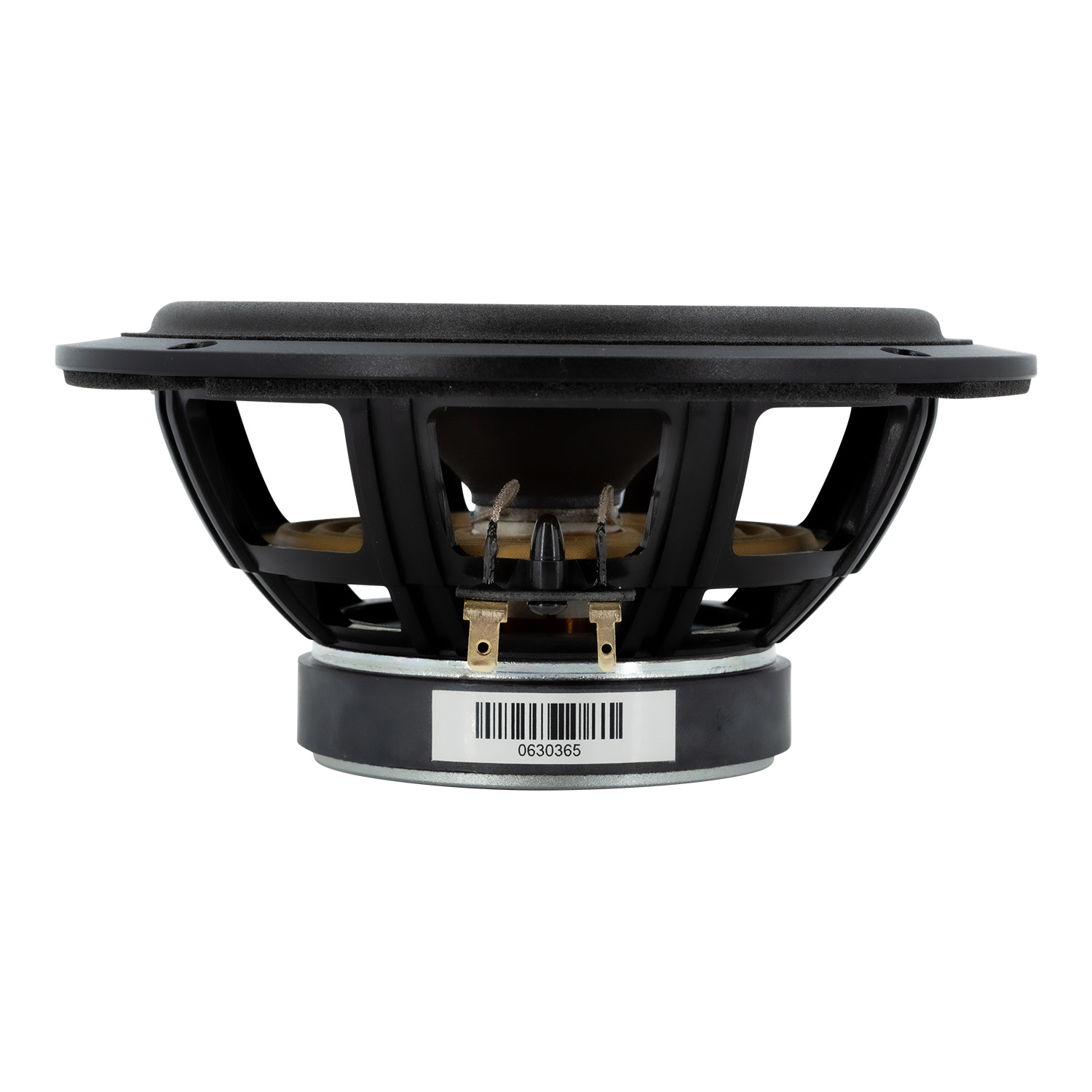

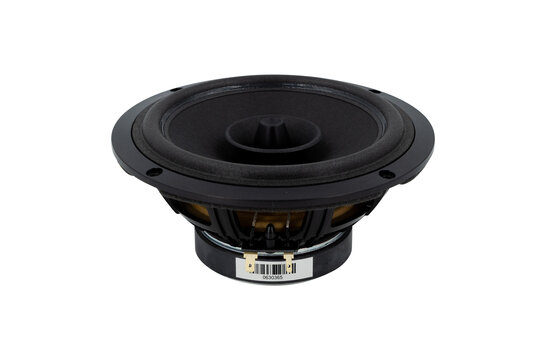

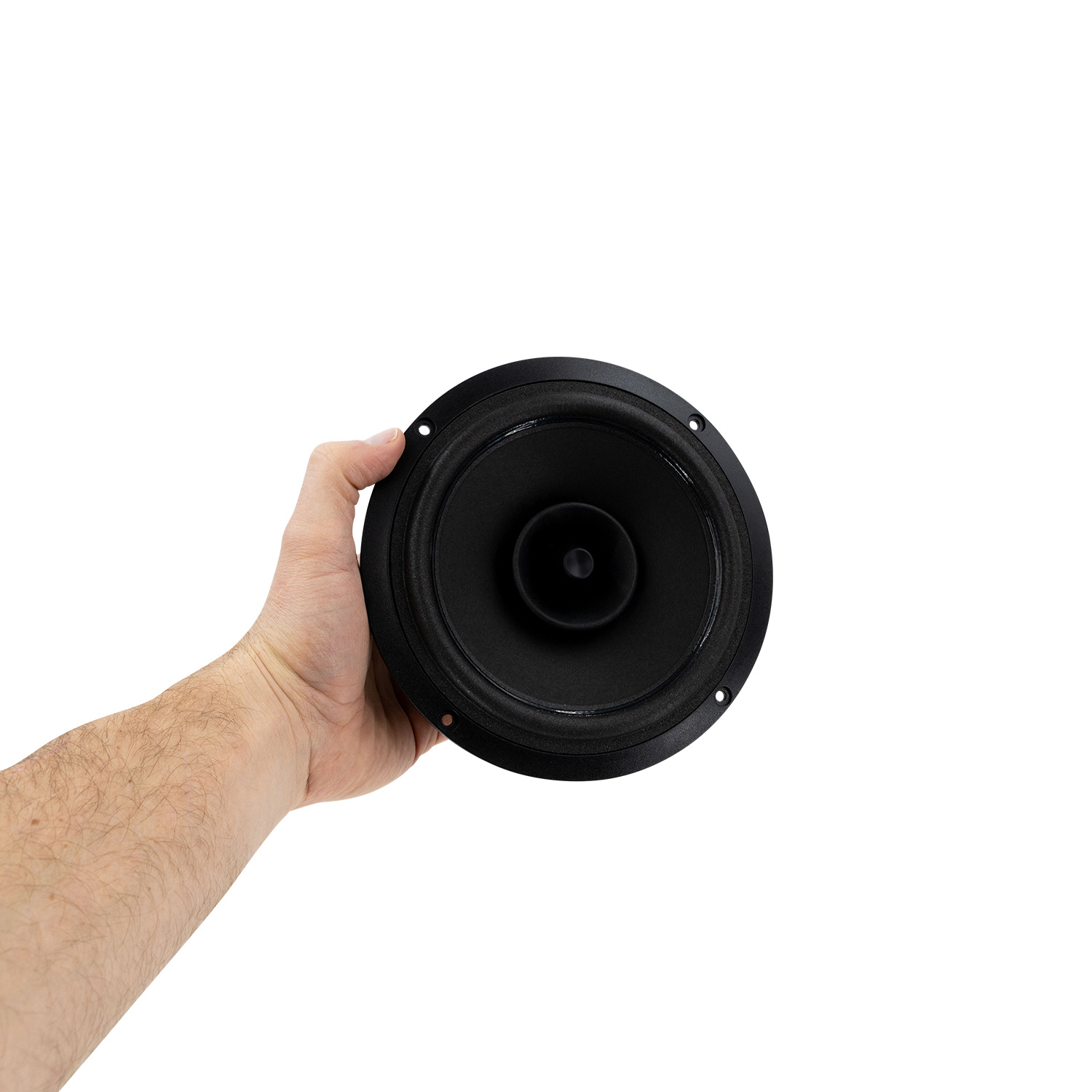

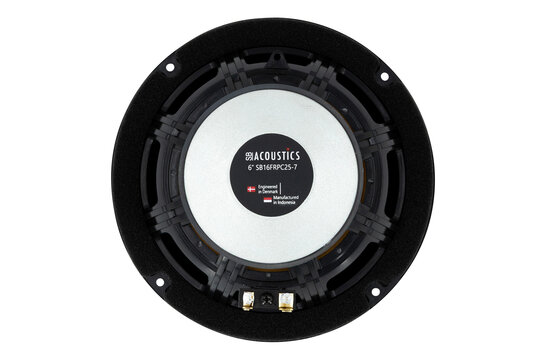

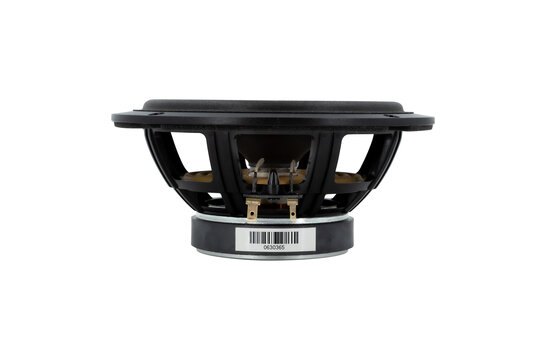

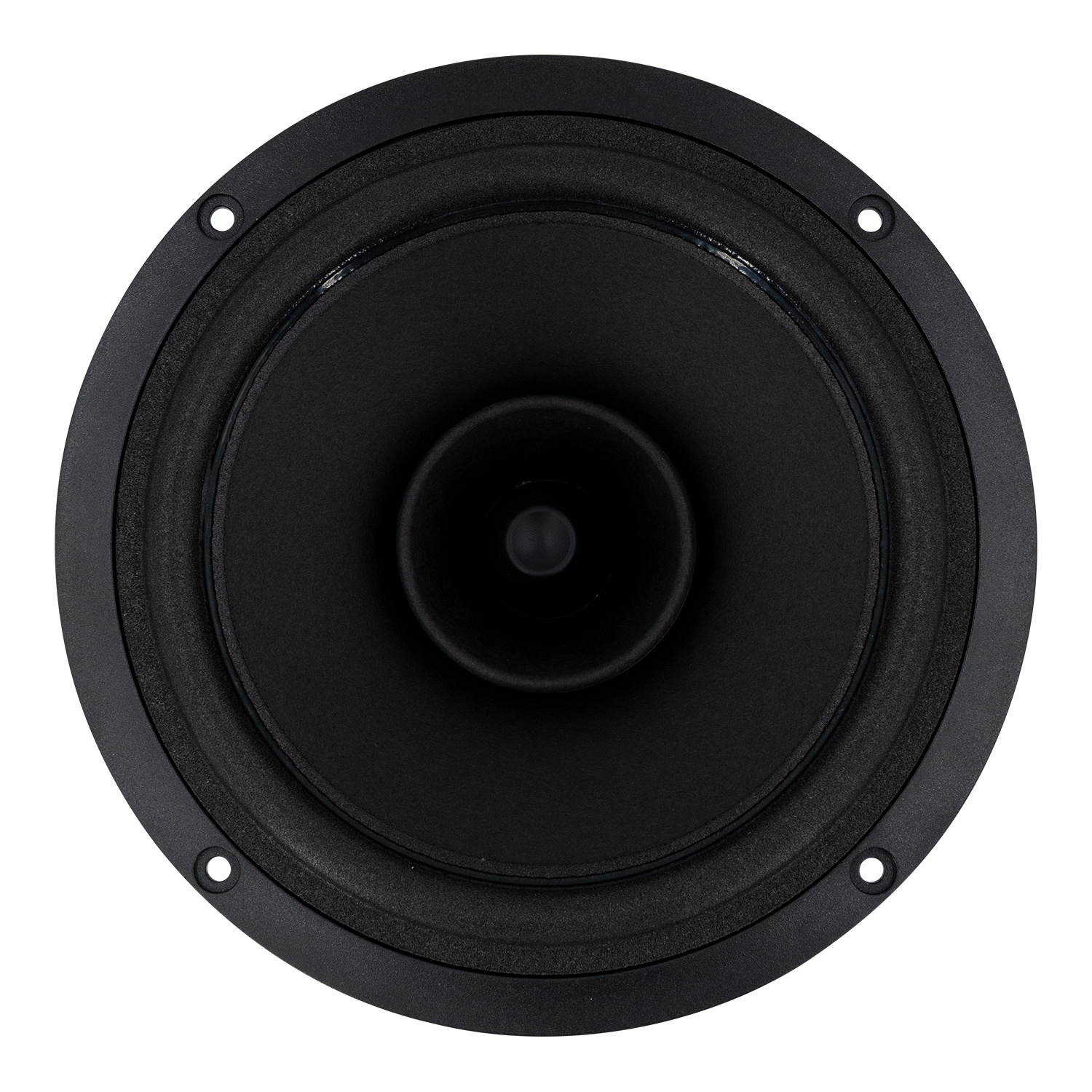

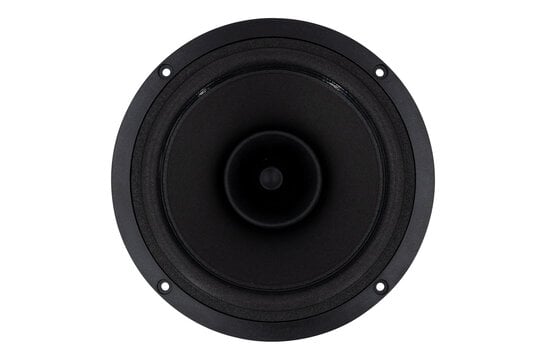

        SB16FRPC25-7 Full-range Woofer

        SB Acoustics SB16FRPC25-7 Full-range Woofer

        €36,45

        Niet op voorraad

        Toevoegen aan winkelwagen

        SB Acoustics SB16FRPC25-7 Full-range Woofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: SB Acoustics
        Toon alle Full-range woofer
        6" | 7 Ω
        SB16FRPC25-7 Full-range Woofer
        SB16FRPC25-7 Full-range Woofer
        SB16FRPC25-7 Full-range Woofer
        SB16FRPC25-7 Full-range Woofer
        € 30,12€ 36,45 Niet op voorraad
        • -5% Bestel 4 voor slechts € 34,63 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Snel weer op voorraad
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        SB16FRPC25-7 Full-range Woofer
        SB16FRPC25-7 Full-range Woofer
        SB16FRPC25-7 Full-range Woofer
        SB16FRPC25-7 Full-range Woofer

        Voor- en nadelen

        Volgens onze specialisten
        • Optimized whizzer cone for smooth high frequency extension

        Productomschrijving SB Acoustics SB16FRPC25-7 Full-range Woofer

        The SB Acoustics SB16FRPC25-7 is a 6" full-range loudspeaker designed for articulate sound reproduction and extended bandwidth. With a proprietary natural-fiber cone, optimized motor structure, and detailed high-frequency control via whizzer cone and phase plug, this driver is ideal for high-fidelity single-driver systems and compact enclosures.



        Highlights of the SB Acoustics SB16FRPC25-7

        • Proprietary natural fiber cone ensures neutral tonality and low coloration
        • Optimized whizzer cone and phase plug provide smooth high-frequency extension
        • Vented spider and non-conductive coil former enhance thermal and mechanical stability
        • High sensitivity of 91 dB and low Fs of 44 Hz for extended low-end response



        Product details SB Acoustics SB16FRPC25-7

        SB Acoustics SB16FRPC25-7 Full-Range Driver



        The SB16FRPC25-7 from SB Acoustics is a 6-inch full-range driver featuring a proprietary natural-fiber cone, developed in-house to balance stiffness and damping for natural, clean midrange reproduction. The addition of a lightweight foam surround and an optimized whizzer cone enables extended high-frequency response, while the centrally placed phase plug ensures controlled radiation and improved dispersion.



        The driver’s motor system includes an extended copper sleeve on the pole piece and a vented spider for better cooling and lower distortion. With a 7-ohm nominal impedance, 91 dB sensitivity, and a resonant frequency of 44 Hz, the SB16FRPC25-7 supports broad application in both sealed and vented compact enclosures. Rated at 30 watts IEC power handling, it features a 25.4 mm voice coil on a non-conductive former and achieves a linear excursion of 6.1 mm peak-to-peak. Ideal for audiophile-grade full-range systems, line arrays, or wideband midrange applications in multi-way designs.

        Toon meer

        Specificaties

        Artikelnummer
        SB16FRPC25-7
        EAN
        9506766338865
        Woofer type
        Full-range woofer
        Nominale diameter
        6 "
        Belastbaarheid (RMS)
        30 Watts
        Impedantie (Z)
        7 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        91 dB
        Spreekspoeldiameter
        25.4 mm
        Gelijkstroomweerstand (Re)
        5.2 Ω
        Spreekspoelinductie (Le)
        0.22 mH
        Resonantiefrequentie (Fs)
        44 Hz
        Mechanische Q (Qms)
        9.0
        Elektrische Q (Qes)
        0.48
        Totale Q (Qts)
        0.46
        Bewegende massa (Mms)
        9.8 g
        Compliantie van de ophanging (Cms)
        1.33 mm/N
        Effectief oppervlak (Sd)
        128 cm²
        Krachtsfactor (BL)
        5.4 Tm
        Equivalentvolume (Vas)
        31 Liters
        Maximale excursie (Xmax)
        6.1 mm
        Driver's Mechanical Losses (Rms)
        0.3 kg/s
        Totale buitendiameter
        176 mm
        Totale diepte
        84.3 mm
        Montagegatdiameter
        144.5 mm
        Bolt Circle Diameter
        165 mm
        # Bevestigingsgaten
        4
        Diameter bevestigingsgaten
        4.3 mm

        Toon meer
