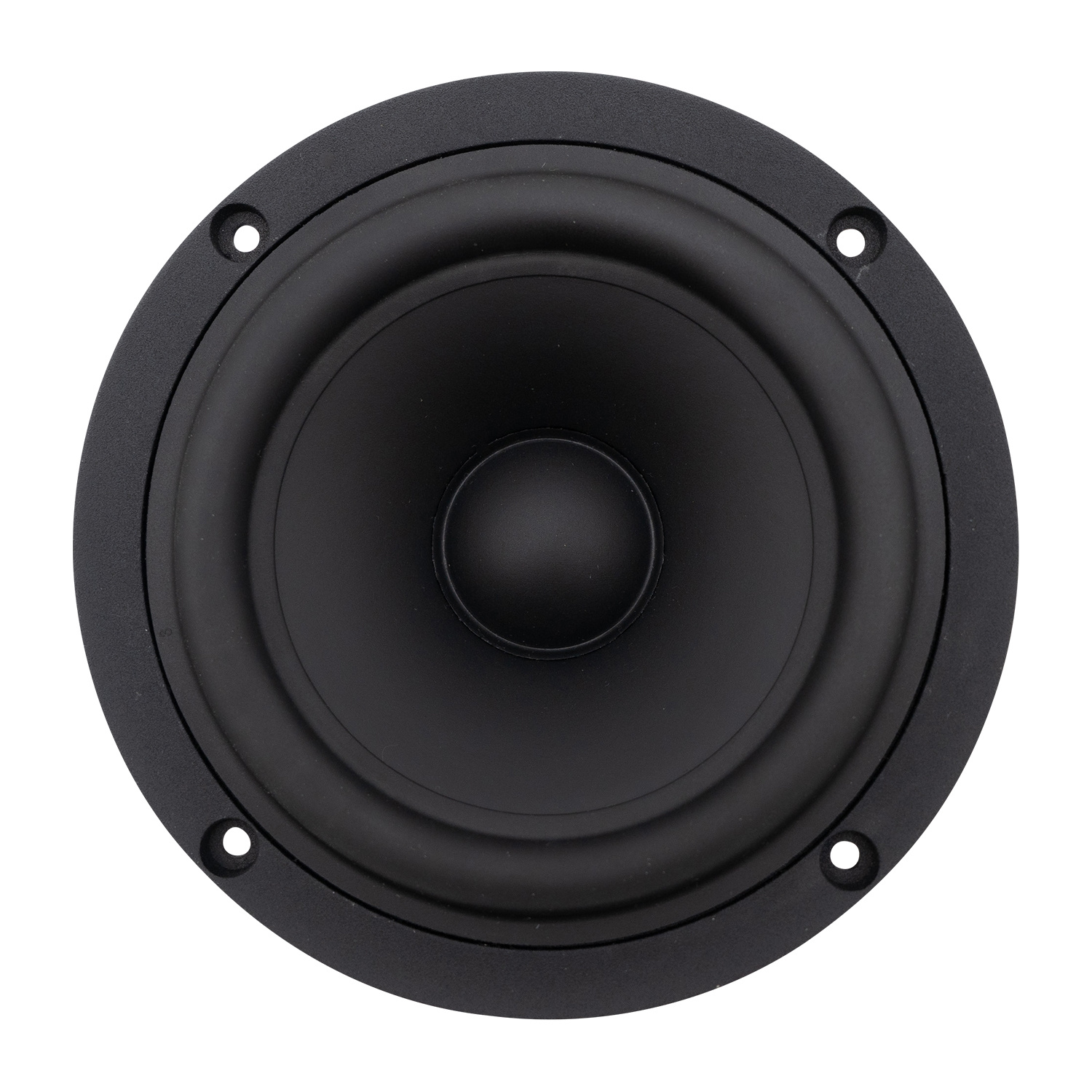

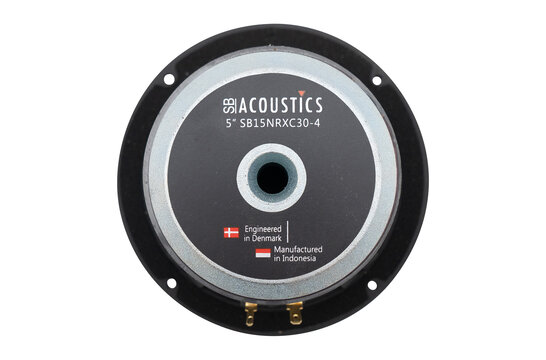

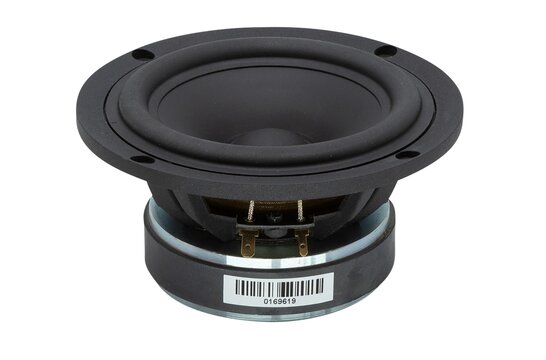

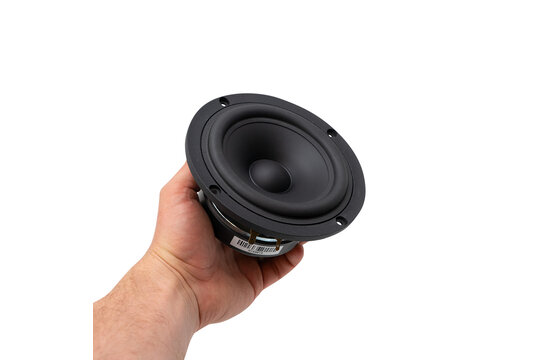

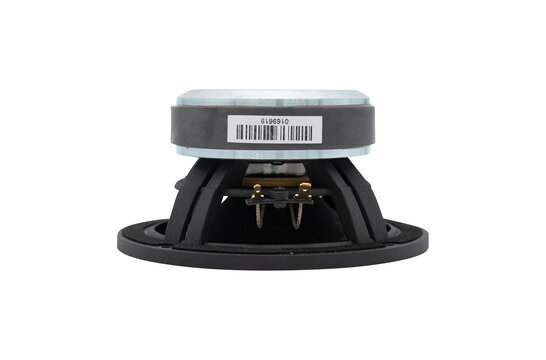

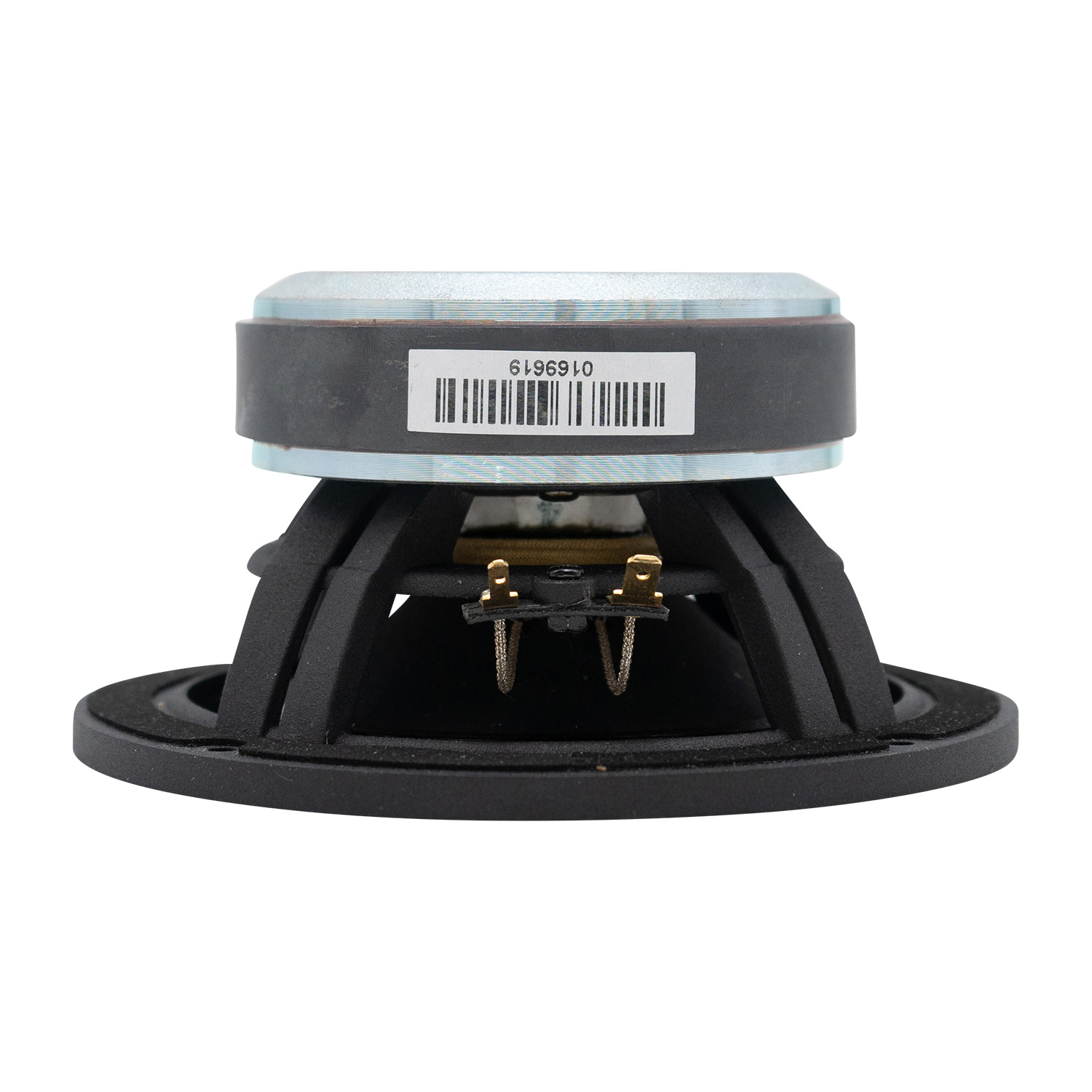

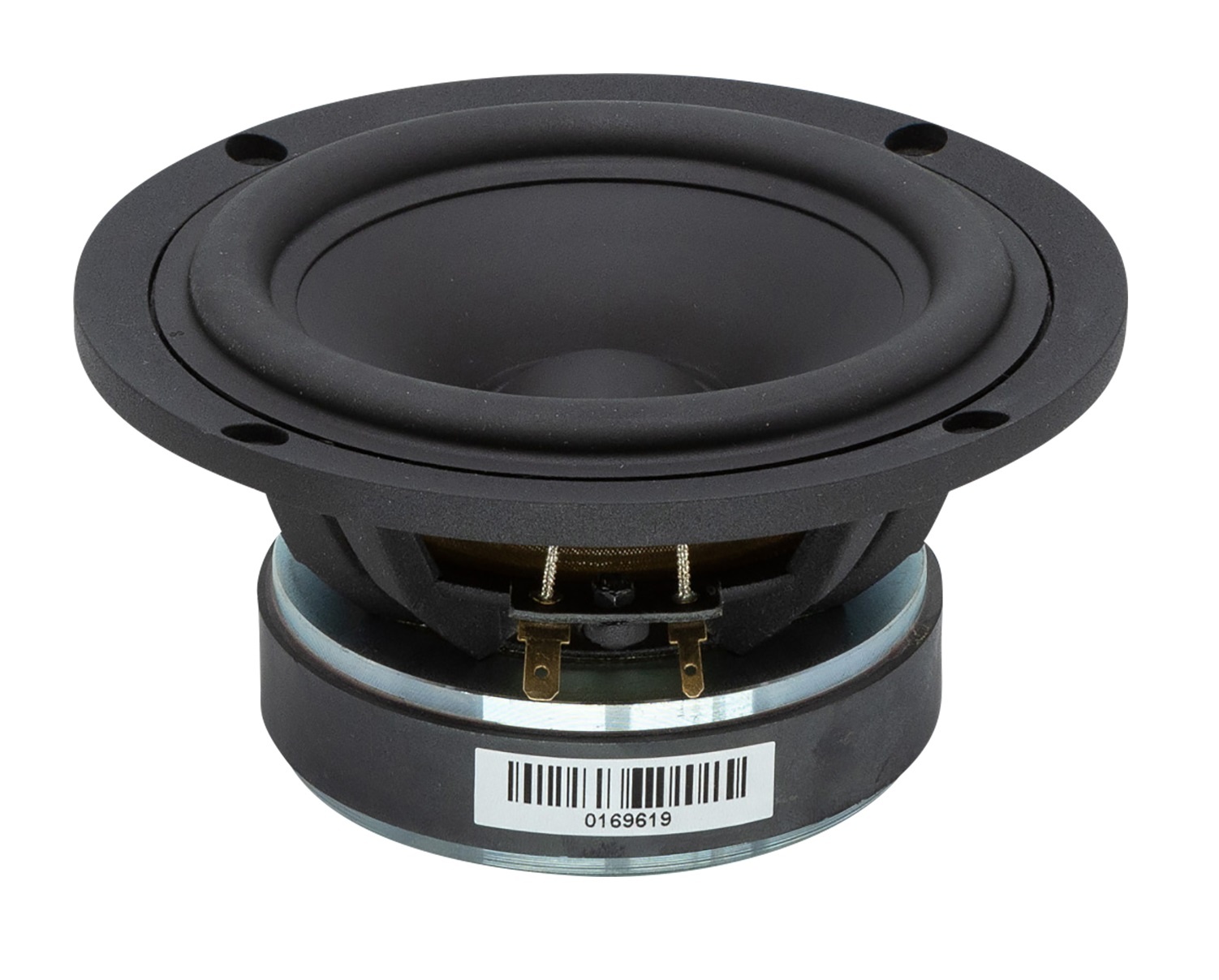

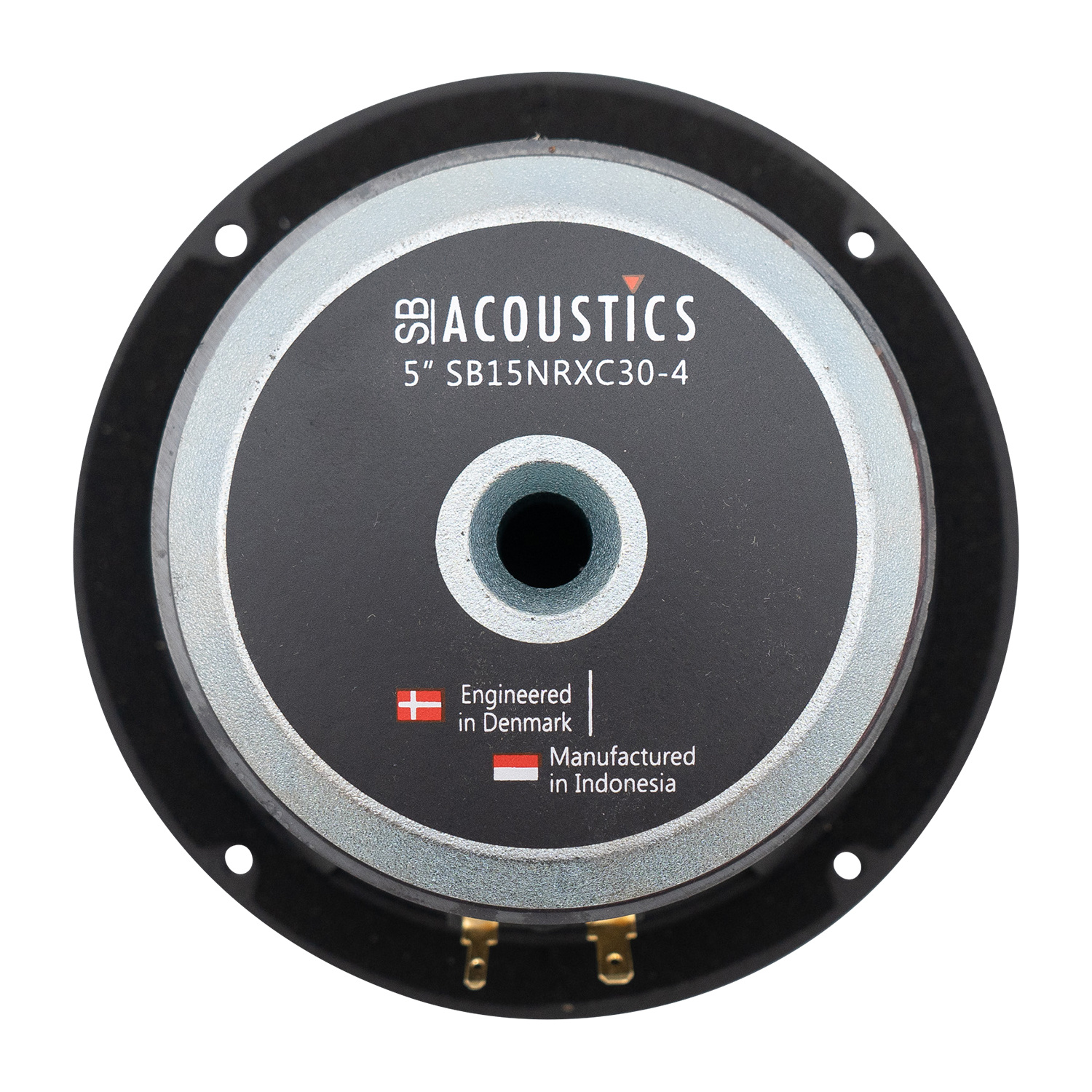

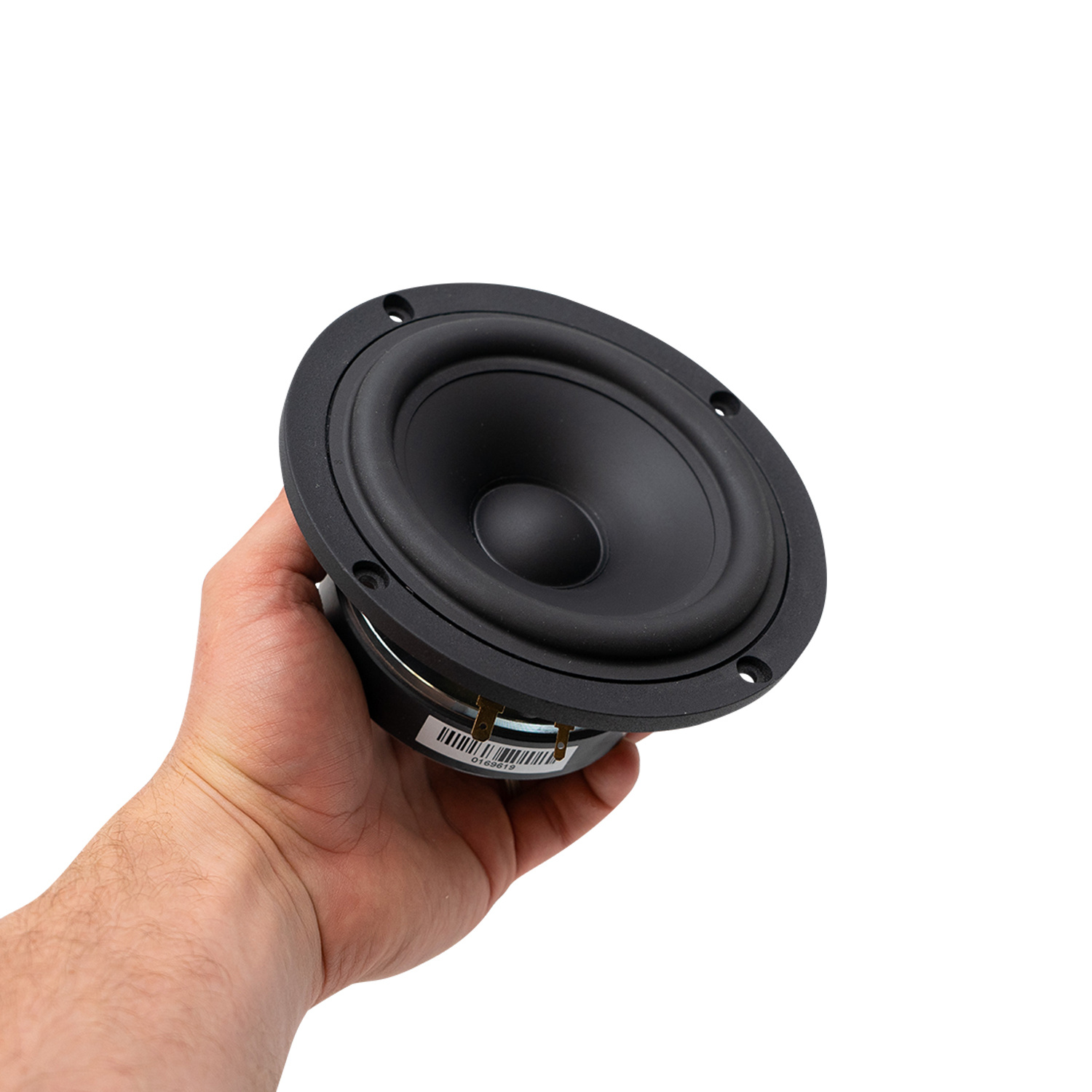

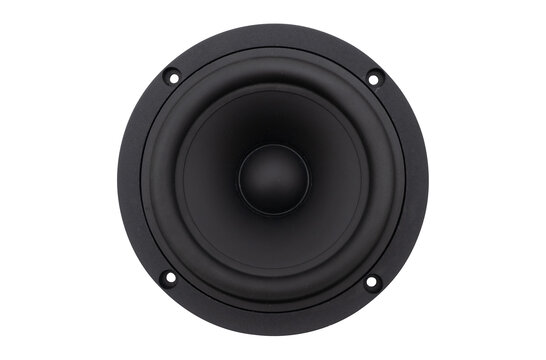

    SB Acoustics SB15NRXC30-4 5" Midrange Woofer

    € 54,95 2 Op voorraad: levertijd 1 werkdag
    The goal of SB Acoustics with their NRX series of performance drivers has been to design a simple, yet optimized speaker driver at a competitive price to achieve a high performance to cost ratio for their customers who appreciate premium quality audio.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €52,20 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    Highlights

    • Vented cast aluminum chassis for optimum strength and low compression
    • Proprietary cone material with natural fibers made in-house
    • Soft low damping rubber surround for improved transient response
    • Non-conducting fiberglass voice coil former for minimum damping
    • Extended copper sleeve on pole piece for low inductance and low distortion
    • CCAW voice coil for reduced moving mass
    • Long life silver lead wires
    • Vented pole piece for reduced compression



    Product details

    SB Acoustics SB15NRXC30-4 5" Midrange Woofer



    Vented cast aluminum chassis for optimum strength and low compression. Proprietary cone material with natural fibers made in-house of papyrus with an optional thin polyurethane protection coating. Soft low damping rubber surround for improved transient response. Non-conducting fiber glass voice coil former for minimum damping. Extended copper sleeve on pole piece for low inductance and low distortion. CCAW voice coil for reduced moving mass. Long life silver lead wires. Vented pole piece for reduced compression.



    The goal of SB Acoustics with their NRX series of performance drivers has been to design a simple, yet optimized speaker driver at a competitive price to achieve a high performance to cost ratio for their customers who appreciate premium quality audio.

    Specificaties

    Artikelnummer
    SB15NRXC30-4
    Woofer Series
    NRX Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    5"
    Power Handling (RMS)
    50 Watts
    Impedance
    4 ohms
    Sensitivity
    91 dB 2.83V/1m
    Voice Coil Diameter
    1.2"
    DC Resistance (Re)
    3.1 ohms
    Voice Coil Inductance (Le)
    0.12 mH
    Resonant Frequency (Fs)
    41 Hz
    Mechanical Q (Qms)
    5.3
    Electromagnetic Q (Qes)
    0.31
    Total Q (Qts)
    0.29
    Diaphragm Mass Inc. Airload (Mms)
    8.6 g
    Mechanical Compliance of Suspension (Cms)
    1.75 mm/N
    Surface Area of Cone (Sd)
    82 cm2
    BL Product (BL)
    4.7 Tm
    Compliance Equivalent Volume (Vas)
    0.58 ft.³
    Maximum Linear Excursion (Xmax)
    5 mm
